XZB70L-ZEMSYR (2017)
Toyota Coaster

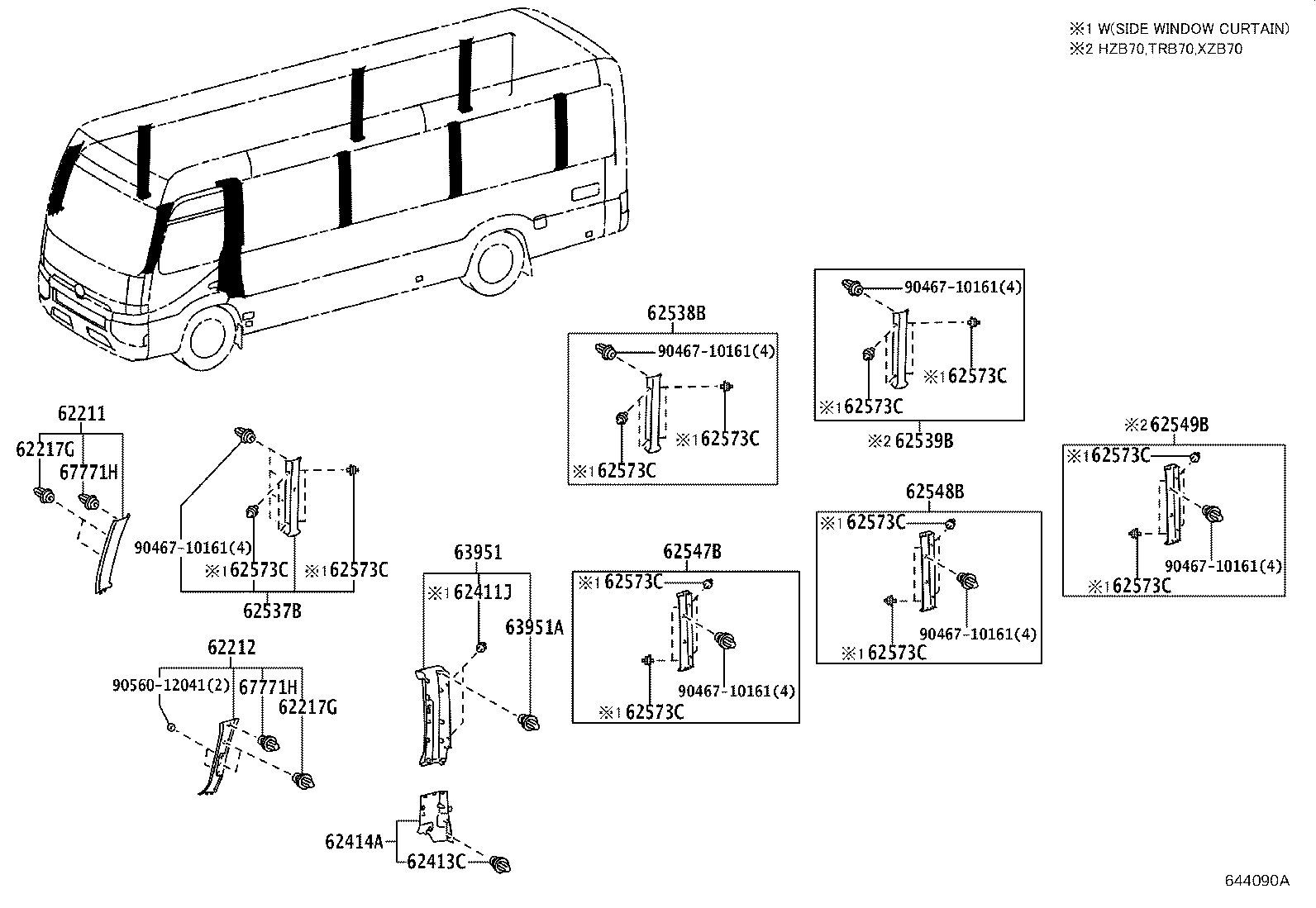

ILLUST NO. 1 OF 5(1701- )LHD
PILLAR GARNISH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62211 - GARNISH, FRONT PILLAR, RH | ||||
| 62210-36250B0 |
HZB60,70,TRB60,70,XZB70..LHD LT.GRAY,TRIM1# |
1 | ||
| 62212 - GARNISH, FRONT PILLAR, LH | ||||
| 62220-36120B0 |
HZB60,70,TRB60,70,XZB70..LHD LT.GRAY,TRIM1# |
1 | ||
| 62217G - CLIP, FRONT PILLAR GARNISH | ||||
| 90467-10161 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
4 | ||
| 62217G - CLIP, FRONT PILLAR GARNISH | ||||
| 90467-10161 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
4 | ||
| 62413C - CLIP (FOR CENTER LOWER GARNISH) | ||||
| 90467-10161 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
4 | ||
| 62414A - GARNISH, CENTER PILLAR, LOWER LH | ||||
| 62414-36030B0 |
HZB60,70,TRB60,70,XZB70..LHD LT.GRAY,TRIM1# |
1 | ||
| 62537B - GARNISH, PILLAR NO.3, RH | ||||
| 62538-36140B0 |
HZB60,70,TRB60,70,XZB70..LHD LT.GRAY,TRIM1# |
1 | ||
| 62538B - GARNISH, PILLAR NO.4, RH | ||||
| 62538-36120B0 |
BZB60,HZB60,70,TRB60,70,XZB60,70,80..(01S,02S,17S,20S,23S,24S,25S,26S,29S,30S)..(5F,6FC)..(GEN,SA,TAIW) LT.GRAY,TRIM1# |
1 | ||
| 62539B - GARNISH, PILLAR NO.5, RH | ||||
| 62538-36120B0 |
XZB70..6FC..ARL;HZB70,TRB70,XZB70,80..(01S,02S,19S,20S,23S,24S,25S,29S,30S)..(5F,6FC) LT.GRAY,TRIM1# |
1 | ||
| 62547B - GARNISH, PILLAR NO.3, LH | ||||
| 62538-36120B0 |
XZB60..GEN;HZB60,70..LHD;XZB70..LHD..29S;BZB60,TRB60,70,XZB70,80..(01S,02S,17S,19S,20S,23S,24S,25S,26S,30S)..(5F,6FC)..(GCC,GEN,TAIW) LT.GRAY,TRIM1# |
1 | ||
| 62548B - GARNISH, PILLAR NO.4, LH | ||||
| 62538-36120B0 |
BZB60,HZB60,70,TRB60,70,XZB60,70,80..(01S,02S,17S,20S,23S,24S,25S,26S,29S,30S)..(5F,6FC)..(GEN,SA,TAIW) LT.GRAY,TRIM1# |
1 | ||
| 62549B - GARNISH, PILLAR NO.5, LH | ||||
| 62538-36120B0 |
XZB70..6FC..ARL;HZB70,TRB70,XZB70,80..(01S,02S,19S,20S,23S,24S,25S,29S,30S)..(5F,6FC) LT.GRAY,TRIM1# |
1 | ||
| 63951 - COVER, COOLER PIPE | ||||
| 63951-36250B0 |
HZB60,70,TRB60,70,XZB70..LHD..WC LT.GRAY,TRIM1# |
1 | ||
| 63951A - CLIP(FOR COOLER PIPE COVER) NO.1 | ||||
| 90467-10161 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
9 | ||
| 67771H - RETAINER, DOOR TRIM | ||||
| 90467-10188 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
2 | ||
| 67771H - RETAINER, DOOR TRIM | ||||
| 90467-10188 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
2 | ||
| Common parts | ||||
| 90467-10161 | ||||
| 90560-12041 | ||||

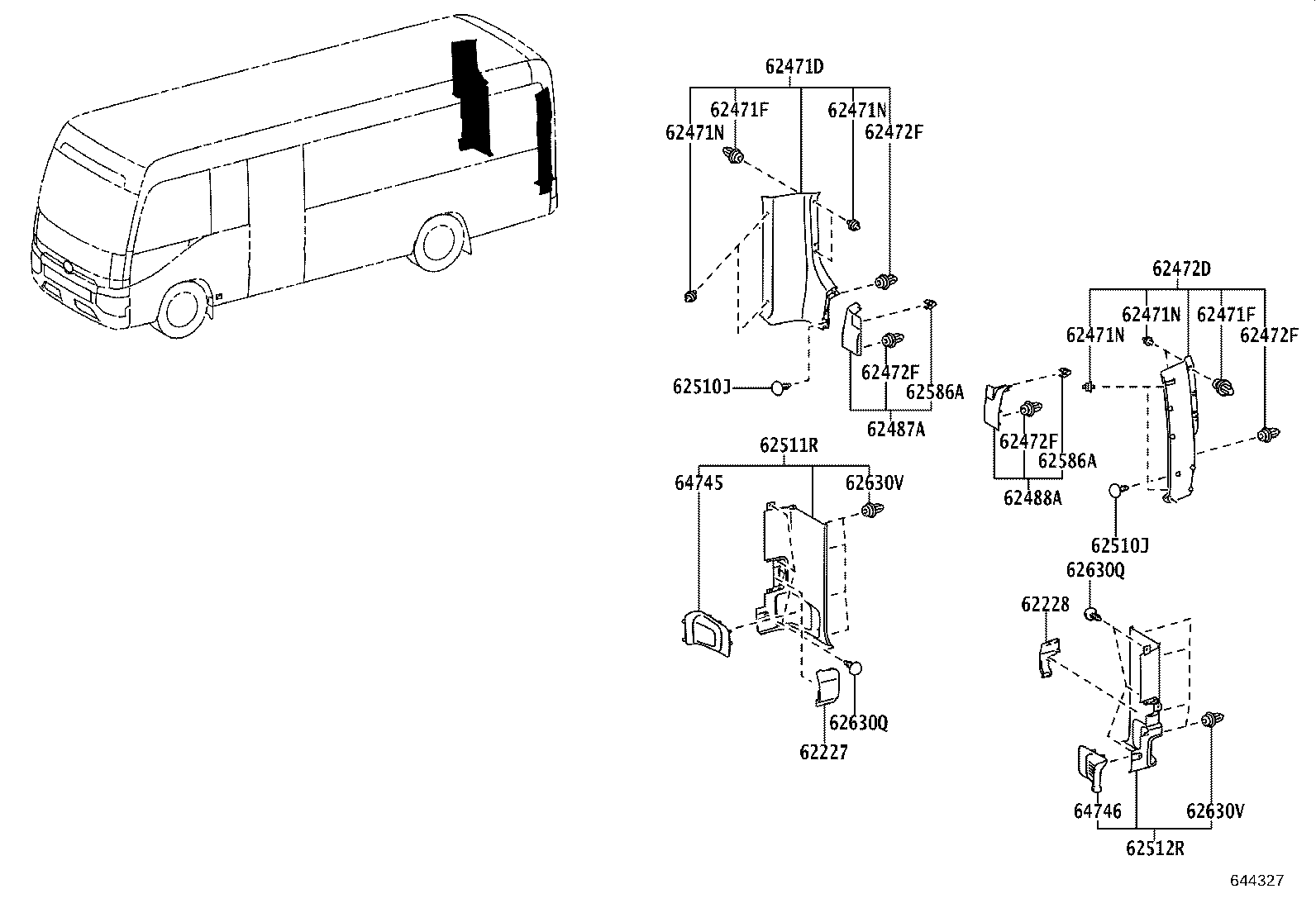

ILLUST NO. 5 OF 5(1701- )
REAR GARNISH(LUGGAGE DOOR)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62227 - COVER, QUARTER PILLAR, LOWER, RH | ||||
| 64163-36010B0 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(01S,02S,17S,20S,22S,23S,24S,26S,29S,30S)..(5F,6FC)..(GCC,GEN,SA,TAIW) LT.GRAY,TRIM1# |
1 | ||
| 62228 - COVER, QUARTER PILLAR, LOWER LH | ||||
| 64164-36010B0 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(01S,02S,17S,20S,22S,23S,24S,26S,29S,30S)..(5F,6FC)..(GCC,GEN,SA,TAIW) LT.GRAY,TRIM1# |
1 | ||
| 62471D - GARNISH, REAR PILLAR, UPPER RH | ||||
| 62471-36260B0 |
XZB70..6FC..ARL;HZB70,XZB70..19S;HZB70,XZB70..(02S,20S,23S,25S,29S,30S)..(5F,6FC)..(GEN,TAIW);BZB60,HZB60,TRB60,70,XZB60,80..(01S,17S,19S,24S,26S,30S)..(5F,6FC) LT.GRAY,TRIM1# |
1 | ||
| 62471F - CLIP (FOR ROOF SIDE, INNER UPPER GARNISH) | ||||
| 90467-10161 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
20 | ||
| 62471F - CLIP (FOR ROOF SIDE, INNER UPPER GARNISH) | ||||
| 90467-10161 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
20 | ||
| 62472D - GARNISH, REAR PILLAR, UPPER LH | ||||
| 62472-36280B0 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(01S,02S,17S,19S,20S,23S,24S,25S,26S,29S,30S)..(5F,6FC) LT.GRAY,TRIM1# |
1 | ||
| 62472F - CLIP(FOR REAR PILLAR GARNISH) | ||||
| 90467-10167 |
XZB70..6FC..ARL;XZB70..(02S,19S,20S,22S,25S)..(5F,6FC)..(GCC,GEN,TAIW);BZB60,HZB70,TRB70,XZB60,80..(01S,17S,19S,25S)..(5F,6FC) |
4 | ||
| 62472F - CLIP(FOR REAR PILLAR GARNISH) | ||||
| 90467-10167 |
XZB70..6FC..ARL;XZB70..(02S,19S,20S,22S,25S)..(5F,6FC)..(GCC,GEN,TAIW);BZB60,HZB70,TRB70,XZB60,80..(01S,17S,19S,25S)..(5F,6FC) |
4 | ||
| 62510J - RETAINER, QUARTER TRIM | ||||
| 67771-26230B6 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) LT.GRAY,TRIM1# |
2 | ||
| 62510J - RETAINER, QUARTER TRIM | ||||
| 67771-26230B6 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) LT.GRAY,TRIM1# |
2 | ||
| 62511R - TRIM, REAR BODY INSIDE, REAR RH | ||||
| 62570-36280B0 |
XZB70..6FC..ARL;BZB60,XZB60,70,80..(01S,02S,17S,20S)..(5F,6FC)..(GEN,TAIW) LT.GRAY,TRIM1# |
1 | ||
| 62512R - TRIM, REAR BODY INSIDE, REAR LH | ||||
| 62580-36070B0 |
XZB70..6FC..ARL;BZB60,XZB60,70,80..(01S,02S,17S,20S)..(5F,6FC)..(GEN,TAIW) LT.GRAY,TRIM1# |
1 | ||
| 62630Q - CLIP (FOR QUARTER TRIM) | ||||
| 67771-26230B6 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) LT.GRAY,TRIM1# |
6 | ||
| 62630Q - CLIP (FOR QUARTER TRIM) | ||||
| 67771-26230B6 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) LT.GRAY,TRIM1# |
6 | ||
| 62630V - CLIP (FOR QUARTER REAR TRIM) | ||||
| 67771-28150 |
HZB70..30S..DX;XZB70..6FC..ARL;HZB70,TRB70,XZB70..19S;HZB70,TRB70,XZB70..DX..GCC;BZB60,HZB70,XZB60,70,80..(01S,02S,17S,20S,22S,23S,25S)..(5F,6FC)..(GEN,SA,TAIW) |
8 | ||
| 62630V - CLIP (FOR QUARTER REAR TRIM) | ||||
| 67771-28150 |
HZB70..30S..DX;XZB70..6FC..ARL;HZB70,TRB70,XZB70..19S;HZB70,TRB70,XZB70..DX..GCC;BZB60,HZB70,XZB60,70,80..(01S,02S,17S,20S,22S,23S,25S)..(5F,6FC)..(GEN,SA,TAIW) |
8 | ||
| 64745 - COVER, REAR COMBINATION LAMP SERVICE, RH | ||||
| 64745-36070B0 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) LT.GRAY,TRIM1# |
1 | ||
| 64746 - COVER, REAR COMBINATION LAMP SERVICE, LH | ||||
| 64746-36100B0 |
XZB70..6FC..ARL;XZB70..(02S,19S,20S,22S,25S)..(5F,6FC)..(GCC,GEN,TAIW);BZB60,HZB70,TRB70,XZB60,80..(01S,17S,19S,25S)..(5F,6FC) LT.GRAY,TRIM1# |
1 | ||

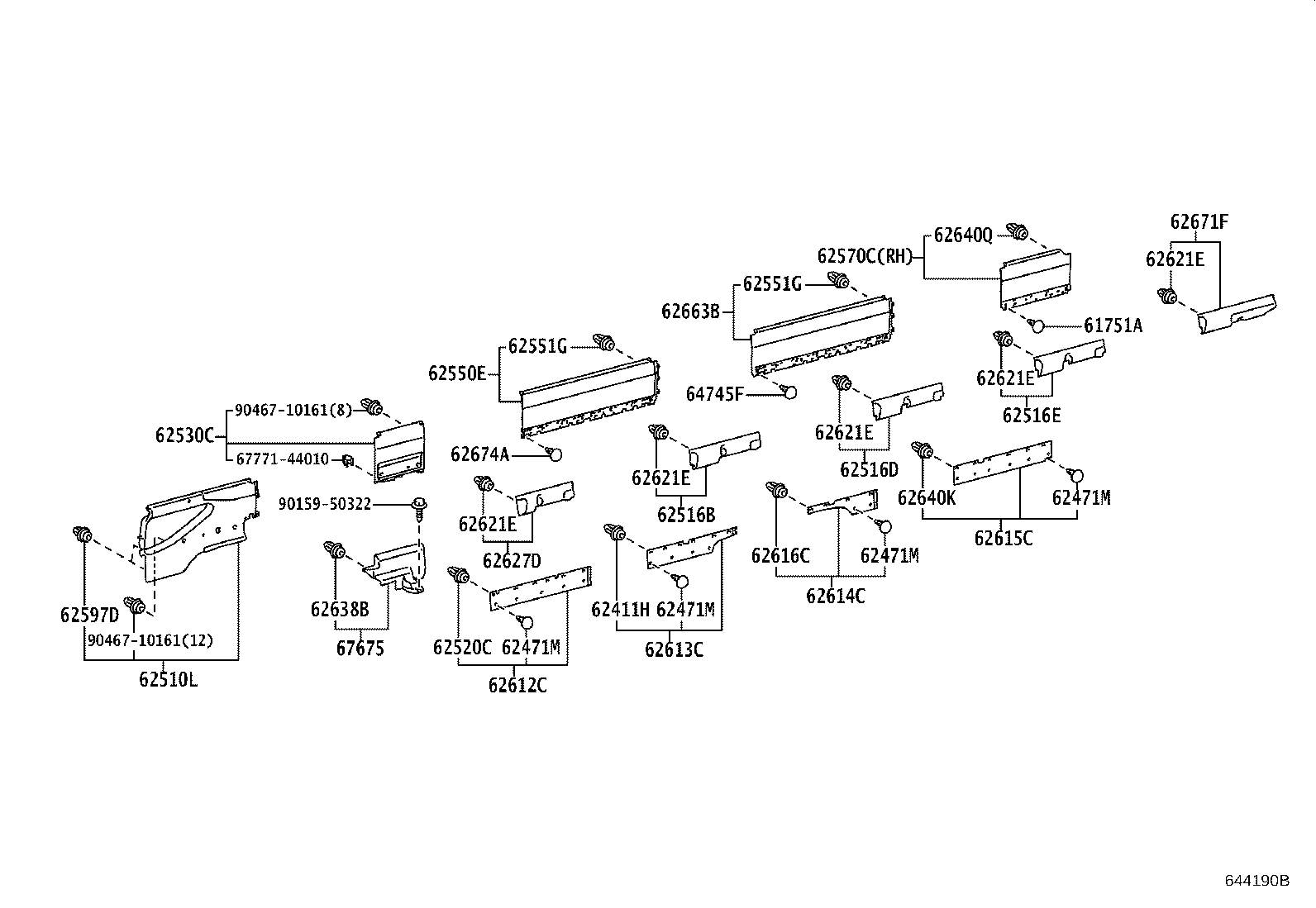

ILLUST NO. 3 OF 5(1701- )TAIW
SIDE GARNISH & TRIM RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61751A - RETAINER, QUARTER TRIM, RH | ||||
| 67771-26230B6 |
XZB70..6FC..ARL;HZB70,TRB70,XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) LT.GRAY,TRIM1# |
6 | ||
| 62411H - CLIP | ||||
| 63395-12150 |
XZB70..TAIW;XZB70..6FC..ARL;HZB60,70,XZB60,70..RHD..(5F,6FC)..(GEN,SA) |
12 | ||
| 62471M - CLIP | ||||
| 90467-08104B4 |
XZB70..6FC..ARL;HZB70,TRB70,XZB70..(02S,20S,22S,23S,24S,29S,30S)..(5F,6FC)..(GCC,GEN,SA,TAIW) MD.GRAY,TRIM1# |
39 | ||
| 62471M - CLIP | ||||
| 90467-08104B4 |
XZB70..6FC..ARL;HZB70,TRB70,XZB70..(02S,20S,22S,23S,24S,29S,30S)..(5F,6FC)..(GCC,GEN,SA,TAIW) MD.GRAY,TRIM1# |
39 | ||
| 62471M - CLIP | ||||
| 90467-08104B4 |
XZB70..6FC..ARL;HZB70,TRB70,XZB70..(02S,20S,22S,23S,24S,29S,30S)..(5F,6FC)..(GCC,GEN,SA,TAIW) MD.GRAY,TRIM1# |
39 | ||
| 62471M - CLIP | ||||
| 90467-08104B4 |
XZB70..6FC..ARL;HZB70,TRB70,XZB70..(02S,20S,22S,23S,24S,29S,30S)..(5F,6FC)..(GCC,GEN,SA,TAIW) MD.GRAY,TRIM1# |
39 | ||
| 62510L - TRIM ASSY, SIDE NO.1 | ||||
| 62510-36480B0 |
HZB60,70,TRB60,70,XZB70..LHD LT.GRAY,TRIM1# |
1 | ||
| 62516B - COVER, SIDE TRIM BASE, NO.2 RH | ||||
| 62516-36100B0 |
XZB70..6FC..ARL;HZB60,70,TRB60,70;XZB70..02S,19S,23S,25S,29S,30S LT.GRAY,TRIM1# |
1 | ||
| 62516D - COVER, SIDE TRIM BASE, NO.3 RH | ||||
| 62516-36100B0 |
XZB70..6FC..ARL;XZB70..(02S,19S,20S,23S,25S,29S,30S)..(5F,6FC);BZB60,HZB60,70,TRB60,70,XZB60..17S,19S,23S,24S,25S,26S,30S LT.GRAY,TRIM1# |
1 | ||
| 62516E - COVER, SIDE TRIM BASE, NO.4 RH | ||||
| 62516-36100B0 |
XZB70..6FC..ARL;BZB60,HZB60,XZB60,70..RHD..(17S,23S,26S);HZB70,TRB70,XZB70..(02S,20S,24S,25S,29S,30S)..(5F,6FC) LT.GRAY,TRIM1# |
1 | ||
| 62520C - CLIP, QUARTER TRIM BOARD, NO.1 | ||||
| 63395-12150 |
XZB70..6FC..ARL;HZB70,TRB70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
13 | ||
| 62530C - TRIM ASSY, SIDE NO.2 | ||||
| 62530-36400B0 |
XZB70..TAIW LT.GRAY,TRIM1# |
1 | ||
| 62550E - TRIM ASSY, SIDE NO.3, RH | ||||
| 62550-36260B0 |
HZB60,70,TRB60,70,XZB70..LHD LT.GRAY,TRIM1# |
1 | ||
| 62551G - CLIP | ||||
| 90467-10161 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
14 | ||
| 62551G - CLIP | ||||
| 90467-10161 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
14 | ||
| 62570C - TRIM ASSY, SIDE NO.4 | ||||
| 62580-36110B0 |
XZB70..6FC..ARL;HZB70,TRB70,XZB70..(02S,20S,23S,24S,29S,30S)..(5F,6FC)..(DX,STD) LT.GRAY,TRIM1#,LH |
1 | ||
| 62570-36230B0 |
XZB70..6FC..ARL;HZB70,TRB70,XZB70..(02S,20S,23S,24S,29S,30S)..(5F,6FC)..(DX,STD) LT.GRAY,TRIM1#,RH |
1 | ||
| 62597D - CLIP | ||||
| 75867-12040 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
2 | ||
| 62612C - BOARD, SIDE TRIM NO.2, RH | ||||
| 62612-36870B0 |
HZB70,TRB70,XZB70..LHD MD.GRAY,TRIM1# |
1 | ||
| 62613C - BOARD, SIDE TRIM NO.3, RH | ||||
| 62613-36440B0 |
XZB70..TAIW;XZB70..6FC..ARL;BZB60,HZB60,70,XZB60,70..RHD..(17S,20S,23S,26S,29S,30S)..(5F,6FC) MD.GRAY,TRIM1# |
1 | ||
| 62614C - BOARD, SIDE TRIM NO.4, RH | ||||
| 62614-36680B1 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) MD.GRAY,TRIM1# |
1 | ||
| 62615C - BOARD, SIDE TRIM NO.5, RH | ||||
| 62615-36B50B1 |
HZB70..30S..DX;XZB70..6FC..ARL;HZB70,TRB70,XZB70..DX..GCC;BZB60,HZB70,XZB60,70..(02S,17S,20S,23S)..(5F,6FC)..(GEN,SA,TAIW) MD.GRAY,TRIM1# |
1 | ||
| 62616C - CLIP | ||||
| 63395-12150 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
8 | ||
| 62621E - CLIP | ||||
| 62217-13010 |
XZB70..6FC..ARL;HZB70,TRB70,XZB70..(02S,19S,22S,23S,24S,25S,29S,30S)..(GCC,GEN,SA,TAIW) |
12 | ||
| 62621E - CLIP | ||||
| 62217-13010 |
XZB70..6FC..ARL;HZB70,TRB70,XZB70..(02S,19S,22S,23S,24S,25S,29S,30S)..(GCC,GEN,SA,TAIW) |
12 | ||
| 62621E - CLIP | ||||
| 62217-13010 |
XZB70..6FC..ARL;HZB70,TRB70,XZB70..(02S,19S,22S,23S,24S,25S,29S,30S)..(GCC,GEN,SA,TAIW) |
12 | ||
| 62621E - CLIP | ||||
| 62217-13010 |
XZB70..6FC..ARL;HZB70,TRB70,XZB70..(02S,19S,22S,23S,24S,25S,29S,30S)..(GCC,GEN,SA,TAIW) |
12 | ||
| 62621E - CLIP | ||||
| 62217-13010 |
XZB70..6FC..ARL;HZB70,TRB70,XZB70..(02S,19S,22S,23S,24S,25S,29S,30S)..(GCC,GEN,SA,TAIW) |
12 | ||
| 62627D - COVER, SIDE TRIM, RH | ||||
| 62628-36040B0 |
HZB60,70,TRB60,70,XZB70..LHD LT.GRAY,TRIM1# |
1 | ||
| 62638B - CLIP | ||||
| 90467-10161 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
3 | ||
| 62640K - CLIP(FOR QUARTER TRIM REAR PANEL) | ||||
| 63395-12150 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(02S,17S,20S,22S,23S,24S,26S,29S,30S)..(5F,6FC)..(GCC,GEN,SA,TAIW) |
12 | ||
| 62640Q - CLIP (FOR QUARTER TRIM REAR PANEL) | ||||
| 90467-10161 |
XZB70..6FC..ARL;HZB70,TRB70,XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) |
6 | ||
| 62663B - TRIM, SIDE BOARD, NO.3 | ||||
| 62550-36310B0 |
HZB70,TRB70,XZB70..LHD LT.GRAY,TRIM1# |
1 | ||
| 62671F - COVER, SIDE TRIM BOARD, NO.1 RH | ||||
| 62517-36170B0 |
HZB60,70,TRB60,70,XZB70..(02S,24S,26S,29S,30S)..STD LT.GRAY,TRIM1# |
1 | ||
| 62674A - RETAINER, QUARTER TRIM SET | ||||
| 67771-26230B6 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) LT.GRAY,TRIM1# |
8 | ||
| 64745F - RETAINER, DOOR TRIM | ||||
| 67771-26230B6 |
XZB70..LHD..STD;HZB70,TRB70..LHD;XZB70..(20S,23S)..5F..(DX,EX)..(GCC,GEN) LT.GRAY,TRIM1# |
26 | ||
| 67675 - COVER, SIDE TRIM BOARD, FRONT RH | ||||
| 67675-36070B0 |
HZB60,70,TRB60,70,XZB70..LHD MD.GRAY,TRIM1# |
1 | ||
| 67675-36060B1 |
BB60,HZB70,TRB60,70,XZB60,70..LHD MD.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 67771-44010 | ||||
| 90159-50322 | ||||
| 90467-10161 | ||||

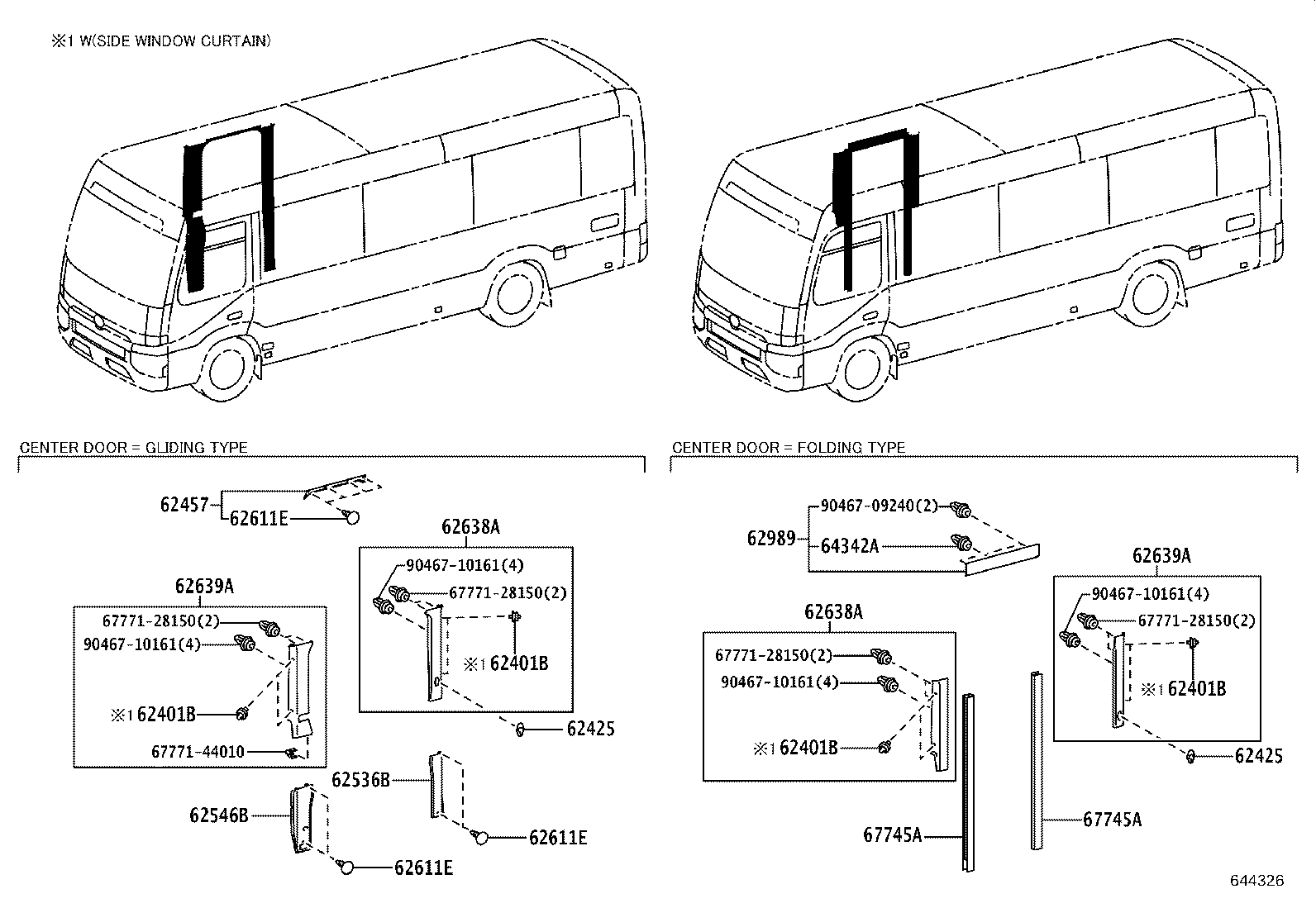

ILLUST NO. 2 OF 5(1701- )LHD
CENTER DOOR GARNISH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62425 - COVER, CENTER PILLAR GARNISH | ||||
| 62421-36060B0 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) LT.GRAY,TRIM1# |
1 | ||
| 62425 - COVER, CENTER PILLAR GARNISH | ||||
| 62421-36060B0 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) LT.GRAY,TRIM1# |
1 | ||
| 62638A - GARNISH, QUARTER PILLAR, RH | ||||
| 62638-36150B0 |
HZB60,70,TRB60,70,XZB70..LHD LT.GRAY,TRIM1# |
1 | ||
| 62638A - GARNISH, QUARTER PILLAR, RH | ||||
| 62638-36150B0 |
HZB60,70,TRB60,70,XZB70..LHD LT.GRAY,TRIM1# |
1 | ||
| 62639A - GARNISH, QUARTER PILLAR, LH | ||||
| 62639-36070B0 |
HZB60,70,TRB60,70,XZB70..LHD LT.GRAY,TRIM1# |
1 | ||
| 62639A - GARNISH, QUARTER PILLAR, LH | ||||
| 62639-36070B0 |
HZB60,70,TRB60,70,XZB70..LHD LT.GRAY,TRIM1# |
1 | ||
| 62989 - COVER, CENTER DOOR LOCK | ||||
| 62989-36040B0 |
HZB70,TRB60,70,XZB70..GCC,TAIW LT.GRAY,TRIM1# |
1 | ||
| 64342A - CLIP | ||||
| 67771-28150 |
XZB60..GEN;XZB70..6FC..STD..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,TAIW) |
6 | ||
| 67745A - MOULDING, CENTER DOOR TRIM | ||||
| 67745-36100B0 |
XZB60..GEN;XZB70..6FC..STD..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,TAIW) LT.GRAY,TRIM1# |
2 | ||
| 67745A - MOULDING, CENTER DOOR TRIM | ||||
| 67745-36100B0 |
XZB60..GEN;XZB70..6FC..STD..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,TAIW) LT.GRAY,TRIM1# |
2 | ||
| Common parts | ||||
| 67771-28150 | ||||
| 67771-44010 | ||||
| 90467-09240 | ||||
| 90467-10161 | ||||
ILLUST NO. 5 OF 5(1701- )
REAR GARNISH(SWING BACK DOOR)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62227 - COVER, QUARTER PILLAR, LOWER, RH | ||||
| 64163-36010B0 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(01S,02S,17S,20S,22S,23S,24S,26S,29S,30S)..(5F,6FC)..(GCC,GEN,SA,TAIW) LT.GRAY,TRIM1# |
1 | ||
| 62228 - COVER, QUARTER PILLAR, LOWER LH | ||||
| 64164-36010B0 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(01S,02S,17S,20S,22S,23S,24S,26S,29S,30S)..(5F,6FC)..(GCC,GEN,SA,TAIW) LT.GRAY,TRIM1# |
1 | ||
| 62471D - GARNISH, REAR PILLAR, UPPER RH | ||||
| 62471-36260B0 |
XZB70..6FC..ARL;HZB70,XZB70..19S;HZB70,XZB70..(02S,20S,23S,25S,29S,30S)..(5F,6FC)..(GEN,TAIW);BZB60,HZB60,TRB60,70,XZB60,80..(01S,17S,19S,24S,26S,30S)..(5F,6FC) LT.GRAY,TRIM1# |
1 | ||
| 62471F - CLIP (FOR ROOF SIDE, INNER UPPER GARNISH) | ||||
| 90467-10161 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
20 | ||
| 62471F - CLIP (FOR ROOF SIDE, INNER UPPER GARNISH) | ||||
| 90467-10161 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
20 | ||
| 62472D - GARNISH, REAR PILLAR, UPPER LH | ||||
| 62472-36280B0 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(01S,02S,17S,19S,20S,23S,24S,25S,26S,29S,30S)..(5F,6FC) LT.GRAY,TRIM1# |
1 | ||
| 62472F - CLIP(FOR REAR PILLAR GARNISH) | ||||
| 90467-10167 |
XZB70..6FC..ARL;XZB70..(02S,19S,20S,22S,25S)..(5F,6FC)..(GCC,GEN,TAIW);BZB60,HZB70,TRB70,XZB60,80..(01S,17S,19S,25S)..(5F,6FC) |
4 | ||
| 62472F - CLIP(FOR REAR PILLAR GARNISH) | ||||
| 90467-10167 |
XZB70..6FC..ARL;XZB70..(02S,19S,20S,22S,25S)..(5F,6FC)..(GCC,GEN,TAIW);BZB60,HZB70,TRB70,XZB60,80..(01S,17S,19S,25S)..(5F,6FC) |
4 | ||
| 62472F - CLIP(FOR REAR PILLAR GARNISH) | ||||
| 90467-10167 |
XZB70..6FC..ARL;XZB70..(02S,19S,20S,22S,25S)..(5F,6FC)..(GCC,GEN,TAIW);BZB60,HZB70,TRB70,XZB60,80..(01S,17S,19S,25S)..(5F,6FC) |
4 | ||
| 62472F - CLIP(FOR REAR PILLAR GARNISH) | ||||
| 90467-10167 |
XZB70..6FC..ARL;XZB70..(02S,19S,20S,22S,25S)..(5F,6FC)..(GCC,GEN,TAIW);BZB60,HZB70,TRB70,XZB60,80..(01S,17S,19S,25S)..(5F,6FC) |
4 | ||
| 62487A - COVER, ROOF SIDE INNER GARNISH, RH | ||||
| 62487-36030B0 |
XZB70..6FC..ARL;XZB70..(02S,19S,20S,22S,25S)..(5F,6FC)..(GCC,GEN,TAIW);BZB60,HZB70,TRB70,XZB60,80..(01S,17S,19S,25S)..(5F,6FC) LT.GRAY,TRIM1# |
1 | ||
| 62488A - COVER, ROOF SIDE INNER GARNISH, LH | ||||
| 62488-36010B0 |
XZB70..6FC..ARL;XZB70..(02S,19S,20S,22S,25S)..(5F,6FC)..(GCC,GEN,TAIW);BZB60,HZB70,TRB70,XZB60,80..(01S,17S,19S,25S)..(5F,6FC) LT.GRAY,TRIM1# |
1 | ||
| 62510J - RETAINER, QUARTER TRIM | ||||
| 67771-26230B6 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) LT.GRAY,TRIM1# |
2 | ||
| 62510J - RETAINER, QUARTER TRIM | ||||
| 67771-26230B6 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) LT.GRAY,TRIM1# |
2 | ||
| 62511R - TRIM, REAR BODY INSIDE, REAR RH | ||||
| 62570-36280B0 |
XZB70..6FC..ARL;BZB60,XZB60,70,80..(01S,02S,17S,20S)..(5F,6FC)..(GEN,TAIW) LT.GRAY,TRIM1# |
1 | ||
| 62512R - TRIM, REAR BODY INSIDE, REAR LH | ||||
| 62580-36070B0 |
XZB70..6FC..ARL;BZB60,XZB60,70,80..(01S,02S,17S,20S)..(5F,6FC)..(GEN,TAIW) LT.GRAY,TRIM1# |
1 | ||
| 62586A - RETAINER, QUARTER TRIM | ||||
| 67771-44010 |
XZB70..6FC..ARL;XZB70..(02S,19S,20S,22S,25S)..(5F,6FC)..(GCC,GEN,TAIW);BZB60,HZB70,TRB70,XZB60,80..(01S,17S,19S,25S)..(5F,6FC) |
2 | ||
| 67771-26230B6 |
HZB60,70,TRB60,70,XZB70..LHD..(02S,20S,23S,24S,26S,29S,30S) LT.GRAY,TRIM1# |
4 | ||
| 62586A - RETAINER, QUARTER TRIM | ||||
| 67771-44010 |
XZB70..6FC..ARL;XZB70..(02S,19S,20S,22S,25S)..(5F,6FC)..(GCC,GEN,TAIW);BZB60,HZB70,TRB70,XZB60,80..(01S,17S,19S,25S)..(5F,6FC) |
2 | ||
| 67771-26230B6 |
HZB60,70,TRB60,70,XZB70..LHD..(02S,20S,23S,24S,26S,29S,30S) LT.GRAY,TRIM1# |
4 | ||
| 62630Q - CLIP (FOR QUARTER TRIM) | ||||
| 67771-26230B6 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) LT.GRAY,TRIM1# |
6 | ||
| 62630Q - CLIP (FOR QUARTER TRIM) | ||||
| 67771-26230B6 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) LT.GRAY,TRIM1# |
6 | ||
| 62630V - CLIP (FOR QUARTER REAR TRIM) | ||||
| 67771-28150 |
HZB70..30S..DX;XZB70..6FC..ARL;HZB70,TRB70,XZB70..19S;HZB70,TRB70,XZB70..DX..GCC;BZB60,HZB70,XZB60,70,80..(01S,02S,17S,20S,22S,23S,25S)..(5F,6FC)..(GEN,SA,TAIW) |
8 | ||
| 62630V - CLIP (FOR QUARTER REAR TRIM) | ||||
| 67771-28150 |
HZB70..30S..DX;XZB70..6FC..ARL;HZB70,TRB70,XZB70..19S;HZB70,TRB70,XZB70..DX..GCC;BZB60,HZB70,XZB60,70,80..(01S,02S,17S,20S,22S,23S,25S)..(5F,6FC)..(GEN,SA,TAIW) |
8 | ||
| 64745 - COVER, REAR COMBINATION LAMP SERVICE, RH | ||||
| 64745-36070B0 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) LT.GRAY,TRIM1# |
1 | ||
| 64746 - COVER, REAR COMBINATION LAMP SERVICE, LH | ||||
| 64746-36100B0 |
XZB70..6FC..ARL;XZB70..(02S,19S,20S,22S,25S)..(5F,6FC)..(GCC,GEN,TAIW);BZB60,HZB70,TRB70,XZB60,80..(01S,17S,19S,25S)..(5F,6FC) LT.GRAY,TRIM1# |
1 | ||

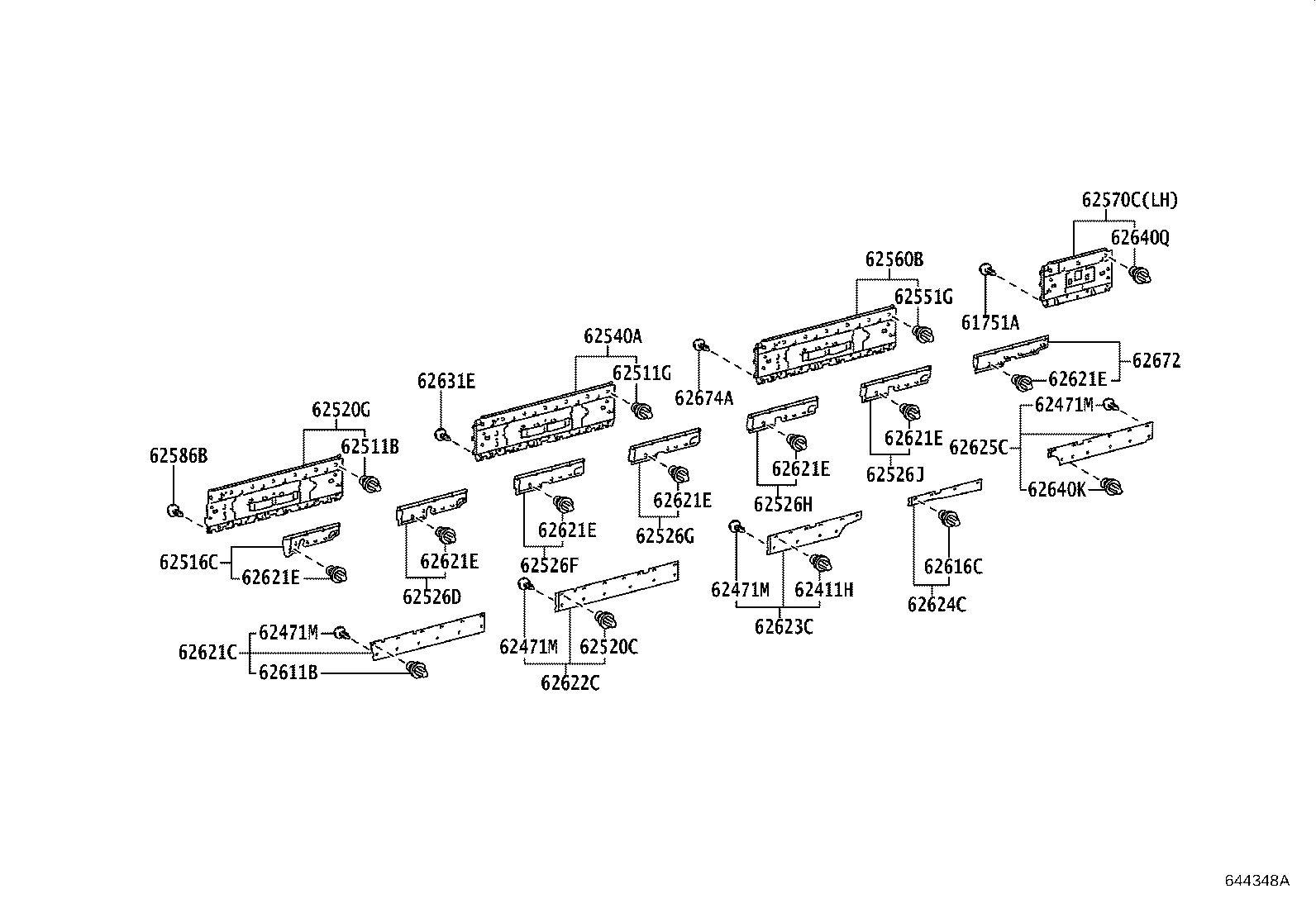

ILLUST NO. 4 OF 5(1701- )TAIW
SIDE GARNISH & TRIM LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61751A - RETAINER, QUARTER TRIM, RH | ||||
| 67771-26230B6 |
XZB70..6FC..ARL;HZB70,TRB70,XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) LT.GRAY,TRIM1# |
6 | ||
| 62411H - CLIP | ||||
| 63395-12150 |
XZB70..TAIW;XZB70..6FC..ARL;HZB60,70,XZB60,70..RHD..(5F,6FC)..(GEN,SA) |
12 | ||
| 62471M - CLIP | ||||
| 90467-08104B4 |
XZB70..6FC..ARL;HZB70,TRB70,XZB70..(02S,20S,22S,23S,24S,29S,30S)..(5F,6FC)..(GCC,GEN,SA,TAIW) MD.GRAY,TRIM1# |
39 | ||
| 62471M - CLIP | ||||
| 90467-08104B4 |
XZB70..6FC..ARL;HZB70,TRB70,XZB70..(02S,20S,22S,23S,24S,29S,30S)..(5F,6FC)..(GCC,GEN,SA,TAIW) MD.GRAY,TRIM1# |
39 | ||
| 62471M - CLIP | ||||
| 90467-08104B4 |
XZB70..6FC..ARL;HZB70,TRB70,XZB70..(02S,20S,22S,23S,24S,29S,30S)..(5F,6FC)..(GCC,GEN,SA,TAIW) MD.GRAY,TRIM1# |
39 | ||
| 62471M - CLIP | ||||
| 90467-08104B4 |
XZB70..6FC..ARL;HZB70,TRB70,XZB70..(02S,20S,22S,23S,24S,29S,30S)..(5F,6FC)..(GCC,GEN,SA,TAIW) MD.GRAY,TRIM1# |
39 | ||
| 62511B - CLIP (FOR QUARTER INSIDE TRIM BOARD) | ||||
| 90467-10161 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
7 | ||
| 62511G - CLIP (FOR QUARTER INSIDE TRIM BOARD) | ||||
| 90467-10161 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
7 | ||
| 62516C - COVER, SIDE TRIM BASE, NO.1 LH | ||||
| 62627-36010B0 |
HZB60,70,TRB60,70,XZB70..LHD..(02S,24S,25S,26S,29S,30S) LT.GRAY,TRIM1# |
1 | ||
| 62520C - CLIP, QUARTER TRIM BOARD, NO.1 | ||||
| 63395-12150 |
XZB70..6FC..ARL;HZB70,TRB70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
13 | ||
| 62520G - TRIM ASSY, SIDE NO.1, LH | ||||
| 62560-36460B0 |
HZB60,70,TRB60,70,XZB70..LHD LT.GRAY,TRIM1# |
1 | ||
| 62526D - COVER, SIDE TRIM BASE, NO.2 LH | ||||
| 62526-36090B0 |
XZB70..SA;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB60,70..(02S,17S,20S,24S,25S,26S,29S,30S)..(5F,6FC)..(GEN,TAIW) LT.GRAY,TRIM1# |
1 | ||
| 62526F - COVER, SIDE TRIM BASE, NO.3 LH | ||||
| 62526-36090B0 |
XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70..(02S,19S,20S,23S,24S,25S,26S,29S,30S)..(5F,6FC) LT.GRAY,TRIM1# |
1 | ||
| 62526G - COVER, SIDE TRIM BASE, NO.4 LH | ||||
| 62526-36090B0 |
XZB70..6FC..ARL;HZB60,TRB60,70..LHD;XZB70..(5F,6FC)..EX;HZB70,XZB70..02S,19S,23S,25S,29S,30S LT.GRAY,TRIM1# |
1 | ||
| 62526H - COVER, SIDE TRIM BASE, NO.5 LH | ||||
| 62526-36090B0 |
HZB60,70,TRB60,70,XZB70..LHD..(02S,19S,23S,24S,25S,26S,29S,30S) LT.GRAY,TRIM1# |
1 | ||
| 62526J - COVER, SIDE TRIM BASE, NO.6 LH | ||||
| 62526-36090B0 |
HZB70,TRB70,XZB70..LHD..(02S,24S,25S,29S,30S) LT.GRAY,TRIM1# |
1 | ||
| 62540A - TRIM ASSY, SIDE NO.2, LH | ||||
| 62550-36310B0 |
HZB60,70,TRB60,70,XZB70..LHD LT.GRAY,TRIM1# |
1 | ||
| 62551G - CLIP | ||||
| 90467-10161 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
14 | ||
| 62560B - TRIM ASSY, SIDE, NO.3 LH | ||||
| 62550-36310B0 |
HZB70,TRB70,XZB70..LHD LT.GRAY,TRIM1# |
1 | ||
| 62570C - TRIM ASSY, SIDE NO.4 | ||||
| 62580-36110B0 |
XZB70..6FC..ARL;HZB70,TRB70,XZB70..(02S,20S,23S,24S,29S,30S)..(5F,6FC)..(DX,STD) LT.GRAY,TRIM1#,LH |
1 | ||
| 62570-36230B0 |
XZB70..6FC..ARL;HZB70,TRB70,XZB70..(02S,20S,23S,24S,29S,30S)..(5F,6FC)..(DX,STD) LT.GRAY,TRIM1#,RH |
1 | ||
| 62586B - RETAINER, QUARTER TRIM, NO.2 | ||||
| 67771-26230B6 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) LT.GRAY,TRIM1# |
4 | ||
| 62611B - CLIP (FOR SIDE TRIM BOARD) | ||||
| 63395-12150 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
6 | ||
| 62616C - CLIP | ||||
| 63395-12150 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
8 | ||
| 62621C - BOARD, SIDE TRIM NO.1, LH | ||||
| 62621-36220B1 |
HZB60,70,TRB60,70,XZB70..LHD MD.GRAY,TRIM1# |
1 | ||
| 62621E - CLIP | ||||
| 62217-13010 |
XZB70..6FC..ARL;HZB70,TRB70,XZB70..(02S,19S,22S,23S,24S,25S,29S,30S)..(GCC,GEN,SA,TAIW) |
12 | ||
| 62621E - CLIP | ||||
| 62217-13010 |
XZB70..6FC..ARL;HZB70,TRB70,XZB70..(02S,19S,22S,23S,24S,25S,29S,30S)..(GCC,GEN,SA,TAIW) |
12 | ||
| 62621E - CLIP | ||||
| 62217-13010 |
XZB70..6FC..ARL;HZB70,TRB70,XZB70..(02S,19S,22S,23S,24S,25S,29S,30S)..(GCC,GEN,SA,TAIW) |
12 | ||
| 62621E - CLIP | ||||
| 62217-13010 |
XZB70..6FC..ARL;HZB70,TRB70,XZB70..(02S,19S,22S,23S,24S,25S,29S,30S)..(GCC,GEN,SA,TAIW) |
12 | ||
| 62621E - CLIP | ||||
| 62217-13010 |
XZB70..6FC..ARL;HZB70,TRB70,XZB70..(02S,19S,22S,23S,24S,25S,29S,30S)..(GCC,GEN,SA,TAIW) |
12 | ||
| 62621E - CLIP | ||||
| 62217-13010 |
XZB70..6FC..ARL;HZB70,TRB70,XZB70..(02S,19S,22S,23S,24S,25S,29S,30S)..(GCC,GEN,SA,TAIW) |
12 | ||
| 62621E - CLIP | ||||
| 62217-13010 |
XZB70..6FC..ARL;HZB70,TRB70,XZB70..(02S,19S,22S,23S,24S,25S,29S,30S)..(GCC,GEN,SA,TAIW) |
12 | ||
| 62622C - BOARD, SIDE TRIM NO.2, LH | ||||
| 62622-36830B1 |
HZB70,TRB70,XZB70..LHD MD.GRAY,TRIM1# |
1 | ||
| 62623C - BOARD, SIDE TRIM NO.3, LH | ||||
| 62623-36790B0 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(02S,17S,19S,20S,23S,24S,25S,26S,29S,30S)..(5F,6FC) MD.GRAY,TRIM1# |
1 | ||
| 62624C - BOARD, SIDE TRIM NO.4, LH | ||||
| 62624-36740B1 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) MD.GRAY,TRIM1# |
1 | ||
| 62625C - BOARD, SIDE TRIM NO.5, LH | ||||
| 62625-36B10B1 |
BZB60,XZB70..02S,17S MD.GRAY,TRIM1# |
1 | ||
| 62631E - RETAINER, QUATER TRIM | ||||
| 67771-26230B6 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) LT.GRAY,TRIM1# |
4 | ||
| 62640K - CLIP(FOR QUARTER TRIM REAR PANEL) | ||||
| 63395-12150 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(02S,17S,20S,22S,23S,24S,26S,29S,30S)..(5F,6FC)..(GCC,GEN,SA,TAIW) |
12 | ||
| 62640Q - CLIP (FOR QUARTER TRIM REAR PANEL) | ||||
| 90467-10161 |
XZB70..6FC..ARL;HZB70,TRB70,XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) |
6 | ||
| 62672 - COVER, SIDE TRIM BOARD, NO.1 LH | ||||
| 62518-36170B0 |
HZB60,70,TRB60,70,XZB70..(02S,24S,26S,29S,30S)..STD LT.GRAY,TRIM1# |
1 | ||
| 62674A - RETAINER, QUARTER TRIM SET | ||||
| 67771-26230B6 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) LT.GRAY,TRIM1# |
8 | ||
Part Price Details
Loading price information...
Part Number:
Price:
