XZB70L-ZEMSYR (2017)
Toyota Coaster

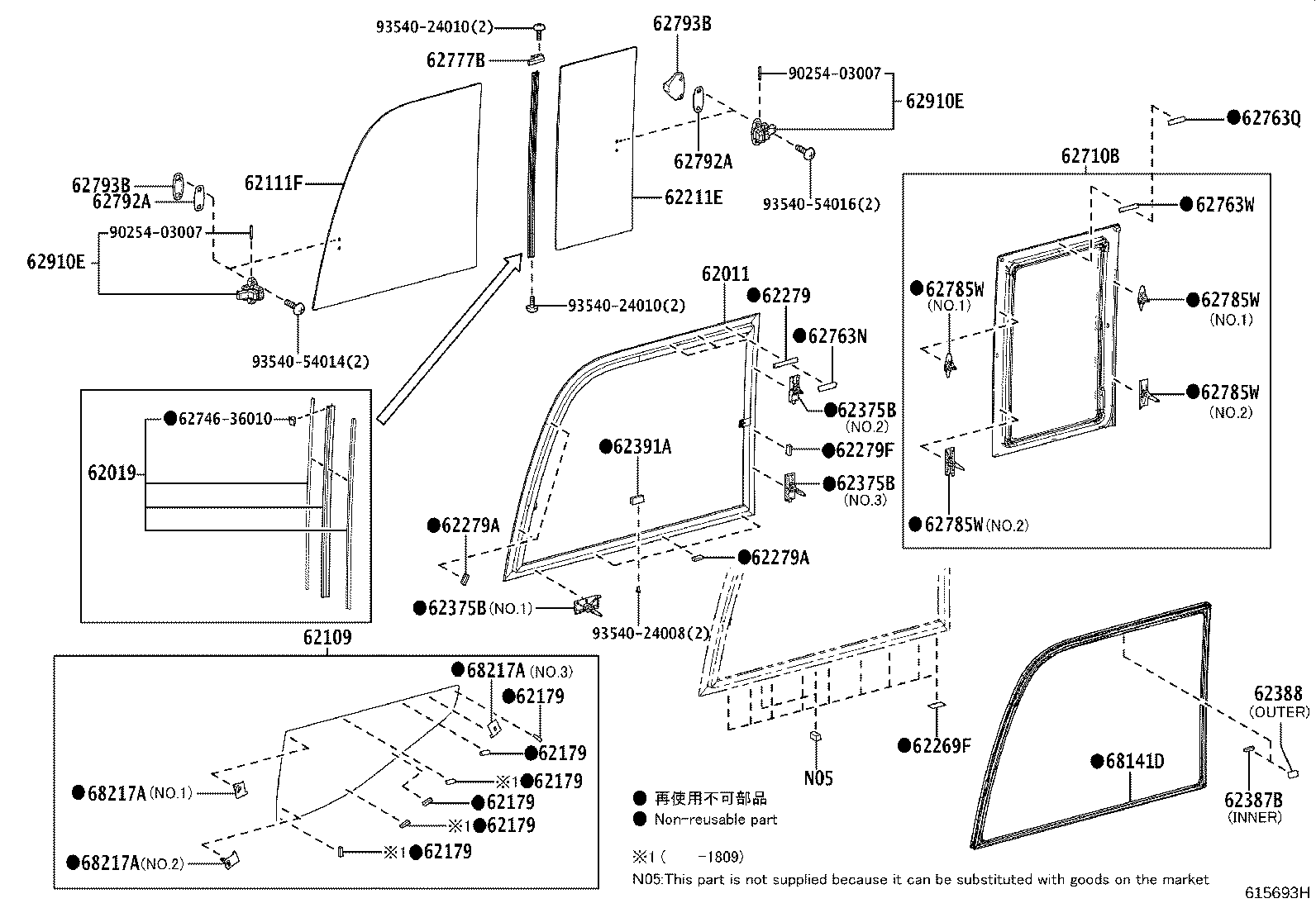

ILLUST NO. 1 OF 5(1701- )LHD
FRONT SIDE WINDOW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62011 - FRAME SUB-ASSY, FRONT SIDE WINDOW, OUTER RH | ||||
| 62011-36070 |
HZB60,70,TRB60,70,XZB70..LHD |
1 | ||
| 62019 - FRAME SUB-ASSY, SIDE WINDOW, CENTER RH | ||||
| 62019-36070 |
HZB60,70,TRB60,70,XZB70..LHD |
1 | ||
| 62109 - GLASS SUB-ASSY, SIDE LOWER WINDOW, RH | ||||
| 62109-36110 |
HZB60,70,TRB60,70,XZB70..LHD |
1 | ||
| 62111F - GLASS, FRONT SIDE WINDOW, FRONT RH | ||||
| 62111-36080 |
HZB60,70,TRB60,70,XZB70..LHD |
1 | ||
| 62179 - DAM, SIDE LOWER WINDOW | ||||
| 68294-26030 |
BB60,BZB60,70,HZB70,TRB60,70,XZB60,70 |
6 | ||
| 68294-26030 |
XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
3 | ||
| 62179 - DAM, SIDE LOWER WINDOW | ||||
| 68294-26030 |
BB60,BZB60,70,HZB70,TRB60,70,XZB60,70 |
6 | ||
| 68294-26030 |
XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
3 | ||
| 62179 - DAM, SIDE LOWER WINDOW | ||||
| 68294-26030 |
BB60,BZB60,70,HZB70,TRB60,70,XZB60,70 |
6 | ||
| 68294-26030 |
XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
3 | ||
| 62179 - DAM, SIDE LOWER WINDOW | ||||
| 68294-26030 |
BB60,BZB60,70,HZB70,TRB60,70,XZB60,70 |
6 | ||
| 68294-26030 |
XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
3 | ||
| 62179 - DAM, SIDE LOWER WINDOW | ||||
| 68294-26030 |
BB60,BZB60,70,HZB70,TRB60,70,XZB60,70 |
6 | ||
| 68294-26030 |
XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
3 | ||
| 62179 - DAM, SIDE LOWER WINDOW | ||||
| 68294-26030 |
BB60,BZB60,70,HZB70,TRB60,70,XZB60,70 |
6 | ||
| 68294-26030 |
XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
3 | ||
| 62211E - GLASS, SIDE WINDOW, REAR RH | ||||
| 62211-36140 |
HZB60,70,TRB60,70,XZB70..LHD |
1 | ||
| 62269F - FILM, SIDE WINDOW FRAME | ||||
| 62269-90K01 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,TAIW) |
9 | ||
| 62279 - SPACER, SIDE WINDOW FRAME, UPPER | ||||
| 62763-36020 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,TAIW) |
3 | ||
| 62279A - SPACER, SIDE WINDOW FRAME | ||||
| 62279-36120 |
BB60,BZB60,70,HZB70,TRB60,70,XZB60,70 |
5 | ||
| 62279-36130 |
XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,TAIW) |
5 | ||
| 62279A - SPACER, SIDE WINDOW FRAME | ||||
| 62279-36120 |
BB60,BZB60,70,HZB70,TRB60,70,XZB60,70 |
5 | ||
| 62279-36130 |
XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,TAIW) |
5 | ||
| 62279F - SPACER, SIDE WINDOW FRAME | ||||
| 62279-36130 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,TAIW) |
1 | ||
| 62375B - CLIP, SIDE WINDOW, NO.1 | ||||
| 62375-36050 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,TAIW) NO.3:REFER ILLUST. |
1 | ||
| 62375-36070 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,TAIW) NO.1:REFER ILLUST. |
1 | ||
| 62375-36060 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,TAIW) NO.2:REFER ILLUST. |
1 | ||
| 62375B - CLIP, SIDE WINDOW, NO.1 | ||||
| 62375-36050 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,TAIW) NO.3:REFER ILLUST. |
1 | ||
| 62375-36070 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,TAIW) NO.1:REFER ILLUST. |
1 | ||
| 62375-36060 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,TAIW) NO.2:REFER ILLUST. |
1 | ||
| 62375B - CLIP, SIDE WINDOW, NO.1 | ||||
| 62375-36050 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,TAIW) NO.3:REFER ILLUST. |
1 | ||
| 62375-36070 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,TAIW) NO.1:REFER ILLUST. |
1 | ||
| 62375-36060 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,TAIW) NO.2:REFER ILLUST. |
1 | ||
| 62387B - SEAL, SIDE WINDOW, NO.3 | ||||
| 62387-V4020 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,TAIW) |
1 | ||
| 62388 - SEAL, SIDE WINDOW, NO.4 | ||||
| 62388-V4010 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,TAIW) |
1 | ||
| 62391A - STOPPER, SIDE WINDOW, NO.1 FRONT RH | ||||
| 62391-36010 |
HZB60,70,TRB60,70,XZB70..LHD |
1 | ||
| 62710B - WINDOW ASSY, SIDE, FRONT RH | ||||
| 62203-36020 |
HZB60,70,TRB60,70,XZB70..LHD |
1 | ||
| 62763N - RETAINER, SIDE WINDOW FRAME | ||||
| 62763-36010 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,TAIW) |
3 | ||
| 62763Q - RETAINER, SIDE WINDOW FRAME | ||||
| 62763-36010 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 62763W - RETAINER, SIDE WINDOW FRAME | ||||
| 62763-36030 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 62777B - CAP, SIDE WINDOW CENTER SASH | ||||
| 62777-36070 |
HZB60,70,TRB60,70,XZB70..LHD RH |
1 | ||
| 62785W - SPACER, SIDE WINDOW GLASS | ||||
| 62785-36030 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) NO.2(BLUE) |
1 | ||
| 62785-36020 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) NO.2(YELLOW) |
1 | ||
| 62785-36040 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) NO.1(WHITE) |
2 | ||
| 62785W - SPACER, SIDE WINDOW GLASS | ||||
| 62785-36030 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) NO.2(BLUE) |
1 | ||
| 62785-36020 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) NO.2(YELLOW) |
1 | ||
| 62785-36040 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) NO.1(WHITE) |
2 | ||
| 62785W - SPACER, SIDE WINDOW GLASS | ||||
| 62785-36030 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) NO.2(BLUE) |
1 | ||
| 62785-36020 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) NO.2(YELLOW) |
1 | ||
| 62785-36040 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) NO.1(WHITE) |
2 | ||
| 62785W - SPACER, SIDE WINDOW GLASS | ||||
| 62785-36030 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) NO.2(BLUE) |
1 | ||
| 62785-36020 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) NO.2(YELLOW) |
1 | ||
| 62785-36040 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) NO.1(WHITE) |
2 | ||
| 62792A - PACKING, SIDE WINDOW LOCK, RH | ||||
| 62792-95A00 |
HZB60,70,TRB60,70,XZB70..LHD |
2 | ||
| 62792A - PACKING, SIDE WINDOW LOCK, RH | ||||
| 62792-95A00 |
HZB60,70,TRB60,70,XZB70..LHD |
2 | ||
| 62793B - RETAINER, SIDE WINDOW LOCK, RH | ||||
| 62793-36010 |
HZB60,70,TRB60,70,XZB70..LHD REAR |
1 | ||
| 62793-95J00 |
HZB60,70,TRB60,70,XZB70..LHD FRONT |
1 | ||
| 62793B - RETAINER, SIDE WINDOW LOCK, RH | ||||
| 62793-36010 |
HZB60,70,TRB60,70,XZB70..LHD REAR |
1 | ||
| 62793-95J00 |
HZB60,70,TRB60,70,XZB70..LHD FRONT |
1 | ||
| 62910E - LOCK ASSY, SIDE WINDOW | ||||
| 62910-36010 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,TAIW) |
2 | ||
| 62910E - LOCK ASSY, SIDE WINDOW | ||||
| 62910-36010 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,TAIW) |
2 | ||
| 68141D - RUN, SIDE FRONT WINDOW, RH | ||||
| 68141-36050 |
HZB60,70,TRB60,70,XZB70..LHD |
1 | ||
| 68217A - PIN, SIDE WINDOW , NO.1 | ||||
| 68217-36080 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) NO.2:REFER ILLUST. |
1 | ||
| 68217-36100 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) NO.1:REFER ILLUST. |
1 | ||
| 68217-36090 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) NO.3:REFER ILLUST. |
1 | ||
| 68217A - PIN, SIDE WINDOW , NO.1 | ||||
| 68217-36080 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) NO.2:REFER ILLUST. |
1 | ||
| 68217-36100 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) NO.1:REFER ILLUST. |
1 | ||
| 68217-36090 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) NO.3:REFER ILLUST. |
1 | ||
| 68217A - PIN, SIDE WINDOW , NO.1 | ||||
| 68217-36080 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) NO.2:REFER ILLUST. |
1 | ||
| 68217-36100 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) NO.1:REFER ILLUST. |
1 | ||
| 68217-36090 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) NO.3:REFER ILLUST. |
1 | ||
| Common parts | ||||
| 62746-36010 | ||||
| 90254-03007 | ||||
| 93540-24008 | ||||
| 93540-24010 | ||||
| 93540-54014 | ||||
| 93540-54016 | ||||

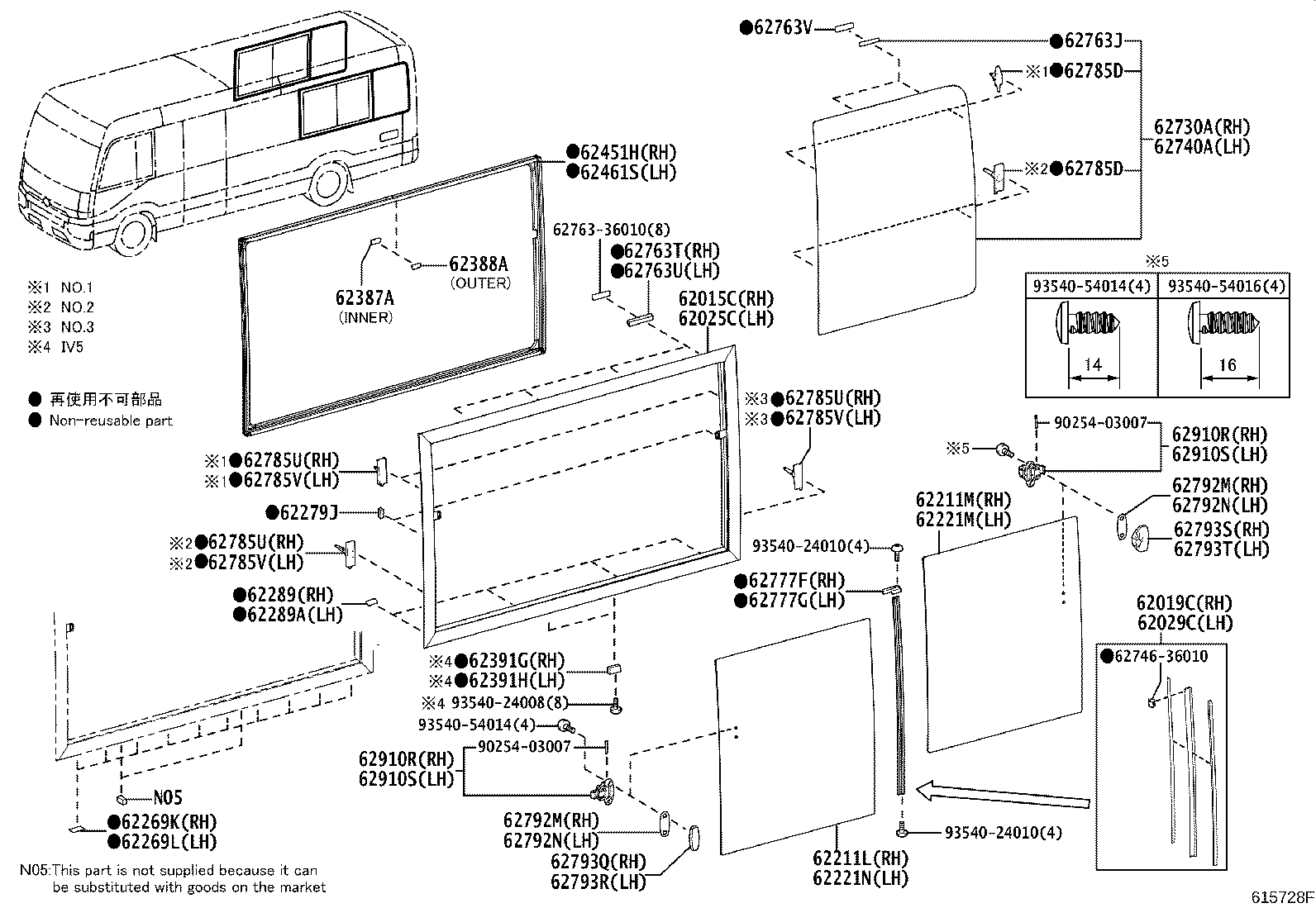

ILLUST NO. 2 OF 5(1701- )LHD
REAR NO.1(SASH TYPE)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62025 - FRAME SUB-ASSY, SIDE WINDOW, LH | ||||
| 62706-36070 |
XZB70..TAIW FRONT DOOR BLACK OUT TAPE-WITH |
1 | ||
| 62706-36060 |
HZB60,70,TRB60,70,XZB70..LHD..(GEN,TAIW) |
1 | ||
| 62706-36070 |
XZB70..TAIW FRONT DOOR BLACK OUT TAPE-WITH(OUTSIDE ONLY) |
1 | ||
| 62029A - FRAME SUB-ASSY, SIDE WINDOW, CENTER LH | ||||
| 62029-36070 |
XZB70..TAIW FRONT DOOR BLACK OUT TAPE-WITH |
1 | ||
| 62029-36070 |
XZB70..TAIW FRONT DOOR BLACK OUT TAPE-WITH(OUTSIDE ONLY) |
1 | ||
| 62029-36080 |
HZB60,70,TRB60,70,XZB70..LHD..(GEN,TAIW) |
1 | ||
| 62221F - GLASS, SIDE WINDOW, REAR LH | ||||
| 62211-36150 |
HZB60,70,TRB60,70,XZB70..LHD |
1 | ||
| 62221G - GLASS, SIDE WINDOW, FRONT LH | ||||
| 62221-36120 |
HZB60,70,TRB60,70,XZB70..LHD |
1 | ||
| 62269G - FILM, SIDE WINDOW FRAME | ||||
| 62269-90K01 |
BB60,BZB60,70,HZB70,TRB60,70,XZB60,70..DX,STD |
10 | ||
| 62269-90K01 |
XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) |
9 | ||
| 62279E - SPACER, SIDE WINDOW FRAME | ||||
| 62279-36120 |
BB60,BZB60,70,HZB70,TRB60,70,XZB60,70..DX,STD |
4 | ||
| 62279-36130 |
XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) |
4 | ||
| 62279G - SPACER, SIDE WINDOW FRAME | ||||
| 62279-36130 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) |
2 | ||
| 62387A - SEAL, SIDE WINDOW, NO.3 | ||||
| 62387-V4020 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) |
1 | ||
| 62388A - SEAL, SIDE WINDOW, NO.4 | ||||
| 62388-V4010 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) |
1 | ||
| 62461Q - RUN, REAR SIDE WINDOW, LH | ||||
| 62461-36100 |
HZB60,70,TRB60,70,XZB70..LHD |
1 | ||
| 62763P - RETAINER, SIDE WINDOW FRAME | ||||
| 62763-36010 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) |
4 | ||
| 62763X - RETAINER, SIDE WINDOW FRAME | ||||
| 62763-36020 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) |
4 | ||
| 62777C - CAP, SIDE WINDOW CENTER SASH | ||||
| 62777-36080 |
HZB60,70,TRB60,70,XZB70..LHD |
1 | ||
| 62785R - SPACER, SIDE WINDOW GLASS | ||||
| 62375-36050 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) NO.3:REFER ILLUST. |
1 | ||
| 62375-36040 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) NO.2:REFER ILLUST. |
1 | ||
| 62375-36060 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) NO.1:REFER ILLUST. |
2 | ||
| 62785R - SPACER, SIDE WINDOW GLASS | ||||
| 62375-36050 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) NO.3:REFER ILLUST. |
1 | ||
| 62375-36040 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) NO.2:REFER ILLUST. |
1 | ||
| 62375-36060 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) NO.1:REFER ILLUST. |
2 | ||
| 62785R - SPACER, SIDE WINDOW GLASS | ||||
| 62375-36050 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) NO.3:REFER ILLUST. |
1 | ||
| 62375-36040 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) NO.2:REFER ILLUST. |
1 | ||
| 62375-36060 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) NO.1:REFER ILLUST. |
2 | ||
| 62792J - PACKING, SIDE WINDOW LOCK | ||||
| 62792-95A00 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) |
2 | ||
| 62792J - PACKING, SIDE WINDOW LOCK | ||||
| 62792-95A00 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) |
2 | ||
| 62793J - RETAINER, SIDE WINDOW LOCK | ||||
| 62793-95J00 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) |
1 | ||
| 62793K - RETAINER, SIDE WINDOW LOCK | ||||
| 62793-36010 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) |
1 | ||
| 62910M - LOCK ASSY, SIDE WINDOW | ||||
| 62910-36010 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) |
2 | ||
| 62910M - LOCK ASSY, SIDE WINDOW | ||||
| 62910-36010 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) |
2 | ||
| Common parts | ||||
| 62746-36010 | ||||
| 90254-03007 | ||||
| 93540-24010 | ||||
| 93540-54014 | ||||
| 93540-54016 | ||||
ILLUST NO. 4 OF 5(1701- )BZB70,HZB70,TRB70,XZB70..GCC,GEN,SA,TAIW
REAR NO.3(SASH TYPE)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62015C - FRAME SUB-ASSY, REAR SIDE WINDOW, RH | ||||
| 62705-36040 |
XZB70..TAIW FRONT DOOR BLACK OUT TAPE-WITH |
1 | ||
| 62705-36030 |
HZB70,TRB70,XZB70..(5F,6FC)..(DX,STD)..(GEN,SA,TAIW) |
1 | ||
| 62705-36040 |
XZB70..TAIW FRONT DOOR BLACK OUT TAPE-WITH(OUTSIDE ONLY) |
1 | ||
| 62019C - FRAME SUB-ASSY, SIDE WINDOW, CENTER RH | ||||
| 62019-36080 |
BZB60,HZB60,70,TRB60,70,XZB60,70..(5F,6FC)..(DX,STD)..(GEN,SA,TAIW) |
1 | ||
| 62019-36070 |
XZB70..TAIW FRONT DOOR BLACK OUT TAPE-WITH |
1 | ||
| 62019-36070 |
XZB70..TAIW FRONT DOOR BLACK OUT TAPE-WITH(OUTSIDE ONLY) |
1 | ||
| 62025C - FRAME SUB-ASSY, REAR SIDE WINDOW, LH | ||||
| 62706-36070 |
XZB70..TAIW FRONT DOOR BLACK OUT TAPE-WITH |
1 | ||
| 62706-36060 |
HZB70,TRB70,XZB70..(5F,6FC)..(DX,STD)..(GEN,SA,TAIW) |
1 | ||
| 62706-36070 |
XZB70..TAIW FRONT DOOR BLACK OUT TAPE-WITH(OUTSIDE ONLY) |
1 | ||
| 62029C - FRAME SUB-ASSY, SIDE WINDOW, CENTER LH | ||||
| 62029-36070 |
XZB70..TAIW FRONT DOOR BLACK OUT TAPE-WITH |
1 | ||
| 62029-36080 |
BZB60,HZB60,70,TRB60,70,XZB60,70..(5F,6FC)..(DX,STD)..(GEN,SA,TAIW) |
1 | ||
| 62029-36070 |
XZB70..TAIW FRONT DOOR BLACK OUT TAPE-WITH(OUTSIDE ONLY) |
1 | ||
| 62211L - GLASS, SIDE WINDOW, FRONT RH | ||||
| 62211-36150 |
HZB70,TRB70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) |
1 | ||
| 62211M - GLASS, SIDE WINDOW, REAR RH | ||||
| 62221-36120 |
HZB70,TRB70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) |
1 | ||
| 62221M - GLASS, SIDE WINDOW, REAR LH | ||||
| 62211-36150 |
HZB70,TRB70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) |
1 | ||
| 62221N - GLASS, SIDE WINDOW, FRONT LH | ||||
| 62221-36120 |
HZB70,TRB70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) |
1 | ||
| 62269K - FILM, SIDE WINDOW FRAME | ||||
| 62269-90K01 |
BB60,BZB60,70,HZB70,TRB60,70,XZB60,70..DX,STD |
10 | ||
| 62269-90K01 |
XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) |
9 | ||
| 62269L - FILM, SIDE WINDOW FRAME | ||||
| 62269-90K01 |
BB60,BZB60,70,HZB70,TRB60,70,XZB60,70..DX,STD |
10 | ||
| 62269-90K01 |
XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) |
9 | ||
| 62279J - SPACER, SIDE WINDOW FRAME | ||||
| 62279-36130 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) LH,RH |
2 | ||
| 62289 - SPACER, SIDE WINDOW FRAME, NO.2 RH | ||||
| 62279-36120 |
BB60,BZB60,70,HZB70,TRB60,70,XZB60,70..DX,STD |
4 | ||
| 62279-36130 |
XZB70..6FC..ARL;HZB70,TRB70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) |
4 | ||
| 62289A - SPACER, SIDE WINDOW FRAME, NO.2 LH | ||||
| 62279-36120 |
BB60,BZB60,70,HZB70,TRB60,70,XZB60,70..DX,STD |
4 | ||
| 62279-36130 |
XZB70..6FC..ARL;HZB70,TRB70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) |
4 | ||
| 62387A - SEAL, SIDE WINDOW, NO.3 | ||||
| 62387-V4020 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) |
1 | ||
| 62388A - SEAL, SIDE WINDOW, NO.4 | ||||
| 62388-V4010 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) |
1 | ||
| 62451H - RUN, REAR SIDE WINDOW, RH | ||||
| 62451-36250 |
HZB70,TRB70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) |
1 | ||
| 62461S - RUN, REAR SIDE WINDOW, LH | ||||
| 62461-36100 |
HZB70,TRB70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) |
1 | ||
| 62730A - WINDOW ASSY, SIDE, REAR RH | ||||
| 62073-36150 |
HZB70,TRB70,XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 62740A - WINDOW ASSY, SIDE, REAR LH | ||||
| 62073-36160 |
HZB70,TRB70,XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 62763J - RETAINER, QUARTER WINDOW GLASS, UPPER | ||||
| 62763-36030 |
XZB70..6FC..ARL;HZB70,TRB70,XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) |
4 | ||
| 62763T - RETAINER, SIDE WINDOW FRAME | ||||
| 62763-36020 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) |
4 | ||
| 62763U - RETAINER, SIDE WINDOW FRAME | ||||
| 62763-36020 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) |
4 | ||
| 62763V - RETAINER, SIDE WINDOW FRAME | ||||
| 62763-36010 |
XZB70..6FC..ARL;HZB70,TRB70,XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) |
4 | ||
| 62777F - CAP, SIDE WINDOW CENTER SASH | ||||
| 62777-36070 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) |
1 | ||
| 62777G - CAP, SIDE WINDOW CENTER SASH | ||||
| 62777-36080 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) |
1 | ||
| 62785D - SPACER, QUARTER WINDOW GLASS | ||||
| 62785-36040 |
XZB70..6FC..ARL;HZB70,TRB70,XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) NO.1(WHITE) |
4 | ||
| 62785-36030 |
XZB70..6FC..ARL;HZB70,TRB70,XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) NO.2(BLUE) |
2 | ||
| 62785-36020 |
XZB70..6FC..ARL;HZB70,TRB70,XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) NO.2(YELLOW) |
2 | ||
| 62785D - SPACER, QUARTER WINDOW GLASS | ||||
| 62785-36040 |
XZB70..6FC..ARL;HZB70,TRB70,XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) NO.1(WHITE) |
4 | ||
| 62785-36030 |
XZB70..6FC..ARL;HZB70,TRB70,XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) NO.2(BLUE) |
2 | ||
| 62785-36020 |
XZB70..6FC..ARL;HZB70,TRB70,XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) NO.2(YELLOW) |
2 | ||
| 62785U - SPACER, SIDE WINDOW GLASS | ||||
| 62375-36040 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) NO.2:REFER ILLUST. |
1 | ||
| 62375-36050 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) NO.3:REFER ILLUST. |
1 | ||
| 62375-36060 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) NO.1:REFER ILLUST. |
2 | ||
| 62785U - SPACER, SIDE WINDOW GLASS | ||||
| 62375-36040 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) NO.2:REFER ILLUST. |
1 | ||
| 62375-36050 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) NO.3:REFER ILLUST. |
1 | ||
| 62375-36060 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) NO.1:REFER ILLUST. |
2 | ||
| 62785U - SPACER, SIDE WINDOW GLASS | ||||
| 62375-36040 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) NO.2:REFER ILLUST. |
1 | ||
| 62375-36050 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) NO.3:REFER ILLUST. |
1 | ||
| 62375-36060 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) NO.1:REFER ILLUST. |
2 | ||
| 62785V - SPACER, SIDE WINDOW GLASS | ||||
| 62375-36040 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) NO.2:REFER ILLUST. |
1 | ||
| 62375-36050 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) NO.3:REFER ILLUST. |
1 | ||
| 62375-36060 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) NO.1:REFER ILLUST. |
2 | ||
| 62785V - SPACER, SIDE WINDOW GLASS | ||||
| 62375-36040 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) NO.2:REFER ILLUST. |
1 | ||
| 62375-36050 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) NO.3:REFER ILLUST. |
1 | ||
| 62375-36060 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) NO.1:REFER ILLUST. |
2 | ||
| 62785V - SPACER, SIDE WINDOW GLASS | ||||
| 62375-36040 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) NO.2:REFER ILLUST. |
1 | ||
| 62375-36050 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) NO.3:REFER ILLUST. |
1 | ||
| 62375-36060 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) NO.1:REFER ILLUST. |
2 | ||
| 62792M - PACKING, SIDE WINDOW LOCK | ||||
| 62792-95A00 |
XZB60..GEN;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) |
2 | ||
| 62792M - PACKING, SIDE WINDOW LOCK | ||||
| 62792-95A00 |
XZB60..GEN;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) |
2 | ||
| 62792N - PACKING, SIDE WINDOW LOCK | ||||
| 62792-95A00 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) |
2 | ||
| 62792N - PACKING, SIDE WINDOW LOCK | ||||
| 62792-95A00 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) |
2 | ||
| 62793Q - RETAINER, SIDE WINDOW LOCK | ||||
| 62793-95J00 |
XZB60..GEN;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) |
1 | ||
| 62793R - RETAINER, SIDE WINDOW LOCK | ||||
| 62793-95J00 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) |
1 | ||
| 62793S - RETAINER, SIDE WINDOW LOCK | ||||
| 62793-36010 |
HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) |
1 | ||
| 62793T - RETAINER, SIDE WINDOW LOCK | ||||
| 62793-36010 |
HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) |
1 | ||
| 62910R - LOCK ASSY, SIDE WINDOW | ||||
| 62910-36010 |
XZB60..GEN;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) |
2 | ||
| 62910R - LOCK ASSY, SIDE WINDOW | ||||
| 62910-36010 |
XZB60..GEN;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) |
2 | ||
| 62910S - LOCK ASSY, SIDE WINDOW | ||||
| 62910-36010 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) |
2 | ||
| 62910S - LOCK ASSY, SIDE WINDOW | ||||
| 62910-36010 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) |
2 | ||
| Common parts | ||||
| 62746-36010 | ||||
| 62763-36010 | ||||
| 90254-03007 | ||||
| 93540-24008 | ||||
| 93540-24010 | ||||
| 93540-54014 | ||||
| 93540-54016 | ||||
ILLUST NO. 3 OF 5(1701- )
REAR NO.2(SASH TYPE),FOLDING DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62015A - FRAME SUB-ASSY, SIDE WINDOW, RH | ||||
| 62705-36070 |
XZB70..TAIW FRONT DOOR BLACK OUT TAPE-WITH |
1 | ||
| 62705-36060 |
HZB60,70,TRB60,70,XZB70..LHD..(GEN,TAIW) |
1 | ||
| 62705-36070 |
XZB70..TAIW FRONT DOOR BLACK OUT TAPE-WITH(OUTSIDE ONLY) |
1 | ||
| 62019B - FRAME SUB-ASSY, SIDE WINDOW, CENTER RH | ||||
| 62019-36070 |
XZB70..TAIW FRONT DOOR BLACK OUT TAPE-WITH |
1 | ||
| 62019-36080 |
BZB60,HZB60,70,TRB60,70,XZB60,70..(5F,6FC)..(DX,STD)..(GEN,SA,TAIW) |
1 | ||
| 62019-36070 |
XZB70..TAIW FRONT DOOR BLACK OUT TAPE-WITH(OUTSIDE ONLY) |
1 | ||
| 62025B - FRAME SUB-ASSY, REAR SIDE WINDOW, LH | ||||
| 62706-36070 |
XZB70..TAIW FRONT DOOR BLACK OUT TAPE-WITH |
1 | ||
| 62706-36070 |
XZB70..TAIW FRONT DOOR BLACK OUT TAPE-WITH(OUTSIDE ONLY) |
1 | ||
| 62706-36060 |
HZB60,70,TRB60,70,XZB70..LHD..(GEN,TAIW) |
1 | ||
| 62029B - FRAME SUB-ASSY, SIDE WINDOW, CENTER LH | ||||
| 62029-36080 |
BZB60,HZB60,70,TRB60,70,XZB60,70..(5F,6FC)..(DX,STD)..(GEN,SA,TAIW) |
1 | ||
| 62029-36070 |
XZB70..TAIW FRONT DOOR BLACK OUT TAPE-WITH |
1 | ||
| 62029-36070 |
XZB70..TAIW FRONT DOOR BLACK OUT TAPE-WITH(OUTSIDE ONLY) |
1 | ||
| 62211J - GLASS, SIDE WINDOW, FRONT RH | ||||
| 62211-36150 |
XZB60..GEN;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) |
1 | ||
| 62211K - GLASS, SIDE WINDOW, REAR RH | ||||
| 62221-36120 |
XZB60..GEN;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) |
1 | ||
| 62221K - GLASS, SIDE WINDOW, FRONT LH | ||||
| 62221-36120 |
XZB60..GEN;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,TAIW) |
1 | ||
| 62221L - GLASS, SIDE WINDOW, REAR LH | ||||
| 62211-36150 |
XZB60..GEN;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) |
1 | ||
| 62269H - FILM, SIDE WINDOW FRAME | ||||
| 62269-90K01 |
XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) |
9 | ||
| 62269-90K01 |
BB60,BZB60,70,HZB70,TRB60,70,XZB60,70..DX,STD |
10 | ||
| 62269J - FILM, SIDE WINDOW FRAME | ||||
| 62269-90K01 |
BB60,BZB60,70,HZB70,TRB60,70,XZB60,70..DX,STD |
10 | ||
| 62269-90K01 |
XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) |
9 | ||
| 62279C - SPACER, SIDE WINDOW FRAME, RH | ||||
| 62279-36130 |
XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) |
4 | ||
| 62279-36120 |
BB60,BZB60,70,HZB70,TRB60,70,XZB60,70..DX,STD |
4 | ||
| 62279D - SPACER, SIDE WINDOW FRAME, LH | ||||
| 62279-36120 |
BB60,BZB60,70,HZB70,TRB60,70,XZB60,70..DX,STD |
4 | ||
| 62279-36130 |
XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) |
4 | ||
| 62279H - SPACER, SIDE WINDOW FRAME | ||||
| 62279-36130 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) LH,RH |
2 | ||
| 62387A - SEAL, SIDE WINDOW, NO.3 | ||||
| 62387-V4020 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) |
1 | ||
| 62388A - SEAL, SIDE WINDOW, NO.4 | ||||
| 62388-V4010 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) |
1 | ||
| 62451G - RUN, REAR SIDE WINDOW, RH | ||||
| 62451-36250 |
XZB60..GEN;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) |
1 | ||
| 62461R - RUN, REAR SIDE WINDOW, LH | ||||
| 62461-36100 |
XZB60..GEN;XZB70..6FC..STD..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,TAIW) |
1 | ||
| 62763R - RETAINER, SIDE WINDOW FRAME | ||||
| 62763-36020 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) |
4 | ||
| 62763S - RETAINER, SIDE WINDOW FRAME | ||||
| 62763-36020 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) |
4 | ||
| 62777D - CAP, SIDE WINDOW CENTER SASH | ||||
| 62777-36070 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) |
1 | ||
| 62777E - CAP, SIDE WINDOW CENTER SASH | ||||
| 62777-36080 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) |
1 | ||
| 62785S - SPACER, SIDE WINDOW GLASS | ||||
| 62375-36040 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) NO.2:REFER ILLUST. |
1 | ||
| 62375-36050 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) NO.3:REFER ILLUST. |
1 | ||
| 62375-36060 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) NO.1:REFER ILLUST. |
2 | ||
| 62785S - SPACER, SIDE WINDOW GLASS | ||||
| 62375-36040 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) NO.2:REFER ILLUST. |
1 | ||
| 62375-36050 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) NO.3:REFER ILLUST. |
1 | ||
| 62375-36060 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) NO.1:REFER ILLUST. |
2 | ||
| 62785S - SPACER, SIDE WINDOW GLASS | ||||
| 62375-36040 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) NO.2:REFER ILLUST. |
1 | ||
| 62375-36050 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) NO.3:REFER ILLUST. |
1 | ||
| 62375-36060 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) NO.1:REFER ILLUST. |
2 | ||
| 62785T - SPACER, SIDE WINDOW GLASS | ||||
| 62375-36040 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) NO.2:REFER ILLUST. |
1 | ||
| 62375-36050 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) NO.3:REFER ILLUST. |
1 | ||
| 62375-36060 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) NO.1:REFER ILLUST. |
2 | ||
| 62785T - SPACER, SIDE WINDOW GLASS | ||||
| 62375-36040 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) NO.2:REFER ILLUST. |
1 | ||
| 62375-36050 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) NO.3:REFER ILLUST. |
1 | ||
| 62375-36060 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) NO.1:REFER ILLUST. |
2 | ||
| 62785T - SPACER, SIDE WINDOW GLASS | ||||
| 62375-36040 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) NO.2:REFER ILLUST. |
1 | ||
| 62375-36050 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) NO.3:REFER ILLUST. |
1 | ||
| 62375-36060 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) NO.1:REFER ILLUST. |
2 | ||
| 62792K - PACKING, SIDE WINDOW LOCK | ||||
| 62792-95A00 |
XZB60..GEN;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) |
2 | ||
| 62792K - PACKING, SIDE WINDOW LOCK | ||||
| 62792-95A00 |
XZB60..GEN;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) |
2 | ||
| 62792L - PACKING, SIDE WINDOW LOCK | ||||
| 62792-95A00 |
XZB60..GEN;XZB70..6FC..STD..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,TAIW) |
2 | ||
| 62792L - PACKING, SIDE WINDOW LOCK | ||||
| 62792-95A00 |
XZB60..GEN;XZB70..6FC..STD..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,TAIW) |
2 | ||
| 62793L - RETAINER, SIDE WINDOW LOCK | ||||
| 62793-95J00 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) |
1 | ||
| 62793M - RETAINER, SIDE WINDOW LOCK | ||||
| 62793-95J00 |
XZB60..GEN;XZB70..6FC..STD..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,TAIW) |
1 | ||
| 62793N - RETAINER, SIDE WINDOW LOCK | ||||
| 62793-36010 |
XZB60..GEN;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) |
1 | ||
| 62793P - RETAINER, SIDE WINDOW LOCK | ||||
| 62793-36010 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) |
1 | ||
| 62910P - LOCK ASSY, SIDE WINDOW | ||||
| 62910-36010 |
XZB60..GEN;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) |
2 | ||
| 62910P - LOCK ASSY, SIDE WINDOW | ||||
| 62910-36010 |
XZB60..GEN;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) |
2 | ||
| 62910Q - LOCK ASSY, SIDE WINDOW | ||||
| 62910-36010 |
XZB60..GEN;XZB70..6FC..STD..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,TAIW) |
2 | ||
| 62910Q - LOCK ASSY, SIDE WINDOW | ||||
| 62910-36010 |
XZB60..GEN;XZB70..6FC..STD..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,TAIW) |
2 | ||
| Common parts | ||||
| 62746-36010 | ||||
| 62763-36010 | ||||
| 90254-03007 | ||||
| 93540-24008 | ||||
| 93540-24010 | ||||
| 93540-54014 | ||||
| 93540-54016 | ||||

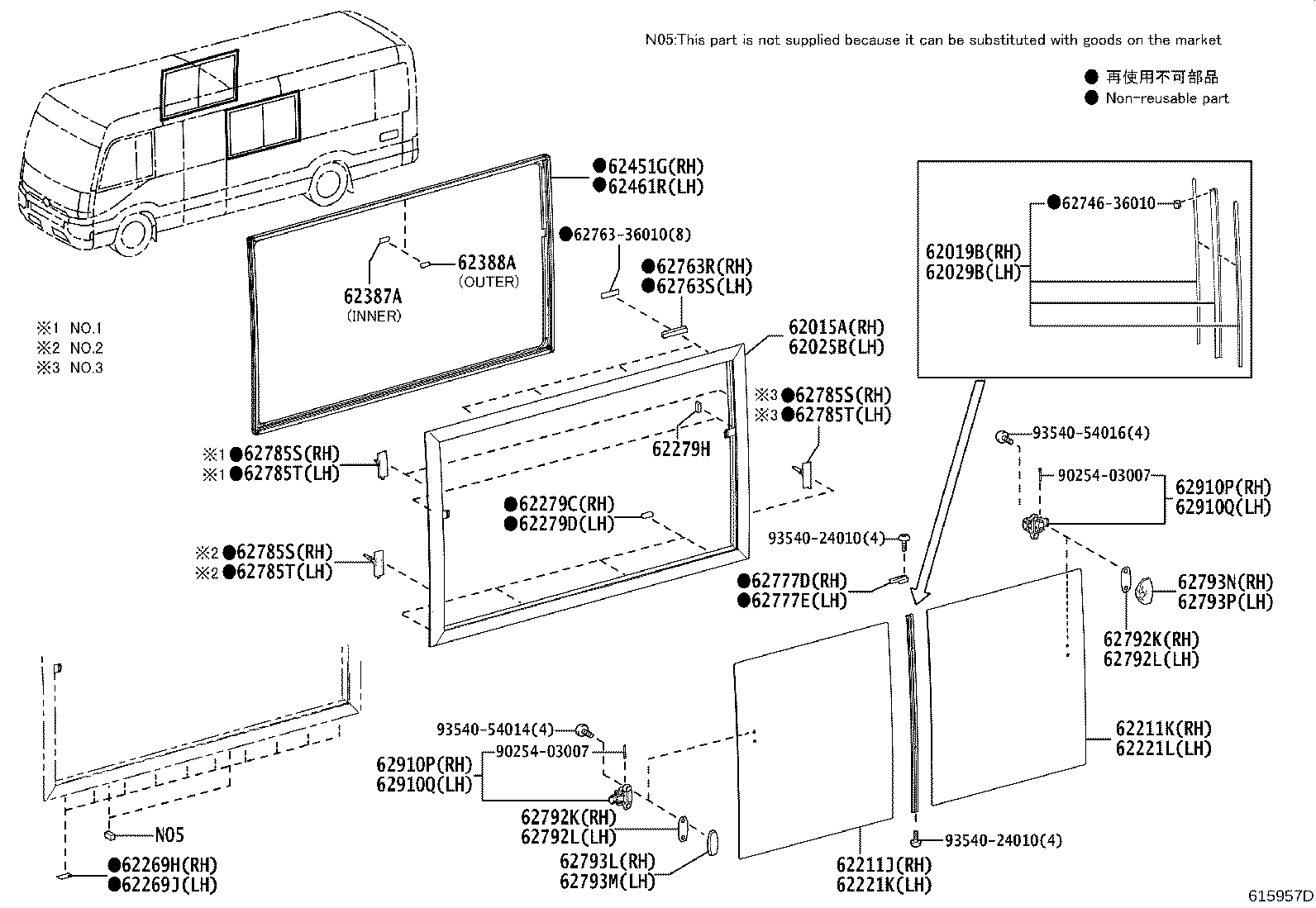

ILLUST NO. 3 OF 5(1801- )LHD
REAR NO.2(SASH TYPE),GLIDING DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62015A - FRAME SUB-ASSY, SIDE WINDOW, RH | ||||
| 62705-36070 |
XZB70..TAIW FRONT DOOR BLACK OUT TAPE-WITH |
1 | ||
| 62705-36060 |
HZB60,70,TRB60,70,XZB70..LHD..(GEN,TAIW) |
1 | ||
| 62705-36070 |
XZB70..TAIW FRONT DOOR BLACK OUT TAPE-WITH(OUTSIDE ONLY) |
1 | ||
| 62019B - FRAME SUB-ASSY, SIDE WINDOW, CENTER RH | ||||
| 62019-36070 |
XZB70..TAIW FRONT DOOR BLACK OUT TAPE-WITH |
1 | ||
| 62019-36080 |
BZB60,HZB60,70,TRB60,70,XZB60,70..(5F,6FC)..(DX,STD)..(GEN,SA,TAIW) |
1 | ||
| 62019-36070 |
XZB70..TAIW FRONT DOOR BLACK OUT TAPE-WITH(OUTSIDE ONLY) |
1 | ||
| 62025B - FRAME SUB-ASSY, REAR SIDE WINDOW, LH | ||||
| 62706-36070 |
XZB70..TAIW FRONT DOOR BLACK OUT TAPE-WITH |
1 | ||
| 62706-36070 |
XZB70..TAIW FRONT DOOR BLACK OUT TAPE-WITH(OUTSIDE ONLY) |
1 | ||
| 62706-36060 |
HZB60,70,TRB60,70,XZB70..LHD..(GEN,TAIW) |
1 | ||
| 62029B - FRAME SUB-ASSY, SIDE WINDOW, CENTER LH | ||||
| 62029-36080 |
BZB60,HZB60,70,TRB60,70,XZB60,70..(5F,6FC)..(DX,STD)..(GEN,SA,TAIW) |
1 | ||
| 62029-36070 |
XZB70..TAIW FRONT DOOR BLACK OUT TAPE-WITH |
1 | ||
| 62029-36070 |
XZB70..TAIW FRONT DOOR BLACK OUT TAPE-WITH(OUTSIDE ONLY) |
1 | ||
| 62211J - GLASS, SIDE WINDOW, FRONT RH | ||||
| 62211-36150 |
XZB60..GEN;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) |
1 | ||
| 62211K - GLASS, SIDE WINDOW, REAR RH | ||||
| 62221-36120 |
XZB60..GEN;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) |
1 | ||
| 62221K - GLASS, SIDE WINDOW, FRONT LH | ||||
| 62221-36120 |
XZB60..GEN;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,TAIW) |
1 | ||
| 62221L - GLASS, SIDE WINDOW, REAR LH | ||||
| 62211-36150 |
XZB60..GEN;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) |
1 | ||
| 62269H - FILM, SIDE WINDOW FRAME | ||||
| 62269-90K01 |
XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) |
9 | ||
| 62269-90K01 |
BB60,BZB60,70,HZB70,TRB60,70,XZB60,70..DX,STD |
10 | ||
| 62269J - FILM, SIDE WINDOW FRAME | ||||
| 62269-90K01 |
BB60,BZB60,70,HZB70,TRB60,70,XZB60,70..DX,STD |
10 | ||
| 62269-90K01 |
XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) |
9 | ||
| 62279C - SPACER, SIDE WINDOW FRAME, RH | ||||
| 62279-36130 |
XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) |
4 | ||
| 62279-36120 |
BB60,BZB60,70,HZB70,TRB60,70,XZB60,70..DX,STD |
4 | ||
| 62279D - SPACER, SIDE WINDOW FRAME, LH | ||||
| 62279-36120 |
BB60,BZB60,70,HZB70,TRB60,70,XZB60,70..DX,STD |
4 | ||
| 62279-36130 |
XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) |
4 | ||
| 62279H - SPACER, SIDE WINDOW FRAME | ||||
| 62279-36130 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) LH,RH |
2 | ||
| 62387A - SEAL, SIDE WINDOW, NO.3 | ||||
| 62387-V4020 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) |
1 | ||
| 62388A - SEAL, SIDE WINDOW, NO.4 | ||||
| 62388-V4010 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) |
1 | ||
| 62451G - RUN, REAR SIDE WINDOW, RH | ||||
| 62451-36250 |
XZB60..GEN;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) |
1 | ||
| 62461R - RUN, REAR SIDE WINDOW, LH | ||||
| 62461-36100 |
XZB60..GEN;XZB70..6FC..STD..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,TAIW) |
1 | ||
| 62763R - RETAINER, SIDE WINDOW FRAME | ||||
| 62763-36020 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) |
4 | ||
| 62763S - RETAINER, SIDE WINDOW FRAME | ||||
| 62763-36020 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) |
4 | ||
| 62777D - CAP, SIDE WINDOW CENTER SASH | ||||
| 62777-36070 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) |
1 | ||
| 62777E - CAP, SIDE WINDOW CENTER SASH | ||||
| 62777-36080 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) |
1 | ||
| 62785S - SPACER, SIDE WINDOW GLASS | ||||
| 62375-36040 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) NO.2:REFER ILLUST. |
1 | ||
| 62375-36050 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) NO.3:REFER ILLUST. |
1 | ||
| 62375-36060 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) NO.1:REFER ILLUST. |
2 | ||
| 62785S - SPACER, SIDE WINDOW GLASS | ||||
| 62375-36040 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) NO.2:REFER ILLUST. |
1 | ||
| 62375-36050 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) NO.3:REFER ILLUST. |
1 | ||
| 62375-36060 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) NO.1:REFER ILLUST. |
2 | ||
| 62785S - SPACER, SIDE WINDOW GLASS | ||||
| 62375-36040 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) NO.2:REFER ILLUST. |
1 | ||
| 62375-36050 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) NO.3:REFER ILLUST. |
1 | ||
| 62375-36060 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) NO.1:REFER ILLUST. |
2 | ||
| 62785T - SPACER, SIDE WINDOW GLASS | ||||
| 62375-36040 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) NO.2:REFER ILLUST. |
1 | ||
| 62375-36050 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) NO.3:REFER ILLUST. |
1 | ||
| 62375-36060 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) NO.1:REFER ILLUST. |
2 | ||
| 62785T - SPACER, SIDE WINDOW GLASS | ||||
| 62375-36040 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) NO.2:REFER ILLUST. |
1 | ||
| 62375-36050 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) NO.3:REFER ILLUST. |
1 | ||
| 62375-36060 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) NO.1:REFER ILLUST. |
2 | ||
| 62785T - SPACER, SIDE WINDOW GLASS | ||||
| 62375-36040 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) NO.2:REFER ILLUST. |
1 | ||
| 62375-36050 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) NO.3:REFER ILLUST. |
1 | ||
| 62375-36060 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) NO.1:REFER ILLUST. |
2 | ||
| 62792K - PACKING, SIDE WINDOW LOCK | ||||
| 62792-95A00 |
XZB60..GEN;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) |
2 | ||
| 62792K - PACKING, SIDE WINDOW LOCK | ||||
| 62792-95A00 |
XZB60..GEN;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) |
2 | ||
| 62792L - PACKING, SIDE WINDOW LOCK | ||||
| 62792-95A00 |
XZB60..GEN;XZB70..6FC..STD..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,TAIW) |
2 | ||
| 62792L - PACKING, SIDE WINDOW LOCK | ||||
| 62792-95A00 |
XZB60..GEN;XZB70..6FC..STD..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,TAIW) |
2 | ||
| 62793L - RETAINER, SIDE WINDOW LOCK | ||||
| 62793-95J00 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) |
1 | ||
| 62793M - RETAINER, SIDE WINDOW LOCK | ||||
| 62793-95J00 |
XZB60..GEN;XZB70..6FC..STD..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,TAIW) |
1 | ||
| 62793N - RETAINER, SIDE WINDOW LOCK | ||||
| 62793-36010 |
XZB60..GEN;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) |
1 | ||
| 62793P - RETAINER, SIDE WINDOW LOCK | ||||
| 62793-36010 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) |
1 | ||
| 62910P - LOCK ASSY, SIDE WINDOW | ||||
| 62910-36010 |
XZB60..GEN;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) |
2 | ||
| 62910P - LOCK ASSY, SIDE WINDOW | ||||
| 62910-36010 |
XZB60..GEN;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) |
2 | ||
| 62910Q - LOCK ASSY, SIDE WINDOW | ||||
| 62910-36010 |
XZB60..GEN;XZB70..6FC..STD..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,TAIW) |
2 | ||
| 62910Q - LOCK ASSY, SIDE WINDOW | ||||
| 62910-36010 |
XZB60..GEN;XZB70..6FC..STD..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,TAIW) |
2 | ||
| Common parts | ||||
| 62746-36010 | ||||
| 62763-36010 | ||||
| 90254-03007 | ||||
| 93540-24010 | ||||
| 93540-54014 | ||||
| 93540-54016 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
