XZB70L-ZEMSYR (2017)
Toyota Coaster

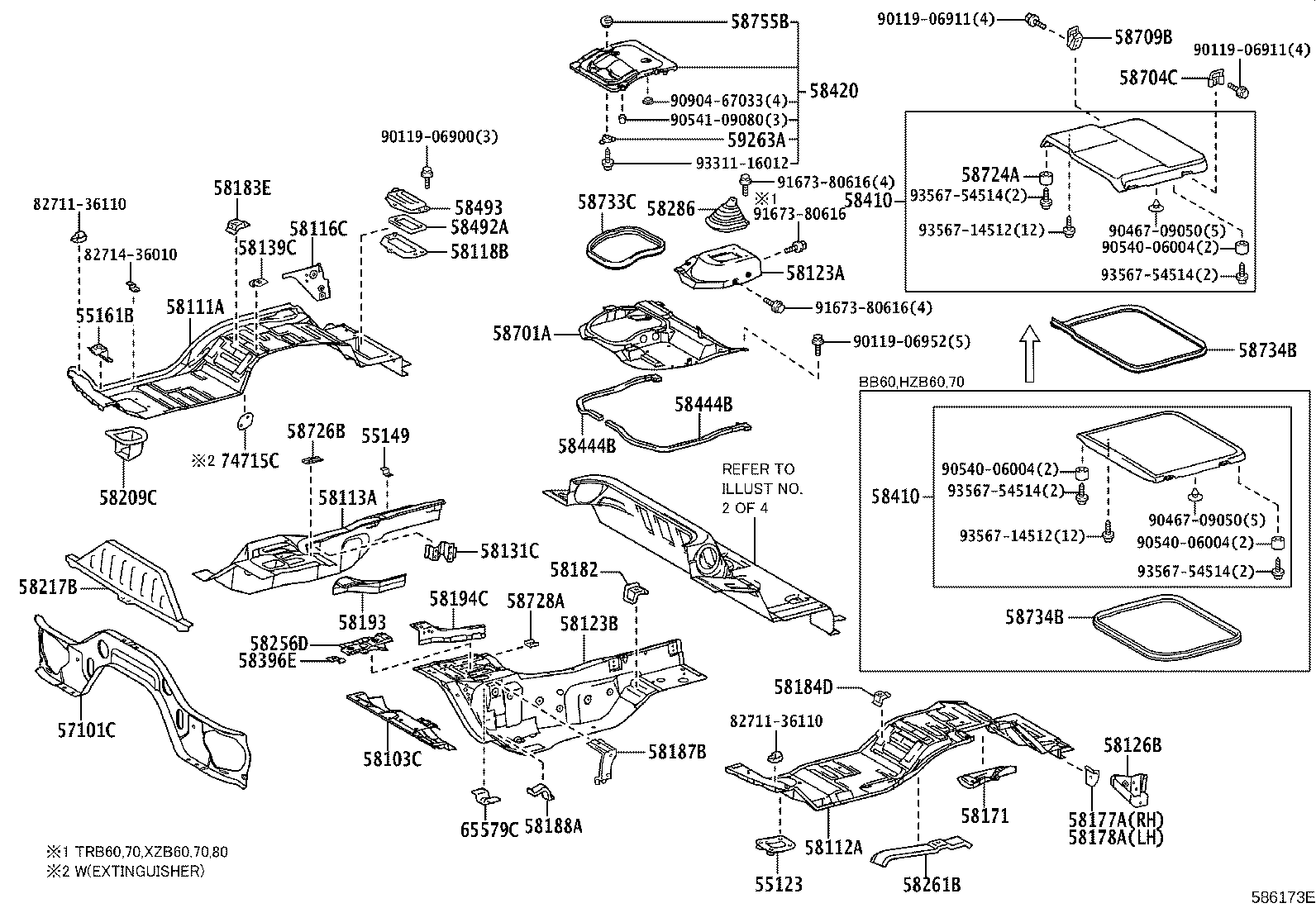

ILLUST NO. 1 OF 4(1701- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55123 - REINFORCEMENT, STEERING SUPPORT | ||||
| 55123-36020 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 55149 - BRACKET, DASH WIRING HARNESS | ||||
| 55149-36010 |
HZB60,70,TRB60,70 |
1 | ||
| 55161B - BRACKET, HEATER MOUNTING, RH | ||||
| 55161-36040 |
HZB70..GCC;XZB60..GEN;XZB70..6FC..ARL;XZB70..DX..(GCC,SA);XZB70..(02S,19S,20S,23S)..(5F,6FC)..(EX,STD)..WC;BZB60,TRB60,70,XZB80..(01S,17S,19S,20S,23S)..(5F,6FC) |
1 | ||
| 57101C - CROSSMEMBER SUB-ASSY, FLOOR, NO.1 | ||||
| 57101-36080 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 58103C - REINFORCEMENT SUB-ASSY, FRONT FLOOR, FRONT | ||||
| 58103-36030 |
HZB60,70,TRB60,70,XZB70..LHD |
1 | ||
| 58111A - PAN, FRONT FLOOR, RH | ||||
| 58111-36300 |
BZB60,70,XZB60 CENTER DOOR-GLIDING(AUTO) & WITH(3 STEP) |
1 | ||
| 58111-36320 |
HZB70,TRB60,70,XZB70..GCC,TAIW |
1 | ||
| 58112A - PANEL, FRONT FLOOR, LH | ||||
| 58112-36310 |
HZB60,70,TRB60,70,XZB70..LHD..WC |
1 | ||
| 58113A - PANEL, FRONT FLOOR, CENTER | ||||
| 58113-36180 |
BZB60,70,XZB60 CENTER DOOR-GLIDING(AUTO) & WITH(3 STEP) |
1 | ||
| 58113-36190 |
BZB60,70,XZB60 |
1 | ||
| 58113-36170 |
HZB60,70,TRB60,70,XZB70..LHD |
1 | ||
| 58113-V4040 |
HZB60,70,TRB60,70,XZB70..LHD |
1 | ||
| 58116C - PANEL, FRONT FLOOR REAR UPPER SIDE, RH | ||||
| 58116-36051 |
HZB60,70,TRB60,70,XZB70..LHD |
1 | ||
| 58116-36050 |
BB60,HZB70,TRB60,70,XZB60,70..LHD |
1 | ||
| 58118B - REINFORCEMENT, FRONT FLOOR PANEL, NO.2 | ||||
| 58118-36010 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 58123A - SUPPORT, SHIFT & SELECT LEVER | ||||
| 58123-36340 |
TRB60,70,XZB70..LHD |
1 | ||
| 58123-36110 |
HZB60,70..LHD |
1 | ||
| 58123B - PANEL, FRONT FLOOR, CENTER LH | ||||
| 58123-36320 |
XZB70..GCC,TAIW |
1 | ||
| 58123-V4080 |
XZB70..GCC,TAIW |
1 | ||
| 58126B - PANEL, FRONT FLOOR REAR UPPER SIDE, LH | ||||
| 58126-36030 |
HZB60,70,TRB60,70,XZB70..LHD |
1 | ||
| 58131C - BRACKET, RESERVE TANK SERVICE HOLE COVER | ||||
| 58131-36010 |
TRB60,70 |
1 | ||
| 58171 - REINFORCEMENT, PARKING BRAKE BASE | ||||
| 58107-36050 |
HZB60,70,TRB60,70,XZB70..LHD |
1 | ||
| 58177A - EXTENSION, FRONT FLOOR PANEL, RH | ||||
| 58177-36010 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 58178A - EXTENSION, FRONT FLOOR PANEL, LH | ||||
| 58178-36010 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 58182 - BRACKET, FRONT SEAT INSIDE MOUNTING, FRONT LH | ||||
| 58182-36030 |
HZB60,70,TRB60,70,XZB70..LHD |
1 | ||
| 58183E - BRACKET, FRONT SEAT MOUNTING, OUTSIDE | ||||
| 58184-36030 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 58184D - BRACKET, FRONT SEAT MOUNTING, OUTSIDE | ||||
| 58184-36030 |
XZB60..GEN;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 58187B - BRACKET, ACCELERATOR PEDAL ROD | ||||
| 58187-36020 |
HZB60,70,TRB60,70,XZB70..LHD |
1 | ||
| 58193 - BRACKET, INSTRUMENT PANEL BRACE MOUNTING | ||||
| 58193-36060 |
HZB60,70,TRB60,70,XZB70..LHD |
1 | ||
| 58194C - BRACKET, INSTRUMENT PANEL BRACE MOUNTING, LH | ||||
| 58193-36070 |
HZB60,70,TRB60,70,XZB70..LHD |
1 | ||
| 58209C - COVER SUB-ASSY, HEATER AIR INTAKE | ||||
| 58209-36010 |
HZB70..GCC;XZB60..GEN;XZB70..6FC..ARL;XZB70..DX..(GCC,SA);XZB70..(02S,19S,20S,23S)..(5F,6FC)..(EX,STD)..WC;BZB60,TRB60,70,XZB80..(01S,17S,19S,20S,23S)..(5F,6FC) |
1 | ||
| 58217B - PLATE, FRONT FLOOR | ||||
| 58217-36030 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 58256D - BRACKET, FRONT FLOOR HARNESS | ||||
| 58256-36050 |
HZB60,70,TRB60,70,XZB70..LHD |
1 | ||
| 58261B - REINFORCEMENT, FRONT SEAT, FRONT LH | ||||
| 58261-36010 |
HZB60,70,TRB60,70,XZB70..LHD |
1 | ||
| 58286 - BOOT, SHIFT & SELECT LEVER, NO.1 | ||||
| 58280-36010 |
XZB60..GEN;BZB60,HZB60,70,TRB60,70,XZB70,80..5F..(GCC,GEN,SA,TAIW) |
1 | ||
| 58396E - BRACKET, WIRE HARNESS CLAMP | ||||
| 58396-47010 |
HZB60,70,TRB60,70,XZB70..LHD |
1 | ||
| 58410 - COVER, ENGINE SERVICE HOLE | ||||
| 58410-36120B0 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) MD.GRAY,TRIM1# |
1 | ||
| 58410-36130B0 |
HZB60,70 MD.GRAY,TRIM1# |
1 | ||
| 58410 - COVER, ENGINE SERVICE HOLE | ||||
| 58410-36120B0 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) MD.GRAY,TRIM1# |
1 | ||
| 58410-36130B0 |
HZB60,70 MD.GRAY,TRIM1# |
1 | ||
| 58420 - COVER ASSY, ENGINE SERVICE HOLE, NO.2 | ||||
| 58420-36160 |
TRB60,70,XZB70..LHD |
1 | ||
| 58420-36180 |
HZB60,70..LHD |
1 | ||
| 58444B - PACKING, ENGINE SUB COVER | ||||
| 58444-36050 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
2 | ||
| 58444B - PACKING, ENGINE SUB COVER | ||||
| 58444-36050 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
2 | ||
| 58492A - PACKING, RELAY BLOCK HOLE COVER | ||||
| 58492-36010 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 58493 - RETAINER, ENGINE COVER, NO.3 | ||||
| 58493-36010B2 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) MD.GRAY,TRIM1# |
1 | ||
| 58701A - PANEL SUB-ASSY, ENGINE SERVICE COVER, FRONT | ||||
| 58701-36290 |
BZB60,70 |
1 | ||
| 58701-36110 |
HZB60,70..LHD |
1 | ||
| 58701-36310 |
TRB60,70,XZB70..LHD |
1 | ||
| 58704C - HOOK SUB-ASSY, ENGINE SERVICE COVER CATCH, REAR | ||||
| 58704-36041 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
2 | ||
| 58709B - CATCH SUB-ASSY, ENGINE SERVICE COVER | ||||
| 58709-36031 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
2 | ||
| 58724A - CUSHION, ENGINE SERVICE COVER, NO.2 | ||||
| 58724-90B00 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
2 | ||
| 58726B - PLATE, ENGINE SERVICE COVER, FRONT UPPER | ||||
| 58726-36010 |
HZB60,70,TRB60,70,XZB70,80 |
1 | ||
| 58728A - PLATE, ENGINE SERVICE COVER, NO.2 | ||||
| 58728-36010 |
HZB60,70,TRB60,70,XZB70,80 |
1 | ||
| 58733C - WEATHERSTRIP, ENGINE SERVICE COVER, FRONT | ||||
| 58733-36120 |
HZB60,70,TRB60,70,XZB70..LHD |
1 | ||
| 58734B - WEATHERSTRIP, ENGINE SERVICE COVER, REAR | ||||
| 58734-36110 |
HZB60,70 |
1 | ||
| 58734-36100 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 58734B - WEATHERSTRIP, ENGINE SERVICE COVER, REAR | ||||
| 58734-36110 |
HZB60,70 |
1 | ||
| 58734-36100 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 58755B - HANDLE, ENGINE SERVICE COVER CATCH | ||||
| 58755-95D00 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 59263A - HOOK, ENGINE COVER LOCK | ||||
| 59263-95D00 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 65579C - BRACKET, SIDE PANEL FRAME | ||||
| 65579-36010 |
XZB70..6FC..ARL;BZB60,XZB60,80..(5F,6FC)..GEN;XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 74715C - RETAINER, EXTINGUISHER, NO.1 | ||||
| 74716-90K00 |
XZB70..(5F,6FC)..EX;HZB60,70,TRB60,70,XZB80..5F,6FC;XZB70..(19S,23S,25S,29S,30S)..(GCC,GEN) EXTINGUISHER-WITH |
2 | ||
| Common parts | ||||
| 82711-36110 | ||||
| 82714-36010 | ||||
| 90119-06900 | ||||
| 90119-06911 | ||||
| 90119-06952 | ||||
| 90467-09050 | ||||
| 90540-06004 | ||||
| 90541-09080 | ||||
| 90904-67033 | ||||
| 91673-80616 | ||||
| 93311-16012 | ||||
| 93567-14512 | ||||
| 93567-54514 | ||||

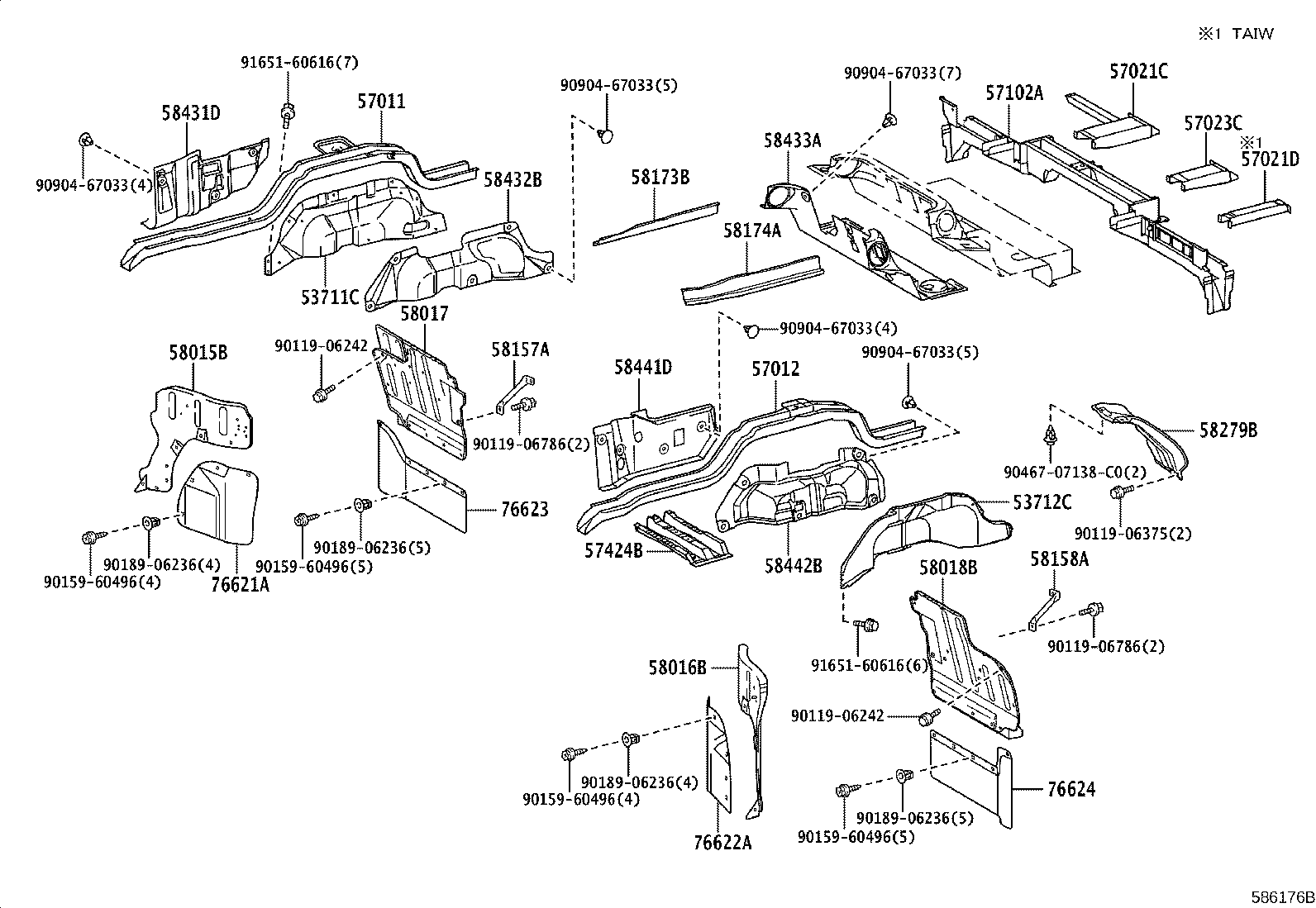

ILLUST NO. 3 OF 4(1701- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53711C - APRON, FRONT FENDER, RH | ||||
| 53711-36050 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 53712C - APRON, FRONT FENDER, LH | ||||
| 53712-36011 |
XZB60..GEN;XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 57011 - MEMBER SUB-ASSY, FLOOR, RH | ||||
| 57011-V4010 |
HZB60,70,TRB60,70,XZB70..LHD |
1 | ||
| 57011-36170 |
HZB60,70,TRB60,70,XZB70..LHD |
1 | ||
| 57012 - MENBER SUB-ASSY | ||||
| 57012-36140 |
HZB70,TRB60,70,XZB70..LHD..(02S,19S,20S,23S,25S,29S) |
1 | ||
| 57021C - STRENGTH SUB-ASSY, ANCHOR SIDE, NO.1 | ||||
| 57021-36150 |
HZB60,TRB60,70..LHD..STD;HZB70,XZB70..23S..STD..GCC;HZB70,XZB70..LHD..(02S,19S,25S,29S,30S) |
1 | ||
| 57021D - STRENGTH SUB-ASSY, ANCHOR SIDE, NO.2 | ||||
| 57021-36130 |
XZB70..TAIW |
1 | ||
| 57023C - STRENGTH SUB-ASSY, ANCHOR SIDE, NO.1 | ||||
| 57023-36150 |
XZB70..23S..STD..GCC;XZB70..LHD..(02S,19S,25S,29S,30S) |
1 | ||
| 57023-36220 |
HZB70..23S..STD..GCC;HZB60,TRB60,70..LHD..STD;HZB70..LHD..(19S,25S,30S) |
1 | ||
| 57102A - CROSSMENBER SUB-ASSY, FLOOR, NO.2 | ||||
| 57102-36200 |
BZB60,70 |
1 | ||
| 57102-36180 |
BB60,HZB70,TRB60,70..LHD |
1 | ||
| 57102-36210 |
XZB70..LHD |
1 | ||
| 57102-36201 |
BZB60,70 |
1 | ||
| 57102-36181 |
HZB70..23S..STD..GCC;HZB60,TRB60,70..LHD..STD;HZB70..LHD..(19S,25S,30S) |
1 | ||
| 57102-36211 |
XZB70..23S..STD..GCC;XZB70..LHD..(02S,19S,25S,29S,30S) |
1 | ||
| 57424B - REINFORCEMENT, FRONT FLOOR UNDER, INNER LH | ||||
| 51201-36230 |
XZB70,80..6FC;TRB60,70,XZB70..GCC,TAIW;XZB70..RHD..(22S,23S,29S)..(GEN,SA) |
1 | ||
| 58015B - PANEL SUB-ASSY, FRONT FLOOR HOUSING, FRONT RH | ||||
| 58015-36060 |
XZB70..TAIW |
1 | ||
| 58015-36070 |
XZB70..TAIW |
1 | ||
| 58016B - PANEL SUB-ASSY, FRONT FLOOR HOUSING, FRONT LH | ||||
| 58016-36040 |
HZB60,70,TRB60,70,XZB70..LHD |
1 | ||
| 58017 - PANEL SUB-ASSY, FRONT FLOOR HOUSING, REAR RH | ||||
| 58017-36070 |
HZB60,70,TRB60,70,XZB70..LHD |
1 | ||
| 58018B - PANEL SUB-ASSY, FRONT FLOOR HOUSING, REAR LH | ||||
| 58018-36070 |
HZB60,70,TRB60,70,XZB70..LHD |
1 | ||
| 58157A - STAY, FRONT FLOOR HOUSING, REAR RH | ||||
| 58157-36010 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 58158A - STAY, FRONT FLOOR HOUSING, REAR LH | ||||
| 58158-36010 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 58173B - ANGLE, FRONT FLOOR SIDE, RH | ||||
| 58173-36050 |
HZB60,70,TRB60,70,XZB70..LHD |
1 | ||
| 58174A - ANGLE SUB-ASSY, FRONT FLOOR SIDE, LH | ||||
| 58174-36070 |
HZB60,70,TRB60,70,XZB70..LHD |
1 | ||
| 58279B - COVER, PARKING BRAKE CABLE, LH | ||||
| 58279-36030 |
HZB60,70,TRB60,70,XZB70..LHD |
1 | ||
| 58431D - SILENCER, ENGINE ROOM SIDE, FRONT RH | ||||
| 58431-36180 |
HZB60,70..LHD |
1 | ||
| 58431-36190 |
XZB70..LHD |
1 | ||
| 58432B - SILENCER, ENGINE ROOM SIDE, REAR RH | ||||
| 58432-36080 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 58433A - SILENCER, ENGINE ROOM SIDE END | ||||
| 58433-36200 |
XZB60,70 |
1 | ||
| 58433-36190 |
BB60,HZB70,TRB60,70 |
1 | ||
| 58433-36240 |
XZB70..6FC..ARL;XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 58433-36230 |
HZB60,70,TRB60,70 |
1 | ||
| 58433-36210 |
BZB60,70 |
1 | ||
| 58441D - SILENCER, ENGING ROOM SIDE, FRONT LH | ||||
| 58441-36190 |
BZB60,70 |
1 | ||
| 58441-V4060 |
HZB60,70,TRB60,70,XZB70..LHD |
1 | ||
| 58441-36160 |
HZB60,70,TRB60,70,XZB70..LHD |
1 | ||
| 58442B - SILENCER, ENGING ROOM SIDE, REAR LH | ||||
| 58442-V4030 |
XZB70..5F..EX;XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB80..5F;XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) |
1 | ||
| 58442-36100 |
XZB60..GEN;XZB70..5F..EX;XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB80..5F;XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,SA,TAIW) |
1 | ||
| 76621A - MUDGUARD, FRONT BODY, FRONT RH | ||||
| 76621-36080 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 76622A - MUDGUARD, FRONT BODY, FRONT LH | ||||
| 76622-36070 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 76623 - MUDGUARD, FRONT BODY, REAR RH | ||||
| 76623-36040 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 76624 - MUDGUARD, FRONT BODY, REAR LH | ||||
| 76624-36040 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| Common parts | ||||
| 90119-06242 | ||||
| 90119-06375 | ||||
| 90119-06786 | ||||
| 90159-60496 | ||||
| 90189-06236 | ||||
| 90467-07138C0 | ||||
| 90904-67033 | ||||
| 91651-60616 | ||||

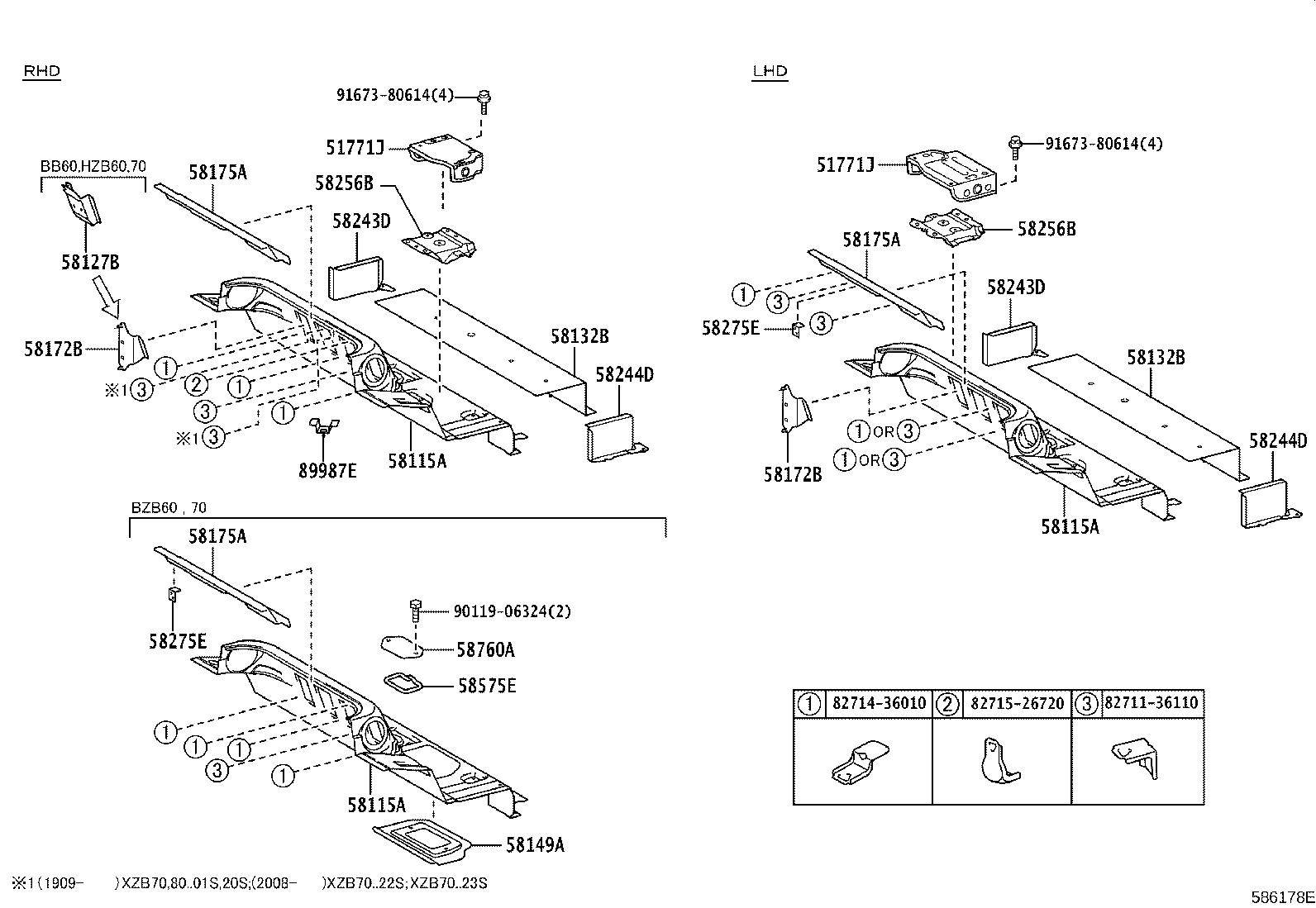

ILLUST NO. 2 OF 4(1701- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51771J - STEP, RH | ||||
| 51770-36020 |
HZB70,TRB60,70,XZB70..GCC,TAIW |
1 | ||
| 51771J - STEP, RH | ||||
| 51770-36020 |
HZB70,TRB60,70,XZB70..GCC,TAIW |
1 | ||
| 58115A - REINFORCEMENT, FRONT FLOOR PANEL | ||||
| 58115-36700 |
BZB60,70 SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 58115-36700 |
BZB60,70 CENTER DOOR-GLIDING(AUTO) & WITH(3 STEP)&SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 58115-36700 |
BZB60,70 |
1 | ||
| 58115-36690 |
BZB60,70 CENTER DOOR-GLIDING(AUTO) & WITH(3 STEP) |
1 | ||
| 58115-36A20 |
XZB60,70..GCC,TAIW |
1 | ||
| 58115-36A21 |
XZB70..GCC,TAIW |
1 | ||
| 58115-36A22 |
XZB70..GCC,TAIW |
1 | ||
| 58115A - REINFORCEMENT, FRONT FLOOR PANEL | ||||
| 58115-36700 |
BZB60,70 SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 58115-36700 |
BZB60,70 CENTER DOOR-GLIDING(AUTO) & WITH(3 STEP)&SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 58115-36700 |
BZB60,70 |
1 | ||
| 58115-36690 |
BZB60,70 CENTER DOOR-GLIDING(AUTO) & WITH(3 STEP) |
1 | ||
| 58115-36A20 |
XZB60,70..GCC,TAIW |
1 | ||
| 58115-36A21 |
XZB70..GCC,TAIW |
1 | ||
| 58115-36A22 |
XZB70..GCC,TAIW |
1 | ||
| 58115A - REINFORCEMENT, FRONT FLOOR PANEL | ||||
| 58115-36700 |
BZB60,70 SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 58115-36700 |
BZB60,70 CENTER DOOR-GLIDING(AUTO) & WITH(3 STEP)&SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 58115-36700 |
BZB60,70 |
1 | ||
| 58115-36690 |
BZB60,70 CENTER DOOR-GLIDING(AUTO) & WITH(3 STEP) |
1 | ||
| 58115-36A20 |
XZB60,70..GCC,TAIW |
1 | ||
| 58115-36A21 |
XZB70..GCC,TAIW |
1 | ||
| 58115-36A22 |
XZB70..GCC,TAIW |
1 | ||
| 58132B - PANEL, FRONT FLOOR, CENTER | ||||
| 58132-36110 |
XZB70..LHD |
1 | ||
| 58132B - PANEL, FRONT FLOOR, CENTER | ||||
| 58132-36110 |
XZB70..LHD |
1 | ||
| 58172B - BRACKET, COMPUTER MOUNTING, NO.3 | ||||
| 58172-36030 |
XZB70..6FC..ARL;TRB60,70,XZB60,80..(5F,6FC)..GEN;XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 58172B - BRACKET, COMPUTER MOUNTING, NO.3 | ||||
| 58172-36030 |
XZB70..6FC..ARL;TRB60,70,XZB60,80..(5F,6FC)..GEN;XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 58175A - REINFORCEMENT, PARKING BRAKE BASE, NO.1 | ||||
| 58175-36032 |
BZB60,70 SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 58175-36032 |
BZB60,70 CENTER DOOR-GLIDING(AUTO) & WITH(3 STEP)&SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 58175-36032 |
XZB60..GEN;HZB60,70..LHD;XZB70..6FC..ARL;BZB60,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 58175A - REINFORCEMENT, PARKING BRAKE BASE, NO.1 | ||||
| 58175-36032 |
BZB60,70 SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 58175-36032 |
BZB60,70 CENTER DOOR-GLIDING(AUTO) & WITH(3 STEP)&SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 58175-36032 |
XZB60..GEN;HZB60,70..LHD;XZB70..6FC..ARL;BZB60,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 58175A - REINFORCEMENT, PARKING BRAKE BASE, NO.1 | ||||
| 58175-36032 |
BZB60,70 SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 58175-36032 |
BZB60,70 CENTER DOOR-GLIDING(AUTO) & WITH(3 STEP)&SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 58175-36032 |
XZB60..GEN;HZB60,70..LHD;XZB70..6FC..ARL;BZB60,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 58243D - PANEL, FLOOR SIDE, REAR RH | ||||
| 58243-36070 |
XZB70..6FC..ARL;XZB60,80..(5F,6FC)..GEN;XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 58243D - PANEL, FLOOR SIDE, REAR RH | ||||
| 58243-36070 |
XZB70..6FC..ARL;XZB60,80..(5F,6FC)..GEN;XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 58244D - PANEL, FLOOR SIDE, REAR LH | ||||
| 58244-36070 |
XZB70..6FC..ARL;XZB60,80..(5F,6FC)..GEN;XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 58244D - PANEL, FLOOR SIDE, REAR LH | ||||
| 58244-36070 |
XZB70..6FC..ARL;XZB60,80..(5F,6FC)..GEN;XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 58256B - BRACKET, AIR CLEANER, REAR | ||||
| 58256-36030 |
HZB70,TRB60,70,XZB70..GCC,TAIW |
1 | ||
| 58256B - BRACKET, AIR CLEANER, REAR | ||||
| 58256-36030 |
HZB70,TRB60,70,XZB70..GCC,TAIW |
1 | ||
| 58275E - BRACKET, WIRE HARNESS PROTECTOR | ||||
| 58275-36010 |
TRB60,70 |
1 | ||
| 58275E - BRACKET, WIRE HARNESS PROTECTOR | ||||
| 58275-36010 |
TRB60,70 |
1 | ||
| Common parts | ||||
| 82711-36110 | ||||
| 82714-36010 | ||||
| 82715-26720 | ||||
| 90119-06324 | ||||
| 91673-80614 | ||||

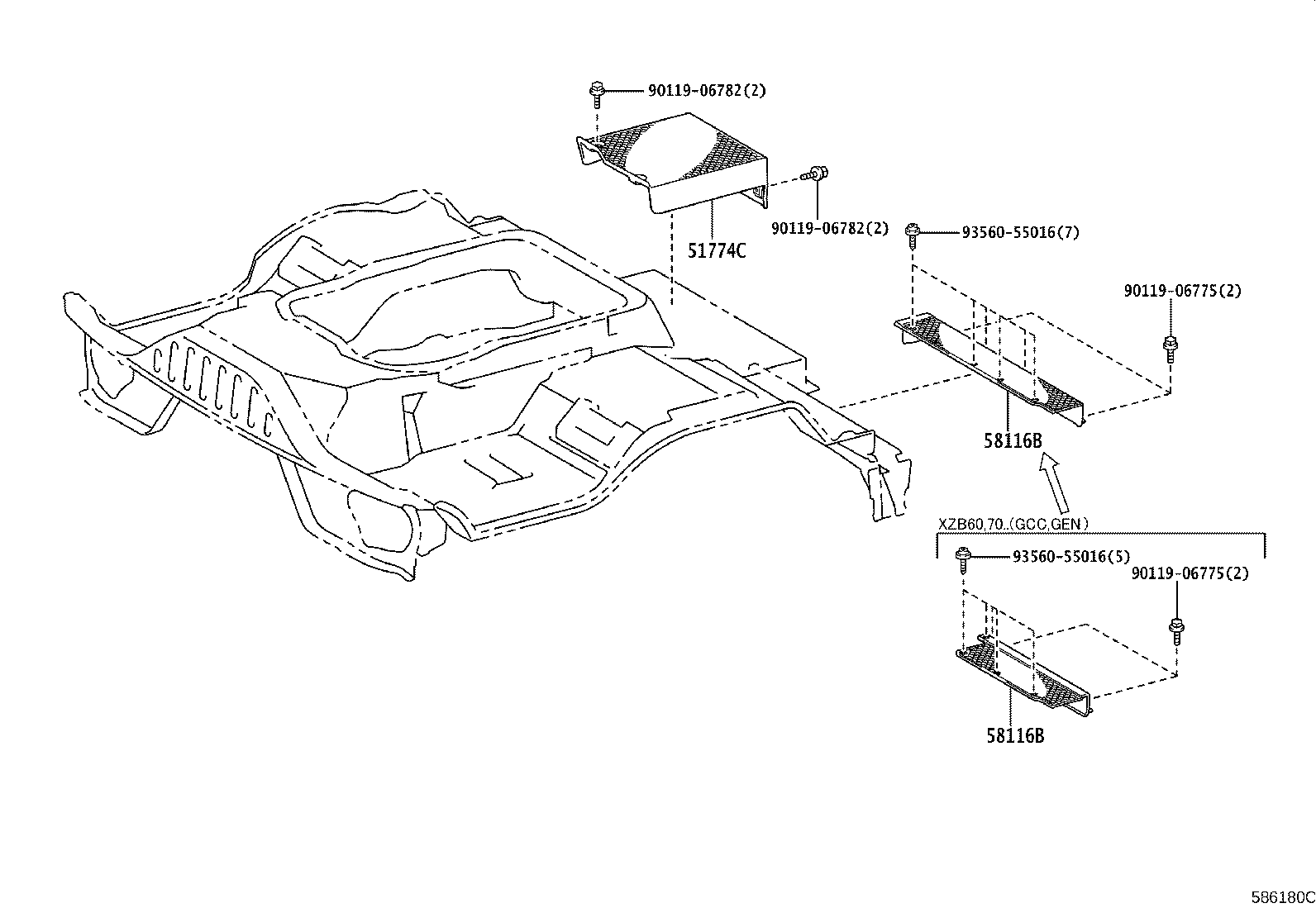

ILLUST NO. 4 OF 4(1701- )LHD
FOOT REST
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51774C - COVER, STEP PLATE, LH | ||||
| 51774-36030B0 |
XZB70..GCC,TAIW MD.GRAY,TRIM1# |
1 | ||
| 58116B - PANEL, FRONT FLOOR REAR UPPER SIDE, RH | ||||
| 58116-36110B0 |
HZB60,70,TRB60,70..LHD MD.GRAY,TRIM1# |
1 | ||
| 58116B - PANEL, FRONT FLOOR REAR UPPER SIDE, RH | ||||
| 58116-36110B0 |
HZB60,70,TRB60,70..LHD MD.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-06775 | ||||
| 90119-06782 | ||||
| 93560-55016 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
