XZB70L-ZEMSYR (2017)

Toyota Coaster

Production Jan 2017 - Sep 9999
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1701- )

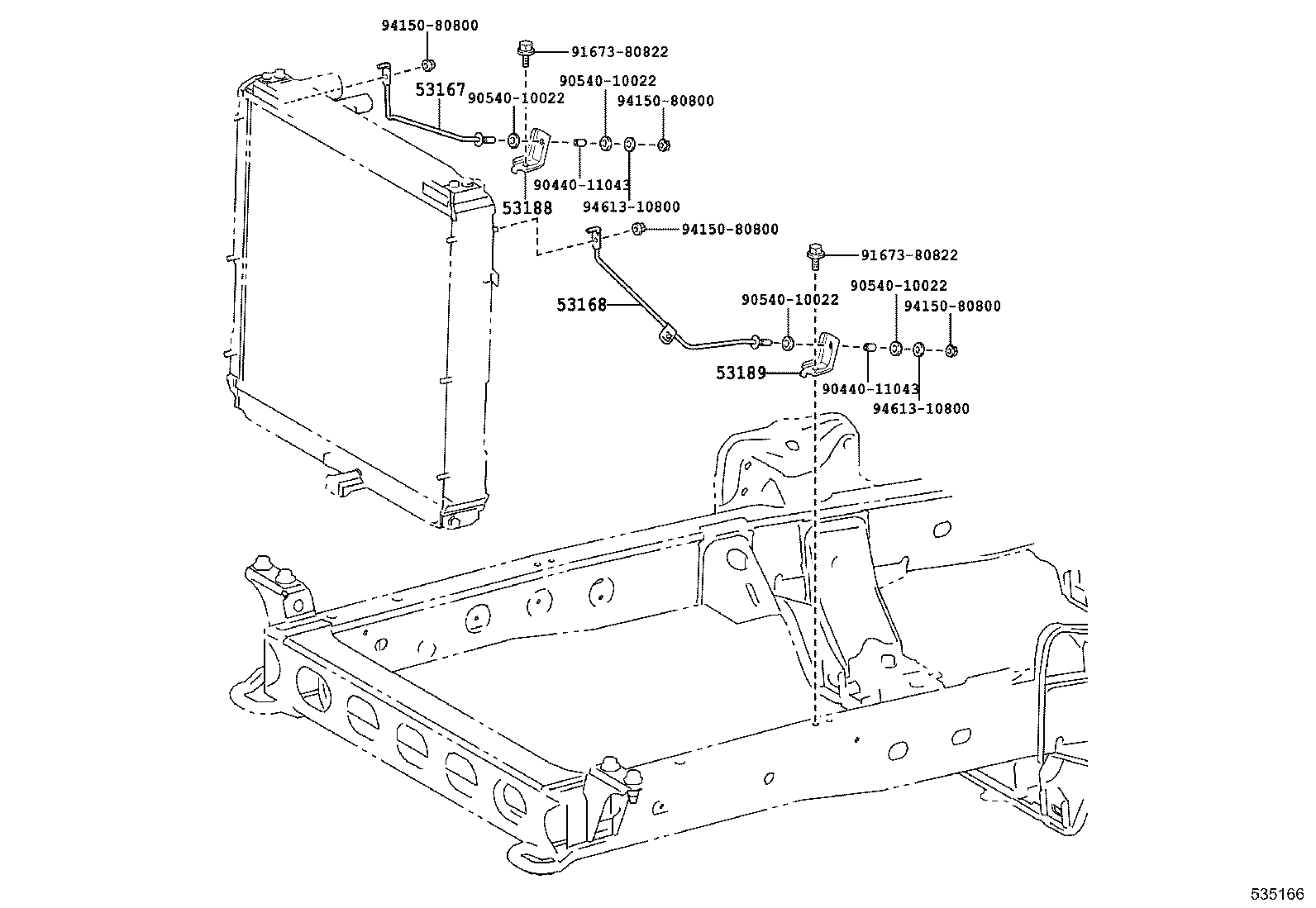

Click highlighted areas on diagram

diagram 53167 53168 53188 53189 9044011043 9044011043 9054010022 9054010022 9054010022 9054010022 9167380822 9167380822 9415080800 9415080800 9415080800 9415080800 9461310800 9461310800
Part # Description Qty Price
53167 - ROD, RADIATOR BRACE, RH
16533-58090

BZB60,70

 1
16533-78130

XZB70..LHD

 1
16533-17040

HZB60,70,TRB60,70..LHD

 1
53168 - ROD, RADIATOR BRACE, LH
16534-58050

BZB60,70

 1
16534-17030

HZB60,70,TRB60,70..LHD

 1
16534-78110

XZB70..LHD

 1
53188 - BRACKET, RADIATOR BRACE ROD, RH
53168-36010

XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)

 1
53189 - BRACKET, RADIATOR BRACE ROD, LH
53168-36010

XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)

 1
Common parts
90440-11043
90540-10022
91673-80822
94150-80800
94613-10800
