XZB70L-ZEMSYR (2017)

Toyota Coaster

Production Jan 2017 - Sep 9999
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1701- )

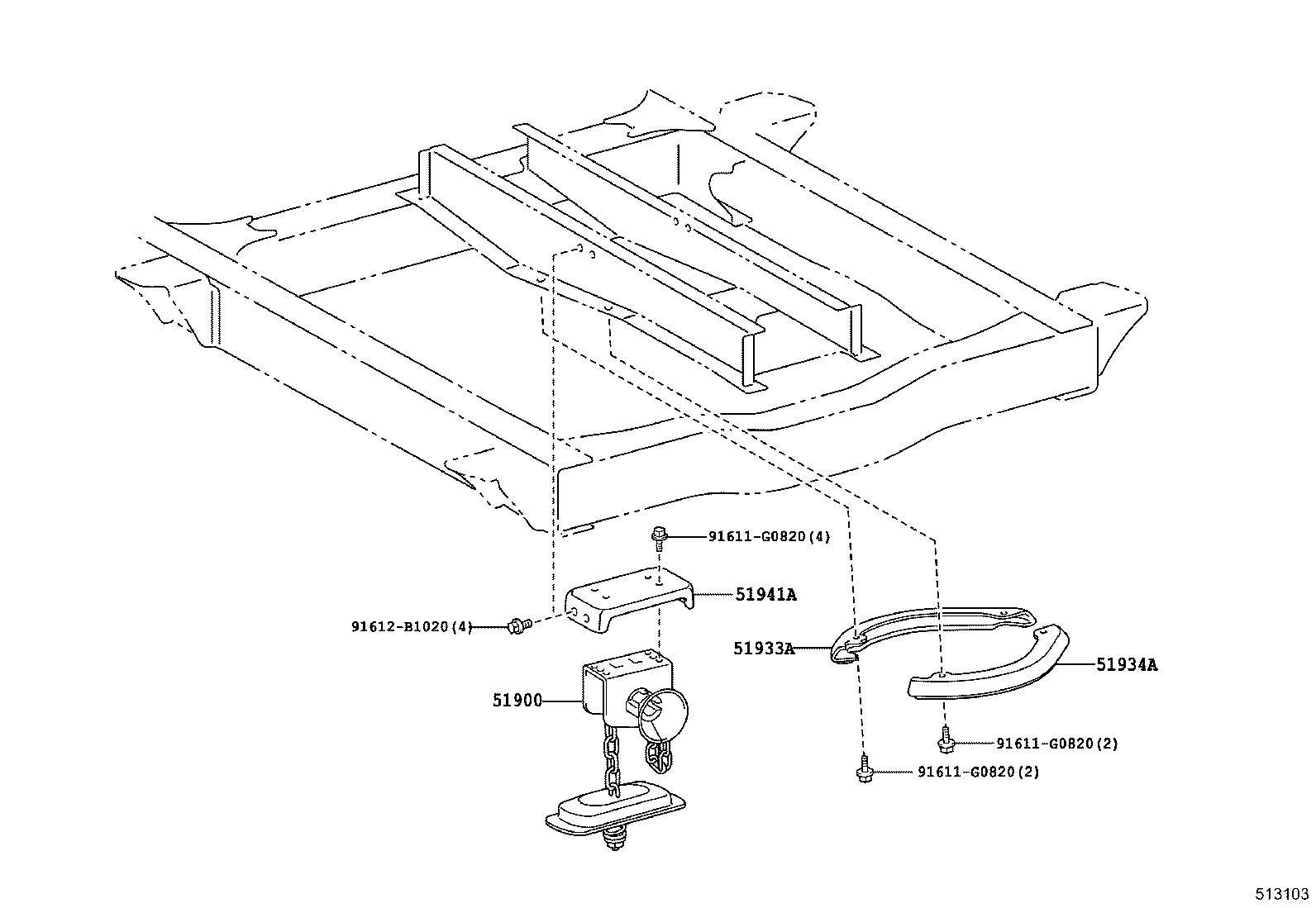

Click highlighted areas on diagram

diagram 51900 51933A 51934A 51941A 91611G0820 91611G0820 91611G0820 91612B1020
Part # Description Qty Price
51900 - CARRIER ASSY, SPARE WHEEL
51900-36190

XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)

 1
51933A - STOPPER, SPARE WHEEL, NO.1
51903-36071

XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)

 1
51934A - STOPPER, SPARE WHEEL, NO.2
51904-36051

XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)

 1
51941A - BRACKET, SPARE WHEEL CARRIER
51941-36050

XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)

 1
Common parts
91611-G0820
91612-B1020
