XZB70L-ZEMSYR (2017)
Toyota Coaster

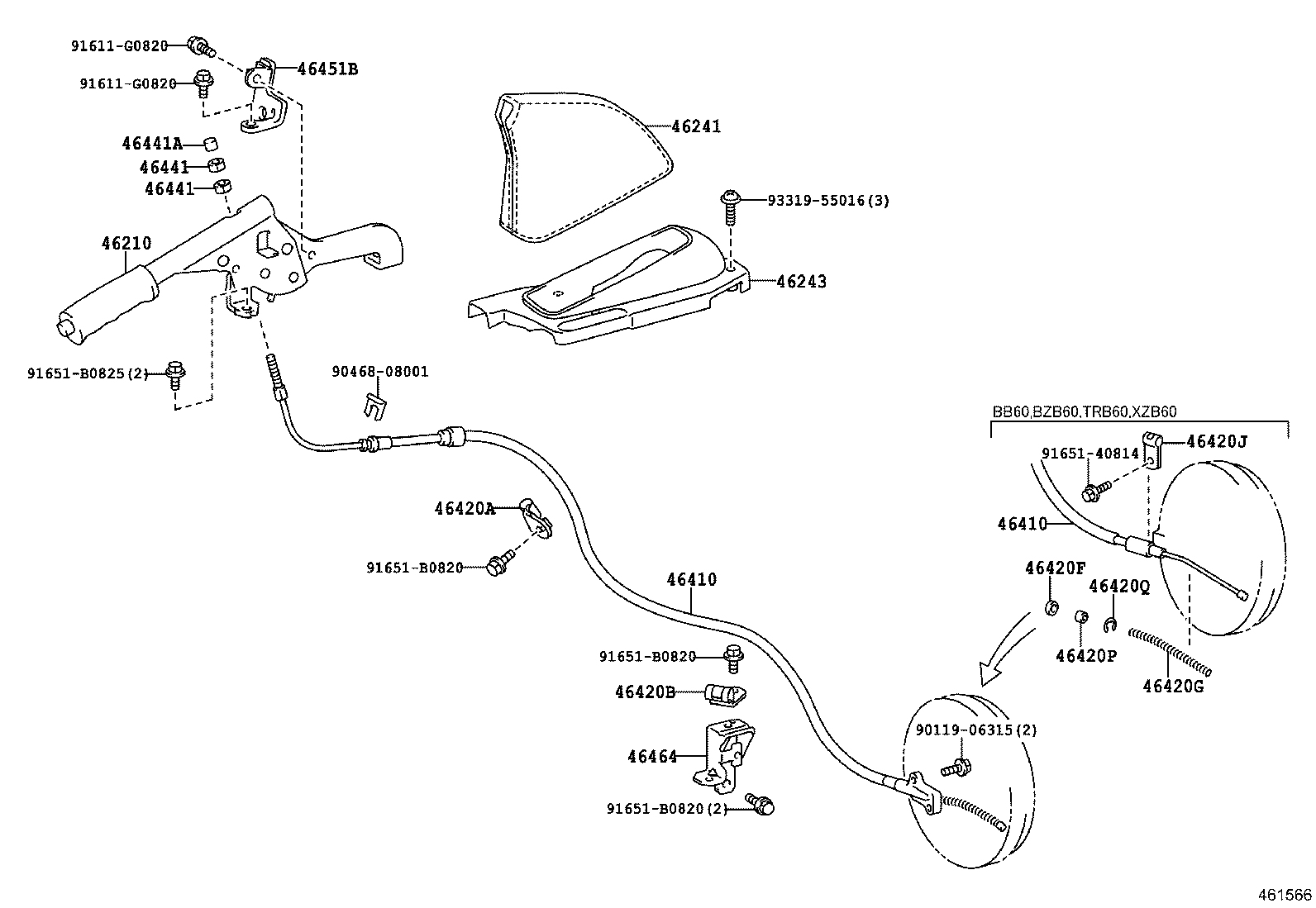

ILLUST NO. 1 OF 2(1701- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46210 - LEVER ASSY, PARKING BRAKE | ||||
| 46210-36040B2 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) MD.GRAY,TRIM1# |
1 | ||
| 46241 - BOOT, PARKING BRAKE LEVER | ||||
| 46241-36030B2 |
HZB60,70,TRB60,70,XZB70..LHD MD.GRAY,TRIM1# |
1 | ||
| 46243 - COVER, PARKING BRAKE LEVER | ||||
| 46243-36060B0 |
HZB60,70,TRB60,70,XZB70..LHD MD.GRAY,TRIM1# |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-36590 |
XZB70..LHD |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-36590 |
XZB70..LHD |
1 | ||
| 46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE) | ||||
| 90949-01842 |
HZB60,70,TRB60,70,XZB70..LHD |
1 | ||
| 46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE) | ||||
| 90949-01B36 |
XZB70,80..5F..(GCC,GEN,SA,TAIW) |
1 | ||
| 90949-01839 |
XZB60..GEN;XZB70,80..6FC;BZB60,HZB60,70,TRB60,70 |
1 | ||
| 46441 - NUT, WIRE ADJUSTING, NO.1 | ||||
| 94130-60600 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
2 | ||
| 46441 - NUT, WIRE ADJUSTING, NO.1 | ||||
| 94130-60600 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
2 | ||
| 46441A - NUT, WIRE ADJUSTING, NO.2 | ||||
| 90339-04024 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 46451B - BRACKET, PARKING BRAKE CABLE SUPPORT | ||||
| 46451-36060 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 46464 - PLATE, CABLE CLAMP SUPPORT | ||||
| 46464-36030 |
HZB60,70,TRB60,70,XZB70..LHD |
1 | ||
| Common parts | ||||
| 90119-06315 | ||||
| 90468-08001 | ||||
| 91611-G0820 | ||||
| 91651-40814 | ||||
| 91651-B0820 | ||||
| 91651-B0825 | ||||
| 93319-55016 | ||||

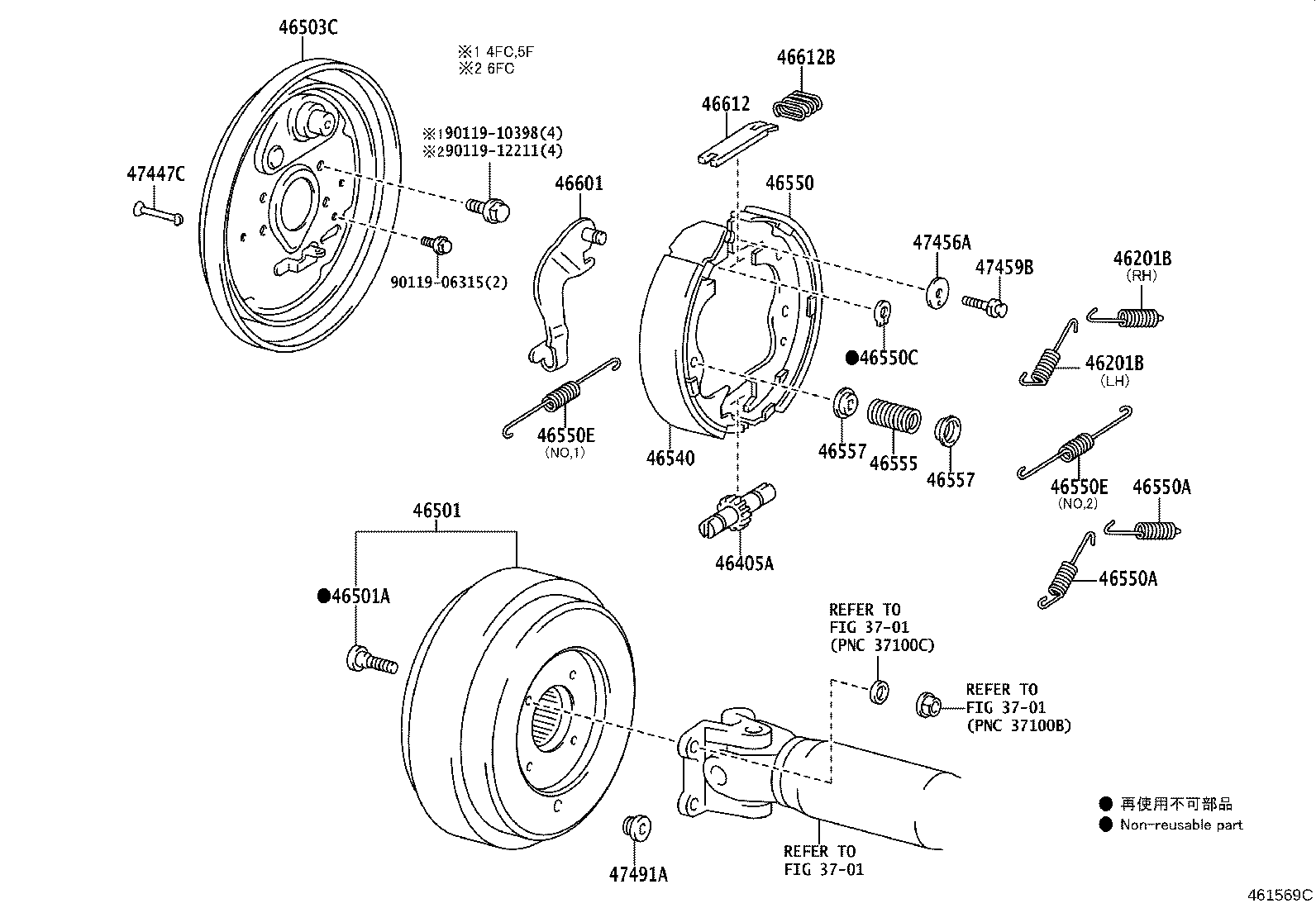

ILLUST NO. 2 OF 2(1701- )XZB70,80 ; (1701- )HZB70,XZB60..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46201B - SPRING, TENSION | ||||
| 90507-20021 |
HZB70,TRB70,XZB70..LHD RH |
1 | ||
| 90507-20020 |
HZB70,TRB70,XZB70..LHD LH |
1 | ||
| 46201B - SPRING, TENSION | ||||
| 90507-20021 |
HZB70,TRB70,XZB70..LHD RH |
1 | ||
| 90507-20020 |
HZB70,TRB70,XZB70..LHD LH |
1 | ||
| 46405A - SCREW SET, SHOE ADJUSTING, RH | ||||
| 47405-36010 |
XZB70..6FC..ARL;HZB70,TRB70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 46501 - DRUM SUB-ASSY, PARKING BRAKE | ||||
| 46501-36220 |
HZB70,TRB70,XZB70,80..5F..(GCC,GEN,SA,TAIW) |
1 | ||
| 46501A - BOLT, SERRATION(FOR PARKING BRAKE DRUM) | ||||
| 90114-11124 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
4 | ||
| 46503C - PLATE SUB-ASSY, PARKING BRAKE | ||||
| 46503-36071 |
HZB70,TRB70,XZB70..LHD |
1 | ||
| 46540 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.1 | ||||
| 46540-37040 |
XZB70..6FC..ARL;HZB70,TRB70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 46550 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2 | ||||
| 46550-37040 |
XZB70..6FC..ARL;HZB70,TRB70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90905-06020 |
HZB70..LHD;XZB70..6FC..ARL;XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
2 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90905-06020 |
HZB70..LHD;XZB70..6FC..ARL;XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
2 | ||
| 46550C - WASHER, TYPE C(FOR PARKING BRAKE SHOE) | ||||
| 90213-06003 |
XZB70..6FC..ARL;HZB70,TRB70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-14054 |
HZB70..LHD;XZB70..6FC..ARL;XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) NO.1:REFER ILLUST. |
1 | ||
| 90506-23049 |
HZB70..LHD;XZB70..6FC..ARL;XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) NO.2:REFER ILLUST. |
1 | ||
| 46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-14054 |
HZB70..LHD;XZB70..6FC..ARL;XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) NO.1:REFER ILLUST. |
1 | ||
| 90506-23049 |
HZB70..LHD;XZB70..6FC..ARL;XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) NO.2:REFER ILLUST. |
1 | ||
| 46555 - SPRING, BRAKE SHOE HOLD DOWN | ||||
| 90501-16108 |
XZB70..6FC..ARL;HZB70,TRB70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
2 | ||
| 46557 - CUP, BRAKE SHOE HOLD DOWN | ||||
| 47449-20011 |
XZB70..6FC..ARL;HZB70,TRB70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
4 | ||
| 46557 - CUP, BRAKE SHOE HOLD DOWN | ||||
| 47449-20011 |
XZB70..6FC..ARL;HZB70,TRB70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
4 | ||
| 46601 - LEVER SUB-ASSY, PARKING BRAKE SHOE | ||||
| 46601-36061 |
HZB70,TRB70,XZB70..LHD |
1 | ||
| 46612 - STRUT, PARKING BRAKE SHOE LEVER | ||||
| 46612-36060 |
HZB70,TRB70,XZB70..LHD |
1 | ||
| 46612B - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT) | ||||
| 90504-10010 |
XZB70..6FC..ARL;HZB70,TRB70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 47447C - PIN, SHOE HOLD DOWN SPRING(FOR PARKING BRAKE) | ||||
| 47447-20030 |
XZB70..6FC..ARL;HZB70,TRB70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
2 | ||
| 47456A - PLATE, SHOE GUIDE(FOR PARKING BRAKE) | ||||
| 47456-35010 |
XZB70..6FC..ARL;HZB70,TRB70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 47459B - BOLT, SHOE GUIDE PLATE SET(FOR PARKING BRAKE) | ||||
| 47459-30010 |
XZB70..6FC..ARL;HZB70,TRB70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 47491A - PLUG, SHOE ADJUSTING HOLE(FOR PARKING BRAKE SHOE) | ||||
| 47491-22020 |
XZB70..6FC..ARL;HZB70,TRB70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| Common parts | ||||
| 90119-06315 | ||||
| 90119-10398 | ||||
| 90119-12211 | ||||
| Linked diagrams | ||||
| 3701 | ||||
