XZB70L-ZEMSYR (2017)

Toyota Coaster

Production Jan 2017 - Sep 9999
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1701- )N04C

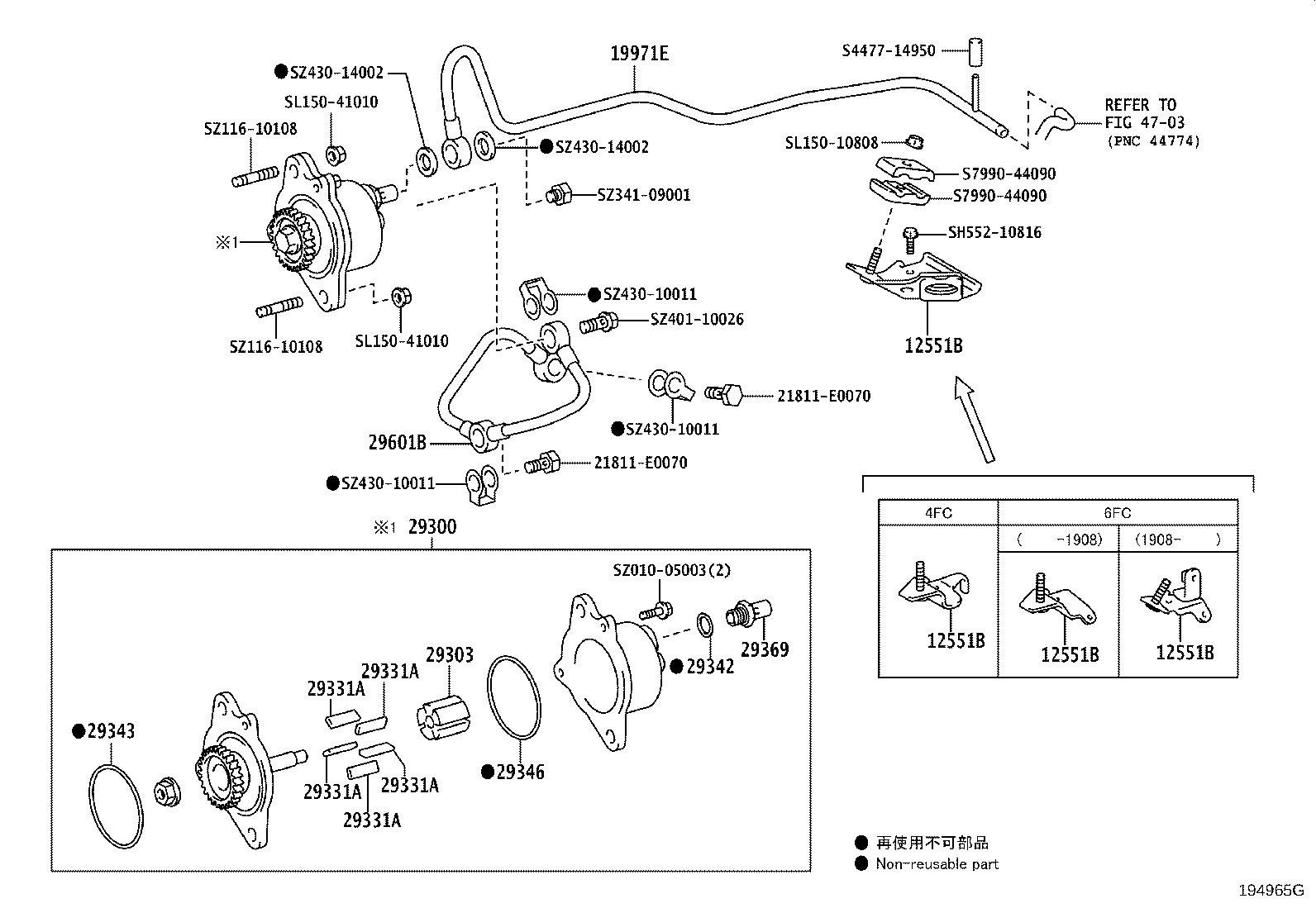

Click highlighted areas on diagram

diagram 12551B 12551B 12551B 12551B 19971E 21811E0070 21811E0070 29300 29303 29331A 29331A 29331A 29331A 29331A 29342 29343 29346 29369 29601B 4703 S447714950 S799044090 S799044090 SH55210816 SL15010808 SL15041010 SL15041010 SZ01005003 SZ11610108 SZ11610108 SZ34109001 SZ40110026 SZ43010011 SZ43010011 SZ43010011 SZ43014002 SZ43014002
Part # Description Qty Price
12551B - BRACKET, VACUUM PUMP, NO.1
S1201-73081

N04C..XZB60,80..5F..GEN;N04C..XZB70..5F..(GCC,GEN,SA,TAIW)

 1
12551B - BRACKET, VACUUM PUMP, NO.1
S1201-73081

N04C..XZB60,80..5F..GEN;N04C..XZB70..5F..(GCC,GEN,SA,TAIW)

 1
12551B - BRACKET, VACUUM PUMP, NO.1
S1201-73081

N04C..XZB60,80..5F..GEN;N04C..XZB70..5F..(GCC,GEN,SA,TAIW)

 1
12551B - BRACKET, VACUUM PUMP, NO.1
S1201-73081

N04C..XZB60,80..5F..GEN;N04C..XZB70..5F..(GCC,GEN,SA,TAIW)

 1
19971E - PIPE, VACUUM
87207-E0081

N04C..XZB60,70..(02S,17S,19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA,TAIW)

 1
29300 - PUMP ASSY, VACUUM
29300-E0090

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

 1
29303 - ROTOR SUB-ASSY, VACUUM PUMP
29303-EV020

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

 1
29331A - VANE, VACUUM PUMP
29331-EV020

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

 5
29331A - VANE, VACUUM PUMP
29331-EV020

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

 5
29331A - VANE, VACUUM PUMP
29331-EV020

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

 5
29331A - VANE, VACUUM PUMP
29331-EV020

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

 5
29331A - VANE, VACUUM PUMP
29331-EV020

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

 5
29342 - PACKING, VACUUM PUMP
29342-EV010

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

 1
29343 - RING, O VACUUM PUMP, NO.1
29343-EV030

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

 1
29346 - RING, O VACUUM PUMP COVER
29346-EV010

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

 1
29369 - VALVE SUB-ASSY, CHECK
29369-EV060

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

 1
29601B - PIPE SUB-ASSY, OIL(FOR VACUUM PUMP)
29601-E0320

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

 1
Common parts
21811-E0070
S4477-14950
S7990-44090
SH552-10816
SL150-10808
SL150-41010
SZ010-05003
SZ116-10108
SZ341-09001
SZ401-10026
SZ430-10011
SZ430-14002
Linked diagrams
4703
