XZB70L-ZEMSYR (2017)
Toyota Coaster

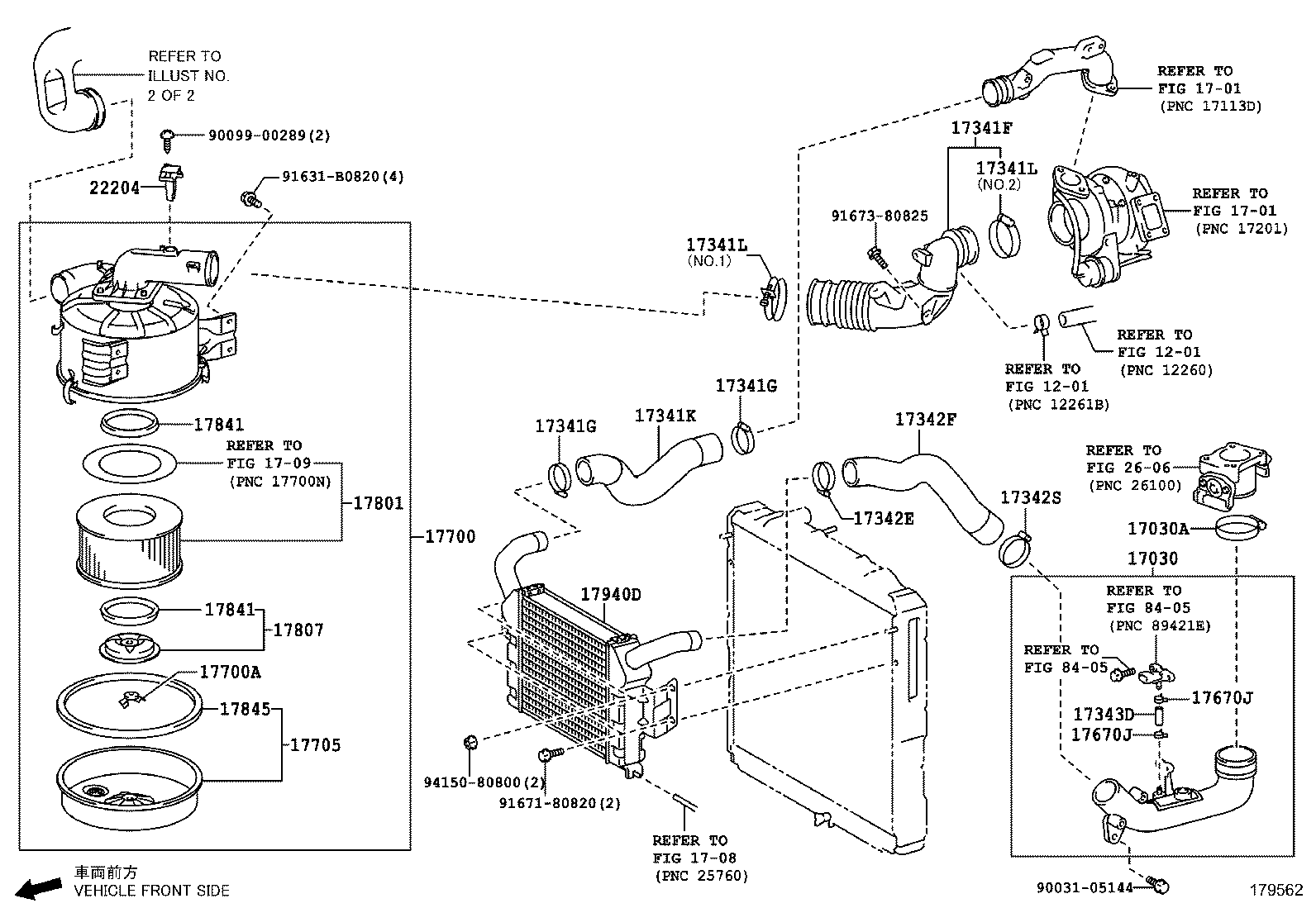

ILLUST NO. 1 OF 2(1701- )N04C
EURO 3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17030 - HOSE ASSY, AIR | ||||
| 17030-78482 |
N04C..XZB60,70..02S,17S |
1 | ||
| 17030A - CLAMP, HOSE | ||||
| 90460-80006 |
N04C..XZB70,80..6FC;N04C..XZB60,70..(02S,17S,19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA,TAIW) |
1 | ||
| 17341F - HOSE, AIR, NO.1 | ||||
| 17030-78490 |
N04C..XZB60,70..02S,17S |
1 | ||
| 17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1) | ||||
| 90460-63011 |
N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) |
2 | ||
| 17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1) | ||||
| 90460-63011 |
N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) |
2 | ||
| 17341K - HOSE, AIR, NO.1(FOR INTERCOOLER) | ||||
| 17341-78250 |
N04C..XZB70..LHD |
1 | ||
| 17341L - CLAMP, HOSE | ||||
| 96111-10900 |
N04C..XZB60,70..02S,17S NO.2:REFER ILLUST. |
1 | ||
| 96111-11180 |
N04C..XZB70,80..6FC;N04C..XZB60,70..(02S,17S,19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA,TAIW) NO.1:REFER ILLUST. |
1 | ||
| 17341L - CLAMP, HOSE | ||||
| 96111-10900 |
N04C..XZB60,70..02S,17S NO.2:REFER ILLUST. |
1 | ||
| 96111-11180 |
N04C..XZB70,80..6FC;N04C..XZB60,70..(02S,17S,19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA,TAIW) NO.1:REFER ILLUST. |
1 | ||
| 17342E - CLAMP OR CLIP(FOR AIR HOSE, NO.2) | ||||
| 90460-63011 |
N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 17342F - HOSE, AIR, NO.2(FOR INTERCOOLER) | ||||
| 17342-78140 |
N04C..XZB70..LHD |
1 | ||
| 17342S - CLAMP OR CLIP(FOR AIR HOSE, NO.2) | ||||
| 90460-67008 |
N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 17343D - HOSE, AIR, NO.3 | ||||
| SZ920-33220 |
N04C..XZB60,70..(02S,17S,19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA,TAIW) |
1 | ||
| 17670J - CLIP(FOR AIR HOSE NO.3) | ||||
| 90467-12056 |
N04C..XZB60,70..(02S,17S,19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA,TAIW) |
2 | ||
| 17670J - CLIP(FOR AIR HOSE NO.3) | ||||
| 90467-12056 |
N04C..XZB60,70..(02S,17S,19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA,TAIW) |
2 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-78310 |
N04C..XZB60,70..02S,17S |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-08008 |
N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-17180 |
N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-58040 |
N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 17807 - PLATE SUB-ASSY, AIR CLEANER FILTER SET | ||||
| 17807-58020 |
N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-68010 |
N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) |
2 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-68010 |
N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) |
2 | ||
| 17845 - GASKET, AIR CLEANER CAP | ||||
| 17845-58010 |
N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 17940D - INTERCOOLER ASSY | ||||
| 17940-78150 |
N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 22204 - METER SUB-ASSY, INTAKE AIR FLOW | ||||
| 22204-30010 |
N04C..XZB60,70..02S,17S |
1 | ||
| Common parts | ||||
| 90031-05144 | ||||
| 90099-00289 | ||||
| 91631-B0820 | ||||
| 91671-80820 | ||||
| 91673-80825 | ||||
| 94150-80800 | ||||
| Linked diagrams | ||||
| 1201 | ||||
| 1701 | ||||
| 1708 | ||||
| 1709 | ||||
| 2606 | ||||
| 8405 | ||||
ILLUST NO. 1 OF 2(1701- )N04C..XZB60,70
EURO 4 OR EURO 6
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17030 - HOSE ASSY, AIR | ||||
| 17030-78482 |
N04C..XZB60,70..02S,17S |
1 | ||
| 17030 - HOSE ASSY, AIR | ||||
| 17030-78482 |
N04C..XZB60,70..02S,17S |
1 | ||
| 17030A - CLAMP, HOSE | ||||
| 90460-80006 |
N04C..XZB70,80..6FC;N04C..XZB60,70..(02S,17S,19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA,TAIW) |
1 | ||
| 17341F - HOSE, AIR, NO.1 | ||||
| 17030-78490 |
N04C..XZB60,70..02S,17S |
1 | ||
| 17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1) | ||||
| 90460-63011 |
N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) |
2 | ||
| 17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1) | ||||
| 90460-63011 |
N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) |
2 | ||
| 17341K - HOSE, AIR, NO.1(FOR INTERCOOLER) | ||||
| 17341-78250 |
N04C..XZB70..LHD |
1 | ||
| 17341L - CLAMP, HOSE | ||||
| 96111-10900 |
N04C..XZB60,70..02S,17S NO.2:REFER ILLUST. |
1 | ||
| 96111-11180 |
N04C..XZB70,80..6FC;N04C..XZB60,70..(02S,17S,19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA,TAIW) NO.1:REFER ILLUST. |
1 | ||
| 17341L - CLAMP, HOSE | ||||
| 96111-10900 |
N04C..XZB60,70..02S,17S NO.2:REFER ILLUST. |
1 | ||
| 96111-11180 |
N04C..XZB70,80..6FC;N04C..XZB60,70..(02S,17S,19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA,TAIW) NO.1:REFER ILLUST. |
1 | ||
| 17342E - CLAMP OR CLIP(FOR AIR HOSE, NO.2) | ||||
| 90460-63011 |
N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 17342F - HOSE, AIR, NO.2(FOR INTERCOOLER) | ||||
| 17342-78140 |
N04C..XZB70..LHD |
1 | ||
| 17342S - CLAMP OR CLIP(FOR AIR HOSE, NO.2) | ||||
| 90460-67008 |
N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-78310 |
N04C..XZB60,70..02S,17S |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-08008 |
N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-17180 |
N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-58040 |
N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 17807 - PLATE SUB-ASSY, AIR CLEANER FILTER SET | ||||
| 17807-58020 |
N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-68010 |
N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) |
2 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-68010 |
N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) |
2 | ||
| 17845 - GASKET, AIR CLEANER CAP | ||||
| 17845-58010 |
N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 17940D - INTERCOOLER ASSY | ||||
| 17940-78150 |
N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 22204 - METER SUB-ASSY, INTAKE AIR FLOW | ||||
| 22204-30010 |
N04C..XZB60,70..02S,17S |
1 | ||
| Common parts | ||||
| 90031-05144 | ||||
| 90099-00289 | ||||
| 91631-B0820 | ||||
| 91671-80820 | ||||
| 91673-80825 | ||||
| 94150-80800 | ||||
| Linked diagrams | ||||
| 1201 | ||||
| 1701 | ||||
| 1708 | ||||
| 1709 | ||||
| 2606 | ||||
| 8405 | ||||
