XZB70L-ZEMSYR (2017)

Toyota Coaster

Production Jan 2017 - Sep 9999
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

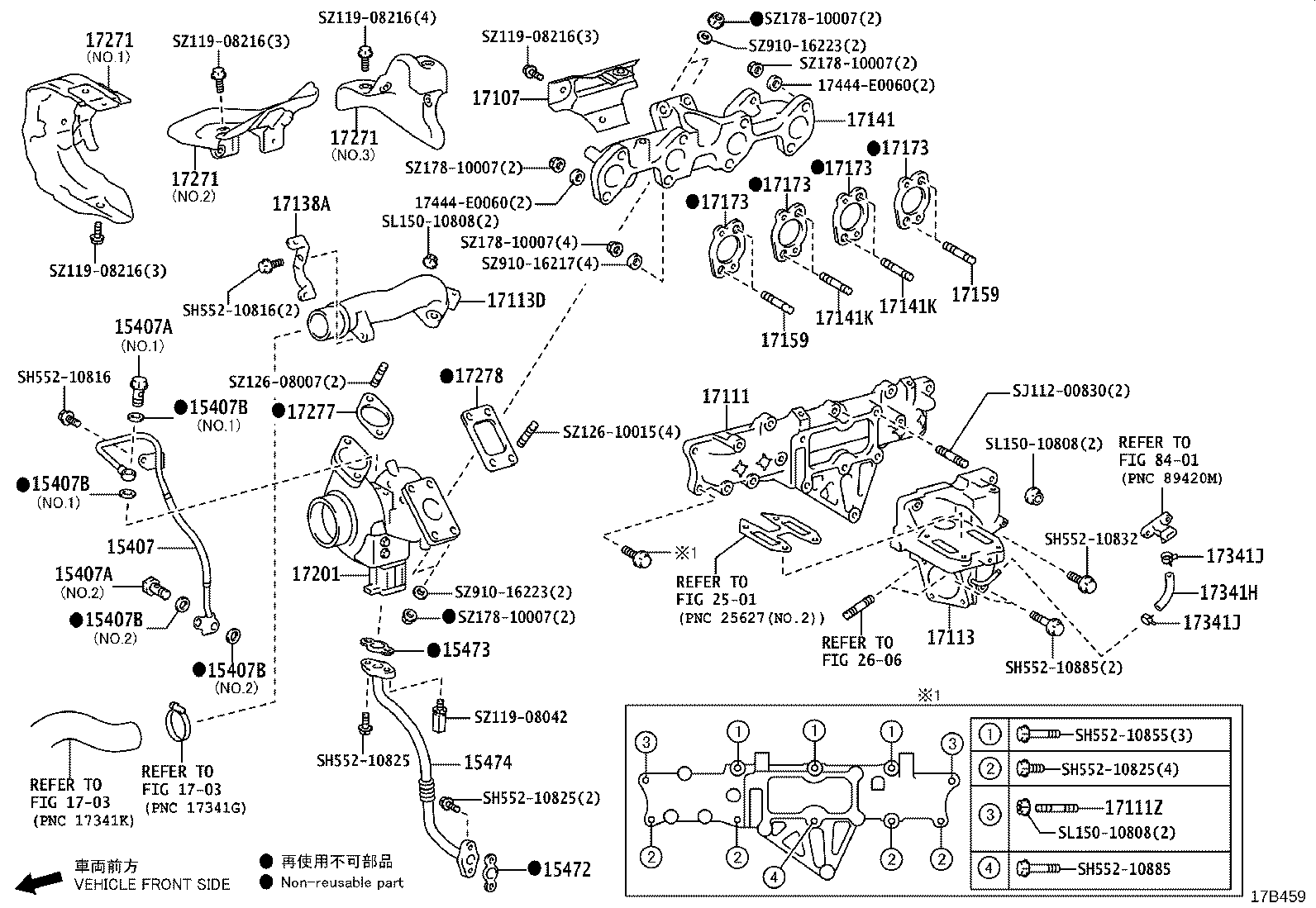

(1701-1908)N04C

Click highlighted areas on diagram

EURO 4

diagram 15407 15407A 15407A 15407B 15407B 15407B 15407B 15472 15473 15474 1703 1703 17107 17111 17111Z 17113 17113D 17138A 17141 17141K 17141K 17159 17159 17173 17173 17173 17173 17201 17271 17271 17271 17277 17278 17341H 17341J 17341J 17444E0060 17444E0060 2501 2606 8401 SH55210816 SH55210816 SH55210825 SH55210825 SH55210825 SH55210832 SH55210855 SH55210885 SH55210885 SJ11200830 SL15010808 SL15010808 SL15010808 SZ11908042 SZ11908216 SZ11908216 SZ11908216 SZ11908216 SZ12608007 SZ12610015 SZ17810007 SZ17810007 SZ17810007 SZ17810007 SZ17810007 SZ91016217 SZ91016223 SZ91016223
Part # Description Qty Price
15407 - PIPE SUB-ASSY, TURBO OIL INLET
15407-78150

N04C..XZB60,70..02S,17S

 1
15407A - BOLT, UNION(FOR TURBO OIL INLET PIPE)
SZ401-12001

N04C..XZB70..6FC..ARL;N04C..XZB60,70,80..(01S,02S,17S,20S)..(5F,6FC)..(GEN,TAIW)

NO.1:REFER ILLUST.

 1
SZ401-14004

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

NO.2:REFER ILLUST.

 1
15407A - BOLT, UNION(FOR TURBO OIL INLET PIPE)
SZ401-12001

N04C..XZB70..6FC..ARL;N04C..XZB60,70,80..(01S,02S,17S,20S)..(5F,6FC)..(GEN,TAIW)

NO.1:REFER ILLUST.

 1
SZ401-14004

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

NO.2:REFER ILLUST.

 1
15407B - GASKET(FOR TURBO OIL INLET PIPE)
SL722-01210

N04C..XZB70..6FC..ARL;N04C..XZB60,70,80..(01S,02S,17S,20S)..(5F,6FC)..(GEN,TAIW)

NO.1:REFER ILLUST.

 2
SL722-01415

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

NO.2:REFER ILLUST.

 2
15407B - GASKET(FOR TURBO OIL INLET PIPE)
SL722-01210

N04C..XZB70..6FC..ARL;N04C..XZB60,70,80..(01S,02S,17S,20S)..(5F,6FC)..(GEN,TAIW)

NO.1:REFER ILLUST.

 2
SL722-01415

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

NO.2:REFER ILLUST.

 2
15407B - GASKET(FOR TURBO OIL INLET PIPE)
SL722-01210

N04C..XZB70..6FC..ARL;N04C..XZB60,70,80..(01S,02S,17S,20S)..(5F,6FC)..(GEN,TAIW)

NO.1:REFER ILLUST.

 2
SL722-01415

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

NO.2:REFER ILLUST.

 2
15407B - GASKET(FOR TURBO OIL INLET PIPE)
SL722-01210

N04C..XZB70..6FC..ARL;N04C..XZB60,70,80..(01S,02S,17S,20S)..(5F,6FC)..(GEN,TAIW)

NO.1:REFER ILLUST.

 2
SL722-01415

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

NO.2:REFER ILLUST.

 2
15473 - GASKET, TURBO OIL OUTLET, NO.2
S2413-51161

N04C..XZB60,70..02S,17S

 2
15474 - PIPE, TURBO OIL OUTLET
S2410-72050

N04C..XZB60,70..02S,17S

 1
17107 - INSULATOR SUB-ASSY, EXHAUST MANIFOLD HEAT
17107-E0012

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

 1
17111 - MANIFOLD, INTAKE
17111-E0230

N04C..XZB60,70..02S,17S

 1
17111Z - BOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
SZ126-08007

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

 2
17113 - PIPE, INTAKE
17113-E0A50

N04C..XZB60,70

NO.2:REFER ILLUST.

 1
17103-E0412

N04C..XZB60,70..(02S,17S,19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA,TAIW)

NO.1:REFER ILLUST.

 1
17113-E0A51

N04C..XZB60,70..(02S,17S,19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA,TAIW)

NO.2:REFER ILLUST.

 1
17113D - PIPE, INTAKE, NO.1
17113-E0332

N04C..XZB60,70..02S,17S

 1
17138A - STAY, INTAKE PIPE
17138-E0441

N04C..XZB70..6FC..ARL;N04C..XZB60,70,80..(01S,02S,17S,20S)..(5F,6FC)..(GEN,TAIW)

 1
17141 - MANIFOLD, EXHAUST
17141-E0370

N04C..XZB70..6FC..ARL;N04C..XZB60,70,80..(01S,02S,17S,20S)..(5F,6FC)..(GEN,TAIW)

 1
17141K - BOLT, STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)
SZ126-10012

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

 4
17141K - BOLT, STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)
SZ126-10012

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

 4
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
SZ126-10006

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

 4
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
SZ126-10006

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

 4
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-78080

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

 4
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-78080

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

 4
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-78080

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

 4
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-78080

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

 4
17201 - TURBOCHARGER SUB-ASSY
17201-E0701

N04C..XZB70..4FC;N04C..XZB60,80..(4FC,5F)..GEN;N04C..XZB70..(02S,20S,22S)..5F..(EX,STD)

 1
17201-E0702

N04C..XZB70..TAIW

 1
17271 - INSULATOR, TURBO, NO.1
17271-E0190

N04C..XZB60,70..02S,17S

 1
17271 - INSULATOR, TURBO, NO.1
17271-E0190

N04C..XZB60,70..02S,17S

 1
17271 - INSULATOR, TURBO, NO.1
17271-E0190

N04C..XZB60,70..02S,17S

 1
17277 - GASKET, COMPRESSOR OUTLET
S2417-91430

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

 1
17278 - GASKET, TURBO TO EXHAUST MANIFOLD
S2410-91860

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

 1
Common parts
17444-E0060
SH552-10816
SH552-10825
SH552-10832
SH552-10855
SH552-10885
SJ112-00830
SL150-10808
SZ119-08042
SZ119-08216
SZ126-08007
SZ126-10015
SZ178-10007
SZ910-16217
SZ910-16223
Linked diagrams
1703
2501
2606
8401

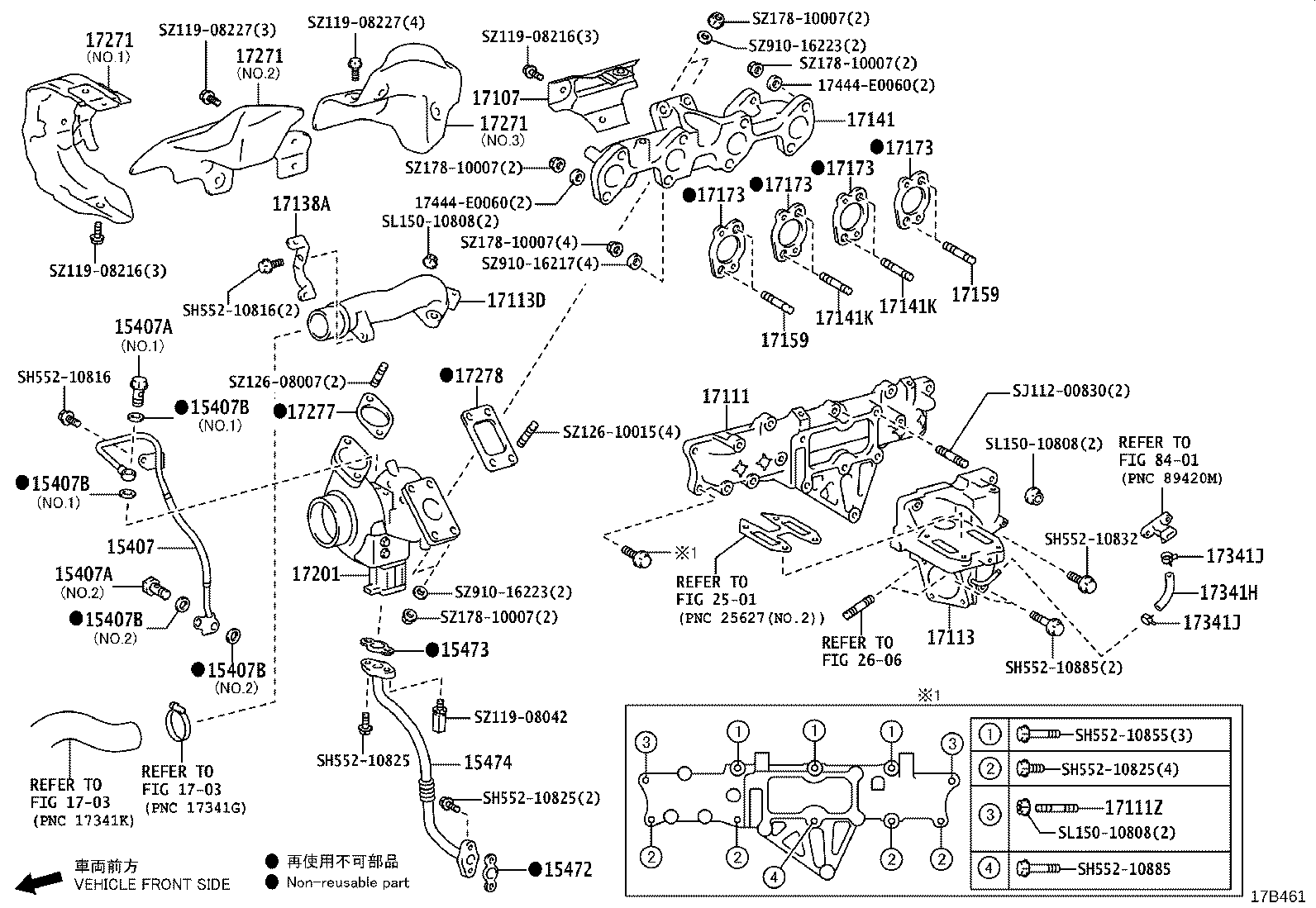

(1908- )N04C

Click highlighted areas on diagram

EURO 4 OR EURO 6

diagram 15407 15407A 15407A 15407B 15407B 15407B 15407B 15472 15473 15474 1703 1703 17107 17111 17111Z 17113 17113D 17138A 17141 17141K 17141K 17159 17159 17173 17173 17173 17173 17201 17271 17271 17271 17277 17278 17341H 17341J 17341J 17444E0060 17444E0060 2501 2606 8401 SH55210816 SH55210816 SH55210825 SH55210825 SH55210825 SH55210832 SH55210855 SH55210885 SH55210885 SJ11200830 SL15010808 SL15010808 SL15010808 SZ11908042 SZ11908216 SZ11908216 SZ11908227 SZ11908227 SZ12608007 SZ12610015 SZ17810007 SZ17810007 SZ17810007 SZ17810007 SZ17810007 SZ91016217 SZ91016223 SZ91016223
Part # Description Qty Price
15407 - PIPE SUB-ASSY, TURBO OIL INLET
15407-78150

N04C..XZB60,70..02S,17S

 1
15407A - BOLT, UNION(FOR TURBO OIL INLET PIPE)
SZ401-12001

N04C..XZB70..6FC..ARL;N04C..XZB60,70,80..(01S,02S,17S,20S)..(5F,6FC)..(GEN,TAIW)

NO.1:REFER ILLUST.

 1
SZ401-14004

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

NO.2:REFER ILLUST.

 1
15407A - BOLT, UNION(FOR TURBO OIL INLET PIPE)
SZ401-12001

N04C..XZB70..6FC..ARL;N04C..XZB60,70,80..(01S,02S,17S,20S)..(5F,6FC)..(GEN,TAIW)

NO.1:REFER ILLUST.

 1
SZ401-14004

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

NO.2:REFER ILLUST.

 1
15407B - GASKET(FOR TURBO OIL INLET PIPE)
SL722-01210

N04C..XZB70..6FC..ARL;N04C..XZB60,70,80..(01S,02S,17S,20S)..(5F,6FC)..(GEN,TAIW)

NO.1:REFER ILLUST.

 2
SL722-01415

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

NO.2:REFER ILLUST.

 2
15407B - GASKET(FOR TURBO OIL INLET PIPE)
SL722-01210

N04C..XZB70..6FC..ARL;N04C..XZB60,70,80..(01S,02S,17S,20S)..(5F,6FC)..(GEN,TAIW)

NO.1:REFER ILLUST.

 2
SL722-01415

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

NO.2:REFER ILLUST.

 2
15407B - GASKET(FOR TURBO OIL INLET PIPE)
SL722-01210

N04C..XZB70..6FC..ARL;N04C..XZB60,70,80..(01S,02S,17S,20S)..(5F,6FC)..(GEN,TAIW)

NO.1:REFER ILLUST.

 2
SL722-01415

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

NO.2:REFER ILLUST.

 2
15407B - GASKET(FOR TURBO OIL INLET PIPE)
SL722-01210

N04C..XZB70..6FC..ARL;N04C..XZB60,70,80..(01S,02S,17S,20S)..(5F,6FC)..(GEN,TAIW)

NO.1:REFER ILLUST.

 2
SL722-01415

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

NO.2:REFER ILLUST.

 2
15473 - GASKET, TURBO OIL OUTLET, NO.2
S2413-51161

N04C..XZB60,70..02S,17S

 2
15474 - PIPE, TURBO OIL OUTLET
S2410-72050

N04C..XZB60,70..02S,17S

 1
17107 - INSULATOR SUB-ASSY, EXHAUST MANIFOLD HEAT
17107-E0012

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

 1
17111 - MANIFOLD, INTAKE
17111-E0230

N04C..XZB60,70..02S,17S

 1
17111Z - BOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
SZ126-08007

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

 2
17113 - PIPE, INTAKE
17113-E0A50

N04C..XZB60,70

NO.2:REFER ILLUST.

 1
17103-E0412

N04C..XZB60,70..(02S,17S,19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA,TAIW)

NO.1:REFER ILLUST.

 1
17113-E0A51

N04C..XZB60,70..(02S,17S,19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA,TAIW)

NO.2:REFER ILLUST.

 1
17113D - PIPE, INTAKE, NO.1
17113-E0332

N04C..XZB60,70..02S,17S

 1
17138A - STAY, INTAKE PIPE
17138-E0441

N04C..XZB70..6FC..ARL;N04C..XZB60,70,80..(01S,02S,17S,20S)..(5F,6FC)..(GEN,TAIW)

 1
17141 - MANIFOLD, EXHAUST
17141-E0370

N04C..XZB70..6FC..ARL;N04C..XZB60,70,80..(01S,02S,17S,20S)..(5F,6FC)..(GEN,TAIW)

 1
17141K - BOLT, STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)
SZ126-10012

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

 4
17141K - BOLT, STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)
SZ126-10012

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

 4
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
SZ126-10006

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

 4
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
SZ126-10006

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

 4
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-78080

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

 4
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-78080

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

 4
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-78080

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

 4
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-78080

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

 4
17201 - TURBOCHARGER SUB-ASSY
17201-E0701

N04C..XZB70..4FC;N04C..XZB60,80..(4FC,5F)..GEN;N04C..XZB70..(02S,20S,22S)..5F..(EX,STD)

 1
17201-E0702

N04C..XZB70..TAIW

 1
17271 - INSULATOR, TURBO, NO.1
17271-E0190

N04C..XZB60,70..02S,17S

 1
17271 - INSULATOR, TURBO, NO.1
17271-E0190

N04C..XZB60,70..02S,17S

 1
17271 - INSULATOR, TURBO, NO.1
17271-E0190

N04C..XZB60,70..02S,17S

 1
17277 - GASKET, COMPRESSOR OUTLET
S2417-91430

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

 1
17278 - GASKET, TURBO TO EXHAUST MANIFOLD
S2410-91860

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

 1
Common parts
17444-E0060
SH552-10816
SH552-10825
SH552-10832
SH552-10855
SH552-10885
SJ112-00830
SL150-10808
SZ119-08042
SZ119-08216
SZ119-08227
SZ126-08007
SZ126-10015
SZ178-10007
SZ910-16217
SZ910-16223
Linked diagrams
1703
2501
2606
8401

(1701- )N04C

Click highlighted areas on diagram

EURO 3

diagram 15407 15407A 15407A 15407B 15407B 15407B 15407B 15472 15473 15474 1703 1703 1708 17107 17111 17111Z 17113 17113 17113D 17138A 17141 17141K 17141K 17148 17148B 17152 17159 17159 17173 17173 17173 17173 17201 17271 17277 17278 17279 17291 17293 17444E0060 17444E0060 21814E0350 25625B 25627A 82702E0P80 SH55210816 SH55210816 SH55210816 SH55210820 SH55210825 SH55210825 SH55210832 SH55210855 SH69110620 SJ11200830 SJ13200872 SL15010808 SL15010808 SL15010808 SL15010808 SZ10508024 SZ10510052 SZ11908216 SZ11908216 SZ12608006 SZ12608007 SZ12608007 SZ12610015 SZ12610015 SZ17808007 SZ17810007 SZ17810007 SZ17810007 SZ17810007 SZ17810007 SZ91016217 SZ91016223 SZ91016223
Part # Description Qty Price
15407 - PIPE SUB-ASSY, TURBO OIL INLET
15407-78150

N04C..XZB60,70..02S,17S

 1
15407A - BOLT, UNION(FOR TURBO OIL INLET PIPE)
SZ401-12001

N04C..XZB70..6FC..ARL;N04C..XZB60,70,80..(01S,02S,17S,20S)..(5F,6FC)..(GEN,TAIW)

NO.1:REFER ILLUST.

 1
SZ401-14004

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

NO.2:REFER ILLUST.

 1
15407A - BOLT, UNION(FOR TURBO OIL INLET PIPE)
SZ401-12001

N04C..XZB70..6FC..ARL;N04C..XZB60,70,80..(01S,02S,17S,20S)..(5F,6FC)..(GEN,TAIW)

NO.1:REFER ILLUST.

 1
SZ401-14004

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

NO.2:REFER ILLUST.

 1
15407B - GASKET(FOR TURBO OIL INLET PIPE)
SL722-01210

N04C..XZB70..6FC..ARL;N04C..XZB60,70,80..(01S,02S,17S,20S)..(5F,6FC)..(GEN,TAIW)

NO.1:REFER ILLUST.

 2
SL722-01415

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

NO.2:REFER ILLUST.

 2
15407B - GASKET(FOR TURBO OIL INLET PIPE)
SL722-01210

N04C..XZB70..6FC..ARL;N04C..XZB60,70,80..(01S,02S,17S,20S)..(5F,6FC)..(GEN,TAIW)

NO.1:REFER ILLUST.

 2
SL722-01415

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

NO.2:REFER ILLUST.

 2
15407B - GASKET(FOR TURBO OIL INLET PIPE)
SL722-01210

N04C..XZB70..6FC..ARL;N04C..XZB60,70,80..(01S,02S,17S,20S)..(5F,6FC)..(GEN,TAIW)

NO.1:REFER ILLUST.

 2
SL722-01415

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

NO.2:REFER ILLUST.

 2
15407B - GASKET(FOR TURBO OIL INLET PIPE)
SL722-01210

N04C..XZB70..6FC..ARL;N04C..XZB60,70,80..(01S,02S,17S,20S)..(5F,6FC)..(GEN,TAIW)

NO.1:REFER ILLUST.

 2
SL722-01415

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

NO.2:REFER ILLUST.

 2
15473 - GASKET, TURBO OIL OUTLET, NO.2
S2413-51161

N04C..XZB60,70..02S,17S

 2
15474 - PIPE, TURBO OIL OUTLET
S2410-72050

N04C..XZB60,70..02S,17S

 1
17107 - INSULATOR SUB-ASSY, EXHAUST MANIFOLD HEAT
17107-E0012

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

 1
17111 - MANIFOLD, INTAKE
17111-E0230

N04C..XZB60,70..02S,17S

 1
17111Z - BOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
SZ126-08007

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

 2
17113 - PIPE, INTAKE
17113-E0A50

N04C..XZB60,70

NO.2:REFER ILLUST.

 1
17103-E0412

N04C..XZB60,70..(02S,17S,19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA,TAIW)

NO.1:REFER ILLUST.

 1
17113-E0A51

N04C..XZB60,70..(02S,17S,19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA,TAIW)

NO.2:REFER ILLUST.

 1
17113 - PIPE, INTAKE
17113-E0A50

N04C..XZB60,70

NO.2:REFER ILLUST.

 1
17103-E0412

N04C..XZB60,70..(02S,17S,19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA,TAIW)

NO.1:REFER ILLUST.

 1
17113-E0A51

N04C..XZB60,70..(02S,17S,19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA,TAIW)

NO.2:REFER ILLUST.

 1
17113D - PIPE, INTAKE, NO.1
17113-E0332

N04C..XZB60,70..02S,17S

 1
17138A - STAY, INTAKE PIPE
17138-E0441

N04C..XZB70..6FC..ARL;N04C..XZB60,70,80..(01S,02S,17S,20S)..(5F,6FC)..(GEN,TAIW)

 1
17141 - MANIFOLD, EXHAUST
17141-E0370

N04C..XZB70..6FC..ARL;N04C..XZB60,70,80..(01S,02S,17S,20S)..(5F,6FC)..(GEN,TAIW)

 1
17141K - BOLT, STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)
SZ126-10012

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

 4
17141K - BOLT, STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)
SZ126-10012

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

 4
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
SZ126-10015

N04C..XZB60,70..(02S,17S,19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA,TAIW)

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
SZ126-10006

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

 4
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
SZ126-10006

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

 4
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-78080

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

 4
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-78080

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

 4
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-78080

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

 4
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-78080

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

 4
17201 - TURBOCHARGER SUB-ASSY
17201-E0701

N04C..XZB70..4FC;N04C..XZB60,80..(4FC,5F)..GEN;N04C..XZB70..(02S,20S,22S)..5F..(EX,STD)

 1
17201-E0702

N04C..XZB70..TAIW

 1
17271 - INSULATOR, TURBO, NO.1
17271-E0190

N04C..XZB60,70..02S,17S

 1
17277 - GASKET, COMPRESSOR OUTLET
S2417-91430

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

 1
17278 - GASKET, TURBO TO EXHAUST MANIFOLD
S2410-91860

N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)

 1
17279 - GASKET, TURBINE OUTLET ELBOW
17451-E0110

N04C..XZB60,70..02S,17S

 1
17291 - ELBOW, TURBINE OUTLET
17291-E0020

N04C..XZB60,70..02S,17S

 1
17293 - STAY, TURBOCHARGER
S1745-82952

N04C..XZB60,70..(02S,17S,19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA,TAIW)

 1
Common parts
17444-E0060
21814-E0350
82702-E0P80
SH552-10816
SH552-10820
SH552-10825
SH552-10832
SH552-10855
SH691-10620
SJ112-00830
SJ132-00872
SL150-10808
SZ105-08024
SZ105-10052
SZ119-08216
SZ126-08006
SZ126-08007
SZ126-10015
SZ178-08007
SZ178-10007
SZ910-16217
SZ910-16223
Linked diagrams
1703
1708
