XZB70L-ZEMSYR (2017)
Toyota Coaster

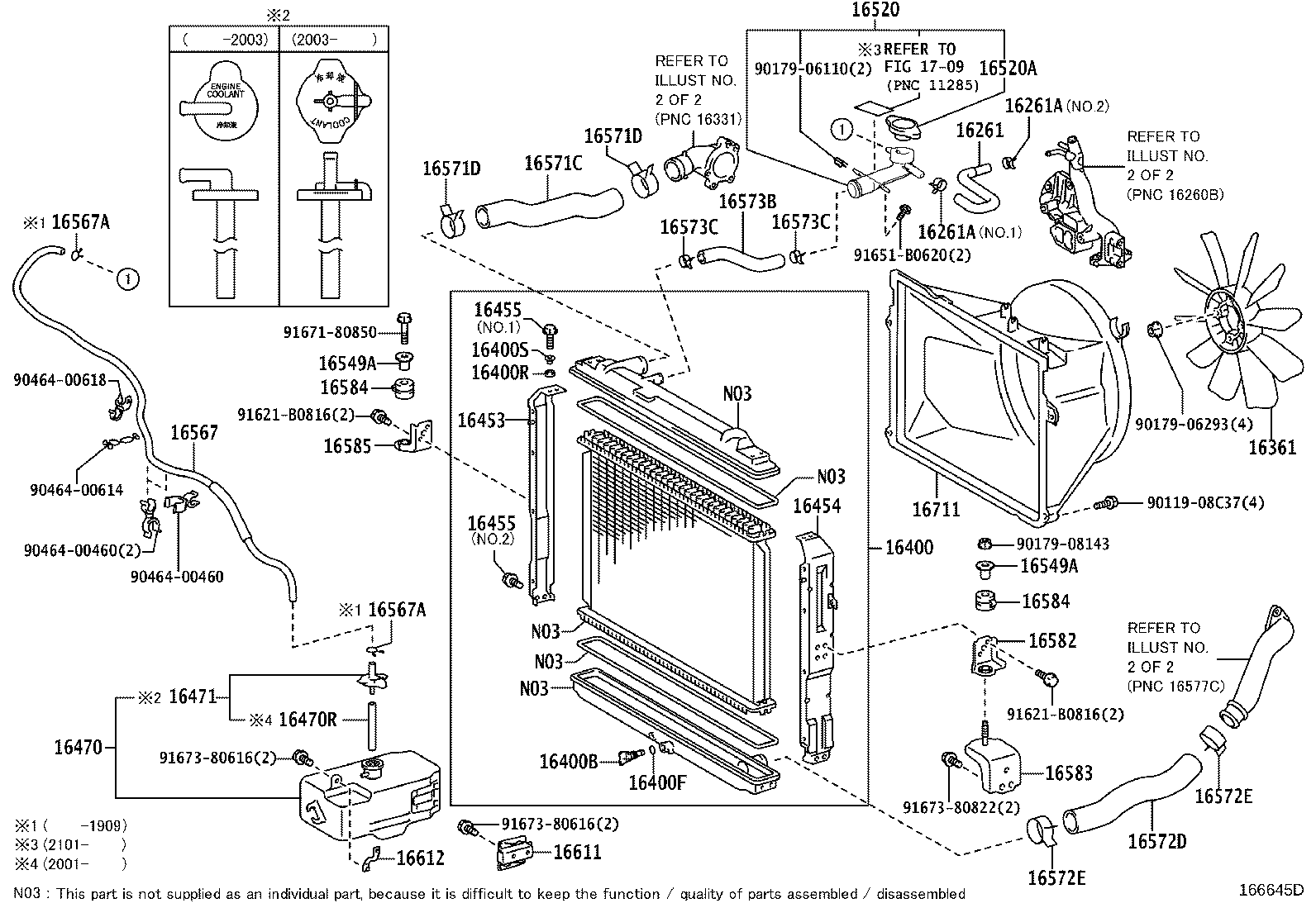

ILLUST NO. 1 OF 2(1701- )N04C..XZB60,70..LHD
RADIATOR SIDE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-78240 |
N04C..XZB70..LHD |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-17021 |
N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) NO.1:REFER ILLUST. |
1 | ||
| 90466-13001 |
N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) NO.2:REFER ILLUST. |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-17021 |
N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) NO.1:REFER ILLUST. |
1 | ||
| 90466-13001 |
N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) NO.2:REFER ILLUST. |
1 | ||
| 16361 - FAN | ||||
| 16361-67040 |
N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-78462 |
N04C..XZB60,80..5F..GEN;N04C..XZB70..5F..(GCC,GEN,SA,TAIW) |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-15210 |
N04C..XZB60,80..5F..GEN;N04C..XZB70..5F..(GCC,GEN,SA,TAIW) |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-15520 |
N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 16400R - BUSHING(FOR RADIATOR) | ||||
| 16444-67130 |
N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) |
4 | ||
| 16400S - COLLAR(FOR RADIATOR) | ||||
| 16445-67130 |
N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) |
4 | ||
| 16453 - PLATE, RADIATOR SIDE | ||||
| 16453-78291 |
N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 16454 - PLATE, RADIATOR SIDE | ||||
| 16454-78291 |
N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 16455 - BOLT, RADIATOR SIDE SUPPORT PLATE | ||||
| 16455-67130 |
N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) NO.1:REFER ILLUST. |
4 | ||
| 16455-67020 |
N04C..XZB60,80..5F..GEN;N04C..XZB70..5F..(GCC,GEN,SA,TAIW) NO.2:REFER ILLUST. |
4 | ||
| 16455 - BOLT, RADIATOR SIDE SUPPORT PLATE | ||||
| 16455-67130 |
N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) NO.1:REFER ILLUST. |
4 | ||
| 16455-67020 |
N04C..XZB60,80..5F..GEN;N04C..XZB70..5F..(GCC,GEN,SA,TAIW) NO.2:REFER ILLUST. |
4 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-17062 |
N04C..XZB70;N04C..XZB60,80..GEN REFER TO PNC 16471 |
1 | ||
| 16470-17063 |
N04C..XZB70..6FC..ARL;N04C..XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) REFER TO PNC 16471 |
1 | ||
| 16470R - HOSE, NO.2(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
N04C..XZB70..6FC..ARL;N04C..XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) *H,L=120 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-17030 |
N04C..XZB70;N04C..XZB60,80..GEN |
1 | ||
| 16405-17031 |
N04C..XZB70,80 |
1 | ||
| 16405-17032 |
N04C..XZB70..6FC..ARL;N04C..XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 16520 - FILLER ASSY, WATER | ||||
| 16520-V4010 |
N04C..XZB70..6FC..ARL;N04C..XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 16520-78020 |
N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..5F..(GCC,GEN,TAIW) |
1 | ||
| 16520A - CAP SUB-ASSY, WATER FILLER | ||||
| 16401-36020 |
N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 16549A - COLLAR, RADIATOR SUPPORT, NO.1 | ||||
| 16549-61010 |
N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) |
2 | ||
| 16549A - COLLAR, RADIATOR SUPPORT, NO.1 | ||||
| 16549-61010 |
N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) |
2 | ||
| 16567 - HOSE(FOR RADIATOR RESERVE TANK) | ||||
| 16567-78380 |
N04C..XZB70..LHD REFER TO PNC 16471 |
1 | ||
| 16567-78381 |
N04C..XZB70..LHD REFER TO PNC 16471 |
1 | ||
| 16567A - CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
N04C..XZB70;N04C..XZB60,80..GEN |
2 | ||
| 16567A - CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
N04C..XZB70;N04C..XZB60,80..GEN |
2 | ||
| 16571C - HOSE, RADIATOR, NO.1 | ||||
| 16571-78280 |
N04C..XZB70..LHD |
1 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90467-43002 |
N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) |
2 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90467-43002 |
N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) |
2 | ||
| 16572D - HOSE, RADIATOR, NO.2 | ||||
| 16572-78290 |
N04C..XZB70..LHD |
1 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 90467-43002 |
N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) |
2 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 90467-43002 |
N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) |
2 | ||
| 16573B - HOSE, RADIATOR, NO.3 | ||||
| 16573-78061 |
N04C..XZB70..LHD |
1 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 96136-53601 |
N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) |
2 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 96136-53601 |
N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) |
2 | ||
| 16582 - BRACKET, RADIATOR, NO.1 | ||||
| 16582-78110 |
N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 16583 - BRACKET, RADIATOR, NO.2 | ||||
| 16583-17010 |
N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 16584 - INSULATOR, RADIATOR MOUNTING | ||||
| 16584-61020 |
N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) |
2 | ||
| 16584 - INSULATOR, RADIATOR MOUNTING | ||||
| 16584-61020 |
N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) |
2 | ||
| 16585 - BRACKET, RADIATOR, NO.3 | ||||
| 16585-78080 |
N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 16611 - BRACKET, RADIATOR RESERVE TANK | ||||
| 16611-16010 |
N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 16612 - BRACKET, RADIATOR RESERVE TANK, NO.2 | ||||
| 16612-17011 |
N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-78230 |
N04C..XZB70..LHD |
1 | ||
| Common parts | ||||
| 90119-08C37 | ||||
| 90179-06110 | ||||
| 90179-06293 | ||||
| 90179-08143 | ||||
| 90464-00460 | ||||
| 90464-00614 | ||||
| 90464-00618 | ||||
| 91621-B0816 | ||||
| 91651-B0620 | ||||
| 91671-80850 | ||||
| 91673-80616 | ||||
| 91673-80822 | ||||
| Linked diagrams | ||||
| 1709 | ||||

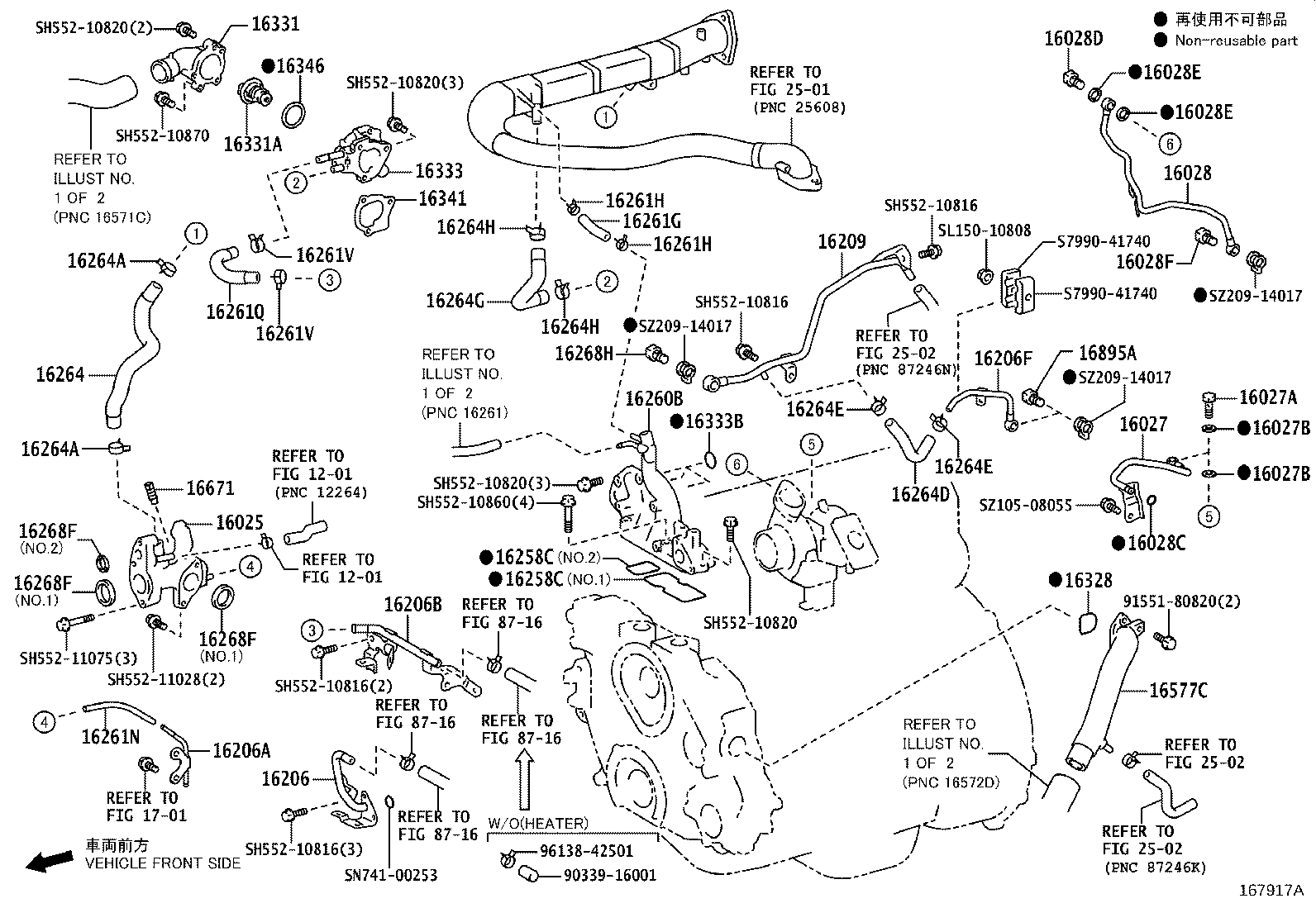

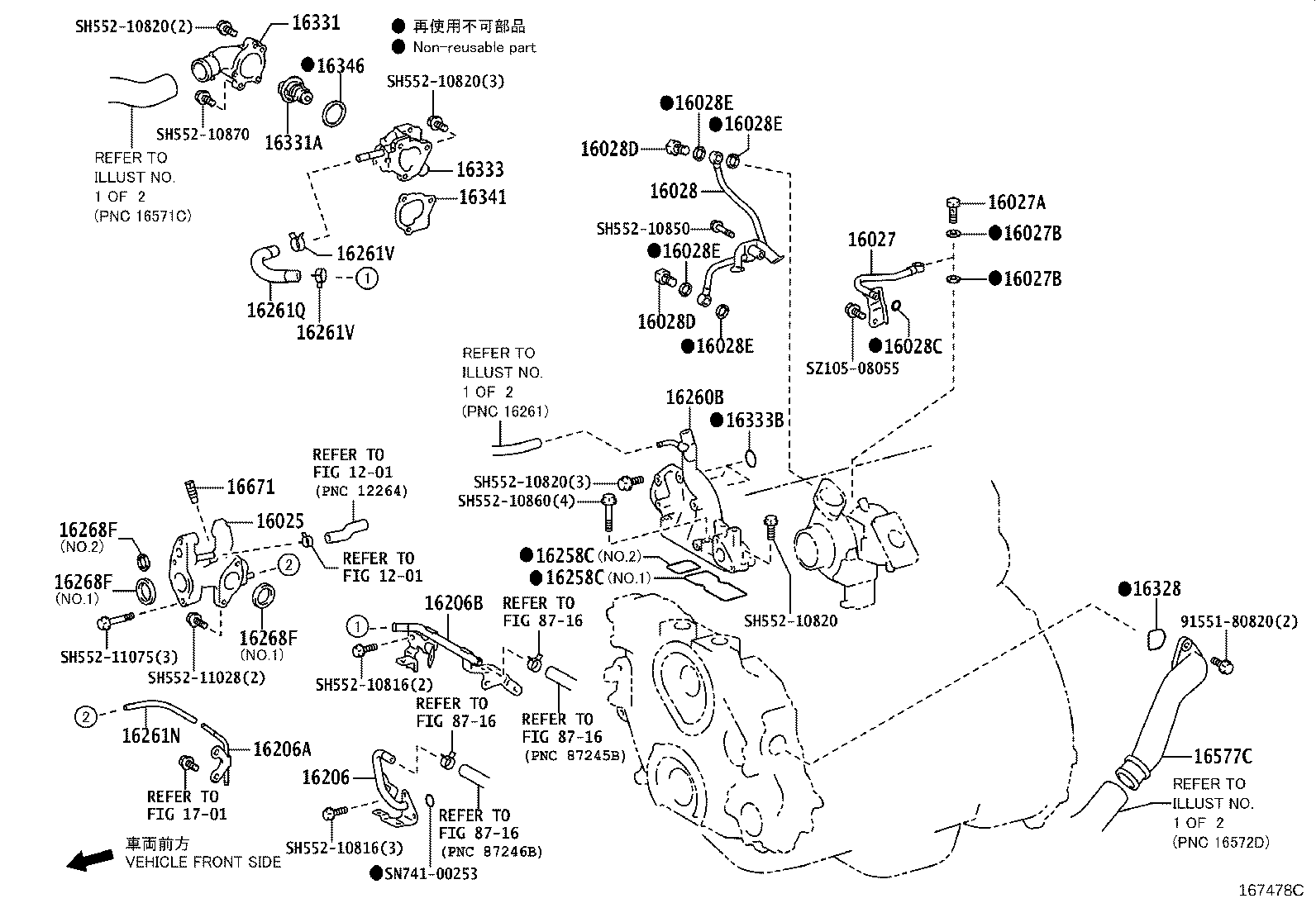

ILLUST NO. 2 OF 2(1908- )N04C
ENGINE SIDE,EURO 3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16027 - PIPE SUB-ASSY, TURBO WATER, NO.1 | ||||
| 16895-E0120 |
N04C..XZB60,70..02S,17S |
1 | ||
| 16027A - BOLT, UNION(FOR TURBO WATER PIPE) | ||||
| SZ401-14004 |
N04C..XZB60,70..(02S,17S,19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA,TAIW) |
1 | ||
| 16027B - GASKET(FOR TURBO WATER PIPE) | ||||
| SZ430-14003 |
N04C..XZB60,70..(02S,17S,19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA,TAIW) |
2 | ||
| 16027B - GASKET(FOR TURBO WATER PIPE) | ||||
| SZ430-14003 |
N04C..XZB60,70..(02S,17S,19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA,TAIW) |
2 | ||
| 16028 - PIPE SUB-ASSY, TURBO WATER, NO.2 | ||||
| 16895-E0090 |
N04C..XZB60,70..02S,17S |
1 | ||
| 16028C - RING, O(FOR TURBO WATER PIPE) | ||||
| SN732-00092 |
N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 16028D - BOLT, UNION, NO.1(FOR TURBO WATER PIPE) | ||||
| SZ401-14004 |
N04C..XZB60,70..(02S,17S,19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA,TAIW) |
2 | ||
| 16028D - BOLT, UNION, NO.1(FOR TURBO WATER PIPE) | ||||
| SZ401-14004 |
N04C..XZB60,70..(02S,17S,19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA,TAIW) |
2 | ||
| 16028E - GASKET, NO.1(FOR TURBO WATER PIPE) | ||||
| SZ430-14003 |
N04C..XZB60,70..(02S,17S,19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA,TAIW) |
4 | ||
| 16028E - GASKET, NO.1(FOR TURBO WATER PIPE) | ||||
| SZ430-14003 |
N04C..XZB60,70..(02S,17S,19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA,TAIW) |
4 | ||
| 16028E - GASKET, NO.1(FOR TURBO WATER PIPE) | ||||
| SZ430-14003 |
N04C..XZB60,70..(02S,17S,19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA,TAIW) |
4 | ||
| 16028E - GASKET, NO.1(FOR TURBO WATER PIPE) | ||||
| SZ430-14003 |
N04C..XZB60,70..(02S,17S,19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA,TAIW) |
4 | ||
| 16206 - PIPE SUB-ASSY, WATER BY-PASS | ||||
| 16206-E0660 |
N04C..XZB70..4FC;N04C..XZB60,70..(02S,17S,20S,22S)..5F..(EX,STD)..(ARL,GEN,TAIW) |
1 | ||
| 16206B - PIPE SUB-ASSY, WATER BY-PASS, NO.3 | ||||
| 16206-E0420 |
N04C..XZB70..4FC;N04C..XZB60,70..(02S,17S,20S,22S)..5F..(EX,STD)..(ARL,GEN,TAIW) |
1 | ||
| 16206-78730 |
N04C..XZB70..TAIW |
1 | ||
| 16260B - PIPE ASSY, WATER BY-PASS | ||||
| 16260-E0070 |
N04C..XZB70..4FC;N04C..XZB60,70..(02S,17S,20S,22S)..5F..(EX,STD)..(ARL,GEN,TAIW) |
1 | ||
| 16260-E0071 |
N04C..XZB70..TAIW |
1 | ||
| 16261Q - HOSE, WATER BY-PASS | ||||
| 16261-E0051 |
N04C..XZB70..4FC;N04C..XZB60,70..(02S,17S,20S,22S)..5F..(EX,STD)..(ARL,GEN,TAIW) NO.2:REFER ILLUST. |
1 | ||
| 16261-E0060 |
N04C..XZB70..4FC;N04C..XZB60,70..(02S,17S,20S,22S)..5F..(EX,STD)..(ARL,GEN,TAIW) NO.1:REFER ILLUST. |
1 | ||
| 16261-78250 |
N04C..XZB70..6FC..ARL;N04C..XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 16261V - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| SZ466-22001 |
N04C..XZB70..6FC..ARL;N04C..XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
2 | ||
| SZ466-22001 |
N04C..XZB70;N04C..XZB60..GEN |
4 | ||
| 16261V - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| SZ466-22001 |
N04C..XZB70..6FC..ARL;N04C..XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
2 | ||
| SZ466-22001 |
N04C..XZB70;N04C..XZB60..GEN |
4 | ||
| 16328 - GASKET, WATER INLET PIPE | ||||
| 16328-78010 |
N04C..XZB60,70..02S,17S |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-78050 |
N04C..XZB70..6FC..ARL;N04C..XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 16331-E0120 |
N04C..XZB70;N04C..XZB60..GEN |
1 | ||
| 16331A - THERMOSTAT | ||||
| SZ910-46039 |
N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) *WAX 82-95 |
1 | ||
| 16333 - HOUSING, WATER OUTLET | ||||
| 16303-78150 |
N04C..XZB70..4FC;N04C..XZB60,70..(02S,17S,20S,22S)..5F..(EX,STD)..(ARL,GEN,TAIW) |
1 | ||
| 16303-78151 |
N04C..XZB70..6FC..ARL;N04C..XZB70,80..(01S,02S,20S)..(5F,6FC) |
1 | ||
| 16303-78152 |
N04C..XZB70..6FC..ARL;N04C..XZB70,80..(01S,02S,20S)..(5F,6FC) |
1 | ||
| 16333B - RING, O(FOR WATER OUTLET HOUSING) | ||||
| 15518-E0010 |
N04C..XZB60,70 NO.2:REFER ILLUST. |
3 | ||
| SZ301-19015 |
N04C..XZB70;N04C..XZB60..GEN NO.2:REFER ILLUST. |
3 | ||
| 15119-E0210 |
N04C..XZB70..TAIW NO.2:REFER ILLUST. |
3 | ||
| SZ301-31011 |
N04C..XZB60,70..02S,17S NO.1:REFER ILLUST. |
3 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16346-E0040 |
N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 16346 - GASKET, THERMOSTAT | ||||
| S1632-51420 |
N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 16577C - PIPE, RADIATOR | ||||
| 16577-78132 |
N04C..XZB60,70..02S,17S |
1 | ||
| Common parts | ||||
| 91551-80820 | ||||
| SH552-10816 | ||||
| SH552-10820 | ||||
| SH552-10850 | ||||
| SH552-10860 | ||||
| SH552-10870 | ||||
| SH552-11028 | ||||
| SH552-11075 | ||||
| SN741-00253 | ||||
| SZ105-08055 | ||||
| Linked diagrams | ||||
| 1201 | ||||
| 1701 | ||||
| 8716 | ||||
ILLUST NO. 2 OF 2(1908- )N04C
ENGINE SIDE,EURO 4 OR EURO 6
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16027 - PIPE SUB-ASSY, TURBO WATER, NO.1 | ||||
| 16895-E0120 |
N04C..XZB60,70..02S,17S |
1 | ||
| 16027A - BOLT, UNION(FOR TURBO WATER PIPE) | ||||
| SZ401-14004 |
N04C..XZB60,70..(02S,17S,19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA,TAIW) |
1 | ||
| 16027B - GASKET(FOR TURBO WATER PIPE) | ||||
| SZ430-14003 |
N04C..XZB60,70..(02S,17S,19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA,TAIW) |
2 | ||
| 16027B - GASKET(FOR TURBO WATER PIPE) | ||||
| SZ430-14003 |
N04C..XZB60,70..(02S,17S,19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA,TAIW) |
2 | ||
| 16028 - PIPE SUB-ASSY, TURBO WATER, NO.2 | ||||
| 16895-E0090 |
N04C..XZB60,70..02S,17S |
1 | ||
| 16028C - RING, O(FOR TURBO WATER PIPE) | ||||
| SN732-00092 |
N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 16028D - BOLT, UNION, NO.1(FOR TURBO WATER PIPE) | ||||
| SZ401-14004 |
N04C..XZB60,70..(02S,17S,19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA,TAIW) |
2 | ||
| 16028E - GASKET, NO.1(FOR TURBO WATER PIPE) | ||||
| SZ430-14003 |
N04C..XZB60,70..(02S,17S,19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA,TAIW) |
4 | ||
| 16028E - GASKET, NO.1(FOR TURBO WATER PIPE) | ||||
| SZ430-14003 |
N04C..XZB60,70..(02S,17S,19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA,TAIW) |
4 | ||
| 16206 - PIPE SUB-ASSY, WATER BY-PASS | ||||
| 16206-E0660 |
N04C..XZB70..4FC;N04C..XZB60,70..(02S,17S,20S,22S)..5F..(EX,STD)..(ARL,GEN,TAIW) |
1 | ||
| 16206B - PIPE SUB-ASSY, WATER BY-PASS, NO.3 | ||||
| 16206-E0420 |
N04C..XZB70..4FC;N04C..XZB60,70..(02S,17S,20S,22S)..5F..(EX,STD)..(ARL,GEN,TAIW) |
1 | ||
| 16206-78730 |
N04C..XZB70..TAIW |
1 | ||
| 16260B - PIPE ASSY, WATER BY-PASS | ||||
| 16260-E0070 |
N04C..XZB70..4FC;N04C..XZB60,70..(02S,17S,20S,22S)..5F..(EX,STD)..(ARL,GEN,TAIW) |
1 | ||
| 16260-E0071 |
N04C..XZB70..TAIW |
1 | ||
| 16261G - HOSE, WATER BY-PASS, NO.1 | ||||
| SZ920-34333 |
N04C..XZB70..6FC..ARL;N04C..XZB60,70,80..(01S,02S,17S,20S)..(5F,6FC)..(GEN,TAIW) L=59 |
1 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| SZ466-13007 |
N04C..XZB70..6FC..ARL;N04C..XZB60,70,80..(01S,02S,17S,20S)..(5F,6FC)..(GEN,TAIW) |
2 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| SZ466-13007 |
N04C..XZB70..6FC..ARL;N04C..XZB60,70,80..(01S,02S,17S,20S)..(5F,6FC)..(GEN,TAIW) |
2 | ||
| 16261Q - HOSE, WATER BY-PASS | ||||
| 16261-E0051 |
N04C..XZB70..4FC;N04C..XZB60,70..(02S,17S,20S,22S)..5F..(EX,STD)..(ARL,GEN,TAIW) NO.2:REFER ILLUST. |
1 | ||
| 16261-E0060 |
N04C..XZB70..4FC;N04C..XZB60,70..(02S,17S,20S,22S)..5F..(EX,STD)..(ARL,GEN,TAIW) NO.1:REFER ILLUST. |
1 | ||
| 16261-78250 |
N04C..XZB70..6FC..ARL;N04C..XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 16261V - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| SZ466-22001 |
N04C..XZB70..6FC..ARL;N04C..XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
2 | ||
| SZ466-22001 |
N04C..XZB70;N04C..XZB60..GEN |
4 | ||
| 16261V - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| SZ466-22001 |
N04C..XZB70..6FC..ARL;N04C..XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
2 | ||
| SZ466-22001 |
N04C..XZB70;N04C..XZB60..GEN |
4 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| SZ920-34335 |
N04C..XZB60,70..02S,17S |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| SZ466-26001 |
N04C..XZB70..6FC..ARL;N04C..XZB60,70,80..(01S,02S,17S,20S)..(5F,6FC)..(GEN,TAIW) |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| SZ466-26001 |
N04C..XZB70..6FC..ARL;N04C..XZB60,70,80..(01S,02S,17S,20S)..(5F,6FC)..(GEN,TAIW) |
2 | ||
| 16264G - HOSE, WATER BY-PASS, NO.3 | ||||
| SZ920-34334 |
N04C..XZB60,70..02S,17S |
1 | ||
| 16264H - CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| SZ466-26001 |
N04C..XZB70..6FC..ARL;N04C..XZB60,70,80..(01S,02S,17S,20S)..(5F,6FC)..(GEN,TAIW) |
2 | ||
| 16264H - CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| SZ466-26001 |
N04C..XZB70..6FC..ARL;N04C..XZB60,70,80..(01S,02S,17S,20S)..(5F,6FC)..(GEN,TAIW) |
2 | ||
| 16328 - GASKET, WATER INLET PIPE | ||||
| 16328-78010 |
N04C..XZB60,70..02S,17S |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-78050 |
N04C..XZB70..6FC..ARL;N04C..XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 16331-E0120 |
N04C..XZB70;N04C..XZB60..GEN |
1 | ||
| 16331A - THERMOSTAT | ||||
| SZ910-46039 |
N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) *WAX 82-95 |
1 | ||
| 16333 - HOUSING, WATER OUTLET | ||||
| 16303-78150 |
N04C..XZB70..4FC;N04C..XZB60,70..(02S,17S,20S,22S)..5F..(EX,STD)..(ARL,GEN,TAIW) |
1 | ||
| 16303-78151 |
N04C..XZB70..6FC..ARL;N04C..XZB70,80..(01S,02S,20S)..(5F,6FC) |
1 | ||
| 16303-78152 |
N04C..XZB70..6FC..ARL;N04C..XZB70,80..(01S,02S,20S)..(5F,6FC) |
1 | ||
| 16333B - RING, O(FOR WATER OUTLET HOUSING) | ||||
| 15518-E0010 |
N04C..XZB60,70 NO.2:REFER ILLUST. |
3 | ||
| SZ301-19015 |
N04C..XZB70;N04C..XZB60..GEN NO.2:REFER ILLUST. |
3 | ||
| 15119-E0210 |
N04C..XZB70..TAIW NO.2:REFER ILLUST. |
3 | ||
| SZ301-31011 |
N04C..XZB60,70..02S,17S NO.1:REFER ILLUST. |
3 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16346-E0040 |
N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 16346 - GASKET, THERMOSTAT | ||||
| S1632-51420 |
N04C..XZB70..6FC..ARL;N04C..XZB60,80..(5F,6FC)..GEN;N04C..XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 16577C - PIPE, RADIATOR | ||||
| 16577-78132 |
N04C..XZB60,70..02S,17S |
1 | ||
| Common parts | ||||
| 90339-16001 | ||||
| 91551-80820 | ||||
| 96138-42501 | ||||
| S7990-41740 | ||||
| SH552-10816 | ||||
| SH552-10820 | ||||
| SH552-10860 | ||||
| SH552-10870 | ||||
| SH552-11028 | ||||
| SH552-11075 | ||||
| SL150-10808 | ||||
| SN741-00253 | ||||
| SZ105-08055 | ||||
| SZ209-14017 | ||||
| Linked diagrams | ||||
| 1201 | ||||
| 1701 | ||||
| 2501 | ||||
| 2502 | ||||
| 8716 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
