XZB70L-ZEMSYR (2017)

Toyota Coaster

Production Jan 2017 - Sep 9999
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1701- )

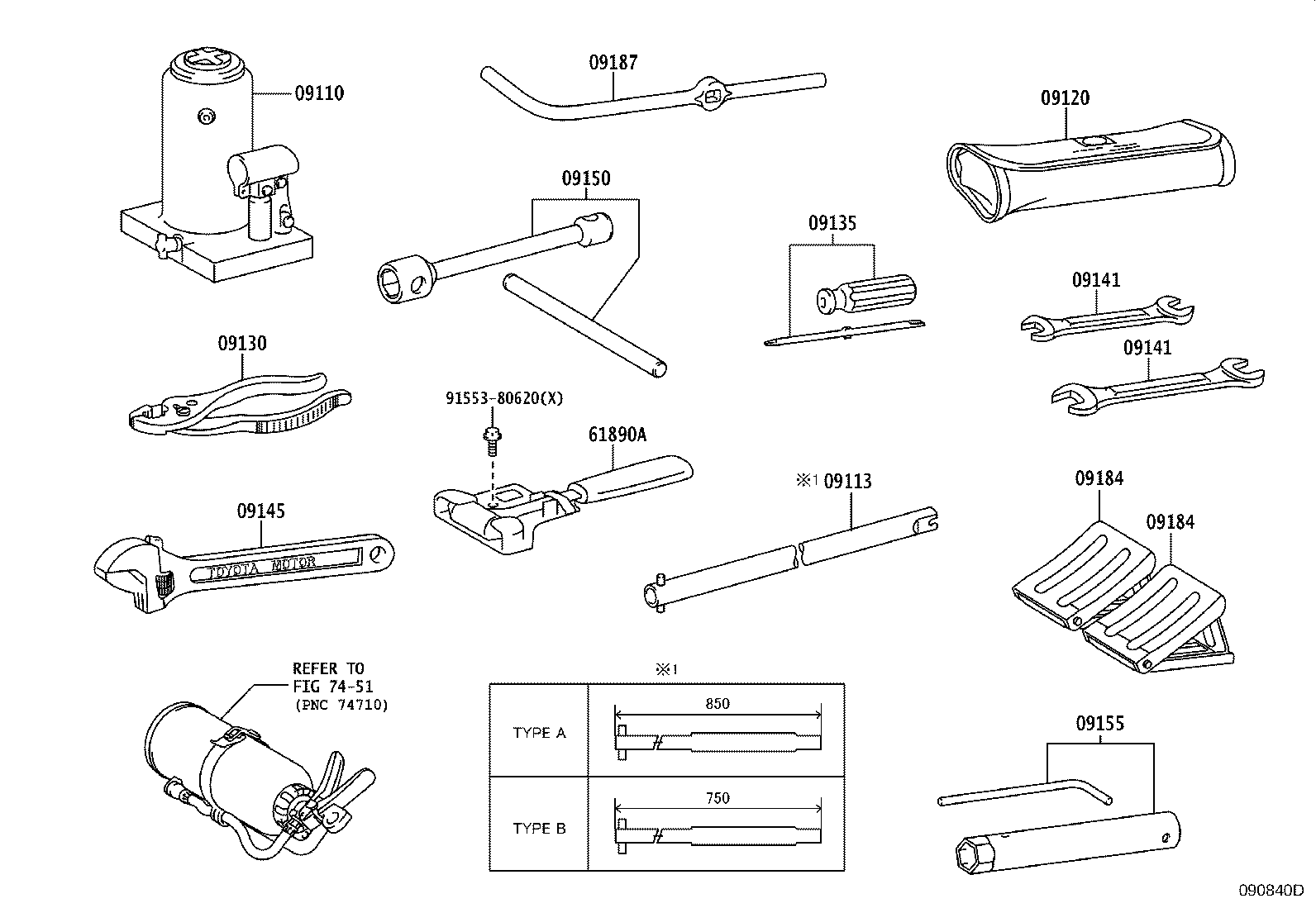

Click highlighted areas on diagram

diagram 09110 09113 09120 09130 09135 09141 09141 09145 09150 09155 09184 09184 09187 61890A 7451 9155380620
Part # Description Qty Price
09110 - JACK ASSY
09111-36331

XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)

 1
09113 - HANDLE, JACK
09113-36190

XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(01S,02S,20S,22S,23S,24S,25S,26S,29S,30S)..(5F,6FC)..(GCC,GEN,SA,TAIW)

TYPE B:REFER ILLUST.

 1
09113-36170

BZB70,HZB60,70,TRB60,70,XZB70,80..01S,02S,20S,22S,23S,24S,25S,26S,29S,30S

TYPE A:REFER ILLUST.

 1
09120 - BAG, TOOL
09120-36070

XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)

 1
09130 - PLIERS
99913-11500

XZB60..GEN;XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)

 1
09135 - DRIVER, SCREW
99915-10700

XZB60..GEN;XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)

 1
09141 - SPANNER
99914-11214

XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)

12 X 14

 1
99914-10810

XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)

8 X 10

 1
09141 - SPANNER
99914-11214

XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)

12 X 14

 1
99914-10810

XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)

8 X 10

 1
09145 - WRENCH, MONKEY
99911-11200

XZB60..GEN;XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)

 1
09150 - WRENCH, HUB NUT BOX
09150-37030

XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)

 1
09187 - HANDLE, SPARE WHEEL CARRIER
09187-36070

XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)

 1
Common parts
91553-80620
Linked diagrams
7451
