XZB50R-ZEPNYQ (2007)

Toyota Coaster

Production Aug 2007 - Dec 2016
Engine N04C
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0708- )4FC

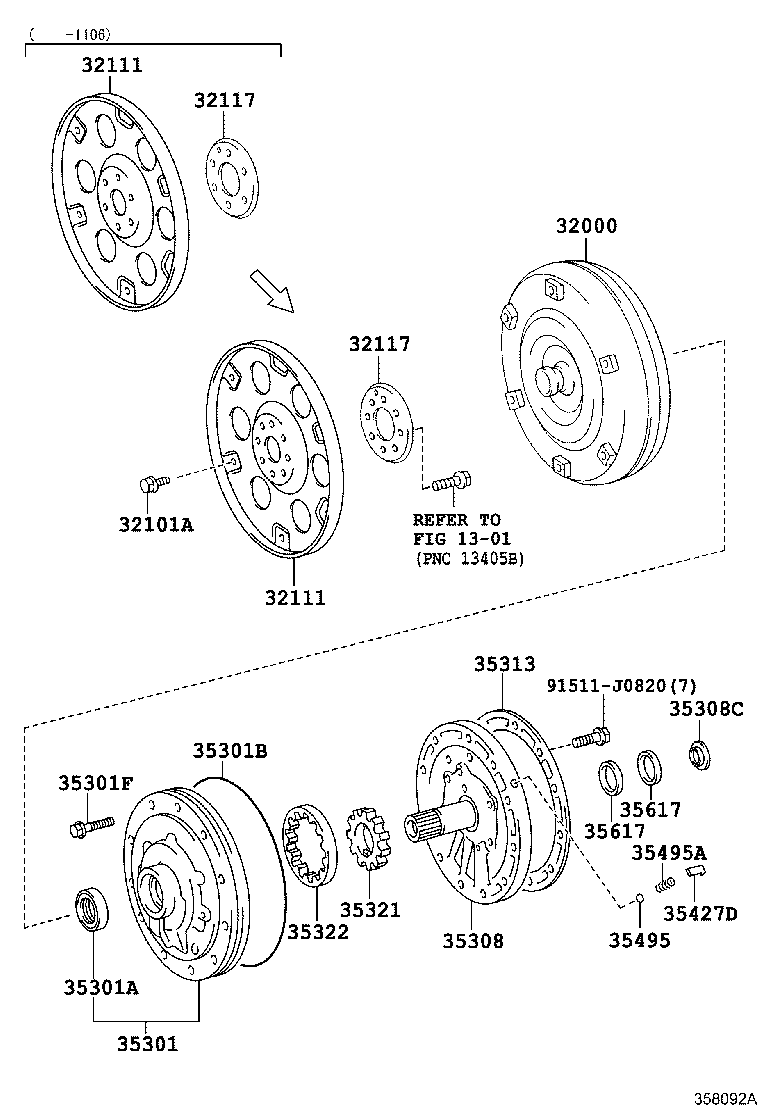

Click highlighted areas on diagram

A444E

diagram 1301 32000 32101A 32111 32111 32117 32117 35301 35301A 35301B 35301F 35308 35308C 35313 35321 35322 35427D 35495 35495A 35617 35617 91511J0820
Part # Description Qty Price
32000 - CONVERTER ASSY, TORQUE
32000-37020

XZB50..4FC

 1
32000-37020

XZB50..4FC

 1
32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
90119-10954

XZB50..4FC

*10-1.25PX14-9,BLACK OR SILVER

 5
90119-10789

XZB50..4FC

*10-1.25PX14-9,GREEN OR BLACK

 1
90119-10789

XZB50..4FC

*10-1.25PX14-9,BLACK

 1
90119-10954

XZB50..4FC

*10-1.25PX14-9,SILVER WHITE

 5
32111 - PLATE, PUMP IMPELLER DRIVE
32111-65031

XZB50..4FC

 1
32111-65030

XZB50..4FC

 1
32111-65031

XZB50..4FC

 1
32111 - PLATE, PUMP IMPELLER DRIVE
32111-65031

XZB50..4FC

 1
32111-65030

XZB50..4FC

 1
32111-65031

XZB50..4FC

 1
32117 - SPACER, DRIVE PLATE, REAR
32117-37050

XZB50..4FC

 1
32117-37020

XZB50..4FC

 1
32117-37050

XZB50..4FC

 1
32117 - SPACER, DRIVE PLATE, REAR
32117-37050

XZB50..4FC

 1
32117-37020

XZB50..4FC

 1
32117-37050

XZB50..4FC

 1
35301 - BODY SUB-ASSY, FRONT OIL PUMP
35301-60020

XZB50..4FC

 1
35301-60020

XZB50..4FC

 1
35301A - SEAL, OIL (FOR FRONT OIL PUMP)
90311-42010

XZB50..4FC

 1
90311-42010

XZB50..4FC

 1
35301B - RING, O (FOR FRONT OIL PUMP BODY)
90301-99029

XZB50..4FC

 1
90301-99029

XZB50..4FC

 1
35301F - BOLT (FOR FRONT OIL PUMP SETTING)
90105-08212

XZB50..4FC

*8-1.25PX60-30

 10
90105-08213

XZB50..4FC

*8-1.25PX60-20

 1
90105-08213

XZB50..4FC

*8-1.25PX60-20

 1
90105-08212

XZB50..4FC

*8-1.25PX60-30

 10
35308 - COVER SUB-ASSY, FRONT OIL PUMP
35308-60080

XZB50..4FC

 1
35308-60080

XZB50..4FC

 1
35308C - RACE, THRUST BEARING (FOR FRONT OIL PUMP COVER)
35789-36060

XZB50..4FC

T=1.4

 1
35789-36040

XZB50..4FC

T=0.8

 1
35789-36050

XZB50..4FC

T=1.0

 1
35789-36050

XZB50..4FC

T=1.0

 1
35789-36040

XZB50..4FC

T=0.8

 1
35789-36060

XZB50..4FC

T=1.4

 1
35313 - GASKET, FRONT OIL PUMP COVER
35313-60010

XZB50..4FC

 1
35313-60010

XZB50..4FC

 1
35321 - GEAR, FRONT OIL PUMP DRIVE
35321-60040

XZB50..4FC

T=13.948-13.962

 1
35321-60050

XZB50..4FC

T=13.963-13.977

 1
35321-60070

XZB50..4FC

T=13.993-14.007

 1
35321-60040

XZB50..4FC

T=13.948-13.962

 1
35321-60050

XZB50..4FC

T=13.963-13.977

 1
35321-60060

XZB50..4FC

T=13.978-13.992

 1
35321-60070

XZB50..4FC

T=13.993-14.007

 1
35321-60060

XZB50..4FC

T=13.978-13.992

 1
35321-60080

XZB50..4FC

T=14.008-14.022

 1
35321-60080

XZB50..4FC

T=14.008-14.022

 1
35322 - GEAR, FRONT OIL PUMP DRIVEN
35322-60070

XZB50..4FC

T=13.993-14.007

 1
35322-60080

XZB50..4FC

T=14.008-14.022

 1
35322-60040

XZB50..4FC

T=13.948-13.962

 1
35322-60060

XZB50..4FC

T=13.978-13.992

 1
35322-60060

XZB50..4FC

T=13.978-13.992

 1
35322-60040

XZB50..4FC

T=13.948-13.962

 1
35322-60050

XZB50..4FC

T=13.963-13.977

 1
35322-60050

XZB50..4FC

T=13.963-13.977

 1
35322-60080

XZB50..4FC

T=14.008-14.022

 1
35322-60070

XZB50..4FC

T=13.993-14.007

 1
35427D - SEAT, CHECK VALVE SPRING
35427-60010

XZB50..4FC

 1
35427-60010

XZB50..4FC

 1
35495 - BALL, CHECK
35495-60010

XZB50..4FC

 1
35495-60010

XZB50..4FC

 1
35495A - SPRING, COMPRESSION (FOR CHECK BALL)
90501-18106

XZB50..4FC

 1
90501-18106

XZB50..4FC

 1
35617 - RING, CLUTCH DRUM OIL SEAL
35617-60010

XZB50..4FC

 2
35617-60010

XZB50..4FC

 2
35617 - RING, CLUTCH DRUM OIL SEAL
35617-60010

XZB50..4FC

 2
35617-60010

XZB50..4FC

 2
Common parts
91511-J0820
Linked diagrams
1301
