XZB50R-ZEMSYQ (2006)
Toyota Coaster

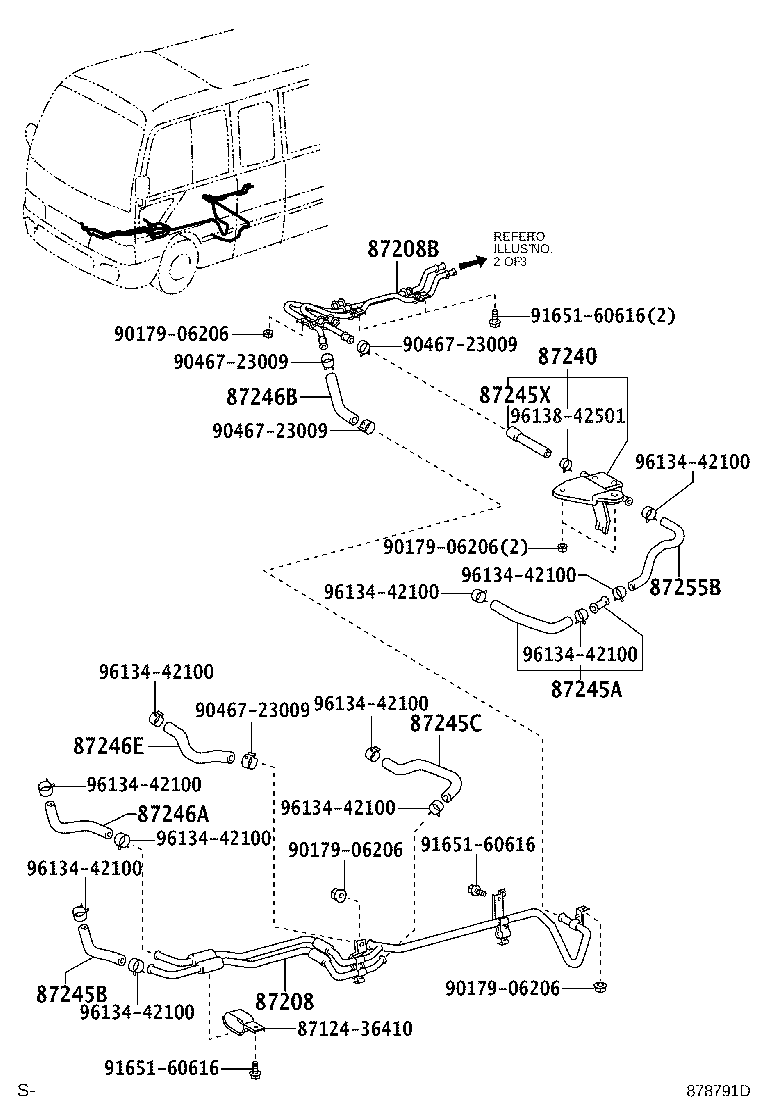

ILLUST NO. 1 OF 3(0608-1501)RHD..ARL,EUR
FRONT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87208 - PIPE SUB-ASSY, HEATER WATER | ||||
| 87208-36A20 |
XZB50..RHD..WC..(ARL,EUR) |
1 | ||
| 87208-36C00 |
TRB40,50 |
1 | ||
| 87208-36C01 |
TRB40,50 |
1 | ||
| 87208-36C01 |
TRB40,50 |
1 | ||
| 87208-36A21 |
XZB50..ARL |
1 | ||
| 87208-36A21 |
XZB50..ARL |
1 | ||
| 87208B - PIPE SUB-ASSY, HEATER WATER, B | ||||
| 87208-36A51 |
XZB50..WC..ARL |
1 | ||
| 87208-36D10 |
XZB50..ARL |
1 | ||
| 87240 - VALVE ASSY, HEATER WATER | ||||
| 87240-36030 |
HZB50..30S..4FC;BB4#,50,HZB50,RZB40,50..(ARL,EUR,GCC,GEN)..5F W(REAR HEATER) |
1 | ||
| 87240-36120 |
BB42,HZB50,TRB40,50,XZB40,50..21S,26S,30S |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87209-36A80 |
XZB50..RHD..(ARL,EUR) |
1 | ||
| 87245-36E00 |
TRB40,50 |
1 | ||
| 87209-36A80 |
XZB50..ARL |
1 | ||
| 87245-36E00 |
TRB40,50 |
1 | ||
| 87245B - HOSE, HEATER WATER, INLET B | ||||
| 87245-3C500 |
XZB5#..RHD |
1 | ||
| 87245C - HOSE, HEATER WATER ,INLET C | ||||
| 87245-36A30 |
XZB50..ARL |
1 | ||
| 87245-36A30 |
XZB50..WC..ARL |
1 | ||
| 87245X - HOSE, HEATER WATER | ||||
| 99556-30100 |
HZB50..30S..4FC;BB4#,50,HZB50,RZB40,50..(ARL,EUR,GCC,GEN)..5F *H,L=55 |
1 | ||
| 87245-3C410 |
BB42,HZB50,TRB40,50,XZB40,50..21S,26S,30S |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 87245-3C490 |
XZB5#..RHD |
1 | ||
| 87245-36E10 |
TRB40,50 FRONT HEATER |
1 | ||
| 87246B - HOSE, HEATER WATER, OUTLET B | ||||
| 87245-36C00 |
TRB40,50 |
1 | ||
| 87245-3C380 |
HZB50..RHD;BB42,XZB40,50..21S,26S,30S |
1 | ||
| 87246E - HOSE, HEATER WATER, OUTLET E | ||||
| 87245-3B330 |
XZB50..WC..ARL |
1 | ||
| 87245-36E10 |
TRB40,50 |
1 | ||
| 87245-3B330 |
XZB50..ARL |
1 | ||
| 87255B - HOSE, REAR HEATER WATER INLET, B | ||||
| 87245-36A60 |
XZB50..21S..WC |
1 | ||
| 87245-36A60 |
XZB40,50..21S,26S,30S |
1 | ||
| Common parts | ||||
| 87124-36410 | ||||
| 90179-06206 | ||||
| 90467-23009 | ||||
| 91651-60616 | ||||
| 96134-42100 | ||||
| 96138-42501 | ||||

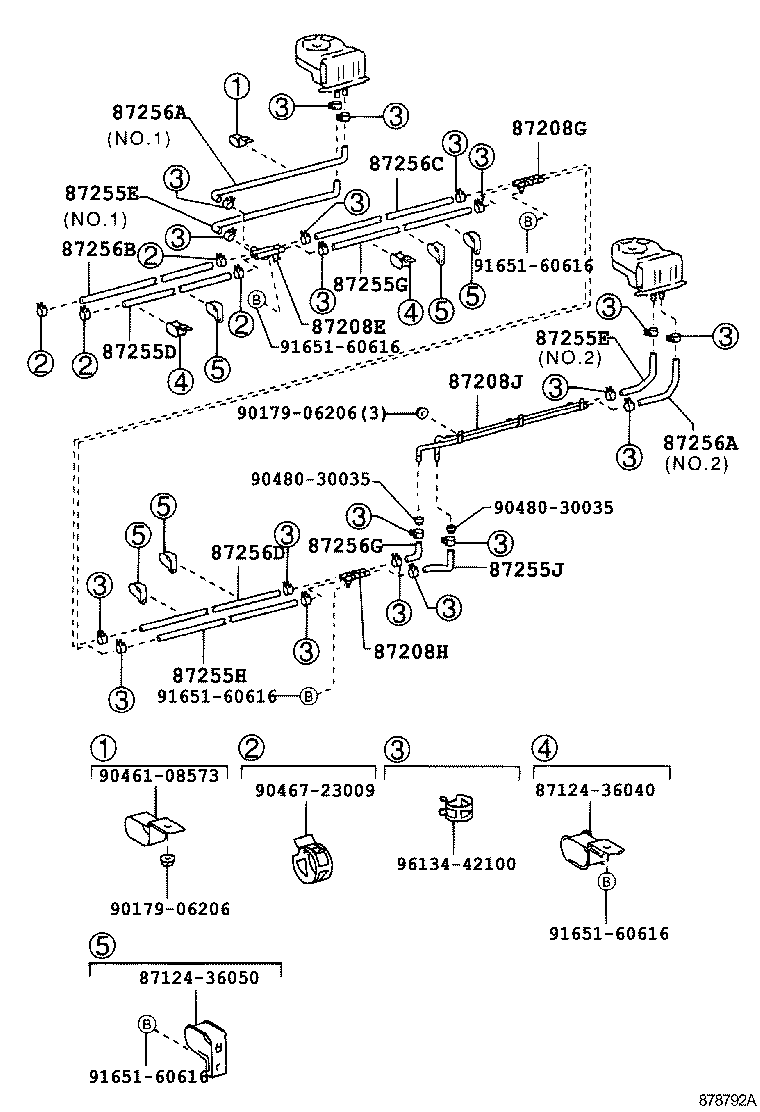

ILLUST NO. 2 OF 3(0608-1501)ARL
REAR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87208E - PIPE SUB-ASSY, HEATER WATER, E | ||||
| 87208-36B00 |
XZB50..WC..ARL |
1 | ||
| 87208G - PIPE SUB-ASSY, HEATER WATER, G | ||||
| 87208-36E20 |
XZB50..ARL |
1 | ||
| 87208H - PIPE SUB-ASSY, HEATER WATER, H | ||||
| 87208-36670 |
HZB50,XZB50..DX,STD;BB42,TRB40,50,XZB40..LHD |
1 | ||
| 87208J - PIPE SUB-ASSY, HEATER WATER, J | ||||
| 87208-36690 |
BB42,HZB50,XZB50..RHD..(DX,STD) |
1 | ||
| 87255D - HOSE, REAR HEATER WATER INLET, D | ||||
| 87245-36B40 |
XZB50..ARL NO.2 |
1 | ||
| 87245-36L00 |
XZB50..ARL |
1 | ||
| 87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT) | ||||
| 87245-36F10 |
XZB50..ARL NO.1 |
1 | ||
| 87245-36B60 |
XZB50..ARL NO.1 |
1 | ||
| 87245-3C560 |
BB42,HZB50,XZB50..RHD..(DX,STD) NO.2 |
1 | ||
| 87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT) | ||||
| 87245-36F10 |
XZB50..ARL NO.1 |
1 | ||
| 87245-36B60 |
XZB50..ARL NO.1 |
1 | ||
| 87245-3C560 |
BB42,HZB50,XZB50..RHD..(DX,STD) NO.2 |
1 | ||
| 87255G - HOSE, REAR HEATER WATER INLET, G | ||||
| 87245-36K10 |
XZB50..ARL |
1 | ||
| 87255H - HOSE, HEATER WATER INLET, H | ||||
| 87245-36K20 |
HZB50,XZB50..DX,STD;BB42,TRB40,50,XZB40..LHD |
1 | ||
| 87255J - HOSE, HEATER WATER INLET, J | ||||
| 87245-3C710 |
BB42,HZB50,XZB50..RHD..(DX,STD) |
1 | ||
| 87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT) | ||||
| 87245-36B50 |
XZB50..ARL NO.1 |
1 | ||
| 87245-36F00 |
XZB50..ARL NO.1 |
1 | ||
| 87245-3C550 |
BB42,HZB50,XZB50..RHD..(DX,STD) NO.2 |
1 | ||
| 87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT) | ||||
| 87245-36B50 |
XZB50..ARL NO.1 |
1 | ||
| 87245-36F00 |
XZB50..ARL NO.1 |
1 | ||
| 87245-3C550 |
BB42,HZB50,XZB50..RHD..(DX,STD) NO.2 |
1 | ||
| 87256B - HOSE, REAR HEATER WATER OUTLET, B | ||||
| 87245-36B30 |
XZB50..ARL |
1 | ||
| 87245-36K90 |
XZB50..ARL |
1 | ||
| 87256C - HOSE, REAR HEATER WATER OUTLET, C | ||||
| 87245-36L10 |
XZB50..ARL |
1 | ||
| 87256D - HOSE, REAR HEATER WATER OUTLET, D | ||||
| 87245-36K20 |
HZB50,XZB50..DX,STD;BB42,TRB40,50,XZB40..LHD |
1 | ||
| Common parts | ||||
| 87124-36040 | ||||
| 87124-36050 | ||||
| 90179-06206 | ||||
| 90461-08573 | ||||
| 90467-23009 | ||||
| 90480-30035 | ||||
| 91651-60616 | ||||
| 96134-42100 | ||||

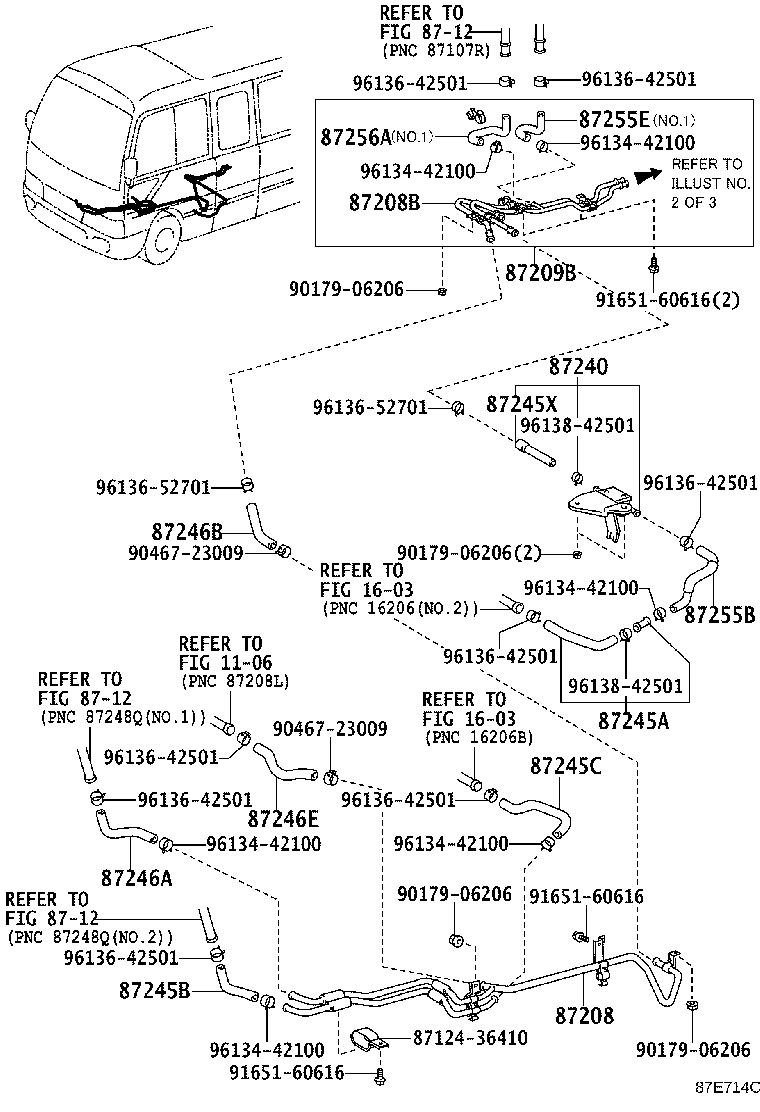

ILLUST NO. 1 OF 3(1501- )TRB40,50
FRONT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87208 - PIPE SUB-ASSY, HEATER WATER | ||||
| 87208-36A20 |
XZB50..RHD..WC..(ARL,EUR) |
1 | ||
| 87208-36C00 |
TRB40,50 |
1 | ||
| 87208-36C01 |
TRB40,50 |
1 | ||
| 87208-36C01 |
TRB40,50 |
1 | ||
| 87208-36A21 |
XZB50..ARL |
1 | ||
| 87208-36A21 |
XZB50..ARL |
1 | ||
| 87208A - PIPE SUB-ASSY, HEATER WATER, A | ||||
| 87208-36190 |
BB42..WC..GCC;BB42..LHD..WOC;BB42..RHD..GEN;BB40,RZB40,50..ARL,GCC |
1 | ||
| 87240 - VALVE ASSY, HEATER WATER | ||||
| 87240-36030 |
HZB50..30S..4FC;BB4#,50,HZB50,RZB40,50..(ARL,EUR,GCC,GEN)..5F W(REAR HEATER) |
1 | ||
| 87240-36120 |
BB42,HZB50,TRB40,50,XZB40,50..21S,26S,30S |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87209-36A80 |
XZB50..RHD..(ARL,EUR) |
1 | ||
| 87245-36E00 |
TRB40,50 |
1 | ||
| 87209-36A80 |
XZB50..ARL |
1 | ||
| 87245-36E00 |
TRB40,50 |
1 | ||
| 87245B - HOSE, HEATER WATER, INLET B | ||||
| 87245-3C500 |
XZB5#..RHD |
1 | ||
| 87245X - HOSE, HEATER WATER | ||||
| 99556-30100 |
HZB50..30S..4FC;BB4#,50,HZB50,RZB40,50..(ARL,EUR,GCC,GEN)..5F *H,L=55 |
1 | ||
| 87245-3C410 |
BB42,HZB50,TRB40,50,XZB40,50..21S,26S,30S |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 87245-3C490 |
XZB5#..RHD |
1 | ||
| 87245-36E10 |
TRB40,50 FRONT HEATER |
1 | ||
| 87246B - HOSE, HEATER WATER, OUTLET B | ||||
| 87245-36C00 |
TRB40,50 |
1 | ||
| 87245-3C380 |
HZB50..RHD;BB42,XZB40,50..21S,26S,30S |
1 | ||
| 87246E - HOSE, HEATER WATER, OUTLET E | ||||
| 87245-3B330 |
XZB50..WC..ARL |
1 | ||
| 87245-36E10 |
TRB40,50 |
1 | ||
| 87245-3B330 |
XZB50..ARL |
1 | ||
| 87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE) | ||||
| 87245-36E20 |
TRB40,50 |
1 | ||
| 87245-36E20 |
TRB40,50 |
1 | ||
| Common parts | ||||
| 87124-36130 | ||||
| 87124-36390 | ||||
| 90179-06206 | ||||
| 90339-16001 | ||||
| 91651-60616 | ||||
| 96134-42100 | ||||
| 96136-42501 | ||||
| 96136-52701 | ||||
| 96138-42501 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 1603 | ||||
| 8712 | ||||

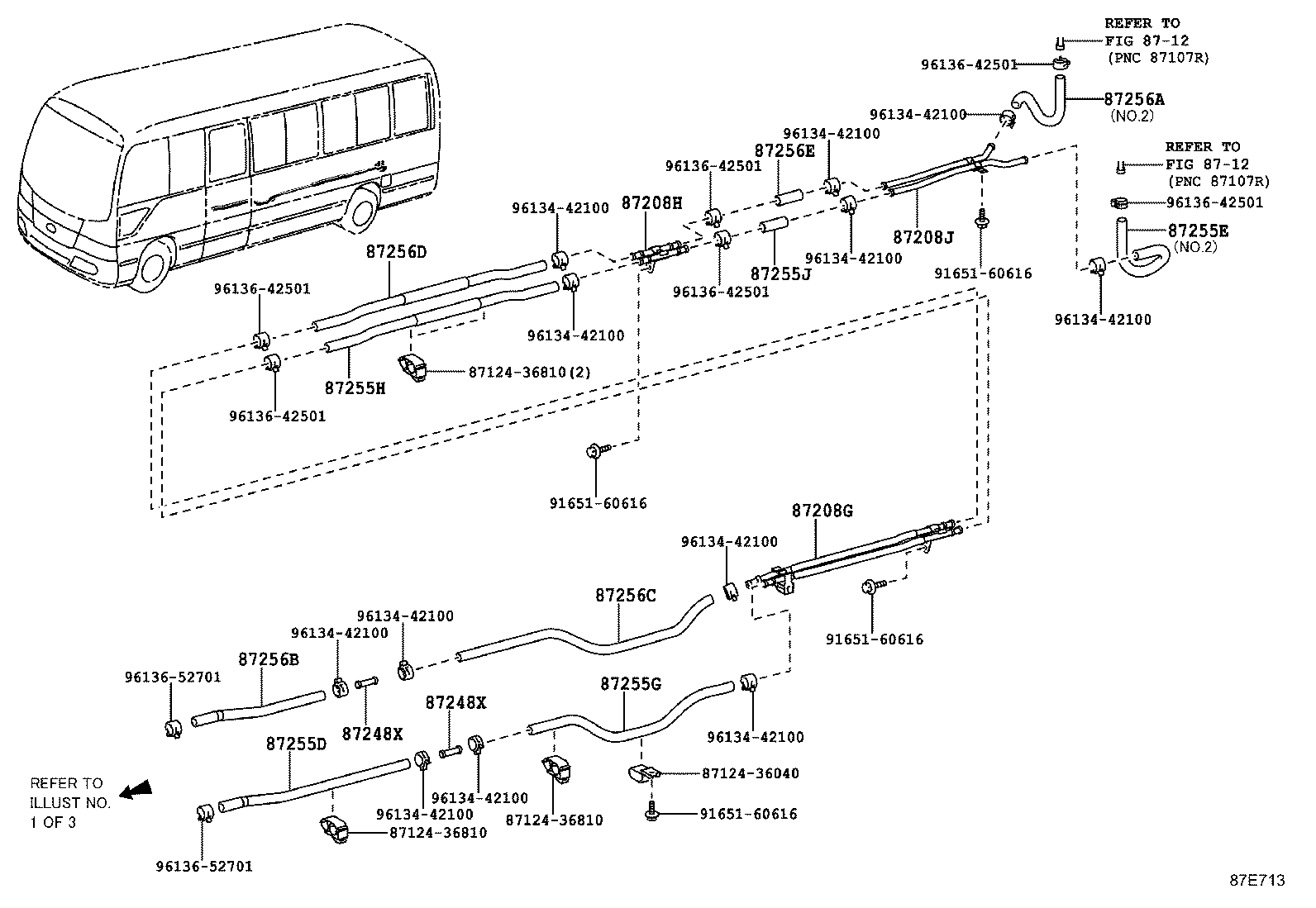

ILLUST NO. 2 OF 3(1501- )ARL
REAR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87208G - PIPE SUB-ASSY, HEATER WATER, G | ||||
| 87208-36E20 |
XZB50..ARL |
1 | ||
| 87208H - PIPE SUB-ASSY, HEATER WATER, H | ||||
| 87208-36670 |
HZB50,XZB50..DX,STD;BB42,TRB40,50,XZB40..LHD |
1 | ||
| 87208J - PIPE SUB-ASSY, HEATER WATER, J | ||||
| 87208-36690 |
BB42,HZB50,XZB50..RHD..(DX,STD) |
1 | ||
| 87248X - PIPE, HEATER WATER | ||||
| 87248-36300 |
XZB50..ARL |
2 | ||
| 87248X - PIPE, HEATER WATER | ||||
| 87248-36300 |
XZB50..ARL |
2 | ||
| 87255D - HOSE, REAR HEATER WATER INLET, D | ||||
| 87245-36B40 |
XZB50..ARL NO.2 |
1 | ||
| 87245-36L00 |
XZB50..ARL |
1 | ||
| 87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT) | ||||
| 87245-36F10 |
XZB50..ARL NO.1 |
1 | ||
| 87245-36B60 |
XZB50..ARL NO.1 |
1 | ||
| 87245-3C560 |
BB42,HZB50,XZB50..RHD..(DX,STD) NO.2 |
1 | ||
| 87255G - HOSE, REAR HEATER WATER INLET, G | ||||
| 87245-36K10 |
XZB50..ARL |
1 | ||
| 87255H - HOSE, HEATER WATER INLET, H | ||||
| 87245-36K20 |
HZB50,XZB50..DX,STD;BB42,TRB40,50,XZB40..LHD |
1 | ||
| 87255J - HOSE, HEATER WATER INLET, J | ||||
| 87245-3C710 |
BB42,HZB50,XZB50..RHD..(DX,STD) |
1 | ||
| 87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT) | ||||
| 87245-36B50 |
XZB50..ARL NO.1 |
1 | ||
| 87245-36F00 |
XZB50..ARL NO.1 |
1 | ||
| 87245-3C550 |
BB42,HZB50,XZB50..RHD..(DX,STD) NO.2 |
1 | ||
| 87256B - HOSE, REAR HEATER WATER OUTLET, B | ||||
| 87245-36B30 |
XZB50..ARL |
1 | ||
| 87245-36K90 |
XZB50..ARL |
1 | ||
| 87256C - HOSE, REAR HEATER WATER OUTLET, C | ||||
| 87245-36L10 |
XZB50..ARL |
1 | ||
| 87256D - HOSE, REAR HEATER WATER OUTLET, D | ||||
| 87245-36K20 |
HZB50,XZB50..DX,STD;BB42,TRB40,50,XZB40..LHD |
1 | ||
| 87256E - HOSE, REAR HEATER WATER OUTLET, E (TO ENGINE) | ||||
| 87245-3C710 |
BB42,HZB50,XZB50..RHD..(DX,STD) |
1 | ||
| Common parts | ||||
| 87124-36040 | ||||
| 87124-36810 | ||||
| 91651-60616 | ||||
| 96134-42100 | ||||
| 96136-42501 | ||||
| 96136-52701 | ||||
| Linked diagrams | ||||
| 8712 | ||||
ILLUST NO. 1 OF 3(1501- )ARL
FRONT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87208 - PIPE SUB-ASSY, HEATER WATER | ||||
| 87208-36A20 |
XZB50..RHD..WC..(ARL,EUR) |
1 | ||
| 87208-36C00 |
TRB40,50 |
1 | ||
| 87208-36C01 |
TRB40,50 |
1 | ||
| 87208-36C01 |
TRB40,50 |
1 | ||
| 87208-36A21 |
XZB50..ARL |
1 | ||
| 87208-36A21 |
XZB50..ARL |
1 | ||
| 87208B - PIPE SUB-ASSY, HEATER WATER, B | ||||
| 87208-36A51 |
XZB50..WC..ARL |
1 | ||
| 87208-36D10 |
XZB50..ARL |
1 | ||
| 87209B - HOSE SUB-ASSY, WATER, B | ||||
| 87209-36E70 |
XZB50..ARL |
1 | ||
| 87240 - VALVE ASSY, HEATER WATER | ||||
| 87240-36030 |
HZB50..30S..4FC;BB4#,50,HZB50,RZB40,50..(ARL,EUR,GCC,GEN)..5F W(REAR HEATER) |
1 | ||
| 87240-36120 |
BB42,HZB50,TRB40,50,XZB40,50..21S,26S,30S |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87209-36A80 |
XZB50..RHD..(ARL,EUR) |
1 | ||
| 87245-36E00 |
TRB40,50 |
1 | ||
| 87209-36A80 |
XZB50..ARL |
1 | ||
| 87245-36E00 |
TRB40,50 |
1 | ||
| 87245B - HOSE, HEATER WATER, INLET B | ||||
| 87245-3C500 |
XZB5#..RHD |
1 | ||
| 87245C - HOSE, HEATER WATER ,INLET C | ||||
| 87245-36A30 |
XZB50..ARL |
1 | ||
| 87245-36A30 |
XZB50..WC..ARL |
1 | ||
| 87245X - HOSE, HEATER WATER | ||||
| 99556-30100 |
HZB50..30S..4FC;BB4#,50,HZB50,RZB40,50..(ARL,EUR,GCC,GEN)..5F *H,L=55 |
1 | ||
| 87245-3C410 |
BB42,HZB50,TRB40,50,XZB40,50..21S,26S,30S |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 87245-3C490 |
XZB5#..RHD |
1 | ||
| 87245-36E10 |
TRB40,50 FRONT HEATER |
1 | ||
| 87246B - HOSE, HEATER WATER, OUTLET B | ||||
| 87245-36C00 |
TRB40,50 |
1 | ||
| 87245-3C380 |
HZB50..RHD;BB42,XZB40,50..21S,26S,30S |
1 | ||
| 87246E - HOSE, HEATER WATER, OUTLET E | ||||
| 87245-3B330 |
XZB50..WC..ARL |
1 | ||
| 87245-36E10 |
TRB40,50 |
1 | ||
| 87245-3B330 |
XZB50..ARL |
1 | ||
| 87255B - HOSE, REAR HEATER WATER INLET, B | ||||
| 87245-36A60 |
XZB50..21S..WC |
1 | ||
| 87245-36A60 |
XZB40,50..21S,26S,30S |
1 | ||
| 87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT) | ||||
| 87245-36F10 |
XZB50..ARL NO.1 |
1 | ||
| 87245-36B60 |
XZB50..ARL NO.1 |
1 | ||
| 87245-3C560 |
BB42,HZB50,XZB50..RHD..(DX,STD) NO.2 |
1 | ||
| 87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT) | ||||
| 87245-36B50 |
XZB50..ARL NO.1 |
1 | ||
| 87245-36F00 |
XZB50..ARL NO.1 |
1 | ||
| 87245-3C550 |
BB42,HZB50,XZB50..RHD..(DX,STD) NO.2 |
1 | ||
| Common parts | ||||
| 87124-36410 | ||||
| 90179-06206 | ||||
| 90467-23009 | ||||
| 91651-60616 | ||||
| 96134-42100 | ||||
| 96136-42501 | ||||
| 96136-52701 | ||||
| 96138-42501 | ||||
| Linked diagrams | ||||
| 1106 | ||||
| 1603 | ||||
| 8712 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
