XZB50R-ZEMSYQ (2006)
Toyota Coaster
(0608- )XZB40,5#..RHD

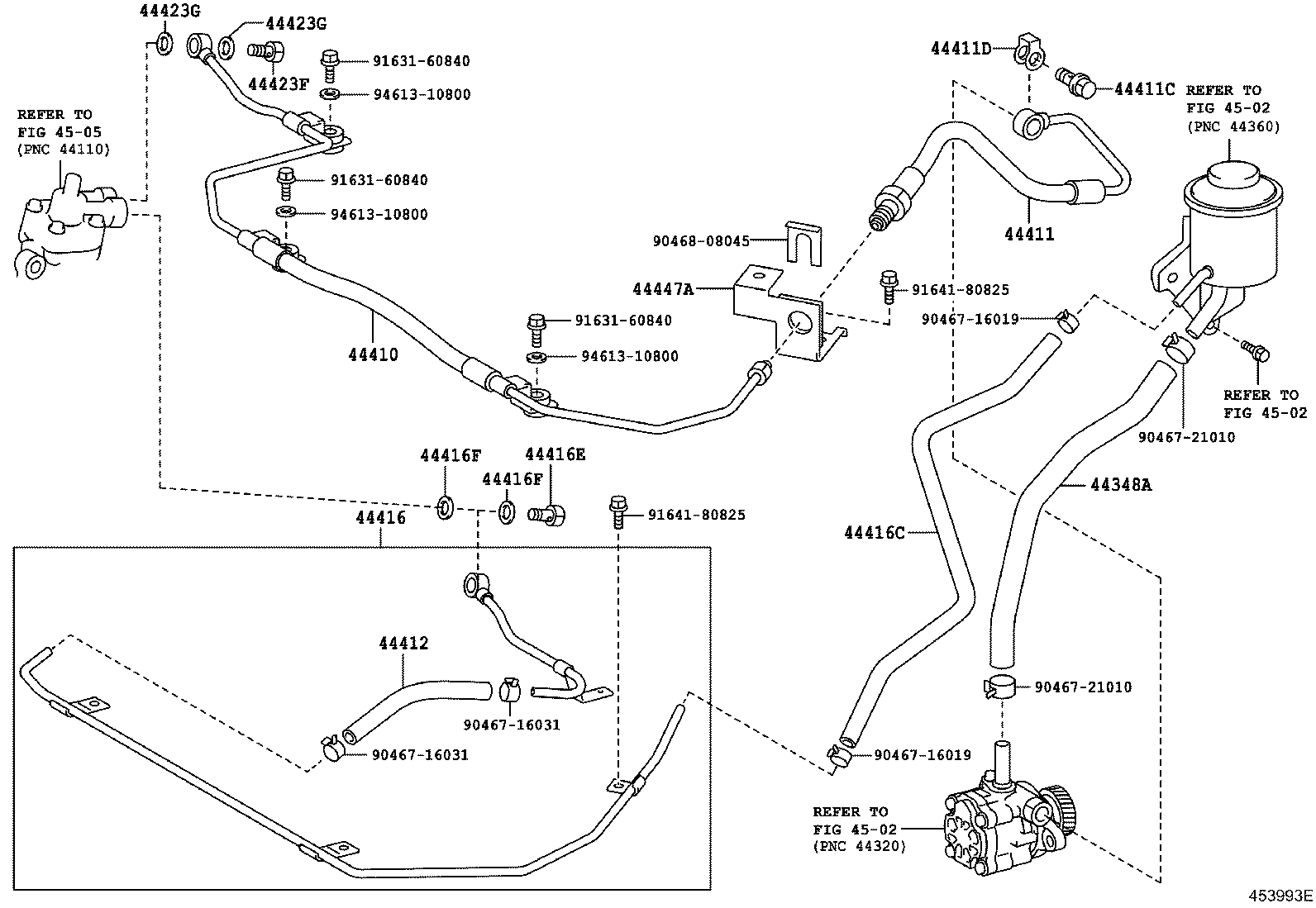

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1 | ||||
| 44348-36370 |
TRB40,50 |
1 | ||
| 44348-36360 |
XZB40,59;XZB50..(20S,21S)..WC |
1 | ||
| 44348-36370 |
TRB40,50 |
1 | ||
| 44348-36360 |
XZB40,5# |
1 | ||
| 44348-36350 |
BZB40,50 |
1 | ||
| 44410 - TUBE ASSY, PRESSURE FEED | ||||
| 44410-36130 |
XZB40,59;XZB50..RHD..(20S,21S)..WC |
1 | ||
| 44410-36130 |
XZB40,5#..RHD |
1 | ||
| 44411 - HOSE, PRESSURE FEED | ||||
| 44411-36401 |
BB4#,50..RHD |
1 | ||
| 44411-36550 |
XZB40,59;XZB50..RHD..(20S,21S)..WC |
1 | ||
| 44411-36570 |
TRB40,50 |
1 | ||
| 44411-36550 |
XZB40,5#..RHD |
1 | ||
| 44411-36401 |
BB42,BZB40,50..RHD |
1 | ||
| 44411-36570 |
TRB40,50 |
1 | ||
| 44411C - BOLT, UNION(FOR PRESSURE FEED HOSE) | ||||
| 90404-16024 |
BB4#,5#,HZB50 |
1 | ||
| 96341-41603 |
XZB40,59;XZB50..(20S,21S)..WC |
1 | ||
| 90401-16034 |
TRB40,50 |
1 | ||
| 90404-16024 |
BB42,BZB40,50,HZB50 |
1 | ||
| 96341-41603 |
XZB40,5# |
1 | ||
| 90401-16034 |
TRB40,50 |
1 | ||
| 44411D - GASKET(FOR PRESSURE FEED HOSE) | ||||
| 90430-16168 |
BB4#,5#,HZB50,RZB40,50 |
2 | ||
| 44327-30030 |
BB42,BZB40,50,HZB50,XZB40,5# |
1 | ||
| 44327-30040 |
TRB40,50 |
1 | ||
| 44327-30040 |
TRB40,50 |
1 | ||
| 44412 - HOSE, RETURN | ||||
| 90445-18137 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
1 | ||
| 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) | ||||
| 44416-36350 |
BB4#,50,HZB50..RHD |
1 | ||
| 44416-36381 |
TRB40,50 |
1 | ||
| 44416-36351 |
BB42,BZB40,50,HZB50,XZB40,5#..RHD |
1 | ||
| 44416C - HOSE(FOR RETURN TUBE TO RESERVIOR) | ||||
| 90445-18139 |
RZB40,50;HZB50..RHD |
1 | ||
| 44412-36040 |
XZB40,5#..RHD |
1 | ||
| 44412-36030 |
BZB40,50 |
1 | ||
| 44412-36040 |
XZB40,59;XZB50..RHD..(20S,21S)..WC |
1 | ||
| 90445-18139 |
TRB40,50;HZB50..RHD |
1 | ||
| 44416E - BOLT, UNION(FOR RETURN TUBE) | ||||
| 90401-14003 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 90401-14003 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
1 | ||
| 44416F - GASKET(FOR RETURN TUBE) | ||||
| 90430-14235 |
BB4#,5#,HZB50,RZB40,50 |
2 | ||
| 90430-14014 |
BB42,50,BZB40,50,HZB50,TRB40,50,XZB40,5# |
2 | ||
| 90430-14014 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
2 | ||
| 44416F - GASKET(FOR RETURN TUBE) | ||||
| 90430-14235 |
BB4#,5#,HZB50,RZB40,50 |
2 | ||
| 90430-14014 |
BB42,50,BZB40,50,HZB50,TRB40,50,XZB40,5# |
2 | ||
| 90430-14014 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
2 | ||
| 44423F - BOLT, UNION | ||||
| 90401-14003 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 90401-14003 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
1 | ||
| 44423G - GASKET, UNION BOLT | ||||
| 90430-14014 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
2 | ||
| 90430-14235 |
BB4#,5#,HZB50,RZB40,50 |
2 | ||
| 90430-14014 |
BB42,50,BZB40,50,HZB50,TRB40,50,XZB40,5# |
2 | ||
| 44423G - GASKET, UNION BOLT | ||||
| 90430-14014 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
2 | ||
| 90430-14235 |
BB4#,5#,HZB50,RZB40,50 |
2 | ||
| 90430-14014 |
BB42,50,BZB40,50,HZB50,TRB40,50,XZB40,5# |
2 | ||
| 44447A - BRACKET, HOSE SUPPORT, NO.1 | ||||
| 44447-36200 |
BB4#,50,HZB50..RHD |
1 | ||
| 44447-36200 |
BB42,BZB40,50,HZB50,XZB40,5#..RHD |
1 | ||
| Common parts | ||||
| 90467-16019 | ||||
| 90467-16031 | ||||
| 90467-21010 | ||||
| 90468-08045 | ||||
| 91631-60840 | ||||
| 91641-80825 | ||||
| 94613-10800 | ||||
| Linked diagrams | ||||
| 4502 | ||||
| 4505 | ||||
(0708- )TRB40,50
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1 | ||||
| 44348-36370 |
TRB40,50 |
1 | ||
| 44348-36360 |
XZB40,59;XZB50..(20S,21S)..WC |
1 | ||
| 44348-36370 |
TRB40,50 |
1 | ||
| 44348-36360 |
XZB40,5# |
1 | ||
| 44348-36350 |
BZB40,50 |
1 | ||
| 44411 - HOSE, PRESSURE FEED | ||||
| 44411-36401 |
BB4#,50..RHD |
1 | ||
| 44411-36550 |
XZB40,59;XZB50..RHD..(20S,21S)..WC |
1 | ||
| 44411-36570 |
TRB40,50 |
1 | ||
| 44411-36550 |
XZB40,5#..RHD |
1 | ||
| 44411-36401 |
BB42,BZB40,50..RHD |
1 | ||
| 44411-36570 |
TRB40,50 |
1 | ||
| 44411C - BOLT, UNION(FOR PRESSURE FEED HOSE) | ||||
| 90404-16024 |
BB4#,5#,HZB50 |
1 | ||
| 96341-41603 |
XZB40,59;XZB50..(20S,21S)..WC |
1 | ||
| 90401-16034 |
TRB40,50 |
1 | ||
| 90404-16024 |
BB42,BZB40,50,HZB50 |
1 | ||
| 96341-41603 |
XZB40,5# |
1 | ||
| 90401-16034 |
TRB40,50 |
1 | ||
| 44411D - GASKET(FOR PRESSURE FEED HOSE) | ||||
| 90430-16168 |
BB4#,5#,HZB50,RZB40,50 |
2 | ||
| 44327-30030 |
BB42,BZB40,50,HZB50,XZB40,5# |
1 | ||
| 44327-30040 |
TRB40,50 |
1 | ||
| 44327-30040 |
TRB40,50 |
1 | ||
| 44412 - HOSE, RETURN | ||||
| 90445-18137 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
1 | ||
| 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) | ||||
| 44416-36350 |
BB4#,50,HZB50..RHD |
1 | ||
| 44416-36381 |
TRB40,50 |
1 | ||
| 44416-36351 |
BB42,BZB40,50,HZB50,XZB40,5#..RHD |
1 | ||
| 44416C - HOSE(FOR RETURN TUBE TO RESERVIOR) | ||||
| 90445-18139 |
RZB40,50;HZB50..RHD |
1 | ||
| 44412-36040 |
XZB40,5#..RHD |
1 | ||
| 44412-36030 |
BZB40,50 |
1 | ||
| 44412-36040 |
XZB40,59;XZB50..RHD..(20S,21S)..WC |
1 | ||
| 90445-18139 |
TRB40,50;HZB50..RHD |
1 | ||
| 44416E - BOLT, UNION(FOR RETURN TUBE) | ||||
| 90401-14003 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 90401-14003 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
1 | ||
| 44416F - GASKET(FOR RETURN TUBE) | ||||
| 90430-14235 |
BB4#,5#,HZB50,RZB40,50 |
2 | ||
| 90430-14014 |
BB42,50,BZB40,50,HZB50,TRB40,50,XZB40,5# |
2 | ||
| 90430-14014 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
2 | ||
| 44416F - GASKET(FOR RETURN TUBE) | ||||
| 90430-14235 |
BB4#,5#,HZB50,RZB40,50 |
2 | ||
| 90430-14014 |
BB42,50,BZB40,50,HZB50,TRB40,50,XZB40,5# |
2 | ||
| 90430-14014 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
2 | ||
| 44423F - BOLT, UNION | ||||
| 90401-14003 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 90401-14003 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
1 | ||
| 44423G - GASKET, UNION BOLT | ||||
| 90430-14014 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
2 | ||
| 90430-14235 |
BB4#,5#,HZB50,RZB40,50 |
2 | ||
| 90430-14014 |
BB42,50,BZB40,50,HZB50,TRB40,50,XZB40,5# |
2 | ||
| 44423G - GASKET, UNION BOLT | ||||
| 90430-14014 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
2 | ||
| 90430-14235 |
BB4#,5#,HZB50,RZB40,50 |
2 | ||
| 90430-14014 |
BB42,50,BZB40,50,HZB50,TRB40,50,XZB40,5# |
2 | ||
| Common parts | ||||
| 90467-16019 | ||||
| 90467-16031 | ||||
| 90467-21010 | ||||
| 91641-80825 | ||||
| Linked diagrams | ||||
| 4502 | ||||
| 4505 | ||||
