Toyota Coaster XZB50 INJECTION NOZZLE

XZB50R-ZEMSYQ (2006)

Toyota Coaster

Production Aug 2006 - Dec 2016

Engine N04C

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(0608-1501)N04C

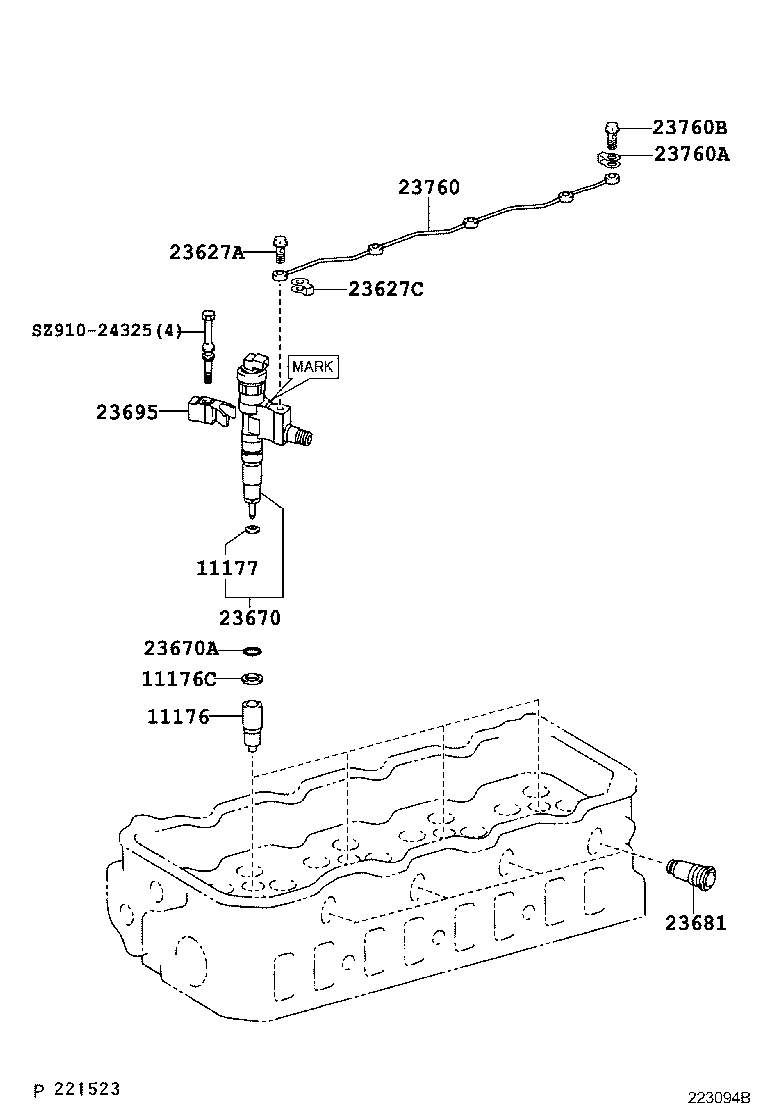

Click highlighted areas on diagram

Part #	Description	Period	Qty
11176 - SEAT, INJECTION NOZZLE
11176-78010	N04C..XZB40,59;N04C..XZB50..IV;N04C..XZB50..(20S,21S)..WC	08/2006 - 06/2011	4
S1117-61200	N04C..XZB40,5#	01/2015 - 12/2999	4
S1117-61200	N04C..XZB40,5#..ARL,GEN,TAIW	06/2011 - 01/2015	4
11176C - GASKET, NO.2(FOR INJECTION NOZZLE SEAT)
SZ910-15133	N04C..XZB40,5#..ARL,GEN,TAIW	06/2011 - 01/2015	4
90034-30044	N04C..XZB40,59;N04C..XZB50..IV;N04C..XZB50..(20S,21S)..WC	08/2006 - 06/2011	4
SZ910-15133	N04C..XZB40,5#	01/2015 - 12/2999	4
11177 - GASKET, INJECTION NOZZLE SEAT
23682-78030	N04C..XZB40,59;N04C..XZB50..IV;N04C..XZB50..(20S,21S)..WC	08/2006 - 04/2011	4
23682-E0050	N04C..XZB40,5#	01/2015 - 12/2999	4
23682-E0050	N04C..XZB40,5#..ARL,GEN,TAIW	04/2011 - 01/2015	4
23627A - SCREW, FOLLOW(FOR NOZZLE)
90034-01017	N04C..XZB40,59;N04C..XZB50..IV;N04C..XZB50..(20S,21S)..WC	08/2006 - 10/2012	4
21811-E0050	N04C..XZB40,5#	01/2015 - 12/2999	4
21811-E0050	N04C..XZB40,5#..ARL,GEN,TAIW	10/2012 - 01/2015	4
23627C - WASHER(FOR NOZZLE)
90032-09032	N04C..XZB40,59;N04C..XZB50..(20S,21S)..WC	06/2007 - 01/2015	4
SZ209-08024	N04C..XZB40,5#	01/2015 - 12/2999	4
90032-09030	N04C..XZB5#	08/2006 - 06/2007	4
23670 - INJECTOR ASSY
23670-79035	N04C..XZB5#	08/2006 - 08/2007	4
23670-79036	N04C..XZB40,5#	04/2008 - 08/2009	4
23670-79096	N04C..XZB40,5#..ARL,GEN,TAIW	04/2011 - 01/2015	4
23670-79095	N04C..XZB40,5#..ARL,GEN,TAIW	08/2009 - 04/2011	4
23670-79035	N04C..XZB5#..IV;N04C..XZB50..20S,21S MARK=5321	08/2007 - 04/2008	4
23670-E9290	N04C..XZB40,59..HRF;N04C..XZB50..20S,21S	01/2015 - 08/2015	4
23670-E9291	N04C..XZB40,59..HRF;N04C..XZB50..20S,21S	08/2015 - 08/2016	4
23670A - RING, O(FOR INJECTOR ASSY)
90033-01101	N04C..XZB40,5#	04/2009 - 08/2009	4
90301-19005	N04C..XZB40,5#..ARL,GEN,TAIW	08/2009 - 01/2015	4
90301-19005	N04C..XZB40,59;N04C..XZB50..IV;N04C..XZB50..20S,21S	08/2006 - 04/2009	4
SZ301-19001	N04C..XZB40,5#	01/2015 - 02/2016	4
23681 - SEAL, NOZZLE HOLDER
S2307-41070	N04C..XZB40,5#	01/2015 - 12/2999	4
S2307-41070	N04C..XZB40,5#..ARL,GEN,TAIW	07/2011 - 01/2015	4
23681-78010	N04C..XZB40,59;N04C..XZB50..IV;N04C..XZB50..(20S,21S)..WC	08/2006 - 07/2011	4
23695 - CLAMP, NOZZLE HOLDER, NO.1
23695-78020	N04C..XZB40,59;N04C..XZB50..IV;N04C..XZB50..(20S,21S)..WC	08/2006 - 07/2011	4
S1119-51140	N04C..XZB40,5#	01/2015 - 12/2999	4
S1119-51140	N04C..XZB40,5#..ARL,GEN,TAIW	07/2011 - 01/2015	4
23760 - PIPE ASSY, NOZZLE LEAKAGE
23708-78010	N04C..XZB40,59;N04C..XZB50..IV;N04C..XZB50..(20S,21S)..WC	08/2006 - 07/2011	1
S2308-12630	N04C..XZB40,5#..ARL,GEN,TAIW	07/2011 - 01/2015	1
S2308-12630	N04C..XZB40,5#	01/2015 - 12/2999	1
23760A - GASKET
90032-09032	N04C..XZB40,59;N04C..XZB50..(20S,21S)..WC	06/2007 - 01/2015	1
90032-09030	N04C..XZB5#	08/2006 - 06/2007	1
SZ209-08024	N04C..XZB40,5#	01/2015 - 12/2999	1
23760B - BOLT, UNION(FOR NOZZLE LEAKAGE PIPE)
90034-01009	N04C..XZB40,59;N04C..XZB50..IV;N04C..XZB50..20S,21S	08/2006 - 05/2008	1
90034-01019	N04C..XZB40,5#..WC;N04C..XZB50..WOC..IV	05/2008 - 10/2012	1
21811-E0060	N04C..XZB40,5#..ARL,GEN,TAIW	10/2012 - 01/2015	1
21811-E0060	N04C..XZB40,5#	01/2015 - 12/2999	1
Common parts
SZ910-24325

(1501- )N04C

Click highlighted areas on diagram

Part #	Description	Period	Qty
11176 - SEAT, INJECTION NOZZLE
11176-78010	N04C..XZB40,59;N04C..XZB50..IV;N04C..XZB50..(20S,21S)..WC	08/2006 - 06/2011	4
S1117-61200	N04C..XZB40,5#	01/2015 - 12/2999	4
S1117-61200	N04C..XZB40,5#..ARL,GEN,TAIW	06/2011 - 01/2015	4
11176C - GASKET, NO.2(FOR INJECTION NOZZLE SEAT)
SZ910-15133	N04C..XZB40,5#..ARL,GEN,TAIW	06/2011 - 01/2015	4
90034-30044	N04C..XZB40,59;N04C..XZB50..IV;N04C..XZB50..(20S,21S)..WC	08/2006 - 06/2011	4
SZ910-15133	N04C..XZB40,5#	01/2015 - 12/2999	4
11176C - GASKET, NO.2(FOR INJECTION NOZZLE SEAT)
SZ910-15133	N04C..XZB40,5#..ARL,GEN,TAIW	06/2011 - 01/2015	4
90034-30044	N04C..XZB40,59;N04C..XZB50..IV;N04C..XZB50..(20S,21S)..WC	08/2006 - 06/2011	4
SZ910-15133	N04C..XZB40,5#	01/2015 - 12/2999	4
11177 - GASKET, INJECTION NOZZLE SEAT
23682-78030	N04C..XZB40,59;N04C..XZB50..IV;N04C..XZB50..(20S,21S)..WC	08/2006 - 04/2011	4
23682-E0050	N04C..XZB40,5#	01/2015 - 12/2999	4
23682-E0050	N04C..XZB40,5#..ARL,GEN,TAIW	04/2011 - 01/2015	4
23627A - SCREW, FOLLOW(FOR NOZZLE)
90034-01017	N04C..XZB40,59;N04C..XZB50..IV;N04C..XZB50..(20S,21S)..WC	08/2006 - 10/2012	4
21811-E0050	N04C..XZB40,5#	01/2015 - 12/2999	4
21811-E0050	N04C..XZB40,5#..ARL,GEN,TAIW	10/2012 - 01/2015	4
23627C - WASHER(FOR NOZZLE)
90032-09032	N04C..XZB40,59;N04C..XZB50..(20S,21S)..WC	06/2007 - 01/2015	4
SZ209-08024	N04C..XZB40,5#	01/2015 - 12/2999	4
90032-09030	N04C..XZB5#	08/2006 - 06/2007	4
23670 - INJECTOR ASSY
23670-79035	N04C..XZB5#	08/2006 - 08/2007	4
23670-79036	N04C..XZB40,5#	04/2008 - 08/2009	4
23670-79096	N04C..XZB40,5#..ARL,GEN,TAIW	04/2011 - 01/2015	4
23670-79095	N04C..XZB40,5#..ARL,GEN,TAIW	08/2009 - 04/2011	4
23670-79035	N04C..XZB5#..IV;N04C..XZB50..20S,21S MARK=5321	08/2007 - 04/2008	4
23670-E9290	N04C..XZB40,59..HRF;N04C..XZB50..20S,21S	01/2015 - 08/2015	4
23670-E9291	N04C..XZB40,59..HRF;N04C..XZB50..20S,21S	08/2015 - 08/2016	4
23670A - RING, O(FOR INJECTOR ASSY)
90033-01101	N04C..XZB40,5#	04/2009 - 08/2009	4
90301-19005	N04C..XZB40,5#..ARL,GEN,TAIW	08/2009 - 01/2015	4
90301-19005	N04C..XZB40,59;N04C..XZB50..IV;N04C..XZB50..20S,21S	08/2006 - 04/2009	4
SZ301-19001	N04C..XZB40,5#	01/2015 - 02/2016	4
23681 - SEAL, NOZZLE HOLDER
S2307-41070	N04C..XZB40,5#	01/2015 - 12/2999	4
S2307-41070	N04C..XZB40,5#..ARL,GEN,TAIW	07/2011 - 01/2015	4
23681-78010	N04C..XZB40,59;N04C..XZB50..IV;N04C..XZB50..(20S,21S)..WC	08/2006 - 07/2011	4
23695 - CLAMP, NOZZLE HOLDER, NO.1
23695-78020	N04C..XZB40,59;N04C..XZB50..IV;N04C..XZB50..(20S,21S)..WC	08/2006 - 07/2011	4
S1119-51140	N04C..XZB40,5#	01/2015 - 12/2999	4
S1119-51140	N04C..XZB40,5#..ARL,GEN,TAIW	07/2011 - 01/2015	4
23760 - PIPE ASSY, NOZZLE LEAKAGE
23708-78010	N04C..XZB40,59;N04C..XZB50..IV;N04C..XZB50..(20S,21S)..WC	08/2006 - 07/2011	1
S2308-12630	N04C..XZB40,5#..ARL,GEN,TAIW	07/2011 - 01/2015	1
S2308-12630	N04C..XZB40,5#	01/2015 - 12/2999	1
23760A - GASKET
90032-09032	N04C..XZB40,59;N04C..XZB50..(20S,21S)..WC	06/2007 - 01/2015	1
90032-09030	N04C..XZB5#	08/2006 - 06/2007	1
SZ209-08024	N04C..XZB40,5#	01/2015 - 12/2999	1
23760B - BOLT, UNION(FOR NOZZLE LEAKAGE PIPE)
90034-01009	N04C..XZB40,59;N04C..XZB50..IV;N04C..XZB50..20S,21S	08/2006 - 05/2008	1
90034-01019	N04C..XZB40,5#..WC;N04C..XZB50..WOC..IV	05/2008 - 10/2012	1
21811-E0060	N04C..XZB40,5#..ARL,GEN,TAIW	10/2012 - 01/2015	1
21811-E0060	N04C..XZB40,5#	01/2015 - 12/2999	1
Common parts
SZ910-24325
