XZB50R-ZEMRYQ (2006)
Toyota Coaster
Production
Aug 2006
-
Aug 2009
Engine
N04C
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0608- )N04C

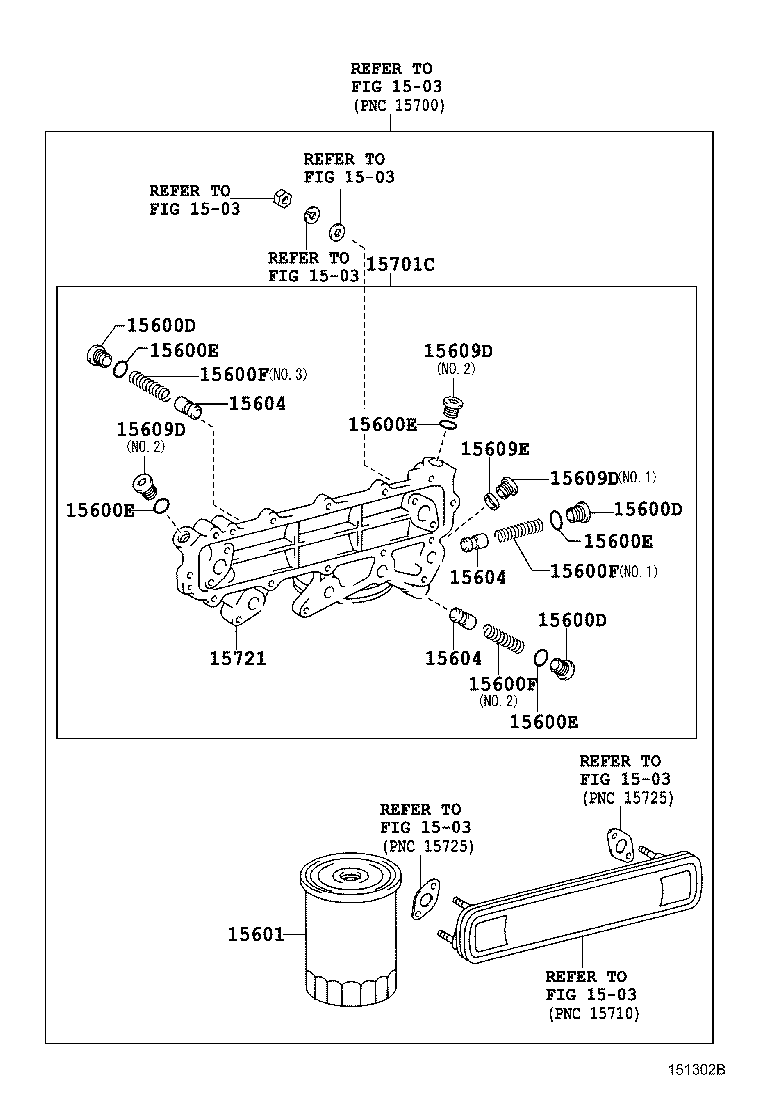

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15600D - PLUG(FOR OIL FILTER) | ||||
| 15529-89107 |
N04C..XZB50..WOC..CBU |
3 | ||
| 15600D - PLUG(FOR OIL FILTER) | ||||
| 15529-89107 |
N04C..XZB50..WOC..CBU |
3 | ||
| 15600D - PLUG(FOR OIL FILTER) | ||||
| 15529-89107 |
N04C..XZB50..WOC..CBU |
3 | ||
| 15600E - WASHER(FOR OIL FILTER) | ||||
| 90033-01053 |
N04C..XZB50..WOC..CBU |
5 | ||
| 15600E - WASHER(FOR OIL FILTER) | ||||
| 90033-01053 |
N04C..XZB50..WOC..CBU |
5 | ||
| 15600E - WASHER(FOR OIL FILTER) | ||||
| 90033-01053 |
N04C..XZB50..WOC..CBU |
5 | ||
| 15600E - WASHER(FOR OIL FILTER) | ||||
| 90033-01053 |
N04C..XZB50..WOC..CBU |
5 | ||
| 15600E - WASHER(FOR OIL FILTER) | ||||
| 90033-01053 |
N04C..XZB50..WOC..CBU |
5 | ||
| 15601 - FILTER SUB-ASSY, OIL | ||||
| 15613-89105 |
N04C..XZB40,59;N04C..XZB50..IV;N04C..XZB50..20S,21S |
1 | ||
| 15604 - VALVE SUB-ASSY, OIL SAFETY | ||||
| 15690-89101 |
N04C..XZB50..WOC..CBU |
3 | ||
| 15604 - VALVE SUB-ASSY, OIL SAFETY | ||||
| 15690-89101 |
N04C..XZB50..WOC..CBU |
3 | ||
| 15604 - VALVE SUB-ASSY, OIL SAFETY | ||||
| 15690-89101 |
N04C..XZB50..WOC..CBU |
3 | ||
| 15609E - GASKET, W/HEAD STRAIGHT SCREW PLUG | ||||
| 90033-01067 |
N04C..XZB50..WOC..CBU |
1 | ||
| 15701C - COVER SUB-ASSY, OIL COOLER | ||||
| 15720-89104 |
N04C..XZB40,59;N04C..XZB50..IV;N04C..XZB50..20S,21S |
1 | ||
| 15721 - COVER, OIL COOLER | ||||
| 15701-89106 |
N04C..XZB40,59;N04C..XZB50..IV;N04C..XZB50..20S,21S |
1 | ||
| Linked diagrams | ||||
| 1503 | ||||
