XZB50R-ZCMSY (2006)

Toyota Coaster

Production Sep 2006 - Mar 2008
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 4 OF 4(9301-1501)HZB50,XZB5# ; (9301-1501)BB4#,50,58,BZB40,50,RZB40,50,TRB40,50,XZB40..CB

Click highlighted areas on diagram

ROOF AIR DUCT

diagram 6335236020 6335236020 6335236020 6335236020 6338736050 6338736050 63399E 63399E 63399E 63610 63610 63610 63620 63620 63620 63620 63620 63620 63630A 63630A 6363636010 6363636010 63911 63912 63915 63925 63927A 63928 88570E 88570E 9016850031 9016850031 9018304056 9018304056 9046709037 9046710018 9046710018 9046804137 9046804137 9354014016 9354014016 9354014016 9354014016 9354014016 9354014016 9354014016 9354014020 9354014020 9354014020 9354014020
Part # Description Qty Price
63610 - REGISTER ASSY, AIR OUTLET, NO.1
63610-90B00A0

HZB50..GCC..4FC;BB4#,HZB50,RZB40,50..HRF..WC..CBU..5F

IVORY,TRIM4#

 3
63610 - REGISTER ASSY, AIR OUTLET, NO.1
63610-90B00A0

HZB50..GCC..4FC;BB4#,HZB50,RZB40,50..HRF..WC..CBU..5F

IVORY,TRIM4#

 3
63610 - REGISTER ASSY, AIR OUTLET, NO.1
63610-90B00A0

HZB50..GCC..4FC;BB4#,HZB50,RZB40,50..HRF..WC..CBU..5F

IVORY,TRIM4#

 3
63927A - COVER, COOLER DUCT END, NO.1
63927-36010

HZB50..GCC..4FC;HZB50..RHD..HRF..WC..DSL;HZB50..LHD..HRF..WC..5F..DSL;BB4#,5#,RZB40,50..HRF..WC..CBU

 1
63928 - COVER, COOLER DUCT END, NO.2
63928-36010

HZB50..GCC..4FC;HZB50..RHD..HRF..WC..DSL;HZB50..LHD..HRF..WC..5F..DSL;BB4#,5#,RZB40,50..HRF..WC..CBU

 1
Common parts
63352-36020
63387-36050
63636-36010
90168-50031
90183-04056
90467-09037
90467-10018
90468-04137
93540-14016
93540-14020

ILLUST NO. 2 OF 4(0708- )RHD..ARL,GEN

Click highlighted areas on diagram

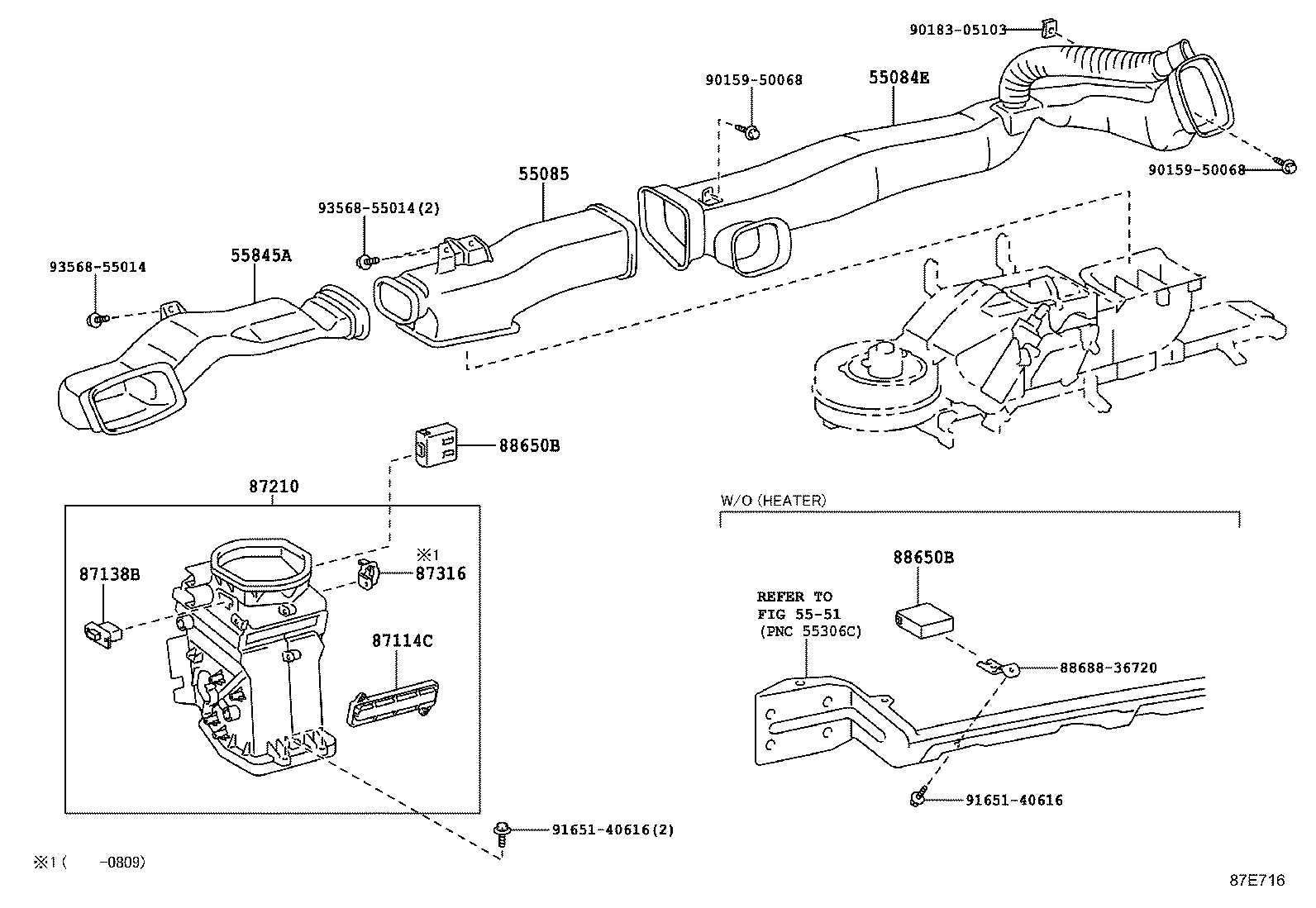

FRONT AIR DUCT & DAMPER

diagram 55084E 55085 5551 55845A 87114C 87138B 87210 87316 88650B 88650B 8868836720 9015950068 9015950068 9018305103 9165140616 9165140616 9356855014 9356855014
Part # Description Qty Price
55084E - DUCT SUB-ASSY, HEATER TO REGISTER, NO.1
55084-36010

BB4#,50,HZB50..RHD

 1
55084-36030

XZB50..STD..GEN

 1
55085 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.2
55085-36010

BB4#,5#,HZB50,RZB40,50

 1
55085-36020

XZB50..STD..GEN

 1
55845A - DUCT, HEATER TO REGISTER, NO.3
55845-36010

BB4#,50,HZB50..RHD

 1
87114C - COVER, HEATER
87114-36010

BB4#,HZB50,RZB40,50

 1
87138B - RESISTOR, HEATER BLOWER
87138-36210

RZB40,50..GEN;HZB50..RHD..SRF;BB42,HZB50..WOC..(GCC,GEN)

FR HEATER,W/O(FILTER)

 1
87210 - DAMPER ASSY, AIR
87210-36120

RZB40,50..GEN;BB42,HZB50..LHD..WOC..DSL

FR HEATER,W/O(FILTER)

 1
87210-36060

HZB50..RHD;BB4#,50..RHD..CBU

 1
87316 - BRACKET, HEATER RELAY, NO.1
85999-12050

BB4#,HZB50,RZB40,50

 1
88650B - AMPLIFIER ASSY, AIRCONDITIONER
88650-36100

BB4#,5#..WC;HZB50..GCC..4FC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL

 1
88650B - AMPLIFIER ASSY, AIRCONDITIONER
88650-36100

BB4#,5#..WC;HZB50..GCC..4FC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL

 1
Common parts
88688-36720
90159-50068
90183-05103
91651-40616
93568-55014
Linked diagrams
5551
