XZB50R-ZCMSY (2006)

Toyota Coaster

Production Sep 2006 - Mar 2008
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(9301-0708)RHD ; (9301-1209)TAIW ; (9301-1209)BB42,50,58,HZB50,RZB40,50,TRB40,50..L

Click highlighted areas on diagram

RADIO & CONVERTER

diagram 86120 86206 86206 86211 86212 86245 86245 9014950032 9014950032 9015350010 9015350010 9017906058 9017906128 9017906128 9165140616 9165140616
Part # Description Qty Price
86120 - RECEIVER ASSY, RADIO
86120-2A070

BB42,RZB40,50..GEN;HZB50..(20S,30S)..GEN

MATSUSHITA,AM/FM

 1
86120-1A040

RZB40,50..STD;HZB50..RHD..SRF;BB42,HZB50..WOC..(GCC,GEN)

FUJITSU TEN,ID=12101,AM ETR

 1
86211 - BRACKET, RADIO, NO.1
86211-36040

XZB50..STD..GEN

 1
86211-36020

BB4#,50,HZB50,RZB40,50

 1
86212 - BRACKET, RADIO, NO.2
86212-36010

BB4#,50,HZB50,RZB40,50

 1
86212-36040

XZB50..STD..GEN

 1
Common parts
90149-50032
90153-50010
90179-06058
90179-06128
91651-40616

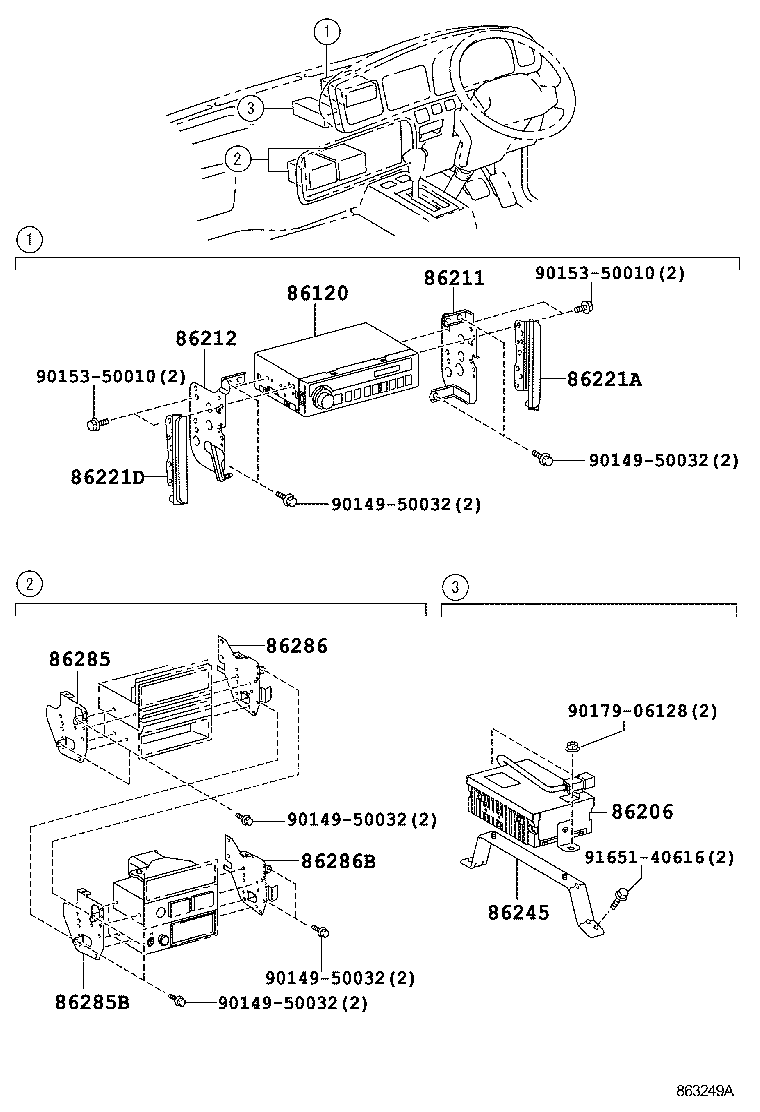

ILLUST NO. 1 OF 3(0708- )RHD

Click highlighted areas on diagram

RADIO & CONVERTER

diagram 86120 86206 86211 86212 86221A 86221D 86245 86285 86285B 86286 86286B 9014950032 9014950032 9014950032 9014950032 9014950032 9015350010 9015350010 9017906128 9165140616
Part # Description Qty Price
86120 - RECEIVER ASSY, RADIO
86120-2A070

BB42,RZB40,50..GEN;HZB50..(20S,30S)..GEN

MATSUSHITA,AM/FM

 1
86120-1A040

RZB40,50..STD;HZB50..RHD..SRF;BB42,HZB50..WOC..(GCC,GEN)

FUJITSU TEN,ID=12101,AM ETR

 1
86211 - BRACKET, RADIO, NO.1
86211-36040

XZB50..STD..GEN

 1
86211-36020

BB4#,50,HZB50,RZB40,50

 1
86212 - BRACKET, RADIO, NO.2
86212-36010

BB4#,50,HZB50,RZB40,50

 1
86212-36040

XZB50..STD..GEN

 1
86285 - BRACKET, AMPLIFIER, NO.1
86285-36030

XZB50..STD..GEN

 1
86285B - BRACKET, AMPLIFIER, NO.1
86285-36040

XZB50..STD..GEN

 1
86286 - BRACKET, AMPLIFIER, NO.2
86286-36020

XZB50..STD..GEN

 1
86286B - BRACKET, AMPLIFIER, NO.2
86286-36020

XZB50..STD..GEN

 1
Common parts
90149-50032
90153-50010
90179-06128
91651-40616
