XZB50R-ZCMSY (2006)
Toyota Coaster

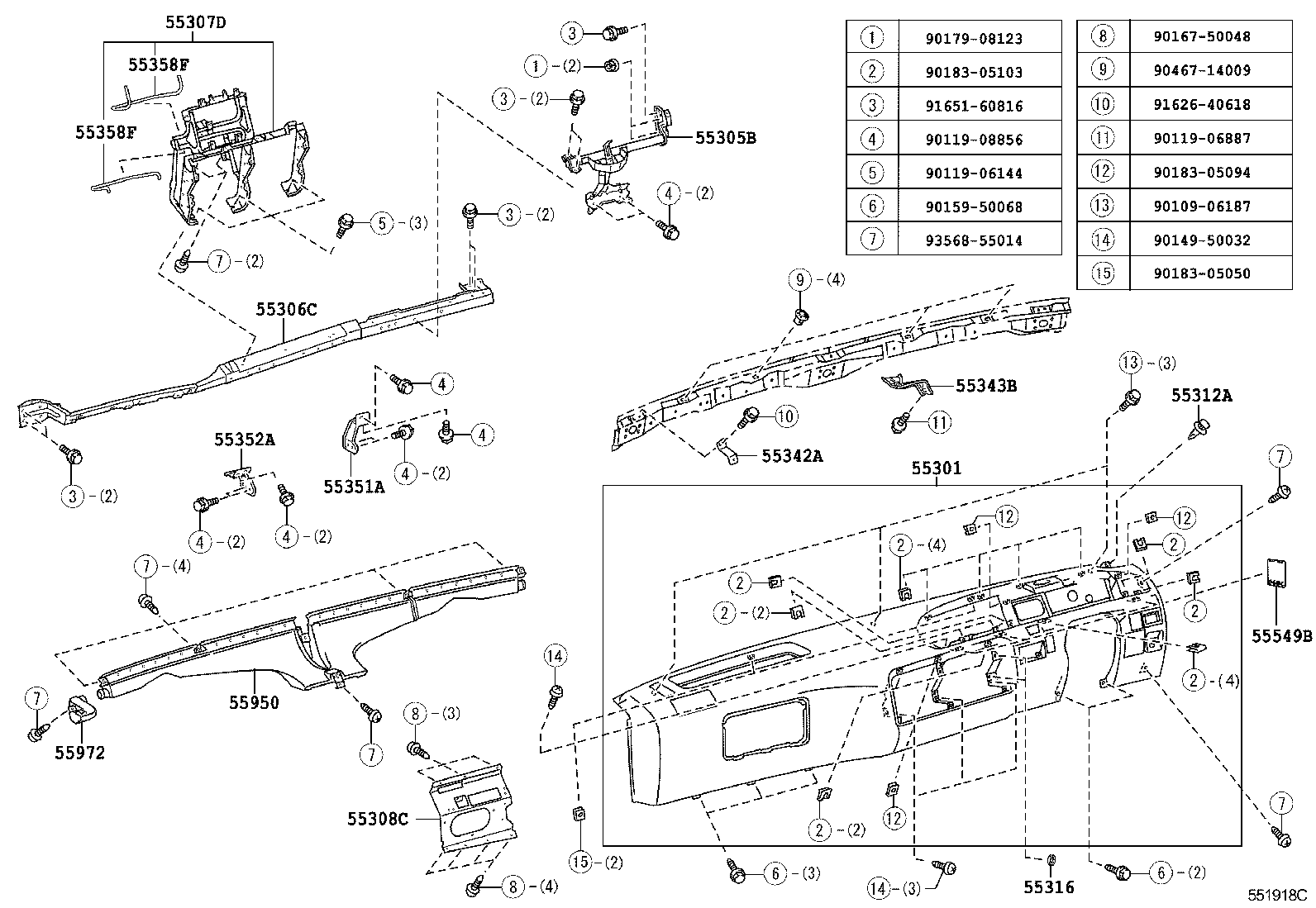

ILLUST NO. 1 OF 2(9301-0708)RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55301 - PANEL SUB-ASSY, INSTRUMENT | ||||
| 55301-36010E0 |
BB4#,50,HZB50..RHD GREIGE,TRIM4# |
1 | ||
| 55301-36021B0 |
RZB40,50 DK.CHARCOAL,TRIM1# |
1 | ||
| 55301-36013B0 |
BB42,BZB40,50,HZB50,XZB5#..RHD..GEN DK.CHARCOAL,TRIM1# |
1 | ||
| 55305B - REINFORCEMENT SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55305-36010 |
BB4#,50,HZB50..RHD |
1 | ||
| 55305-36012 |
XZB50..STD..GEN |
1 | ||
| 55305-36022 |
RZB40,50 |
1 | ||
| 55306C - REINFORCEMENT SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55306-36020 |
BB4#,50,HZB50..RHD |
1 | ||
| 55306-36023 |
BB42,BZB40,50,HZB50,XZB5#..RHD..(ARL,GEN) |
1 | ||
| 55306-36024 |
XZB50..STD..GEN |
1 | ||
| 55307D - REINFORCEMENT SUB-ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55307-36010 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 55307-36020 |
XZB50..STD..GEN |
1 | ||
| 55308C - BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55308-36010 |
BB4#,50,HZB50..RHD |
1 | ||
| 55308-36012 |
XZB50..STD..GEN |
1 | ||
| 55342A - BRACE, INSTRUMENT PANEL TO COWL, NO.2 | ||||
| 55342-36010 |
BB4#,50,HZB50..RHD |
1 | ||
| 55342-36060 |
RZB40,50 |
1 | ||
| 55342-36050 |
XZB50..STD..GEN |
1 | ||
| 55351A - BRACE, INSTRUMENT PANEL TO FLOOR | ||||
| 55351-36010 |
BB4#,50,HZB50..RHD |
1 | ||
| 55352A - BRACE, INSTRUMENT PANEL TO FLOOR, NO.2 | ||||
| 55352-36010 |
HZB50..RHD;BB4#,50..RHD..CBU |
1 | ||
| 55358H - PROTECTOR, INSTRUMENT PANEL | ||||
| 55358-36010 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 55403 - HOOD SUB-ASSY, METER | ||||
| 55421-36010E0 |
BB4#,50,HZB50..RHD GREIGE,TRIM4# |
1 | ||
| 55407C - COVER SUB-ASSY, INSTRUMENT, LOWER | ||||
| 55407-36010E0 |
BB4#,50,HZB50..RHD GREIGE,TRIM4# |
1 | ||
| 55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1 | ||||
| 55411-36020 |
RZB40,50..GEN;BB42..SRF..WC..GEN;HZB50..LHD..HRF..WOC..DSL;BB42,HZB50..LHD..(20S,22S) CHINA SPEC OR W(FRONT HEATER) |
1 | ||
| 55411-36050 |
XZB50..STD..GEN W(FRONT HEATER) |
1 | ||
| 55412D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55412-36020E0 |
BB4#,HZB50,RZB40,50..CBU W(MICROPHONE),GREIGE,TRIM4# |
1 | ||
| 55412-36010E0 |
BB4#,RZB40,50;HZB50..ARL,EUR,GCC,GEN GREIGE,TRIM4# |
1 | ||
| 55425A - BRACKET, METER HOOD SET | ||||
| 55425-36010 |
BB4#,50,HZB50..RHD |
1 | ||
| 55425-36030 |
XZB50..STD..GEN |
1 | ||
| 55441 - BOX, INSTRUMENT PANEL | ||||
| 55441-36010 |
BB50..WC..GEN;BB4#,58,HZB50,RZB40,50..CBU |
1 | ||
| Common parts | ||||
| 90109-06187 | ||||
| 90119-06144 | ||||
| 90119-08856 | ||||
| 90149-50032 | ||||
| 90159-50068 | ||||
| 90167-50048 | ||||
| 90179-08123 | ||||
| 90183-05094 | ||||
| 90183-05103 | ||||
| 90467-14009 | ||||
| 90468-04147 | ||||
| 90468-05102 | ||||
| 91626-40618 | ||||
| 91651-60816 | ||||
| 93568-55014 | ||||

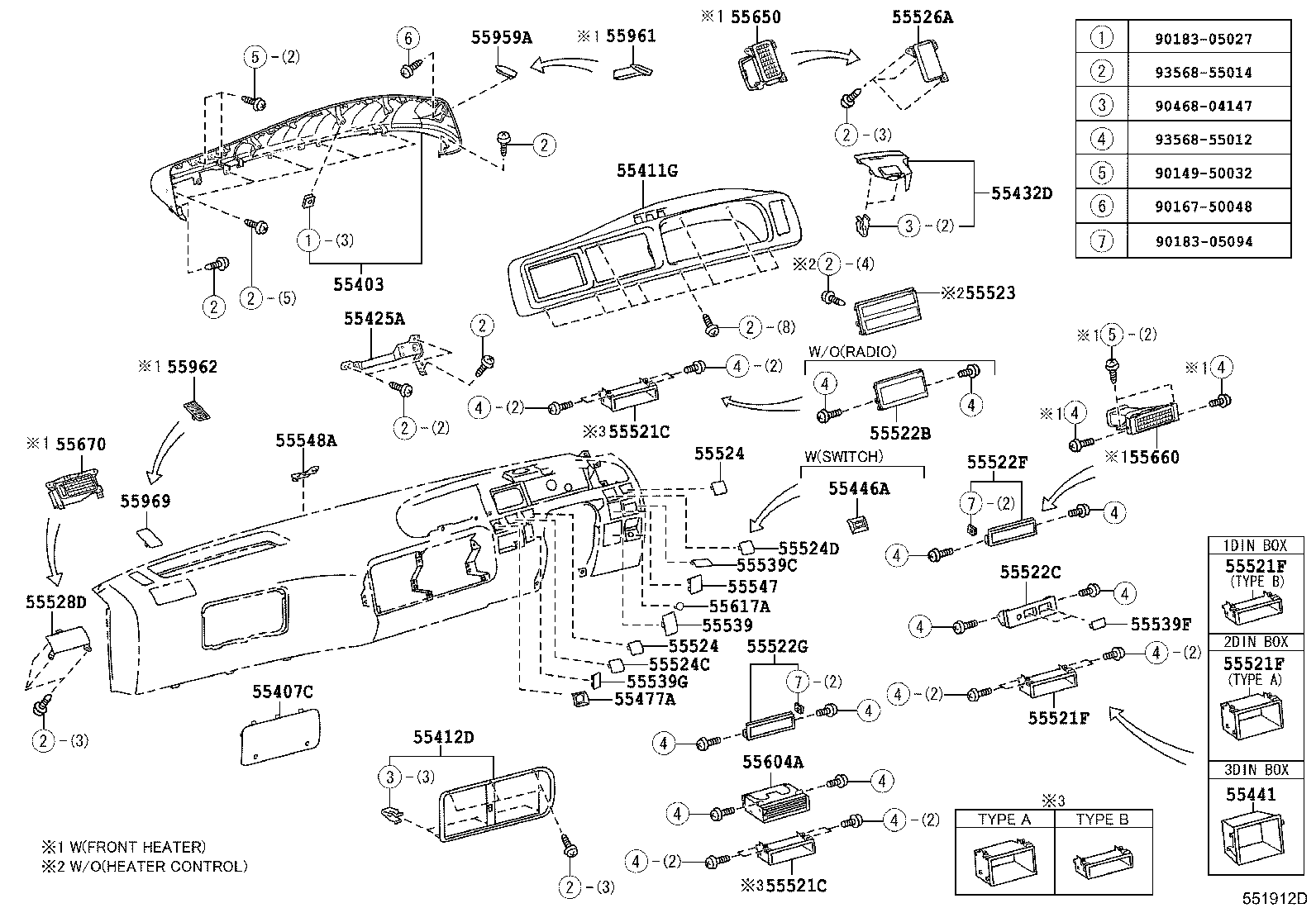

ILLUST NO. 2 OF 2(9301-0708)RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55432D - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.1 | ||||
| 55432-36010E0 |
BB4#,50,HZB50..RHD GREIGE,TRIM4# |
1 | ||
| 55477A - BEZEL, CIGARETTE LIGHTER HOLE | ||||
| 55477-36010 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-16040 |
RZB40..EX..GCC;BB4#,HZB50,RZB40,50..STD TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 55521-16030 |
BB4#,RZB40,50;HZB50..ARL,GCC,GEN TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-16040 |
RZB40..EX..GCC;BB4#,HZB50,RZB40,50..STD TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 55521-16030 |
BB4#,RZB40,50;HZB50..ARL,GCC,GEN TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 55521F - COVER, STEREO OPENING, NO.2 | ||||
| 55521-16030 |
BB4#,HZB50,RZB40,50..STD TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 55524C - COVER, SWITCH BASE HOLE, NO.4 | ||||
| 55524-36010E0 |
BB4#,HZB50,RZB40,50 GREIGE,TRIM4# |
1 | ||
| 55524D - COVER, SWITCH BASE HOLE, NO.5 | ||||
| 55524-36010E0 |
BB4#,50,HZB50..RHD GREIGE,TRIM4# |
1 | ||
| 55526A - COVER, INSTRUMENT PANEL REGISTER OPENING, NO.1 | ||||
| 55526-36010 |
BB42,RZB40,50..GCC,GEN;HZB50..(20S,30S)..(GCC,GEN) |
1 | ||
| 55527C - COVER, INSTRUMENT PANEL REGISTER OPENING, NO.2 | ||||
| 55527-36010 |
BB42,RZB40,50..GCC,GEN;HZB50..(20S,30S)..(GCC,GEN) |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55546-36010E0 |
HZB50..30S..4FC;BB4#,5#,HZB50,RZB40,50..(DX,STD)..5F GREIGE,TRIM4# |
1 | ||
| 55617A - COVER, THROTTLE KNOB HOLE | ||||
| 55617-10010E0 |
HZB50..RHD..5F;HZB50..LHD..TD;BB4#,5#,RZB40,50 GREIGE,TRIM4# |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-36010 |
RZB40,50..GEN;BB42..SRF..WC..GEN;HZB50..LHD..HRF..WOC..DSL;BB42,HZB50..LHD..(20S,22S) CHINA SPEC OR W(FRONT HEATER) |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-36010 |
RZB40,50..GEN;BB42..SRF..WC..GEN;HZB50..LHD..HRF..WOC..DSL;BB42,HZB50..LHD..(20S,22S) CHINA SPEC OR W(FRONT HEATER) |
1 | ||
| 55660-36020 |
XZB50..STD..GEN |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-36020E0 |
RZB40,50..GEN;BB42..SRF..WC..GEN;HZB50..LHD..HRF..WOC..DSL;BB42,HZB50..LHD..(20S,22S) CHINA SPEC OR W(FRONT HEATER),GREIGE,TRIM4# |
1 | ||
| 55950 - NOZZLE ASSY, DEFROSTER | ||||
| 55950-36020 |
RZB40,50..GEN;BB42..SRF..WC..GEN;HZB50..LHD..HRF..WOC..DSL;BB42,HZB50..LHD..(20S,22S) CHINA SPEC OR W(FRONT HEATER) |
1 | ||
| 55950-36010 |
BB4#,50,HZB50..RHD |
1 | ||
| 55950-36030 |
XZB50..STD..GEN |
1 | ||
| 55961 - NOZZLE, SIDE DEFROSTER, NO.1 | ||||
| 55961-36020E0 |
RZB40,50..GEN;BB42..SRF..WC..GEN;HZB50..LHD..HRF..WOC..DSL;BB42,HZB50..LHD..(20S,22S) CHINA SPEC OR W(FRONT HEATER),GREIGE,TRIM4# |
1 | ||
| 55962 - NOZZLE, SIDE DEFROSTER, NO.2 | ||||
| 55962-36020E0 |
RZB40,50..GEN;BB42..SRF..WC..GEN;HZB50..LHD..HRF..WOC..DSL;BB42,HZB50..LHD..(20S,22S) CHINA SPEC OR W(FRONT HEATER),GREIGE,TRIM4# |
1 | ||
| 55972 - DUCT, SIDE DEFROSTER NOZZLE, NO.2 | ||||
| 55972-36020 |
RZB40,50..GEN;BB42..SRF..WC..GEN;HZB50..LHD..HRF..WOC..DSL;BB42,HZB50..LHD..(20S,22S) CHINA SPEC OR W(FRONT HEATER) |
1 | ||
| 55972-36010 |
BB4#,50,HZB50..RHD |
1 | ||
| Common parts | ||||
| 90167-50048 | ||||
| 90183-05094 | ||||
| 90468-04147 | ||||
| 93568-55012 | ||||
| 93568-55014 | ||||
ILLUST NO. 2 OF 2(0708- )RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55403 - HOOD SUB-ASSY, METER | ||||
| 55421-36010E0 |
BB4#,50,HZB50..RHD GREIGE,TRIM4# |
1 | ||
| 55407C - COVER SUB-ASSY, INSTRUMENT, LOWER | ||||
| 55407-36010E0 |
BB4#,50,HZB50..RHD GREIGE,TRIM4# |
1 | ||
| 55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1 | ||||
| 55411-36020 |
RZB40,50..GEN;BB42..SRF..WC..GEN;HZB50..LHD..HRF..WOC..DSL;BB42,HZB50..LHD..(20S,22S) CHINA SPEC OR W(FRONT HEATER) |
1 | ||
| 55411-36050 |
XZB50..STD..GEN W(FRONT HEATER) |
1 | ||
| 55412D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55412-36020E0 |
BB4#,HZB50,RZB40,50..CBU W(MICROPHONE),GREIGE,TRIM4# |
1 | ||
| 55412-36010E0 |
BB4#,RZB40,50;HZB50..ARL,EUR,GCC,GEN GREIGE,TRIM4# |
1 | ||
| 55425A - BRACKET, METER HOOD SET | ||||
| 55425-36010 |
BB4#,50,HZB50..RHD |
1 | ||
| 55425-36030 |
XZB50..STD..GEN |
1 | ||
| 55432D - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.1 | ||||
| 55432-36010E0 |
BB4#,50,HZB50..RHD GREIGE,TRIM4# |
1 | ||
| 55441 - BOX, INSTRUMENT PANEL | ||||
| 55441-36010 |
BB50..WC..GEN;BB4#,58,HZB50,RZB40,50..CBU |
1 | ||
| 55477A - BEZEL, CIGARETTE LIGHTER HOLE | ||||
| 55477-36010 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-16040 |
RZB40..EX..GCC;BB4#,HZB50,RZB40,50..STD TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 55521-16030 |
BB4#,RZB40,50;HZB50..ARL,GCC,GEN TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-16040 |
RZB40..EX..GCC;BB4#,HZB50,RZB40,50..STD TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 55521-16030 |
BB4#,RZB40,50;HZB50..ARL,GCC,GEN TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 55521F - COVER, STEREO OPENING, NO.2 | ||||
| 55521-16030 |
BB4#,HZB50,RZB40,50..STD TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 55521F - COVER, STEREO OPENING, NO.2 | ||||
| 55521-16030 |
BB4#,HZB50,RZB40,50..STD TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 55521F - COVER, STEREO OPENING, NO.2 | ||||
| 55521-16030 |
BB4#,HZB50,RZB40,50..STD TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 55522B - COVER, RADIO TUNER OPENING | ||||
| 55522-52020 |
XZB50..STD..GEN |
1 | ||
| 55522C - COVER, RADIO RECEIVER OPENING | ||||
| 55522-36040 |
XZB50..STD..GEN |
1 | ||
| 55522G - COVER, RADIO TUNER OPENING | ||||
| 55522-32010 |
XZB50..STD..GEN |
1 | ||
| 55524C - COVER, SWITCH BASE HOLE, NO.4 | ||||
| 55524-36010E0 |
BB4#,HZB50,RZB40,50 GREIGE,TRIM4# |
1 | ||
| 55524D - COVER, SWITCH BASE HOLE, NO.5 | ||||
| 55524-36010E0 |
BB4#,50,HZB50..RHD GREIGE,TRIM4# |
1 | ||
| 55526A - COVER, INSTRUMENT PANEL REGISTER OPENING, NO.1 | ||||
| 55526-36010 |
BB42,RZB40,50..GCC,GEN;HZB50..(20S,30S)..(GCC,GEN) |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55546-36010E0 |
HZB50..30S..4FC;BB4#,5#,HZB50,RZB40,50..(DX,STD)..5F GREIGE,TRIM4# |
1 | ||
| 55617A - COVER, THROTTLE KNOB HOLE | ||||
| 55617-10010E0 |
HZB50..RHD..5F;HZB50..LHD..TD;BB4#,5#,RZB40,50 GREIGE,TRIM4# |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-36010 |
RZB40,50..GEN;BB42..SRF..WC..GEN;HZB50..LHD..HRF..WOC..DSL;BB42,HZB50..LHD..(20S,22S) CHINA SPEC OR W(FRONT HEATER) |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-36010 |
RZB40,50..GEN;BB42..SRF..WC..GEN;HZB50..LHD..HRF..WOC..DSL;BB42,HZB50..LHD..(20S,22S) CHINA SPEC OR W(FRONT HEATER) |
1 | ||
| 55660-36020 |
XZB50..STD..GEN |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-36020E0 |
RZB40,50..GEN;BB42..SRF..WC..GEN;HZB50..LHD..HRF..WOC..DSL;BB42,HZB50..LHD..(20S,22S) CHINA SPEC OR W(FRONT HEATER),GREIGE,TRIM4# |
1 | ||
| 55961 - NOZZLE, SIDE DEFROSTER, NO.1 | ||||
| 55961-36020E0 |
RZB40,50..GEN;BB42..SRF..WC..GEN;HZB50..LHD..HRF..WOC..DSL;BB42,HZB50..LHD..(20S,22S) CHINA SPEC OR W(FRONT HEATER),GREIGE,TRIM4# |
1 | ||
| 55962 - NOZZLE, SIDE DEFROSTER, NO.2 | ||||
| 55962-36020E0 |
RZB40,50..GEN;BB42..SRF..WC..GEN;HZB50..LHD..HRF..WOC..DSL;BB42,HZB50..LHD..(20S,22S) CHINA SPEC OR W(FRONT HEATER),GREIGE,TRIM4# |
1 | ||
| Common parts | ||||
| 90149-50032 | ||||
| 90167-50048 | ||||
| 90183-05027 | ||||
| 90183-05094 | ||||
| 90468-04147 | ||||
| 93568-55012 | ||||
| 93568-55014 | ||||
ILLUST NO. 1 OF 2(0708- )RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55301 - PANEL SUB-ASSY, INSTRUMENT | ||||
| 55301-36010E0 |
BB4#,50,HZB50..RHD GREIGE,TRIM4# |
1 | ||
| 55301-36021B0 |
RZB40,50 DK.CHARCOAL,TRIM1# |
1 | ||
| 55301-36013B0 |
BB42,BZB40,50,HZB50,XZB5#..RHD..GEN DK.CHARCOAL,TRIM1# |
1 | ||
| 55305B - REINFORCEMENT SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55305-36010 |
BB4#,50,HZB50..RHD |
1 | ||
| 55305-36012 |
XZB50..STD..GEN |
1 | ||
| 55305-36022 |
RZB40,50 |
1 | ||
| 55306C - REINFORCEMENT SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55306-36020 |
BB4#,50,HZB50..RHD |
1 | ||
| 55306-36023 |
BB42,BZB40,50,HZB50,XZB5#..RHD..(ARL,GEN) |
1 | ||
| 55306-36024 |
XZB50..STD..GEN |
1 | ||
| 55307D - REINFORCEMENT SUB-ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55307-36010 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 55307-36020 |
XZB50..STD..GEN |
1 | ||
| 55308C - BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55308-36010 |
BB4#,50,HZB50..RHD |
1 | ||
| 55308-36012 |
XZB50..STD..GEN |
1 | ||
| 55342A - BRACE, INSTRUMENT PANEL TO COWL, NO.2 | ||||
| 55342-36010 |
BB4#,50,HZB50..RHD |
1 | ||
| 55342-36060 |
RZB40,50 |
1 | ||
| 55342-36050 |
XZB50..STD..GEN |
1 | ||
| 55343B - BRACE, INSTRUMENT PANEL TO COWL, CENTER | ||||
| 55343-36010 |
XZB50..STD..GEN |
1 | ||
| 55351A - BRACE, INSTRUMENT PANEL TO FLOOR | ||||
| 55351-36010 |
BB4#,50,HZB50..RHD |
1 | ||
| 55352A - BRACE, INSTRUMENT PANEL TO FLOOR, NO.2 | ||||
| 55352-36010 |
HZB50..RHD;BB4#,50..RHD..CBU |
1 | ||
| 55358F - PROTECTOR, EDGE | ||||
| 55358-36030 |
XZB50..STD..GEN |
2 | ||
| 55358F - PROTECTOR, EDGE | ||||
| 55358-36030 |
XZB50..STD..GEN |
2 | ||
| 55950 - NOZZLE ASSY, DEFROSTER | ||||
| 55950-36020 |
RZB40,50..GEN;BB42..SRF..WC..GEN;HZB50..LHD..HRF..WOC..DSL;BB42,HZB50..LHD..(20S,22S) CHINA SPEC OR W(FRONT HEATER) |
1 | ||
| 55950-36010 |
BB4#,50,HZB50..RHD |
1 | ||
| 55950-36030 |
XZB50..STD..GEN |
1 | ||
| 55972 - DUCT, SIDE DEFROSTER NOZZLE, NO.2 | ||||
| 55972-36020 |
RZB40,50..GEN;BB42..SRF..WC..GEN;HZB50..LHD..HRF..WOC..DSL;BB42,HZB50..LHD..(20S,22S) CHINA SPEC OR W(FRONT HEATER) |
1 | ||
| 55972-36010 |
BB4#,50,HZB50..RHD |
1 | ||
| Common parts | ||||
| 90109-06187 | ||||
| 90119-06144 | ||||
| 90119-06887 | ||||
| 90119-08856 | ||||
| 90149-50032 | ||||
| 90159-50068 | ||||
| 90167-50048 | ||||
| 90179-08123 | ||||
| 90183-05050 | ||||
| 90183-05094 | ||||
| 90183-05103 | ||||
| 90467-14009 | ||||
| 91626-40618 | ||||
| 91651-60816 | ||||
| 93568-55014 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
