XZB50L-ZEMSYR (2006)

Toyota Coaster

Production Aug 2006 - Dec 2016
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

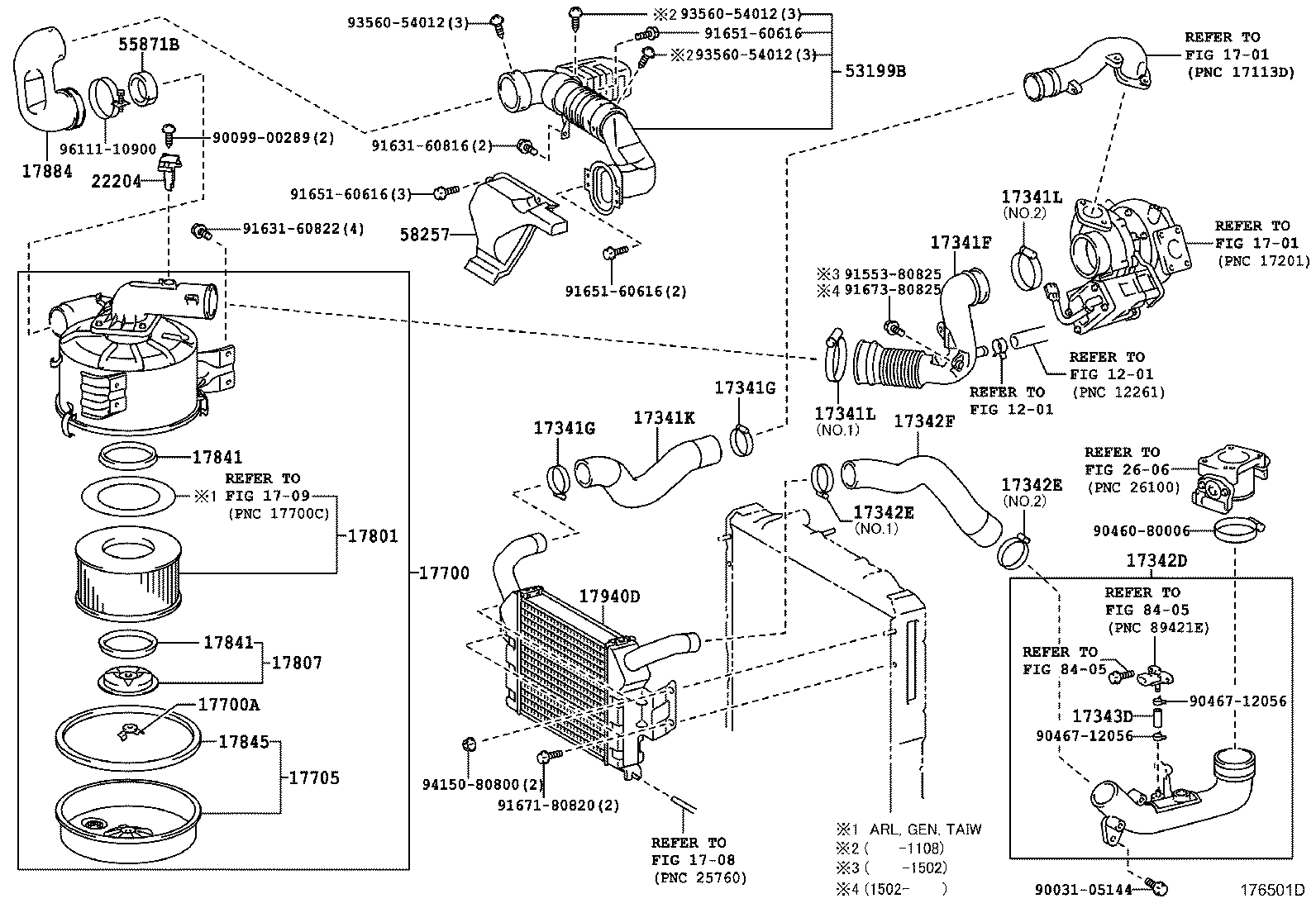

(0608-0908)N04C

Click highlighted areas on diagram

diagram 1201 1201 1701 1701 1708 1709 17341F 17341G 17341G 17341K 17341L 17341L 17342D 17342E 17342E 17342F 17343D 17700 17700A 17705 17765 17801 17807 17841 17841 17845 17884 17940D 22204 2606 53199B 55871B 58257 8405 8405 8405 8405 9003105144 9009900289 9046080006 9046712056 9046712056 9155380825 91621B0816 9163160816 9163160822 9165160616 9165160616 9165160616 91651B0820 9356054012 9356054012 9356054012 9415080800 9611110900
Part # Description Qty Price
17341F - HOSE, AIR, NO.1
17030-78230

N04C..XZB5#

 1
17030-78460

N04C..XZB40,5#

 1
17030-78490

N04C..XZB40,59..HRF;N04C..XZB50..20S,21S

 1
17030-78490

N04C..XZB40,5#..ARL,GEN,TAIW

 1
17030-78231

N04C..XZB40,59;N04C..XZB50..IV;N04C..XZB50..20S,21S

 1
17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1)
90460-63011

N04C..XZB40,59;N04C..XZB50..(20S,21S)..WC

 2
90460-63011

N04C..XZB40,5#

 2
17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1)
90460-63011

N04C..XZB40,59;N04C..XZB50..(20S,21S)..WC

 2
90460-63011

N04C..XZB40,5#

 2
17341K - HOSE, AIR, NO.1(FOR INTERCOOLER)
17341-78250

N04C..XZB40,50..LHD

 1
17341-78250

N04C..XZB50..TAIW

 1
17341-78120

N04C..XZB50..LHD

 1
17341L - CLAMP, HOSE
96111-11180

N04C..XZB40,5#

NO.1

 1
96111-11180

N04C..XZB40,59;N04C..XZB50..(20S,21S)..WC

NO.1

 1
96111-10900

N04C..XZB40,59..HRF;N04C..XZB50..20S,21S

NO.2

 1
96111-10900

N04C..XZB40,59;N04C..XZB50..(20S,21S)..WC

NO.2

 1
17341L - CLAMP, HOSE
96111-11180

N04C..XZB40,5#

NO.1

 1
96111-11180

N04C..XZB40,59;N04C..XZB50..(20S,21S)..WC

NO.1

 1
96111-10900

N04C..XZB40,59..HRF;N04C..XZB50..20S,21S

NO.2

 1
96111-10900

N04C..XZB40,59;N04C..XZB50..(20S,21S)..WC

NO.2

 1
17342D - HOSE, AIR, NO.2
17030-78482

N04C..XZB40,5#

 1
17030-78481

N04C..XZB40,5#

 1
17030-78480

N04C..XZB40,5#

 1
17030-78370

N04C..XZB40,59;N04C..XZB50..IV;N04C..XZB50..20S,21S

 1
17030-78482

N04C..XZB40,5#..ARL,GEN,TAIW

 1
17342E - CLAMP OR CLIP(FOR AIR HOSE, NO.2)
90460-63011

N04C..XZB40,59;N04C..XZB50..(20S,21S)..WC

NO.1

 1
90460-63011

N04C..XZB40,5#

NO.1

 1
90460-67008

N04C..XZB40,59;N04C..XZB50..(20S,21S)..WC

NO.2

 1
90460-67008

N04C..XZB40,5#

NO.2

 1
17342E - CLAMP OR CLIP(FOR AIR HOSE, NO.2)
90460-63011

N04C..XZB40,59;N04C..XZB50..(20S,21S)..WC

NO.1

 1
90460-63011

N04C..XZB40,5#

NO.1

 1
90460-67008

N04C..XZB40,59;N04C..XZB50..(20S,21S)..WC

NO.2

 1
90460-67008

N04C..XZB40,5#

NO.2

 1
17342F - HOSE, AIR, NO.2(FOR INTERCOOLER)
17342-78060

N04C..XZB50..LHD

 1
17342-78140

N04C..XZB50..TAIW

 1
17342-78140

N04C..XZB40,50..LHD

 1
17343D - HOSE, AIR, NO.3
17343-78020

N04C..XZB40,59;N04C..XZB50..IV;N04C..XZB50..(20S,21S)..WC

 1
SZ920-33220

N04C..XZB40,5#..ARL,GEN,TAIW

 1
SZ920-33220

N04C..XZB40,5#

 1
17700 - CLEANER ASSY, AIR
17700-78310

N04C..XZB40,59;N04C..XZB50..(20S,21S)..WC

 1
17700-78310

N04C..XZB40,59..HRF;N04C..XZB50..20S,21S

 1
17700A - NUT, WING(FOR AIR CLEANER)
90175-08008

N04C..XZB40,59;N04C..XZB50..(20S,21S)..WC

 1
90175-08008

N04C..XZB40,5#

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-17180

N04C..XZB40,5#

 1
17705-17180

N04C..XZB40,59;N04C..XZB50..(20S,21S)..WC

 1
17765 - STAY, AIR CLEANER, NO.1
17706-78170

N04C..XZB40,59;N04C..XZB50..IV;N04C..XZB50..20S,21S

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-58040

N04C..XZB40,59;N04C..XZB50..(20S,21S)..WC

 1
17801-58040

N04C..XZB40,5#

 1
17807 - PLATE SUB-ASSY, AIR CLEANER FILTER SET
17807-58020

N04C..XZB40,59;N04C..XZB50..(20S,21S)..WC

 1
17807-58020

N04C..XZB40,5#

 1
17841 - GASKET, FILTER ELEMENT
17841-68010

N04C..XZB40,59;N04C..XZB50..(20S,21S)..WC

 2
17841-68010

N04C..XZB40,5#

 2
17841 - GASKET, FILTER ELEMENT
17841-68010

N04C..XZB40,59;N04C..XZB50..(20S,21S)..WC

 2
17841-68010

N04C..XZB40,5#

 2
17845 - GASKET, AIR CLEANER CAP
17845-58010

N04C..XZB40,59;N04C..XZB50..(20S,21S)..WC

 1
17845-58010

N04C..XZB40,5#

 1
17884 - HOSE, AIR CLEANER, NO.4
59132-36020

N04C..XZB40,59;N04C..XZB50..(20S,21S)..WC

 1
17940D - INTERCOOLER ASSY
17940-78090

N04C..XZB40,59;N04C..XZB50..IV;N04C..XZB50..20S,21S

 1
17940-78150

N04C..XZB40,5#..ARL,GEN,TAIW

 1
17940-78150

N04C..XZB40,5#

 1
22204 - METER SUB-ASSY, INTAKE AIR FLOW
22204-30010

N04C..XZB40,59;N04C..XZB50..(20S,21S)..WC

 1
22204-30010

N04C..XZB40,59..HRF;N04C..XZB50..20S,21S

 1
53199B - DUCT SUB-ASSY, COOL AIR INTAKE
53207-36150

TRB40,50

 1
53207-36030

XZB40,59;XZB50..(20S,21S)..WC

 1
55871B - SEAL, AIR DUCT
55871-36020

XZB40,5#

 1
55871-36020

BB4#,5#

 1
55871-36020

XZB40,59;XZB50..(20S,21S)..WC

 1
55871-36020

BB42,BZB40,50

 1
55871-36020

TRB40,50

 1
55871-36020

TRB40,50

 1
58257 - PLATE, AIR CLEANER HOUSE
58257-36020

XZB5#

 1
58257-36070

BB42,BZB40,50

 1
58257-36050

TRB40,50

 1
58257-36050

XZB40,5#

 1
58257-36050

TRB40,50

 1
58257-36050

XZB40,59;XZB50..(20S,21S)..WC

 1
Common parts
90031-05144
90099-00289
90460-80006
90467-12056
91553-80825
91621-B0816
91631-60816
91631-60822
91651-60616
91651-B0820
93560-54012
94150-80800
96111-10900
Linked diagrams
1201
1701
1708
1709
2606
8405

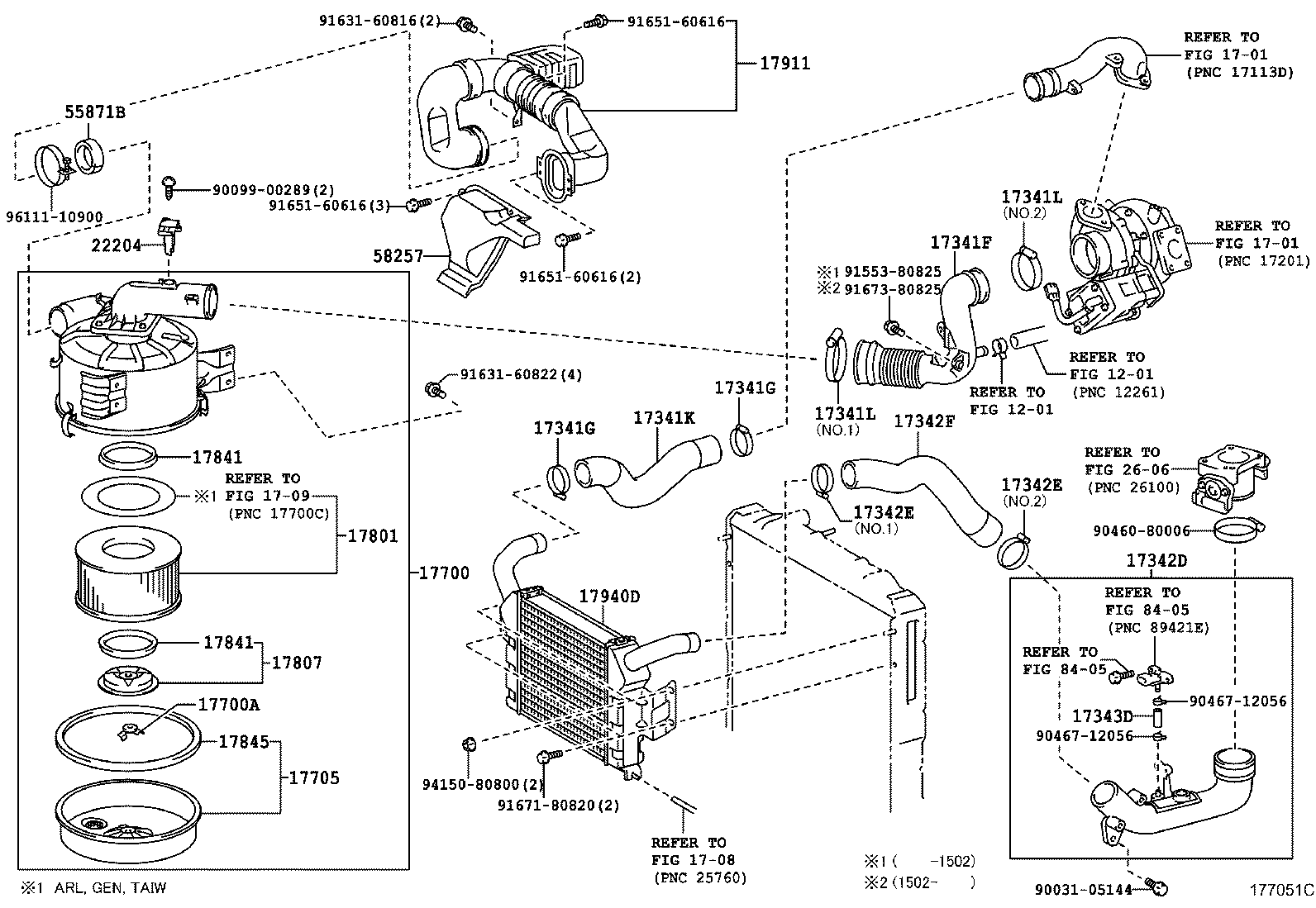

(0908-1108)N04C ; (1108- )N04C..XZB50..IV

Click highlighted areas on diagram

diagram 1201 1201 1701 1701 1708 1709 17341F 17341G 17341G 17341K 17341L 17341L 17342D 17342E 17342E 17342F 17343D 17700 17700A 17705 17801 17807 17841 17841 17845 17884 17940D 22204 2606 53199B 55871B 58257 8405 8405 9003105144 9009900289 9046080006 9046712056 9046712056 9155380825 9163160816 9163160822 9165160616 9165160616 9165160616 9167180820 9167380825 9356054012 9356054012 9356054012 9415080800 9611110900
Part # Description Qty Price
17341F - HOSE, AIR, NO.1
17030-78230

N04C..XZB5#

 1
17030-78460

N04C..XZB40,5#

 1
17030-78490

N04C..XZB40,59..HRF;N04C..XZB50..20S,21S

 1
17030-78490

N04C..XZB40,5#..ARL,GEN,TAIW

 1
17030-78231

N04C..XZB40,59;N04C..XZB50..IV;N04C..XZB50..20S,21S

 1
17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1)
90460-63011

N04C..XZB40,59;N04C..XZB50..(20S,21S)..WC

 2
90460-63011

N04C..XZB40,5#

 2
17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1)
90460-63011

N04C..XZB40,59;N04C..XZB50..(20S,21S)..WC

 2
90460-63011

N04C..XZB40,5#

 2
17341K - HOSE, AIR, NO.1(FOR INTERCOOLER)
17341-78250

N04C..XZB40,50..LHD

 1
17341-78250

N04C..XZB50..TAIW

 1
17341-78120

N04C..XZB50..LHD

 1
17341L - CLAMP, HOSE
96111-11180

N04C..XZB40,5#

NO.1

 1
96111-11180

N04C..XZB40,59;N04C..XZB50..(20S,21S)..WC

NO.1

 1
96111-10900

N04C..XZB40,59..HRF;N04C..XZB50..20S,21S

NO.2

 1
96111-10900

N04C..XZB40,59;N04C..XZB50..(20S,21S)..WC

NO.2

 1
17341L - CLAMP, HOSE
96111-11180

N04C..XZB40,5#

NO.1

 1
96111-11180

N04C..XZB40,59;N04C..XZB50..(20S,21S)..WC

NO.1

 1
96111-10900

N04C..XZB40,59..HRF;N04C..XZB50..20S,21S

NO.2

 1
96111-10900

N04C..XZB40,59;N04C..XZB50..(20S,21S)..WC

NO.2

 1
17342D - HOSE, AIR, NO.2
17030-78481

N04C..XZB40,5#

 1
17030-78480

N04C..XZB40,5#

 1
17030-78370

N04C..XZB40,59;N04C..XZB50..IV;N04C..XZB50..20S,21S

 1
17030-78482

N04C..XZB40,5#..ARL,GEN,TAIW

 1
17030-78482

N04C..XZB40,5#

 1
17342E - CLAMP OR CLIP(FOR AIR HOSE, NO.2)
90460-63011

N04C..XZB40,59;N04C..XZB50..(20S,21S)..WC

NO.1

 1
90460-63011

N04C..XZB40,5#

NO.1

 1
90460-67008

N04C..XZB40,59;N04C..XZB50..(20S,21S)..WC

NO.2

 1
90460-67008

N04C..XZB40,5#

NO.2

 1
17342E - CLAMP OR CLIP(FOR AIR HOSE, NO.2)
90460-63011

N04C..XZB40,59;N04C..XZB50..(20S,21S)..WC

NO.1

 1
90460-63011

N04C..XZB40,5#

NO.1

 1
90460-67008

N04C..XZB40,59;N04C..XZB50..(20S,21S)..WC

NO.2

 1
90460-67008

N04C..XZB40,5#

NO.2

 1
17342F - HOSE, AIR, NO.2(FOR INTERCOOLER)
17342-78060

N04C..XZB50..LHD

 1
17342-78140

N04C..XZB50..TAIW

 1
17342-78140

N04C..XZB40,50..LHD

 1
17343D - HOSE, AIR, NO.3
17343-78020

N04C..XZB40,59;N04C..XZB50..IV;N04C..XZB50..(20S,21S)..WC

 1
SZ920-33220

N04C..XZB40,5#..ARL,GEN,TAIW

 1
SZ920-33220

N04C..XZB40,5#

 1
17700 - CLEANER ASSY, AIR
17700-78310

N04C..XZB40,59;N04C..XZB50..(20S,21S)..WC

 1
17700-78310

N04C..XZB40,59..HRF;N04C..XZB50..20S,21S

 1
17700A - NUT, WING(FOR AIR CLEANER)
90175-08008

N04C..XZB40,59;N04C..XZB50..(20S,21S)..WC

 1
90175-08008

N04C..XZB40,5#

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-17180

N04C..XZB40,5#

 1
17705-17180

N04C..XZB40,59;N04C..XZB50..(20S,21S)..WC

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-58040

N04C..XZB40,59;N04C..XZB50..(20S,21S)..WC

 1
17801-58040

N04C..XZB40,5#

 1
17807 - PLATE SUB-ASSY, AIR CLEANER FILTER SET
17807-58020

N04C..XZB40,59;N04C..XZB50..(20S,21S)..WC

 1
17807-58020

N04C..XZB40,5#

 1
17841 - GASKET, FILTER ELEMENT
17841-68010

N04C..XZB40,59;N04C..XZB50..(20S,21S)..WC

 2
17841-68010

N04C..XZB40,5#

 2
17841 - GASKET, FILTER ELEMENT
17841-68010

N04C..XZB40,59;N04C..XZB50..(20S,21S)..WC

 2
17841-68010

N04C..XZB40,5#

 2
17845 - GASKET, AIR CLEANER CAP
17845-58010

N04C..XZB40,59;N04C..XZB50..(20S,21S)..WC

 1
17845-58010

N04C..XZB40,5#

 1
17884 - HOSE, AIR CLEANER, NO.4
59132-36020

N04C..XZB40,59;N04C..XZB50..(20S,21S)..WC

 1
17940D - INTERCOOLER ASSY
17940-78090

N04C..XZB40,59;N04C..XZB50..IV;N04C..XZB50..20S,21S

 1
17940-78150

N04C..XZB40,5#..ARL,GEN,TAIW

 1
17940-78150

N04C..XZB40,5#

 1
22204 - METER SUB-ASSY, INTAKE AIR FLOW
22204-30010

N04C..XZB40,59;N04C..XZB50..(20S,21S)..WC

 1
22204-30010

N04C..XZB40,59..HRF;N04C..XZB50..20S,21S

 1
53199B - DUCT SUB-ASSY, COOL AIR INTAKE
53207-36150

TRB40,50

 1
53207-36030

XZB40,59;XZB50..(20S,21S)..WC

 1
55871B - SEAL, AIR DUCT
55871-36020

XZB40,5#

 1
55871-36020

BB4#,5#

 1
55871-36020

XZB40,59;XZB50..(20S,21S)..WC

 1
55871-36020

BB42,BZB40,50

 1
55871-36020

TRB40,50

 1
55871-36020

TRB40,50

 1
58257 - PLATE, AIR CLEANER HOUSE
58257-36020

XZB5#

 1
58257-36070

BB42,BZB40,50

 1
58257-36050

TRB40,50

 1
58257-36050

XZB40,5#

 1
58257-36050

TRB40,50

 1
58257-36050

XZB40,59;XZB50..(20S,21S)..WC

 1
Common parts
90031-05144
90099-00289
90460-80006
90467-12056
91553-80825
91631-60816
91631-60822
91651-60616
91671-80820
91673-80825
93560-54012
94150-80800
96111-10900
Linked diagrams
1201
1701
1708
1709
2606
8405

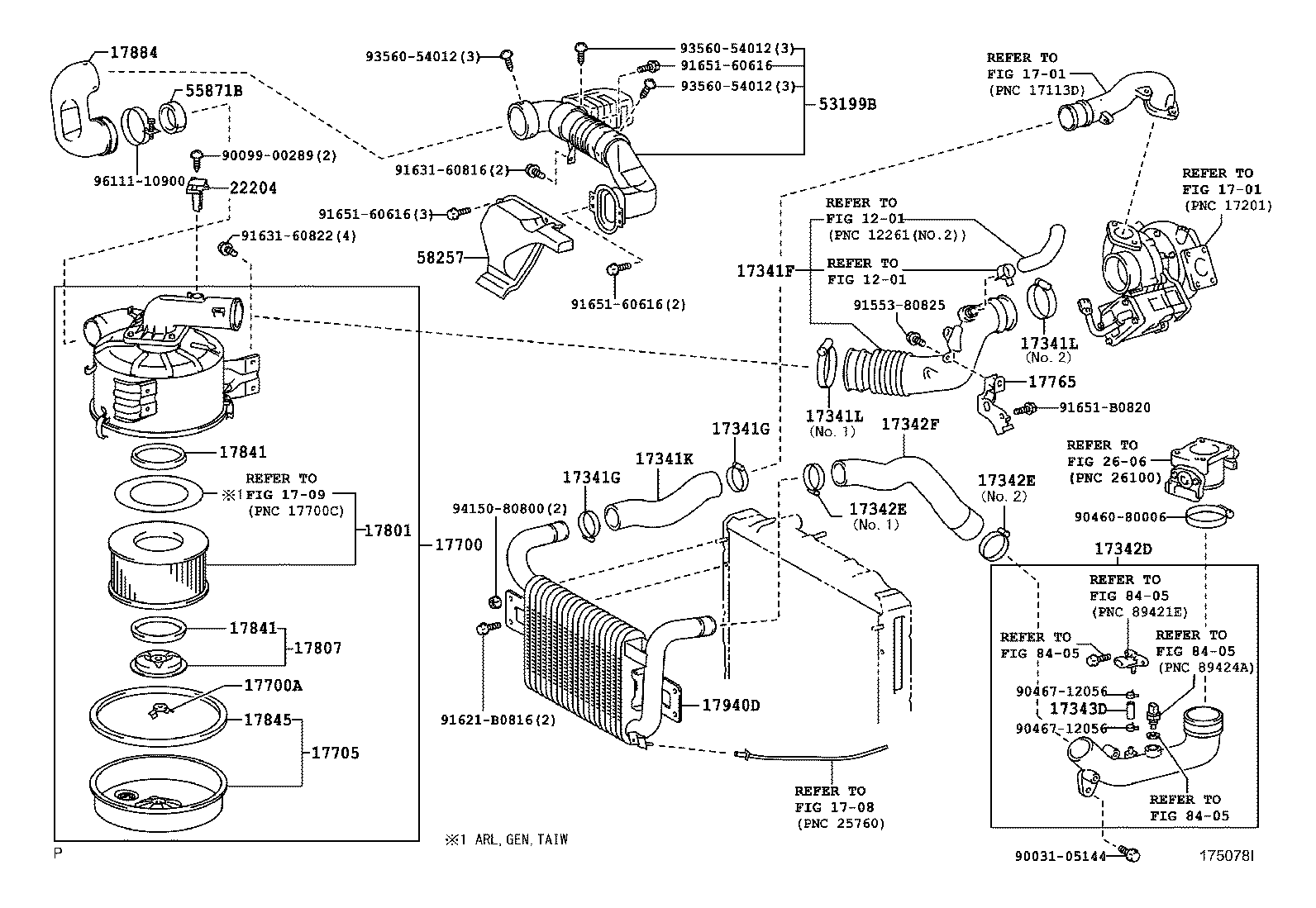

(1108- )N04C..XZB40,59..HRF ; (1108- )N04C..XZB50..20S,21S

Click highlighted areas on diagram

diagram 1201 1201 1701 1701 1708 1709 17341F 17341G 17341G 17341K 17341L 17341L 17342D 17342E 17342E 17342F 17343D 17700 17700A 17705 17801 17807 17841 17841 17845 17911 17940D 22204 2606 55871B 58257 8405 8405 9003105144 9009900289 9046080006 9046712056 9046712056 9155380825 9163160816 9163160822 9165160616 9165160616 9165160616 9167180820 9167380825 9415080800 9611110900
Part # Description Qty Price
17341F - HOSE, AIR, NO.1
17030-78230

N04C..XZB5#

 1
17030-78460

N04C..XZB40,5#

 1
17030-78490

N04C..XZB40,59..HRF;N04C..XZB50..20S,21S

 1
17030-78490

N04C..XZB40,5#..ARL,GEN,TAIW

 1
17030-78231

N04C..XZB40,59;N04C..XZB50..IV;N04C..XZB50..20S,21S

 1
17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1)
90460-63011

N04C..XZB40,59;N04C..XZB50..(20S,21S)..WC

 2
90460-63011

N04C..XZB40,5#

 2
17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1)
90460-63011

N04C..XZB40,59;N04C..XZB50..(20S,21S)..WC

 2
90460-63011

N04C..XZB40,5#

 2
17341K - HOSE, AIR, NO.1(FOR INTERCOOLER)
17341-78250

N04C..XZB40,50..LHD

 1
17341-78250

N04C..XZB50..TAIW

 1
17341-78120

N04C..XZB50..LHD

 1
17341L - CLAMP, HOSE
96111-11180

N04C..XZB40,5#

NO.1

 1
96111-11180

N04C..XZB40,59;N04C..XZB50..(20S,21S)..WC

NO.1

 1
96111-10900

N04C..XZB40,59..HRF;N04C..XZB50..20S,21S

NO.2

 1
96111-10900

N04C..XZB40,59;N04C..XZB50..(20S,21S)..WC

NO.2

 1
17341L - CLAMP, HOSE
96111-11180

N04C..XZB40,5#

NO.1

 1
96111-11180

N04C..XZB40,59;N04C..XZB50..(20S,21S)..WC

NO.1

 1
96111-10900

N04C..XZB40,59..HRF;N04C..XZB50..20S,21S

NO.2

 1
96111-10900

N04C..XZB40,59;N04C..XZB50..(20S,21S)..WC

NO.2

 1
17342D - HOSE, AIR, NO.2
17030-78481

N04C..XZB40,5#

 1
17030-78480

N04C..XZB40,5#

 1
17030-78370

N04C..XZB40,59;N04C..XZB50..IV;N04C..XZB50..20S,21S

 1
17030-78482

N04C..XZB40,5#..ARL,GEN,TAIW

 1
17030-78482

N04C..XZB40,5#

 1
17342E - CLAMP OR CLIP(FOR AIR HOSE, NO.2)
90460-63011

N04C..XZB40,59;N04C..XZB50..(20S,21S)..WC

NO.1

 1
90460-63011

N04C..XZB40,5#

NO.1

 1
90460-67008

N04C..XZB40,59;N04C..XZB50..(20S,21S)..WC

NO.2

 1
90460-67008

N04C..XZB40,5#

NO.2

 1
17342E - CLAMP OR CLIP(FOR AIR HOSE, NO.2)
90460-63011

N04C..XZB40,59;N04C..XZB50..(20S,21S)..WC

NO.1

 1
90460-63011

N04C..XZB40,5#

NO.1

 1
90460-67008

N04C..XZB40,59;N04C..XZB50..(20S,21S)..WC

NO.2

 1
90460-67008

N04C..XZB40,5#

NO.2

 1
17342F - HOSE, AIR, NO.2(FOR INTERCOOLER)
17342-78060

N04C..XZB50..LHD

 1
17342-78140

N04C..XZB50..TAIW

 1
17342-78140

N04C..XZB40,50..LHD

 1
17343D - HOSE, AIR, NO.3
17343-78020

N04C..XZB40,59;N04C..XZB50..IV;N04C..XZB50..(20S,21S)..WC

 1
SZ920-33220

N04C..XZB40,5#..ARL,GEN,TAIW

 1
SZ920-33220

N04C..XZB40,5#

 1
17700 - CLEANER ASSY, AIR
17700-78310

N04C..XZB40,59;N04C..XZB50..(20S,21S)..WC

 1
17700-78310

N04C..XZB40,59..HRF;N04C..XZB50..20S,21S

 1
17700A - NUT, WING(FOR AIR CLEANER)
90175-08008

N04C..XZB40,59;N04C..XZB50..(20S,21S)..WC

 1
90175-08008

N04C..XZB40,5#

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-17180

N04C..XZB40,5#

 1
17705-17180

N04C..XZB40,59;N04C..XZB50..(20S,21S)..WC

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-58040

N04C..XZB40,59;N04C..XZB50..(20S,21S)..WC

 1
17801-58040

N04C..XZB40,5#

 1
17807 - PLATE SUB-ASSY, AIR CLEANER FILTER SET
17807-58020

N04C..XZB40,59;N04C..XZB50..(20S,21S)..WC

 1
17807-58020

N04C..XZB40,5#

 1
17841 - GASKET, FILTER ELEMENT
17841-68010

N04C..XZB40,59;N04C..XZB50..(20S,21S)..WC

 2
17841-68010

N04C..XZB40,5#

 2
17841 - GASKET, FILTER ELEMENT
17841-68010

N04C..XZB40,59;N04C..XZB50..(20S,21S)..WC

 2
17841-68010

N04C..XZB40,5#

 2
17845 - GASKET, AIR CLEANER CAP
17845-58010

N04C..XZB40,59;N04C..XZB50..(20S,21S)..WC

 1
17845-58010

N04C..XZB40,5#

 1
17911 - DUCT, COOL AIR INTAKE, NO.1
52810-36030

N04C..XZB40,5#..ARL,GEN,TAIW

 1
52810-36030

N04C..XZB40,59..HRF;N04C..XZB50..20S,21S

 1
17940D - INTERCOOLER ASSY
17940-78090

N04C..XZB40,59;N04C..XZB50..IV;N04C..XZB50..20S,21S

 1
17940-78150

N04C..XZB40,5#..ARL,GEN,TAIW

 1
17940-78150

N04C..XZB40,5#

 1
22204 - METER SUB-ASSY, INTAKE AIR FLOW
22204-30010

N04C..XZB40,59;N04C..XZB50..(20S,21S)..WC

 1
22204-30010

N04C..XZB40,59..HRF;N04C..XZB50..20S,21S

 1
55871B - SEAL, AIR DUCT
55871-36020

XZB40,5#

 1
55871-36020

BB4#,5#

 1
55871-36020

XZB40,59;XZB50..(20S,21S)..WC

 1
55871-36020

BB42,BZB40,50

 1
55871-36020

TRB40,50

 1
55871-36020

TRB40,50

 1
58257 - PLATE, AIR CLEANER HOUSE
58257-36020

XZB5#

 1
58257-36070

BB42,BZB40,50

 1
58257-36050

TRB40,50

 1
58257-36050

XZB40,5#

 1
58257-36050

TRB40,50

 1
58257-36050

XZB40,59;XZB50..(20S,21S)..WC

 1
Common parts
90031-05144
90099-00289
90460-80006
90467-12056
91553-80825
91631-60816
91631-60822
91651-60616
91671-80820
91673-80825
94150-80800
96111-10900
Linked diagrams
1201
1701
1708
1709
2606
8405
