XZB40L-BRMRY (2015)
Toyota Coaster
ILLUST NO. 1 OF 3(9301- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04445 - GASKET KIT, POWER STEERING GEAR(FOR RECIRCULATING BALL) | ||||
| 04445-36100 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 04445-37040 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
1 | ||
| 44110 - GEAR ASSY, POWER STEERING | ||||
| 44110-36320 |
BB42,5#,HZB50,RZB40,50..LHD |
1 | ||
| 44110-36361 |
BB42,HZB50,TRB40,50,XZB40,50..LHD |
1 | ||
| 44251A - NUT, CASTLE(FOR PITMAN ARM) | ||||
| 90170-30001 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 90170-30001 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
1 | ||
| 44251D - WASHER(FOR PITMAN ARM) | ||||
| 90204-30040 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 90204-30040 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
1 | ||
| 45312 - BRACKET, STEERING GEAR HOUSING | ||||
| 45312-36220 |
BB42,5#,HZB50,RZB40,50..LHD |
1 | ||
| 45312-36250 |
BB42,HZB50,TRB40,50,XZB40,50..LHD |
1 | ||
| 45411 - ARM, PITMAN | ||||
| 45411-36580 |
BB42,5#,HZB50,RZB40,50..LHD |
1 | ||
| 45411-36620 |
BB42,HZB50,TRB40,50,XZB40,50..LHD |
1 | ||
| Common parts | ||||
| 90101-14042 | ||||
| 90106-12005 | ||||
| 90170-12018 | ||||
| 90170-14026 | ||||
| 90901-01003 | ||||
| 90901-01004 | ||||
| 94621-11600 | ||||
| 94622-11600 | ||||
| 94622-51400 | ||||

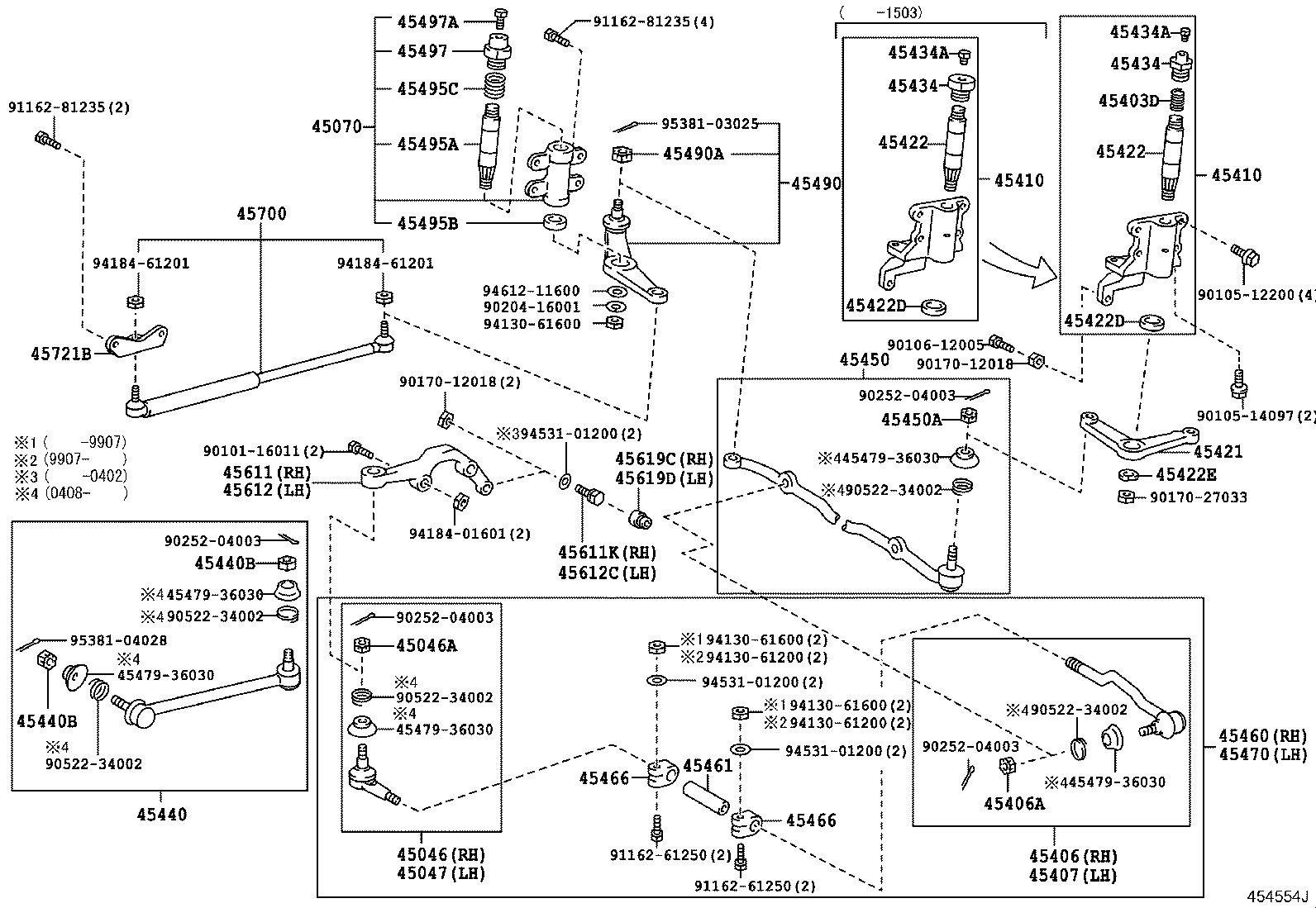

ILLUST NO. 3 OF 3(9301- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-39275 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
1 | ||
| 45046-39275 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 94146-71800 |
BB4#,5#,HZB50,RZB40,50 |
2 | ||
| 90171-18003 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45046-39275 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 45046-39275 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
1 | ||
| 45070 - BRACKET ASSY, IDLER ARM | ||||
| 45070-36030 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 45070-36030 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
1 | ||
| 45403D - SPRING, COMPRESSION(FOR CENTER ARM SHAFT SET) | ||||
| 90501-32033 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
1 | ||
| 45406 - ROD SUB-ASSY, TIE, RH | ||||
| 45047-39165 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 45047-39165 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
1 | ||
| 45406A - NUT, CASTLE(FOR TIE ROD) | ||||
| 90171-18003 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
2 | ||
| 45407 - ROD SUB-ASSY, TIE, LH | ||||
| 45047-39165 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 45047-39165 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
1 | ||
| 45410 - BRACKET ASSY, CENTER ARM | ||||
| 45410-36040 |
BB42,5#,HZB50,RZB40,50..LHD |
1 | ||
| 45410-36041 |
BB42,HZB50,TRB40,50,XZB40,50..LHD |
1 | ||
| 45410-36040 |
BB42,HZB50,TRB40,50,XZB40,50..LHD |
1 | ||
| 45410 - BRACKET ASSY, CENTER ARM | ||||
| 45410-36040 |
BB42,5#,HZB50,RZB40,50..LHD |
1 | ||
| 45410-36041 |
BB42,HZB50,TRB40,50,XZB40,50..LHD |
1 | ||
| 45410-36040 |
BB42,HZB50,TRB40,50,XZB40,50..LHD |
1 | ||
| 45421 - ARM, STEERING CENTER | ||||
| 45421-36030 |
BB42,5#,HZB50,RZB40,50..LHD |
1 | ||
| 45421-36030 |
BB42,HZB50,TRB40,50,XZB40,50..LHD |
1 | ||
| 45422 - SHAFT, CENTER ARM | ||||
| 45422-36010 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 45422-36010 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
1 | ||
| 45422 - SHAFT, CENTER ARM | ||||
| 45422-36010 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 45422-36010 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
1 | ||
| 45422D - SEAL(FOR CENTER ARM SHAFT) | ||||
| 90311-36003 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 90311-36003 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
1 | ||
| 45422D - SEAL(FOR CENTER ARM SHAFT) | ||||
| 90311-36003 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 90311-36003 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
1 | ||
| 45422E - WASHER(FOR CENTER ARM SHAFT) | ||||
| 90204-27020 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
1 | ||
| 90204-27020 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 45434 - CAP, CENTER ARM BRACKET | ||||
| 45434-36010 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 45434-36010 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
1 | ||
| 45434-36011 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
1 | ||
| 45434 - CAP, CENTER ARM BRACKET | ||||
| 45434-36010 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 45434-36010 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
1 | ||
| 45434-36011 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
1 | ||
| 45434A - PLUG(FOR CENTER ARM BRACKET CAP) | ||||
| 90345-06014 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 90345-06014 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
1 | ||
| 45434A - PLUG(FOR CENTER ARM BRACKET CAP) | ||||
| 90345-06014 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 90345-06014 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
1 | ||
| 45440 - LINK ASSY, STEERING DRAG | ||||
| 45440-39115 |
BB42,5#,HZB50,RZB40,50..LHD |
1 | ||
| 45440-39115 |
BB42,HZB50,TRB40,50,XZB40,50..LHD |
1 | ||
| 45440B - NUT, CASTLE(FOR STEERING DRAG LINK) | ||||
| 94146-71800 |
BB4#,5#,HZB50,RZB40,50 |
2 | ||
| 90171-18003 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
2 | ||
| 45440B - NUT, CASTLE(FOR STEERING DRAG LINK) | ||||
| 94146-71800 |
BB4#,5#,HZB50,RZB40,50 |
2 | ||
| 90171-18003 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
2 | ||
| 45450 - ROD ASSY, STEERING RELAY | ||||
| 45450-39225 |
BB42,5#,HZB50,RZB40,50..LHD |
1 | ||
| 45450-39225 |
BB42,HZB50,TRB40,50,XZB40,50..LHD |
1 | ||
| 45450A - NUT, CASTLE(FOR RELAY ROD) | ||||
| 94146-71800 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 90171-18003 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
1 | ||
| 45460 - ROD ASSY, TIE, RH | ||||
| 45460-39385 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 45460-39385 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
1 | ||
| 45461 - ROD, STEERING TIE | ||||
| 45461-36040 |
BB4#,5#,HZB50,RZB40,50 |
2 | ||
| 45461-36040 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
2 | ||
| 45466 - CLAMP, TIE ROD END | ||||
| 45466-36020 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
4 | ||
| 45466 - CLAMP, TIE ROD END | ||||
| 45466-36020 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
4 | ||
| 45470 - ROD ASSY, TIE, LH | ||||
| 45460-39385 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 45460-39385 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
1 | ||
| 45490 - ARM ASSY, STEERING IDLER | ||||
| 45490-39435 |
BB42,5#,HZB50,RZB40,50..LHD |
1 | ||
| 45490-39435 |
BB42,HZB50,TRB40,50,XZB40,50..LHD |
1 | ||
| 45490A - NUT, CASTLE(FOR IDLER ARM) | ||||
| 94146-51400 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 90171-14006 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
1 | ||
| 45495A - SHAFT, IDLER ARM | ||||
| 45495-36010 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 45495-36010 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
1 | ||
| 45495B - SEAL(FOR IDLER ARM SHAFT) | ||||
| 90311-25009 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 90311-25009 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
1 | ||
| 45495C - SPRING, COMPRESSION(FOR IDLER ARM SHAFT) | ||||
| 90501-32033 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
1 | ||
| 90501-32033 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 45497 - CAP, IDLER ARM BRACKET | ||||
| 45497-36020 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 45497-36020 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
1 | ||
| 45497A - PLUG(FOR IDLER ARM BRACKET CAP) | ||||
| 90345-06014 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 90345-06014 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
1 | ||
| 45611 - ARM, STEERING KNUCKLE, RH | ||||
| 45611-36240 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 45611-36242 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
1 | ||
| 45611K - BOLT(FOR STEERING KNUCKLE STOPPER RH) | ||||
| 90106-12022 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 90106-12015 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
1 | ||
| 45612 - ARM, STEERING KNUCKLE, LH | ||||
| 45612-36150 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 45612-36152 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
1 | ||
| 45612C - BOLT(FOR STEERING KNUCKLE STOPPER LH) | ||||
| 90106-12022 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 90106-12015 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
1 | ||
| 45619C - COVER, STEERING KNUCKLE STOPPER, RH | ||||
| 45619-36010 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 45619-26020 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
1 | ||
| 45619D - COVER, STEERING KNUCKLE STOPPER, LH | ||||
| 45619-36010 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 45619-26020 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
1 | ||
| 45700 - DAMPER ASSY, STEERING | ||||
| 45700-69135 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
1 | ||
| 45721B - BRACKET, STEERING DAMPER, NO.3 | ||||
| 45721-36020 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 45721-36020 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
1 | ||
| Common parts | ||||
| 45479-36030 | ||||
| 90101-16011 | ||||
| 90105-12200 | ||||
| 90105-14097 | ||||
| 90106-12005 | ||||
| 90170-12018 | ||||
| 90170-27033 | ||||
| 90204-16001 | ||||
| 90252-04003 | ||||
| 90522-34002 | ||||
| 91162-61250 | ||||
| 91162-81235 | ||||
| 94130-61200 | ||||
| 94130-61600 | ||||
| 94184-01601 | ||||
| 94184-61201 | ||||
| 94531-01200 | ||||
| 94612-11600 | ||||
| 95381-03025 | ||||
| 95381-04028 | ||||
