XZB40L-BRMRY (2015)
Toyota Coaster

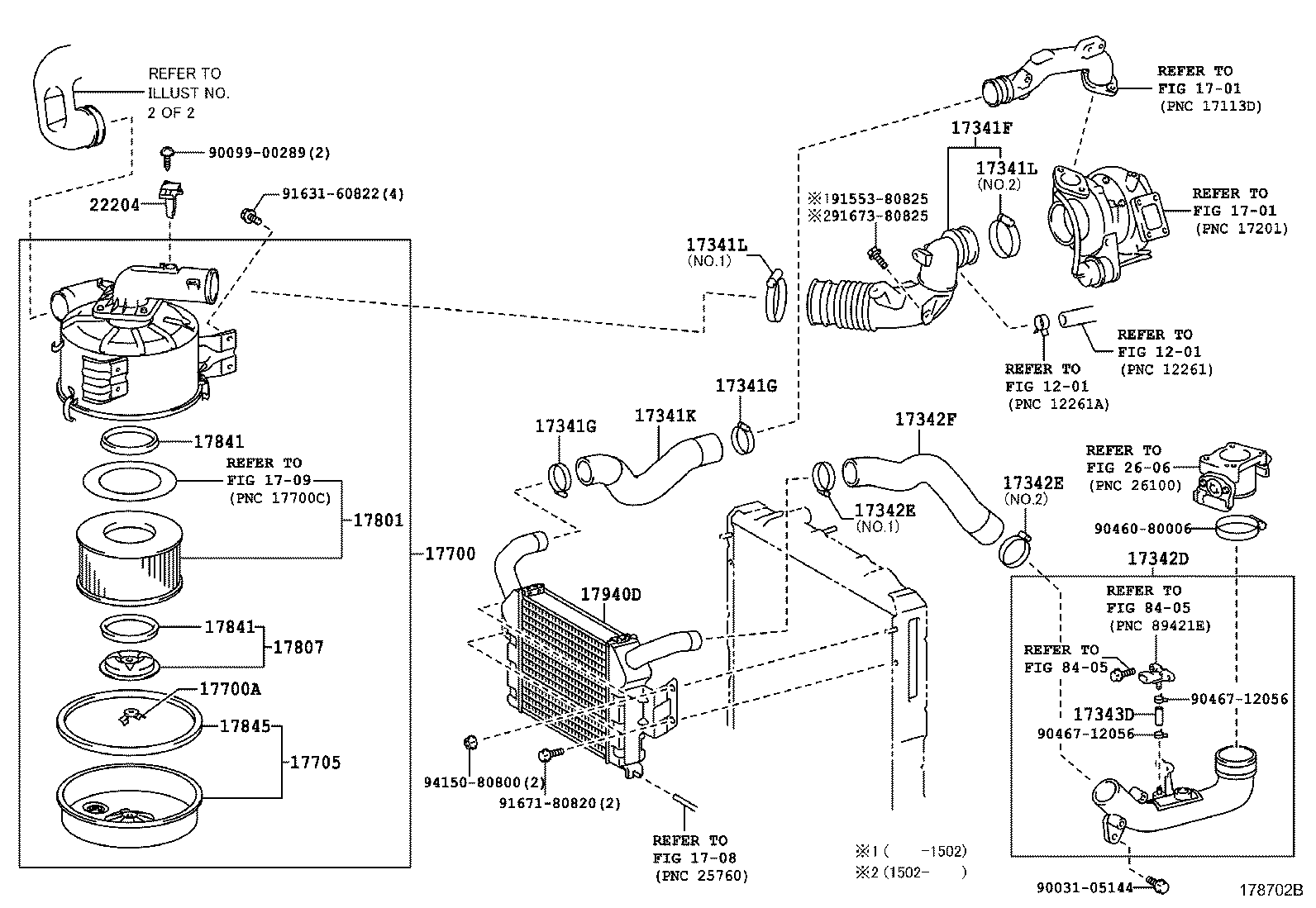

ILLUST NO. 1 OF 2(1501- )N04C..XZB40,50..LHD..GEN
AIR CLEANER CASE & INTERCOOLER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17341F - HOSE, AIR, NO.1 | ||||
| 17030-78750 |
N04C..XZB40,50..LHD..GEN |
1 | ||
| 17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1) | ||||
| 90460-63011 |
N04C..XZB40,5# |
2 | ||
| 17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1) | ||||
| 90460-63011 |
N04C..XZB40,5# |
2 | ||
| 17341K - HOSE, AIR, NO.1(FOR INTERCOOLER) | ||||
| 17341-78250 |
N04C..XZB40,50..LHD |
1 | ||
| 17341L - CLAMP, HOSE | ||||
| 96111-11180 |
N04C..XZB40,5# NO.1 |
1 | ||
| 90034-60048 |
N04C..XZB40,50..LHD..GEN NO.2 |
1 | ||
| 17341L - CLAMP, HOSE | ||||
| 96111-11180 |
N04C..XZB40,5# NO.1 |
1 | ||
| 90034-60048 |
N04C..XZB40,50..LHD..GEN NO.2 |
1 | ||
| 17342D - HOSE, AIR, NO.2 | ||||
| 17030-78482 |
N04C..XZB40,5# |
1 | ||
| 17342E - CLAMP OR CLIP(FOR AIR HOSE, NO.2) | ||||
| 90460-63011 |
N04C..XZB40,5# NO.1 |
1 | ||
| 90460-67008 |
N04C..XZB40,5# NO.2 |
1 | ||
| 17342E - CLAMP OR CLIP(FOR AIR HOSE, NO.2) | ||||
| 90460-63011 |
N04C..XZB40,5# NO.1 |
1 | ||
| 90460-67008 |
N04C..XZB40,5# NO.2 |
1 | ||
| 17342F - HOSE, AIR, NO.2(FOR INTERCOOLER) | ||||
| 17342-78140 |
N04C..XZB40,50..LHD |
1 | ||
| 17343D - HOSE, AIR, NO.3 | ||||
| SZ920-33220 |
N04C..XZB40,5# |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-78410 |
N04C..XZB40,50..LHD..GEN |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-08008 |
N04C..XZB40,5# |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-17180 |
N04C..XZB40,5# |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-58040 |
N04C..XZB40,5# |
1 | ||
| 17807 - PLATE SUB-ASSY, AIR CLEANER FILTER SET | ||||
| 17807-58020 |
N04C..XZB40,5# |
1 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-68010 |
N04C..XZB40,5# |
2 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-68010 |
N04C..XZB40,5# |
2 | ||
| 17845 - GASKET, AIR CLEANER CAP | ||||
| 17845-58010 |
N04C..XZB40,5# |
1 | ||
| 17940D - INTERCOOLER ASSY | ||||
| 17940-78150 |
N04C..XZB40,5# |
1 | ||
| 22204 - METER SUB-ASSY, INTAKE AIR FLOW | ||||
| 22204-30020 |
N04C..XZB40,50..LHD..GEN |
1 | ||
| Common parts | ||||
| 90031-05144 | ||||
| 90099-00289 | ||||
| 90460-80006 | ||||
| 90467-12056 | ||||
| 91553-80825 | ||||
| 91631-60822 | ||||
| 91671-80820 | ||||
| 91673-80825 | ||||
| 94150-80800 | ||||
| Linked diagrams | ||||
| 1201 | ||||
| 1701 | ||||
| 1708 | ||||
| 1709 | ||||
| 2606 | ||||
| 8405 | ||||

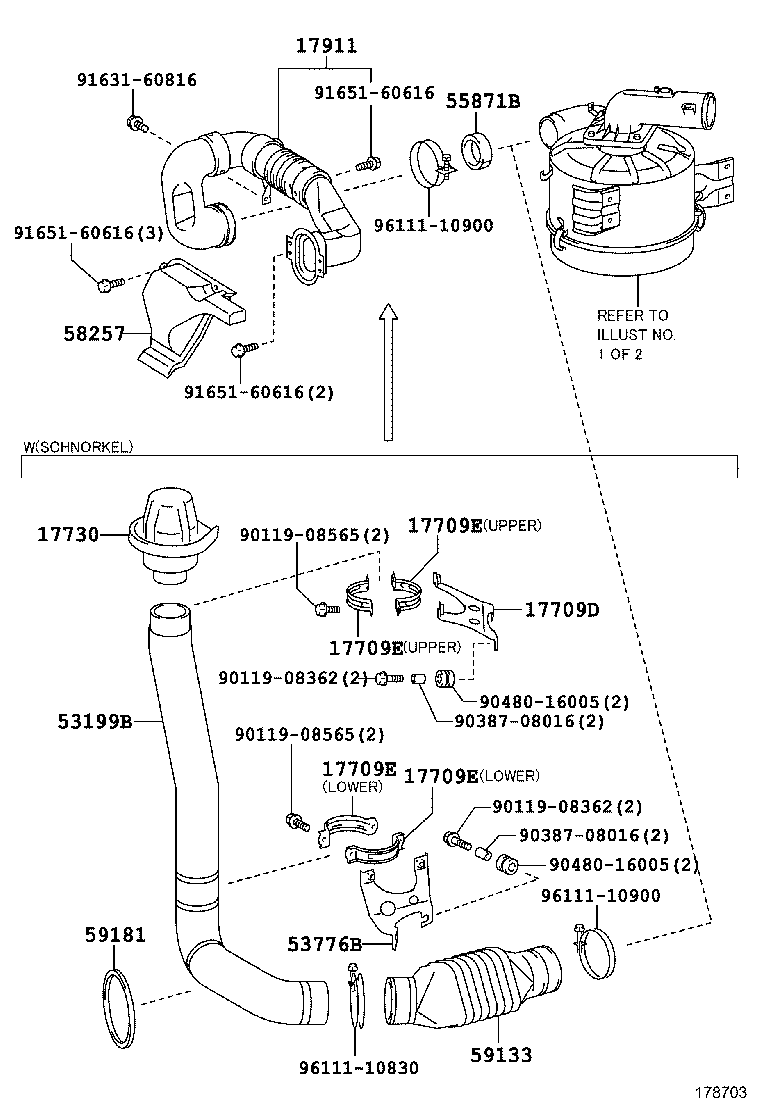

ILLUST NO. 2 OF 2(1501- )N04C..XZB40,50..LHD..GEN
AIR INTAKE DUCT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17709D - BRACKET, AIR CLEANER INLET, NO.1 | ||||
| 53772-36030 |
N04C..XZB40,50..LHD..GEN W(SCHNORKEL TYPE AIR CLEANER) |
1 | ||
| 17709E - BRACKET, AIR CLEANER INLET, NO.2 | ||||
| 53773-60020 |
N04C..XZB40,50..LHD..GEN W(SCHNORKEL TYPE AIR CLEANER),UPPER SIDE |
2 | ||
| 53773-90B00 |
N04C..XZB40,50..LHD..GEN W(SCHNORKEL TYPE AIR CLEANER),LOWER SIDE |
2 | ||
| 17709E - BRACKET, AIR CLEANER INLET, NO.2 | ||||
| 53773-60020 |
N04C..XZB40,50..LHD..GEN W(SCHNORKEL TYPE AIR CLEANER),UPPER SIDE |
2 | ||
| 53773-90B00 |
N04C..XZB40,50..LHD..GEN W(SCHNORKEL TYPE AIR CLEANER),LOWER SIDE |
2 | ||
| 17709E - BRACKET, AIR CLEANER INLET, NO.2 | ||||
| 53773-60020 |
N04C..XZB40,50..LHD..GEN W(SCHNORKEL TYPE AIR CLEANER),UPPER SIDE |
2 | ||
| 53773-90B00 |
N04C..XZB40,50..LHD..GEN W(SCHNORKEL TYPE AIR CLEANER),LOWER SIDE |
2 | ||
| 17709E - BRACKET, AIR CLEANER INLET, NO.2 | ||||
| 53773-60020 |
N04C..XZB40,50..LHD..GEN W(SCHNORKEL TYPE AIR CLEANER),UPPER SIDE |
2 | ||
| 53773-90B00 |
N04C..XZB40,50..LHD..GEN W(SCHNORKEL TYPE AIR CLEANER),LOWER SIDE |
2 | ||
| 17730 - PRECLEANER ASSY, AIR W/HOSE | ||||
| 17730-66010 |
N04C..XZB40,50..LHD..GEN W(SCHNORKEL TYPE AIR CLEANER) |
1 | ||
| 17911 - DUCT, COOL AIR INTAKE, NO.1 | ||||
| 52810-36040 |
N04C..XZB40,50..LHD..GEN |
1 | ||
| 53199B - DUCT SUB-ASSY, COOL AIR INTAKE | ||||
| 53207-36090 |
XZB40,50..LHD..GEN W(SCHNORKEL TYPE AIR CLEANER) |
1 | ||
| 53776B - BRACKET, COOL AIR INTAKE DUCT MOUNT, NO.2 | ||||
| 53776-36021 |
XZB40,50..LHD..GEN W(SCHNORKEL TYPE AIR CLEANER) |
1 | ||
| 55871B - SEAL, AIR DUCT | ||||
| 55871-36020 |
BB4#,5# |
1 | ||
| 55871-36020 |
XZB40,5# |
1 | ||
| 58257 - PLATE, AIR CLEANER HOUSE | ||||
| 58257-36050 |
XZB40,5# |
1 | ||
| 59133 - HOSE, COOL AIR INTAKE, NO.3 | ||||
| 59133-36050 |
XZB40,50..LHD..GEN W(SCHNORKEL TYPE AIR CLEANER) |
1 | ||
| 59181 - SEAL, AIR CLEANER INLET DUCT, NO.1 | ||||
| 59181-36010 |
XZB40,50..LHD..GEN W(SCHNORKEL TYPE AIR CLEANER) |
1 | ||
| Common parts | ||||
| 90119-08362 | ||||
| 90119-08565 | ||||
| 90387-08016 | ||||
| 90480-16005 | ||||
| 91631-60816 | ||||
| 91651-60616 | ||||
| 96111-10830 | ||||
| 96111-10900 | ||||
