XZB40L-BRMRY (2015)

Toyota Coaster

Production Jan 2015 - Dec 2016
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

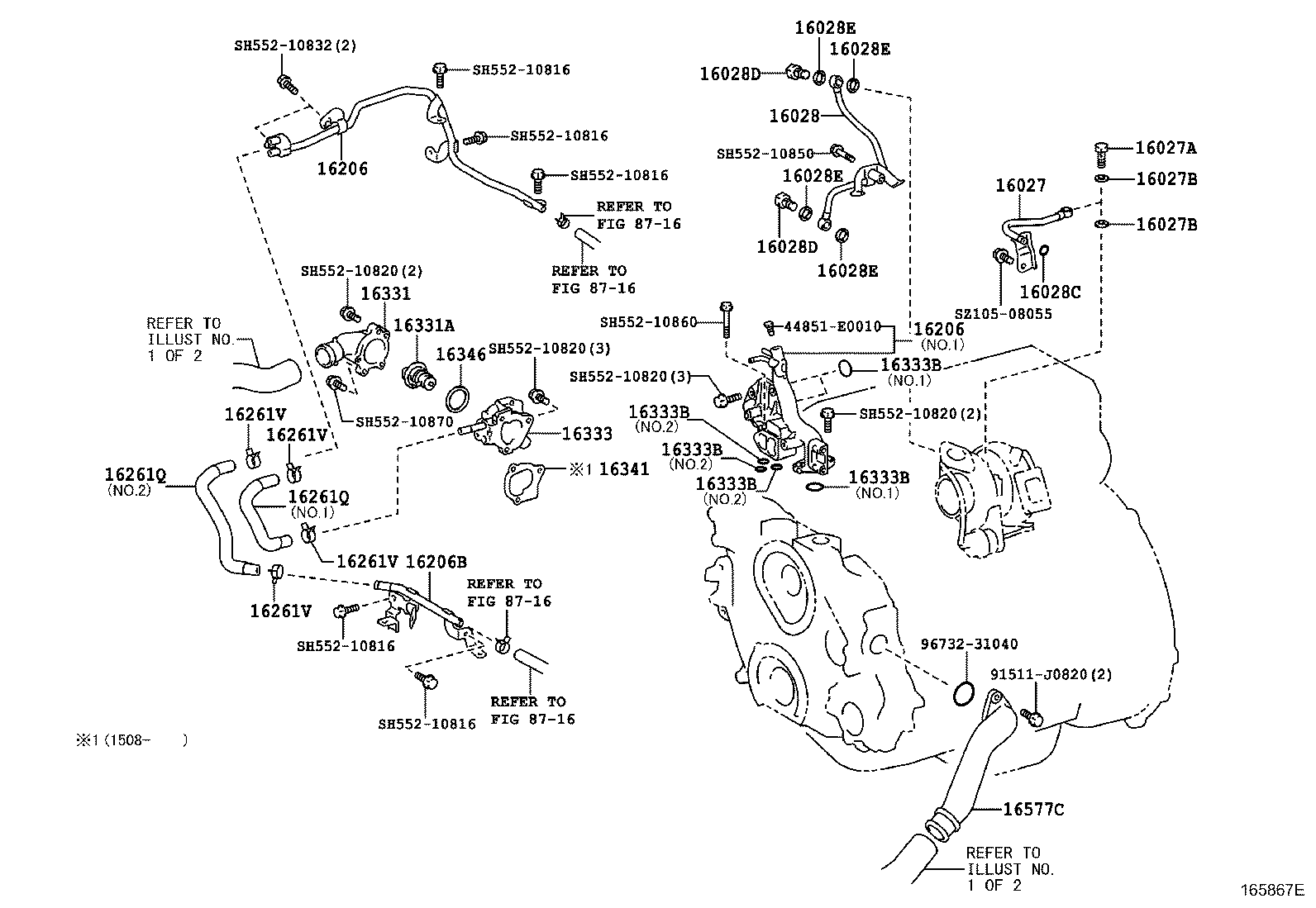

ILLUST NO. 2 OF 2(1501- )N04C..XZB40,50..LHD..GEN

Click highlighted areas on diagram

diagram 16027 16027A 16027B 16027B 16028 16028C 16028D 16028D 16028E 16028E 16028E 16028E 16206 16206 16206B 16261Q 16261Q 16261V 16261V 16261V 16261V 16331 16331A 16333 16333B 16333B 16333B 16333B 16333B 16341 16346 16577C 44851E0010 8716 8716 8716 8716 91511J0820 9673231040 SH55210816 SH55210816 SH55210816 SH55210816 SH55210816 SH55210820 SH55210820 SH55210820 SH55210820 SH55210832 SH55210850 SH55210860 SH55210870 SZ10508055
Part # Description Qty Price
16027 - PIPE SUB-ASSY, TURBO WATER, NO.1
16895-E0260

N04C..XZB40,50..LHD..GEN

 1
16027A - BOLT, UNION(FOR TURBO WATER PIPE)
SZ401-14004

N04C..XZB40,5#

 1
16027B - GASKET(FOR TURBO WATER PIPE)
SZ430-14003

N04C..XZB40,5#

 2
16027B - GASKET(FOR TURBO WATER PIPE)
SZ430-14003

N04C..XZB40,5#

 2
16028 - PIPE SUB-ASSY, TURBO WATER, NO.2
16027-E0060

N04C..XZB40,50..LHD..GEN

 1
16028C - RING, O(FOR TURBO WATER PIPE)
SN732-00092

N04C..XZB40,5#

 1
16028D - BOLT, UNION, NO.1(FOR TURBO WATER PIPE)
SZ401-14004

N04C..XZB40,5#

 2
16028D - BOLT, UNION, NO.1(FOR TURBO WATER PIPE)
SZ401-14004

N04C..XZB40,5#

 2
16028E - GASKET, NO.1(FOR TURBO WATER PIPE)
SZ430-14003

N04C..XZB40,5#

 4
16028E - GASKET, NO.1(FOR TURBO WATER PIPE)
SZ430-14003

N04C..XZB40,5#

 4
16028E - GASKET, NO.1(FOR TURBO WATER PIPE)
SZ430-14003

N04C..XZB40,5#

 4
16028E - GASKET, NO.1(FOR TURBO WATER PIPE)
SZ430-14003

N04C..XZB40,5#

 4
16206 - PIPE SUB-ASSY, WATER BY-PASS
16206-E0C20

N04C..XZB40,50..LHD..GEN

NO.2

 1
16260-E0060

N04C..XZB40,50..LHD..GEN

NO.1

 1
16206 - PIPE SUB-ASSY, WATER BY-PASS
16206-E0C20

N04C..XZB40,50..LHD..GEN

NO.2

 1
16260-E0060

N04C..XZB40,50..LHD..GEN

NO.1

 1
16206B - PIPE SUB-ASSY, WATER BY-PASS, NO.3
16206-E0B20

N04C..XZB40,50..LHD..GEN

 1
16261Q - HOSE, WATER BY-PASS
16261-E0230

N04C..XZB40,50..LHD..GEN

NO.2

 1
16261-E0220

N04C..XZB40,50..LHD..GEN

NO.1

 1
16261Q - HOSE, WATER BY-PASS
16261-E0230

N04C..XZB40,50..LHD..GEN

NO.2

 1
16261-E0220

N04C..XZB40,50..LHD..GEN

NO.1

 1
16261V - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
SZ466-22001

N04C..XZB40,5#

 4
16261V - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
SZ466-22001

N04C..XZB40,5#

 4
16261V - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
SZ466-22001

N04C..XZB40,5#

 4
16261V - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
SZ466-22001

N04C..XZB40,5#

 4
16331 - OUTLET, WATER
16331-E0120

N04C..XZB40,5#

 1
16331A - THERMOSTAT
SZ910-46039

N04C..XZB40,5#

*WAX 82-95

 1
16333 - HOUSING, WATER OUTLET
16303-E0193

N04C..XZB40,50..LHD..GEN

W(PNC 16341)

 1
16303-E0192

N04C..XZB40,50..LHD..GEN

W/O(PNC 16341)

 1
16333B - RING, O(FOR WATER OUTLET HOUSING)
SZ301-19015

N04C..XZB40,5#

NO.2

 3
SZ301-31011

N04C..XZB40,5#

NO.1

 3
16333B - RING, O(FOR WATER OUTLET HOUSING)
SZ301-19015

N04C..XZB40,5#

NO.2

 3
SZ301-31011

N04C..XZB40,5#

NO.1

 3
16333B - RING, O(FOR WATER OUTLET HOUSING)
SZ301-19015

N04C..XZB40,5#

NO.2

 3
SZ301-31011

N04C..XZB40,5#

NO.1

 3
16333B - RING, O(FOR WATER OUTLET HOUSING)
SZ301-19015

N04C..XZB40,5#

NO.2

 3
SZ301-31011

N04C..XZB40,5#

NO.1

 3
16333B - RING, O(FOR WATER OUTLET HOUSING)
SZ301-19015

N04C..XZB40,5#

NO.2

 3
SZ301-31011

N04C..XZB40,5#

NO.1

 3
16341 - GASKET, WATER OUTLET
16346-E0040

N04C..XZB40,50..LHD..GEN

 1
16346 - GASKET, THERMOSTAT
S1632-51420

N04C..XZB40,5#

 1
16577C - PIPE, RADIATOR
16577-78131

N04C..XZB40,5#

 1
Common parts
44851-E0010
91511-J0820
96732-31040
SH552-10816
SH552-10820
SH552-10832
SH552-10850
SH552-10860
SH552-10870
SZ105-08055
Linked diagrams
8716
