TRB60L-ZRMSKV (2017)
Toyota Coaster
ILLUST NO. 1 OF 2(1701- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46210 - LEVER ASSY, PARKING BRAKE | ||||
| 46210-36040B2 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) MD.GRAY,TRIM1# |
1 | ||
| 46241 - BOOT, PARKING BRAKE LEVER | ||||
| 46241-36030B2 |
HZB60,70,TRB60,70,XZB70..LHD MD.GRAY,TRIM1# |
1 | ||
| 46243 - COVER, PARKING BRAKE LEVER | ||||
| 46243-36060B0 |
HZB60,70,TRB60,70,XZB70..LHD MD.GRAY,TRIM1# |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-36470 |
TRB60 |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-36470 |
TRB60 |
1 | ||
| 46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE) | ||||
| 90949-01842 |
HZB60,70,TRB60,70,XZB70..LHD |
1 | ||
| 46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE) | ||||
| 90949-01839 |
XZB60..GEN;XZB70,80..6FC;BZB60,HZB60,70,TRB60,70 |
1 | ||
| 46420F - SEAL, DUST(FOR PARKING BRAKE CABLE) | ||||
| 90303-10001 |
HZB60,TRB60 |
1 | ||
| 46420G - SPRING(FOR PARKING CABLE INNER WIRE SET) | ||||
| 90501-14021 |
HZB60,TRB60 |
1 | ||
| 46420J - CLAMP, NO.3(FOR PARKING BRAKE CABLE) | ||||
| 90461-08225 |
HZB60,TRB60 |
1 | ||
| 46420P - SPACER, PARKING BRAKE | ||||
| 90560-08002 |
HZB60,TRB60 |
1 | ||
| 46420Q - RING, E(FOR PARKING BRAKE CABLE) | ||||
| 96160-00700 |
HZB60,TRB60 |
1 | ||
| 46441 - NUT, WIRE ADJUSTING, NO.1 | ||||
| 94130-60600 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
2 | ||
| 46441 - NUT, WIRE ADJUSTING, NO.1 | ||||
| 94130-60600 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
2 | ||
| 46441A - NUT, WIRE ADJUSTING, NO.2 | ||||
| 90339-04024 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 46451B - BRACKET, PARKING BRAKE CABLE SUPPORT | ||||
| 46451-36060 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 46464 - PLATE, CABLE CLAMP SUPPORT | ||||
| 46464-36030 |
HZB60,70,TRB60,70,XZB70..LHD |
1 | ||
| Common parts | ||||
| 90119-06315 | ||||
| 90468-08001 | ||||
| 91611-G0820 | ||||
| 91651-40814 | ||||
| 91651-B0820 | ||||
| 91651-B0825 | ||||
| 93319-55016 | ||||

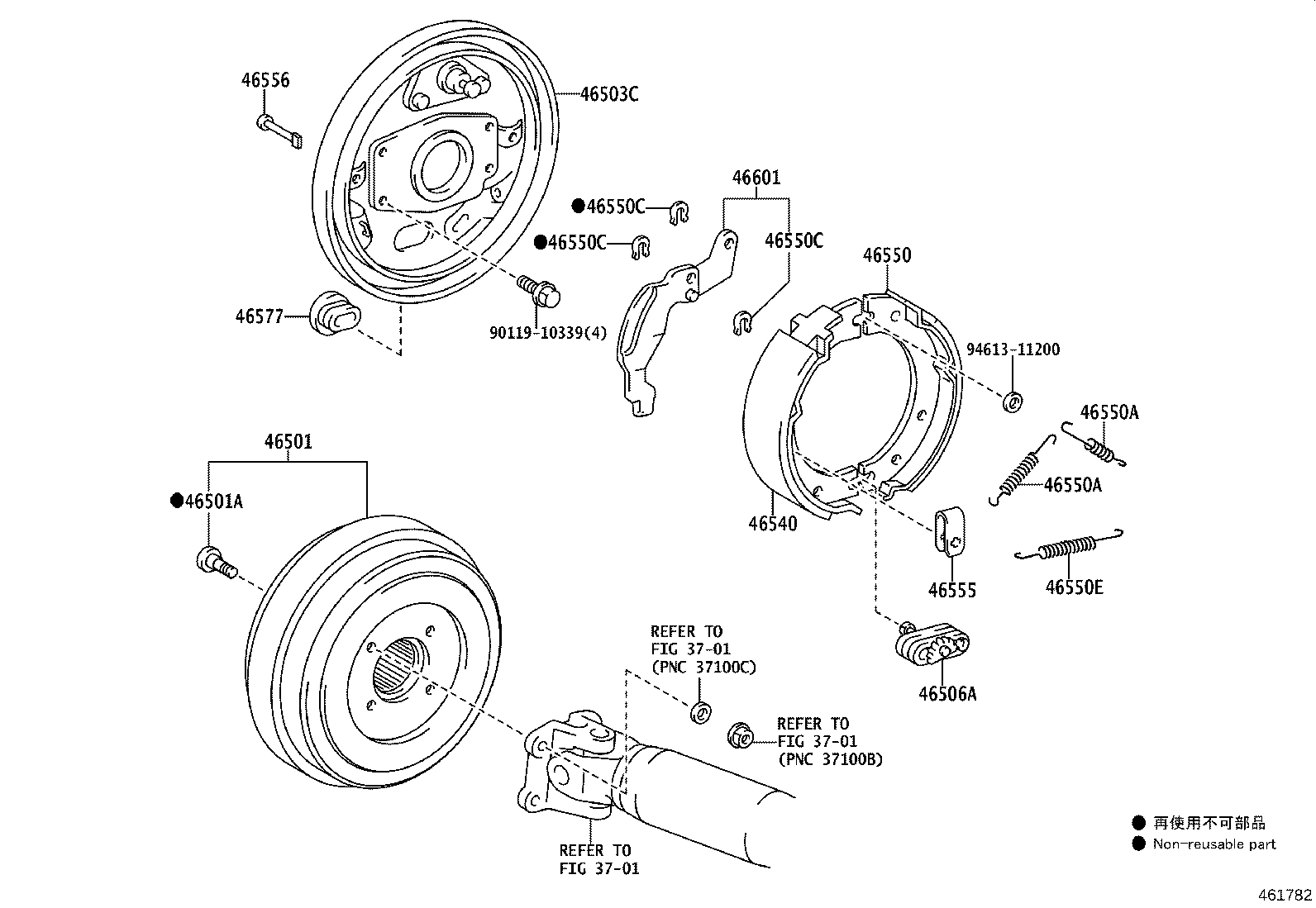

ILLUST NO. 2 OF 2(1701- )XZB60..GEN ; (1701- )BB60,BZB60,HZB60,TRB60
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46501 - DRUM SUB-ASSY, PARKING BRAKE | ||||
| 46501-36190 |
XZB60..GEN;BZB60,HZB60,TRB60 |
1 | ||
| 46501A - BOLT, SERRATION(FOR PARKING BRAKE DRUM) | ||||
| 90114-11124 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
4 | ||
| 46503C - PLATE SUB-ASSY, PARKING BRAKE | ||||
| 46503-36051 |
HZB60,TRB60..LHD |
1 | ||
| 46506A - ADJUSTER SUB-ASSY, PARKING BRAKE SHOE | ||||
| 46506-36020 |
HZB60,TRB60 |
1 | ||
| 46540 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.1 | ||||
| 46540-25010 |
TRB60;BZB60,HZB60,XZB60..RHD |
1 | ||
| 46550 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2 | ||||
| 46550-25010 |
TRB60;BZB60,HZB60,XZB60..RHD |
1 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-18012 |
XZB60..GEN;BZB60,HZB60,TRB60 |
2 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-18012 |
XZB60..GEN;BZB60,HZB60,TRB60 |
2 | ||
| 46550C - WASHER, TYPE C(FOR PARKING BRAKE SHOE) | ||||
| 90213-06003 |
TRB60;BZB60,HZB60,XZB60..RHD |
3 | ||
| 46550C - WASHER, TYPE C(FOR PARKING BRAKE SHOE) | ||||
| 90213-06003 |
TRB60;BZB60,HZB60,XZB60..RHD |
3 | ||
| 46550C - WASHER, TYPE C(FOR PARKING BRAKE SHOE) | ||||
| 90213-06003 |
TRB60;BZB60,HZB60,XZB60..RHD |
3 | ||
| 46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-14048 |
XZB60..GEN;BZB60,HZB60,TRB60 |
1 | ||
| 46555 - SPRING, BRAKE SHOE HOLD DOWN | ||||
| 46555-35010 |
XZB60..GEN;BZB60,HZB60,TRB60 |
2 | ||
| 46556 - PIN, SHOE HOLD DOWN SPRING | ||||
| 46556-35010 |
HZB60,TRB60 |
2 | ||
| 46577 - COVER, ADJUSTING CAM HOLE | ||||
| 46577-36010 |
HZB60,TRB60 |
1 | ||
| 46601 - LEVER SUB-ASSY, PARKING BRAKE SHOE | ||||
| 46601-36070 |
TRB60 |
1 | ||
| Common parts | ||||
| 90119-10339 | ||||
| 94613-11200 | ||||
| Linked diagrams | ||||
| 3701 | ||||
