TRB60L-ZRMRK (2017)
Toyota Coaster
(1701- )LHD

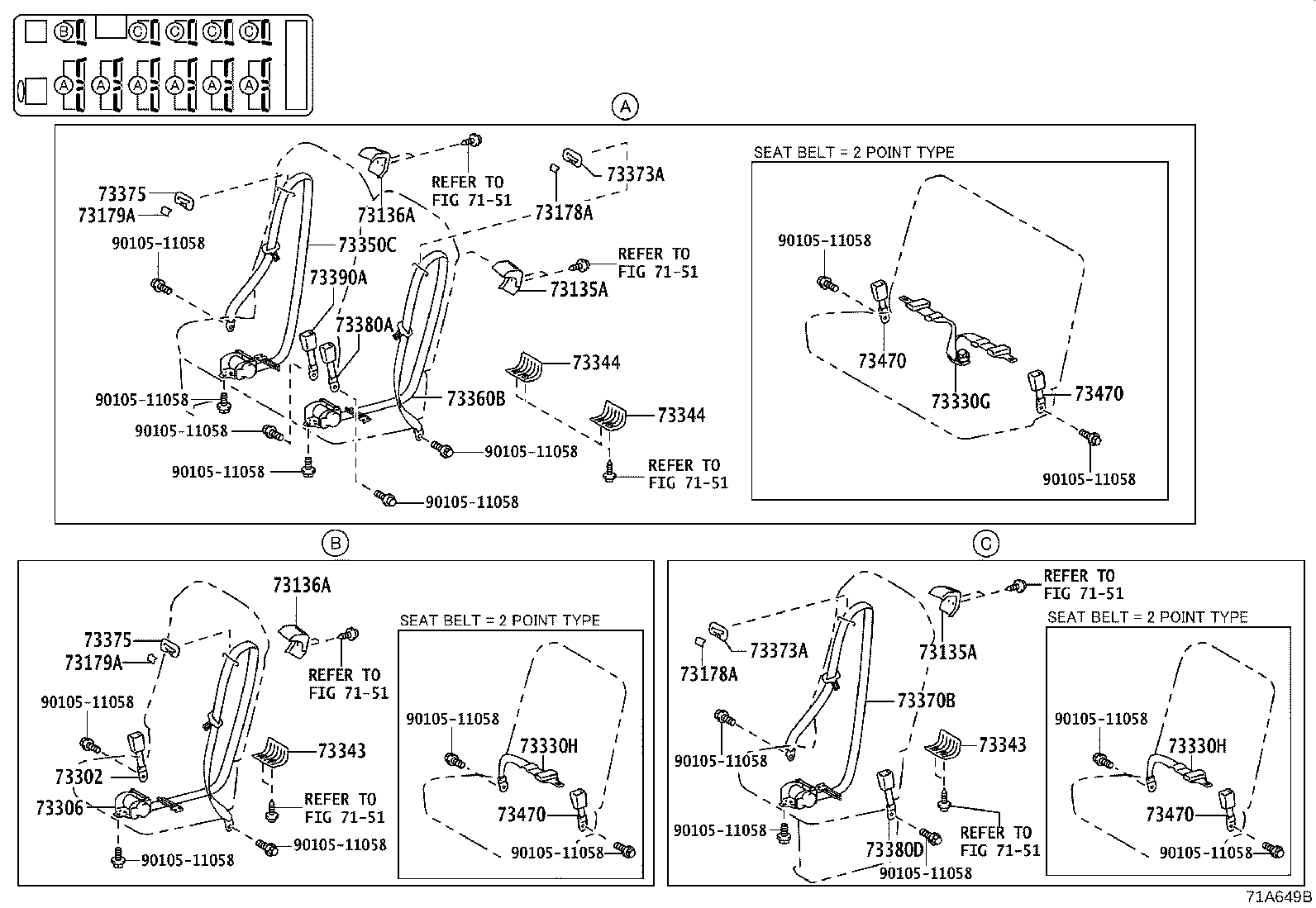

*DRS & *RES(NO.1) & SUB SEAT(NO.1)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73210 - BELT ASSY, FRONT SEAT OUTER, RH | ||||
| 73360-36170C0 |
HZB60,70,TRB60,70,XZB70..LHD..(GEN,TAIW) BLACK,TRIM1# |
1 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| 73220-36010C0 |
HZB60,70,TRB60,70,XZB70..LHD..(GEN,TAIW) BLACK,TRIM1# |
1 | ||
| 73220-36020C0 |
HZB60,70,TRB60,70,XZB70..LHD..(24S,26S,30S) FRONT SEAT BELT-WITH(*DRS-PRETENSIONER), WITH(*PAS),BLACK,TRIM1# |
1 | ||
| 73220-36020C0 |
HZB60,70,TRB60,70,XZB70..LHD..(24S,26S,30S) FRONT SEAT BELT-W(*DRS-PRETENSIONER), W(*PAS & SUB SEAT),BLACK,TRIM1# |
1 | ||
| 73223B - COVER, FRONT SEAT BELT RETRACTOR, RH | ||||
| 73173-36010B0 |
HZB60,70,TRB60,70,XZB70..LHD LT.GRAY,TRIM1# |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73380-36210C1 |
HZB60,70,TRB60,70,XZB70..LHD BLACK,TRIM1# |
1 | ||
| 73233 - COVER, LAP BELT OUTER ANCHOR | ||||
| 73233-60020C1 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) BLACK,TRIM1# |
1 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73230-36110C0 |
HZB60,70,TRB60,70,XZB70..LHD..(GEN,TAIW) BLACK,TRIM1# |
1 | ||
| 73303 - BELT SUB-ASSY, SUB SEAT, OUTER | ||||
| 73303-36040C0 |
HZB70..30S..DX;HZB60,70,TRB60,70,XZB70..LHD..(24S,26S,30S) FRONT SEAT BELT-WITH(*DRP),BLACK,TRIM1# |
1 | ||
| 73303-36040C0 |
HZB70..30S..DX;HZB60,70,TRB60,70,XZB70..LHD..(24S,26S,30S) BLACK,TRIM1# |
1 | ||
| 73303-36040C0 |
HZB70..30S..DX;HZB60,TRB60,70,XZB70..LHD..(24S,26S,30S) FRONT SEAT BELT-WITH(*DRS-PRETENSIONER), WITH(*PAS),BLACK,TRIM1# |
1 | ||
| 73303-36040C0 |
HZB70,TRB60,70,XZB70..LHD..(26S,30S) FRONT SEAT-HIGH BACK TYPE&FRONT SEAT BELT-WITH(*DRS-PRETENSIONER), WITH(*PAS),BLACK,TRIM1# |
1 | ||
| 73308 - BELT SUB-ASSY, SUB SEAT, INNER | ||||
| 73308-36031C0 |
HZB70..30S..DX;HZB60,70,TRB60,70,XZB70..LHD..(24S,26S,30S) FRONT SEAT BELT-WITH(*DRP),BLACK,TRIM1# |
1 | ||
| 73308-36031C0 |
HZB70..30S..DX;HZB60,70,TRB60,70,XZB70..LHD..(24S,26S,30S) BLACK,TRIM1# |
1 | ||
| 73308-36031C0 |
HZB70..30S..DX;HZB60,TRB60,70,XZB70..LHD..(24S,26S,30S) FRONT SEAT BELT-WITH(*DRS-PRETENSIONER), WITH(*PAS),BLACK,TRIM1# |
1 | ||
| 73308-36031C0 |
HZB70,TRB60,70,XZB70..LHD..(26S,30S) FRONT SEAT-HIGH BACK TYPE&FRONT SEAT BELT-WITH(*DRS-PRETENSIONER), WITH(*PAS),BLACK,TRIM1# |
1 | ||
| Common parts | ||||
| 90105-11058 | ||||
| 90467-07221 | ||||
| 90901-19040 | ||||
| 91553-80614 | ||||
(1701- )LHD..GCC,GEN
REAR SEAT(NO.2-NO.7)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73330G - BELT ASSY, RR SEAT LAP TYPE | ||||
| 73360-36150C0 |
HZB60,TRB60..GEN REAR SEAT BELT-WITH(2-POINT TYPE),BLACK,TRIM1# |
5 | ||
| 73360-36150C0 |
TRB60..GEN;BB60..LHD..WOC COOL BOX-WITH(REFRIGERATOR)&FRONT SEAT-HIGH BACK TYPE&REAR SEAT BELT-WITH(2-POINTTYPE),BLACK,TRIM1# |
6 | ||
| 73360-36150C0 |
TRB60..GEN;HZB60..RHD;HZB60..LHD..WOC COOL BOX-WITH(REFRIGERATOR)&REAR SEAT BELT-WITH(2-POINT TYPE),BLACK,TRIM1# |
5 | ||
| 73360-36150C0 |
BB60,TRB60..LHD..GEN FRONT SEAT-HIGH BACK TYPE&REAR SEAT BELT-WITH(2-POINT TYPE),BLACK,TRIM1# |
6 | ||
| 73330H - BELT ASSY, RR SEAT LAP TYPE | ||||
| 73360-36160C0 |
TRB60..GEN;BB60..LHD..WOC COOL BOX-WITH(REFRIGERATOR)&FRONT SEAT-HIGH BACK TYPE&REAR SEAT BELT-WITH(2-POINTTYPE),BLACK,TRIM1# |
4 | ||
| 73360-36160C0 |
BB60,TRB60..LHD..GEN FRONT SEAT-HIGH BACK TYPE&REAR SEAT BELT-WITH(2-POINT TYPE),BLACK,TRIM1# |
5 | ||
| 73360-36160C0 |
TRB60..GEN;HZB60..RHD;HZB60..LHD..WOC COOL BOX-WITH(REFRIGERATOR)&REAR SEAT BELT-WITH(2-POINT TYPE),BLACK,TRIM1# |
3 | ||
| 73360-36160C0 |
HZB60,TRB60..GEN REAR SEAT BELT-WITH(2-POINT TYPE),BLACK,TRIM1# |
4 | ||
| 73330H - BELT ASSY, RR SEAT LAP TYPE | ||||
| 73360-36160C0 |
TRB60..GEN;BB60..LHD..WOC COOL BOX-WITH(REFRIGERATOR)&FRONT SEAT-HIGH BACK TYPE&REAR SEAT BELT-WITH(2-POINTTYPE),BLACK,TRIM1# |
4 | ||
| 73360-36160C0 |
BB60,TRB60..LHD..GEN FRONT SEAT-HIGH BACK TYPE&REAR SEAT BELT-WITH(2-POINT TYPE),BLACK,TRIM1# |
5 | ||
| 73360-36160C0 |
TRB60..GEN;HZB60..RHD;HZB60..LHD..WOC COOL BOX-WITH(REFRIGERATOR)&REAR SEAT BELT-WITH(2-POINT TYPE),BLACK,TRIM1# |
3 | ||
| 73360-36160C0 |
HZB60,TRB60..GEN REAR SEAT BELT-WITH(2-POINT TYPE),BLACK,TRIM1# |
4 | ||
| 73470 - BELT ASSY, REAR SEAT, OUTER | ||||
| 73380-36201C0 |
TRB60..GEN;HZB60..RHD;HZB60..LHD..WOC COOL BOX-WITH(REFRIGERATOR)&REAR SEAT BELT-WITH(2-POINT TYPE),BLACK,TRIM1# |
13 | ||
| 73380-36201C0 |
BB60,TRB60..LHD..GEN FRONT SEAT-HIGH BACK TYPE&REAR SEAT BELT-WITH(2-POINT TYPE),BLACK,TRIM1# |
17 | ||
| 73380-36201C0 |
HZB60,TRB60..GEN REAR SEAT BELT-WITH(2-POINT TYPE),BLACK,TRIM1# |
14 | ||
| 73380-36201C0 |
TRB60..GEN;BB60..LHD..WOC COOL BOX-WITH(REFRIGERATOR)&FRONT SEAT-HIGH BACK TYPE&REAR SEAT BELT-WITH(2-POINTTYPE),BLACK,TRIM1# |
16 | ||
| 73470 - BELT ASSY, REAR SEAT, OUTER | ||||
| 73380-36201C0 |
TRB60..GEN;HZB60..RHD;HZB60..LHD..WOC COOL BOX-WITH(REFRIGERATOR)&REAR SEAT BELT-WITH(2-POINT TYPE),BLACK,TRIM1# |
13 | ||
| 73380-36201C0 |
BB60,TRB60..LHD..GEN FRONT SEAT-HIGH BACK TYPE&REAR SEAT BELT-WITH(2-POINT TYPE),BLACK,TRIM1# |
17 | ||
| 73380-36201C0 |
HZB60,TRB60..GEN REAR SEAT BELT-WITH(2-POINT TYPE),BLACK,TRIM1# |
14 | ||
| 73380-36201C0 |
TRB60..GEN;BB60..LHD..WOC COOL BOX-WITH(REFRIGERATOR)&FRONT SEAT-HIGH BACK TYPE&REAR SEAT BELT-WITH(2-POINTTYPE),BLACK,TRIM1# |
16 | ||
| 73470 - BELT ASSY, REAR SEAT, OUTER | ||||
| 73380-36201C0 |
TRB60..GEN;HZB60..RHD;HZB60..LHD..WOC COOL BOX-WITH(REFRIGERATOR)&REAR SEAT BELT-WITH(2-POINT TYPE),BLACK,TRIM1# |
13 | ||
| 73380-36201C0 |
BB60,TRB60..LHD..GEN FRONT SEAT-HIGH BACK TYPE&REAR SEAT BELT-WITH(2-POINT TYPE),BLACK,TRIM1# |
17 | ||
| 73380-36201C0 |
HZB60,TRB60..GEN REAR SEAT BELT-WITH(2-POINT TYPE),BLACK,TRIM1# |
14 | ||
| 73380-36201C0 |
TRB60..GEN;BB60..LHD..WOC COOL BOX-WITH(REFRIGERATOR)&FRONT SEAT-HIGH BACK TYPE&REAR SEAT BELT-WITH(2-POINTTYPE),BLACK,TRIM1# |
16 | ||
| 73470 - BELT ASSY, REAR SEAT, OUTER | ||||
| 73380-36201C0 |
TRB60..GEN;HZB60..RHD;HZB60..LHD..WOC COOL BOX-WITH(REFRIGERATOR)&REAR SEAT BELT-WITH(2-POINT TYPE),BLACK,TRIM1# |
13 | ||
| 73380-36201C0 |
BB60,TRB60..LHD..GEN FRONT SEAT-HIGH BACK TYPE&REAR SEAT BELT-WITH(2-POINT TYPE),BLACK,TRIM1# |
17 | ||
| 73380-36201C0 |
HZB60,TRB60..GEN REAR SEAT BELT-WITH(2-POINT TYPE),BLACK,TRIM1# |
14 | ||
| 73380-36201C0 |
TRB60..GEN;BB60..LHD..WOC COOL BOX-WITH(REFRIGERATOR)&FRONT SEAT-HIGH BACK TYPE&REAR SEAT BELT-WITH(2-POINTTYPE),BLACK,TRIM1# |
16 | ||
| Common parts | ||||
| 90105-11058 | ||||
| Linked diagrams | ||||
| 7151 | ||||
(1701- )
TONGUE STOPPER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33010 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) BLACK |
1 | ||
| 73219-33030 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) BEIGE |
1 | ||
| 73219-33020 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) GRAY |
1 | ||
(1701- )LHD..GCC,GEN

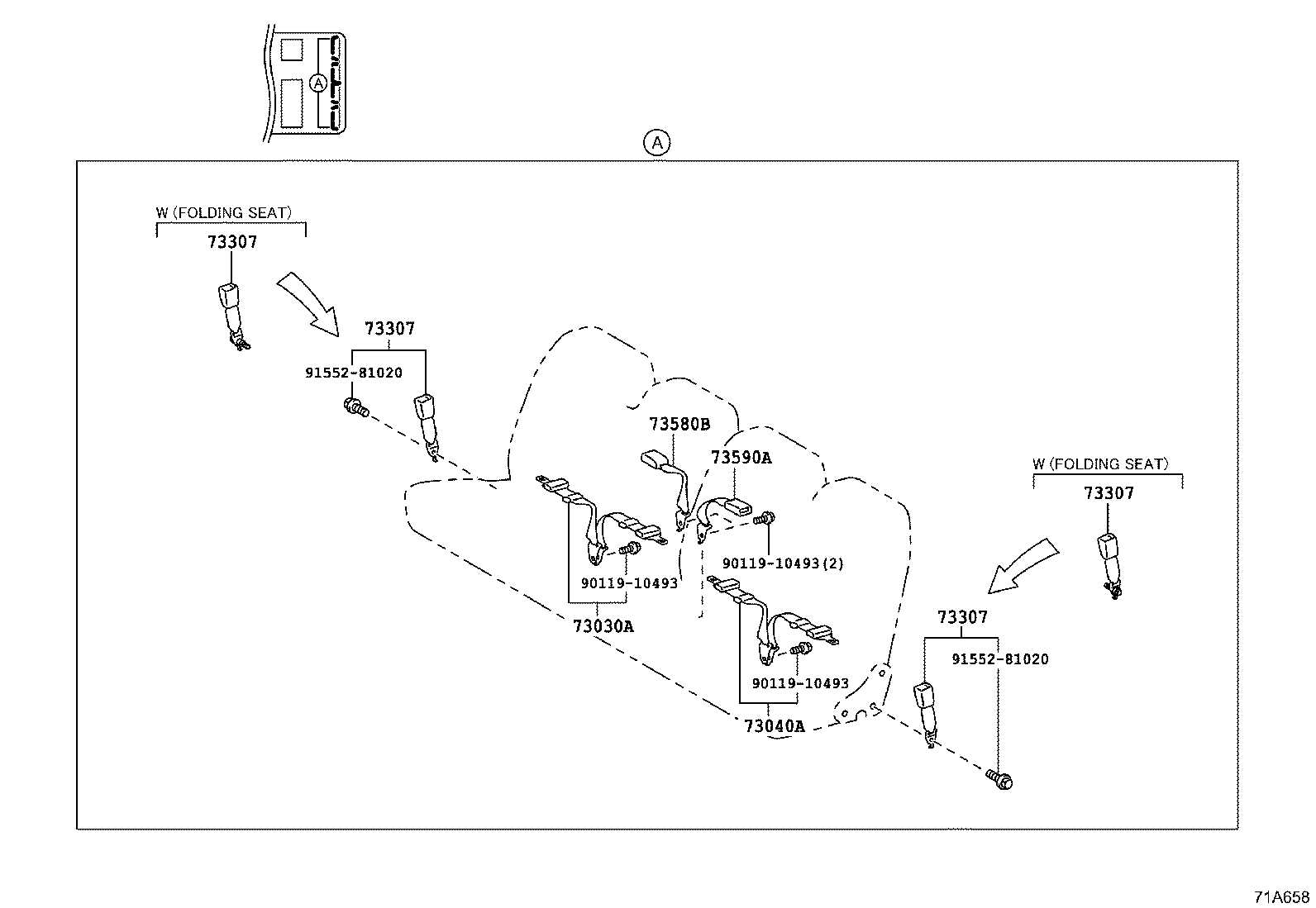

LAST ROW SEAT(NO.8),2-POINT TYPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73030A - BELT ASSY, REAR SEAT LAP TYPE, RH | ||||
| 73040-36021C0 |
HZB60,70,TRB60,70,XZB70..(24S,26S,29S,30S)..STD REAR SEAT BELT-WITH(2-POINT TYPE),BLACK,TRIM1# |
1 | ||
| 73040A - BELT ASSY, REAR SEAT LAP TYPE, LH | ||||
| 73030-36021C0 |
HZB60,70,TRB60,70,XZB70..(24S,26S,29S,30S)..STD REAR SEAT BELT-WITH(2-POINT TYPE),BLACK,TRIM1# |
1 | ||
| 73307 - BELT SUB-ASSY, REAR SEAT, INNER | ||||
| 73307-36030C0 |
HZB60,70,TRB60,70,XZB70..(24S,26S,29S,30S)..STD REAR SEAT BELT-WITH(2-POINT TYPE),BLACK,TRIM1# |
2 | ||
| 73307 - BELT SUB-ASSY, REAR SEAT, INNER | ||||
| 73307-36030C0 |
HZB60,70,TRB60,70,XZB70..(24S,26S,29S,30S)..STD REAR SEAT BELT-WITH(2-POINT TYPE),BLACK,TRIM1# |
2 | ||
| 73307 - BELT SUB-ASSY, REAR SEAT, INNER | ||||
| 73307-36030C0 |
HZB60,70,TRB60,70,XZB70..(24S,26S,29S,30S)..STD REAR SEAT BELT-WITH(2-POINT TYPE),BLACK,TRIM1# |
2 | ||
| 73307 - BELT SUB-ASSY, REAR SEAT, INNER | ||||
| 73307-36030C0 |
HZB60,70,TRB60,70,XZB70..(24S,26S,29S,30S)..STD REAR SEAT BELT-WITH(2-POINT TYPE),BLACK,TRIM1# |
2 | ||
| 73580B - BELT ASSY, REAR SEAT, INNER RH | ||||
| 73590-36020C0 |
HZB60,70,TRB60,70,XZB70..(24S,26S,29S,30S)..STD REAR SEAT BELT-WITH(2-POINT TYPE),BLACK,TRIM1# |
1 | ||
| 73590A - BELT ASSY, REAR SEAT, INNER LH | ||||
| 73580-36020C0 |
HZB60,70,TRB60,70,XZB70..(24S,26S,29S,30S)..STD REAR SEAT BELT-WITH(2-POINT TYPE),BLACK,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-10493 | ||||
| 91552-81020 | ||||
