RZB50L-ZGMSKC (2000)

Toyota Coaster

Production Dec 2000 - Nov 2002
Engine 3RZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0012-0211)RZB40,50..CHI

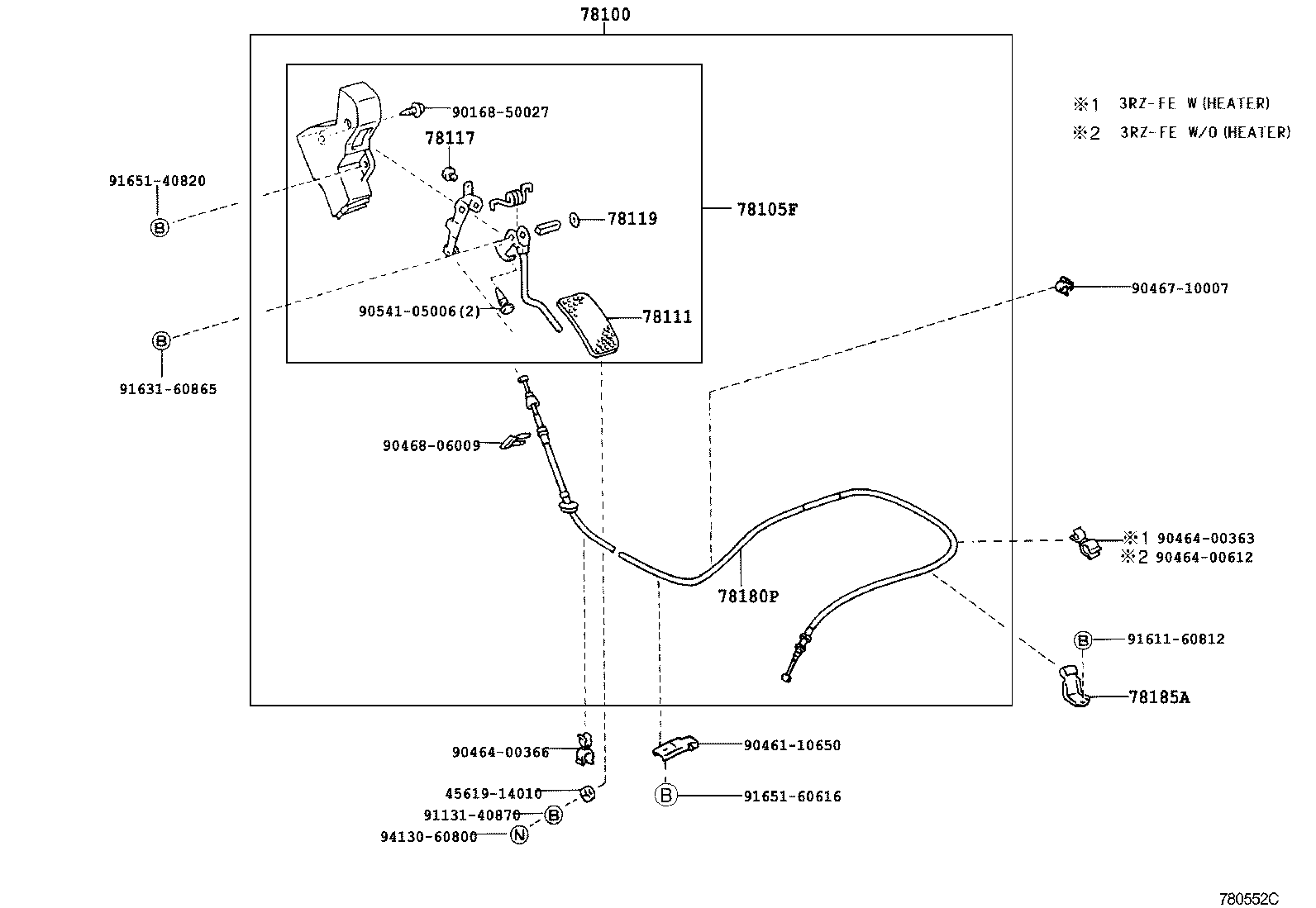

Click highlighted areas on diagram

diagram 4561914010 78100 78105F 78111 78117 78119 78180P 78185A 9016850027 9046110650 9046400363 9046400366 9046400612 9046710007 9046806009 9054105006 9113140870 9161160812 9163160865 9165140820 9165160616 9413060800
Part # Description Qty Price
78111 - PEDAL, ACCELERATOR
78111-95110

BB4#,HZB50,RZB40,50

 1
78117 - CUSHION (FOR ACCELERATOR ROD)
90541-06036

BB4#,5#,HZB50,RZB40,50

 1
78119 - STOPPER, ACCELERATOR PEDAL ROD
78119-95J00

BB4#,HZB50,RZB40,50

 1
Common parts
45619-14010
90168-50027
90461-10650
90464-00363
90464-00366
90464-00612
90467-10007
90468-06009
90541-05006
91131-40870
91611-60812
91631-60865
91651-40820
91651-60616
94130-60800
