RZB50L-ZGMSK (1999)

Toyota Coaster

Production Jul 1999 - Aug 2007
Engine 3RZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0608- )XZB40,50..LHD..EUR,GEN ; (0908- )TAIW

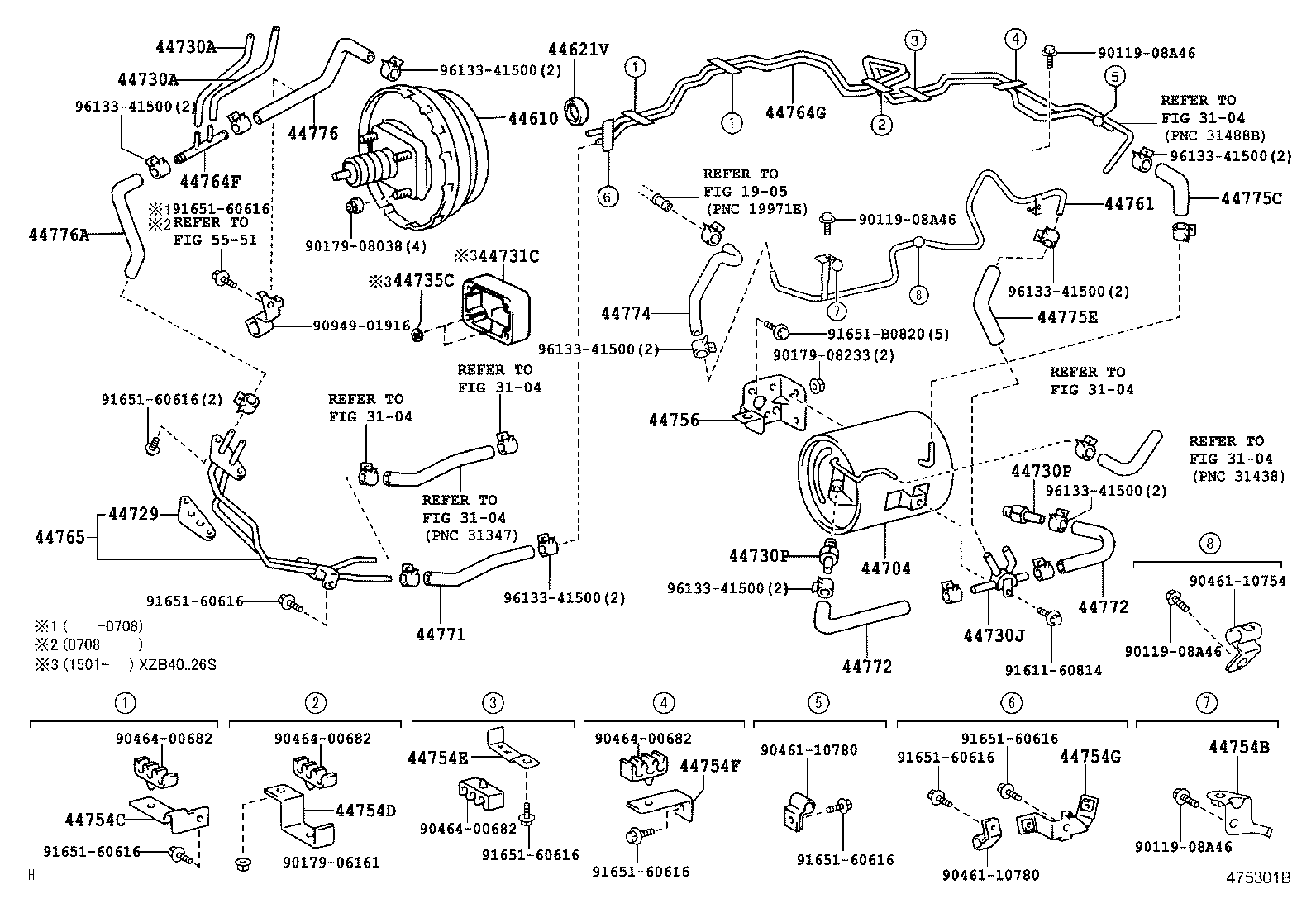

Click highlighted areas on diagram

W(ABS)

diagram 1905 3104 3104 3104 3104 3104 3104 44610 44621V 44704 44729 44730A 44730A 44730J 44730P 44730P 44731C 44735C 44754B 44754C 44754D 44754E 44754F 44754G 44756 44761 44764F 44764G 44765 44771 44772 44772 44774 44775C 44775E 44776 44776A 5551 9011908A46 9011908A46 9011908A46 9011908A46 9017906161 9017908038 9017908233 9046110754 9046110780 9046110780 9046400682 9046400682 9046400682 9046400682 9094901916 9161160814 9165160616 9165160616 9165160616 9165160616 9165160616 9165160616 9165160616 9165160616 9165160616 91651B0820 9613341500 9613341500 9613341500 9613341500 9613341500 9613341500 9613341500 9613341500
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-36530

BB5#,HZB50,RZB50..LHD..(GCC,GEN)

W(FR DISC BRAKE:RR AUTO ADJUSTER)

 1
44610-36530

BB50,58,HZB50,RZB50..LHD..(20S,23S,30S)..(GCC,GEN)

W(FR DISC BRAKE:RR AUTO ADJUSTER)

 1
44610-36530

RZB50

W(FR DISC BRAKE:RR AUTO ADJUSTER)

 1
44704 - RESERVOIR SUB-ASSY, VACUUM
44704-36260

BB50..EX..TDEFI;BB58,59,BZB40,50;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN)

 1
44729 - GASKET, VACUUM TUBE
44729-36020

BB4#,5#,HZB50,RZB40,50

 1
44729-36020

BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)

 1
44729-36020

RZB50;RZB40..GEN;RZB40..SRF..GCC

 1
44730J - WAY(FOR BOOSTER VACUUM)
90414-09001

BB43,5#,HZB50..TD

 1
90413-09040

BZB40,50

 1
44730P - VALVE ASSY, VACUUM CHECK, NO.1
44730-60050

BB43,5#,HZB50..TD

 2
44730-60050

BB50..EX..TDEFI;BB58,59,BZB40,50;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN)

 2
44730P - VALVE ASSY, VACUUM CHECK, NO.1
44730-60050

BB43,5#,HZB50..TD

 2
44730-60050

BB50..EX..TDEFI;BB58,59,BZB40,50;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN)

 2
44754C - BRACKET, VACUUM TUBE, NO.1
44754-36090

BZB40,50

 1
44754D - BRACKET, VACUUM TUBE, NO.2
44754-36110

BZB40,50

 2
44754-36110

BB4#,5#,HZB50

 1
44754E - BRACKET, VACUUM TUBE, NO.3
44754-36120

BB4#,5#,HZB50

 1
44754-36120

BB59,BZB40,50;BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..EX;HZB50..LHD..WOC;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI)

 1
44754F - BRACKET, VACUUM TUBE, NO.4
44754-36130

BB4#,5#,HZB50

 1
44754-36130

BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..EX;HZB50..LHD..WOC;BB58,59,BZB40,50;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI)

 1
44754G - BRACKET, VACUUM TUBE, NO.5
44754-36140

BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..EX;HZB50..LHD..WOC;BB58,59,BZB40,50;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI)

 1
44756 - BRACKET, VACUUM RESERVOIR
44757-36060

BB4#,5#,HZB50

 1
44757-36060

BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..EX;HZB50..LHD..WOC;BB58,59,BZB40,50;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI)

 1
44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR
44761-36250

BZB40,50

 1
44764G - TUBE, CONNECTOR TO BRAKE BOOSTER
44764-36590

BZB40,50

 1
44765 - TUBE, CONNECTOR TO BRAKE BOOSTER, NO.2
44765-36230

HZB50,RZB40,50..LHD..CBU

 1
44765-36310

RZB40..WOC..GEN;HZB50,RZB50..LHD..(GCC,GEN);RZB40..(17S,26S)..WC..(GCC,GEN)

 1
44765-36360

BZB40,50

 1
44765-36310

RZB50;RZB40..GEN;RZB40..SRF..GCC

 1
44771 - HOSE, VACUUM TUBE CONNECTOR
44771-36240

BB43,5#,HZB50,RZB40,50

 1
44771-36240

RZB40..WOC..GEN;BB50..LHD..TDEFI;RZB40..(17S,26S)..WC..(GCC,GEN);BB50,58,HZB50,RZB50..LHD..(20S,23S,30S)..(GCC,GEN)

 1
44771-36240

RZB50;RZB40..GEN;RZB40..SRF..GCC

 1
44771-36310

RZB40,50

 1
44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE
44772-36090

BB43,5#,HZB50..TD

 2
44772-36090

BB50..EX..TDEFI;BB58,59,BZB40,50;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN)

 2
44772-36090

XZB5#;BB50,BZB40,50..STD..(LPG,TD)

 2
44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE
44772-36090

BB43,5#,HZB50..TD

 2
44772-36090

BB50..EX..TDEFI;BB58,59,BZB40,50;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN)

 2
44772-36090

XZB5#;BB50,BZB40,50..STD..(LPG,TD)

 2
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-36310

RZB40..WOC..GEN;RZB40,50..(17S,26S,30S)..WC..(GCC,GEN)

 1
44774-36360

BZB40,50

 1
44774-36410

RZB40,50

 1
44774-36310

RZB50;RZB40..GEN;RZB40..SRF..GCC

 1
44775C - HOSE, CONNECTOR TO WAY
44775-36030

BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..EX;HZB50..LHD..WOC;BB58,59,BZB40,50;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI)

 1
44775-36030

XZB5#;BB42,50,BZB40,50,HZB50..STD..(DSL,LPG,TD)

 1
44775E - HOSE, WAY TO CONNECTOR
44775-36030

BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..EX;HZB50..LHD..WOC;BB58,59,BZB40,50;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI)

 1
44775-36030

BB42,50,BZB40,50,HZB50..STD..(DSL,LPG,TD)

 1
44776 - HOSE, BRAKE BOOSTER
44776-36100

BB42..WC..GCC;RZB40..WOC..GEN;BB42..LHD..26S..GEN;RZB40..(17S,26S)..WC..(GCC,GEN);BB50,58,HZB50,RZB50..LHD..(20S,23S,30S)..(GCC,GEN)

 1
44776-36100

BB42,5#,HZB50,RZB40,50..LHD

 1
44776-36100

RZB50;RZB40..GEN;RZB40..SRF..GCC

 1
Common parts
90119-08A46
90179-06161
90179-08038
90179-08233
90461-10754
90461-10780
90464-00682
90949-01916
91611-60814
91651-60616
91651-B0820
96133-41500
Linked diagrams
1905
3104
5551
