Toyota Coaster RZB50 FUEL TANK & TUBE

RZB50L-BGMSUV (1993)

Toyota Coaster

Production Sep 1993 - Jul 1999

Engine 3RZF

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 2 OF 4(9309-9907)RZB50

Click highlighted areas on diagram

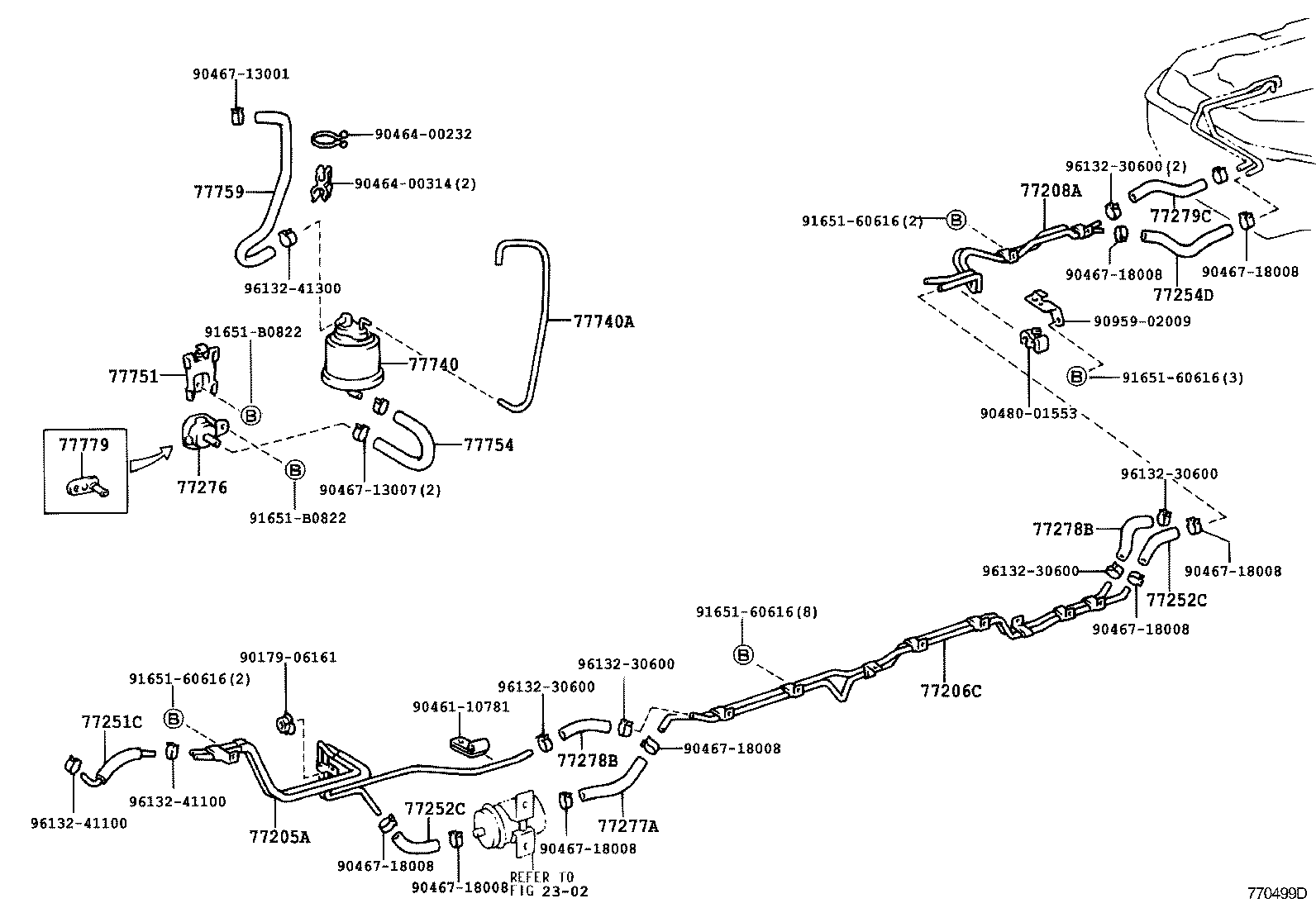

FUEL TUBE

Part #	Description	Period	Qty
77205A - TUBE SUB-ASSY, FUEL MAIN
77205-36830	RZB40,50	09/1993 - 07/1999	1
77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2
77206-36480	RZB50	09/1993 - 07/1999	1
77208A - TUBE SUB-ASSY, FUEL MAIN, NO.4
77208-36140	HZB50,RZB40,50	01/1993 - 07/1999	1
77208-36150	BB4#,5#	01/1993 - 07/1999	1
77251C - HOSE, FUEL, NO.1(FOR FUEL MAIN TUBE)
77259-36130	BB43,50..CBU	05/1997 - 07/1999	1
90447-12057	RZB40,50 L=340	09/1993 - 07/1999	1
77252C - HOSE, FUEL, NO.2(FOR FUEL MAIN NO.2 TUBE)
95334-12018	RZB40,50	09/1993 - 02/1996	1
95334-12019	RZB40,50	02/1996 - 07/1999	1
95332-10030	BB50..EUR;BB43,50..CBU	05/1997 - 07/1999	1
77254D - HOSE, FUEL
95334-12018	RZB40,50	10/1993 - 07/1999	1
95332-10018	BB4#,5#	01/1993 - 07/1999	1
77276 - PROTECTOR, FUEL HOSE
77276-26081	RZB40,50	09/1995 - 05/1997	1
77276-26080	RZB40,50	09/1993 - 09/1995	1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
95334-12030	RZB40,50 L=300	10/1993 - 07/1999	1
77278B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2)
95333-06030	BB50..EUR;BB43,50..CBU *H,L=240	05/1997 - 07/1999	1
95333-06020	RZB40,50 *H,L=180	09/1993 - 07/1999	1
77278B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2)
95333-06030	BB50..EUR;BB43,50..CBU *H,L=240	05/1997 - 07/1999	1
95333-06020	RZB40,50 *H,L=180	09/1993 - 07/1999	1
77279C - HOSE, FUEL
95333-06020	BB4#,5#,HZB50,RZB40,50..ARL,GCC,GEN,SCO	10/1996 - 07/1999	1
95333-06020	BB4#,50,HZB50,RZB40,50	01/1993 - 10/1996	1
77740 - CANISTER ASSY, CHARCOAL
77704-26040	RZB40,50	09/1993 - 07/1999	1
77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)
90999-92003	RZB40,50 H,L=600,MARK=#	09/1993 - 07/1999	1
77751 - BRACKET, CHARCOAL CANISTER BASE
77751-36050	RZB40,50	09/1993 - 07/1999	1
77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1
77754-36010	RZB40,50	09/1993 - 02/1997	1
77754-36011	RZB40,50	02/1997 - 07/1999	1
77759 - HOSE, CHARCOAL CANISTER
77759-36050	RZB40,50	09/1993 - 07/1999	1
77779 - TUBE, CHARCOAL CANISTER OUTLET
77779-36010	RZB40,50	05/1997 - 07/1999	1
Common parts
90179-06161
90461-10781
90464-00232
90464-00314
90467-13001
90467-13007
90467-18008
90480-01553
90959-02009
91651-60616
91651-B0822
96132-30600
96132-41100
96132-41300
Linked diagrams
2302

ILLUST NO. 2 OF 4(9705-9907)RZB40,50

Click highlighted areas on diagram

CHINA SPEC FUEL TUBE

Part #	Description	Period	Qty
77205A - TUBE SUB-ASSY, FUEL MAIN
77205-36830	RZB40,50	09/1993 - 07/1999	1
77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2
77206-36480	RZB50	09/1993 - 07/1999	1
77208A - TUBE SUB-ASSY, FUEL MAIN, NO.4
77208-36140	HZB50,RZB40,50	01/1993 - 07/1999	1
77208-36150	BB4#,5#	01/1993 - 07/1999	1
77252C - HOSE, FUEL, NO.2(FOR FUEL MAIN NO.2 TUBE)
95334-12018	RZB40,50	09/1993 - 02/1996	1
95334-12019	RZB40,50	02/1996 - 07/1999	1
95332-10030	BB50..EUR;BB43,50..CBU	05/1997 - 07/1999	1
77252C - HOSE, FUEL, NO.2(FOR FUEL MAIN NO.2 TUBE)
95334-12018	RZB40,50	09/1993 - 02/1996	1
95334-12019	RZB40,50	02/1996 - 07/1999	1
95332-10030	BB50..EUR;BB43,50..CBU	05/1997 - 07/1999	1
77254D - HOSE, FUEL
95334-12018	RZB40,50	10/1993 - 07/1999	1
95332-10018	BB4#,5#	01/1993 - 07/1999	1
77276 - PROTECTOR, FUEL HOSE
77276-26081	RZB40,50	09/1995 - 05/1997	1
77276-26080	RZB40,50	09/1993 - 09/1995	1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
95334-12030	RZB40,50 L=300	10/1993 - 07/1999	1
77278B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2)
95333-06030	BB50..EUR;BB43,50..CBU *H,L=240	05/1997 - 07/1999	1
95333-06020	RZB40,50 *H,L=180	09/1993 - 07/1999	1
77278B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2)
95333-06030	BB50..EUR;BB43,50..CBU *H,L=240	05/1997 - 07/1999	1
95333-06020	RZB40,50 *H,L=180	09/1993 - 07/1999	1
77279C - HOSE, FUEL
95333-06020	BB4#,5#,HZB50,RZB40,50..ARL,GCC,GEN,SCO	10/1996 - 07/1999	1
95333-06020	BB4#,50,HZB50,RZB40,50	01/1993 - 10/1996	1
77740 - CANISTER ASSY, CHARCOAL
77704-26040	RZB40,50	09/1993 - 07/1999	1
77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)
90999-92003	RZB40,50 H,L=600,MARK=#	09/1993 - 07/1999	1
77751 - BRACKET, CHARCOAL CANISTER BASE
77751-36050	RZB40,50	09/1993 - 07/1999	1
77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1
77754-36010	RZB40,50	09/1993 - 02/1997	1
77754-36011	RZB40,50	02/1997 - 07/1999	1
77759 - HOSE, CHARCOAL CANISTER
77759-36050	RZB40,50	09/1993 - 07/1999	1
77779 - TUBE, CHARCOAL CANISTER OUTLET
77779-36010	RZB40,50	05/1997 - 07/1999	1
Common parts
90119-08A46
90179-06161
90461-10616
90461-10781
90464-00232
90464-00314
90467-13001
90467-13007
90467-18008
90959-02009
91651-60616
91651-B0822
96132-30600
96132-41300

ILLUST NO. 1 OF 4(9301-0602)BB4#,5#,HZB50,RZB40,50

Click highlighted areas on diagram

FUEL TANK

Part #	Description	Period	Qty
77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER
77011-12130	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	1
77017B - TUBE SUB-ASSY, FUEL TANK VENT
77017-36420	BB4#,5#	01/1993 - 07/1999	1
77017-36430	HZB50,RZB40,50	01/1993 - 07/1999	1
77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE
77023-36010	BB4#,5#	01/1993 - 07/1999	1
77023-60010	HZB50,RZB40,50	01/1993 - 07/1999	1
77026A - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1
77026-36020	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	1
77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77035-36030	BB5#,HZB50,RZB50..LHD..CBU	12/1997 - 07/1999	1
77035-36030	BB50,HZB50,RZB50..LHD..CBU	01/1993 - 12/1997	1
77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID
77037-36010	HZB50..30S..4FC;BB4#,5#,HZB50,RZB40,50..(DX,STD)..CBU..5F	01/1993 - 11/1997	1
77037-12050	BB4#,50,HZB50,RZB40,50..CBU W(FUEL LID OPENER)	01/1993 - 12/1997	1
77037-36010	BB4#,50,HZB50,RZB40,50..(DX,STD)..CBU..5F	11/1997 - 07/1999	1
77037-12050	BB4#,5#,HZB50,RZB40,50..CBU W(FUEL LID OPENER)	12/1997 - 07/1999	1
77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID
77037-36010	HZB50..30S..4FC;BB4#,5#,HZB50,RZB40,50..(DX,STD)..CBU..5F	01/1993 - 11/1997	1
77037-12050	BB4#,50,HZB50,RZB40,50..CBU W(FUEL LID OPENER)	01/1993 - 12/1997	1
77037-36010	BB4#,50,HZB50,RZB40,50..(DX,STD)..CBU..5F	11/1997 - 07/1999	1
77037-12050	BB4#,5#,HZB50,RZB40,50..CBU W(FUEL LID OPENER)	12/1997 - 07/1999	1
77051 - LEVER SUB-ASSY, FUEL LID OPEN
77051-30060E1	BB4#,RZB40,50;HZB50..LHD..DSL GREIGE,TRIM4#	01/1993 - 05/1995	1
77051-30060E1	BB4#,5#,HZB50,RZB40,50..CBU GREIGE,TRIM4#	12/1997 - 07/1999	1
77051-30060E1	BB4#,50,HZB50,RZB40,50..CBU GREIGE,TRIM4#	05/1995 - 12/1997	1
77100 - TANK ASSY, FUEL
77001-3B260	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	1
77100A - PLUG(FOR FUEL TANK)
90105-12116	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	1
77100B - GASKET(FOR FUEL TANK)
90430-12245	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	1
77135 - BRACKET, CHECK VALVE
77135-36040	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	1
77169A - GASKET, FUEL SUCTION TUBE SET
77169-14020	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	1
77169A - GASKET, FUEL SUCTION TUBE SET
77169-14020	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	1
77178 - GASKET, FUEL TANK FILLER PIPE, LOWER
77178-20030	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	1
77179A - GASKET, FUEL TANK BREATHER TUBE
77179-26010	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	2
77179A - GASKET, FUEL TANK BREATHER TUBE
77179-26010	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	2
77201 - PIPE SUB-ASSY, FUEL TANK INLET
77201-36170	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	1
77213B - HOSE, FUEL TANK TO FILLER PIPE
77213-36090	BB4#,5#,HZB50,RZB40,50..CBU	01/1993 - 11/1997	1
77213-36090	BB4#,5#,HZB50,RZB40,50..ARL,GCC,GEN,SCO	11/1997 - 07/1999	1
77219 - COVER, FUEL TANK FILLER PIPE
77219-32030	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	2
77219 - COVER, FUEL TANK FILLER PIPE
77219-32030	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	2
77259A - HOSE, FUEL(FOR BREATHER TUBE)
77259-36070	BB4#,5#,HZB50,RZB40,50..CBU	01/1993 - 11/1997	1
77259-36070	BB4#,5#,HZB50,RZB40,50..ARL,GCC,GEN,SCO	11/1997 - 07/1999	1
77259C - HOSE, FUEL
77259-36090	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	1
77290 - SHIELD ASSY, FUEL TANK FILLER PIPE
77291-12060	BB4#,5#,HZB50,RZB40,50	01/1993 - 11/1997	1
77291-12060	BB50..EUR;BB4#,5#,HZB50,RZB40,50..CBU	11/1997 - 07/1999	1
77293A - SHIELD, FUEL TANK FILLER PIPE, NO.3
77293-12030	BB50..EUR;BB4#,5#,HZB50,RZB40,50..CBU	11/1997 - 07/1999	1
77293-12030	BB4#,5#,HZB50,RZB40,50	01/1993 - 11/1997	1
77310A - CAP ASSY, FUEL TANK
77310-12150	BB4#,5#,HZB50	03/1998 - 07/1999	1
77310-35070	RZB40,50	09/1993 - 03/1998	1
77310-48010	RZB40,50	03/1998 - 07/1999	1
77310-35110	BB4#,5#,HZB50	01/1993 - 03/1998	1
77316 - GASKET, FUEL TANK CAP
77316-16010	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	1
77350 - LID ASSY, FUEL FILLER OPENING
77350-36020	HZB50..30S..4FC;BB4#,5#,HZB50,RZB40,50..(DX,STD)..CBU..5F	01/1993 - 12/1997	1
77350-36010	BB4#,5#,HZB50,RZB40,50..CBU W(FUEL LID OPENER)	12/1997 - 07/1999	1
77350-36010	HZB50..30S..4FC;BB4#,50,HZB50,RZB40,50..(DX,STD)..CBU..5F W(FUEL LID OPENER)	01/1993 - 12/1997	1
77350-36020	BB4#,50,HZB50,RZB40,50..(DX,STD)..CBU..5F	12/1997 - 07/1999	1
77366 - SPRING, FUEL FILLER OPENING LID HINGE
77360-36010	BB4#,5#,HZB50,RZB40,50..CBU	01/1993 - 07/1999	1
77377 - RETAINER, FUEL FILLER OPENING LID LOCK
77377-20030	BB4#,5#,HZB50,RZB40,50..CBU	01/1993 - 07/1999	1
77380 - VALVE ASSY, FUEL CUT OFF
77380-26010	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	1
77391 - RING, FUEL INLET BOX
77391-14020	BB50..EUR;BB4#,5#,HZB50,RZB40,50..CBU	11/1997 - 07/1999	1
77391-14020	BB4#,5#,HZB50,RZB40,50	01/1993 - 11/1997	1
77420 - VALVE ASSY, FUEL CUT OFF, NO.2
77420-26010	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	1
77611 - BAND, FUEL TANK
77601-36120	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	2
77611 - BAND, FUEL TANK
77601-36120	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	2
77611A - PIN (FOR FUEL TANK BAND)
90240-08047	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	2
77613A - BRACKET, FUEL TANK BAND, NO.1
77613-36030	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	2
77651A - CUSHION, FUEL TANK, NO.1
77651-36130	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	3
77651A - CUSHION, FUEL TANK, NO.1
77651-36130	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	3
77651A - CUSHION, FUEL TANK, NO.1
77651-36130	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	3
77652A - CUSHION, FUEL TANK, NO.2
77652-36010	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	2
77652A - CUSHION, FUEL TANK, NO.2
77652-36010	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	2
77653A - CUSHION, FUEL TANK, NO.3
77653-36010	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	4
77653A - CUSHION, FUEL TANK, NO.3
77653-36010	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	4
77653A - CUSHION, FUEL TANK, NO.3
77653-36010	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	4
77653A - CUSHION, FUEL TANK, NO.3
77653-36010	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	4
77681A - SEAT, FUEL TANK BAND
77681-36050	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	2
77681A - SEAT, FUEL TANK BAND
77681-36050	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	2
77701T - VALVE, CHECK (FOR MAIN FUEL TANK)
90917-10020	BB4#,5#,HZB50,RZB40,50..ARL,GCC,GEN,SCO	11/1997 - 07/1999	1
90917-10020	BB4#,5#,HZB50,RZB40,50..CBU	01/1993 - 11/1997	1
Common parts
82711-22270
82711-33170
90159-50217
90159-50219
90159-50258
90159-50278
90159-60008
90179-05011
90179-05042
90179-06308
90179-10074
90183-05094
90189-06013
90189-06099
90460-22002
90460-46005
90467-09007
90467-09123
90468-14004
90480-14003
91651-60616
91651-61025
91651-A0816
91655-B1040
93319-A4010
93568-55014
96132-41100
Linked diagrams
8401

RZB50L-BGMSUV (1993)

ILLUST NO. 2 OF 4(9309-9907)RZB50

ILLUST NO. 2 OF 4(9705-9907)RZB40,50

ILLUST NO. 1 OF 4(9301-0602)BB4#,5#,HZB50,RZB40,50

Part Price Details
