RZB50L-BGMSUV (1993)
Toyota Coaster

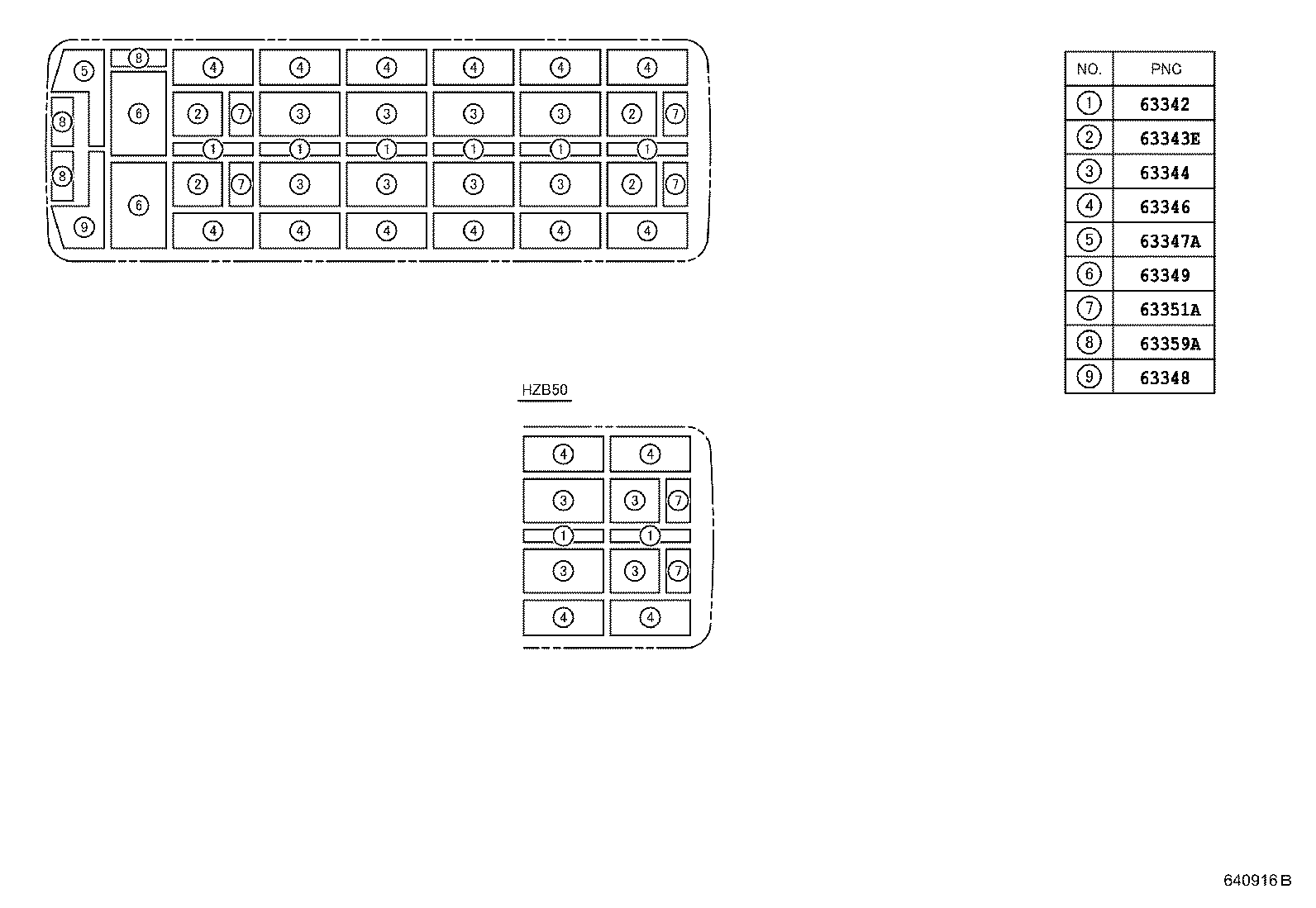

ILLUST NO. 3 OF 3(9301-1501)BB40,43,5#,BZB40,50,RZB40,50,TRB40,50,XZB40,5# ; (1501- )HRF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63349-36031 |
HZB50,RZB50..SRF |
7 | ||
| 63349-36031 |
HZB50,RZB50..SRF |
7 | ||
| 63343E - PAD, ROOF SILENCER, NO.3 | ||||
| 63349-36031 |
HZB50..DSL;BB4#,5#,RZB40,50..(ARL,GCC,GEN)..CBU |
4 | ||
| 63349-36031 |
HZB50..DSL;BB4#,5#,RZB40,50..(ARL,GCC,GEN)..CBU |
4 | ||
| 63349-36031 |
RZB50..SRF..GCC;BB42,HZB50,RZB40..LHD..SRF..WC |
4 | ||
| 63349-36031 |
RZB50..SRF..GCC;BB42,HZB50,RZB40..LHD..SRF..WC |
4 | ||
| 63344 - PAD, ROOF SILENCER, NO.4 | ||||
| 63344-36010 |
BB5#,HZB50,RZB50..CBU |
10 | ||
| 63344-36010 |
BB5#,HZB50,RZB50..CBU |
10 | ||
| 63344-36010 |
BB4#..RHD;RZB50..SRF..GCC;HZB50..LHD..SRF..WC;BB42,RZB40..LHD..HRF;BB42,RZB40..LHD..WOC |
10 | ||
| 63344-36010 |
BB4#..RHD;RZB50..SRF..GCC;HZB50..LHD..SRF..WC;BB42,RZB40..LHD..HRF;BB42,RZB40..LHD..WOC |
10 | ||
| 63346 - PAD, ROOF SILENCER, NO.6 | ||||
| 63349-36031 |
HZB50,RZB50..SRF |
14 | ||
| 63349-36031 |
HZB50,RZB50..SRF |
14 | ||
| 63347A - PAD, ROOF SILENCER, NO.7 | ||||
| 63349-36031 |
BB42,HZB50,RZB40,50..SRF..GCC |
1 | ||
| 63349-36031 |
BB42,HZB50,RZB40,50..SRF..GCC |
1 | ||
| 63347-36041 |
HZB50..5F..DSL;HZB50..30S..4FC;BB40,42,5#,RZB40,50..(ARL,GCC,GEN)..CBU |
1 | ||
| 63347-36041 |
HZB50..5F..DSL;HZB50..30S..4FC;BB40,42,5#,RZB40,50..(ARL,GCC,GEN)..CBU |
1 | ||
| 63347-36041 |
BB42,HZB50,RZB40,50..SRF |
1 | ||
| 63347-36041 |
BB42,HZB50,RZB40,50..SRF |
1 | ||
| 63347A - PAD, ROOF SILENCER, NO.7 | ||||
| 63349-36031 |
BB42,HZB50,RZB40,50..SRF..GCC |
1 | ||
| 63349-36031 |
BB42,HZB50,RZB40,50..SRF..GCC |
1 | ||
| 63347-36041 |
HZB50..5F..DSL;HZB50..30S..4FC;BB40,42,5#,RZB40,50..(ARL,GCC,GEN)..CBU |
1 | ||
| 63347-36041 |
HZB50..5F..DSL;HZB50..30S..4FC;BB40,42,5#,RZB40,50..(ARL,GCC,GEN)..CBU |
1 | ||
| 63347-36041 |
BB42,HZB50,RZB40,50..SRF |
1 | ||
| 63347-36041 |
BB42,HZB50,RZB40,50..SRF |
1 | ||
| 63348 - PAD, ROOF SILENCER, NO.8 | ||||
| 63349-36031 |
BB42,HZB50,RZB40,50..SRF..GCC |
1 | ||
| 63349-36031 |
BB42,HZB50,RZB40,50..SRF..GCC |
1 | ||
| 63348-36040 |
HZB50..5F..DSL;HZB50..30S..4FC;BB4#,5#,RZB40,50..(ARL,GCC,GEN)..CBU |
1 | ||
| 63348-36040 |
HZB50..5F..DSL;HZB50..30S..4FC;BB4#,5#,RZB40,50..(ARL,GCC,GEN)..CBU |
1 | ||
| 63349 - PAD, ROOF SILENCER, NO.9 | ||||
| 63349-36031 |
BB4#;RZB50..SRF;RZB50..HRF..GEN;HZB50,RZB40..SRF..GCC;HZB50,RZB40..ARL,GEN,SCO |
2 | ||
| 63349-36031 |
BB4#;RZB50..SRF;RZB50..HRF..GEN;HZB50,RZB40..SRF..GCC;HZB50,RZB40..ARL,GEN,SCO |
2 | ||
| 63349-36031 |
BB4#,5#,HZB50,RZB40,50..CBU |
2 | ||
| 63349-36031 |
BB4#,5#,HZB50,RZB40,50..CBU |
2 | ||
| 63351A - PAD, ROOF SILENCER, NO.10 | ||||
| 63349-36031 |
HZB50..DSL;BB4#,5#,RZB40,50..(ARL,GCC,GEN)..CBU |
4 | ||
| 63349-36031 |
HZB50..DSL;BB4#,5#,RZB40,50..(ARL,GCC,GEN)..CBU |
4 | ||
| 63349-36031 |
RZB50..SRF..GCC;BB40,42,HZB50..HRF..WOC;BB42,HZB50,RZB40..LHD..SRF..WC |
4 | ||
| 63349-36031 |
RZB50..SRF..GCC;BB40,42,HZB50..HRF..WOC;BB42,HZB50,RZB40..LHD..SRF..WC |
4 | ||
| 63359A - PAD, ROOF SILENCER, NO.18 | ||||
| 63347-36032 |
BB4#,5#,HZB50,RZB40,50..CBU |
1 | ||
| 63347-36032 |
BB4#,5#,HZB50,RZB40,50..CBU |
1 | ||
| 63349-36031 |
BB4#,HZB50,RZB40,50..CBU |
1 | ||
| 63349-36031 |
BB4#,HZB50,RZB40,50..CBU |
1 | ||
| 63347-36032 |
BB42,HZB50,RZB40,50..SRF |
3 | ||
| 63347-36032 |
BB42,HZB50,RZB40,50..SRF |
3 | ||

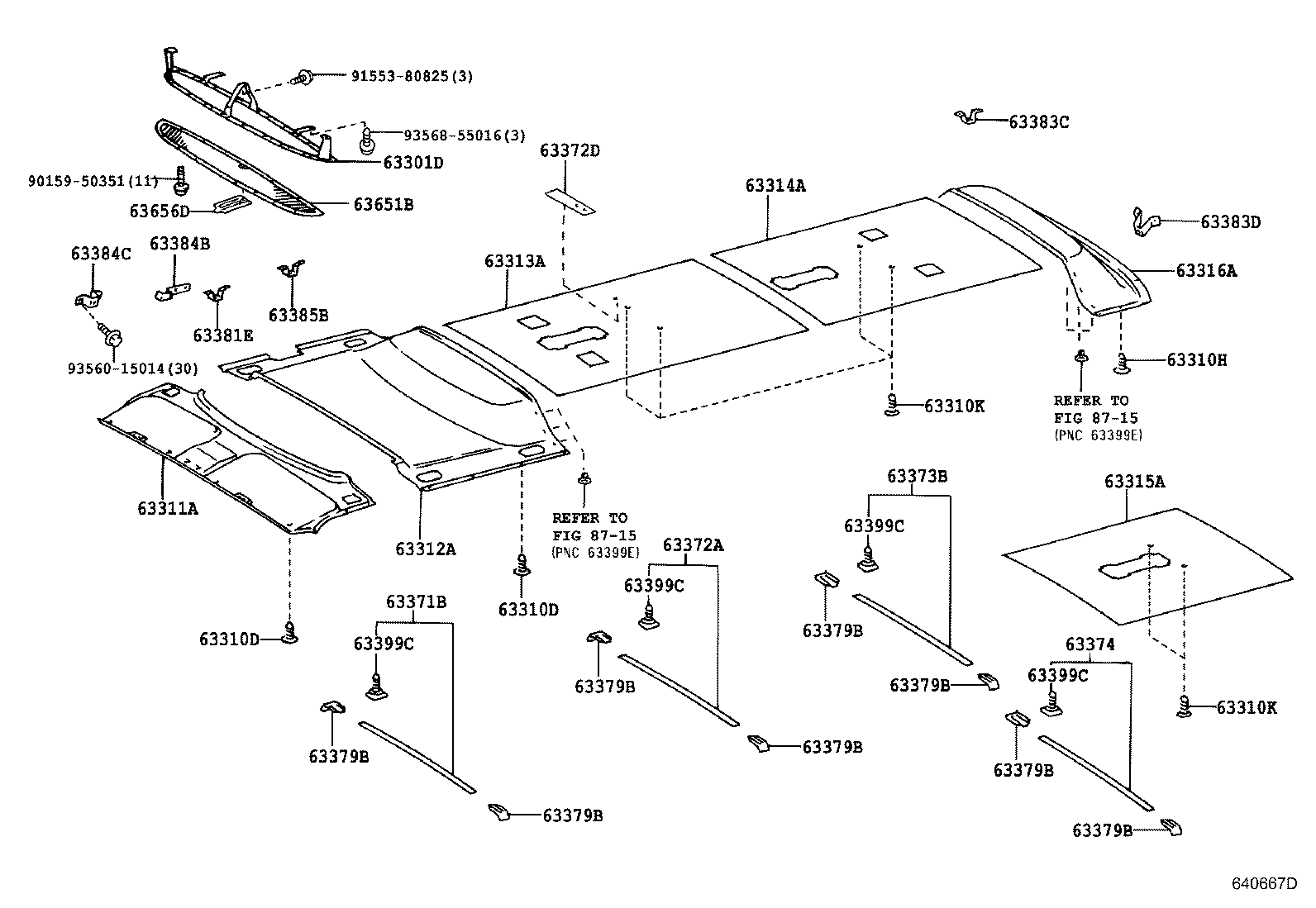

ILLUST NO. 1 OF 3(9301-0708)RZB50..SRF..GCC ; (9301-1501)HZB50..LHD..SRF..WC ; (9301-1501)BB42,RZB40
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63301D - PLATE SUB-ASSY, ROOF HEADLINING SET | ||||
| 63301-36020 |
RZB50..SRF..GCC;BB42,HZB50,RZB40..LHD..SRF..WC |
1 | ||
| 63310H - CLIP(FOR ROOF HEADLINING) | ||||
| 90467-08104A3 |
BB42,HZB50,RZB40,50..WC..GCC W(DX ROOM CARTAIN),IVORY,TRIM4# |
6 | ||
| 90467-08104A3 |
RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;HZB50..LHD..SRF..WC;BB4#,RZB40..WC..(ARL,GCC,GEN);HZB50..HRF..WC..(ARL,GCC,GEN)..5F IVORY,TRIM4# |
8 | ||
| 90467-08104A3 |
RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;HZB50..LHD..SRF..WC;BB42,RZB40..WC..(GCC,GEN);HZB50..HRF..WC..(GCC,GEN)..5F W(DX ROOM CARTAIN) OR W(CARTAINRAIL 0NLY),IVORY,TRIM4# |
6 | ||
| 90467-08104A3 |
RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;HZB50..LHD..SRF..WC;HZB50..HRF..WC..5F..DSL;BB4#,RZB40..WC..(ARL,GCC,GEN) IVORY,TRIM4# |
8 | ||
| 63310K - CLIP | ||||
| 90467-08104A3 |
RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;HZB50..LHD..SRF..WC;BB4#,RZB40..WC..(ARL,GCC,GEN);HZB50..HRF..(20S,22S,30S)..(EX,STD)..WC..5F IVORY,TRIM4# |
6 | ||
| 63310K - CLIP | ||||
| 90467-08104A3 |
RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;HZB50..LHD..SRF..WC;BB4#,RZB40..WC..(ARL,GCC,GEN);HZB50..HRF..(20S,22S,30S)..(EX,STD)..WC..5F IVORY,TRIM4# |
6 | ||
| 63311A - HEADLINING, ROOF NO.1 | ||||
| 63311-36090A1 |
RZB50..SRF..GCC;BB42,HZB50,RZB40..LHD..SRF..WC IVORY,TRIM4# |
1 | ||
| 63311-36090A0 |
RZB50..SRF..GCC;BB42,HZB50,RZB40..LHD..SRF..WC IVORY,TRIM4# |
1 | ||
| 63312A - HEADLINING, ROOF, NO.2 | ||||
| 63312-36170A0 |
RZB50..SRF..GCC;BB42,HZB50,RZB40..LHD..SRF..WC W(3-POINT ASSISTANTS SEAT BELT),IVORY,TRIM4# |
1 | ||
| 63312-36060A0 |
RZB50..SRF..GCC;BB42,HZB50,RZB40..LHD..SRF..WC IVORY,TRIM4# |
1 | ||
| 63312-36170A1 |
RZB50..SRF..GCC;BB42,HZB50,RZB40..LHD..SRF..WC W(3-POINT ASSISTANTS SEAT BELT),IVORY,TRIM4# |
1 | ||
| 63312-36060A1 |
RZB50..SRF..GCC;BB42,HZB50,RZB40..LHD..SRF..WC IVORY,TRIM4# |
1 | ||
| 63313A - HEADLINING, ROOF, NO.3 | ||||
| 63313-36050A0 |
RZB50..SRF..GCC;BB42,HZB50,RZB40..LHD..SRF..WC IVORY,TRIM4# |
1 | ||
| 63313-36060A1 |
BB42,RZB40..SRF..WC;HZB50,RZB50..SRF..GCC W(1 SPEAKER),IVORY,TRIM4# |
1 | ||
| 63313-36160A0 |
RZB50..SRF..GCC;BB42,HZB50,RZB40..LHD..SRF..WC W(2 SPEAKER),IVORY,TRIM4# |
1 | ||
| 63313-36050A1 |
RZB50..SRF..GCC;BB42,HZB50,RZB40..LHD..SRF..WC IVORY,TRIM4# |
1 | ||
| 63313-36160A1 |
BB42,RZB40..SRF..WC;HZB50,RZB50..SRF..GCC;HZB50..LHD..STD..WC..GEN W(2 SPEAKER),IVORY,TRIM4# |
1 | ||
| 63313-36160A1 |
RZB50..SRF..GCC;BB42,HZB50,RZB40..LHD..SRF..WC W(2 SPEAKER),IVORY,TRIM4# |
1 | ||
| 63313-36060A0 |
BB42,RZB40..SRF..WC;HZB50,RZB50..SRF..GCC W(1 SPEAKER),IVORY,TRIM4# |
1 | ||
| 63314A - HEADLINING, ROOF, NO.4 | ||||
| 63314-36070A0 |
HZB50,RZB50..SRF..GCC W(1 SPEAKER),IVORY,TRIM4# |
1 | ||
| 63314-36040A0 |
RZB50..SRF..GCC;HZB50..LHD..SRF..WC IVORY,TRIM4# |
1 | ||
| 63314-36520A0 |
RZB50..SRF..GCC;HZB50..LHD..SRF..WC W(2 SPEAKER),IVORY,TRIM4# |
1 | ||
| 63314-36520A1 |
RZB50..SRF..GCC;HZB50..LHD..SRF..WC W(2 SPEAKER),IVORY,TRIM4# |
1 | ||
| 63314-36040A1 |
RZB50..SRF..GCC;HZB50..LHD..SRF..WC IVORY,TRIM4# |
1 | ||
| 63314-36070A1 |
HZB50,RZB50..SRF..GCC W(1 SPEAKER),IVORY,TRIM4# |
1 | ||
| 63315A - HEADLINING, ROOF, NO.5 | ||||
| 63315-36050A1 |
RZB50..SRF..GCC;HZB50..LHD..SRF..WC IVORY,TRIM4# |
1 | ||
| 63315-36050A0 |
RZB50..SRF..GCC;HZB50..LHD..SRF..WC IVORY,TRIM4# |
1 | ||
| 63316A - HEADLINING, ROOF, NO.6 | ||||
| 63316-36070A0 |
RZB50..SRF..GCC;BB42,HZB50,RZB40..LHD..SRF..WC W(*DSBD),IVORY,TRIM4# |
1 | ||
| 63316-36080A0 |
RZB50..SRF..GCC;BB42,HZB50,RZB40..LHD..SRF..WC IVORY,TRIM4# |
1 | ||
| 63316-36100A0 |
RZB50..SRF..GCC;BB42,HZB50,RZB40..LHD..SRF..WC W(DX ROOM CARTAIN) OR W(CARTAINRAIL 0NLY),IVORY,TRIM4# |
1 | ||
| 63316-36100A0 |
BB42,HZB50,RZB40,50..SRF..WC..GCC W(DX ROOM CARTAIN),IVORY,TRIM4# |
1 | ||
| 63316-36080A1 |
RZB50..SRF..GCC;BB42,HZB50,RZB40..LHD..SRF..WC IVORY,TRIM4# |
1 | ||
| 63316-36070A1 |
RZB50..SRF..GCC;BB42,HZB50,RZB40..LHD..SRF..WC W(*DSBD),IVORY,TRIM4# |
1 | ||
| 63316-36100A1 |
RZB50..SRF..GCC;BB42,HZB50,RZB40..LHD..SRF..WC W(DX ROOM CARTAIN) OR W(CARTAINRAIL 0NLY),IVORY,TRIM4# |
1 | ||
| 63316-36090A1 |
BB43,5#..CBU W(DX ROOM CARTAIN & *DSBD),IVORY,TRIM4# |
1 | ||
| 63316-36100A1 |
RZB50..SRF..GCC;BB42,HZB50,RZB40..LHD..SRF..WC W(DX ROOM CARTAIN),IVORY,TRIM4# |
1 | ||
| 63371B - MOULDING, ROOF BOARD SET, NO.1 | ||||
| 63371-36040A0 |
RZB50..SRF..GCC;BB42,HZB50,RZB40..LHD..SRF..WC IVORY,TRIM4# |
1 | ||
| 63371-36040A1 |
RZB50..SRF..GCC;BB42,HZB50,RZB40..LHD..SRF..WC IVORY,TRIM4# |
1 | ||
| 63372A - MOULDING, ROOF BOARD SET, NO.2 | ||||
| 63371-36040A0 |
RZB50..SRF..GCC;BB42,HZB50,RZB40..LHD..SRF..WC IVORY,TRIM4# |
1 | ||
| 63371-36040A1 |
RZB50..SRF..GCC;BB42,HZB50,RZB40..LHD..SRF..WC IVORY,TRIM4# |
1 | ||
| 63373B - MOULDING, ROOF BOARD SET, NO.3 | ||||
| 63371-36040A0 |
RZB50..SRF..GCC;BB42,HZB50,RZB40..LHD..SRF..WC IVORY,TRIM4# |
1 | ||
| 63371-36040A1 |
RZB50..SRF..GCC;BB42,HZB50,RZB40..LHD..SRF..WC IVORY,TRIM4# |
1 | ||
| 63374 - MOULDING, ROOF BOARD SET | ||||
| 63371-36040A0 |
RZB50..SRF..GCC;HZB50..LHD..SRF..WC IVORY,TRIM4# |
1 | ||
| 63371-36040A1 |
RZB50..SRF..GCC;HZB50..LHD..SRF..WC IVORY,TRIM4# |
1 | ||
| 63379B - COVER, ROOF HEADLINING MOULDING END | ||||
| 63373-36040A0 |
RZB50..SRF..GCC;BB42,HZB50,RZB40..LHD..SRF..WC IVORY,TRIM4#,FRONT-RH,REAR-LH |
2 | ||
| 63374-36030A0 |
RZB50..SRF..GCC;BB42,HZB50,RZB40..LHD..SRF..WC IVORY,TRIM4#,FRONT-LH,REAR-RH |
2 | ||
| 63374-36030A1 |
RZB50..SRF..GCC;HZB50..LHD..SRF..WC W(ROOF HEADLINING FOR SPEAKER),IVORY,TRIM4#,FRONT-LH,REAR,RH |
2 | ||
| 63374-36030A1 |
HZB50,RZB50..SRF..GCC W(RADIO),IVORY,TRIM4#,FRONT-LH,REAR,RH |
2 | ||
| 63374-36030A0 |
RZB50..SRF..GCC;HZB50..LHD..SRF..WC W(ROOF HEADLINING FOR SPEAKER),IVORY,TRIM4#,FRONT-LH,REAR,RH |
2 | ||
| 63374-36030A1 |
RZB50..SRF..GCC;BB42,HZB50,RZB40..LHD..SRF..WC IVORY,TRIM4#,FRONT-LH,REAR-RH |
2 | ||
| 63373-36040A1 |
RZB50..SRF..GCC;BB42,HZB50,RZB40..LHD..SRF..WC IVORY,TRIM4#,FRONT-RH,REAR-LH |
2 | ||
| 63379-36010A0 |
RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;HZB50..LHD..SRF..WC;HZB50..HRF..(20S,22S,30S)..(EX,STD)..WC..5F IVORY,TRIM4#,CENTER |
4 | ||
| 63374-36030A1 |
HZB50,RZB50..SRF..GCC;HZB50..LHD..STD..WC..GEN W(RADIO),IVORY,TRIM4#,FRONT-LH,REAR,RH |
2 | ||
| 63379-36010A1 |
RZB50..GCC;HZB50..GCC..4FC;HZB50..LHD..WC..5F..DSL;HZB50..RHD..HRF..WC..DSL;BB5#,RZB50..HRF..GEN..CBU IVORY,TRIM4#,CENTER |
4 | ||
| 63379B - COVER, ROOF HEADLINING MOULDING END | ||||
| 63373-36040A0 |
RZB50..SRF..GCC;BB42,HZB50,RZB40..LHD..SRF..WC IVORY,TRIM4#,FRONT-RH,REAR-LH |
2 | ||
| 63374-36030A0 |
RZB50..SRF..GCC;BB42,HZB50,RZB40..LHD..SRF..WC IVORY,TRIM4#,FRONT-LH,REAR-RH |
2 | ||
| 63374-36030A1 |
RZB50..SRF..GCC;HZB50..LHD..SRF..WC W(ROOF HEADLINING FOR SPEAKER),IVORY,TRIM4#,FRONT-LH,REAR,RH |
2 | ||
| 63374-36030A1 |
HZB50,RZB50..SRF..GCC W(RADIO),IVORY,TRIM4#,FRONT-LH,REAR,RH |
2 | ||
| 63374-36030A0 |
RZB50..SRF..GCC;HZB50..LHD..SRF..WC W(ROOF HEADLINING FOR SPEAKER),IVORY,TRIM4#,FRONT-LH,REAR,RH |
2 | ||
| 63374-36030A1 |
RZB50..SRF..GCC;BB42,HZB50,RZB40..LHD..SRF..WC IVORY,TRIM4#,FRONT-LH,REAR-RH |
2 | ||
| 63373-36040A1 |
RZB50..SRF..GCC;BB42,HZB50,RZB40..LHD..SRF..WC IVORY,TRIM4#,FRONT-RH,REAR-LH |
2 | ||
| 63379-36010A0 |
RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;HZB50..LHD..SRF..WC;HZB50..HRF..(20S,22S,30S)..(EX,STD)..WC..5F IVORY,TRIM4#,CENTER |
4 | ||
| 63374-36030A1 |
HZB50,RZB50..SRF..GCC;HZB50..LHD..STD..WC..GEN W(RADIO),IVORY,TRIM4#,FRONT-LH,REAR,RH |
2 | ||
| 63379-36010A1 |
RZB50..GCC;HZB50..GCC..4FC;HZB50..LHD..WC..5F..DSL;HZB50..RHD..HRF..WC..DSL;BB5#,RZB50..HRF..GEN..CBU IVORY,TRIM4#,CENTER |
4 | ||
| 63379B - COVER, ROOF HEADLINING MOULDING END | ||||
| 63373-36040A0 |
RZB50..SRF..GCC;BB42,HZB50,RZB40..LHD..SRF..WC IVORY,TRIM4#,FRONT-RH,REAR-LH |
2 | ||
| 63374-36030A0 |
RZB50..SRF..GCC;BB42,HZB50,RZB40..LHD..SRF..WC IVORY,TRIM4#,FRONT-LH,REAR-RH |
2 | ||
| 63374-36030A1 |
RZB50..SRF..GCC;HZB50..LHD..SRF..WC W(ROOF HEADLINING FOR SPEAKER),IVORY,TRIM4#,FRONT-LH,REAR,RH |
2 | ||
| 63374-36030A1 |
HZB50,RZB50..SRF..GCC W(RADIO),IVORY,TRIM4#,FRONT-LH,REAR,RH |
2 | ||
| 63374-36030A0 |
RZB50..SRF..GCC;HZB50..LHD..SRF..WC W(ROOF HEADLINING FOR SPEAKER),IVORY,TRIM4#,FRONT-LH,REAR,RH |
2 | ||
| 63374-36030A1 |
RZB50..SRF..GCC;BB42,HZB50,RZB40..LHD..SRF..WC IVORY,TRIM4#,FRONT-LH,REAR-RH |
2 | ||
| 63373-36040A1 |
RZB50..SRF..GCC;BB42,HZB50,RZB40..LHD..SRF..WC IVORY,TRIM4#,FRONT-RH,REAR-LH |
2 | ||
| 63379-36010A0 |
RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;HZB50..LHD..SRF..WC;HZB50..HRF..(20S,22S,30S)..(EX,STD)..WC..5F IVORY,TRIM4#,CENTER |
4 | ||
| 63374-36030A1 |
HZB50,RZB50..SRF..GCC;HZB50..LHD..STD..WC..GEN W(RADIO),IVORY,TRIM4#,FRONT-LH,REAR,RH |
2 | ||
| 63379-36010A1 |
RZB50..GCC;HZB50..GCC..4FC;HZB50..LHD..WC..5F..DSL;HZB50..RHD..HRF..WC..DSL;BB5#,RZB50..HRF..GEN..CBU IVORY,TRIM4#,CENTER |
4 | ||
| 63379B - COVER, ROOF HEADLINING MOULDING END | ||||
| 63373-36040A0 |
RZB50..SRF..GCC;BB42,HZB50,RZB40..LHD..SRF..WC IVORY,TRIM4#,FRONT-RH,REAR-LH |
2 | ||
| 63374-36030A0 |
RZB50..SRF..GCC;BB42,HZB50,RZB40..LHD..SRF..WC IVORY,TRIM4#,FRONT-LH,REAR-RH |
2 | ||
| 63374-36030A1 |
RZB50..SRF..GCC;HZB50..LHD..SRF..WC W(ROOF HEADLINING FOR SPEAKER),IVORY,TRIM4#,FRONT-LH,REAR,RH |
2 | ||
| 63374-36030A1 |
HZB50,RZB50..SRF..GCC W(RADIO),IVORY,TRIM4#,FRONT-LH,REAR,RH |
2 | ||
| 63374-36030A0 |
RZB50..SRF..GCC;HZB50..LHD..SRF..WC W(ROOF HEADLINING FOR SPEAKER),IVORY,TRIM4#,FRONT-LH,REAR,RH |
2 | ||
| 63374-36030A1 |
RZB50..SRF..GCC;BB42,HZB50,RZB40..LHD..SRF..WC IVORY,TRIM4#,FRONT-LH,REAR-RH |
2 | ||
| 63373-36040A1 |
RZB50..SRF..GCC;BB42,HZB50,RZB40..LHD..SRF..WC IVORY,TRIM4#,FRONT-RH,REAR-LH |
2 | ||
| 63379-36010A0 |
RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;HZB50..LHD..SRF..WC;HZB50..HRF..(20S,22S,30S)..(EX,STD)..WC..5F IVORY,TRIM4#,CENTER |
4 | ||
| 63374-36030A1 |
HZB50,RZB50..SRF..GCC;HZB50..LHD..STD..WC..GEN W(RADIO),IVORY,TRIM4#,FRONT-LH,REAR,RH |
2 | ||
| 63379-36010A1 |
RZB50..GCC;HZB50..GCC..4FC;HZB50..LHD..WC..5F..DSL;HZB50..RHD..HRF..WC..DSL;BB5#,RZB50..HRF..GEN..CBU IVORY,TRIM4#,CENTER |
4 | ||
| 63379B - COVER, ROOF HEADLINING MOULDING END | ||||
| 63373-36040A0 |
RZB50..SRF..GCC;BB42,HZB50,RZB40..LHD..SRF..WC IVORY,TRIM4#,FRONT-RH,REAR-LH |
2 | ||
| 63374-36030A0 |
RZB50..SRF..GCC;BB42,HZB50,RZB40..LHD..SRF..WC IVORY,TRIM4#,FRONT-LH,REAR-RH |
2 | ||
| 63374-36030A1 |
RZB50..SRF..GCC;HZB50..LHD..SRF..WC W(ROOF HEADLINING FOR SPEAKER),IVORY,TRIM4#,FRONT-LH,REAR,RH |
2 | ||
| 63374-36030A1 |
HZB50,RZB50..SRF..GCC W(RADIO),IVORY,TRIM4#,FRONT-LH,REAR,RH |
2 | ||
| 63374-36030A0 |
RZB50..SRF..GCC;HZB50..LHD..SRF..WC W(ROOF HEADLINING FOR SPEAKER),IVORY,TRIM4#,FRONT-LH,REAR,RH |
2 | ||
| 63374-36030A1 |
RZB50..SRF..GCC;BB42,HZB50,RZB40..LHD..SRF..WC IVORY,TRIM4#,FRONT-LH,REAR-RH |
2 | ||
| 63373-36040A1 |
RZB50..SRF..GCC;BB42,HZB50,RZB40..LHD..SRF..WC IVORY,TRIM4#,FRONT-RH,REAR-LH |
2 | ||
| 63379-36010A0 |
RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;HZB50..LHD..SRF..WC;HZB50..HRF..(20S,22S,30S)..(EX,STD)..WC..5F IVORY,TRIM4#,CENTER |
4 | ||
| 63374-36030A1 |
HZB50,RZB50..SRF..GCC;HZB50..LHD..STD..WC..GEN W(RADIO),IVORY,TRIM4#,FRONT-LH,REAR,RH |
2 | ||
| 63379-36010A1 |
RZB50..GCC;HZB50..GCC..4FC;HZB50..LHD..WC..5F..DSL;HZB50..RHD..HRF..WC..DSL;BB5#,RZB50..HRF..GEN..CBU IVORY,TRIM4#,CENTER |
4 | ||
| 63379B - COVER, ROOF HEADLINING MOULDING END | ||||
| 63373-36040A0 |
RZB50..SRF..GCC;BB42,HZB50,RZB40..LHD..SRF..WC IVORY,TRIM4#,FRONT-RH,REAR-LH |
2 | ||
| 63374-36030A0 |
RZB50..SRF..GCC;BB42,HZB50,RZB40..LHD..SRF..WC IVORY,TRIM4#,FRONT-LH,REAR-RH |
2 | ||
| 63374-36030A1 |
RZB50..SRF..GCC;HZB50..LHD..SRF..WC W(ROOF HEADLINING FOR SPEAKER),IVORY,TRIM4#,FRONT-LH,REAR,RH |
2 | ||
| 63374-36030A1 |
HZB50,RZB50..SRF..GCC W(RADIO),IVORY,TRIM4#,FRONT-LH,REAR,RH |
2 | ||
| 63374-36030A0 |
RZB50..SRF..GCC;HZB50..LHD..SRF..WC W(ROOF HEADLINING FOR SPEAKER),IVORY,TRIM4#,FRONT-LH,REAR,RH |
2 | ||
| 63374-36030A1 |
RZB50..SRF..GCC;BB42,HZB50,RZB40..LHD..SRF..WC IVORY,TRIM4#,FRONT-LH,REAR-RH |
2 | ||
| 63373-36040A1 |
RZB50..SRF..GCC;BB42,HZB50,RZB40..LHD..SRF..WC IVORY,TRIM4#,FRONT-RH,REAR-LH |
2 | ||
| 63379-36010A0 |
RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;HZB50..LHD..SRF..WC;HZB50..HRF..(20S,22S,30S)..(EX,STD)..WC..5F IVORY,TRIM4#,CENTER |
4 | ||
| 63374-36030A1 |
HZB50,RZB50..SRF..GCC;HZB50..LHD..STD..WC..GEN W(RADIO),IVORY,TRIM4#,FRONT-LH,REAR,RH |
2 | ||
| 63379-36010A1 |
RZB50..GCC;HZB50..GCC..4FC;HZB50..LHD..WC..5F..DSL;HZB50..RHD..HRF..WC..DSL;BB5#,RZB50..HRF..GEN..CBU IVORY,TRIM4#,CENTER |
4 | ||
| 63379B - COVER, ROOF HEADLINING MOULDING END | ||||
| 63373-36040A0 |
RZB50..SRF..GCC;BB42,HZB50,RZB40..LHD..SRF..WC IVORY,TRIM4#,FRONT-RH,REAR-LH |
2 | ||
| 63374-36030A0 |
RZB50..SRF..GCC;BB42,HZB50,RZB40..LHD..SRF..WC IVORY,TRIM4#,FRONT-LH,REAR-RH |
2 | ||
| 63374-36030A1 |
RZB50..SRF..GCC;HZB50..LHD..SRF..WC W(ROOF HEADLINING FOR SPEAKER),IVORY,TRIM4#,FRONT-LH,REAR,RH |
2 | ||
| 63374-36030A1 |
HZB50,RZB50..SRF..GCC W(RADIO),IVORY,TRIM4#,FRONT-LH,REAR,RH |
2 | ||
| 63374-36030A0 |
RZB50..SRF..GCC;HZB50..LHD..SRF..WC W(ROOF HEADLINING FOR SPEAKER),IVORY,TRIM4#,FRONT-LH,REAR,RH |
2 | ||
| 63374-36030A1 |
RZB50..SRF..GCC;BB42,HZB50,RZB40..LHD..SRF..WC IVORY,TRIM4#,FRONT-LH,REAR-RH |
2 | ||
| 63373-36040A1 |
RZB50..SRF..GCC;BB42,HZB50,RZB40..LHD..SRF..WC IVORY,TRIM4#,FRONT-RH,REAR-LH |
2 | ||
| 63379-36010A0 |
RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;HZB50..LHD..SRF..WC;HZB50..HRF..(20S,22S,30S)..(EX,STD)..WC..5F IVORY,TRIM4#,CENTER |
4 | ||
| 63374-36030A1 |
HZB50,RZB50..SRF..GCC;HZB50..LHD..STD..WC..GEN W(RADIO),IVORY,TRIM4#,FRONT-LH,REAR,RH |
2 | ||
| 63379-36010A1 |
RZB50..GCC;HZB50..GCC..4FC;HZB50..LHD..WC..5F..DSL;HZB50..RHD..HRF..WC..DSL;BB5#,RZB50..HRF..GEN..CBU IVORY,TRIM4#,CENTER |
4 | ||
| 63379B - COVER, ROOF HEADLINING MOULDING END | ||||
| 63373-36040A0 |
RZB50..SRF..GCC;BB42,HZB50,RZB40..LHD..SRF..WC IVORY,TRIM4#,FRONT-RH,REAR-LH |
2 | ||
| 63374-36030A0 |
RZB50..SRF..GCC;BB42,HZB50,RZB40..LHD..SRF..WC IVORY,TRIM4#,FRONT-LH,REAR-RH |
2 | ||
| 63374-36030A1 |
RZB50..SRF..GCC;HZB50..LHD..SRF..WC W(ROOF HEADLINING FOR SPEAKER),IVORY,TRIM4#,FRONT-LH,REAR,RH |
2 | ||
| 63374-36030A1 |
HZB50,RZB50..SRF..GCC W(RADIO),IVORY,TRIM4#,FRONT-LH,REAR,RH |
2 | ||
| 63374-36030A0 |
RZB50..SRF..GCC;HZB50..LHD..SRF..WC W(ROOF HEADLINING FOR SPEAKER),IVORY,TRIM4#,FRONT-LH,REAR,RH |
2 | ||
| 63374-36030A1 |
RZB50..SRF..GCC;BB42,HZB50,RZB40..LHD..SRF..WC IVORY,TRIM4#,FRONT-LH,REAR-RH |
2 | ||
| 63373-36040A1 |
RZB50..SRF..GCC;BB42,HZB50,RZB40..LHD..SRF..WC IVORY,TRIM4#,FRONT-RH,REAR-LH |
2 | ||
| 63379-36010A0 |
RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;HZB50..LHD..SRF..WC;HZB50..HRF..(20S,22S,30S)..(EX,STD)..WC..5F IVORY,TRIM4#,CENTER |
4 | ||
| 63374-36030A1 |
HZB50,RZB50..SRF..GCC;HZB50..LHD..STD..WC..GEN W(RADIO),IVORY,TRIM4#,FRONT-LH,REAR,RH |
2 | ||
| 63379-36010A1 |
RZB50..GCC;HZB50..GCC..4FC;HZB50..LHD..WC..5F..DSL;HZB50..RHD..HRF..WC..DSL;BB5#,RZB50..HRF..GEN..CBU IVORY,TRIM4#,CENTER |
4 | ||
| 63381E - RETAINER, ROOF HEADLINING TRIM, FRONT | ||||
| 63385-36010 |
RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC..CBU;HZB50..LHD..WC..5F..DSL;HZB50..RHD..HRF..WC..DSL PASSENGER SIDE |
3 | ||
| 63381-36020 |
RZB50..SRF..GCC;BB42,HZB50,RZB40..LHD..SRF..WC DRIVER SIDE |
2 | ||
| 63383C - RETAINER, ROOF HEADLINING TRIM, REAR | ||||
| 63385-36010 |
RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC..CBU;HZB50..LHD..WC..5F..DSL;HZB50..RHD..HRF..WC..DSL PASSENGER SIDE |
1 | ||
| 63383D - RETAINER, ROOF HEADLINING, REAR | ||||
| 63383-36020 |
RZB50..GCC;RZB40..STD..WC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB42..RHD..WC..GEN;BB42,HZB50..LHD..SRF..WC;BB42,HZB50..HRF..(22S,30S)..WC..(GCC,GEN)..5F W(*DSBD) |
4 | ||
| 63383-36020 |
RZB40..WC;RZB50..GCC;HZB50..GCC..4FC;BB42..RHD..WC..GEN;BB42,HZB50..LHD..SRF..WC;HZB50..HRF..WC..(GCC,GEN)..5F;BB42,RZB50..LHD..HRF..(22S,30S)..GEN W(*DSBD) |
4 | ||
| 63383-36020 |
RZB50..GCC;RZB40..STD..WC;RZB50..HRF..GEN;BB42,43,5#..WC..CBU;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC W(*DSBD) |
4 | ||
| 63383-36020 |
RZB50..GCC;RZB50..HRF..GEN;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB42,5#,RZB40..STD..WC..(GCC,GEN)..CBU W(*DSBD) |
4 | ||
| 63384C - RETAINER, ROOF HEADLINING TRIM SIDE, NO.1 | ||||
| 63385-36010 |
RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC..CBU;HZB50..LHD..WC..5F..DSL;HZB50..RHD..HRF..WC..DSL |
2 | ||
| 63385B - RETAINER, ROOF HEADLINING TRIM SIDE, NO.1 | ||||
| 63385-36010 |
RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC..CBU;HZB50..LHD..WC..5F..DSL;HZB50..RHD..HRF..WC..DSL |
2 | ||
| 63399C - CLIP, ROOF HEADLINING | ||||
| 63399-36020 |
RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;HZB50..LHD..WC..5F..DSL;HZB50..RHD..HRF..WC..DSL |
24 | ||
| 63399-36020 |
RZB50..GCC;RZB50..HRF..GEN;HZB50..LHD..SRF..WC;BB5#,HZB50..HRF..WC..CBU..5F |
24 | ||
| 63399C - CLIP, ROOF HEADLINING | ||||
| 63399-36020 |
RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;HZB50..LHD..WC..5F..DSL;HZB50..RHD..HRF..WC..DSL |
24 | ||
| 63399-36020 |
RZB50..GCC;RZB50..HRF..GEN;HZB50..LHD..SRF..WC;BB5#,HZB50..HRF..WC..CBU..5F |
24 | ||
| 63399C - CLIP, ROOF HEADLINING | ||||
| 63399-36020 |
RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;HZB50..LHD..WC..5F..DSL;HZB50..RHD..HRF..WC..DSL |
24 | ||
| 63399-36020 |
RZB50..GCC;RZB50..HRF..GEN;HZB50..LHD..SRF..WC;BB5#,HZB50..HRF..WC..CBU..5F |
24 | ||
| 63399C - CLIP, ROOF HEADLINING | ||||
| 63399-36020 |
RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;HZB50..LHD..WC..5F..DSL;HZB50..RHD..HRF..WC..DSL |
24 | ||
| 63399-36020 |
RZB50..GCC;RZB50..HRF..GEN;HZB50..LHD..SRF..WC;BB5#,HZB50..HRF..WC..CBU..5F |
24 | ||
| 63651B - NET, AIR INTAKE | ||||
| 63651-36010A1 |
RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;HZB50..LHD..SRF..WC;BB4#,5#,RZB40..WC..CBU;HZB50..HRF..WC..5F..DSL IVORY,TRIM4# |
1 | ||
| 63651-36011A1 |
RZB50..GCC;RZB50..HRF..GEN;HZB50..HRF..WC..5F;HZB50..LHD..SRF..WC;BB4#,5#,RZB40..WC..CBU IVORY,TRIM4# |
1 | ||
| 63651-36010A0 |
RZB50..GCC;BB4#,RZB40..WC;HZB50..GCC..4FC;RZB50..HRF..GEN;HZB50..LHD..SRF..WC;HZB50..HRF..WC..5F..DSL IVORY,TRIM4# |
1 | ||
| 63656D - COVER, AIR INTAKE, CENTER | ||||
| 63656-36010A0 |
RZB50..GCC;RZB50..HRF..GEN;HZB50..HRF..WC..5F;HZB50..LHD..SRF..WC;BB4#,5#,RZB40..WC..CBU IVORY,TRIM4# |
1 | ||
| Common parts | ||||
| 90159-50351 | ||||
| 91553-80825 | ||||
| 93560-15014 | ||||
| 93568-55016 | ||||
| Linked diagrams | ||||
| 8715 | ||||
ILLUST NO. 3 OF 3(9301-1501)RZB50..SRF..GCC ; (9301-1501)HZB50..LHD..SRF..WC ; (9301-1501)BB42,RZB40
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63349-36031 |
HZB50,RZB50..SRF |
7 | ||
| 63343E - PAD, ROOF SILENCER, NO.3 | ||||
| 63349-36031 |
HZB50..DSL;BB4#,5#,RZB40,50..(ARL,GCC,GEN)..CBU |
4 | ||
| 63349-36031 |
RZB50..SRF..GCC;BB42,HZB50,RZB40..LHD..SRF..WC |
4 | ||
| 63344 - PAD, ROOF SILENCER, NO.4 | ||||
| 63344-36010 |
BB5#,HZB50,RZB50..CBU |
10 | ||
| 63344-36010 |
BB4#..RHD;RZB50..SRF..GCC;HZB50..LHD..SRF..WC;BB42,RZB40..LHD..HRF;BB42,RZB40..LHD..WOC |
10 | ||
| 63346 - PAD, ROOF SILENCER, NO.6 | ||||
| 63349-36031 |
HZB50,RZB50..SRF |
14 | ||
| 63347A - PAD, ROOF SILENCER, NO.7 | ||||
| 63349-36031 |
BB42,HZB50,RZB40,50..SRF..GCC |
1 | ||
| 63347-36041 |
HZB50..5F..DSL;HZB50..30S..4FC;BB40,42,5#,RZB40,50..(ARL,GCC,GEN)..CBU |
1 | ||
| 63347-36041 |
BB42,HZB50,RZB40,50..SRF |
1 | ||
| 63348 - PAD, ROOF SILENCER, NO.8 | ||||
| 63349-36031 |
BB42,HZB50,RZB40,50..SRF..GCC |
1 | ||
| 63348-36040 |
HZB50..5F..DSL;HZB50..30S..4FC;BB4#,5#,RZB40,50..(ARL,GCC,GEN)..CBU |
1 | ||
| 63349 - PAD, ROOF SILENCER, NO.9 | ||||
| 63349-36031 |
BB4#;RZB50..SRF;RZB50..HRF..GEN;HZB50,RZB40..SRF..GCC;HZB50,RZB40..ARL,GEN,SCO |
2 | ||
| 63349-36031 |
BB4#,5#,HZB50,RZB40,50..CBU |
2 | ||
| 63351A - PAD, ROOF SILENCER, NO.10 | ||||
| 63349-36031 |
HZB50..DSL;BB4#,5#,RZB40,50..(ARL,GCC,GEN)..CBU |
4 | ||
| 63349-36031 |
RZB50..SRF..GCC;BB40,42,HZB50..HRF..WOC;BB42,HZB50,RZB40..LHD..SRF..WC |
4 | ||
| 63359A - PAD, ROOF SILENCER, NO.18 | ||||
| 63347-36032 |
BB4#,5#,HZB50,RZB40,50..CBU |
1 | ||
| 63349-36031 |
BB4#,HZB50,RZB40,50..CBU |
1 | ||
| 63347-36032 |
BB42,HZB50,RZB40,50..SRF |
3 | ||
Part Price Details
Loading price information...
Part Number:
Price:
