RZB50L-BGMSUV (1993)
Toyota Coaster
Production
Sep 1993
-
Jul 1999
Engine
3RZF
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9309-9907)3RZF

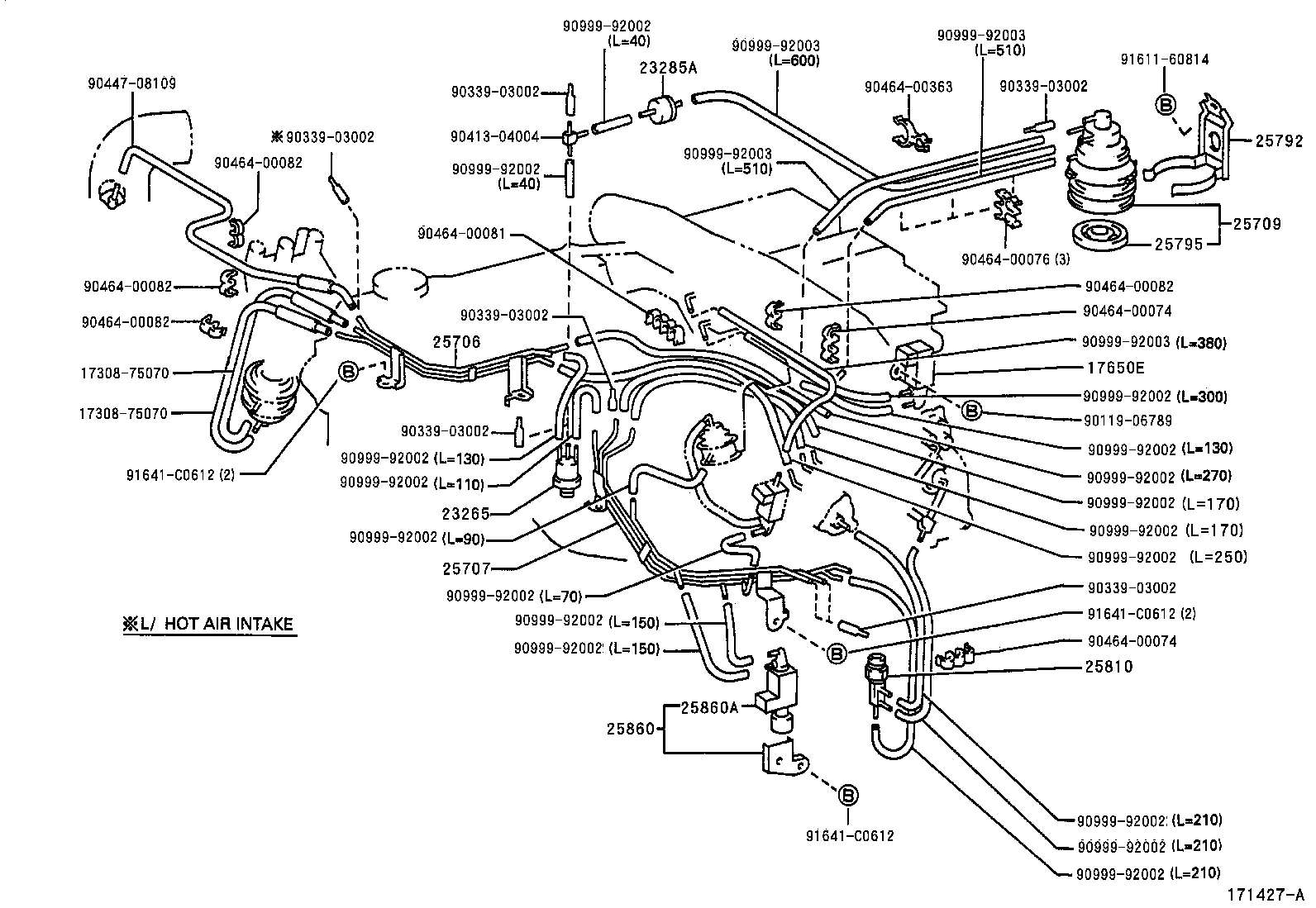

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17650E - VALVE, VACUUM SWITCHING | ||||
| 90910-12086 |
3RZF..RZB40,50 |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11027 |
3RZF..RZB40,50 |
1 | ||
| 90917-11041 |
3RZF..RZB40,50 |
1 | ||
| 25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1 | ||||
| 25706-75030 |
3RZF..RZB40,50 |
1 | ||
| 25707 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.2 | ||||
| 25707-75020 |
3RZF..RZB40,50 |
1 | ||
| 25810 - VALVE ASSY, BIMETAL | ||||
| 25810-15010 |
3RZF..RZB40,50 |
1 | ||
| 25860 - VALVE ASSY, VACUUM SWITCHING, NO.1 | ||||
| 25860-75040 |
3RZF..RZB40,50 |
1 | ||
| 25860-75041 |
3RZF..RZB40,50 |
1 | ||
| 25860A - VALVE, VACUUM SWITCHING, NO.1 | ||||
| 25860-62010 |
3RZF..RZB40,50 |
1 | ||
| Common parts | ||||
| 17308-75070 | ||||
| 90119-06789 | ||||
| 90339-03002 | ||||
| 90413-04004 | ||||
| 90447-08109 | ||||
| 90464-00074 | ||||
| 90464-00076 | ||||
| 90464-00081 | ||||
| 90464-00082 | ||||
| 90464-00363 | ||||
| 90999-92002 | ||||
| 90999-92003 | ||||
| 91611-60814 | ||||
| 91641-C0612 | ||||
