RZB40L-ZRMSK (1999)
Toyota Coaster

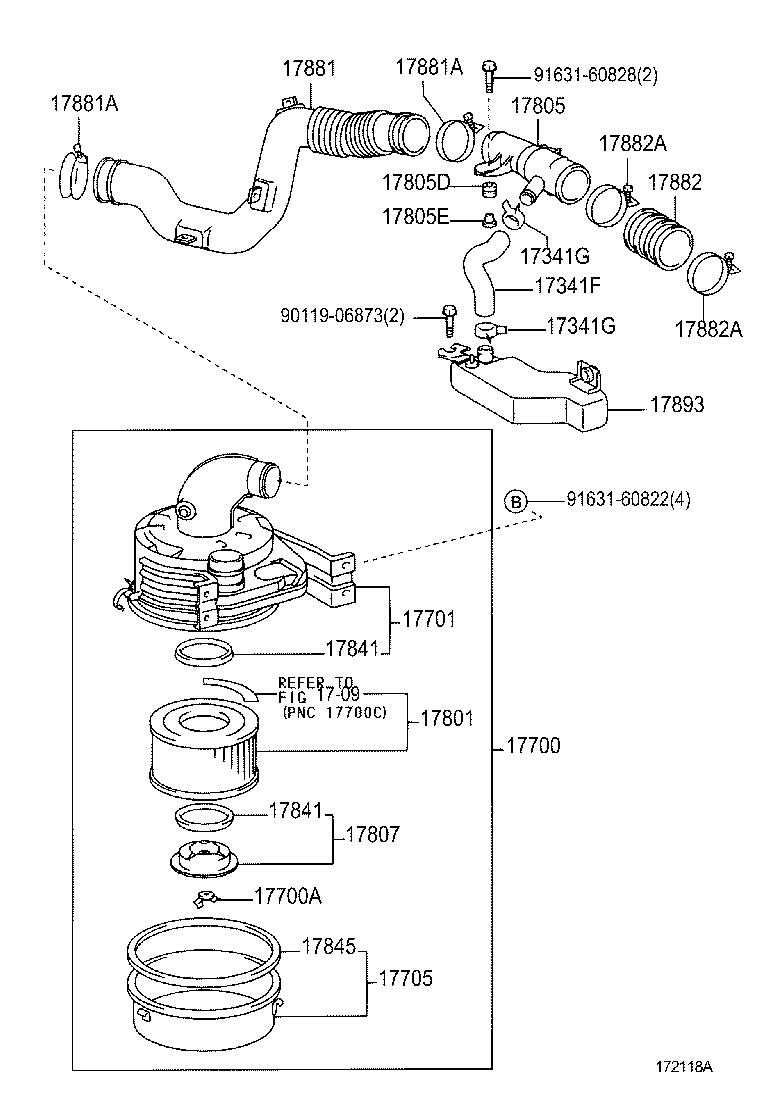

ILLUST NO. 1 OF 2(9907-0708)3RZFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17341F - HOSE, AIR, NO.1 | ||||
| 17341-75110 |
3RZFE..RZB40..WOC..GEN;3RZFE..RZB40,50..(17S,26S,30S)..WC..(GCC,GEN) |
1 | ||
| 17341-75110 |
3RZFE..RZB50;3RZFE..RZB40..GEN;3RZFE..RZB40..SRF..GCC |
1 | ||
| 17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1) | ||||
| 90467-38003 |
3RZFE..RZB40,50..GCC,GEN |
2 | ||
| 90467-38003 |
3RZFE..RZB50;3RZFE..RZB40..GEN;3RZFE..RZB40..SRF..GCC |
2 | ||
| 90467-38002 |
3RZFE..RZB40..22S..CHI;3RZFE..RZB40..WOC..GEN;3RZFE..RZB40,50..(17S,26S,30S)..WC |
2 | ||
| 17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1) | ||||
| 90467-38003 |
3RZFE..RZB40,50..GCC,GEN |
2 | ||
| 90467-38003 |
3RZFE..RZB50;3RZFE..RZB40..GEN;3RZFE..RZB40..SRF..GCC |
2 | ||
| 90467-38002 |
3RZFE..RZB40..22S..CHI;3RZFE..RZB40..WOC..GEN;3RZFE..RZB40,50..(17S,26S,30S)..WC |
2 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-75320 |
3RZFE..RZB50;3RZFE..RZB40..GEN;3RZFE..RZB40..SRF..GCC |
1 | ||
| 17700-75320 |
3RZFE..RZB40..WOC..GEN;3RZFE..RZB40,50..(17S,26S,30S)..WC..(GCC,GEN) |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-08008 |
3RZFE..RZB50;3RZFE..RZB40..GEN;3RZFE..RZB40..SRF..GCC |
1 | ||
| 90175-08008 |
3RZFE..RZB40..WOC..GEN;3RZFE..RZB40,50..(17S,26S,30S)..WC..(GCC,GEN) |
1 | ||
| 17701 - CASE SUB-ASSY, AIR CLEANER | ||||
| 17701-75150 |
3RZFE..RZB40..WOC..GEN;3RZFE..RZB40,50..(17S,26S,30S)..WC..(GCC,GEN) |
1 | ||
| 17701-75150 |
3RZFE..RZB50;3RZFE..RZB40..GEN;3RZFE..RZB40..SRF..GCC |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-17180 |
3RZFE..RZB40..WOC..GEN;3RZFE..RZB40,50..(17S,26S,30S)..WC..(GCC,GEN) |
1 | ||
| 17705-17180 |
3RZFE..RZB50;3RZFE..RZB40..GEN;3RZFE..RZB40..SRF..GCC |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-61030 |
3RZFE..RZB40..WOC..GEN;3RZFE..RZB40,50..(17S,26S,30S)..WC..(GCC,GEN) |
1 | ||
| 17801-61030 |
3RZFE..RZB50;3RZFE..RZB40..GEN;3RZFE..RZB40..SRF..GCC |
1 | ||
| 17805 - CONNECTOR SUB-ASSY, INTAKE AIR | ||||
| 17805-75180 |
3RZFE..RZB40..WOC..GEN;3RZFE..RZB40,50..(17S,26S,30S)..WC..(GCC,GEN) |
1 | ||
| 17805-75180 |
3RZFE..RZB50;3RZFE..RZB40..GEN;3RZFE..RZB40..SRF..GCC |
1 | ||
| 17805D - GROMMET(FOR INTAKE AIR CONNECTOR) | ||||
| 90540-12009 |
3RZFE..RZB40..WOC..GEN;3RZFE..RZB40,50..(17S,26S,30S)..WC..(GCC,GEN) |
1 | ||
| 90540-12009 |
3RZFE..RZB50;3RZFE..RZB40..GEN;3RZFE..RZB40..SRF..GCC |
1 | ||
| 17805E - COLLAR(FOR INTAKE AIR CONNECTOR) | ||||
| 90389-09016 |
3RZFE..RZB50;3RZFE..RZB40..GEN;3RZFE..RZB40..SRF..GCC |
2 | ||
| 90389-09016 |
3RZFE..RZB40..WOC..GEN;3RZFE..RZB40,50..(17S,26S,30S)..WC..(GCC,GEN) |
2 | ||
| 17807 - PLATE SUB-ASSY, AIR CLEANER FILTER SET | ||||
| 17807-58020 |
3RZFE..RZB40..WOC..GEN;3RZFE..RZB40,50..(17S,26S,30S)..WC..(GCC,GEN) |
1 | ||
| 17807-58020 |
3RZFE..RZB50;3RZFE..RZB40..GEN;3RZFE..RZB40..SRF..GCC |
1 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-68010 |
3RZFE..RZB40..WOC..GEN;3RZFE..RZB40,50..(17S,26S,30S)..WC..(GCC,GEN) |
2 | ||
| 17841-68010 |
3RZFE..RZB50;3RZFE..RZB40..GEN;3RZFE..RZB40..SRF..GCC |
2 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-68010 |
3RZFE..RZB40..WOC..GEN;3RZFE..RZB40,50..(17S,26S,30S)..WC..(GCC,GEN) |
2 | ||
| 17841-68010 |
3RZFE..RZB50;3RZFE..RZB40..GEN;3RZFE..RZB40..SRF..GCC |
2 | ||
| 17845 - GASKET, AIR CLEANER CAP | ||||
| 17845-58010 |
3RZFE..RZB50;3RZFE..RZB40..GEN;3RZFE..RZB40..SRF..GCC |
1 | ||
| 17845-58010 |
3RZFE..RZB40..WOC..GEN;3RZFE..RZB40,50..(17S,26S,30S)..WC..(GCC,GEN) |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-75042 |
3RZFE..RZB40..WOC..GEN;3RZFE..RZB40,50..(17S,26S,30S)..WC..(GCC,GEN) |
1 | ||
| 17881-75042 |
3RZFE..RZB50;3RZFE..RZB40..GEN;3RZFE..RZB40..SRF..GCC |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10730 |
3RZFE..RZB40..WOC..GEN;3RZFE..RZB40,50..(17S,26S,30S)..WC..(GCC,GEN) CONNECTOR SIDE |
1 | ||
| 96111-10830 |
3RZFE..RZB50;3RZFE..RZB40..GEN;3RZFE..RZB40..SRF..GCC AIR CLEANER SIDE |
1 | ||
| 96111-10830 |
3RZFE..RZB40..WOC..GEN;3RZFE..RZB40,50..(17S,26S,30S)..WC..(GCC,GEN) AIR CLEANER SIDE |
1 | ||
| 96111-10730 |
3RZFE..RZB50;3RZFE..RZB40..GEN;3RZFE..RZB40..SRF..GCC CONNECTOR SIDE |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10730 |
3RZFE..RZB40..WOC..GEN;3RZFE..RZB40,50..(17S,26S,30S)..WC..(GCC,GEN) CONNECTOR SIDE |
1 | ||
| 96111-10830 |
3RZFE..RZB50;3RZFE..RZB40..GEN;3RZFE..RZB40..SRF..GCC AIR CLEANER SIDE |
1 | ||
| 96111-10830 |
3RZFE..RZB40..WOC..GEN;3RZFE..RZB40,50..(17S,26S,30S)..WC..(GCC,GEN) AIR CLEANER SIDE |
1 | ||
| 96111-10730 |
3RZFE..RZB50;3RZFE..RZB40..GEN;3RZFE..RZB40..SRF..GCC CONNECTOR SIDE |
1 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-75040 |
3RZFE..RZB40..WOC..GEN;3RZFE..RZB40,50..(17S,26S,30S)..WC..(GCC,GEN) |
1 | ||
| 17882-75040 |
3RZFE..RZB50;3RZFE..RZB40..GEN;3RZFE..RZB40..SRF..GCC |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10800 |
3RZFE..RZB40..WOC..GEN;3RZFE..RZB40,50..(17S,26S,30S)..WC..(GCC,GEN) |
2 | ||
| 96111-10800 |
3RZFE..RZB50;3RZFE..RZB40..GEN;3RZFE..RZB40..SRF..GCC |
2 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10800 |
3RZFE..RZB40..WOC..GEN;3RZFE..RZB40,50..(17S,26S,30S)..WC..(GCC,GEN) |
2 | ||
| 96111-10800 |
3RZFE..RZB50;3RZFE..RZB40..GEN;3RZFE..RZB40..SRF..GCC |
2 | ||
| 17893 - RESONATOR, INTAKE AIR | ||||
| 17893-75070 |
3RZFE..RZB50;3RZFE..RZB40..GEN;3RZFE..RZB40..SRF..GCC |
1 | ||
| 17893-75070 |
3RZFE..RZB40..WOC..GEN;3RZFE..RZB40,50..(17S,26S,30S)..WC..(GCC,GEN) |
1 | ||
| Common parts | ||||
| 90119-06873 | ||||
| 91631-60822 | ||||
| 91631-60828 | ||||
| Linked diagrams | ||||
| 1709 | ||||
