8715 - HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

RZB40L-ZEMSK (1999)

Toyota Coaster

Production Jul 1999 - Aug 2001

Engine 3RZFE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 1 OF 4(9301- )

Click highlighted areas on diagram

HEATER CONTROL

Part #	Description	Period	Qty
55519 - PLATE, HEATER CONTROL NAME
55519-36020	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 07/1999	1
55519-36020	BB50..EX..GEN;HZB50..RHD..(20S,22S)..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN	07/1999 - 08/2001	1
55905A - KNOB, HEATER CONTROL
55905-36030	HZB50..RHD..EX;BB42,RZB40..22S..GEN FRONT MANUAL HEATER	07/1999 - 08/2001	8
55905-36030	HZB50..RHD..EX;BB42,RZB40..22S..GEN	07/1999 - 08/2001	2
55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55906-36080	BB42,5#,HZB50,RZB40,50..LHD	01/1993 - 07/1999	1
55906-36080	BB50..WOC..5F;BB42,RZB40..WOC..GCC;BB42,50,RZB40..(19S,22S)..GEN	07/1999 - 08/2001	1
55907A - CABLE SUB-ASSY, WATER VALVE CONTROL
55907-36080	BB42,5#,HZB50,RZB40,50..LHD	01/1993 - 07/1999	1
55907-36080	BB50..WOC..5F;BB42,RZB40..WOC..GCC;BB42,50,RZB40..(19S,22S)..GEN	07/1999 - 08/2001	1
55907F - CABLE SUB-ASSY, WATER VALVE CONTROL
55907-36090	BB42,5#,HZB50,RZB40,50..LHD	01/1993 - 07/1999	1
55907-36091	BB50..WOC..5F;BB42,RZB40..WOC..GCC;BB42,50,RZB40..(19S,22S)..GEN	07/1999 - 08/2001	1
55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55908-36040	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	1
55908-36040	BB50..WOC..5F;BB50..EX..GEN;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN	07/1999 - 08/2001	1
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55910-36150	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB42,HZB50,RZB40..LHD..WC..CBU..5F 24V,MARK L	01/1993 - 05/1995	1
55910-36140	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;HZB50..LHD..SRF..WC;BB42,RZB40..WC..(GCC,GEN);HZB50..HRF..WC..(GCC,GEN)..5F W/O(HEATER),MARK E	01/1993 - 07/1999	1
55910-36140	RZB40..22S..GEN MARK E	07/1999 - 08/2001	1
55910-36151	BB42,RZB40..22S..GEN FRONT MANUAL HEATER,MARK J	07/1999 - 08/2001	1
Common parts
82711-22270
90179-06206
90189-04088
90461-10723
90461-10731
90464-00298
90464-00401
90464-00458
90464-00509
90949-01C82
91651-60616
91656-60616
93568-55014
Linked diagrams
8401

ILLUST NO. 2 OF 4(9301-0408)

Click highlighted areas on diagram

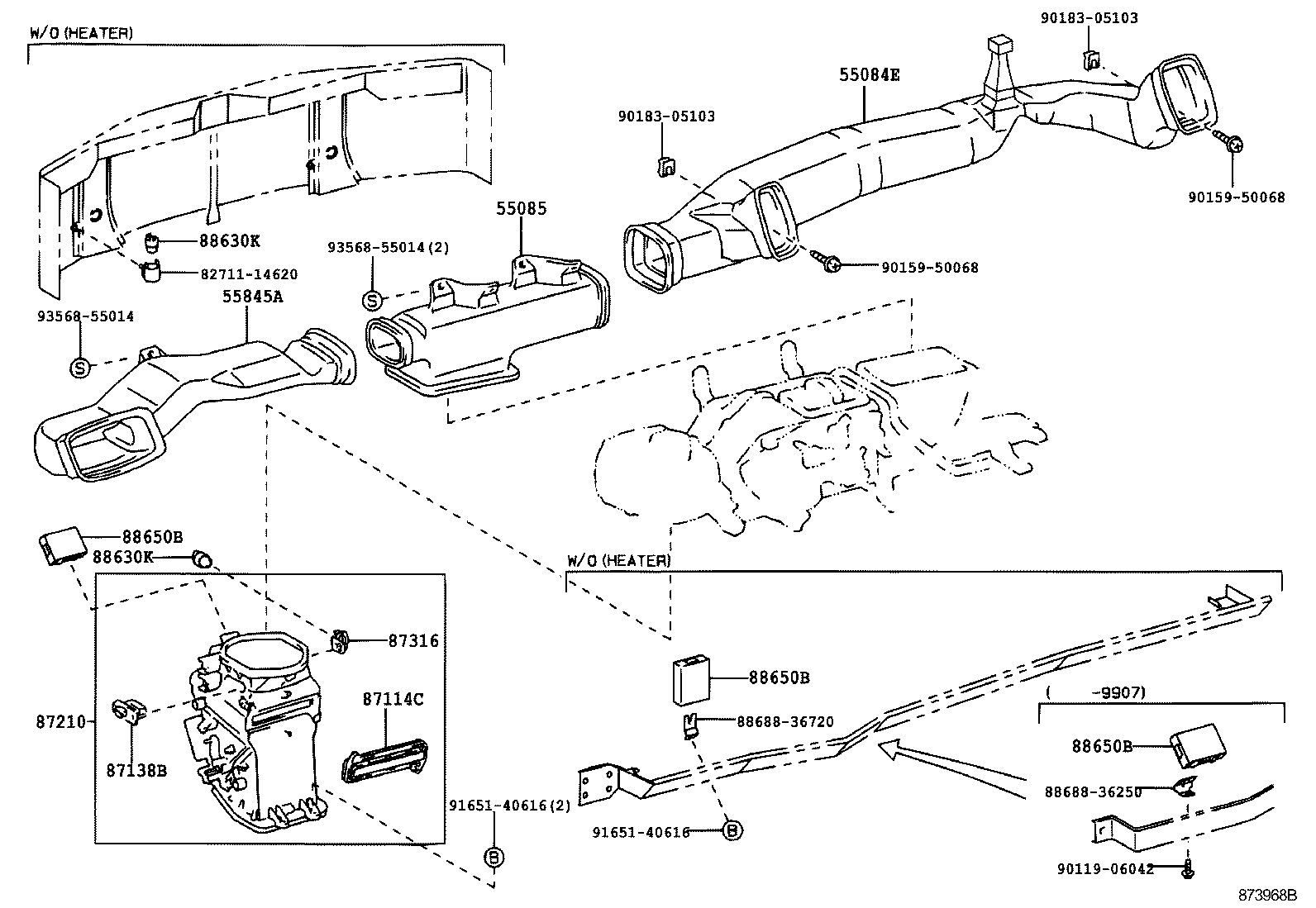

FRONT AIR DUCT & DAMPER

Part #	Description	Period	Qty
55084E - DUCT SUB-ASSY, HEATER TO REGISTER, NO.1
55084-36020	BB50..WOC..5F;BB42,RZB40..WOC..GCC;BB50,RZB40..(19S,22S)..GEN	07/1999 - 08/2001	1
55084-36020	BB42,HZB50,RZB40,50..LHD..GEN..5F W(FR HEATER)	01/1993 - 05/1995	1
55085 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.2
55085-36010	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	1
55085-36010	BB50..WOC..5F;BB50..EX..GEN;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN	07/1999 - 08/2001	1
55845A - DUCT, HEATER TO REGISTER, NO.3
55845-36020	BB42,HZB50,RZB40,50..LHD..GEN..5F W(FR HEATER)	01/1993 - 05/1995	1
55845-36020	BB50..WOC..5F;BB42,RZB40..WOC..GCC;BB50,RZB40..(19S,22S)..GEN	07/1999 - 08/2001	1
87114C - COVER, HEATER
87114-36010	BB50..WOC..5F;BB50..EX..GEN;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN	07/1999 - 08/2001	1
87114-36010	BB4#,HZB50,RZB40,50	01/1993 - 07/1994	1
87138B - RESISTOR, HEATER BLOWER
87138-36210	RZB40,50..GEN;HZB50..RHD..SRF;BB42,HZB50..WOC..(GCC,GEN) FR HEATER,W/O(FILTER)	01/1993 - 05/1995	1
87138-36210	RZB40..WOC..GCC;RZB40..22S..GEN FRONT MANUAL HEATER	07/1999 - 08/2001	1
87210 - DAMPER ASSY, AIR
87210-36120	RZB40,50..GEN;BB42,HZB50..LHD..WOC..DSL FR HEATER,W/O(FILTER)	01/1993 - 05/1995	1
87210-36121	RZB40..22S..GEN;BB42,RZB40..WOC..GCC FRONT MANUAL HEATER	07/1999 - 08/2001	1
87316 - BRACKET, HEATER RELAY, NO.1
85999-12050	BB4#,HZB50,RZB40,50	01/1993 - 07/1994	1
85999-12050	BB50..WOC..5F;BB50..EX..GEN;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN	07/1999 - 08/2001	1
88630K - RELAY ASSY
90987-02005	BB4#,5#..WC;HZB50..GCC..4FC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 07/1999	1
90987-02004	RZB40..22S..GEN	07/1999 - 08/2001	1
88630K - RELAY ASSY
90987-02005	BB4#,5#..WC;HZB50..GCC..4FC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 07/1999	1
90987-02004	RZB40..22S..GEN	07/1999 - 08/2001	1
88650B - AMPLIFIER ASSY, AIRCONDITIONER
88650-36100	BB4#,5#..WC;HZB50..GCC..4FC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 07/1999	1
88650B - AMPLIFIER ASSY, AIRCONDITIONER
88650-36100	BB4#,5#..WC;HZB50..GCC..4FC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 07/1999	1
88650B - AMPLIFIER ASSY, AIRCONDITIONER
88650-36100	BB4#,5#..WC;HZB50..GCC..4FC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 07/1999	1
Common parts
82711-14620
88688-36250
88688-36720
90119-06042
90159-50068
90183-05103
91651-40616
93568-55014

ILLUST NO. 3 OF 4(9301-0408) ; (0408-1501)BB50..IV ; (0408-1501)BB50,BZB50..19S,20S,21S,30S ; (0408-

Click highlighted areas on diagram

ROOF AIR DUCT & DAMPER

Part #	Description	Period	Qty
87106K - SERVO SUB-ASSY, DAMPER(FOR AIRMIX)
87106-36051	RZB40..22S..GEN	07/1999 - 08/2001	1
88430A - DUCT ASSY, AIR, NO.1
88430-36110	BB50..EX..GEN;HZB50..RHD..(20S,22S)..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN	07/1999 - 08/2001	1
88430-36110	HZB50..GCC..4FC;HZB50..LHD..HRF..WC..5F;HZB50..RHD..HRF..WC..DSL;BB4#,5#,RZB40,50..HRF..WC..(ARL,GCC,GEN,SCO)	01/1993 - 07/1999	1
88430B - DUCT ASSY, AIR, NO.2
88430-36240	HZB50..GCC..4FC;HZB50..LHD..HRF..WC..5F;HZB50..RHD..HRF..WC..DSL;BB4#,5#,RZB40,50..HRF..WC..(ARL,GCC,GEN,SCO)	01/1993 - 07/1999	1
88430-36240	BB50..EX..GEN;HZB50..RHD..(20S,22S)..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN	07/1999 - 08/2001	1
88430C - DUCT ASSY, AIR, NO.3
88430-36030	HZB50..GCC..4FC;HZB50..LHD..HRF..WC..5F;HZB50..RHD..HRF..WC..DSL;BB4#,5#..HRF..WC..(ARL,GEN,SCO)	01/1993 - 10/1998	1
88430-36211	RZB40..22S..GEN	07/1999 - 08/2001	1
88430D - DUCT ASSY, AIR, NO.4
88430-36040	HZB50..GCC..4FC;HZB50..LHD..HRF..WC..5F;HZB50..RHD..HRF..WC..DSL;BB4#,5#..HRF..WC..(ARL,GEN,SCO)	01/1993 - 10/1998	1
88430-36221	RZB40..22S..GEN	07/1999 - 08/2001	1
88568A - FILTER, AIR
88568-36011	BB50,HZB50..RHD..EX;BB4#,50,RZB40..(17S,19S,22S)..GEN	07/1999 - 08/2001	2
88568A - FILTER, AIR
88568-36011	BB50,HZB50..RHD..EX;BB4#,50,RZB40..(17S,19S,22S)..GEN	07/1999 - 08/2001	2
88580 - DAMPER ASSY, AIR
88580-36011	RZB40..22S..GEN	07/1999 - 08/2001	1
88635C - RESISTOR, COOLER AIR DUCT, NO.1
88635-36130	RZB40..22S..GEN	07/1999 - 08/2001	3
88635-36090	BB4#,5#..WC;HZB50..GCC..4FC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 07/1999	3
88635C - RESISTOR, COOLER AIR DUCT, NO.1
88635-36130	RZB40..22S..GEN	07/1999 - 08/2001	3
88635-36090	BB4#,5#..WC;HZB50..GCC..4FC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 07/1999	3
88635C - RESISTOR, COOLER AIR DUCT, NO.1
88635-36130	RZB40..22S..GEN	07/1999 - 08/2001	3
88635-36090	BB4#,5#..WC;HZB50..GCC..4FC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 07/1999	3
Common parts
88569-36170
90099-00081
91621-40614
93383-15020
