RZB40L-ZEMSK (1999)
Toyota Coaster

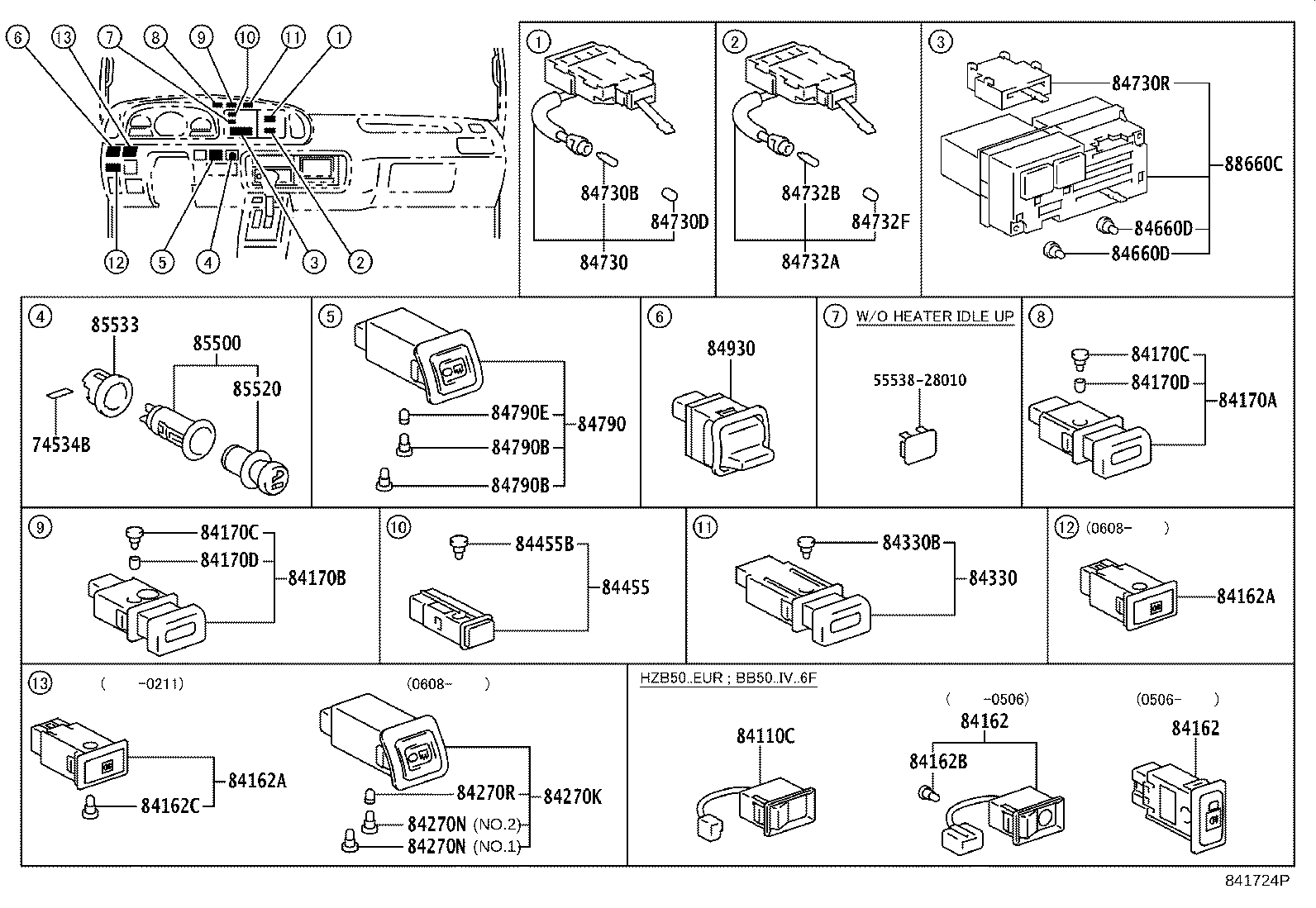

ILLUST NO. 2 OF 6(9301-0708)LHD
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74534B - PLATE, VOLTAGE CAUTION | ||||
| 74534-90K00 |
BB4#,5#,HZB50 |
1 | ||
| 84170A - SWITCH ASSY, ROOM LAMP NO.1 | ||||
| 84170-36040 |
BB4#,5#,HZB50..CBU 24V |
1 | ||
| 84170-36020 |
RZB40,50;HZB50..RHD..SRF;BB42,HZB50..WOC..(GCC,GEN) 12V |
1 | ||
| 84170-36020 |
HZB50..RHD..SRF;RZB40..22S..GEN;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN 12V |
1 | ||
| 84170B - SWITCH ASSY, ROOM LAMP NO.2 | ||||
| 84170-36050 |
BB4#,5#,HZB50..CBU 24V |
1 | ||
| 84170-36030 |
RZB40,50;HZB50..RHD..SRF;BB42,HZB50..WOC..(GCC,GEN) 12V |
1 | ||
| 84170-36030 |
HZB50..RHD..SRF;RZB40..22S..GEN;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN 12V |
1 | ||
| 84170C - BULB,ROOM LAMP SWITCH | ||||
| 84999-10610 |
BB40,42,5#,HZB50..CBU 24V |
2 | ||
| 84999-10320 |
RZB40,50;HZB50..RHD..SRF;BB42,HZB50..WOC..(GCC,GEN) 12V |
2 | ||
| 84999-10320 |
HZB50..RHD..SRF;RZB40..22S..GEN;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN 12V |
2 | ||
| 84170C - BULB,ROOM LAMP SWITCH | ||||
| 84999-10610 |
BB40,42,5#,HZB50..CBU 24V |
2 | ||
| 84999-10320 |
RZB40,50;HZB50..RHD..SRF;BB42,HZB50..WOC..(GCC,GEN) 12V |
2 | ||
| 84999-10320 |
HZB50..RHD..SRF;RZB40..22S..GEN;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN 12V |
2 | ||
| 84170D - CAP BULB,ROOM LAMP SWITCH | ||||
| 84998-10270 |
BB50..WOC..5F;BB50..EX..GEN;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN |
2 | ||
| 84998-10270 |
BB50..CBU;BB50..WOC..GEN;BB4#,58,HZB50,RZB40,50 |
2 | ||
| 84170D - CAP BULB,ROOM LAMP SWITCH | ||||
| 84998-10270 |
BB50..WOC..5F;BB50..EX..GEN;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN |
2 | ||
| 84998-10270 |
BB50..CBU;BB50..WOC..GEN;BB4#,58,HZB50,RZB40,50 |
2 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-36080 |
HZB50..RHD..SRF;RZB40..22S..GEN;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN 12V |
1 | ||
| 84332-36090 |
BB4#,5#,HZB50 24V |
1 | ||
| 84332-36080 |
RZB40,50;HZB50..RHD..SRF;BB42,HZB50..WOC..(GCC,GEN) 12V |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-10320 |
HZB50..RHD..SRF;RZB40..22S..GEN;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN 14V 0.84W |
1 | ||
| 84999-10610 |
BB4#,5#,HZB50 28V 0.84W |
1 | ||
| 84999-10320 |
RZB40,50;HZB50..RHD..SRF;BB42,HZB50..WOC..(GCC,GEN) 14V 0.84W |
1 | ||
| 84660D - BULB(FOR COOLER SWITCH) | ||||
| 81936-32010 |
BB50..EX..GEN;HZB50..RHD..(20S,22S)..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN 14V 1.4W |
2 | ||
| 84660D - BULB(FOR COOLER SWITCH) | ||||
| 81936-32010 |
BB50..EX..GEN;HZB50..RHD..(20S,22S)..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN 14V 1.4W |
2 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-36040 |
BB50..EX;BB4#,58,RZB40..WC;HZB50..HRF..WC..DSL;HZB50..LHD..SRF..WC;BB42,HZB50..LHD..WOC;BB50,RZB50..LHD..HRF..(EUR,GEN);HZB50,RZB50..LHD..WC..(EUR,GCC)..(CBR,TD) 24V |
1 | ||
| 84732-36040 |
BB50..WOC..5F;BB42..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN |
1 | ||
| 84730B - BULB, HEATER BLOWER SWITCH | ||||
| 84999-10590 |
BB50..WOC..5F;BB42..WOC..GCC;HZB50..RHD..SRF;HZB50..RHD..(20S,22S)..GEN;BB42,50,RZB40..(19S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN 24V 2.0W |
1 | ||
| 84999-10590 |
RZB40..WC;RZB50..GCC;BB4#,5#,HZB50;RZB50..HRF..GEN 24V 2.0W |
1 | ||
| 84730D - CAP, HEATER BLOWER SWITCH BULB | ||||
| 84998-10050 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 84730R - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-35010 |
BB4#,RZB40..WC;HZB50..GCC..4FC;RZB50..HRF..GEN;HZB50..LHD..SRF..WC;HZB50..HRF..WC..5F..DSL;HZB50,RZB50..LHD..WC..(EUR,GCC)..(CBR,TD) |
1 | ||
| 84732-35010 |
BB50..EX..GEN;HZB50..RHD..(20S,22S)..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN |
1 | ||
| 84732A - SWITCH, REAR HEATER BLOWER | ||||
| 84732-36050 |
HZB50..30S..4FC;HZB50..(ARL,EUR,GCC,GEN)..5F;BB40,42,5#..STD..(ARL,EUR,GCC,GEN) 24V |
1 | ||
| 84732-36080 |
RZB40,50;HZB50..RHD..SRF;BB42,HZB50..WOC..(GCC,GEN) 12V |
1 | ||
| 84732-36080 |
HZB50..RHD..SRF;RZB40..22S..GEN;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN 12V |
1 | ||
| 84732B - BULB, REAR HEATER BLOWER SWITCH | ||||
| 84999-10590 |
HZB50..30S..4FC;HZB50..(ARL,EUR,GCC,GEN)..5F;BB40,42,5#..STD..(ARL,EUR,GCC,GEN) 24V 2.0W |
1 | ||
| 90981-11014 |
RZB40,50;HZB50..RHD..SRF;BB42,HZB50..WOC..(GCC,GEN) 14V 1.4W |
1 | ||
| 84732F - CAP, REAR HEATER BLOWER SWITCH | ||||
| 84998-10050 |
HZB50..30S..4FC;HZB50,RZB40..(ARL,EUR,GCC,GEN)..5F;BB40,42,5#,RZB50..STD..(ARL,EUR,GCC,GEN) |
1 | ||
| 84998-10050 |
BB50..WOC..5F;HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;BB42,50,RZB40..(19S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-36060 |
RZB40..22S..GEN |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84999-10520 |
RZB40..22S..GEN 14V 1.12W |
1 | ||
| 84999-10320 |
RZB40..22S..GEN 14V 0.84W |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84999-10520 |
RZB40..22S..GEN 14V 1.12W |
1 | ||
| 84999-10320 |
RZB40..22S..GEN 14V 0.84W |
1 | ||
| 84790E - CAP, BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84998-10060 |
BB42..GEN;RZB40..WC;BB42..WC..GCC;RZB40..WOC..GEN;HZB50,RZB50..GCC,GEN |
1 | ||
| 84998-10060 |
HZB50..RHD..EX;HZB50..RHD..SRF;BB42,50,RZB40..(19S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-36010 |
RZB40,50;HZB50..RHD..SRF;BB42,HZB50..WOC..(GCC,GEN) 12V |
1 | ||
| 84930-36010 |
RZB40..22S..GEN;BB42,RZB40..WOC..GCC 12V |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-36020 |
BB4#,5#,HZB50 24V |
1 | ||
| 85500-17060 |
HZB50..RHD..SRF;RZB40..22S..GEN;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN 12V |
1 | ||
| 85500-17040 |
RZB40,50;HZB50..RHD..SRF;BB42,HZB50..WOC..(GCC,GEN) 12V |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-20080 |
RZB40,50;HZB50..RHD..SRF;BB42,HZB50..WOC..(GCC,GEN) |
1 | ||
| 85520-17020 |
HZB50..RHD..SRF;RZB40..22S..GEN;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN 12V |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-30040 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 85533-30040 |
BB50..WOC..5F;BB50..EX..GEN;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN |
1 | ||
| 88660C - SWITCH ASSY, COOLER CONTROL | ||||
| 84660-36020 |
HZB50..GCC..4FC;RZB50..HRF..GEN;HZB50..LHD..SRF..WC;HZB50..HRF..WC..5F..DSL;BB4#,RZB40..WC..(ARL,GCC,GEN);HZB50,RZB50..LHD..WC..(EUR,GCC)..(CBR,TD) |
1 | ||
| 84660-36021 |
BB50,HZB50..RHD..EX;BB4#,50,RZB40..(17S,19S,22S)..GEN W/O(DESTINETION EXPRESS BOX) |
1 | ||
| Common parts | ||||
| 55538-28010 | ||||
ILLUST NO. 4 OF 6(9301-0408)
STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-80145 |
BB42,HZB50,RZB40,50..LHD..CBU |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-36170 |
BB42,5#,HZB50,RZB40,50..LHD |
1 | ||
| 84140-36170 |
BB42,RZB40..WOC..GCC;BB42,50,RZB40..(19S,22S)..GEN |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-36600 |
BB42,HZB50,RZB40,50..LHD..STD..CBU |
1 | ||
| 84310-36610 |
BB42,HZB50,RZB40,50..LHD..STD..CBU W(*RW) |
1 | ||
| 84310-3B010 |
BB42,RZB40..WOC..GCC;RZB40..(17S,22S)..(GCC,GEN) W(REAR WIPER) |
1 | ||
| 84310-3B020 |
RZB40..22S..GEN;BB42,RZB40..WOC..GCC |
1 | ||
| 84310-3B140 |
RZB40,50..HRF..GEN W(FOG LAMP) |
1 | ||
| 84310-3B130 |
RZB40,50..HRF..GEN W(REAR WIPER & FOG SWITCH) |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-20011 |
BB50..WOC..5F;BB50..EX..GEN;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN |
1 | ||
| 84312-20011 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 84329 - SWITCH, TURN SIGNAL | ||||
| 84329-36060 |
BB42,5#,HZB50,RZB40,50..LHD |
1 | ||
| 84329-36090 |
BB50..WOC..5F;BB42,RZB40..WOC..GCC;BB42,50,RZB40..(19S,22S)..GEN |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-36090 |
HZB50..ARL,EUR;BB4#,5#,RZB40,50 |
1 | ||
| 84450-36090 |
BB50..WOC..5F;BB50..EX..GEN;BB42..RHD..HRF..WOC;BB42,RZB40..WOC..GCC;BB4#,50,RZB40..(17S,19S,22S)..GEN |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-36090 |
HZB50..ARL,EUR;BB4#,5#,RZB40,50 |
1 | ||
| 84450-36090 |
BB50..WOC..5F;BB50..EX..GEN;BB42..RHD..HRF..WOC;BB42,RZB40..WOC..GCC;BB4#,50,RZB40..(17S,19S,22S)..GEN |
1 | ||
| 84650D - SWITCH ASSY, WINDSHIELD WIPER (W/RELAY, WIPER CONTROL) | ||||
| 84652-36490 |
BB42,5#,HZB50..LHD..STD..CBU W(*EB) |
1 | ||
| 84652-36480 |
BB42,HZB50,RZB40,50..LHD..STD..CBU W(*RW) |
1 | ||
| 84652-36470 |
BB42,HZB50,RZB40,50..LHD..STD..CBU |
1 | ||
| 84652-36740 |
RZB40..22S..GEN W/O(REAR WIPER) |
1 | ||
| 84652-36720 |
RZB40..22S..GEN;BB42,RZB40..WOC..GCC W(REAR WIPER) |
1 | ||
| Common parts | ||||
| 82711-30130 | ||||
| 82817-36030 | ||||
| 90080-46104 | ||||
| 90149-40013 | ||||
| 90168-40129 | ||||
| 90463-13003 | ||||
| 90464-00232 | ||||
| 91611-G0612 | ||||
| 93319-15012 | ||||
ILLUST NO. 6 OF 6(9301- )
DOOR,ROOF,FLOOR & BACK DOOR 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84235 - SWITCH ASSY, COURTESY LAMP(FOR BACK DOOR) | ||||
| 84231-36010 |
HZB50..(20S,30S)..(GCC,GEN);BB42,50,RZB40,50..(17S,22S,26S,30S)..(GCC,GEN) |
1 | ||
| 84231-36010 |
HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;BB42,50,RZB40..(19S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN |
1 | ||
| 84235 - SWITCH ASSY, COURTESY LAMP(FOR BACK DOOR) | ||||
| 84231-36010 |
HZB50..(20S,30S)..(GCC,GEN);BB42,50,RZB40,50..(17S,22S,26S,30S)..(GCC,GEN) |
1 | ||
| 84231-36010 |
HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;BB42,50,RZB40..(19S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN |
1 | ||
| 84235 - SWITCH ASSY, COURTESY LAMP(FOR BACK DOOR) | ||||
| 84231-36010 |
HZB50..(20S,30S)..(GCC,GEN);BB42,50,RZB40,50..(17S,22S,26S,30S)..(GCC,GEN) |
1 | ||
| 84231-36010 |
HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;BB42,50,RZB40..(19S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN |
1 | ||
| 84235B - CUSHION, COURTESY SWITCH(FOR BACK DOOR) | ||||
| 84234-22010 |
HZB50..(20S,30S)..(GCC,GEN);BB42,50,RZB40,50..(17S,22S,26S,30S)..(GCC,GEN) |
1 | ||
| 84234-22010 |
HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;BB42,50,RZB40..(19S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN |
1 | ||
