RZB40L-ZEMSK (1999)
Toyota Coaster

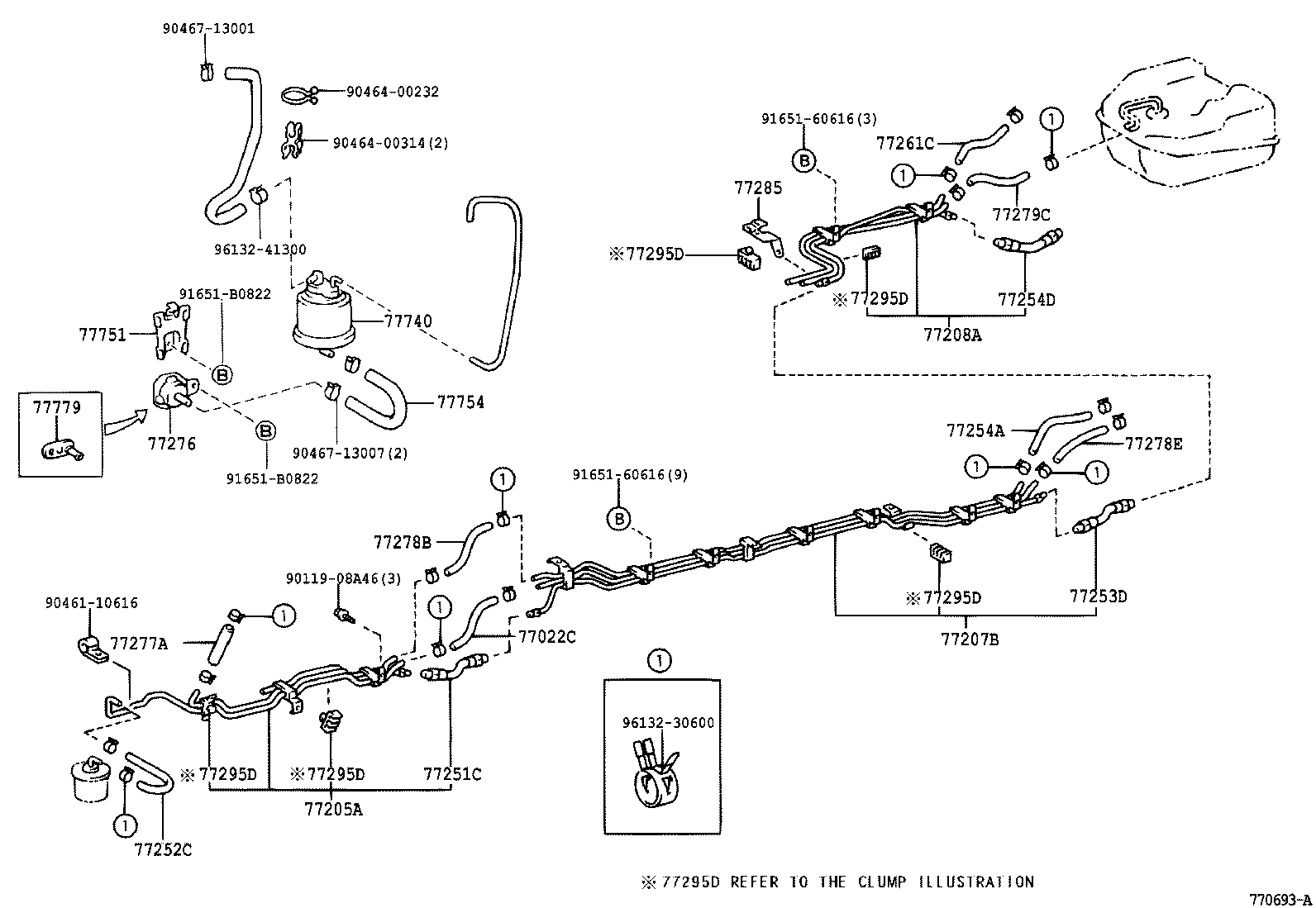

ILLUST NO. 2 OF 4(9907-0008)RZB40,50..HRF..GEN ; (0012- )RZB40,50..CHI
FUEL TUBE (GEN=CHINA SPEC)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77022C - HOSE OR TUBE(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95334-06022 |
RZB40,50..HRF..GEN CHINA SPEC |
1 | ||
| 77205A - TUBE SUB-ASSY, FUEL MAIN | ||||
| 77205-3B140 |
RZB40,50..HRF..GEN CHINA SPEC |
1 | ||
| 77205-3B150 |
RZB40..WOC..GCC;RZB40..22S..GEN |
1 | ||
| 77207B - TUBE SUB-ASSY, FUEL MAIN, NO.3 | ||||
| 77207-36160 |
RZB40..HRF..GEN CHINA SPEC |
1 | ||
| 77207-36170 |
RZB40..WOC..GCC;RZB40..22S..GEN |
1 | ||
| 77208A - TUBE SUB-ASSY, FUEL MAIN, NO.4 | ||||
| 77208-36140 |
HZB50,RZB40,50 |
1 | ||
| 77208-36150 |
BB4#,5# |
1 | ||
| 77208-36210 |
RZB40,50..HRF..GEN CHINA SPEC |
1 | ||
| 77208-36220 |
RZB40..WOC..GCC;RZB40..22S..GEN |
1 | ||
| 77251C - HOSE, FUEL, NO.1(FOR FUEL MAIN TUBE) | ||||
| 90923-01419 |
RZB40..WOC..GCC;RZB40..22S..GEN L=236 |
1 | ||
| 77252C - HOSE, FUEL, NO.2(FOR FUEL MAIN NO.2 TUBE) | ||||
| 95333-06030 |
RZB40,50..HRF..GEN CHINA SPEC |
1 | ||
| 77253D - HOSE, FUEL | ||||
| 90923-01409 |
RZB40..WOC..GCC;RZB40..22S..GEN |
1 | ||
| 77254A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1) | ||||
| 95333-06030 |
RZB40,50..HRF..GEN *H,L=260,CHINA SPEC |
1 | ||
| 77254D - HOSE, FUEL | ||||
| 95332-10018 |
BB4#,5# |
1 | ||
| 90923-01409 |
RZB40..WOC..GCC;RZB40..22S..GEN |
1 | ||
| 77261C - HOSE, FUEL, NO.3 (FOR FUEL EMISSION TUBE) | ||||
| 95333-06030 |
RZB40,50..HRF..GEN *H,L=220,CHINA SPEC |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 23273-75140 |
RZB40..WOC..GCC;RZB40..22S..GEN |
1 | ||
| 77278B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2) | ||||
| 95334-06022 |
RZB40..WOC..GCC;RZB40..22S..GEN *H,L=220 |
1 | ||
| 77278E - HOSE, FUEL | ||||
| 95334-06022 |
RZB40..WOC..GCC;RZB40..22S..GEN |
1 | ||
| 77279C - HOSE, FUEL | ||||
| 95334-06015 |
RZB40..WOC..GCC;RZB40..22S..GEN |
1 | ||
| 95333-06020 |
BB4#,50,HZB50,RZB40,50 |
1 | ||
| 77285 - BRACKET, FUEL TUBE | ||||
| 77281-36010 |
BB50..WOC..5F;BB50..EX..GEN;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN |
1 | ||
| 77295D - GROMMET, FUEL TUBE | ||||
| 77295-36010 |
RZB40..WOC..GCC;RZB40..22S..GEN TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 77295-36030 |
RZB40..WOC..GCC;RZB40..22S..GEN TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 77295-36020 |
RZB40..WOC..GCC;RZB40..22S..GEN TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 77295D - GROMMET, FUEL TUBE | ||||
| 77295-36010 |
RZB40..WOC..GCC;RZB40..22S..GEN TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 77295-36030 |
RZB40..WOC..GCC;RZB40..22S..GEN TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 77295-36020 |
RZB40..WOC..GCC;RZB40..22S..GEN TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 77295D - GROMMET, FUEL TUBE | ||||
| 77295-36010 |
RZB40..WOC..GCC;RZB40..22S..GEN TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 77295-36030 |
RZB40..WOC..GCC;RZB40..22S..GEN TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 77295-36020 |
RZB40..WOC..GCC;RZB40..22S..GEN TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 77295D - GROMMET, FUEL TUBE | ||||
| 77295-36010 |
RZB40..WOC..GCC;RZB40..22S..GEN TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 77295-36030 |
RZB40..WOC..GCC;RZB40..22S..GEN TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 77295-36020 |
RZB40..WOC..GCC;RZB40..22S..GEN TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 77295D - GROMMET, FUEL TUBE | ||||
| 77295-36010 |
RZB40..WOC..GCC;RZB40..22S..GEN TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 77295-36030 |
RZB40..WOC..GCC;RZB40..22S..GEN TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 77295-36020 |
RZB40..WOC..GCC;RZB40..22S..GEN TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77704-36050 |
RZB40,50..HRF..GEN CHINA SPEC |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 77751-36070 |
RZB40,50..HRF..GEN CHINA SPEC |
1 | ||
| 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 | ||||
| 77754-36020 |
RZB40,50..HRF..GEN CHINA SPEC |
1 | ||
| 77779 - TUBE, CHARCOAL CANISTER OUTLET | ||||
| 77779-36010 |
RZB40,50..HRF..GEN CHINA SPEC |
2 | ||
| Common parts | ||||
| 90119-08A46 | ||||
| 90461-10616 | ||||
| 90464-00232 | ||||
| 90464-00314 | ||||
| 90467-13001 | ||||
| 90467-13007 | ||||
| 91651-60616 | ||||
| 91651-B0822 | ||||
| 96132-30600 | ||||
| 96132-41300 | ||||
ILLUST NO. 1 OF 4(9301-0602)BB4#,5#,HZB50,RZB40,50
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER | ||||
| 77011-12130 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 77011-12130 |
BB50..WOC..5F;BB50..EX..GEN;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN |
1 | ||
| 77017B - TUBE SUB-ASSY, FUEL TANK VENT | ||||
| 77017-36420 |
BB4#,5# |
1 | ||
| 77017-36430 |
HZB50,RZB40,50 |
1 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-36010 |
BB4#,5# |
1 | ||
| 77023-60010 |
HZB50,RZB40,50 |
1 | ||
| 77026A - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1 | ||||
| 77026-36020 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 77026-36020 |
BB50..WOC..5F;BB50..EX..GEN;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-36040 |
BB42,RZB40..LHD |
1 | ||
| 77035-36040 |
BB42,RZB40..WOC..GCC;BB42,RZB40..22S..GEN |
1 | ||
| 77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID | ||||
| 77037-36010 |
HZB50..30S..4FC;BB4#,5#,HZB50,RZB40,50..(DX,STD)..CBU..5F |
1 | ||
| 77037-12050 |
BB4#,50,HZB50,RZB40,50..CBU W(FUEL LID OPENER) |
1 | ||
| 77037-12050 |
BB50..EX..GEN;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN W(FUEL LID OPENER) |
1 | ||
| 77037-36010 |
HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN |
1 | ||
| 77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID | ||||
| 77037-36010 |
HZB50..30S..4FC;BB4#,5#,HZB50,RZB40,50..(DX,STD)..CBU..5F |
1 | ||
| 77037-12050 |
BB4#,50,HZB50,RZB40,50..CBU W(FUEL LID OPENER) |
1 | ||
| 77037-12050 |
BB50..EX..GEN;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN W(FUEL LID OPENER) |
1 | ||
| 77037-36010 |
HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN |
1 | ||
| 77051 - LEVER SUB-ASSY, FUEL LID OPEN | ||||
| 77051-30060E1 |
BB4#,RZB40,50;HZB50..LHD..DSL GREIGE,TRIM4# |
1 | ||
| 77051-30060E1 |
BB50..EX;BB50..STD..CBU;BB4#,58,HZB50,RZB40,50 GREIGE,TRIM4# |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-3B260 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 77001-3B270 |
RZB40..WOC..GCC;RZB40..22S..GEN |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12116 |
BB50..WOC..5F;BB50..EX..GEN;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN |
1 | ||
| 90105-12116 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
BB50..WOC..5F;BB50..EX..GEN;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN |
1 | ||
| 90430-12245 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 77135 - BRACKET, CHECK VALVE | ||||
| 77135-36040 |
BB50..WOC..5F;BB50..EX..GEN;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN |
1 | ||
| 77135-36040 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-14020 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 77169-32010 |
RZB40..WOC..GCC;RZB40..22S..GEN |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-14020 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 77169-32010 |
RZB40..WOC..GCC;RZB40..22S..GEN |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-20030 |
BB50..WOC..5F;BB50..EX..GEN;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN |
1 | ||
| 77178-20030 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 77179A - GASKET, FUEL TANK BREATHER TUBE | ||||
| 77179-26010 |
BB50..WOC..5F;BB50..EX..GEN;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN |
2 | ||
| 77179-26010 |
BB4#,5#,HZB50,RZB40,50 |
2 | ||
| 77179A - GASKET, FUEL TANK BREATHER TUBE | ||||
| 77179-26010 |
BB50..WOC..5F;BB50..EX..GEN;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN |
2 | ||
| 77179-26010 |
BB4#,5#,HZB50,RZB40,50 |
2 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-36170 |
BB50..WOC..5F;BB50..EX..GEN;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN |
1 | ||
| 77201-36170 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 77203A - TUBE SUB-ASSY, FUEL SUCTION | ||||
| 77203-36191 |
RZB40..WOC..GCC;RZB40..22S..GEN |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-36090 |
BB4#,5#,HZB50,RZB40,50..CBU |
1 | ||
| 77213-36090 |
BB50..WOC..5F;BB50..EX..GEN;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN |
1 | ||
| 77219 - COVER, FUEL TANK FILLER PIPE | ||||
| 77219-32030 |
BB50..WOC..5F;BB50..EX..GEN;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN |
2 | ||
| 77219-32030 |
BB4#,5#,HZB50,RZB40,50 |
2 | ||
| 77219 - COVER, FUEL TANK FILLER PIPE | ||||
| 77219-32030 |
BB50..WOC..5F;BB50..EX..GEN;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN |
2 | ||
| 77219-32030 |
BB4#,5#,HZB50,RZB40,50 |
2 | ||
| 77259A - HOSE, FUEL(FOR BREATHER TUBE) | ||||
| 77259-36070 |
BB4#,5#,HZB50,RZB40,50..CBU |
1 | ||
| 77259-36070 |
BB50..WOC..5F;BB50..EX..GEN;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN |
1 | ||
| 77259C - HOSE, FUEL | ||||
| 77259-36090 |
BB50..WOC..5F;BB50..EX..GEN;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN |
1 | ||
| 77259-36090 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77291-12060 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 77291-12060 |
BB50..EX..GEN;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN |
1 | ||
| 77293A - SHIELD, FUEL TANK FILLER PIPE, NO.3 | ||||
| 77293-12030 |
BB50..EX..GEN;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN |
1 | ||
| 77293-12030 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77310-48010 |
RZB40..WOC..GCC;RZB40..22S..GEN |
1 | ||
| 77310-35110 |
BB4#,5#,HZB50 |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-16010 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 77316-16010 |
BB50..WOC..5F;BB50..EX..GEN;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-36020 |
HZB50..30S..4FC;BB4#,5#,HZB50,RZB40,50..(DX,STD)..CBU..5F |
1 | ||
| 77350-36020 |
HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN |
1 | ||
| 77350-36010 |
HZB50..30S..4FC;BB4#,50,HZB50,RZB40,50..(DX,STD)..CBU..5F W(FUEL LID OPENER) |
1 | ||
| 77350-36010 |
BB50..EX..GEN;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN W(FUEL LID OPENER) |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-36010 |
BB50..EX..GEN;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN |
1 | ||
| 77360-36010 |
BB4#,5#,HZB50,RZB40,50..CBU |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-20030 |
BB50..EX..GEN;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN |
1 | ||
| 77377-20030 |
BB4#,5#,HZB50,RZB40,50..CBU |
1 | ||
| 77380 - VALVE ASSY, FUEL CUT OFF | ||||
| 77380-26010 |
BB50..WOC..5F;BB50..EX..GEN;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN |
1 | ||
| 77380-26010 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-14020 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 77391-14020 |
BB50..EX..GEN;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN |
1 | ||
| 77420 - VALVE ASSY, FUEL CUT OFF, NO.2 | ||||
| 77420-26010 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 77420-26010 |
BB50..WOC..5F;BB50..EX..GEN;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN |
1 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-36120 |
BB4#,5#,HZB50,RZB40,50 |
2 | ||
| 77601-36120 |
BB50..WOC..5F;BB50..EX..GEN;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN |
2 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-36120 |
BB4#,5#,HZB50,RZB40,50 |
2 | ||
| 77601-36120 |
BB50..WOC..5F;BB50..EX..GEN;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 90240-08047 |
BB50..WOC..5F;BB50..EX..GEN;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN |
2 | ||
| 90240-08047 |
BB4#,5#,HZB50,RZB40,50 |
2 | ||
| 77613A - BRACKET, FUEL TANK BAND, NO.1 | ||||
| 77613-36030 |
BB4#,5#,HZB50,RZB40,50 |
2 | ||
| 77613-36030 |
BB50..WOC..5F;BB50..EX..GEN;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN |
2 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-36130 |
BB50..WOC..5F;BB50..EX..GEN;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN |
3 | ||
| 77651-36130 |
BB4#,5#,HZB50,RZB40,50 |
3 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-36130 |
BB50..WOC..5F;BB50..EX..GEN;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN |
3 | ||
| 77651-36130 |
BB4#,5#,HZB50,RZB40,50 |
3 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-36130 |
BB50..WOC..5F;BB50..EX..GEN;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN |
3 | ||
| 77651-36130 |
BB4#,5#,HZB50,RZB40,50 |
3 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-36010 |
BB4#,5#,HZB50,RZB40,50 |
2 | ||
| 77652-36010 |
BB50..WOC..5F;BB50..EX..GEN;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN |
2 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-36010 |
BB4#,5#,HZB50,RZB40,50 |
2 | ||
| 77652-36010 |
BB50..WOC..5F;BB50..EX..GEN;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN |
2 | ||
| 77653A - CUSHION, FUEL TANK, NO.3 | ||||
| 77653-36010 |
BB50..WOC..5F;BB50..EX..GEN;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN |
4 | ||
| 77653-36010 |
BB4#,5#,HZB50,RZB40,50 |
4 | ||
| 77653A - CUSHION, FUEL TANK, NO.3 | ||||
| 77653-36010 |
BB50..WOC..5F;BB50..EX..GEN;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN |
4 | ||
| 77653-36010 |
BB4#,5#,HZB50,RZB40,50 |
4 | ||
| 77653A - CUSHION, FUEL TANK, NO.3 | ||||
| 77653-36010 |
BB50..WOC..5F;BB50..EX..GEN;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN |
4 | ||
| 77653-36010 |
BB4#,5#,HZB50,RZB40,50 |
4 | ||
| 77653A - CUSHION, FUEL TANK, NO.3 | ||||
| 77653-36010 |
BB50..WOC..5F;BB50..EX..GEN;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN |
4 | ||
| 77653-36010 |
BB4#,5#,HZB50,RZB40,50 |
4 | ||
| 77681A - SEAT, FUEL TANK BAND | ||||
| 77681-36050 |
BB50..WOC..5F;BB50..EX..GEN;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN |
2 | ||
| 77681-36050 |
BB4#,5#,HZB50,RZB40,50 |
2 | ||
| 77681A - SEAT, FUEL TANK BAND | ||||
| 77681-36050 |
BB50..WOC..5F;BB50..EX..GEN;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN |
2 | ||
| 77681-36050 |
BB4#,5#,HZB50,RZB40,50 |
2 | ||
| 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) | ||||
| 90917-10020 |
BB4#,5#,HZB50,RZB40,50..CBU |
1 | ||
| 90917-10020 |
BB50..WOC..5F;BB50..EX..GEN;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN |
1 | ||
| Common parts | ||||
| 82711-22270 | ||||
| 82711-33170 | ||||
| 90159-50217 | ||||
| 90159-50219 | ||||
| 90159-50258 | ||||
| 90159-50278 | ||||
| 90159-60008 | ||||
| 90179-05011 | ||||
| 90179-05042 | ||||
| 90179-06308 | ||||
| 90179-10074 | ||||
| 90183-05094 | ||||
| 90189-06013 | ||||
| 90189-06099 | ||||
| 90460-22002 | ||||
| 90460-46005 | ||||
| 90467-09007 | ||||
| 90467-09123 | ||||
| 90468-14004 | ||||
| 90480-14003 | ||||
| 91651-60616 | ||||
| 91651-61025 | ||||
| 91651-A0816 | ||||
| 91655-B1040 | ||||
| 93319-A4010 | ||||
| 93568-55014 | ||||
| 96132-41100 | ||||
| Linked diagrams | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
