RB20R-MR (1982)
Toyota Coaster
(8205- )22R..WOC ; (8610- )3F..WOC..ME
12V 45A

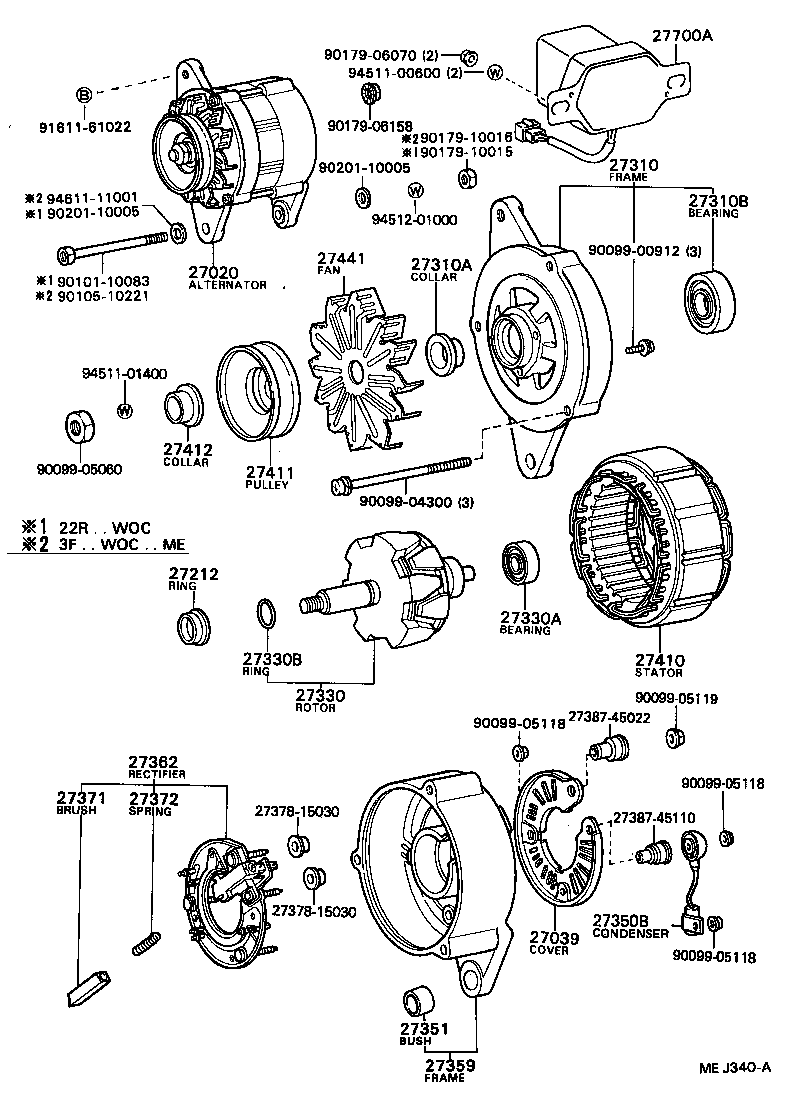

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27020-38120 |
22R..RB20..WOC 12V 45A,12V 45A |
1 | ||
| 27020-38121 |
22R..RB20..WOC 12V 45A,12V 45A |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-18011 |
22R..RB20..WOC 12V 45A |
1 | ||
| 27212 - RING, SPACE(FOR ALTERNATOR ROTOR) | ||||
| 27412-45070 |
22R..RB20..WOC 12V 50A |
1 | ||
| 27412-15150 |
22R..RB20..WOC 12V 50A |
1 | ||
| 27212-39050 |
22R..RB20..WOC 12V 45A |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-18010 |
22R..RB20..WOC 12V 45A |
1 | ||
| 27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 27412-31040 |
22R..RB20..WOC 12V 45A,50A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10126 |
22R..RB20..WOC 12V 45A |
1 | ||
| 90099-10125 |
22R..RB20..WOC 12V 45A |
1 | ||
| 90099-10125 |
22R..RB20..WOC 12V 50A |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-45020 |
22R..RB20..WOC 12V 45A |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10111 |
22R..RB20 12V 45A |
1 | ||
| 90099-10116 |
22R..RB20..WOC 12V 50A |
1 | ||
| 90099-10116 |
22R..RB20 12V 45A |
1 | ||
| 27330B - RING, SNAP(FOR ALTERNATOR ROTOR) | ||||
| 90099-07048 |
22R..RB20..WOC 12V 45A |
1 | ||
| 27350B - CONDENSER, ALTERNATOR | ||||
| 90099-52065 |
22R..RB20..WOC 12V 45A,50A |
1 | ||
| 27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME) | ||||
| 27351-38051 |
22R..RB20..WOC 12V 45A,50A |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-13050 |
22R..RB20..WOC 12V 45A |
1 | ||
| 27362 - RECTIFIER ASSY, W/BRUSH | ||||
| 27362-18011 |
22R..RB20..WOC 12V 45A |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-31011 |
22R..RB20 12V 45A,50A,105A,90A |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-31011 |
22R..RB20 12V 45A,50A,105A,90A |
2 | ||
| 27410 - STATOR ASSY, ALTERNATOR | ||||
| 27410-38120 |
22R..RB20..WOC 12V 45A |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-31042 |
22R..RB20..WOC 12V 45A,50A |
1 | ||
| 27412 - COLLAR, SPACER(FOR ALTERNATOR PULLEY) | ||||
| 27412-44030 |
22R..RB20..WOC 12V 45A,50A |
1 | ||
| 27441 - FAN, ALTERNATOR | ||||
| 27441-34030 |
22R..RB20..WOC 12V 45A,50A |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-35030 |
22R,3B,3F,2H..BB20,21,FB30,HB30,RB20..(20S,22S,23S,25S,26S,29S,30S)..WOC 12V 40A,45A,50A |
1 | ||
| 27700-35030 |
22R,3F,2H..FB30,HB30,RB20..WOC 12V 40A,45A,50A |
1 | ||
| Common parts | ||||
| 27378-15030 | ||||
| 27387-45022 | ||||
| 27387-45110 | ||||
| 90099-00912 | ||||
| 90099-04300 | ||||
| 90099-05060 | ||||
| 90099-05118 | ||||
| 90099-05119 | ||||
| 90101-10083 | ||||
| 90105-10221 | ||||
| 90179-06070 | ||||
| 90179-06158 | ||||
| 90179-10015 | ||||
| 90179-10016 | ||||
| 90201-10005 | ||||
| 91611-61022 | ||||
| 94511-00600 | ||||
| 94511-01400 | ||||
| 94512-01000 | ||||
| 94611-11001 | ||||
