RB20R-MDZRQ (1982)

Toyota Coaster

Production May 1982 - Oct 1986
Engine 22R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8205-8411)LHD ; (8411- )BB2#,FB30,HB30,RB20; (9001- )BB32,HZB30..23S,26S,29

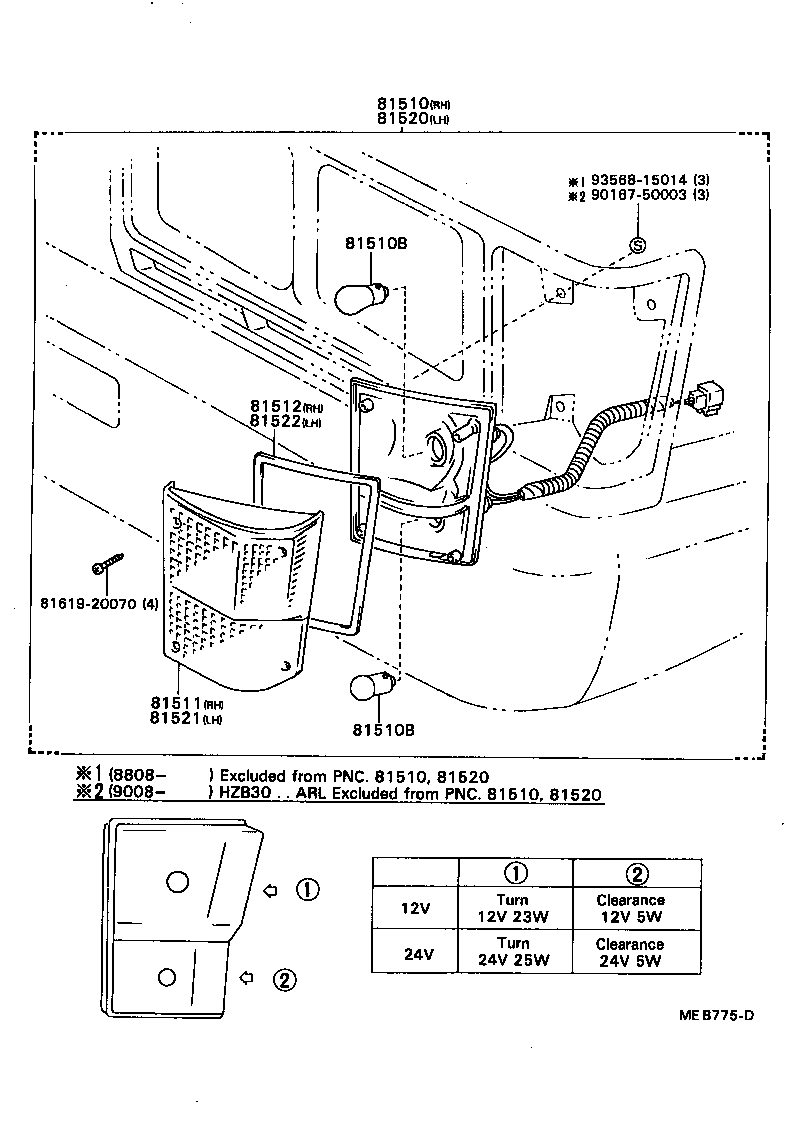

Click highlighted areas on diagram

diagram 81510 81510B 81510B 81511 81512 81520 81521 81522 8161920070 9016750003 9356815014
Part # Description Qty Price
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-39465

FB30,RB20

12V

 1
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-11230

FB30,RB20

12V 23W,12V 23W

 2
99132-11050

FB30,RB20

12V 5W,12V 5W

 2
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-11230

FB30,RB20

12V 23W,12V 23W

 2
99132-11050

FB30,RB20

12V 5W,12V 5W

 2
81511 - LENS, FRONT TURN SIGNAL LAMP, RH
81511-90B00

BB20,RB20;BB30..LHD

 1
81512 - GASKET, FRONT TURN SIGNAL LAMP LENS, RH
81512-90B00

BB20,RB20;BB30..LHD

 1
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81520-39465

FB30,RB20

12V

 1
81521 - LENS, FRONT TURN SIGNAL LAMP, LH
81521-90B00

BB20,RB20;BB30..LHD

 1
81522 - GASKET, FRONT TURN SIGNAL LAMP LENS, LH
81512-90B00

BB20,RB20;BB30..LHD

 1
Common parts
81619-20070
90167-50003
93568-15014
