RB20R-MDZRQ (1982)

Toyota Coaster

Production May 1982 - Oct 1986
Engine 22R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8205- )ARL

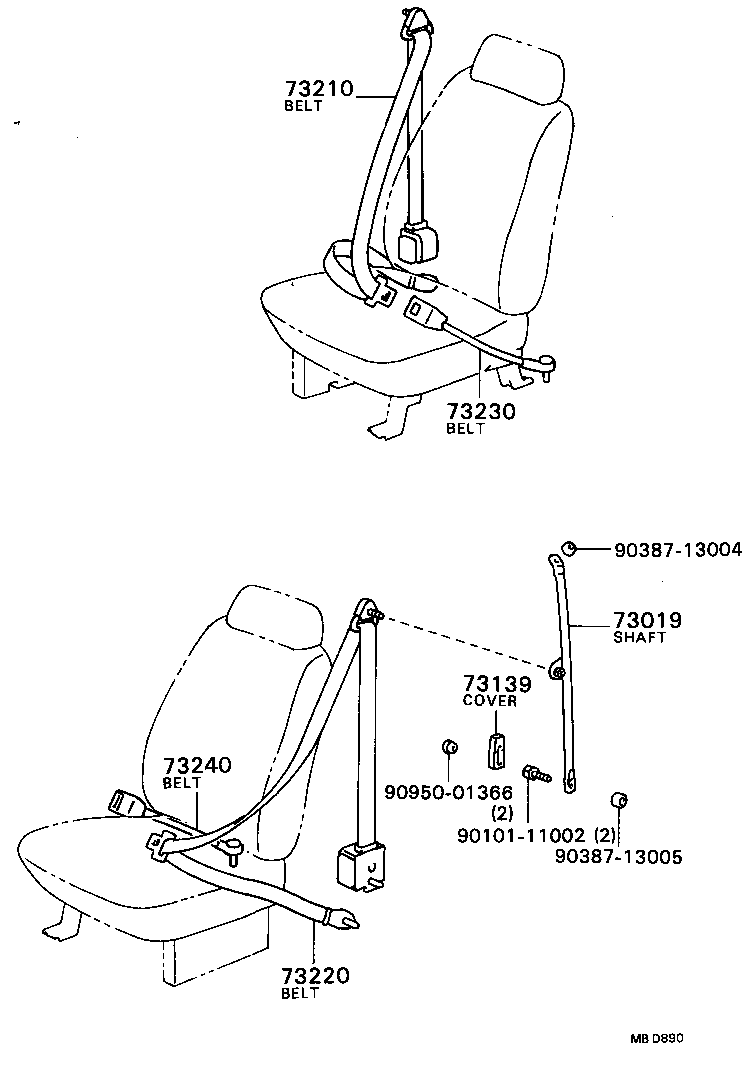

Click highlighted areas on diagram

diagram 73019 73139 73210 73220 73230 73240 9010111002 9038713004 9038713005 9095001366
Part # Description Qty Price
73019 - SHAFT SUB-ASSY, SEAT BELT
73019-90B00

BB20,21,HB30,RB20..ARL

 1
73139 - COVER, SEAT BELT SHAFT
73139-90B00

BB20,RB20..ARL

 2
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-90B02

BB20,21,HB30,RB20..ARL

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73360-90B00

BB20,21,HB30,RB20..ARL

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-90B00

BB20,21,HB30,RB20..ARL

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73240-90B00

BB20,RB20..17S,20S

 1
Common parts
90101-11002
90387-13004
90387-13005
90950-01366
