Toyota Coaster RB20 SEAT & SEAT TRACK

Manufacturers Home
Toyota
GR
COASTER
RB20R-MDZRQ (1982)
7151 - SEAT & SEAT TRACK

RB20R-MDZRQ (1982)

Toyota Coaster

Production May 1982 - Oct 1986

Engine 22R

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

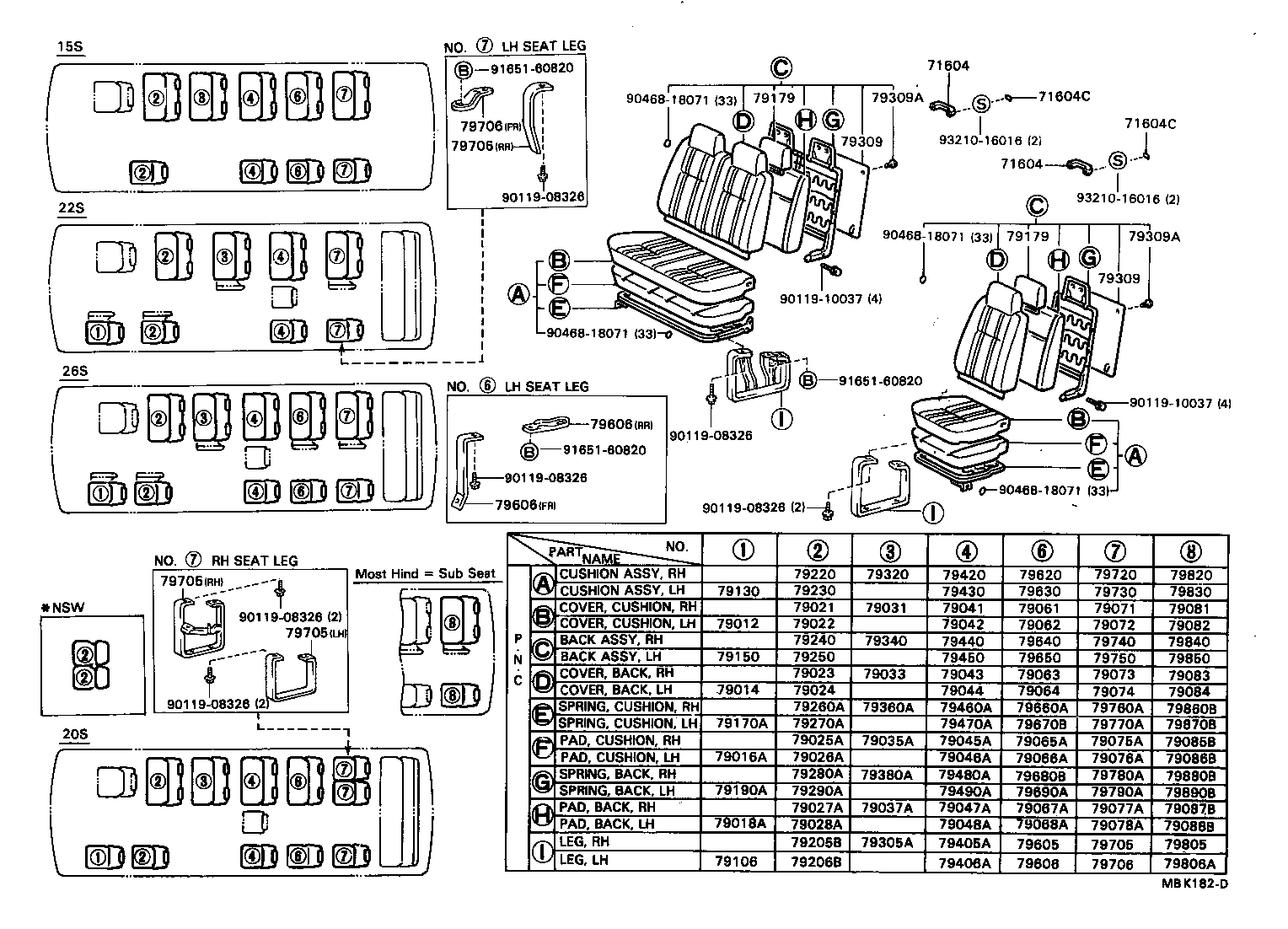

ILLUST NO. 3 OF 3(8205-8504)BB20,RB20

Click highlighted areas on diagram

Part #	Description	Period	Qty
79081A - COVER SUB-ASSY, NO.8 SEAT CUSHION
79081-90B14	BB20,RB20..20S..WC PF	05/1982 - 06/1983	1
79081-90B21	BB20,RB20..20S..WC PF	06/1983 - 10/1985	1
79081-90B04	BB20,HB30,RB20..DLX..ARL FB	05/1982 - 08/1988	1
79083A - COVER SUB-ASSY, NO.8 SEAT BACK
79083-90B14	BB20,RB20..20S..WC PF	05/1982 - 06/1983	1
79083-90B04	BB20,HB30,RB20..DLX..ARL FB	05/1982 - 08/1988	1
79083-90B21	BB20,RB20..20S..WC PF	06/1983 - 10/1985	1
79097 - PARTITION SUB-ASSY, LUGGAGE COMPARTMENT WALL
79097-90B03	BB20,21,FB30,HB30,RB20..DLX,STD RH,W/O FOLDING SEAT	05/1982 - 08/1988	1
79098-90B00	BB20,21,FB30,HB30,RB20..DLX,STD LH,W/O FOLDING SEAT	05/1982 - 08/1988	1
79097 - PARTITION SUB-ASSY, LUGGAGE COMPARTMENT WALL
79097-90B03	BB20,21,FB30,HB30,RB20..DLX,STD RH,W/O FOLDING SEAT	05/1982 - 08/1988	1
79098-90B00	BB20,21,FB30,HB30,RB20..DLX,STD LH,W/O FOLDING SEAT	05/1982 - 08/1988	1
79097 - PARTITION SUB-ASSY, LUGGAGE COMPARTMENT WALL
79097-90B03	BB20,21,FB30,HB30,RB20..DLX,STD RH,W/O FOLDING SEAT	05/1982 - 08/1988	1
79098-90B00	BB20,21,FB30,HB30,RB20..DLX,STD LH,W/O FOLDING SEAT	05/1982 - 08/1988	1
79820A - CUSHION ASSY, NO.8 SEAT
79820-90B24	BB20,RB20..20S..WC PF	05/1982 - 06/1983	1
79820-90B32	BB20,RB20..20S..WC PF	06/1983 - 10/1985	1
79820-90B08	BB20,HB30,RB20..DLX..ARL FB	05/1982 - 08/1988	1
79840A - BACK ASSY, NO.8 SEAT
79840-90B16	BB20,RB20..20S..WC PF	05/1982 - 06/1983	1
79840-90B23	BB20,RB20..20S..WC PF	06/1983 - 10/1985	1
79840-90B06	BB20,HB30,RB20..DLX..ARL FB	05/1982 - 08/1988	1
79981 - SILENCER, LUGGAGE COMPARTMENT WALL
79981-90B00	BB20,21,32,FB30,HB30,HZB30,RB20..DLX,STD W/O FOLDING SEAT	05/1982 - 01/1993	2
79981 - SILENCER, LUGGAGE COMPARTMENT WALL
79981-90B00	BB20,21,32,FB30,HB30,HZB30,RB20..DLX,STD W/O FOLDING SEAT	05/1982 - 01/1993	2
Common parts
90119-08258
90119-08259
90119-08300
90119-10017
90119-10101
90179-08026
90386-11006
90468-18071
91611-60816
91661-60820
93386-15010
93630-14014
Linked diagrams
7554

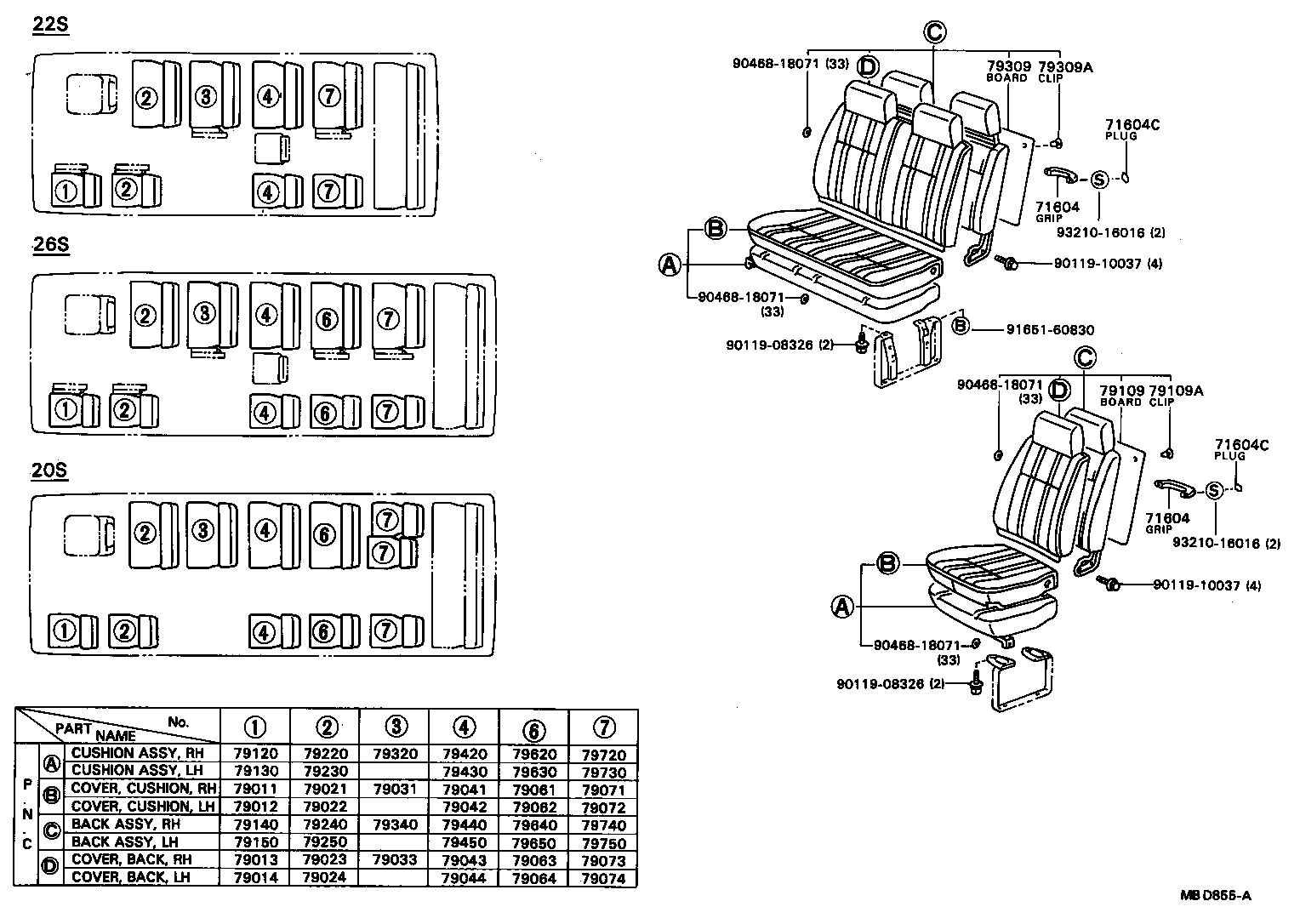

ILLUST NO. 2 OF 3(8205-8504)BB20,RB20..RHD..DLX,STD

Click highlighted areas on diagram

Part #	Description	Period	Qty
71604 - GRIP SUB-ASSY, ASSIST(FOR SEAT BACK)
74610-90B01	BB2#,RB20..DLX,STD	05/1982 - 08/1988	12
71604 - GRIP SUB-ASSY, ASSIST(FOR SEAT BACK)
74610-90B01	BB2#,RB20..DLX,STD	05/1982 - 08/1988	12
71604C - PLUG, HOLE(FOR ASSIST GRIP)
74617-90B00	BB2#,RB20..DLX,STD	05/1982 - 08/1988	24
71604C - PLUG, HOLE(FOR ASSIST GRIP)
74617-90B00	BB2#,RB20..DLX,STD	05/1982 - 08/1988	24
79012 - COVER SUB-ASSY, NO.1 SEAT CUSHION, LH
79012-90B09	BB20,RB20..20S..WC PF	05/1982 - 06/1983	1
79012-90B10	BB20,RB20..20S..WC PF	06/1983 - 10/1985	1
79012-90B08	BB20,HB30,RB20..DLX..ARL FB	05/1982 - 08/1988	1
79014 - COVER SUB-ASSY, NO.1 SEAT BACK, LH
79013-90B09	BB20,RB20..20S..WC PF	05/1982 - 06/1983	1
79013-90B18	BB20,RB20..20S..WC PF	06/1983 - 10/1985	1
79013-90B04	BB20,RB20..20S..WC FB	05/1982 - 10/1986	1
79013-90B34	BB20,RB20..20S..WC PF	10/1985 - 10/1986	1
79021 - COVER SUB-ASSY, NO.2 SEAT CUSHION, RH
79021-90B18	BB20,RB20..20S..WC PF	05/1982 - 06/1983	1
79021-90B23	BB20,RB20..20S..WC PF	06/1983 - 10/1985	1
79021-90B11	BB20,HB30,RB20..DLX..ARL FB	05/1982 - 08/1988	1
79022 - COVER SUB-ASSY, NO.2 SEAT CUSHION, LH
79012-90B09	BB20,RB20..20S..WC PF	05/1982 - 06/1983	1
79012-90B10	BB20,RB20..20S..WC PF	06/1983 - 10/1985	1
79012-90B08	BB20,HB30,RB20..DLX..ARL FB	05/1982 - 08/1988	1
79023 - COVER SUB-ASSY, NO.2 SEAT BACK, RH
79033-90B09	BB20,RB20..20S..WC PF	05/1982 - 06/1983	1
79033-90B16	BB20,RB20..20S..WC PF	06/1983 - 10/1985	1
79033-90B04	BB20,HB30,RB20..DLX..ARL FB	05/1982 - 08/1988	1
79024 - COVER SUB-ASSY, NO.2 SEAT BACK, LH
79013-90B09	BB20,RB20..20S..WC PF	05/1982 - 06/1983	1
79013-90B18	BB20,RB20..20S..WC PF	06/1983 - 10/1985	1
79013-90B34	BB20,RB20..20S..WC PF	10/1985 - 10/1986	1
79013-90B04	BB20,RB20..20S..WC FB	05/1982 - 10/1986	1
79031 - COVER SUB-ASSY, NO.3 SEAT CUSHION, RH
79031-90B10	BB20,RB20..20S..WC PF	05/1982 - 06/1983	1
79031-90B09	BB20,HB30,RB20..DLX..ARL FB	05/1982 - 08/1988	1
79031-90B13	BB20,RB20..20S..WC PF	06/1983 - 10/1985	1
79033 - COVER SUB-ASSY, NO.3 SEAT BACK, RH
79033-90B16	BB20,RB20..20S..WC PF	06/1983 - 10/1985	1
79033-90B28	BB20,RB20..20S..WC PF	10/1985 - 10/1986	1
79033-90B09	BB20,RB20..20S..WC PF	05/1982 - 06/1983	1
79033-90B04	BB20,RB20..20S..WC FB	05/1982 - 10/1986	1
79041 - COVER SUB-ASSY, NO.4 SEAT CUSHION, RH
79031-90B10	BB20,RB20..20S..WC PF	05/1982 - 06/1983	1
79031-90B13	BB20,RB20..20S..WC PF	06/1983 - 10/1985	1
79031-90B09	BB20,HB30,RB20..DLX..ARL FB	05/1982 - 08/1988	1
79042 - COVER SUB-ASSY, NO.4 SEAT CUSHION, LH
79012-90B09	BB20,RB20..20S..WC PF	05/1982 - 06/1983	1
79012-90B10	BB20,RB20..20S..WC PF	06/1983 - 10/1985	1
79012-90B15	BB20,RB20..20S..WC PF	10/1985 - 10/1986	1
79012-90B08	BB20,RB20..20S..WC FB	05/1982 - 10/1986	1
79043 - COVER SUB-ASSY, NO.4 SEAT BACK, RH
79033-90B09	BB20,RB20..20S..WC PF	05/1982 - 06/1983	1
79033-90B04	BB20,RB20..20S..WC FB	05/1982 - 10/1986	1
79033-90B16	BB20,RB20..20S..WC PF	06/1983 - 10/1985	1
79013-90B28	BB20,RB20..20S..WC PF	10/1985 - 10/1986	1
79044 - COVER SUB-ASSY, NO.4 SEAT BACK, LH
79013-90B09	BB20,RB20..20S..WC PF	05/1982 - 06/1983	1
79013-90B18	BB20,RB20..20S..WC PF	06/1983 - 10/1985	1
79013-90B34	BB20,RB20..20S..WC PF	10/1985 - 10/1986	1
79013-90B04	BB20,RB20..20S..WC FB	05/1982 - 10/1986	1
79061 - COVER SUB-ASSY, NO.6 SEAT CUSHION, RH
79031-90B10	BB20,RB20..20S..WC PF	05/1982 - 06/1983	1
79031-90B13	BB20,RB20..20S..WC PF	06/1983 - 10/1985	1
79031-90B09	BB20,HB30,RB20..DLX..ARL FB	05/1982 - 08/1988	1
79062 - COVER SUB-ASSY, NO.6 SEAT CUSHION, LH
79012-90B09	BB20,RB20..20S..WC PF	05/1982 - 06/1983	1
79012-90B10	BB20,RB20..20S..WC PF	06/1983 - 10/1985	1
79012-90B08	BB20,HB30,RB20..DLX..ARL FB	05/1982 - 08/1988	1
79063 - COVER SUB-ASSY, NO.6 SEAT BACK, RH
79033-90B09	BB20,RB20..20S..WC PF	05/1982 - 06/1983	1
79033-90B28	BB20,RB20..20S..WC PF	10/1985 - 10/1986	1
79033-90B04	BB20,RB20..20S..WC FB	05/1982 - 10/1986	1
79033-90B16	BB20,RB20..20S..WC PF	06/1983 - 10/1985	1
79064 - COVER SUB-ASSY, NO.6 SEAT BACK, LH
79013-90B09	BB20,RB20..20S..WC PF	05/1982 - 06/1983	1
79013-90B18	BB20,RB20..20S..WC PF	06/1983 - 10/1985	1
79013-90B04	BB20,RB20..20S..WC FB	05/1982 - 10/1986	1
79013-90B34	BB20,RB20..20S..WC PF	10/1985 - 10/1986	1
79071 - COVER SUB-ASSY, NO.7 SEAT CUSHION, RH
79071-90B02	BB20,RB20..20S..WC LH,PF	05/1982 - 06/1983	1
79011-90B07	BB20,RB20..20S..WC RH,PF	05/1982 - 06/1983	1
79011-90B12	BB20,RB20..20S..WC RH,PF	06/1983 - 10/1985	1
79071-90B05	BB20,RB20..20S..WC LH,PF	06/1983 - 10/1985	1
79071-90B01	BB20,HB30,RB20..DLX..ARL LH,FB	05/1982 - 08/1988	1
79011-90B06	BB20,HB30,RB20..DLX..ARL RH,FB	05/1982 - 08/1988	1
79072 - COVER SUB-ASSY, NO.7 SEAT CUSHION, LH
79012-90B09	BB20,RB20..20S..WC PF	05/1982 - 06/1983	1
79012-90B10	BB20,RB20..20S..WC PF	06/1983 - 10/1985	1
79012-90B08	BB20,HB30,RB20..DLX..ARL FB	05/1982 - 08/1988	1
79073 - COVER SUB-ASSY, NO.7 SEAT BACK, RH
79013-90B09	BB20,RB20..20S..WC PF	05/1982 - 06/1983	2
79013-90B18	BB20,RB20..20S..WC PF	06/1983 - 10/1985	2
79013-90B04	BB20,RB20..20S..WC FB	05/1982 - 10/1986	2
79013-90B34	BB20,RB20..20S..WC PF	10/1985 - 10/1986	2
79074 - COVER SUB-ASSY, NO.7 SEAT BACK, LH
79013-90B09	BB20,RB20..20S..WC PF	05/1982 - 06/1983	1
79013-90B18	BB20,RB20..20S..WC PF	06/1983 - 10/1985	1
79013-90B04	BB20,HB30,RB20..DLX..ARL FB	05/1982 - 08/1988	1
79109A - CLIP (FOR NO.1 SEAT BACK BOARD)
90467-0602002	BB20,RB20..DLX,EXS DARK WINE,DARK WINE	05/1982 - 03/1985	1
90467-0606112	BB20,RB20..DLX,EXS DARK WINE,DARK WINE	03/1985 - 09/1985	1
79130 - CUSHION ASSY, NO.1 SEAT, LH
79130-90B11	BB20,RB20..20S..WC PF	05/1982 - 06/1983	1
79130-90B14	BB20,RB20..20S..WC PF	06/1983 - 10/1985	1
79130-90B04	BB20,HB30,RB20..DLX..ARL FB	05/1982 - 08/1988	1
79150 - BACK ASSY, NO.1 SEAT, LH
79150-90B27	BB20,RB20..20S..WC PF	10/1985 - 10/1986	1
79150-90B11	BB20,RB20..20S..WC PF	05/1982 - 06/1983	1
79150-90B23	BB20,RB20..20S..WC PF	06/1983 - 10/1985	1
79740-90B01	BB20,RB20..20S..WC FB	05/1982 - 10/1986	1
79150-90B36	BB20,RB20..20S..WC PF,*NSW	10/1985 - 10/1986	1
79150-90B35	BB20,RB20..20S..WC FB,*NSW	10/1985 - 10/1986	1
79220 - CUSHION ASSY, NO.2 SEAT, RH
79220-90B16	BB20,RB20..20S..WC PF	05/1982 - 06/1983	1
79220-90B38	BB20,RB20..20S..WC PF	10/1985 - 10/1986	1
79220-90B26	BB20,RB20..20S..WC PF	06/1983 - 10/1985	1
79220-90B42	BB20,RB20..20S..WC RH,FB,*NSW	10/1985 - 10/1986	1
79220-90B43	BB20,RB20..20S..WC RH,PF,*NSW	10/1985 - 10/1986	1
79960-90B01	BB20,RB20..20S..WC LH,FB,*NSW	10/1985 - 10/1986	1
79220-90B03	BB20,RB20..20S..WC FB	05/1982 - 10/1986	1
79960-90B02	BB20,RB20..20S..WC LH,PF,*NSW	10/1985 - 10/1986	1
79230 - CUSHION ASSY, NO.2 SEAT, LH
79230-90B21	BB20,RB20..20S..WC PF	06/1983 - 10/1985	1
79230-90B15	BB20,RB20..20S..WC PF	05/1982 - 06/1983	1
79230-90B04	BB20,HB30,RB20..DLX..ARL FB	05/1982 - 08/1988	1
79240 - BACK ASSY, NO.2 SEAT, RH
79340-90B10	BB20,RB20..20S..WC PF	05/1982 - 06/1983	1
79340-90B17	BB20,RB20..20S..WC PF	06/1983 - 10/1985	1
79340-90B04	BB20,HB30,RB20..DLX..ARL FB	05/1982 - 08/1987	1
79250 - BACK ASSY, NO.2 SEAT, LH
79150-90B11	BB20,RB20..20S..WC PF	05/1982 - 06/1983	1
79740-90B01	BB20,RB20..20S..WC FB	05/1982 - 10/1986	1
79150-90B27	BB20,RB20..20S..WC PF	10/1985 - 10/1986	1
79150-90B23	BB20,RB20..20S..WC PF	06/1983 - 10/1985	1
79320 - CUSHION ASSY, NO.3 SEAT, RH
79320-90B11	BB20,RB20..20S..WC PF	05/1982 - 06/1983	1
79320-90B04	BB20,HB30,RB20..DLX..ARL FB	05/1982 - 08/1988	1
79320-90B15	BB20,RB20..20S..WC PF	06/1983 - 10/1985	1
79340 - BACK ASSY, NO.3 SEAT, RH
79340-90B10	BB20,RB20..20S..WC PF	05/1982 - 06/1983	1
79340-90B04	BB20,RB20..20S..WC FB	05/1982 - 10/1986	1
79340-90B17	BB20,RB20..20S..WC PF	06/1983 - 10/1985	1
79340-90B25	BB20,RB20..20S..WC PF	10/1985 - 10/1986	1
79420 - CUSHION ASSY, NO.4 SEAT, RH
79320-90B11	BB20,RB20..20S..WC PF	05/1982 - 06/1983	1
79320-90B15	BB20,RB20..20S..WC PF	06/1983 - 10/1985	1
79320-90B04	BB20,HB30,RB20..DLX..ARL FB	05/1982 - 08/1988	1
79430 - CUSHION ASSY, NO.4 SEAT, LH
79430-90B10	BB20,RB20..20S..WC PF	05/1982 - 06/1983	1
79430-90B04	BB20,RB20..20S..WC FB	05/1982 - 10/1986	1
79430-90B20	BB20,RB20..20S..WC PF	10/1985 - 10/1986	1
79430-90B13	BB20,RB20..20S..WC PF	06/1983 - 10/1985	1
79440 - BACK ASSY, NO.4 SEAT, RH
79340-90B10	BB20,RB20..20S..WC PF	05/1982 - 06/1983	1
79340-90B17	BB20,RB20..20S..WC PF	06/1983 - 10/1985	1
79340-90B04	BB20,RB20..20S..WC FB	05/1982 - 10/1986	1
79340-90B25	BB20,RB20..20S..WC PF	10/1985 - 10/1986	1
79450 - BACK ASSY, NO.4 SEAT, LH
79150-90B11	BB20,RB20..20S..WC PF	05/1982 - 06/1983	1
79150-90B23	BB20,RB20..20S..WC PF	06/1983 - 10/1985	1
79740-90B01	BB20,RB20..20S..WC FB	05/1982 - 10/1986	1
79150-90B27	BB20,RB20..20S..WC PF	10/1985 - 10/1986	1
79620 - CUSHION ASSY, NO.6 SEAT, RH
79620-90B15	BB20,RB20..20S..WC PF	05/1982 - 06/1983	1
79620-90B06	BB20,HB30,RB20..DLX..ARL FB	05/1982 - 08/1988	1
79620-90B25	BB20,RB20..20S..WC PF	06/1983 - 10/1985	1
79630 - CUSHION ASSY, NO.6 SEAT, LH
79630-90B20	BB20,RB20..20S..WC PF	06/1983 - 10/1985	1
79630-90B06	BB20,RB20..20S..WC FB	05/1982 - 10/1986	1
79630-90B29	BB20,RB20..20S..WC PF	10/1985 - 10/1986	1
79630-90B13	BB20,RB20..20S..WC PF	05/1982 - 06/1983	1
79640 - BACK ASSY, NO.6 SEAT, RH
79340-90B04	BB20,RB20..20S..WC FB	05/1982 - 10/1986	1
79340-90B10	BB20,RB20..20S..WC PF	05/1982 - 06/1983	1
79340-90B17	BB20,RB20..20S..WC PF	06/1983 - 10/1985	1
79340-90B25	BB20,RB20..20S..WC PF	10/1985 - 10/1986	1
79650 - BACK ASSY, NO.6 SEAT, LH
79150-90B11	BB20,RB20..20S..WC PF	05/1982 - 06/1983	1
79740-90B01	BB20,RB20..20S..WC FB	05/1982 - 10/1986	1
79150-90B23	BB20,RB20..20S..WC PF	06/1983 - 10/1985	1
79150-90B27	BB20,RB20..20S..WC PF	10/1985 - 10/1986	1
79720 - CUSHION ASSY, NO.7 SEAT, RH
79080-90B02	BB20,RB20..20S..WC LH,PF	05/1982 - 06/1983	1
79720-90B15	BB20,RB20..20S..WC RH,PF	05/1982 - 06/1983	1
79080-90B04	BB20,RB20..20S..WC LH,PF	06/1983 - 10/1985	1
79720-90B05	BB20,HB30,RB20..DLX..ARL RH,FB	05/1982 - 08/1988	1
79720-90B19	BB20,RB20..20S..WC RH,PF	06/1983 - 10/1985	1
79080-90B01	BB20,HB30,RB20..DLX..ARL LH,FB	05/1982 - 08/1988	1
79730 - CUSHION ASSY, NO.7 SEAT, LH
79730-90B14	BB20,RB20..20S..WC PF	05/1982 - 06/1983	1
79730-90B17	BB20,RB20..20S..WC PF	06/1983 - 10/1985	1
79730-90B05	BB20,HB30,RB20..DLX..ARL FB	05/1982 - 08/1988	1
79740 - BACK ASSY, NO.7 SEAT, RH
79150-90B11	BB20,RB20..20S..WC PF	05/1982 - 06/1983	2
79150-90B23	BB20,RB20..20S..WC PF	06/1983 - 10/1985	2
79150-90B27	BB20,RB20..20S..WC PF	10/1985 - 10/1986	2
79740-90B01	BB20,RB20..20S..WC FB	05/1982 - 10/1986	2
79750 - BACK ASSY, NO.7 SEAT, LH
79150-90B11	BB20,RB20..20S..WC PF	05/1982 - 06/1983	1
79740-90B01	BB20,HB30,RB20..DLX..ARL FB	05/1982 - 08/1987	1
79150-90B23	BB20,RB20..20S..WC PF	06/1983 - 10/1985	1
Common parts
90119-08326
90119-10037
90468-18071
91651-60830
93210-16016

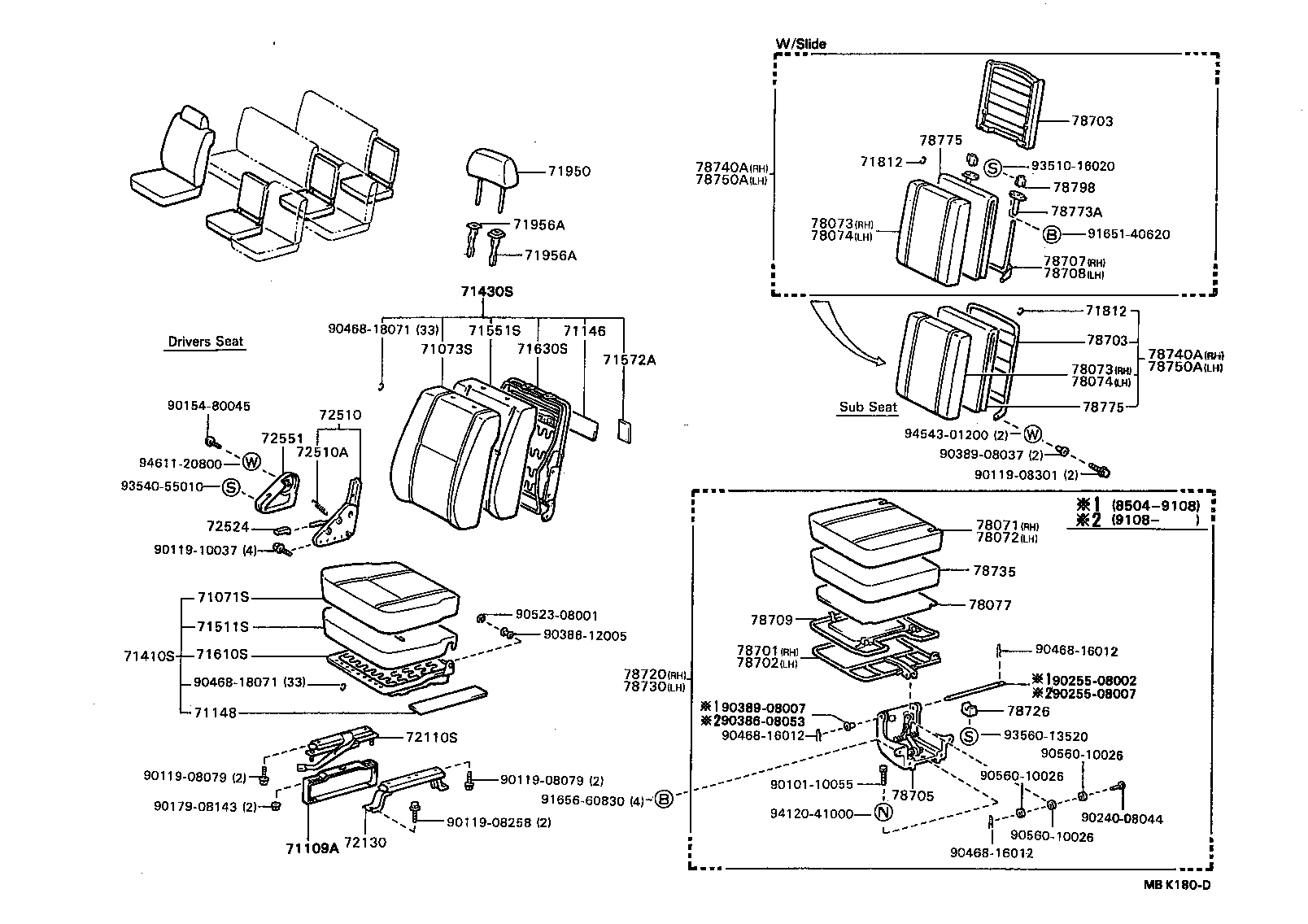

ILLUST NO. 1 OF 3(8205-8504)BB20,RB20..RHD

Click highlighted areas on diagram

Part #	Description	Period	Qty
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-90B10	BB20,RB20..20S..WC PF	05/1982 - 06/1983	1
71071-90B09	BB20,RB20..20S..WC FB	05/1982 - 10/1986	1
71071-90B14	BB20,RB20..20S..WC PF	06/1983 - 10/1985	1
71071-90B21	BB20,RB20..20S..WC PF	10/1985 - 10/1986	1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-90B10	BB20,RB20..20S..WC PF	05/1982 - 06/1983	1
71073-90B18	BB20,RB20..20S..WC PF	06/1983 - 10/1985	1
71073-90B09	BB20,RB20..20S..WC FB	05/1982 - 10/1986	1
71073-90B28	BB20,RB20..20S..WC PF	10/1985 - 10/1986	1
71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71410-90B10	BB20,RB20..20S..WC PF	05/1982 - 06/1983	1
71410-90B14	BB20,RB20..20S..WC PF	06/1983 - 10/1985	1
71410-90B21	BB20,RB20..20S..WC PF	10/1985 - 10/1986	1
71410-90B04	BB20,RB20..20S..WC FB	05/1982 - 10/1986	1
71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71430-90B04	BB20,RB20..20S..WC FB	05/1982 - 04/1985	1
71430-90B04	BB20,RB20..RHD..DLX FB	04/1985 - 10/1986	1
71430-90B16	BB20,RB20..20S..WC PF	06/1983 - 10/1985	1
71430-90B10	BB20,RB20..20S..WC PF	05/1982 - 06/1983	1
71430-90B24	BB20,RB20..20S..WC PF	10/1985 - 10/1986	1
71812 - CLIP (FOR FRONT SEAT CUSHION COVER)
71812-30010	BB2#,32,FB30,HB30,HZB30,RB20	05/1982 - 01/1993	1
71812 - CLIP (FOR FRONT SEAT CUSHION COVER)
71812-30010	BB2#,32,FB30,HB30,HZB30,RB20	05/1982 - 01/1993	1
71950 - HEADREST ASSY, FRONT SEAT
71910-90B00	BB20,21,HB30,RB20..20S,23S	05/1982 - 08/1988	1
71910-90B00	BB20,21,FB30,HB30,RB20..DLX,EX	05/1982 - 08/1988	1
71956A - SUPPORT, FRONT SEAT HEADREST
71930-90B00	BB20,RB20..DLX,EXS;BB20,RB20..WOC..ARL W/LOCK	05/1982 - 10/1986	1
71956A - SUPPORT, FRONT SEAT HEADREST
71930-90B00	BB20,RB20..DLX,EXS;BB20,RB20..WOC..ARL W/LOCK	05/1982 - 10/1986	1
72110S - TRACK ASSY, RH SEAT, OUTER (FOR SEPARATE SEAT)
72110-90B00	BB2#,HB30,HDB30,HZB30,RB20..RHD	05/1982 - 01/1993	1
72130 - TRACK ASSY, RH SEAT, INNER
72130-90B00	BB2#,HB30,HDB30,HZB30,RB20..RHD	05/1982 - 01/1993	1
72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH
72510-90B00	BB2#,HB30,HDB30,HZB30,RB20..RHD	05/1982 - 01/1993	1
72510A - SPRING, TENSION, NO.1(FOR RECLINING SEAT ADJUSTER)
90506-18015	BB2#,FB30,HB30,RB20	05/1982 - 01/1993	1
72524 - HANDLE, RECLINING ADJUSTER RELEASE
72525-90B00	BB2#,RB20..RHD	05/1982 - 10/1986	1
72551 - COVER, RECLINING HINGE, NO.1
72551-90B00	BB2#,RB20..RHD	05/1982 - 10/1986	1
Common parts
90101-10055
90119-08079
90119-08258
90119-08301
90119-10037
90154-80045
90179-08143
90240-08044
90255-08002
90386-12005
90389-08007
90389-08037
90468-16012
90468-18071
90523-08001
90560-10026
91651-40620
91656-60830
93510-16020
93540-55010
93560-13520
94120-41000
94543-01200
94611-20800

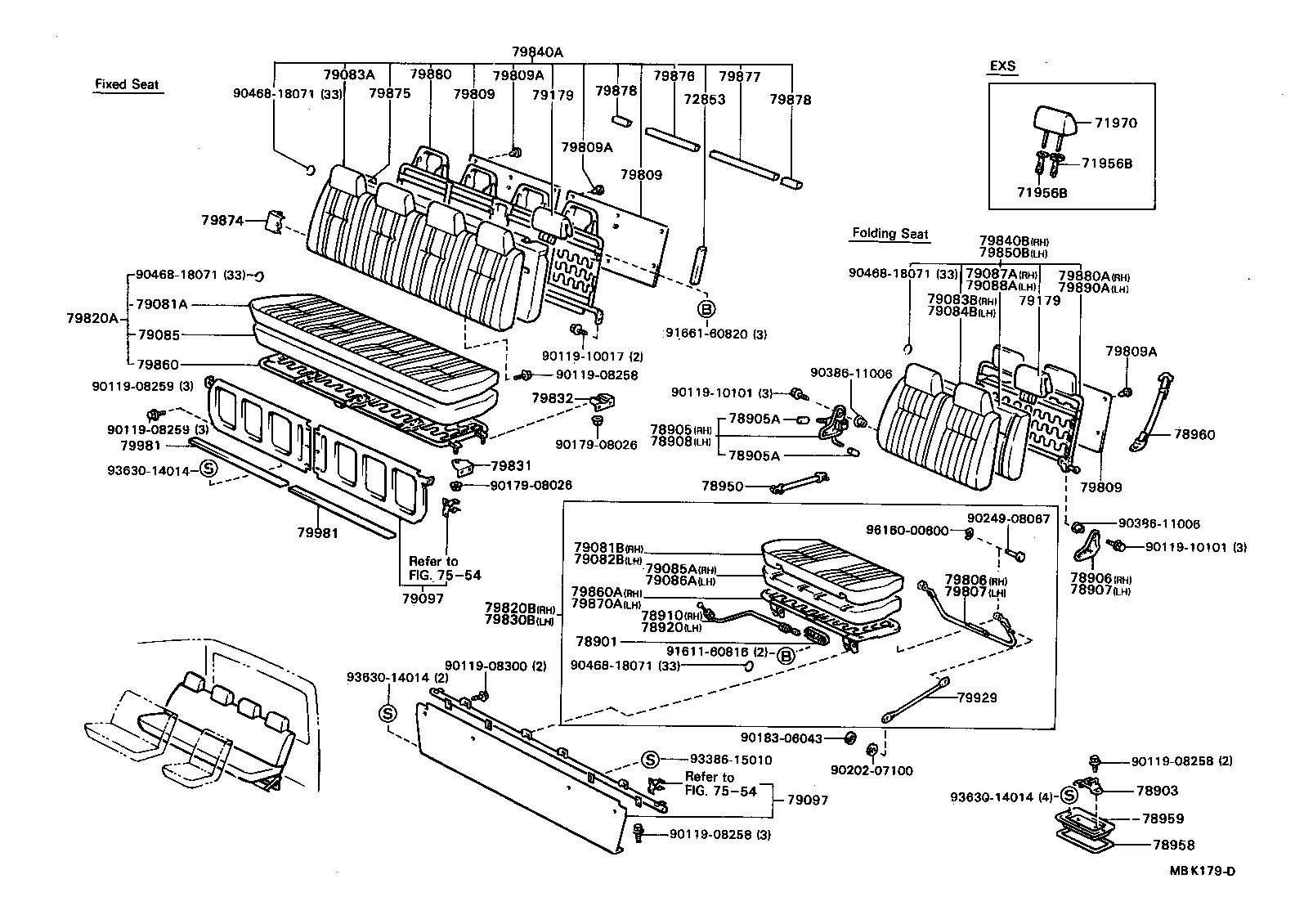

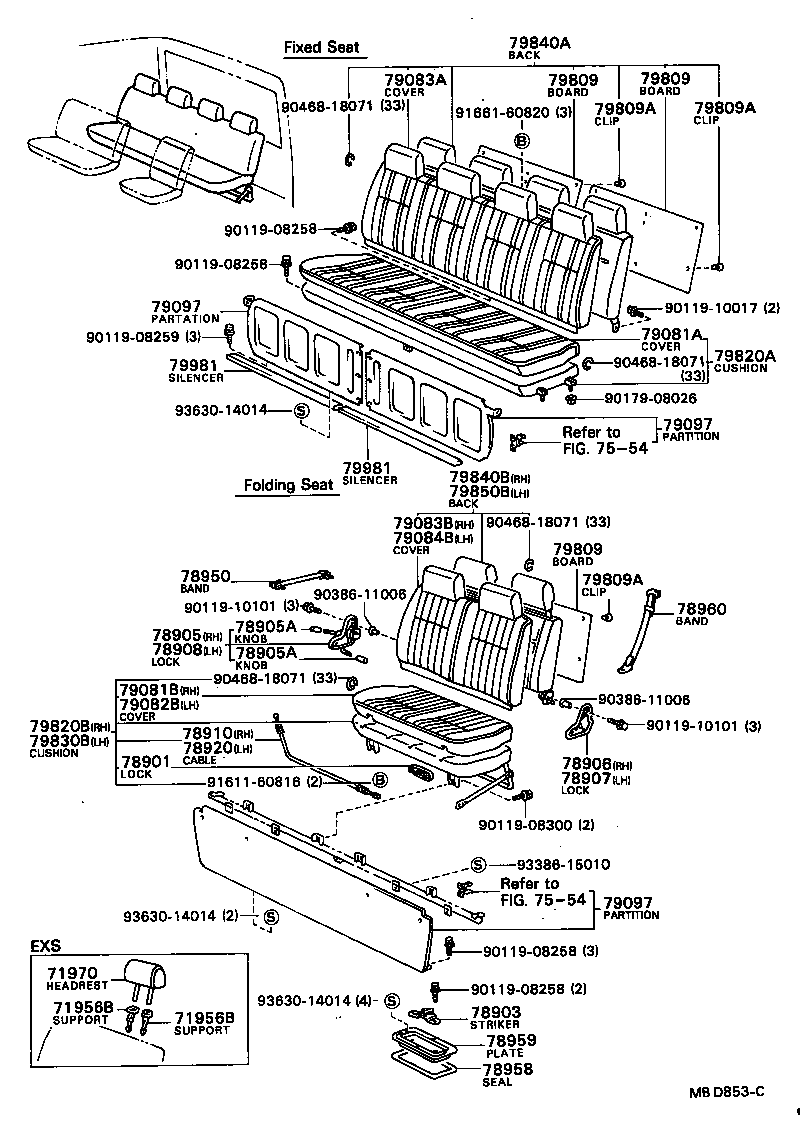

ILLUST NO. 3 OF 4(8504- )BB2#,32,FB30,HB30,HZB30,RB20

Click highlighted areas on diagram

Part #	Description	Period	Qty
79081A - COVER SUB-ASSY, NO.8 SEAT CUSHION
79081-90B14	BB20,RB20..20S..WC PF	05/1982 - 06/1983	1
79081-90B21	BB20,RB20..20S..WC PF	06/1983 - 10/1985	1
79081-90B04	BB20,HB30,RB20..DLX..ARL FB	05/1982 - 08/1988	1
79083A - COVER SUB-ASSY, NO.8 SEAT BACK
79083-90B14	BB20,RB20..20S..WC PF	05/1982 - 06/1983	1
79083-90B04	BB20,HB30,RB20..DLX..ARL FB	05/1982 - 08/1988	1
79083-90B21	BB20,RB20..20S..WC PF	06/1983 - 10/1985	1
79097 - PARTITION SUB-ASSY, LUGGAGE COMPARTMENT WALL
79097-90B03	BB20,21,FB30,HB30,RB20..DLX,STD RH,W/O FOLDING SEAT	05/1982 - 08/1988	1
79098-90B00	BB20,21,FB30,HB30,RB20..DLX,STD LH,W/O FOLDING SEAT	05/1982 - 08/1988	1
79097 - PARTITION SUB-ASSY, LUGGAGE COMPARTMENT WALL
79097-90B03	BB20,21,FB30,HB30,RB20..DLX,STD RH,W/O FOLDING SEAT	05/1982 - 08/1988	1
79098-90B00	BB20,21,FB30,HB30,RB20..DLX,STD LH,W/O FOLDING SEAT	05/1982 - 08/1988	1
79179 - PAD, NO.1 SEAT BACK HEADREST
79179-90B00	BB20,RB20..DLX	04/1985 - 10/1986	1
79179 - PAD, NO.1 SEAT BACK HEADREST
79179-90B00	BB20,RB20..DLX	04/1985 - 10/1986	1
79820A - CUSHION ASSY, NO.8 SEAT
79820-90B24	BB20,RB20..20S..WC PF	05/1982 - 06/1983	1
79820-90B32	BB20,RB20..20S..WC PF	06/1983 - 10/1985	1
79820-90B08	BB20,HB30,RB20..DLX..ARL FB	05/1982 - 08/1988	1
79840A - BACK ASSY, NO.8 SEAT
79840-90B16	BB20,RB20..20S..WC PF	05/1982 - 06/1983	1
79840-90B23	BB20,RB20..20S..WC PF	06/1983 - 10/1985	1
79840-90B06	BB20,HB30,RB20..DLX..ARL FB	05/1982 - 08/1988	1
79981 - SILENCER, LUGGAGE COMPARTMENT WALL
79981-90B00	BB20,21,32,FB30,HB30,HZB30,RB20..DLX,STD W/O FOLDING SEAT	05/1982 - 01/1993	2
79981 - SILENCER, LUGGAGE COMPARTMENT WALL
79981-90B00	BB20,21,32,FB30,HB30,HZB30,RB20..DLX,STD W/O FOLDING SEAT	05/1982 - 01/1993	2
Common parts
90119-08258
90119-08259
90119-08300
90119-10017
90119-10101
90179-08026
90183-06043
90202-07100
90249-08067
90386-11006
90468-18071
91611-60816
91661-60820
93386-15010
93630-14014
96160-00600
Linked diagrams
7554

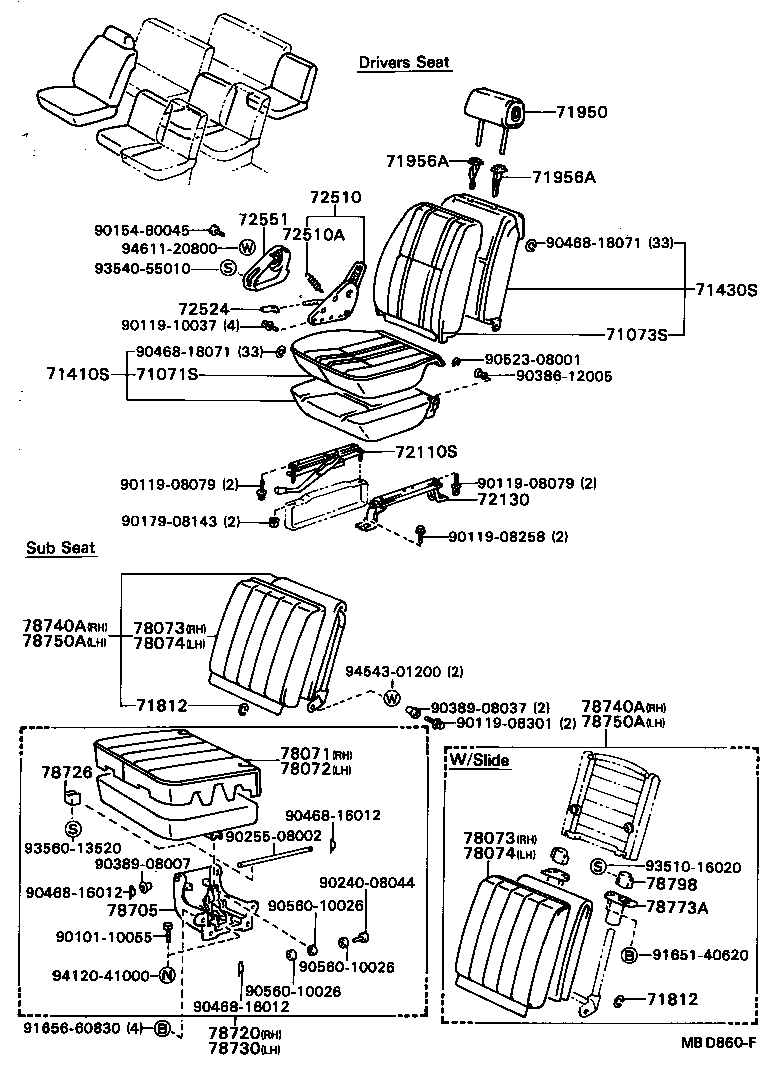

ILLUST NO. 1 OF 4(8504- )BB2#,HB30,HDB30,HZB30,RB20..RHD

Click highlighted areas on diagram

Part #	Description	Period	Qty
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-90B10	BB20,RB20..20S..WC PF	05/1982 - 06/1983	1
71071-90B09	BB20,RB20..20S..WC FB	05/1982 - 10/1986	1
71071-90B14	BB20,RB20..20S..WC PF	06/1983 - 10/1985	1
71071-90B21	BB20,RB20..20S..WC PF	10/1985 - 10/1986	1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-90B10	BB20,RB20..20S..WC PF	05/1982 - 06/1983	1
71073-90B18	BB20,RB20..20S..WC PF	06/1983 - 10/1985	1
71073-90B09	BB20,RB20..20S..WC FB	05/1982 - 10/1986	1
71073-90B28	BB20,RB20..20S..WC PF	10/1985 - 10/1986	1
71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71410-90B10	BB20,RB20..20S..WC PF	05/1982 - 06/1983	1
71410-90B14	BB20,RB20..20S..WC PF	06/1983 - 10/1985	1
71410-90B21	BB20,RB20..20S..WC PF	10/1985 - 10/1986	1
71410-90B04	BB20,RB20..20S..WC FB	05/1982 - 10/1986	1
71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71430-90B04	BB20,RB20..20S..WC FB	05/1982 - 04/1985	1
71430-90B04	BB20,RB20..RHD..DLX FB	04/1985 - 10/1986	1
71430-90B16	BB20,RB20..20S..WC PF	06/1983 - 10/1985	1
71430-90B10	BB20,RB20..20S..WC PF	05/1982 - 06/1983	1
71430-90B24	BB20,RB20..20S..WC PF	10/1985 - 10/1986	1
71812 - CLIP (FOR FRONT SEAT CUSHION COVER)
71812-30010	BB2#,32,FB30,HB30,HZB30,RB20	05/1982 - 01/1993	1
71812 - CLIP (FOR FRONT SEAT CUSHION COVER)
71812-30010	BB2#,32,FB30,HB30,HZB30,RB20	05/1982 - 01/1993	1
71950 - HEADREST ASSY, FRONT SEAT
71910-90B00	BB20,21,HB30,RB20..20S,23S	05/1982 - 08/1988	1
71910-90B00	BB20,21,FB30,HB30,RB20..DLX,EX	05/1982 - 08/1988	1
71956A - SUPPORT, FRONT SEAT HEADREST
71930-90B00	BB20,RB20..DLX,EXS;BB20,RB20..WOC..ARL W/LOCK	05/1982 - 10/1986	1
71956A - SUPPORT, FRONT SEAT HEADREST
71930-90B00	BB20,RB20..DLX,EXS;BB20,RB20..WOC..ARL W/LOCK	05/1982 - 10/1986	1
72110S - TRACK ASSY, RH SEAT, OUTER (FOR SEPARATE SEAT)
72110-90B00	BB2#,HB30,HDB30,HZB30,RB20..RHD	05/1982 - 01/1993	1
72130 - TRACK ASSY, RH SEAT, INNER
72130-90B00	BB2#,HB30,HDB30,HZB30,RB20..RHD	05/1982 - 01/1993	1
72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH
72510-90B00	BB2#,HB30,HDB30,HZB30,RB20..RHD	05/1982 - 01/1993	1
72510A - SPRING, TENSION, NO.1(FOR RECLINING SEAT ADJUSTER)
90506-18015	BB2#,FB30,HB30,RB20	05/1982 - 01/1993	1
72524 - HANDLE, RECLINING ADJUSTER RELEASE
72525-90B00	BB2#,RB20..RHD	05/1982 - 10/1986	1
72551 - COVER, RECLINING HINGE, NO.1
72551-90B00	BB2#,RB20..RHD	05/1982 - 10/1986	1
Common parts
90101-10055
90119-08079
90119-08258
90119-08301
90119-10037
90154-80045
90179-08143
90240-08044
90255-08002
90255-08007
90386-08053
90386-12005
90389-08007
90389-08037
90468-16012
90468-18071
90523-08001
90560-10026
91651-40620
91656-60830
93510-16020
93540-55010
93560-13520
94120-41000
94543-01200
94611-20800

ILLUST NO. 2 OF 4(8504- )BB2#,RB20..RHD..DLX,STD

Click highlighted areas on diagram

Part #	Description	Period	Qty
71604 - GRIP SUB-ASSY, ASSIST(FOR SEAT BACK)
74610-90B01	BB2#,RB20..DLX,STD	05/1982 - 08/1988	12
71604 - GRIP SUB-ASSY, ASSIST(FOR SEAT BACK)
74610-90B01	BB2#,RB20..DLX,STD	05/1982 - 08/1988	12
71604C - PLUG, HOLE(FOR ASSIST GRIP)
74617-90B00	BB2#,RB20..DLX,STD	05/1982 - 08/1988	24
71604C - PLUG, HOLE(FOR ASSIST GRIP)
74617-90B00	BB2#,RB20..DLX,STD	05/1982 - 08/1988	24
79012 - COVER SUB-ASSY, NO.1 SEAT CUSHION, LH
79012-90B09	BB20,RB20..20S..WC PF	05/1982 - 06/1983	1
79012-90B10	BB20,RB20..20S..WC PF	06/1983 - 10/1985	1
79012-90B08	BB20,HB30,RB20..DLX..ARL FB	05/1982 - 08/1988	1
79014 - COVER SUB-ASSY, NO.1 SEAT BACK, LH
79013-90B09	BB20,RB20..20S..WC PF	05/1982 - 06/1983	1
79013-90B18	BB20,RB20..20S..WC PF	06/1983 - 10/1985	1
79013-90B04	BB20,RB20..20S..WC FB	05/1982 - 10/1986	1
79013-90B34	BB20,RB20..20S..WC PF	10/1985 - 10/1986	1
79018A - PAD SUB-ASSY, NO.1 SEAT BACK, LH
79175-90B03	BB20,RB20..20S	04/1985 - 10/1986	1
79021 - COVER SUB-ASSY, NO.2 SEAT CUSHION, RH
79021-90B18	BB20,RB20..20S..WC PF	05/1982 - 06/1983	1
79021-90B23	BB20,RB20..20S..WC PF	06/1983 - 10/1985	1
79021-90B11	BB20,HB30,RB20..DLX..ARL FB	05/1982 - 08/1988	1
79022 - COVER SUB-ASSY, NO.2 SEAT CUSHION, LH
79012-90B09	BB20,RB20..20S..WC PF	05/1982 - 06/1983	1
79012-90B10	BB20,RB20..20S..WC PF	06/1983 - 10/1985	1
79012-90B08	BB20,HB30,RB20..DLX..ARL FB	05/1982 - 08/1988	1
79023 - COVER SUB-ASSY, NO.2 SEAT BACK, RH
79033-90B09	BB20,RB20..20S..WC PF	05/1982 - 06/1983	1
79033-90B16	BB20,RB20..20S..WC PF	06/1983 - 10/1985	1
79033-90B04	BB20,HB30,RB20..DLX..ARL FB	05/1982 - 08/1988	1
79024 - COVER SUB-ASSY, NO.2 SEAT BACK, LH
79013-90B09	BB20,RB20..20S..WC PF	05/1982 - 06/1983	1
79013-90B18	BB20,RB20..20S..WC PF	06/1983 - 10/1985	1
79013-90B34	BB20,RB20..20S..WC PF	10/1985 - 10/1986	1
79013-90B04	BB20,RB20..20S..WC FB	05/1982 - 10/1986	1
79028A - PAD SUB-ASSY, NO.2 SEAT BACK, LH
79175-90B03	BB20,RB20..20S	04/1985 - 10/1986	1
79031 - COVER SUB-ASSY, NO.3 SEAT CUSHION, RH
79031-90B10	BB20,RB20..20S..WC PF	05/1982 - 06/1983	1
79031-90B09	BB20,HB30,RB20..DLX..ARL FB	05/1982 - 08/1988	1
79031-90B13	BB20,RB20..20S..WC PF	06/1983 - 10/1985	1
79033 - COVER SUB-ASSY, NO.3 SEAT BACK, RH
79033-90B16	BB20,RB20..20S..WC PF	06/1983 - 10/1985	1
79033-90B28	BB20,RB20..20S..WC PF	10/1985 - 10/1986	1
79033-90B09	BB20,RB20..20S..WC PF	05/1982 - 06/1983	1
79033-90B04	BB20,RB20..20S..WC FB	05/1982 - 10/1986	1
79037A - PAD SUB-ASSY, NO.3 SEAT BACK, RH
79375-90B01	BB20,RB20..20S	04/1985 - 10/1986	1
79041 - COVER SUB-ASSY, NO.4 SEAT CUSHION, RH
79031-90B10	BB20,RB20..20S..WC PF	05/1982 - 06/1983	1
79031-90B13	BB20,RB20..20S..WC PF	06/1983 - 10/1985	1
79031-90B09	BB20,HB30,RB20..DLX..ARL FB	05/1982 - 08/1988	1
79042 - COVER SUB-ASSY, NO.4 SEAT CUSHION, LH
79012-90B09	BB20,RB20..20S..WC PF	05/1982 - 06/1983	1
79012-90B10	BB20,RB20..20S..WC PF	06/1983 - 10/1985	1
79012-90B15	BB20,RB20..20S..WC PF	10/1985 - 10/1986	1
79012-90B08	BB20,RB20..20S..WC FB	05/1982 - 10/1986	1
79043 - COVER SUB-ASSY, NO.4 SEAT BACK, RH
79033-90B09	BB20,RB20..20S..WC PF	05/1982 - 06/1983	1
79033-90B04	BB20,RB20..20S..WC FB	05/1982 - 10/1986	1
79033-90B16	BB20,RB20..20S..WC PF	06/1983 - 10/1985	1
79013-90B28	BB20,RB20..20S..WC PF	10/1985 - 10/1986	1
79044 - COVER SUB-ASSY, NO.4 SEAT BACK, LH
79013-90B09	BB20,RB20..20S..WC PF	05/1982 - 06/1983	1
79013-90B18	BB20,RB20..20S..WC PF	06/1983 - 10/1985	1
79013-90B34	BB20,RB20..20S..WC PF	10/1985 - 10/1986	1
79013-90B04	BB20,RB20..20S..WC FB	05/1982 - 10/1986	1
79047A - PAD SUB-ASSY, NO.4 SEAT BACK, RH
79375-90B01	BB20,RB20..20S	04/1985 - 10/1986	1
79048A - PAD SUB-ASSY, NO.4 SEAT BACK, LH
79175-90B03	BB20,RB20..20S	04/1985 - 10/1986	1
79061 - COVER SUB-ASSY, NO.6 SEAT CUSHION, RH
79031-90B10	BB20,RB20..20S..WC PF	05/1982 - 06/1983	1
79031-90B13	BB20,RB20..20S..WC PF	06/1983 - 10/1985	1
79031-90B09	BB20,HB30,RB20..DLX..ARL FB	05/1982 - 08/1988	1
79062 - COVER SUB-ASSY, NO.6 SEAT CUSHION, LH
79012-90B09	BB20,RB20..20S..WC PF	05/1982 - 06/1983	1
79012-90B10	BB20,RB20..20S..WC PF	06/1983 - 10/1985	1
79012-90B08	BB20,HB30,RB20..DLX..ARL FB	05/1982 - 08/1988	1
79063 - COVER SUB-ASSY, NO.6 SEAT BACK, RH
79033-90B09	BB20,RB20..20S..WC PF	05/1982 - 06/1983	1
79033-90B28	BB20,RB20..20S..WC PF	10/1985 - 10/1986	1
79033-90B04	BB20,RB20..20S..WC FB	05/1982 - 10/1986	1
79033-90B16	BB20,RB20..20S..WC PF	06/1983 - 10/1985	1
79064 - COVER SUB-ASSY, NO.6 SEAT BACK, LH
79013-90B09	BB20,RB20..20S..WC PF	05/1982 - 06/1983	1
79013-90B18	BB20,RB20..20S..WC PF	06/1983 - 10/1985	1
79013-90B04	BB20,RB20..20S..WC FB	05/1982 - 10/1986	1
79013-90B34	BB20,RB20..20S..WC PF	10/1985 - 10/1986	1
79067A - PAD SUB-ASSY, NO.6 SEAT BACK, RH
79375-90B01	BB20,RB20..20S	04/1985 - 10/1986	1
79068A - PAD SUB-ASSY, NO.6 SEAT BACK, LH
79175-90B03	BB20,RB20..20S	04/1985 - 10/1986	1
79071 - COVER SUB-ASSY, NO.7 SEAT CUSHION, RH
79071-90B02	BB20,RB20..20S..WC LH,PF	05/1982 - 06/1983	1
79011-90B07	BB20,RB20..20S..WC RH,PF	05/1982 - 06/1983	1
79011-90B12	BB20,RB20..20S..WC RH,PF	06/1983 - 10/1985	1
79071-90B05	BB20,RB20..20S..WC LH,PF	06/1983 - 10/1985	1
79071-90B01	BB20,HB30,RB20..DLX..ARL LH,FB	05/1982 - 08/1988	1
79011-90B06	BB20,HB30,RB20..DLX..ARL RH,FB	05/1982 - 08/1988	1
79072 - COVER SUB-ASSY, NO.7 SEAT CUSHION, LH
79012-90B09	BB20,RB20..20S..WC PF	05/1982 - 06/1983	1
79012-90B10	BB20,RB20..20S..WC PF	06/1983 - 10/1985	1
79012-90B08	BB20,HB30,RB20..DLX..ARL FB	05/1982 - 08/1988	1
79073 - COVER SUB-ASSY, NO.7 SEAT BACK, RH
79013-90B09	BB20,RB20..20S..WC PF	05/1982 - 06/1983	2
79013-90B18	BB20,RB20..20S..WC PF	06/1983 - 10/1985	2
79013-90B04	BB20,RB20..20S..WC FB	05/1982 - 10/1986	2
79013-90B34	BB20,RB20..20S..WC PF	10/1985 - 10/1986	2
79074 - COVER SUB-ASSY, NO.7 SEAT BACK, LH
79013-90B09	BB20,RB20..20S..WC PF	05/1982 - 06/1983	1
79013-90B18	BB20,RB20..20S..WC PF	06/1983 - 10/1985	1
79013-90B04	BB20,HB30,RB20..DLX..ARL FB	05/1982 - 08/1988	1
79077A - PAD SUB-ASSY, NO.7 SEAT BACK, RH
79175-90B03	BB20,RB20..20S	04/1985 - 10/1986	2
79130 - CUSHION ASSY, NO.1 SEAT, LH
79130-90B11	BB20,RB20..20S..WC PF	05/1982 - 06/1983	1
79130-90B14	BB20,RB20..20S..WC PF	06/1983 - 10/1985	1
79130-90B04	BB20,HB30,RB20..DLX..ARL FB	05/1982 - 08/1988	1
79150 - BACK ASSY, NO.1 SEAT, LH
79150-90B27	BB20,RB20..20S..WC PF	10/1985 - 10/1986	1
79150-90B11	BB20,RB20..20S..WC PF	05/1982 - 06/1983	1
79150-90B23	BB20,RB20..20S..WC PF	06/1983 - 10/1985	1
79740-90B01	BB20,RB20..20S..WC FB	05/1982 - 10/1986	1
79150-90B36	BB20,RB20..20S..WC PF,*NSW	10/1985 - 10/1986	1
79150-90B35	BB20,RB20..20S..WC FB,*NSW	10/1985 - 10/1986	1
79179 - PAD, NO.1 SEAT BACK HEADREST
79179-90B00	BB20,RB20..DLX	04/1985 - 10/1986	1
79179 - PAD, NO.1 SEAT BACK HEADREST
79179-90B00	BB20,RB20..DLX	04/1985 - 10/1986	1
79190A - SPRING ASSY, NO.1 SEAT BACK, LH
79103-90B01	BB20,RB20..20S	04/1985 - 10/1986	1
79204-90B01	BB20,RB20..20S *NSW	10/1985 - 10/1986	1
79220 - CUSHION ASSY, NO.2 SEAT, RH
79220-90B16	BB20,RB20..20S..WC PF	05/1982 - 06/1983	1
79220-90B38	BB20,RB20..20S..WC PF	10/1985 - 10/1986	1
79220-90B26	BB20,RB20..20S..WC PF	06/1983 - 10/1985	1
79220-90B42	BB20,RB20..20S..WC RH,FB,*NSW	10/1985 - 10/1986	1
79220-90B43	BB20,RB20..20S..WC RH,PF,*NSW	10/1985 - 10/1986	1
79960-90B01	BB20,RB20..20S..WC LH,FB,*NSW	10/1985 - 10/1986	1
79220-90B03	BB20,RB20..20S..WC FB	05/1982 - 10/1986	1
79960-90B02	BB20,RB20..20S..WC LH,PF,*NSW	10/1985 - 10/1986	1
79230 - CUSHION ASSY, NO.2 SEAT, LH
79230-90B21	BB20,RB20..20S..WC PF	06/1983 - 10/1985	1
79230-90B15	BB20,RB20..20S..WC PF	05/1982 - 06/1983	1
79230-90B04	BB20,HB30,RB20..DLX..ARL FB	05/1982 - 08/1988	1
79240 - BACK ASSY, NO.2 SEAT, RH
79340-90B10	BB20,RB20..20S..WC PF	05/1982 - 06/1983	1
79340-90B17	BB20,RB20..20S..WC PF	06/1983 - 10/1985	1
79340-90B04	BB20,HB30,RB20..DLX..ARL FB	05/1982 - 08/1987	1
79250 - BACK ASSY, NO.2 SEAT, LH
79150-90B11	BB20,RB20..20S..WC PF	05/1982 - 06/1983	1
79740-90B01	BB20,RB20..20S..WC FB	05/1982 - 10/1986	1
79150-90B27	BB20,RB20..20S..WC PF	10/1985 - 10/1986	1
79150-90B23	BB20,RB20..20S..WC PF	06/1983 - 10/1985	1
79290A - SPRING ASSY, NO.2 SEAT BACK, LH
79103-90B01	BB20,RB20..20S	04/1985 - 10/1986	1
79320 - CUSHION ASSY, NO.3 SEAT, RH
79320-90B11	BB20,RB20..20S..WC PF	05/1982 - 06/1983	1
79320-90B04	BB20,HB30,RB20..DLX..ARL FB	05/1982 - 08/1988	1
79320-90B15	BB20,RB20..20S..WC PF	06/1983 - 10/1985	1
79340 - BACK ASSY, NO.3 SEAT, RH
79340-90B10	BB20,RB20..20S..WC PF	05/1982 - 06/1983	1
79340-90B04	BB20,RB20..20S..WC FB	05/1982 - 10/1986	1
79340-90B17	BB20,RB20..20S..WC PF	06/1983 - 10/1985	1
79340-90B25	BB20,RB20..20S..WC PF	10/1985 - 10/1986	1
79380A - SPRING ASSY, NO.3 SEAT BACK, RH
79303-90B01	BB20,RB20..20S	04/1985 - 10/1986	1
79420 - CUSHION ASSY, NO.4 SEAT, RH
79320-90B11	BB20,RB20..20S..WC PF	05/1982 - 06/1983	1
79320-90B15	BB20,RB20..20S..WC PF	06/1983 - 10/1985	1
79320-90B04	BB20,HB30,RB20..DLX..ARL FB	05/1982 - 08/1988	1
79430 - CUSHION ASSY, NO.4 SEAT, LH
79430-90B10	BB20,RB20..20S..WC PF	05/1982 - 06/1983	1
79430-90B04	BB20,RB20..20S..WC FB	05/1982 - 10/1986	1
79430-90B20	BB20,RB20..20S..WC PF	10/1985 - 10/1986	1
79430-90B13	BB20,RB20..20S..WC PF	06/1983 - 10/1985	1
79440 - BACK ASSY, NO.4 SEAT, RH
79340-90B10	BB20,RB20..20S..WC PF	05/1982 - 06/1983	1
79340-90B17	BB20,RB20..20S..WC PF	06/1983 - 10/1985	1
79340-90B04	BB20,RB20..20S..WC FB	05/1982 - 10/1986	1
79340-90B25	BB20,RB20..20S..WC PF	10/1985 - 10/1986	1
79450 - BACK ASSY, NO.4 SEAT, LH
79150-90B11	BB20,RB20..20S..WC PF	05/1982 - 06/1983	1
79150-90B23	BB20,RB20..20S..WC PF	06/1983 - 10/1985	1
79740-90B01	BB20,RB20..20S..WC FB	05/1982 - 10/1986	1
79150-90B27	BB20,RB20..20S..WC PF	10/1985 - 10/1986	1
79480A - SPRING ASSY, NO.4 SEAT BACK, RH
79303-90B01	BB20,RB20..20S	04/1985 - 10/1986	1
79490A - SPRING ASSY, NO.4 SEAT BACK, LH
79103-90B01	BB20,RB20..20S	04/1985 - 10/1986	1
79620 - CUSHION ASSY, NO.6 SEAT, RH
79620-90B15	BB20,RB20..20S..WC PF	05/1982 - 06/1983	1
79620-90B06	BB20,HB30,RB20..DLX..ARL FB	05/1982 - 08/1988	1
79620-90B25	BB20,RB20..20S..WC PF	06/1983 - 10/1985	1
79630 - CUSHION ASSY, NO.6 SEAT, LH
79630-90B20	BB20,RB20..20S..WC PF	06/1983 - 10/1985	1
79630-90B06	BB20,RB20..20S..WC FB	05/1982 - 10/1986	1
79630-90B29	BB20,RB20..20S..WC PF	10/1985 - 10/1986	1
79630-90B13	BB20,RB20..20S..WC PF	05/1982 - 06/1983	1
79640 - BACK ASSY, NO.6 SEAT, RH
79340-90B04	BB20,RB20..20S..WC FB	05/1982 - 10/1986	1
79340-90B10	BB20,RB20..20S..WC PF	05/1982 - 06/1983	1
79340-90B17	BB20,RB20..20S..WC PF	06/1983 - 10/1985	1
79340-90B25	BB20,RB20..20S..WC PF	10/1985 - 10/1986	1
79650 - BACK ASSY, NO.6 SEAT, LH
79150-90B11	BB20,RB20..20S..WC PF	05/1982 - 06/1983	1
79740-90B01	BB20,RB20..20S..WC FB	05/1982 - 10/1986	1
79150-90B23	BB20,RB20..20S..WC PF	06/1983 - 10/1985	1
79150-90B27	BB20,RB20..20S..WC PF	10/1985 - 10/1986	1
79680B - SPRING ASSY, NO.6 SEAT BACK, RH
79303-90B01	BB20,RB20..20S	04/1985 - 10/1986	1
79690A - SPRING ASSY, NO.6 SEAT BACK, LH
79103-90B01	BB20,RB20..20S	04/1985 - 10/1986	1
79720 - CUSHION ASSY, NO.7 SEAT, RH
79080-90B02	BB20,RB20..20S..WC LH,PF	05/1982 - 06/1983	1
79720-90B15	BB20,RB20..20S..WC RH,PF	05/1982 - 06/1983	1
79080-90B04	BB20,RB20..20S..WC LH,PF	06/1983 - 10/1985	1
79720-90B05	BB20,HB30,RB20..DLX..ARL RH,FB	05/1982 - 08/1988	1
79720-90B19	BB20,RB20..20S..WC RH,PF	06/1983 - 10/1985	1
79080-90B01	BB20,HB30,RB20..DLX..ARL LH,FB	05/1982 - 08/1988	1
79730 - CUSHION ASSY, NO.7 SEAT, LH
79730-90B14	BB20,RB20..20S..WC PF	05/1982 - 06/1983	1
79730-90B17	BB20,RB20..20S..WC PF	06/1983 - 10/1985	1
79730-90B05	BB20,HB30,RB20..DLX..ARL FB	05/1982 - 08/1988	1
79740 - BACK ASSY, NO.7 SEAT, RH
79150-90B11	BB20,RB20..20S..WC PF	05/1982 - 06/1983	2
79150-90B23	BB20,RB20..20S..WC PF	06/1983 - 10/1985	2
79150-90B27	BB20,RB20..20S..WC PF	10/1985 - 10/1986	2
79740-90B01	BB20,RB20..20S..WC FB	05/1982 - 10/1986	2
79750 - BACK ASSY, NO.7 SEAT, LH
79150-90B11	BB20,RB20..20S..WC PF	05/1982 - 06/1983	1
79740-90B01	BB20,HB30,RB20..DLX..ARL FB	05/1982 - 08/1987	1
79150-90B23	BB20,RB20..20S..WC PF	06/1983 - 10/1985	1
79780A - SPRING ASSY, NO.7 SEAT BACK, RH
79103-90B01	BB20,RB20..20S	04/1985 - 10/1986	2
Common parts
90119-08326
90119-10037
90468-18071
91651-60820
93210-16016

RB20R-MDZRQ (1982)

ILLUST NO. 3 OF 3(8205-8504)BB20,RB20

ILLUST NO. 2 OF 3(8205-8504)BB20,RB20..RHD..DLX,STD

ILLUST NO. 1 OF 3(8205-8504)BB20,RB20..RHD

ILLUST NO. 3 OF 4(8504- )BB2#,32,FB30,HB30,HZB30,RB20

ILLUST NO. 1 OF 4(8504- )BB2#,HB30,HDB30,HZB30,RB20..RHD

ILLUST NO. 2 OF 4(8504- )BB2#,RB20..RHD..DLX,STD

Part Price Details
