RB20R-MDZRQ (1982)

Toyota Coaster

Production May 1982 - Oct 1986
Engine 22R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8205- )

Click highlighted areas on diagram

diagram 68830 68840 68970 69350 69490 9011906434 9011906434 9166560825 9166560825 9166560825 9166560825 9471290800 9471290800
Part # Description Qty Price
68830 - HINGE ASSY, BACK DOOR, RH
68801-90B00

BB20..16S,20S,22S,26S;BB21,32,FB30,HB30,HZB30,RB20

 1
68840 - HINGE ASSY, BACK DOOR, LH
68801-90B00

BB20..16S,20S,22S,26S;BB21,32,FB30,HB30,HZB30,RB20

 1
68970 - STAY ASSY, BACK DOOR, RH
68950-39035

BB20,21,FB30,HB30,RB20..(DLX,STD)..(20S,22S,23S,25S,26S,29S,30S)

 1
69350 - LOCK ASSY, BACK DOOR
69350-90B00

BB20,21,FB30,HB30,RB20..16S,17S,20S,22S,23S,25S,26S,29S,30S

 1
69490 - STRIKER ASSY, BACK DOOR LOCK
69430-95701

BB20,21,FB30,HB30,RB20..16S,17S,20S,22S,23S,25S,26S,29S,30S

 1
Common parts
90119-06434
91665-60825
94712-90800

(8302- )

Click highlighted areas on diagram

diagram 67207B 67209B 67286A 67287A 68830 68830 68840 68840 68852 68852 68852 68852 69211 69212 69212A 69263 69279 69291 69305 69305A 69306 69306A 69307 69307B 69722 69722 69751 69775 69790 9011906298 9011906298 9011906298 9011906298 9011906351 9011906434 9011908093 9011908093 9011908093 9011908093 9015950241 9015960014 9015960268 9015960361 9015980036 9015980036 9018906043 9054106002 9161140616 9322915012 9331515012 9353054010
Part # Description Qty Price
68830 - HINGE ASSY, BACK DOOR, RH
68801-90B00

BB20..16S,20S,22S,26S;BB21,32,FB30,HB30,HZB30,RB20

 1
68830 - HINGE ASSY, BACK DOOR, RH
68801-90B00

BB20..16S,20S,22S,26S;BB21,32,FB30,HB30,HZB30,RB20

 1
68840 - HINGE ASSY, BACK DOOR, LH
68801-90B00

BB20..16S,20S,22S,26S;BB21,32,FB30,HB30,HZB30,RB20

 1
68840 - HINGE ASSY, BACK DOOR, LH
68801-90B00

BB20..16S,20S,22S,26S;BB21,32,FB30,HB30,HZB30,RB20

 1
Common parts
90119-06298
90119-06351
90119-06434
90119-08093
90159-50241
90159-60014
90159-60268
90159-60361
90159-80036
90189-06043
90541-06002
91611-40616
93229-15012
93315-15012
93530-54010

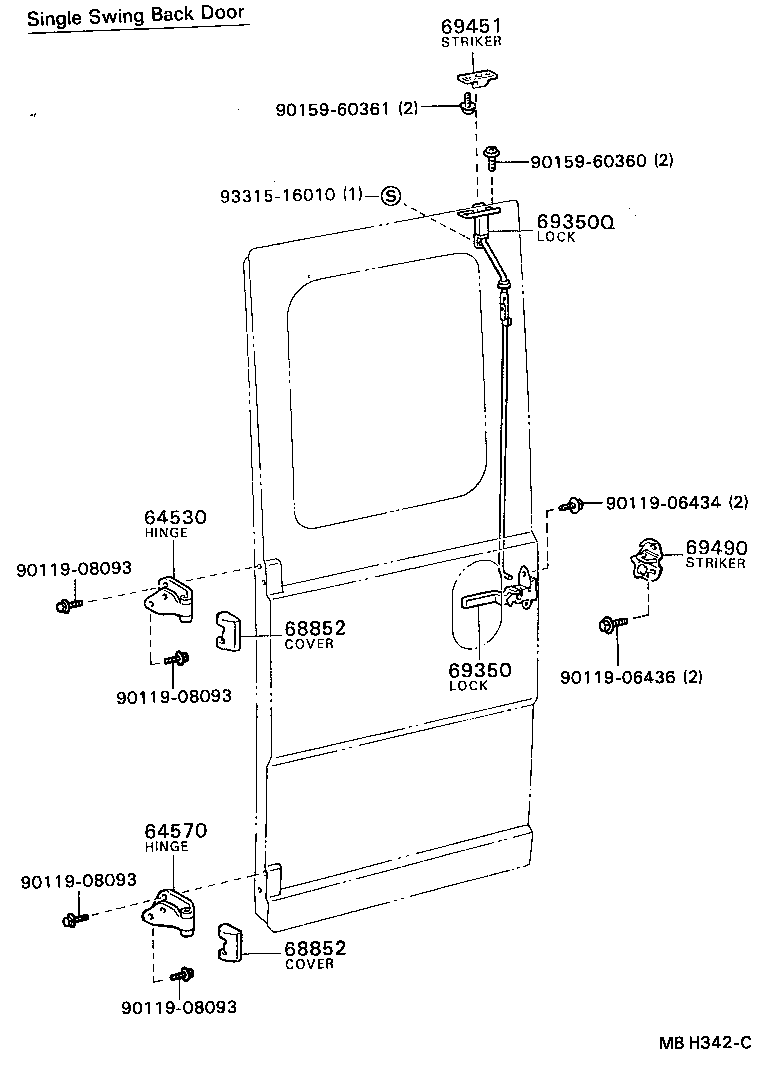

(8405-8510)BB20..RHD..STD..HRF ; (8510- )

Click highlighted areas on diagram

diagram 64530 64570 68852 68852 69350 69350Q 69451 69490 9011906434 9011906436 9011908093 9011908093 9011908093 9011908093 9015960360 9015960361 9331516010
Part # Description Qty Price
69350 - LOCK ASSY, BACK DOOR
69350-90B00

BB20,21,FB30,HB30,RB20..16S,17S,20S,22S,23S,25S,26S,29S,30S

 1
69490 - STRIKER ASSY, BACK DOOR LOCK
69430-95701

BB20,21,FB30,HB30,RB20..16S,17S,20S,22S,23S,25S,26S,29S,30S

 1
Common parts
90119-06434
90119-06436
90119-08093
90159-60360
90159-60361
93315-16010
