RB20R-MDZRQ (1982)

Toyota Coaster

Production May 1982 - Oct 1986
Engine 22R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8205-8408)ARL ; (8310- )GEN ; (8408- )DLX,EXS..ARL

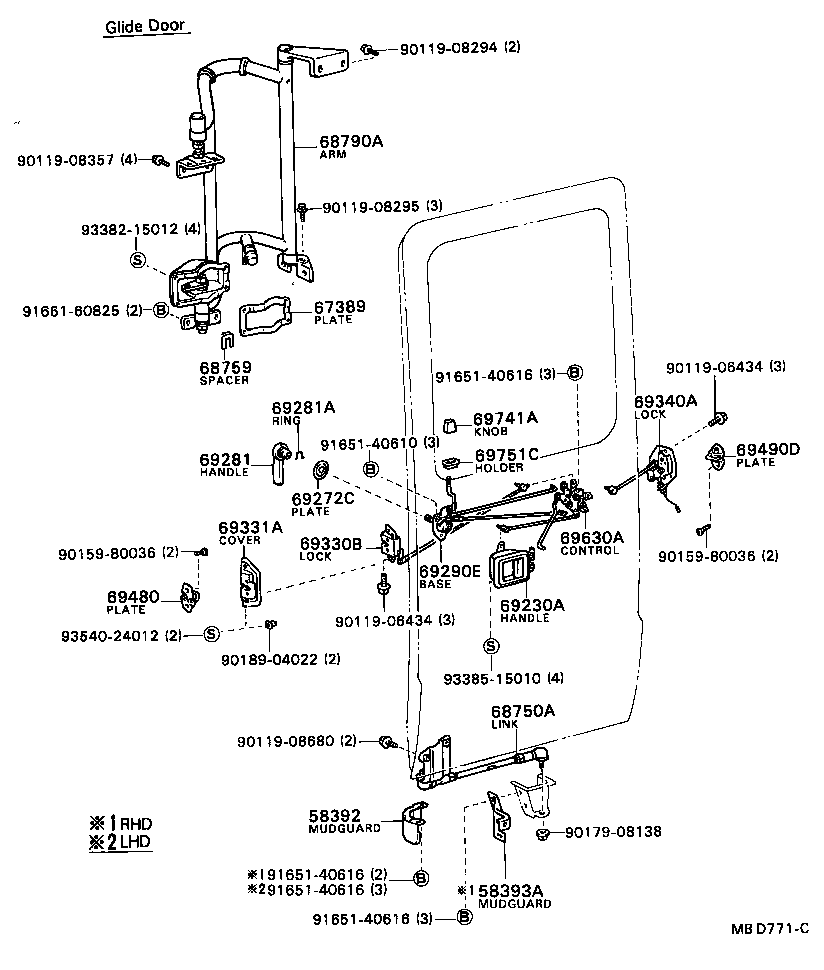

Click highlighted areas on diagram

diagram 58392 58393A 67389 68750A 68759 68790A 69230A 69272C 69281 69281A 69290E 69330B 69331A 69340A 69480 69490D 69630A 69741A 69751C 9011906434 9011906434 9011908294 9011908295 9011908357 9011908680 9015980036 9015980036 9017908138 9018904022 9165140610 9165140616 9165140616 9165140616 9165140616 9166160825 9338215012 9338515010 9354024012
Part # Description Qty Price
58392 - MUDGUARD, GLIDE DOOR LINK, FRONT
58392-90B01

BB20,RB20..ARL

 1
58392-90B01

BB20,RB20..RHD

 1
58393A - MUDGUARD, GLIDE DOOR LINK, REAR
58393-90B01

BB20,RB20..RHD

 1
58393-90B01

BB20,RB20..ARL

 1
67389 - PLATE, GLIDE DOOR CHECK BOOT
67389-90B00

BB20,RB20..ARL

 1
67389-90B00

BB20,RB20..ARL,GEN

 1
68750A - LINK ASSY, GLIDE DOOR
68750-90B00

BB20,RB20..RHD

 1
68750-90B00

BB20,RB20..ARL

 1
68759 - SPACER, GLIDE DOOR ARM
68759-90B01

BB20,RB20..ARL

 2
68759-90B01

BB20,RB20..ARL,GEN

 2
68790A - ARM ASSY, GLIDE DOOR
68790-90B01

BB20,RB20..ARL

 1
69230A - HANDLE ASSY, GLIDE DOOR OUTSIDE
69230-90B00

BB20,RB20..ARL

 1
69230-90B00

BB20,RB20..ARL,GEN

 1
69272C - PLATE, GLIDE DOOR INSIDE HANDLE
69272-3001002

BB20,RB20..ARL,GEN

MAROON,DARK WINE

 1
69272-3001002

BB20,RB20..ARL

MAROON,DARK WINE

 1
69281 - HANDLE, GLIDE DOOR INSIDE
69281-90B00

BB20,RB20..ARL,GEN

 1
69281-90B00

BB20,RB20..ARL

 1
69281A - RING, SHAFT SNAP(FOR GLIDE DOOR INSIDE HANDLE)
90520-01002

BB20,RB20..ARL

 1
90520-01002

BB20,RB20..ARL,GEN

 1
69290E - BASE ASSY, GLIDE DOOR INSIDE HANDLE
69290-90B00

BB20,RB20..ARL

 1
69290-90B00

BB20,RB20..ARL,GEN

 1
69330B - LOCK ASSY, GLIDE DOOR, FRONT
69330-90B01

BB20,RB20..ARL,GEN

 1
69330-90B01

BB20,RB20..ARL

 1
69331A - COVER, GLIDE DOOR LOCK
69331-90B00

BB20,RB20..ARL,GEN

 1
69331-90B00

BB20,RB20..ARL

 1
69340A - LOCK ASSY, GLIDE DOOR, REAR
69340-90B00

BB20,RB20..ARL

 1
69340-90B00

BB20,RB20..ARL,GEN

 1
69480 - PLATE ASSY, GLIDE DOOR LOCK STRIKER, FRONT
69480-90B00

BB20,RB20..ARL,GEN

 1
69480-90B00

BB20,RB20..ARL

 1
69490D - PLATE ASSY, GLIDE DOOR LOCK STRIKER, REAR
69490-90B00

BB20,RB20..ARL,GEN

 1
69490-90B00

BB20,RB20..ARL

 1
69630A - CONTROL ASSY, GLIDE DOOR LOCK REMOTE
69630-90B00

BB20,RB20..ARL,GEN

 1
69630-90B00

BB20,RB20..ARL

 1
69741A - KNOB, BACK DOOR LOCK CONTROL
69741-2002002

BB20,RB20..ARL

DARK WINE,RED/MAROON

 1
69741-2002002

BB20,RB20..ARL,GEN

DARK WINE,RED/MAROON

 1
69751C - HOLDER, DOOR LOCK CONTROL KNOB(FOR GLIDE DOOR)
69751-2003102

BB20,RB20..ARL,GEN

DARK WINE,DARK WINE

 1
69751-2003102

BB20,RB20..ARL

DARK WINE,DARK WINE

 1
Common parts
90119-06434
90119-08294
90119-08295
90119-08357
90119-08680
90159-80036
90179-08138
90189-04022
91651-40610
91651-40616
91661-60825
93382-15012
93385-15010
93540-24012
