RB20R-MDZRQ (1982)
Toyota Coaster
ILLUST NO. 2 OF 4(8205- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64013A - RAIL SUB-ASSY, BACK | ||||
| 64013-90B03 |
BB20,RB20..DLX W/*RW |
1 | ||
| 64105A - RAIL SUB-ASSY, LOWER BACK, OUTER | ||||
| 64105-90B00 |
BB20..16S,20S,22S,26S;BB21,FB30,HB30,HZB30,RB20 |
1 | ||
| 64106A - RAIL SUB-ASSY, LOWER BACK, INNER | ||||
| 64106-90B02 |
BB20,RB20 *GIS |
1 | ||
| 64811 - GLASS, BACK WINDOW | ||||
| 64811-90B04 |
BB20,21,HB30,RB20..(DLX,EXS)..ARL *TT,T=5.0,*TT,T=5.0 |
1 | ||
| 64811 - GLASS, BACK WINDOW | ||||
| 64811-90B04 |
BB20,21,HB30,RB20..(DLX,EXS)..ARL *TT,T=5.0,*TT,T=5.0 |
1 | ||
| 64831 - WEATHERSTRIP, BACK WINDOW GLASS | ||||
| 64812-90B01 |
BB20,21,HB30,RB20..ARL |
1 | ||
| 64831 - WEATHERSTRIP, BACK WINDOW GLASS | ||||
| 64812-90B01 |
BB20,21,HB30,RB20..ARL |
1 | ||
| 64834B - WEATHERSTRIP, BACK WINDOW GLASS, INNER | ||||
| 64834-90B00 |
BB20,21,HB30,HZB30,RB20..ARL |
1 | ||
| 64855 - HANDLE, BACK WINDOW GLASS | ||||
| 64855-90B00 |
BB20,21,HB30,HZB30,RB20..ARL |
2 | ||
| Common parts | ||||
| 90179-06064 | ||||
| 90201-06554 | ||||
| 90209-09017 | ||||
| 90560-05008 | ||||
| 90560-10025 | ||||
| 93240-66012 | ||||
ILLUST NO. 3 OF 4(8205- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 58775-90B00 | ||||
| 90119-08277 | ||||
| 90119-08673 | ||||
| 91651-40614 | ||||
| 91651-60650 | ||||
| 93220-16025 | ||||
| 93540-13510 | ||||
ILLUST NO. 2 OF 4(8302- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64105A - RAIL SUB-ASSY, LOWER BACK, OUTER | ||||
| 64105-90B00 |
BB20..16S,20S,22S,26S;BB21,FB30,HB30,HZB30,RB20 |
1 | ||
| 64106A - RAIL SUB-ASSY, LOWER BACK, INNER | ||||
| 64106-90B02 |
BB20,RB20 *GIS |
1 | ||
| 64811 - GLASS, BACK WINDOW | ||||
| 64811-90B04 |
BB20,21,HB30,RB20..(DLX,EXS)..ARL *TT,T=5.0,*TT,T=5.0 |
1 | ||
| 64811 - GLASS, BACK WINDOW | ||||
| 64811-90B04 |
BB20,21,HB30,RB20..(DLX,EXS)..ARL *TT,T=5.0,*TT,T=5.0 |
1 | ||
| 64831 - WEATHERSTRIP, BACK WINDOW GLASS | ||||
| 64812-90B01 |
BB20,21,HB30,RB20..ARL |
1 | ||
| 64831 - WEATHERSTRIP, BACK WINDOW GLASS | ||||
| 64812-90B01 |
BB20,21,HB30,RB20..ARL |
1 | ||
ILLUST NO. 1 OF 4(8205- )BB2#,RB20
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-90B02 |
BB20,21,FB30,HB30,RB20..(DLX,EX,EXS)..HRF W/CLOCK |
1 | ||
| 63102-90B00 |
BB2#,FB30,HB30,HZB30,RB20..DLX,STD |
1 | ||
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-90B02 |
BB20,21,FB30,HB30,RB20..(DLX,EX,EXS)..HRF W/CLOCK |
1 | ||
| 63102-90B00 |
BB2#,FB30,HB30,HZB30,RB20..DLX,STD |
1 | ||
| 63109A - PANEL SUB-ASSY, BACK WINDOW, UPPER | ||||
| 63109-90B08 |
BB20,21,FB30,HB30,RB20..DLX..HRF..WC |
1 | ||
| 63109-90B09 |
BB20,21,FB30,HB30,RB20..HRF..WC W/UNDER MIRROR |
1 | ||
| 63109A - PANEL SUB-ASSY, BACK WINDOW, UPPER | ||||
| 63109-90B08 |
BB20,21,FB30,HB30,RB20..DLX..HRF..WC |
1 | ||
| 63109-90B09 |
BB20,21,FB30,HB30,RB20..HRF..WC W/UNDER MIRROR |
1 | ||
| 63111B - PANEL, ROOF, NO.1 | ||||
| 63014-90B02 |
BB20,RB20..RHD..DLX..HRF |
1 | ||
| 63111B - PANEL, ROOF, NO.1 | ||||
| 63014-90B02 |
BB20,RB20..RHD..DLX..HRF |
1 | ||
| 63111B - PANEL, ROOF, NO.1 | ||||
| 63014-90B02 |
BB20,RB20..RHD..DLX..HRF |
1 | ||
| 63111B - PANEL, ROOF, NO.1 | ||||
| 63014-90B02 |
BB20,RB20..RHD..DLX..HRF |
1 | ||
| 63112A - PANEL, ROOF, NO.2 | ||||
| 63112-90B02 |
BB2#,32,FB30,HB30,HZB30,RB20..HRF |
1 | ||
| 63112A - PANEL, ROOF, NO.2 | ||||
| 63112-90B02 |
BB2#,32,FB30,HB30,HZB30,RB20..HRF |
1 | ||
| 63113A - PANEL, ROOF, NO.3 | ||||
| 63112-90B02 |
BB2#,32,FB30,HB30,HZB30,RB20..HRF |
1 | ||
| 63113A - PANEL, ROOF, NO.3 | ||||
| 63112-90B02 |
BB2#,32,FB30,HB30,HZB30,RB20..HRF |
1 | ||
| 63114B - PANEL, ROOF, NO.4 | ||||
| 63018-90B03 |
BB20,21,RB20..DLX..HRF..WC |
1 | ||
| 63114B - PANEL, ROOF, NO.4 | ||||
| 63018-90B03 |
BB20,21,RB20..DLX..HRF..WC |
1 | ||
| 63115A - PANEL, ROOF, NO.5 | ||||
| 63117-90B07 |
BB20,RB20..(DLX,EXS)..HRF W/*RW |
1 | ||
| 63115A - PANEL, ROOF, NO.5 | ||||
| 63117-90B07 |
BB20,RB20..(DLX,EXS)..HRF W/*RW |
1 | ||
| Common parts | ||||
| 90269-05022 | ||||
| 91651-60616 | ||||
| 91661-60616 | ||||
| 93560-15016 | ||||

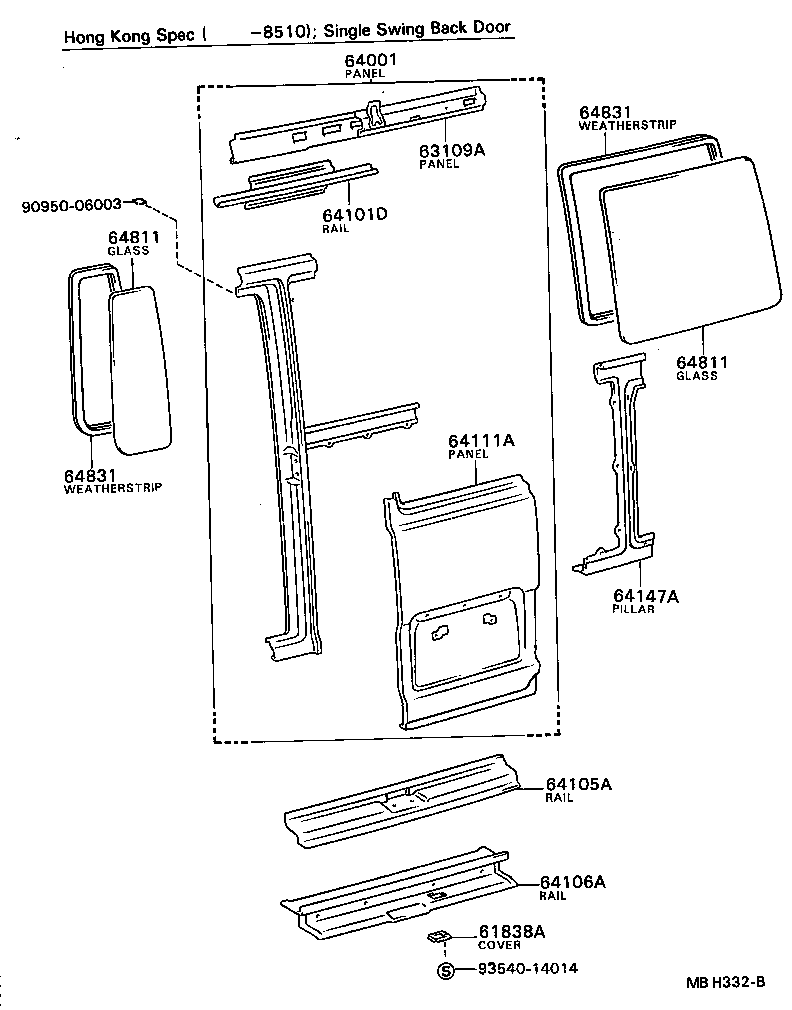

ILLUST NO. 2 OF 4(8405-8510)BB20..RHD..STD..HRF ; (8510- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63109A - PANEL SUB-ASSY, BACK WINDOW, UPPER | ||||
| 63109-90B08 |
BB20,21,FB30,HB30,RB20..DLX..HRF..WC |
1 | ||
| 63109-90B09 |
BB20,21,FB30,HB30,RB20..HRF..WC W/UNDER MIRROR |
1 | ||
| 64105A - RAIL SUB-ASSY, LOWER BACK, OUTER | ||||
| 64105-90B00 |
BB20..16S,20S,22S,26S;BB21,FB30,HB30,HZB30,RB20 |
1 | ||
| 64106A - RAIL SUB-ASSY, LOWER BACK, INNER | ||||
| 64106-90B02 |
BB20,RB20 *GIS |
1 | ||
| 64811 - GLASS, BACK WINDOW | ||||
| 64811-90B04 |
BB20,21,HB30,RB20..(DLX,EXS)..ARL *TT,T=5.0,*TT,T=5.0 |
1 | ||
| 64811 - GLASS, BACK WINDOW | ||||
| 64811-90B04 |
BB20,21,HB30,RB20..(DLX,EXS)..ARL *TT,T=5.0,*TT,T=5.0 |
1 | ||
| 64831 - WEATHERSTRIP, BACK WINDOW GLASS | ||||
| 64812-90B01 |
BB20,21,HB30,RB20..ARL |
1 | ||
| 64831 - WEATHERSTRIP, BACK WINDOW GLASS | ||||
| 64812-90B01 |
BB20,21,HB30,RB20..ARL |
1 | ||
| Common parts | ||||
| 90950-06003 | ||||
| 93540-14014 | ||||
