RB20R-MDZRQ (1982)
Toyota Coaster

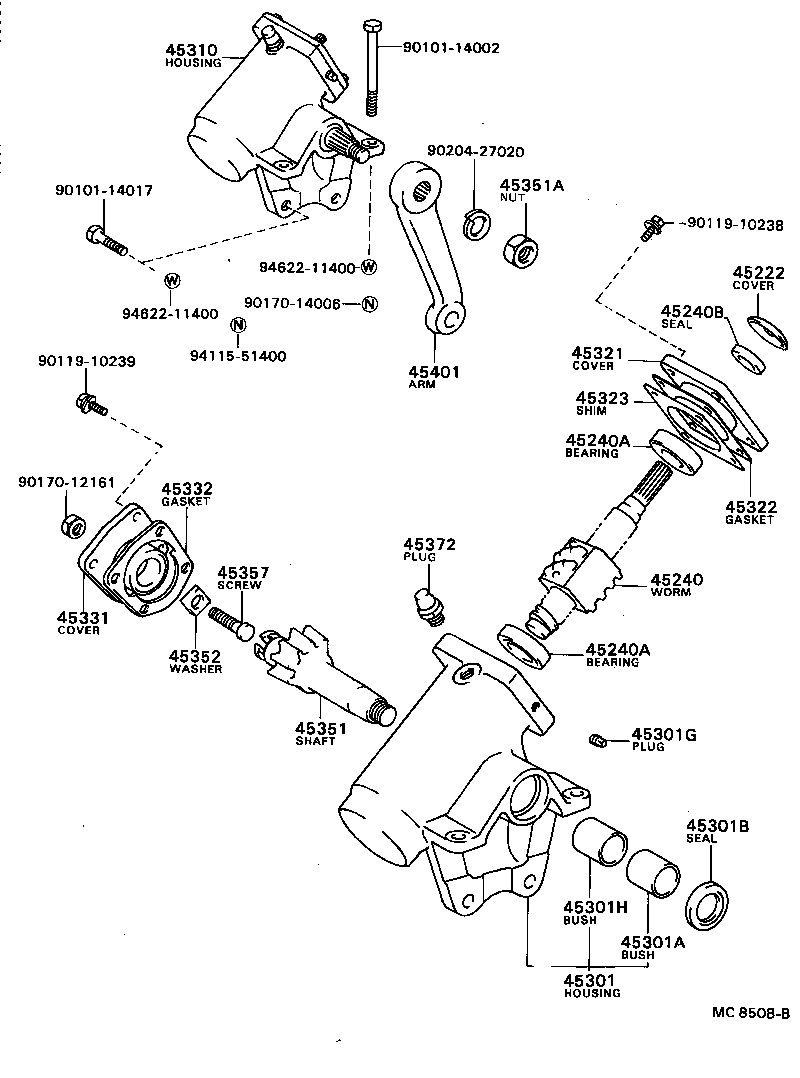

ILLUST NO. 1 OF 2(8205- )BB21 ; (8205- )RB20..GEN,ME ; (8205- )RB20..WOC..ARL ; (8205- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45222 - COVER, STEERING GEAR DUST | ||||
| 45222-26010 |
BB21;RB20..GEN,ME;RB20..WOC..ARL;BB20,22,23,32..DLX,STD |
1 | ||
| 45240 - WORM ASSY, STEERING | ||||
| 45240-36090 |
RB20..RHD..GEN;RB20..WOC..ARL;BB21,22,23..RHD;BB20..RHD..(DLX,STD) |
1 | ||
| 45240A - BEARING(FOR STEERING WORM) | ||||
| 90363-25046 |
BB21;RB20..GEN,ME;RB20..WOC..ARL;BB20,22,23,32..DLX,STD |
2 | ||
| 45240A - BEARING(FOR STEERING WORM) | ||||
| 90363-25046 |
BB21;RB20..GEN,ME;RB20..WOC..ARL;BB20,22,23,32..DLX,STD |
2 | ||
| 45240B - SEAL, OIL(FOR STEERING WORM) | ||||
| 90311-22103 |
BB21;RB20..GEN,ME;RB20..WOC..ARL;BB20,22,23,32..DLX,STD |
1 | ||
| 45301 - HOUSING SUB-ASSY, STEERING GEAR | ||||
| 45301-36120 |
RB20..RHD..GEN;RB20..WOC..ARL;BB21,22,23..RHD;BB20..RHD..(DLX,STD) |
1 | ||
| 45301A - BUSH OR BEARING, SECTOR SHAFT, NO.1 | ||||
| 90999-73060 |
BB21;RB20..GEN,ME;RB20..WOC..ARL;BB20,22,23,32..DLX,STD |
1 | ||
| 45301B - SEAL, OIL(FOR SECTOR SHAFT) | ||||
| 90311-36104 |
BB21;RB20..GEN,ME;RB20..WOC..ARL;BB20,22,23,32..DLX,STD |
1 | ||
| 45301G - PLUG, STEERING GEAR BOX OIL | ||||
| 90345-51001 |
BB21;RB20..GEN,ME;RB20..WOC..ARL;BB20,22,23,32..DLX,STD |
1 | ||
| 45301H - BUSH OR BEARING, SECTOR SHAFT, NO.2 | ||||
| 90999-73060 |
BB21;RB20..GEN,ME;RB20..WOC..ARL;BB20,22,23,32..DLX,STD |
1 | ||
| 45310 - HOUSING ASSY, STEERING GEAR | ||||
| 45310-36140 |
RB20..RHD..GEN;RB20..WOC..ARL;BB21,22,23..RHD;BB20..RHD..(DLX,STD) |
1 | ||
| 45321 - COVER, GEAR HOUSING END | ||||
| 45321-36030 |
BB21;RB20..GEN,ME;RB20..WOC..ARL;BB20,22,23,32..DLX,STD |
1 | ||
| 45322 - GASKET, GEAR HOUSING END COVER | ||||
| 45322-37010 |
BB21;RB20..GEN,ME;RB20..WOC..ARL;BB20,22,23,32..DLX,STD |
1 | ||
| 45323 - SHIM, GEAR HOUSING END COVER | ||||
| 45323-37030 |
BB21;RB20..GEN,ME;RB20..WOC..ARL;BB20,22,23,32..DLX,STD T=0.07,T=0.07 |
1 | ||
| 45323-37020 |
BB21;RB20..GEN,ME;RB20..WOC..ARL;BB20,22,23,32..DLX,STD T=0.06,T=0.06 |
1 | ||
| 45323-37010 |
BB21;RB20..GEN,ME;RB20..WOC..ARL;BB20,22,23,32..DLX,STD T=0.05,T=0.05 |
1 | ||
| 45323-37050 |
BB21;RB20..GEN,ME;RB20..WOC..ARL;BB20,22,23,32..DLX,STD T=0.20,T=0.20 |
1 | ||
| 45323-37040 |
BB21;RB20..GEN,ME;RB20..WOC..ARL;BB20,22,23,32..DLX,STD T=0.10,T=0.10 |
1 | ||
| 45323-37060 |
BB21;RB20..GEN,ME;RB20..WOC..ARL;BB20,22,23,32..DLX,STD T=0.50,T=0.50 |
1 | ||
| 45331 - COVER, SECTOR SHAFT END | ||||
| 45304-36040 |
BB21;RB20..GEN,ME;RB20..WOC..ARL;BB20,22,23,32..DLX,STD |
1 | ||
| 45332 - GASKET, SECTOR SHAFT END COVER | ||||
| 45332-36030 |
BB21;RB20..GEN,ME;RB20..WOC..ARL;BB20,22,23,32..DLX,STD |
1 | ||
| 45351 - SHAFT, STEERING SECTOR | ||||
| 45351-36040 |
BB21;RB20..GEN,ME;RB20..WOC..ARL;BB20,22,23,32..DLX,STD |
1 | ||
| 45351A - NUT, HEXAGON(FOR SECTOR SHAFT TO PITMAN ARM SETTING) | ||||
| 90170-27033 |
BB21;RB20..GEN,ME;RB20..WOC..ARL;BB20,22,23,32..DLX,STD |
1 | ||
| 45352 - WASHER, SECTOR SHAFT THRUST | ||||
| 45354-37010 |
BB21;RB20..GEN,ME;RB20..WOC..ARL;BB20,22,23,32..DLX,STD T=2.05,T=2.05 |
1 | ||
| 45353-37010 |
BB21;RB20..GEN,ME;RB20..WOC..ARL;BB20,22,23,32..DLX,STD T=2.00,T=2.00 |
1 | ||
| 45352-37010 |
BB21;RB20..GEN,ME;RB20..WOC..ARL;BB20,22,23,32..DLX,STD T=1.95,T=1.95 |
1 | ||
| 45357 - SCREW, SECTOR SHAFT ADJUSTING | ||||
| 45357-36010 |
BB21;RB20..GEN,ME;RB20..WOC..ARL;BB20,22,23,32..DLX,STD |
1 | ||
| 45372 - PLUG, STEERING GEAR HOUSING OIL | ||||
| 90930-03058 |
BB21;RB20..GEN,ME;RB20..WOC..ARL;BB20,22,23,32..DLX,STD |
1 | ||
| 45401 - ARM SUB-ASSY, PITMAN | ||||
| 45411-36210 |
RB20..RHD..GEN;RB20..WOC..ARL;BB21,22,23..RHD;BB20..RHD..(DLX,STD) |
1 | ||
| Common parts | ||||
| 90101-14002 | ||||
| 90101-14017 | ||||
| 90119-10238 | ||||
| 90119-10239 | ||||
| 90170-12161 | ||||
| 90170-14006 | ||||
| 90204-27020 | ||||
| 94115-51400 | ||||
| 94622-11400 | ||||
ILLUST NO. 1 OF 2(8205- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04445 - GASKET KIT, POWER STEERING GEAR(FOR RECIRCULATING BALL) | ||||
| 04445-36010 |
BB20,30,RB20..ARL,GEN |
1 | ||
| 04455A - GASKET KIT, POWER STEERING CROSS SHAFT OVERHOLE | ||||
| 04455-36010 |
BB20,30,RB20..ARL,GEN |
1 | ||
| 04455-36030 |
BB2#,30,RB20 |
1 | ||
| 44011 - PISTON SUB-ASSY, POWER | ||||
| 44011-36030 |
BB20,30,RB20..RHD |
1 | ||
| 44015 - SHAFT SUB-ASSY, SECTOR | ||||
| 44015-36030 |
BB2#,30,FB30,HB3#,RB20..ARL,GEN,ME |
1 | ||
| 44016 - CASE SUB-ASSY, WORM BEARING | ||||
| 44016-36030 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..ARL,EUR,GEN,ME |
1 | ||
| 44101A - SEAL, TYPE T OIL(FOR STEERING WORM) | ||||
| 90029-21002 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..ARL,EUR,GEN,ME |
1 | ||
| 44101C - RING, HOLE SNAP(FOR STEERING WORM OIL SEAL) | ||||
| 90029-52002 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..ARL,EUR,GEN,ME |
1 | ||
| 44101D - WASHER, PLATE(FOR STEERING WORM) | ||||
| 90029-18002 |
BB20,30,RB20..ARL,GEN |
1 | ||
| 44101E - RING, O(FOR STEERING WORM) | ||||
| 96710-01009 |
BB20,RB20 |
1 | ||
| 90029-20005 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..ARL,EUR,GEN,ME ID=74 |
1 | ||
| 90029-20006 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..ARL,EUR,GEN,ME ID=79.4 |
1 | ||
| 44101E - RING, O(FOR STEERING WORM) | ||||
| 96710-01009 |
BB20,RB20 |
1 | ||
| 90029-20005 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..ARL,EUR,GEN,ME ID=74 |
1 | ||
| 90029-20006 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..ARL,EUR,GEN,ME ID=79.4 |
1 | ||
| 44101E - RING, O(FOR STEERING WORM) | ||||
| 96710-01009 |
BB20,RB20 |
1 | ||
| 90029-20005 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..ARL,EUR,GEN,ME ID=74 |
1 | ||
| 90029-20006 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..ARL,EUR,GEN,ME ID=79.4 |
1 | ||
| 44101F - RING, SNAP(FOR STEERING WORM) | ||||
| 90029-52401 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..ARL,GEN,ME |
1 | ||
| 44101G - SEAL, DUST(FOR STEERING WORM) | ||||
| 90029-20700 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..ARL,GEN,ME |
1 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 90029-20009 |
BB20,30,RB20..ARL,GEN ID=41,ID=41 |
2 | ||
| 90029-20007 |
BB2#,3#,FB30,HB3#,RB20..ARL,GEN,ME ID=39.4,ID=39.4 |
1 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 90029-20009 |
BB20,30,RB20..ARL,GEN ID=41,ID=41 |
2 | ||
| 90029-20007 |
BB2#,3#,FB30,HB3#,RB20..ARL,GEN,ME ID=39.4,ID=39.4 |
1 | ||
| 44107C - RING(FOR POWER STEERING GEAR HOUSING) | ||||
| 90029-56600 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..ARL,GEN,ME |
2 | ||
| 44107C - RING(FOR POWER STEERING GEAR HOUSING) | ||||
| 90029-56600 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..ARL,GEN,ME |
2 | ||
| 44107Q - HOUSING SUB-ASSY, STEERING W/NAME PLATE | ||||
| 44107-36030 |
BB20,30,RB20..RHD |
1 | ||
| 44108C - COVER SUB-ASSY, SECTOR | ||||
| 44108-36030 |
BB20,30,RB20..ARL,GEN |
1 | ||
| 44108D - RING, O(FOR SECTOR COVER) | ||||
| 90029-20008 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..ARL,EUR,GEN,ME ID=84.4 |
1 | ||
| 90029-20009 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..ARL,EUR,GEN,ME ID=41 |
1 | ||
| 44108D - RING, O(FOR SECTOR COVER) | ||||
| 90029-20008 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..ARL,EUR,GEN,ME ID=84.4 |
1 | ||
| 90029-20009 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..ARL,EUR,GEN,ME ID=41 |
1 | ||
| 44108E - RING(FOR SECTOR COVER) | ||||
| 90029-56600 |
BB20,30,RB20..ARL,GEN |
1 | ||
| 44110 - GEAR ASSY, POWER STEERING | ||||
| 44110-36030 |
BB20,30,RB20..RHD |
1 | ||
| 44142B - SEAL, LOCK NUT | ||||
| 44142-37010 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..ARL,EUR,GEN,ME |
1 | ||
| 44163A - RING, POWER PISTON BACK UP | ||||
| 44163-36030 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..ARL,EUR,GEN,ME |
2 | ||
| 44164A - RING, POWER PISTON | ||||
| 44164-36030 |
BB2#,30,FB30,HB3#,RB20..ARL,GEN,ME |
2 | ||
| 44165 - RING, SEAL, NO.1 | ||||
| 44165-36030 |
BB2#,30,FB30,HB3#,RB20..ARL,GEN,ME |
2 | ||
| 44166 - RING, SEAL, NO.2 | ||||
| 44166-36030 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..ARL,EUR,GEN,ME |
2 | ||
| 44167A - COVER, SECTOR SHAFT DUST | ||||
| 44167-37010 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..ARL,EUR,GEN,ME |
1 | ||
| 44168 - COVER, WORM SHAFT DUST | ||||
| 44168-36011 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..ARL,EUR,GEN,ME |
1 | ||
| 44251 - ARM, PITMAN | ||||
| 45411-36230 |
BB2#,30,HB3#,HDB30,HZB30,RB20..RHD |
1 | ||
| 44251A - NUT, CASTLE(FOR PITMAN ARM) | ||||
| 90170-30171 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..ARL,EUR,GEN,ME |
1 | ||
| Common parts | ||||
| 90101-14002 | ||||
| 90101-14017 | ||||
| 90170-14006 | ||||
| 90204-30040 | ||||
| 91611-61025 | ||||
| 94115-51400 | ||||
| 94622-11400 | ||||
ILLUST NO. 2 OF 2(8205- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-39135 |
BB2#,30,FB30,HB3#,RB20 |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 94146-71800 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20 |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45046-39135 |
BB2#,30,FB30,HB3#,RB20 |
1 | ||
| 45070 - BRACKET ASSY, IDLER ARM | ||||
| 45060-36010 |
BB2#,30,HB3#,HDB30,HZB30,RB20..RHD |
1 | ||
| 45406 - ROD SUB-ASSY, TIE, RH | ||||
| 45047-39095 |
BB2#,30,FB30,HB3#,RB20 |
1 | ||
| 45406A - NUT, CASTLE(FOR TIE ROD) | ||||
| 94146-71800 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20 |
2 | ||
| 45407 - ROD SUB-ASSY, TIE, LH | ||||
| 45047-39095 |
BB2#,30,FB30,HB3#,RB20 |
1 | ||
| 45409D - BUSH(FOR IDLER ARM) | ||||
| 90999-73092 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20 |
2 | ||
| 45410 - BRACKET ASSY, CENTER ARM | ||||
| 45050-36010 |
BB2#,30,HB3#,RB20..RHD |
1 | ||
| 45421 - ARM, STEERING CENTER | ||||
| 45421-36010 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20 |
1 | ||
| 45422 - SHAFT, CENTER ARM | ||||
| 45422-36010 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20 |
1 | ||
| 45422C - BUSH(FOR CENTER ARM SHAFT) | ||||
| 90999-73093 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20 |
2 | ||
| 45422D - SEAL(FOR CENTER ARM SHAFT) | ||||
| 90311-36003 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20 |
1 | ||
| 45422E - WASHER(FOR CENTER ARM SHAFT) | ||||
| 90204-27020 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20 |
1 | ||
| 45429 - NUT, CENTER ARM SHAFT | ||||
| 90170-27033 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20 |
1 | ||
| 45434 - CAP, CENTER ARM BRACKET | ||||
| 45434-36010 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20 |
1 | ||
| 45434A - PLUG(FOR CENTER ARM BRACKET CAP) | ||||
| 90345-06014 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20 |
1 | ||
| 45440 - LINK ASSY, STEERING DRAG | ||||
| 45440-39015 |
BB2#,30,HB3#,HDB30,HZB30,RB20..RHD |
1 | ||
| 45440B - NUT, CASTLE(FOR STEERING DRAG LINK) | ||||
| 94146-71800 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20 |
2 | ||
| 45450 - ROD ASSY, STEERING RELAY | ||||
| 45450-39085 |
BB2#,30,HB3#,RB20..RHD |
1 | ||
| 45450A - NUT, CASTLE(FOR RELAY ROD) | ||||
| 94146-71800 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20 |
1 | ||
| 45460 - ROD ASSY, TIE, RH | ||||
| 45460-39175 |
BB2#,30,FB30,HB3#,RB20 |
1 | ||
| 45461 - ROD, STEERING TIE | ||||
| 45461-36040 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20 |
2 | ||
| 45466 - CLAMP, TIE ROD END | ||||
| 45466-55020 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20 |
4 | ||
| 45470 - ROD ASSY, TIE, LH | ||||
| 45470-39045 |
BB2#,30,FB30,HB3#,RB20 |
1 | ||
| 45490 - ARM ASSY, STEERING IDLER | ||||
| 45490-39195 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20 |
1 | ||
| 45490A - NUT, CASTLE(FOR IDLER ARM) | ||||
| 94146-51400 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20 |
1 | ||
| 45495A - SHAFT, IDLER ARM | ||||
| 45495-36010 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20 |
1 | ||
| 45495B - SEAL(FOR IDLER ARM SHAFT) | ||||
| 90311-25009 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20 |
1 | ||
| 45497 - CAP, IDLER ARM BRACKET | ||||
| 45497-36010 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20 |
1 | ||
| 45497A - PLUG(FOR IDLER ARM BRACKET CAP) | ||||
| 90345-06014 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20 |
1 | ||
| 45611 - ARM, STEERING KNUCKLE, RH | ||||
| 45611-36090 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20 |
1 | ||
| 45611A - BOLT, KNUCKLE STOPPER | ||||
| 90106-12022 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20 |
2 | ||
| 45612 - ARM, STEERING KNUCKLE, LH | ||||
| 45612-36060 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20 |
1 | ||
| 45619 - COVER, KNUCKLE STOPPER | ||||
| 45619-36010 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20 |
2 | ||
| Common parts | ||||
| 90105-12033 | ||||
| 90105-12062 | ||||
| 90105-12063 | ||||
| 90170-12014 | ||||
| 90170-12018 | ||||
| 90179-12070 | ||||
| 90252-03004 | ||||
| 91161-51250 | ||||
| 94115-41200 | ||||
| 94115-41600 | ||||
| 94512-01200 | ||||
| 94512-01600 | ||||
| 94531-01200 | ||||
| 94612-11600 | ||||
| 94621-11200 | ||||
| 95381-04028 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
