RB20R-MDZ (1982)

Toyota Coaster

Production May 1982 - Jan 1993
Engine 22R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8408- )BB20,21,RB20..RHD..HRF..WOC..GEN

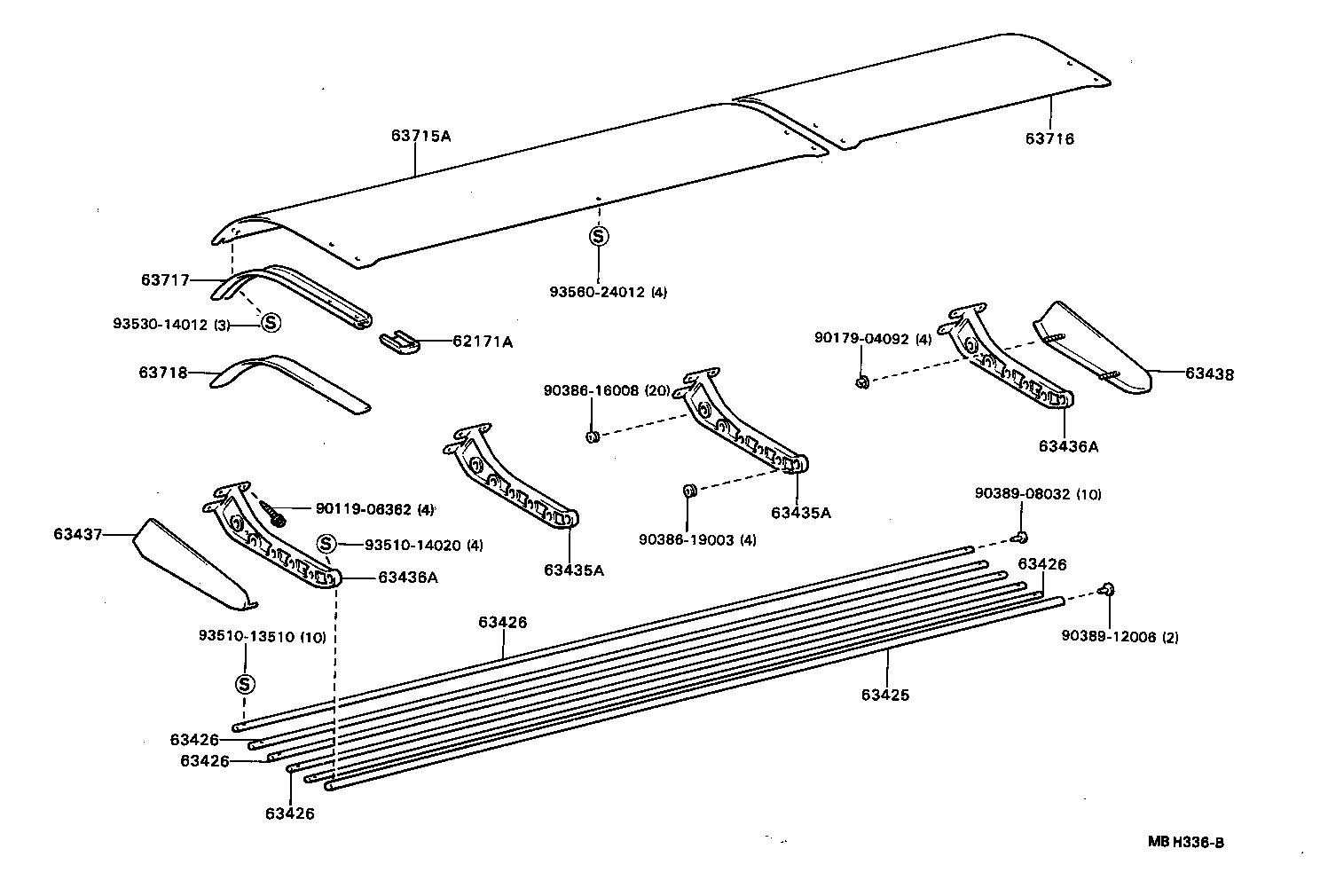

Click highlighted areas on diagram

diagram 62171A 63425 63426 63426 63426 63426 63426 63435A 63435A 63436A 63436A 63437 63438 63715A 63716 63717 63718 9011906362 9017904092 9038616008 9038619003 9038908032 9038912006 9351013510 9351014020 9353014012 9356024012
Part # Description Qty Price
62171A - SUPPORT, ROOF LINING PROTECTOR MOULDING
62171-90010

BB2#,FB30,HB30,HZB30,RB20..HRF..(GEN,ME)

 3
63425 - PIPE, ROOM RACK, NO.1
63425-90B02

BB2#,RB20..HRF..(GEN,ME)

 1
63426 - PIPE, ROOM RACK, NO.2
63426-90B02

BB2#,RB20..HRF..(GEN,ME)

 5
63426 - PIPE, ROOM RACK, NO.2
63426-90B02

BB2#,RB20..HRF..(GEN,ME)

 5
63426 - PIPE, ROOM RACK, NO.2
63426-90B02

BB2#,RB20..HRF..(GEN,ME)

 5
63426 - PIPE, ROOM RACK, NO.2
63426-90B02

BB2#,RB20..HRF..(GEN,ME)

 5
63426 - PIPE, ROOM RACK, NO.2
63426-90B02

BB2#,RB20..HRF..(GEN,ME)

 5
63435A - FRAME, ROOM RACK, NO.1
63435-90B02

BB20,RB20..HRF..(22S,26S)..WOC

 2
63435A - FRAME, ROOM RACK, NO.1
63435-90B02

BB20,RB20..HRF..(22S,26S)..WOC

 2
63436A - FRAME, ROOM RACK, NO.2
63435-90B04

BB21,HB30,RB20..HRF..WOC..GEN

 2
63435-90B02

BB20,RB20..HRF..(22S,26S)..WOC

 2
63436A - FRAME, ROOM RACK, NO.2
63435-90B04

BB21,HB30,RB20..HRF..WOC..GEN

 2
63435-90B02

BB20,RB20..HRF..(22S,26S)..WOC

 2
63437 - COVER, ROOM RACK FRAME, FRONT
63077-90B02

BB20,21,HB30,HZB30,RB20..HRF..WOC..GEN

 1
63077-90B00

BB2#,FB30,HB30,HZB30,RB20

 1
63438 - COVER, ROOM RACK FRAME, REAR
63078-90B01

BB20,21,HB30,HZB30,RB20..HRF..WOC..GEN

 1
63715A - PROTECTOR, ROOF LINING, FRONT
63715-90B09

BB21,HB30,HZB30,RB20..RHD..HRF..WOC..GEN

 1
63715-90B05

BB20,21,HB30,RB20..RHD..HRF..(22S,26S,30S)..WOC

 1
63716 - PROTECTOR, ROOF LINING, REAR
63716-90B06

BB20,21,RB20..RHD..HRF..(22S,26S)..WOC

W/SPEAKER

 1
63716-90B05

BB20,21,RB20..RHD..HRF..(22S,26S)..WOC

 1
63716-90B18

BB21,RB20..RHD..HRF..WOC..GEN

 1
63717 - MOULDING, ROOF LINING PROTECTOR, NO.1
63717-90B01

BB20,21,HB30,HZB30,RB20..HRF..WOC..GEN

 3
63718 - MOULDING, ROOF LINING PROTECTOR, NO.2
63718-90B01

BB20,21,HB30,HZB30,RB20..HRF..WOC..GEN

 3
Common parts
90119-06362
90179-04092
90386-16008
90386-19003
90389-08032
90389-12006
93510-13510
93510-14020
93530-14012
93560-24012
