RB20R-MDZ (1982)
Toyota Coaster

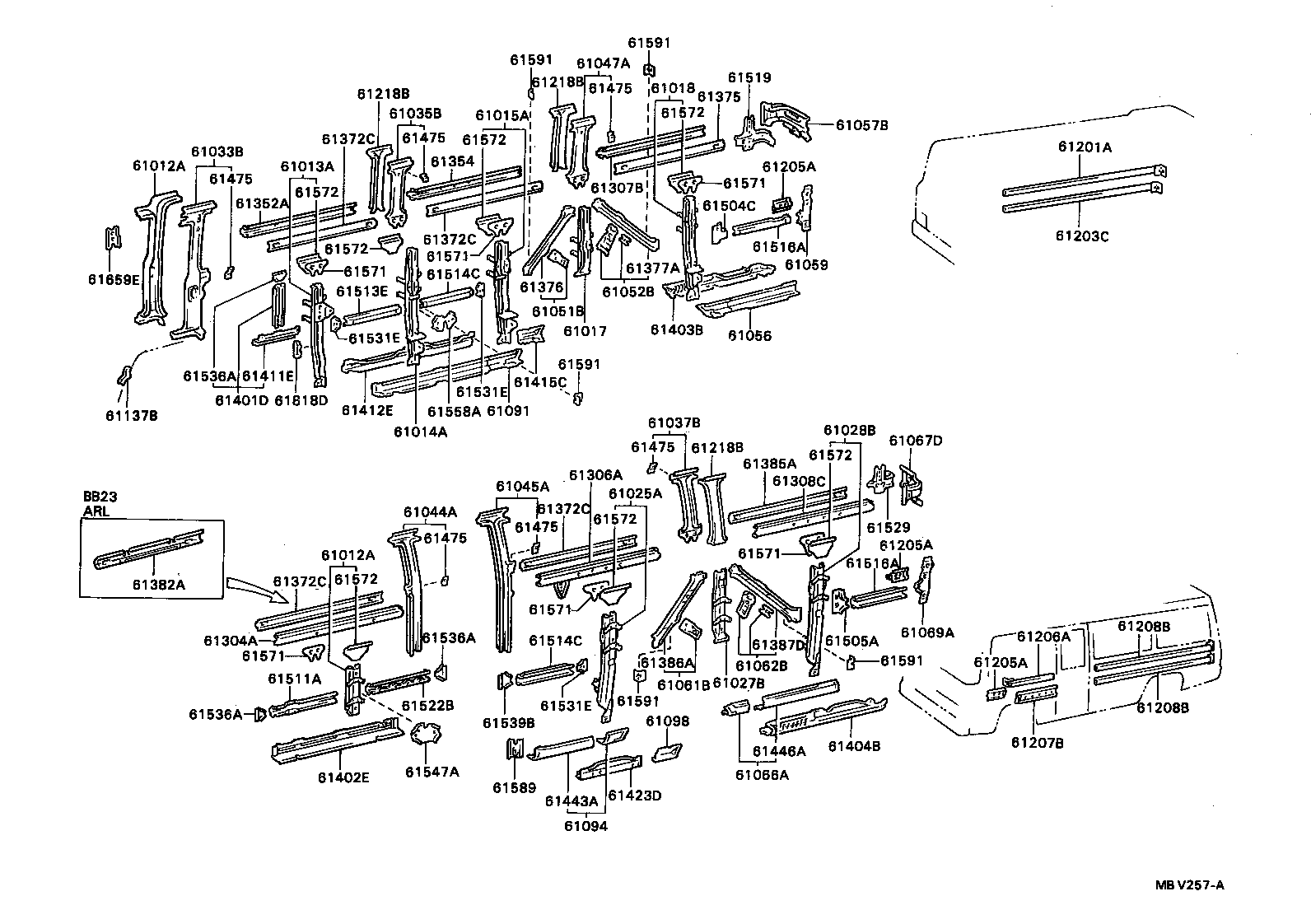

ILLUST NO. 1 OF 3(8205- )BB2#,RB20..RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61011A - PILLAR SUB-ASSY, NO.1 RH | ||||
| 61011-90B01 |
BB20,RB20..RHD..DLX..GEN W/ACCELERATOR INTER LOCK |
1 | ||
| 61011-90B01 |
BB21..RHD..GEN;BB20,RB20..RHD..(22S,26S) W/ACCELERATOR INTER LOCK |
1 | ||
| 61011-90B00 |
BB21..RHD..GEN;BB20,RB20..RHD..(22S,26S) |
1 | ||
| 61019A - PILLAR SUB-ASSY, NO.9 RH | ||||
| 61019-90B01 |
BB2#,32,FB30,HB30,HZB30,RB20 |
1 | ||
| 61019-90B00 |
BB20,RB20..WOC |
1 | ||
| 61021A - PILLAR SUB-ASSY, NO.1 LH | ||||
| 61021-90B02 |
BB2#,HB30,HZB30,RB20..RHD |
1 | ||
| 61023A - PILLAR SUB-ASSY, NO.3 LH | ||||
| 61023-90B00 |
BB2#,HB30,HZB30,RB20..RHD..GEN |
1 | ||
| 61023-90B01 |
BB20,RB20..RHD W/GLIDE DOOR,AUTO GLIDE DOOR |
1 | ||
| 61023-90B01 |
BB21..RHD..GEN;BB20,HB30,HZB30,RB20..RHD..(22S,26S,30S) W/GLIDE DOOR,AUTO GLIDE DOOR |
1 | ||
| 61024A - PILLAR SUB-ASSY, NO.4 LH | ||||
| 61024-90B00 |
BB2#,HB30,HZB30,RB20..RHD..GEN |
1 | ||
| 61024-90B01 |
BB20,RB20..RHD W/GLIDE DOOR,AUTO GLIDE DOOR |
1 | ||
| 61024-90B01 |
BB21..RHD..GEN;BB20,HB30,HZB30,RB20..RHD..(22S,26S,30S) W/GLIDE DOOR,AUTO GLIDE DOOR |
1 | ||
| 61029A - PILLAR SUB-ASSY, NO.9 LH | ||||
| 61029-90B00 |
BB20,RB20..WOC |
1 | ||
| 61029-90B02 |
BB2#,FB30,HB30,HZB30,RB20 |
1 | ||
| 61031A - PILLAR SUB-ASSY, NO.10 RH | ||||
| 61031-90B03 |
BB20,RB20..(22S,26S)..GEN W/*DSBD |
1 | ||
| 61031-90B00 |
BB20,21,FB30,HB30,HZB30,RB20..DLX,EX,EXS |
1 | ||
| 61031-90B03 |
BB20..(22S,26S)..(GEN,ME);BB21,FB30,HB30,HZB30,RB20..GEN,ME W/*DSBD |
1 | ||
| 61031-90B01 |
BB20,21,HB30,HZB30,RB20..RHD..(22S,26S,30S) W/*SSBD |
1 | ||
| 61031A - PILLAR SUB-ASSY, NO.10 RH | ||||
| 61031-90B03 |
BB20,RB20..(22S,26S)..GEN W/*DSBD |
1 | ||
| 61031-90B00 |
BB20,21,FB30,HB30,HZB30,RB20..DLX,EX,EXS |
1 | ||
| 61031-90B03 |
BB20..(22S,26S)..(GEN,ME);BB21,FB30,HB30,HZB30,RB20..GEN,ME W/*DSBD |
1 | ||
| 61031-90B01 |
BB20,21,HB30,HZB30,RB20..RHD..(22S,26S,30S) W/*SSBD |
1 | ||
| 61032A - PILLAR SUB-ASSY, NO.1 INNER, RH | ||||
| 61032-90B00 |
BB2#,HB30,HZB30,RB20..RHD |
1 | ||
| 61038 - PILLAR SUB-ASSY, NO.9 INNER, RH | ||||
| 61038-90B00 |
BB20,RB20..WOC |
1 | ||
| 61038-90B16 |
RB20..DLX..WOC W/*RWD,FOLDING SEAT |
1 | ||
| 61038-90B00 |
BB20,21,RB20..DLX..WOC |
1 | ||
| 61038-90B03 |
RB20..DLX..WOC W/*RWD |
1 | ||
| 61038-90B10 |
BB20,21,RB20..WOC..(GEN,ME) W/*DSBD |
1 | ||
| 61038-90B03 |
BB20,RB20..DLX..WOC W/*RWD |
1 | ||
| 61038-90B11 |
BB20,21,RB20..(DLX,EXS)..(GEN,ME) W/*DSBD |
1 | ||
| 61038-90B13 |
BB20,21,RB20..DLX..WOC W/FOLDING SEAT |
1 | ||
| 61038-90B05 |
BB20,21,RB20..RHD..26S..WOC W/*SSBD |
1 | ||
| 61039 - PILLAR SUB-ASSY, NO.10 INNER, RH | ||||
| 61039-90B01 |
BB20,RB20..(22S,26S)..GEN W/FOLDING SEAT OR W/O RR SEAT |
1 | ||
| 61039-90B01 |
BB20,RB20..DLX,EXS W/FOLDING SEAT |
1 | ||
| 61039-90B00 |
BB20..20S,22S,26S;BB21,RB20..DLX,STD |
1 | ||
| 61039-90B02 |
BB20,21,RB20..WOC..(GEN,ME) W/*DSBD |
1 | ||
| 61039-90B05 |
BB20..(22S,26S)..(GEN,ME);BB21,RB20..(DLX,STD)..(GEN,ME) W/FOLDING SEAT |
1 | ||
| 61039-90B01 |
BB20..(22S,26S)..(GEN,ME);BB21,RB20..(DLX,STD)..(GEN,ME) W/O RR SEAT |
1 | ||
| 61039 - PILLAR SUB-ASSY, NO.10 INNER, RH | ||||
| 61039-90B01 |
BB20,RB20..(22S,26S)..GEN W/FOLDING SEAT OR W/O RR SEAT |
1 | ||
| 61039-90B01 |
BB20,RB20..DLX,EXS W/FOLDING SEAT |
1 | ||
| 61039-90B00 |
BB20..20S,22S,26S;BB21,RB20..DLX,STD |
1 | ||
| 61039-90B02 |
BB20,21,RB20..WOC..(GEN,ME) W/*DSBD |
1 | ||
| 61039-90B05 |
BB20..(22S,26S)..(GEN,ME);BB21,RB20..(DLX,STD)..(GEN,ME) W/FOLDING SEAT |
1 | ||
| 61039-90B01 |
BB20..(22S,26S)..(GEN,ME);BB21,RB20..(DLX,STD)..(GEN,ME) W/O RR SEAT |
1 | ||
| 61041A - PILLAR SUB-ASSY, NO.10, LH | ||||
| 61041-90B00 |
BB20,21,HB30,RB20..RHD..(26S,30S) W/*SSBD |
1 | ||
| 61249-90B00 |
BB21,HB30,HZB30,RB20;BB20..16S,20S,22S,26S |
1 | ||
| 61041-90B02 |
BB20..(22S,26S)..GEN;BB21,FB30,HB30,RB20..GEN W/*DSBD |
1 | ||
| 61041A - PILLAR SUB-ASSY, NO.10, LH | ||||
| 61041-90B00 |
BB20,21,HB30,RB20..RHD..(26S,30S) W/*SSBD |
1 | ||
| 61249-90B00 |
BB21,HB30,HZB30,RB20;BB20..16S,20S,22S,26S |
1 | ||
| 61041-90B02 |
BB20..(22S,26S)..GEN;BB21,FB30,HB30,RB20..GEN W/*DSBD |
1 | ||
| 61042A - PILLAR SUB-ASSY, NO.1 INNER, LH | ||||
| 61042-90B02 |
BB2#,HB30,HZB30,RB20..RHD |
1 | ||
| 61048 - PILLAR SUB-ASSY, NO.9 INNER, LH | ||||
| 61048-90B12 |
BB20,RB20..DLX..WOC |
1 | ||
| 61048-90B03 |
RB20..DLX..WOC W/*RWD |
1 | ||
| 61048-90B03 |
RB20..DLX..WOC W/*RWD |
1 | ||
| 61048-90B22 |
BB20,21,RB20..DLX..WOC W/FOLDING SEAT |
1 | ||
| 61048-90B05 |
BB20,21,RB20..WOC..(GEN,ME) W/*DSBD |
1 | ||
| 61048-90B12 |
BB20,21,RB20..DLX..WOC |
1 | ||
| 61048-90B19 |
RB20..DLX..WOC W/*RWD,FOLDING SEAT |
1 | ||
| 61048-90B05 |
BB20,21,RB20..RHD..26S..WOC W/*SSBD |
1 | ||
| 61049 - PILLAR SUB-ASSY, NO.10 INNER, LH | ||||
| 61049-90B01 |
BB20,RB20..GEN W/FOLDING SEAT OR W/O RR SEAT |
1 | ||
| 61049-90B01 |
BB20,RB20..DLX,EXS W/FOLDING SEAT |
1 | ||
| 61049-90B00 |
BB20..20S,22S,26S;BB21,RB20..DLX,STD |
1 | ||
| 61049-90B07 |
BB20,21,RB20..DLX..(GEN,ME) W/FOLDING SEAT |
1 | ||
| 61049-90B02 |
BB20,21,RB20..RHD..26S..WOC W/*SSBD |
1 | ||
| 61049-90B02 |
BB20,21,RB20..WOC..(GEN,ME) W/*DSBD |
1 | ||
| 61049-90B01 |
BB20,21,RB20..GEN,ME W/O RR SEAT |
1 | ||
| 61049 - PILLAR SUB-ASSY, NO.10 INNER, LH | ||||
| 61049-90B01 |
BB20,RB20..GEN W/FOLDING SEAT OR W/O RR SEAT |
1 | ||
| 61049-90B01 |
BB20,RB20..DLX,EXS W/FOLDING SEAT |
1 | ||
| 61049-90B00 |
BB20..20S,22S,26S;BB21,RB20..DLX,STD |
1 | ||
| 61049-90B07 |
BB20,21,RB20..DLX..(GEN,ME) W/FOLDING SEAT |
1 | ||
| 61049-90B02 |
BB20,21,RB20..RHD..26S..WOC W/*SSBD |
1 | ||
| 61049-90B02 |
BB20,21,RB20..WOC..(GEN,ME) W/*DSBD |
1 | ||
| 61049-90B01 |
BB20,21,RB20..GEN,ME W/O RR SEAT |
1 | ||
| 61073A - PANEL SUB-ASSY, FRONT VENTILATOR, RH | ||||
| 61073-90B00 |
BB2#,HB30,HZB30,RB20..RHD |
1 | ||
| 61075A - RAIL SUB-ASSY, NO.3 UPPER OUTER, RH | ||||
| 61075-90B02 |
BB2#,HZB30,RB20..RHD..HRF |
1 | ||
| 61081A - RAIL SUB-ASSY, NO.2 LOWER OUTER, LH | ||||
| 61081-90B06 |
BB20,RB20..RHD W/GLIDE DOOR,AUTO GLIDE DOOR |
1 | ||
| 61081-90B01 |
BB20,21,HB30,HZB30,RB20..RHD..(DLX,EX)..GEN |
1 | ||
| 61081-90B06 |
BB21..RHD..GEN;BB20,HB30,HZB30,RB20..RHD..(22S,26S,30S) W/GLIDE DOOR,AUTO GLIDE DOOR |
1 | ||
| 61084A - RAIL SUB-ASSY, CENTER DOOR, LH | ||||
| 61084-90B00 |
BB2#,HB30,HZB30,RB20..RHD..GEN |
1 | ||
| 61085A - RAIL SUB-ASSY, NO.3 UPPER OUTER, LH | ||||
| 61085-90B02 |
BB2#,HB30,HZB30,RB20..RHD..HRF |
1 | ||
| 61111B - PANEL, NO.1 SIDE, RH | ||||
| 61111-90B00 |
BB20,21,HB30,RB20..RHD |
1 | ||
| 61111-90B07 |
BB21,23,HB30,HZB30,RB20..RHD |
1 | ||
| 61111-90B07 |
BB2#,HZB30,RB20..RHD..GEN |
1 | ||
| 61112B - PANEL, NO.2 SIDE, RH | ||||
| 61112-90B00 |
BB20,21,HB30,HZB30,RB20..RHD..WOC |
1 | ||
| 61112-90B00 |
BB21,HZB30,RB20..RHD..WOC..GEN |
1 | ||
| 61114A - PANEL, NO.3 SIDE, RH | ||||
| 61114-90B00 |
BB2#,RB20..RHD |
1 | ||
| 61114-90B00 |
BB2#,RB20..RHD..GEN |
1 | ||
| 61115A - PANEL, NO.4 SIDE, RH | ||||
| 61115-90B05 |
BB20,21,FB30,HB30,RB20..HRF..(17S,22S,26S,29S,30S) W/*DSBD |
1 | ||
| 61115-90B02 |
BB20,21,HB30,RB20..RHD..(26S,30S) W/*SSBD |
1 | ||
| 61115-90B01 |
BB20,21,FB30,HB30,RB20..HRF..(16S,17S,20S,22S,23S,26S,29S,30S) |
1 | ||
| 61115-90B10 |
BB21,FB30,HB30,HZB30,RB20..HRF..(16S,17S,20S,22S,23S,26S,29S,30S) |
1 | ||
| 61115-90B13 |
BB21,FB30,HB30,RB20..HRF..(17S,22S,26S,29S,30S) W/*DSBD |
1 | ||
| 61115-90B11 |
BB21,HB30,RB20..RHD..(26S,30S) W/*SSBD |
1 | ||
| 61115-90B00 |
BB21,HZB30,RB20..HRF..GEN |
1 | ||
| 61116 - LINING, SIDE PANEL, REINFORCEMENT | ||||
| 61116-90B02 |
BB2#,RB20..RHD |
4 | ||
| 61116 - LINING, SIDE PANEL, REINFORCEMENT | ||||
| 61116-90B02 |
BB2#,RB20..RHD |
4 | ||
| 61116 - LINING, SIDE PANEL, REINFORCEMENT | ||||
| 61116-90B02 |
BB2#,RB20..RHD |
4 | ||
| 61117A - GUSSET, SIDE PANEL RELIEF, NO.1 | ||||
| 61117-90B00 |
BB2#,HB30,RB20..RHD |
1 | ||
| 61117-90B01 |
BB2#,HB30,HZB30,RB20..RHD |
1 | ||
| 61118-90B01 |
BB21,HB30,HZB30,RB20..RHD |
1 | ||
| 61118A - GUSSET, SIDE PANEL RELIEF, NO.2 | ||||
| 61118-90B00 |
BB2#,FB30,HB30,RB20 LH |
1 | ||
| 61117-90B00 |
BB2#,FB30,HB30,RB20 RH |
1 | ||
| 61117-90B01 |
BB2#,FB30,HB30,HZB30,RB20 RH |
1 | ||
| 61118-90B01 |
BB2#,FB30,HB30,HZB30,RB20 LH |
1 | ||
| 61118A - GUSSET, SIDE PANEL RELIEF, NO.2 | ||||
| 61118-90B00 |
BB2#,FB30,HB30,RB20 LH |
1 | ||
| 61117-90B00 |
BB2#,FB30,HB30,RB20 RH |
1 | ||
| 61117-90B01 |
BB2#,FB30,HB30,HZB30,RB20 RH |
1 | ||
| 61118-90B01 |
BB2#,FB30,HB30,HZB30,RB20 LH |
1 | ||
| 61119 - GUSSET, SIDE PANEL RELIEF, NO.3 | ||||
| 61119-90B00 |
BB2#,HB30,HZB30,RB20..RHD |
1 | ||
| 61119-90B01 |
BB21,HB30,RB20..RHD;BB20..RHD..(16S,20S,22S,26S) W/GLIDE DOOR,AUTO GLIDE DOOR |
1 | ||
| 61121B - PANEL, NO.1 SIDE, LH | ||||
| 61121-90B04 |
BB20,21,RB20..RHD..(22S,26S) W/COOL AIR INTAKE SNORKEL TYPE |
1 | ||
| 61121-90B00 |
BB2#,HB30,RB20..RHD |
1 | ||
| 61121-90B11 |
BB2#,HZB30,RB20..RHD..GEN |
1 | ||
| 61121-90B11 |
BB2#,HB30,HZB30,RB20..RHD |
1 | ||
| 61121-90B13 |
BB21,RB20..RHD..(22S,26S) W/COOL AIR INTAKE SNORKEL TYPE |
1 | ||
| 61122B - PANEL, NO.2 SIDE, LH | ||||
| 61122-90B00 |
BB2#,HB30,HZB30,RB20..RHD..GEN |
1 | ||
| 61122-90B01 |
BB21,HB30,RB20..RHD;BB20..RHD..(16S,20S,22S,26S) W/GLIDE DOOR,AUTO GLIDE DOOR |
1 | ||
| 61124A - PANEL, NO.3 SIDE, LH | ||||
| 61124-90B01 |
BB21,RB20..RHD..GEN |
1 | ||
| 61124-90B01 |
BB21,RB20..RHD;BB20..RHD..(16S,20S,22S,26S) W/GLIDE DOOR,AUTO GLIDE DOOR |
1 | ||
| 61124-90B00 |
BB2#,RB20..RHD..GEN |
1 | ||
| 61125A - PANEL, NO.4 SIDE, LH | ||||
| 61125-90B03 |
BB20,21,FB30,HB30,RB20..HRF..(17S,22S,26S,29S,30S) W/*DSBD |
1 | ||
| 61125-90B03 |
BB20,21,HB30,RB20..RHD..HRF..(26S,30S) W/*SSBD |
1 | ||
| 61125-90B01 |
BB20,21,FB30,HB30,RB20..HRF..(16S,17S,20S,22S,23S,26S,29S,30S) |
1 | ||
| 61125-90B07 |
BB21,FB30,HB30,HZB30,RB20..HRF..(16S,17S,20S,22S,23S,26S,29S,30S) |
1 | ||
| 61125-90B09 |
BB21,FB30,HB30,HZB30,RB20..HRF..(17S,22S,26S,29S,30S) W/*DSBD |
1 | ||
| 61125-90B09 |
BB21,HB30,HZB30,RB20..RHD..HRF..(26S,30S) W/*SSBD |
1 | ||
| 61125-90B07 |
BB21,HZB30,RB20..HRF..GEN |
1 | ||
| 61127A - GUSSET, SIDE PANEL RELIEF, NO.4 | ||||
| 61127-90B00 |
BB2#,HB30,HZB30,RB20..RHD |
1 | ||
| 61128B - GUSSET, SIDE PANEL RELIEF, NO.5 | ||||
| 61129-90B00 |
BB2#,FB30,HB30,HZB30,RB20 LH |
1 | ||
| 61128-90B00 |
BB2#,FB30,HB30,HZB30,RB20 RH |
1 | ||
| 61129B - GUSSET, SIDE PANEL RELIEF, NO.6 | ||||
| 61129-90B00 |
BB2#,FB30,HB30,HZB30,RB20 RH |
1 | ||
| 61128-90B00 |
BB2#,FB30,HB30,HZB30,RB20 LH |
1 | ||
| 61131A - STRENGTH, SIDE PANEL, NO.1 RH | ||||
| 61131-90B00 |
BB20,RB20..RHD |
1 | ||
| 61131-90B00 |
BB2#,FB30,HB30,HZB30,RB20 |
1 | ||
| 61134A - STRENGTH, SIDE PANEL, NO.3 UPPER RH | ||||
| 61134-90B00 |
BB2#,FB30,HB30,HZB30,RB20 |
1 | ||
| 61136A - PANEL, FRONT SIDE END, RH | ||||
| 61136-90B00 |
BB2#,FB30,HB30,HZB30,RB20 |
1 | ||
| 61141A - STRENGTH, SIDE PANEL, NO.1 LH | ||||
| 61141-90B01 |
BB2#,FB30,HB30,HZB30,RB20 |
1 | ||
| 61141-90B00 |
BB20,RB20..RHD |
1 | ||
| 61142A - STRENGTH, SIDE PANEL, NO.2 UPPER LH | ||||
| 61142-90B00 |
BB2#,HB30,HZB30,RB20..RHD |
1 | ||
| 61143A - STRENGTH, SIDE PANEL, NO.2 LOWER LH | ||||
| 61143-90B00 |
BB2#,HB30,HZB30,RB20..RHD |
1 | ||
| 61144A - STRENGTH, SIDE PANEL, NO.3 UPPER LH | ||||
| 61144-90B00 |
BB2#,FB30,HB30,HZB30,RB20 |
1 | ||
| 61155B - GUSSET, CENTER RAIL, OUTER | ||||
| 61155-90B00 |
BB21,FB30,HZB30,RB20 |
2 | ||
| 61167A - STIFFENER, SIDE PANEL, LOWER RH | ||||
| 61167-90B00 |
BB2#,RB20..RHD |
1 | ||
| 61168A - STIFFENER, SIDE PANEL, LOWER LH | ||||
| 61168-90B00 |
BB2#,RB20..RHD |
1 | ||
| 61191A - REINFORCEMENT, SIDE LOWER WINDOW | ||||
| 61191-90B00 |
BB2#,FB30,HB30,HZB30,RB20 |
1 | ||
| 61192 - REINFORCEMENT, NO.1 OUTER PILLAR, RH | ||||
| 61192-90B00 |
BB21,RB20..RHD..GEN |
1 | ||
| 61195 - RETAINER, OUTER SIDE MIRROR, LH | ||||
| 61195-90B00 |
BB2#,HB30,HZB30,RB20..RHD |
1 | ||
| 61199 - BRACKET, SIDE PANEL TO REAR MUDGUARD | ||||
| 61199-90B00 |
BB2#,FB30,HB30,HZB30,RB20 |
2 | ||
| 61224A - PILLAR, NO.3 OUTER, UPPER LH | ||||
| 61224-90B00 |
BB2#,HB30,HZB30,RB20..RHD..GEN |
1 | ||
| 61224-90B01 |
BB20,RB20..RHD W/GLIDE DOOR,AUTO GLIDE DOOR |
1 | ||
| 61224-90B01 |
BB21..RHD..GEN;BB20,HB30,HZB30,RB20..RHD..(22S,26S,30S) W/GLIDE DOOR,AUTO GLIDE DOOR |
1 | ||
| 61228B - PILLAR, NO.4 OUTER, UPPER LH | ||||
| 61228-90B00 |
BB2#,HB30,HZB30,RB20..RHD..GEN |
1 | ||
| 61228-90B01 |
BB20,RB20..RHD W/GLIDE DOOR,AUTO GLIDE DOOR |
1 | ||
| 61228-90B01 |
BB21..RHD..GEN;BB20,HB30,HZB30,RB20..RHD..(22S,26S,30S) W/GLIDE DOOR,AUTO GLIDE DOOR |
1 | ||
| 61252B - PILLAR, NO.1 INNER, LOWER RH | ||||
| 61252-90B00 |
BB2#,RB20..RHD |
1 | ||
| 61252-90B00 |
BB2#,HZB30,RB20..RHD |
1 | ||
| 61261A - CHANNEL, ROOF DRIP SIDE, FRONT RH | ||||
| 61356-90B00 |
BB2#,HB30,HZB30,RB20..RHD |
1 | ||
| 61262A - CHANNEL, ROOF DRIP SIDE, FRONT LH | ||||
| 61366-90B01 |
BB2#,RB20..RHD |
1 | ||
| 61263 - CHANNEL, ROOF DRIP, REAR RH | ||||
| 61358-90B00 |
BB2#,FB30,HB30,HZB30,RB20 |
1 | ||
| 61264 - CHANNEL, ROOF DRIP, REAR LH | ||||
| 61368-90B00 |
BB2#,FB30,HB30,HZB30,RB20 |
1 | ||
| 61277 - JOINT, ROOF DRIP CHANNEL, FRONT RH | ||||
| 61359-90B00 |
BB2#,RB20 |
1 | ||
| 61278 - JOINT, ROOF DRIP CHANNEL, FRONT LH | ||||
| 61359-90B00 |
BB2#,RB20 |
1 | ||
| 61311A - RAIL, NO.1 UPPER OUTER, RH | ||||
| 61077-90B00 |
BB2#,HB30,HZB30,RB20..RHD..HRF |
1 | ||
| 61313B - RAIL, NO.1 UPPER OUTER, LOWER RH | ||||
| 61313-90B00 |
BB2#,HB30,HZB30,RB20..RHD |
1 | ||
| 61314B - RAIL, NO.2 UPPER OUTER, RH | ||||
| 61078-90B01 |
BB2#,HB30,HZB30,RB20..RHD..HRF |
1 | ||
| 61317A - RAIL, NO.3 UPPER OUTER, RH | ||||
| 61079-90B00 |
BB2#,RB20..HRF |
1 | ||
| 61318A - RAIL, NO.6 UPPER OUTER, RH | ||||
| 61318-90B00 |
BB2#,FB30,HB30,HZB30,RB20 |
1 | ||
| 61321A - RAIL, NO.1 UPPER OUTER, LH | ||||
| 61408-90B00 |
BB20,RB20..RHD..HRF |
1 | ||
| 61408-90B00 |
BB2#,HB30,HZB30,RB20..RHD..HRF..GEN |
1 | ||
| 61324B - RAIL, NO.2 UPPER OUTER, LH | ||||
| 61088-90B01 |
BB2#,HB30,RB20..RHD..HRF..GEN |
1 | ||
| 61088-90B02 |
BB20,RB20..RHD..HRF W/GLIDE DOOR,AUTO GLIDE DOOR |
1 | ||
| 61088-90B02 |
BB21..RHD..HRF..GEN;BB20,HB30,HZB30,RB20..RHD..HRF..(22S,26S,30S) W/GLIDE DOOR,AUTO GLIDE DOOR |
1 | ||
| 61327A - RAIL, NO.5 UPPER OUTER, LH | ||||
| 61089-90B00 |
BB2#,RB20..HRF |
1 | ||
| 61328A - RAIL, NO.6 UPPER OUTER, LH | ||||
| 61328-90B00 |
BB2#,FB30,HB30,RB20 |
1 | ||
| 61331B - RAIL, NO.1 UPPER INNER, FRONT RH | ||||
| 61331-90B00 |
BB2#,HB30,HZB30,RB20..RHD |
1 | ||
| 61332A - RAIL, NO.1 UPPER INNER, REAR RH | ||||
| 61332-90B00 |
BB2#,HB30,HZB30,RB20..RHD |
1 | ||
| 61333B - RAIL, NO.2 UPPER INNER, RH | ||||
| 61333-90B00 |
BB2#,HB30,HZB30,RB20..RHD |
1 | ||
| 61334B - RAIL, NO.3 UPPER INNER, RH | ||||
| 61334-90B00 |
BB2#,HB30,HZB30,RB20..RHD |
1 | ||
| 61336A - RAIL, NO.5 UPPER INNER, RH | ||||
| 61336-90B00 |
BB2#,FB30,HB30,RB20 |
1 | ||
| 61336-90B03 |
BB2#,FB30,RB20 |
1 | ||
| 61339C - RAIL, NO.1 UPPER, INNER LOWER | ||||
| 61339-90B00 |
BB2#,FB30,HB30,HZB30,RB20 |
1 | ||
| 61341B - RAIL, NO.1 UPPER INNER, FRONT LH | ||||
| 61341-90B00 |
BB2#,HB30,HZB30,RB20..RHD |
1 | ||
| 61342A - RAIL, NO.1 UPPER INNER, REAR LH | ||||
| 61342-90B00 |
BB20,RB20..RHD |
1 | ||
| 61342-90B00 |
BB2#,HB30,HZB30,RB20..RHD..GEN |
1 | ||
| 61343B - RAIL, NO.2 UPPER INNER, LH | ||||
| 61343-90B00 |
BB2#,HB30,HZB30,RB20..RHD..GEN |
1 | ||
| 61344B - RAIL, NO.3 UPPER INNER, LH | ||||
| 61344-90B00 |
BB2#,HB30,HZB30,RB20..RHD |
1 | ||
| 61346A - RAIL, NO.5 UPPER INNER, LH | ||||
| 61346-90B00 |
BB2#,FB30,HB30,HZB30,RB20 |
1 | ||
| 61346-90B02 |
BB2#,FB30,HZB30,RB20 |
1 | ||
| 61405 - RAIL SUB-ASSY, NO.7 LOWER INNER, LOWER RH | ||||
| 61405-90B01 |
BB20,RB20 *GIS |
1 | ||
| 61405-90B01 |
BB2#,FB30,HB30,HZB30,RB20 |
1 | ||
| 61405-90B00 |
BB20,RB20..GEN |
1 | ||
| 61406 - RAIL SUB-ASSY, NO.7 LOWER INNER, LOWER LH | ||||
| 61406-90B01 |
BB2#,FB30,HB30,HZB30,RB20 |
1 | ||
| 61406-90B00 |
BB20,RB20..GEN |
1 | ||
| 61406-90B01 |
BB20,RB20 *GIS |
1 | ||
| 61418B - RAIL, NO.8 LOWER OUTER, RH | ||||
| 61418-90B00 |
BB20,RB20..GEN |
1 | ||
| 61418-90B01 |
BB2#,FB30,HB30,HZB30,RB20 |
1 | ||
| 61418-90B01 |
BB2#,FB30,HZB30,RB20 |
1 | ||
| 61418-90B01 |
BB20,RB20 *GIS |
1 | ||
| 61428B - RAIL, NO.8 LOWER OUTER, LH | ||||
| 61428-90B00 |
BB20,RB20..GEN |
1 | ||
| 61428-90B01 |
BB2#,FB30,HB30,HZB30,RB20 |
1 | ||
| 61428-90B01 |
BB20,RB20 *GIS |
1 | ||
| 61428-90B01 |
BB2#,FB30,HZB30,RB20 |
1 | ||
| 61437 - RAIL, NO.7 LOWER INNER, RH | ||||
| 61437-90B00 |
BB2#,FB30,HB30,HZB30,RB20 |
1 | ||
| 61447 - RAIL, NO.7 LOWER INNER, LH | ||||
| 61447-90B00 |
BB2#,FB30,HB30,HZB30,RB20 |
1 | ||
| 61451 - PANEL, ROCKER, OUTER RH | ||||
| 61451-90B00 |
BB2#,HB30,HZB30,RB20..RHD |
1 | ||
| 61452 - PANEL, ROCKER INNER, FRONT RH | ||||
| 61452-90B00 |
BB2#,HB30,HZB30,RB20..RHD |
1 | ||
| 61453A - PANEL, ROCKER INNER, REAR RH | ||||
| 61453-90B00 |
BB2#,HB30,HZB30,RB20..RHD |
1 | ||
| 61454A - PANEL, FRONT DOOR STEP, RH | ||||
| 61454-90B00 |
BB2#,HB30,HZB30,RB20..RHD |
1 | ||
| 61455 - PANEL, FRONT DOOR STEP SIDE, RH | ||||
| 61455-90B00 |
BB2#,HB30,HZB30,RB20..RHD |
1 | ||
| 61475 - BRACKET, CENTER RAIL INSIDE CUSHION, NO.1 | ||||
| 61475-90B00 |
BB2#,FB30,HZB30,RB20 |
1 | ||
| 61475 - BRACKET, CENTER RAIL INSIDE CUSHION, NO.1 | ||||
| 61475-90B00 |
BB2#,FB30,HZB30,RB20 |
1 | ||
| 61479B - BRACKET, FRONT DOOR STEP MUDGUARD | ||||
| 61479-90B00 |
BB2#,HZB30,RB20..RHD |
1 | ||
| 61573 - EXTENSION, FLOOR PANEL, NO.1 | ||||
| 61573-90B00 |
BB2#,HB30,HZB30,RB20..RHD |
1 | ||
| 61584A - EXTENSION, FLOOR PANEL, NO.2 LH | ||||
| 61584-90B00 |
BB2#,HB30,HZB30,RB20..RHD |
1 | ||
| 61594 - BRACKET, STIFFENER, NO.4 | ||||
| 61594-90B00 |
BB2#,RB20 |
1 | ||
| 61598 - BRACKET, STIFFENER, NO.5 | ||||
| 61598-90B00 |
BB2#,FB30,HB30,HZB30,RB20 |
4 | ||
| 61598 - BRACKET, STIFFENER, NO.5 | ||||
| 61598-90B00 |
BB2#,FB30,HB30,HZB30,RB20 |
4 | ||
| 61604B - STRENGTH SUB-ASSY, REAR CORNER, INNER LH | ||||
| 61604-90B00 |
FB30,HZB30,RB20 |
1 | ||
| 61615D - PILLAR, NO.10 OUTER, UPPER RH | ||||
| 61615-90B00 |
BB20,RB20..(22S,26S)..GEN W/*DSBD |
1 | ||
| 61615-90B00 |
BB20..(22S,26S)..(GEN,ME);BB21,FB30,HB30,HZB30,RB20..GEN,ME W/*DSBD |
1 | ||
| 61625B - PILLAR, NO.10 OUTER, UPPER LH | ||||
| 61625-90B00 |
BB20,21,HB30,RB20..RHD..(26S,30S) W/*SSBD |
1 | ||
| 61625-90B00 |
BB20,RB20..(22S,26S)..GEN W/*DSBD |
1 | ||
| 61625-90B00 |
BB20..(22S,26S)..GEN;BB21,FB30,HB30,HZB30,RB20..GEN W/*DSBD |
1 | ||
| 61625B - PILLAR, NO.10 OUTER, UPPER LH | ||||
| 61625-90B00 |
BB20,21,HB30,RB20..RHD..(26S,30S) W/*SSBD |
1 | ||
| 61625-90B00 |
BB20,RB20..(22S,26S)..GEN W/*DSBD |
1 | ||
| 61625-90B00 |
BB20..(22S,26S)..GEN;BB21,FB30,HB30,HZB30,RB20..GEN W/*DSBD |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61631-90B00 |
BB2#,RB20..GEN,ME |
1 | ||
| 61631-90B00 |
BB2#,RB20..GEN,ME *GIS |
1 | ||
| 61631-90B00 |
BB2#,FB30,HB30,HZB30,RB20 |
1 | ||
| 61631-90B02 |
BB20,RB20..16S,17S,20S,22S,26S |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61631-90B00 |
BB2#,RB20..GEN,ME |
1 | ||
| 61631-90B00 |
BB2#,FB30,HB30,HZB30,RB20 |
1 | ||
| 61631-90B02 |
BB20,RB20..16S,17S,20S,22S,26S |
1 | ||
| 61631-90B00 |
BB2#,RB20..GEN,ME *GIS |
1 | ||
| 61719A - STIFFENER, BATTERY SERVICE HOLE | ||||
| 61719-90B00 |
BB2#,FB30,HB30,HZB30,RB20 |
1 | ||
| 61725 - BOX, FUEL INLET | ||||
| 61731-90B00 |
BB2#,HB30,HZB30,RB20..RHD |
1 | ||
| 61811A - RAIL, DUSTPROOF, FRONT RH | ||||
| 61811-90B00 |
BB20,22,23,RB20..RHD |
1 | ||
| 61812A - RAIL, DUSTPROOF, REAR RH | ||||
| 61812-90B00 |
BB2#,FB30,HB30,HZB30,RB20 |
1 | ||
| 61813A - PLATE, DUSTPROOF, NO.1 RH | ||||
| 61813-90B00 |
BB20,RB20..RHD |
1 | ||
| 61813-90B02 |
BB2#,HB30,HZB30,RB20..RHD |
1 | ||
| 61821A - RAIL, DUSTPROOF, FRONT LH | ||||
| 61821-90B00 |
BB2#,RB20..RHD |
1 | ||
| 61822A - RAIL, DUSTPROOF, REAR LH | ||||
| 61822-90B00 |
BB2#,FB30,HB30,HZB30,RB20 |
1 | ||
| 61823A - PANEL, DUSTPROOF, NO.1 LH | ||||
| 61823-90B00 |
BB20,RB20..RHD |
1 | ||
| 61823-90B02 |
BB2#,HB30,HZB30,RB20..RHD |
1 | ||
| 61908 - PILLAR SUB-ASSY, NO.1 OUTER, UPPER LH | ||||
| 61908-90B00 |
BB21,HB30,HZB30,RB20..RHD;BB20..RHD..(16S,20S,22S,26S) |
1 | ||
| Common parts | ||||
| 90467-07001 | ||||
| 90950-01027 | ||||
| 90950-01056 | ||||
| 90950-01150 | ||||
| 90950-01424 | ||||
| 90950-01444 | ||||
| 90950-01450 | ||||
| 90950-06028 | ||||
| 91651-40612 | ||||
ILLUST NO. 3 OF 3(8205- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61538A - COVER, BACK CORNER HOLE, RH | ||||
| 61836-90B00 |
BB20..(22S,26S)..(GEN,ME);BB21,FB30,HB30,HZB30,RB20..GEN,ME W/*DSBD |
1 | ||
| 61836-90B00 |
BB20,RB20..(22S,26S)..GEN W/*DSBD |
1 | ||
| 61539A - COVER, BACK CORNER HOLE, LH | ||||
| 61836-90B00 |
BB20..(22S,26S)..(GEN,ME);BB21,FB30,HB30,HZB30,RB20..GEN,ME W/*DSBD |
1 | ||
| 61836-90B00 |
BB20,RB20..(22S,26S)..GEN W/*DSBD |
1 | ||
| 61702A - COVER SUB-ASSY, BATTERY SERVICE HOLE, LH | ||||
| 61702-90B01 |
BB2#,HB30,HZB30,RB20..RHD W/LOCK |
1 | ||
| 61702-90B00 |
BB2#,HB30,HZB30,RB20..RHD |
1 | ||
| 61702A - COVER SUB-ASSY, BATTERY SERVICE HOLE, LH | ||||
| 61702-90B01 |
BB2#,HB30,HZB30,RB20..RHD W/LOCK |
1 | ||
| 61702-90B00 |
BB2#,HB30,HZB30,RB20..RHD |
1 | ||
| 61702A - COVER SUB-ASSY, BATTERY SERVICE HOLE, LH | ||||
| 61702-90B01 |
BB2#,HB30,HZB30,RB20..RHD W/LOCK |
1 | ||
| 61702-90B00 |
BB2#,HB30,HZB30,RB20..RHD |
1 | ||
| 61706P - HINGE SUB-ASSY, BATTERY COVER, LH | ||||
| 61706-90B00 |
BB2#,HB30,HZB30,RB20..RHD |
1 | ||
| 61706P - HINGE SUB-ASSY, BATTERY COVER, LH | ||||
| 61706-90B00 |
BB2#,HB30,HZB30,RB20..RHD |
1 | ||
| 61706P - HINGE SUB-ASSY, BATTERY COVER, LH | ||||
| 61706-90B00 |
BB2#,HB30,HZB30,RB20..RHD |
1 | ||
| 61707J - BRACKET SUB-ASSY, BATTERY COVER LOCK | ||||
| 61707-90B00 |
BB2#,FB30,HB30,RB20 |
1 | ||
| 61735-90B01 |
BB20,21,HB30,HZB30,RB20..RHD W/LOCK |
1 | ||
| 61707J - BRACKET SUB-ASSY, BATTERY COVER LOCK | ||||
| 61707-90B00 |
BB2#,FB30,HB30,RB20 |
1 | ||
| 61735-90B01 |
BB20,21,HB30,HZB30,RB20..RHD W/LOCK |
1 | ||
| 61707J - BRACKET SUB-ASSY, BATTERY COVER LOCK | ||||
| 61707-90B00 |
BB2#,FB30,HB30,RB20 |
1 | ||
| 61735-90B01 |
BB20,21,HB30,HZB30,RB20..RHD W/LOCK |
1 | ||
| 61734D - LEVER, BATTERY COVER LOCK | ||||
| 61734-90B00 |
BB2#,RB20 |
1 | ||
| 61734-90B01 |
BB2#,FB30,HB30,HZB30,RB20 |
1 | ||
| 61734D - LEVER, BATTERY COVER LOCK | ||||
| 61734-90B00 |
BB2#,RB20 |
1 | ||
| 61734-90B01 |
BB2#,FB30,HB30,HZB30,RB20 |
1 | ||
| 61739A - CUSHION, BATTERY COVER STOPPER | ||||
| 61739-90B00 |
BB2#,FB30,HB30,HZB30,RB20 |
1 | ||
| 61739A - CUSHION, BATTERY COVER STOPPER | ||||
| 61739-90B00 |
BB2#,FB30,HB30,HZB30,RB20 |
1 | ||
| 61739A - CUSHION, BATTERY COVER STOPPER | ||||
| 61739-90B00 |
BB2#,FB30,HB30,HZB30,RB20 |
1 | ||
| 61743D - HINGE, BATTERY COVER LOCK, LH | ||||
| 61743-90B00 |
BB2#,HB30,HZB30,RB20..RHD |
1 | ||
| 61743D - HINGE, BATTERY COVER LOCK, LH | ||||
| 61743-90B00 |
BB2#,HB30,HZB30,RB20..RHD |
1 | ||
| 61836 - COVER, PILLAR INNER SERVICE HOLE | ||||
| 61836-90B00 |
BB2#,FB30,HB30,HZB30,RB20 |
2 | ||
| 61838 - COVER, RAIL LOWER INNER SERVICE HOLE | ||||
| 61838-90B00 |
BB2#,FB30,HB30,RB20 |
2 | ||
| 61859 - COVER, FRONT DOOR STEP, RH | ||||
| 61859-90B00 |
BB2#,HB30,HZB30,RB20..RHD |
1 | ||
| Common parts | ||||
| 90149-40003 | ||||
| 90149-40016 | ||||
| 90202-07008 | ||||
| 90202-10007 | ||||
| 90386-08077 | ||||
| 90467-08008 | ||||
| 90508-20049 | ||||
| 90508-20050 | ||||
| 90508-20077 | ||||
| 90508-20078 | ||||
| 90541-05080 | ||||
| 90560-12028 | ||||
| 91651-40612 | ||||
| 93315-14010 | ||||
| 93316-14010 | ||||
| 93385-15012 | ||||
| 93540-14008 | ||||
| 93540-14014 | ||||
| 93560-54012 | ||||
| 94541-00600 | ||||
ILLUST NO. 2 OF 3(9001- )BB2#,RB20..RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61012A - PILLAR SUB-ASSY, NO.2 RH | ||||
| 61012-90B02 |
BB2#,HZB30,RB20..RHD LH |
1 | ||
| 61012-90B01 |
BB2#,RB20..RHD..GEN RH |
1 | ||
| 61012A - PILLAR SUB-ASSY, NO.2 RH | ||||
| 61012-90B02 |
BB2#,HZB30,RB20..RHD LH |
1 | ||
| 61012-90B01 |
BB2#,RB20..RHD..GEN RH |
1 | ||
| 61013A - PILLAR SUB-ASSY, NO.3 RH | ||||
| 61013-90B00 |
BB2#,HZB30,RB20..RHD |
1 | ||
| 61014A - PILLAR SUB-ASSY, NO.4 RH | ||||
| 61014-90B01 |
BB2#,HZB30,RB20..RHD |
1 | ||
| 61015A - PILLAR SUB-ASSY, NO.5 RH | ||||
| 61015-90B02 |
BB2#,FB30,HZB30,RB20 |
1 | ||
| 61017 - PILLAR SUB-ASSY, NO.7 RH | ||||
| 61017-90B00 |
BB2#,RB20 |
1 | ||
| 61018 - PILLAR SUB-ASSY, NO.8 RH | ||||
| 61018-90B00 |
BB2#,RB20 |
1 | ||
| 61025A - PILLAR SUB-ASSY, NO.5 LH | ||||
| 61025-90B01 |
BB2#,RB20..RHD |
1 | ||
| 61027B - PILLAR SUB-ASSY, NO.7, LH | ||||
| 61027-90B00 |
BB2#,RB20 |
1 | ||
| 61028B - PILLAR SUB-ASSY, NO.8 LH | ||||
| 61028-90B00 |
BB2#,RB20 |
1 | ||
| 61033B - PILLAR SUB-ASSY, NO.2 INNER, RH | ||||
| 61033-90B04 |
BB21,HZB30,RB20..RHD..GEN |
1 | ||
| 61033-90B03 |
BB21,HZB30,RB20..RHD..GEN W/2 POINT FLXED TYPE DRIVERS SEAT BELT |
1 | ||
| 61035B - PILLAR SUB-ASSY, NO.4 INNER, RH | ||||
| 61035-90B00 |
BB2#,HZB30,RB20..RHD |
1 | ||
| 61037B - PILLAR SUB-ASSY, NO.6 INNER NO.1 | ||||
| 61037-90B00 |
BB2#,RB20..RHD RH;LH |
1 | ||
| 61044A - PILLAR SUB-ASSY, NO.3 INNER, LH | ||||
| 61044-90B00 |
BB21,RB20..RHD..(DLX,STD) |
1 | ||
| 61044-90B02 |
BB21,RB20..RHD..DLX W/*GLD |
1 | ||
| 61045A - PILLAR SUB-ASSY, NO.4 INNER, LH | ||||
| 61045-90B00 |
BB2#,RB20..RHD |
1 | ||
| 61045-90B04 |
BB21,RB20..RHD..DLX W/*GLD |
1 | ||
| 61047A - PILLAR SUB-ASSY, NO.6 INNER, NO.2 | ||||
| 61047-90B00 |
BB21,RB20..RHD W/MICROPHONE |
1 | ||
| 61051B - BRACE SUB-ASSY, REAR WHEEL, UPPER FRONT RH | ||||
| 61051-90B00 |
BB2#,FB30,HZB30,RB20 |
1 | ||
| 61052B - BRACE SUB-ASSY, REAR WHEEL, UPPER REAR RH | ||||
| 61052-90B01 |
BB2#,HZB30,RB20..RHD |
1 | ||
| 61056 - RAIL SUB-ASSY, NO.6 LOWER INNER, RH | ||||
| 61056-90B02 |
BB2#,FB30,HZB30,RB20 |
1 | ||
| 61057B - RAIL SUB-ASSY, REAR SIDE, RH | ||||
| 61057-90B01 |
BB21,HZB30,RB20..GEN W/*SSBD |
1 | ||
| 61057-90B00 |
BB2#,FB30,HZB30,RB20 |
1 | ||
| 61057-90B02 |
BB21,FB30,HZB30,RB20..GEN,ME W/*DSBD |
1 | ||
| 61059 - PILLAR SUB-ASSY, NO.9 INNER, LOWER RH | ||||
| 61059-90B00 |
BB21,HZB30,RB20..RHD |
1 | ||
| 61059-90B02 |
BB21,HZB30,RB20..RHD..(DLX,STD)..(26S,30S) W/*SSBD |
1 | ||
| 61061B - BRACE SUB-ASSY, REAR WHEEL, UPPER FRONT LH | ||||
| 61061-90B00 |
BB2#,FB30,HZB30,RB20 |
1 | ||
| 61062B - BRACE SUB-ASSY, REAR WHEEL, UPPER REAR LH | ||||
| 61062-90B00 |
BB2#,HZB30,RB20..RHD |
1 | ||
| 61066A - RAIL SUB-ASSY, NO.6 LOWER, INNER LH | ||||
| 61066-90B02 |
BB2#,FB30,HZB30,RB20 |
1 | ||
| 61067D - RAIL SUB-ASSY, REAR SIDE, LH | ||||
| 61067-90B02 |
BB21,RB20..GEN,ME W/GLIDING AUTO DOOR & *DSBD;W/GLIDING AUTO DOOR;W/FOLDING AUTO DOOR & *DSBD |
1 | ||
| 61067-90B00 |
BB2#,FB30,HZB30,RB20 |
1 | ||
| 61067-90B02 |
BB21,FB30,HZB30,RB20..GEN W/*SSBD OR W/*DSBD |
1 | ||
| 61069A - PILLAR SUB-ASSY, NO.9 INNER, LOWER LH | ||||
| 61069-90B00 |
BB21,HZB30,RB20..RHD |
1 | ||
| 61069-90B02 |
BB21,HZB30,RB20..RHD..GEN W/*SSBD |
1 | ||
| 61091 - RAIL SUB-ASSY, NO.2 LOWER INNER, RH | ||||
| 61091-90B02 |
BB2#,RB20..RHD |
1 | ||
| 61094 - RAIL SUB-ASSY, NO.3 LOWER INNER, LH | ||||
| 61094-90B00 |
BB2#,RB20..RHD |
1 | ||
| 61098 - RAIL SUB-ASSY, NO.5 LOWER OUTER, LH | ||||
| 61425-90B00 |
BB2#,FB30,HZB30,RB20 |
1 | ||
| 61137B - GUSSET, ROCKER OUTER REINFORCEMENT, RH | ||||
| 61137-90B00 |
BB2#,HZB30,RB20..RHD |
1 | ||
| 61201A - STIFFENER SUB-ASSY, SIDE PANEL, NO.1 | ||||
| 61201-90B00 |
BB2#,HDB30,RB20..RHD |
1 | ||
| 61203C - STIFFENER SUB-ASSY, SIDE PANEL, NO.3 | ||||
| 61203-90B00 |
BB2#,HDB30,RB20..RHD |
1 | ||
| 61205A - STIFFENER SUB-ASSY, SIDE PANEL, NO.5 | ||||
| 61205-90B00 |
BB2#,RB20..RHD |
3 | ||
| 61205A - STIFFENER SUB-ASSY, SIDE PANEL, NO.5 | ||||
| 61205-90B00 |
BB2#,RB20..RHD |
3 | ||
| 61205A - STIFFENER SUB-ASSY, SIDE PANEL, NO.5 | ||||
| 61205-90B00 |
BB2#,RB20..RHD |
3 | ||
| 61206A - STIFFENER SUB-ASSY, SIDE PANEL, NO.6 | ||||
| 61206-90B00 |
BB2#,RB20..RHD |
1 | ||
| 61207B - STIFFENER SUB-ASSY, SIDE PANEL, NO.7 | ||||
| 61207-90B03 |
BB2#,RB20..RHD |
1 | ||
| 61208B - STIFFENER SUB-ASSY, SIDE PANEL, NO.8 | ||||
| 61208-90B00 |
BB2#,RB20..RHD |
2 | ||
| 61208B - STIFFENER SUB-ASSY, SIDE PANEL, NO.8 | ||||
| 61208-90B00 |
BB2#,RB20..RHD |
2 | ||
| 61218B - PILLAR, NO.4 OUTER, UPPER | ||||
| 61218-90B00 |
BB2#,RB20..RHD |
3 | ||
| 61218B - PILLAR, NO.4 OUTER, UPPER | ||||
| 61218-90B00 |
BB2#,RB20..RHD |
3 | ||
| 61218B - PILLAR, NO.4 OUTER, UPPER | ||||
| 61218-90B00 |
BB2#,RB20..RHD |
3 | ||
| 61304A - RAIL SUB-ASSY, NO.2 CENTER, OUTER LH | ||||
| 61304-90B00 |
BB2#,HZB30,RB20..RHD..GEN |
1 | ||
| 61304-90B01 |
BB21,HZB30,RB20..RHD..GEN W/GLIDING AUTO DOOR OR W/*GLD;W/ROOF RACK & *GLD OR W/*GLD & *DSBD |
1 | ||
| 61304-90B01 |
BB21,RB20..RHD..GEN W/GLIDING AUTO DOOR & *DSBD;W/GLIDING AUTO DOOR & ROOF RACK OR W/GLIDING AUTO DOOR |
1 | ||
| 61306A - RAIL SUB-ASSY, NO.3 CENTER, OUTER LH | ||||
| 61306-90B01 |
BB21,HZB30,RB20..RHD..GEN W/ROOF RACK & *GLD OR W/*GLD & *DSBD;W/*GLD |
1 | ||
| 61306-90B00 |
BB2#,HZB30,RB20..RHD..GEN |
1 | ||
| 61306-90B01 |
BB21,RB20..RHD..GEN W/GLIDING AUTO DOOR & *DSBD;W/GLIDING AUTO DOOR & ROOF RACK OR W/GLIDING AUTO DOOR;W/GLIDING AUTO DOOR |
1 | ||
| 61307B - RAIL SUB-ASSY, NO.5 CENTER, OUTER RH | ||||
| 61307-90B00 |
BB2#,RB20 |
1 | ||
| 61308C - RAIL SUB-ASSY, NO.5 CENTER OUTER, LH | ||||
| 61308-90B00 |
BB2#,RB20..GEN,ME |
1 | ||
| 61352A - RAIL, NO.2 CENTER OUTER, RH | ||||
| 61352-90B00 |
BB2#,HZB30,RB20..RHD |
1 | ||
| 61354 - RAIL, NO.4 CENTER OUTER, RH | ||||
| 61354-90B00 |
BB2#,FB30,RB20 RH |
1 | ||
| 61354-90B00 |
BB2#,RB20..GEN,ME LH |
1 | ||
| 61372C - RAIL, NO.2 CENTER, INNER | ||||
| 61372-90B00 |
BB21,RB20..GEN,ME |
4 | ||
| 61372C - RAIL, NO.2 CENTER, INNER | ||||
| 61372-90B00 |
BB21,RB20..GEN,ME |
4 | ||
| 61372C - RAIL, NO.2 CENTER, INNER | ||||
| 61372-90B00 |
BB21,RB20..GEN,ME |
4 | ||
| 61372C - RAIL, NO.2 CENTER, INNER | ||||
| 61372-90B00 |
BB21,RB20..GEN,ME |
4 | ||
| 61375 - RAIL, NO.5 CENTER INNER, RH | ||||
| 61375-90B00 |
BB2#,RB20 |
1 | ||
| 61376 - BRACE, REAR WHEEL, UPPER FRONT RH | ||||
| 61376-90B00 |
BB2#,FB30,HZB30,RB20 |
1 | ||
| 61377A - BRACE, REAR WHEEL, UPPER REAR RH | ||||
| 61377-90B01 |
BB2#,HZB30,RB20..RHD |
1 | ||
| 61385A - RAIL, NO.5 CENTER INNER, LH | ||||
| 61385-90B00 |
BB2#,RB20 |
1 | ||
| 61386A - BRACE, REAR WHEEL, UPPER FRONT LH | ||||
| 61386-90B00 |
BB2#,FB30,HZB30,RB20 |
1 | ||
| 61387D - BRACE, REAR WHEEL, UPPER REAR LH | ||||
| 61387-90B00 |
BB2#,HZB30,RB20..RHD |
1 | ||
| 61401D - RAIL SUB-ASSY, NO.1 LOWER OUTER, RH | ||||
| 61401-90B01 |
BB21,HZB30,RB20..RHD..GEN |
1 | ||
| 61402E - BRACE SUB-ASSY, NO.1 LOWER OUTER, LH | ||||
| 61402-90B00 |
BB2#,HZB30,RB20..RHD |
1 | ||
| 61403B - RAIL SUB-ASSY, NO.6 LOWER OUTER, RH | ||||
| 61403-90B00 |
BB2#,FB30,HZB30,RB20 |
1 | ||
| 61404B - RAIL SUB-ASSY, NO.6 LOWER OUTER, LH | ||||
| 61404-90B00 |
BB2#,FB30,HZB30,RB20 |
1 | ||
| 61411E - RAIL, NO.1 LOWER OUTER, RH | ||||
| 61411-90B00 |
BB2#,HZB30,RB20..RHD |
1 | ||
| 61412E - RAIL, NO.2 LOWER OUTER, RH | ||||
| 61412-90B00 |
BB2#,HZB30,RB20..RHD |
1 | ||
| 61415C - RAIL, NO.5 LOWER OUTER, RH | ||||
| 61415-90B00 |
BB2#,RB20 |
1 | ||
| 61423D - RAIL, NO.3 LOWER OUTER, LH | ||||
| 61423-90B00 |
BB2#,HZB30,RB20..RHD |
1 | ||
| 61443A - RAIL, NO.3 LOWER INNER, LH | ||||
| 61443-90B00 |
BB2#,RB20..RHD |
1 | ||
| 61446A - RAIL, NO.6 LOWER INNER, LH | ||||
| 61446-90B00 |
BB2#,FB30,HZB30,RB20 |
1 | ||
| 61475 - BRACKET, CENTER RAIL INSIDE CUSHION, NO.1 | ||||
| 61475-90B00 |
BB2#,FB30,HZB30,RB20 |
1 | ||
| 61475 - BRACKET, CENTER RAIL INSIDE CUSHION, NO.1 | ||||
| 61475-90B00 |
BB2#,FB30,HZB30,RB20 |
1 | ||
| 61475 - BRACKET, CENTER RAIL INSIDE CUSHION, NO.1 | ||||
| 61475-90B00 |
BB2#,FB30,HZB30,RB20 |
1 | ||
| 61475 - BRACKET, CENTER RAIL INSIDE CUSHION, NO.1 | ||||
| 61475-90B00 |
BB2#,FB30,HZB30,RB20 |
1 | ||
| 61475 - BRACKET, CENTER RAIL INSIDE CUSHION, NO.1 | ||||
| 61475-90B00 |
BB2#,FB30,HZB30,RB20 |
1 | ||
| 61475 - BRACKET, CENTER RAIL INSIDE CUSHION, NO.1 | ||||
| 61475-90B00 |
BB2#,FB30,HZB30,RB20 |
1 | ||
| 61504C - GUSSET SUB-ASSY, SEAT ANCHOR, NO.4 | ||||
| 61504-90B00 |
BB2#,FB30,HZB30,RB20 |
1 | ||
| 61505A - GUSSET SUB-ASSY, SEAT ANCHOR, NO.5 | ||||
| 61505-90B00 |
BB2#,FB30,HZB30,RB20 |
1 | ||
| 61511A - RAIL, SEAT ANCHOR, NO.1 | ||||
| 61511-90B00 |
BB2#,HZB30,RB20..RHD |
1 | ||
| 61513E - RAIL, SEAT ANCHOR, NO.3 | ||||
| 61513-90B00 |
BB2#,HZB30,RB20..RHD |
1 | ||
| 61514C - RAIL, SEAT ANCHOR, NO.4 | ||||
| 61514-90B00 |
BB2#,FB30,HZB30,RB20 |
2 | ||
| 61514C - RAIL, SEAT ANCHOR, NO.4 | ||||
| 61514-90B00 |
BB2#,FB30,HZB30,RB20 |
2 | ||
| 61516A - RAIL, SEAT ANCHOR, NO.6 | ||||
| 61516-90B00 |
BB2#,FB30,HZB30,RB20 |
2 | ||
| 61516A - RAIL, SEAT ANCHOR, NO.6 | ||||
| 61516-90B00 |
BB2#,FB30,HZB30,RB20 |
2 | ||
| 61519 - GUSSET, REAR SIDE RAIL, RH | ||||
| 61519-90B00 |
BB2#,FB30,HZB30,RB20 |
1 | ||
| 61522B - RAIL, SEAT ANCHOR, NO.2 LH | ||||
| 61522-90B00 |
BB21,HZB30,RB20..RHD..GEN |
1 | ||
| 61529 - GUSSET, REAR SIDE RAIL, LH | ||||
| 61529-90B00 |
BB2#,FB30,HZB30,RB20 |
1 | ||
| 61531E - GUSSET, SEAT ANCHOR, NO.1 | ||||
| 61531-90B00 |
BB2#,RB20..RHD |
3 | ||
| 61531E - GUSSET, SEAT ANCHOR, NO.1 | ||||
| 61531-90B00 |
BB2#,RB20..RHD |
3 | ||
| 61531E - GUSSET, SEAT ANCHOR, NO.1 | ||||
| 61531-90B00 |
BB2#,RB20..RHD |
3 | ||
| 61536A - GUSSET, SEAT ANCHOR, NO.6 | ||||
| 61536-90B00 |
BB2#,HZB30,RB20..RHD |
3 | ||
| 61536A - GUSSET, SEAT ANCHOR, NO.6 | ||||
| 61536-90B00 |
BB2#,HZB30,RB20..RHD |
3 | ||
| 61536A - GUSSET, SEAT ANCHOR, NO.6 | ||||
| 61536-90B00 |
BB2#,HZB30,RB20..RHD |
3 | ||
| 61539B - GUSSET, SEAT ANCHOR, NO.9 | ||||
| 61539-90B00 |
BB2#,HZB30,RB20..RHD |
1 | ||
| 61547A - GUSSET, SEAT ANCHOR, NO.7 LH | ||||
| 61547-90B02 |
BB2#,HZB30,RB20..RHD |
1 | ||
| 61558A - GUSSET, SEAT ANCHOR, NO.16 | ||||
| 61558-90B00 |
BB2#,RB20..RHD |
1 | ||
| 61571 - GUSSET, SEAT RAIL, INNER | ||||
| 61571-90B00 |
BB2#,FB30,HZB30,RB20 |
6 | ||
| 61571 - GUSSET, SEAT RAIL, INNER | ||||
| 61571-90B00 |
BB2#,FB30,HZB30,RB20 |
6 | ||
| 61571 - GUSSET, SEAT RAIL, INNER | ||||
| 61571-90B00 |
BB2#,FB30,HZB30,RB20 |
6 | ||
| 61571 - GUSSET, SEAT RAIL, INNER | ||||
| 61571-90B00 |
BB2#,FB30,HZB30,RB20 |
6 | ||
| 61571 - GUSSET, SEAT RAIL, INNER | ||||
| 61571-90B00 |
BB2#,FB30,HZB30,RB20 |
6 | ||
| 61571 - GUSSET, SEAT RAIL, INNER | ||||
| 61571-90B00 |
BB2#,FB30,HZB30,RB20 |
6 | ||
| 61572 - GUSSET, CENTER RAIL, OUTER | ||||
| 61572-90B00 |
BB23,RB20..GEN LH |
1 | ||
| 61572-90B00 |
BB2#,RB20 RH |
1 | ||
| 61572 - GUSSET, CENTER RAIL, OUTER | ||||
| 61572-90B00 |
BB23,RB20..GEN LH |
1 | ||
| 61572-90B00 |
BB2#,RB20 RH |
1 | ||
| 61572 - GUSSET, CENTER RAIL, OUTER | ||||
| 61572-90B00 |
BB23,RB20..GEN LH |
1 | ||
| 61572-90B00 |
BB2#,RB20 RH |
1 | ||
| 61572 - GUSSET, CENTER RAIL, OUTER | ||||
| 61572-90B00 |
BB23,RB20..GEN LH |
1 | ||
| 61572-90B00 |
BB2#,RB20 RH |
1 | ||
| 61572 - GUSSET, CENTER RAIL, OUTER | ||||
| 61572-90B00 |
BB23,RB20..GEN LH |
1 | ||
| 61572-90B00 |
BB2#,RB20 RH |
1 | ||
| 61572 - GUSSET, CENTER RAIL, OUTER | ||||
| 61572-90B00 |
BB23,RB20..GEN LH |
1 | ||
| 61572-90B00 |
BB2#,RB20 RH |
1 | ||
| 61572 - GUSSET, CENTER RAIL, OUTER | ||||
| 61572-90B00 |
BB23,RB20..GEN LH |
1 | ||
| 61572-90B00 |
BB2#,RB20 RH |
1 | ||
| 61589 - GUSSET, NO.4 PILLAR, CENTER LH | ||||
| 61589-90B00 |
BB23,HZB30,RB20..RHD |
1 | ||
| 61589-90B01 |
BB21,HZB30,RB20..RHD..GEN W/GLIDING AUTO DOOR & *DSBD;W/GLIDING AUTO DOOR OR W/*GLD;W/*GLD & ROOF RACK OR W/*GLD & *DSBD;HONG KONG PACKAGE 1 & W/*GLD & *SSBD;W/GLIDING AUTO DOOR & ROOF RACKOR W/GLIDING AUTO DOOR & *GLD |
1 | ||
| 61591 - BRACKET, STIFFENER, NO.1 | ||||
| 61591-90B02 |
BB2#,RB20..RHD |
5 | ||
| 61591 - BRACKET, STIFFENER, NO.1 | ||||
| 61591-90B02 |
BB2#,RB20..RHD |
5 | ||
| 61591 - BRACKET, STIFFENER, NO.1 | ||||
| 61591-90B02 |
BB2#,RB20..RHD |
5 | ||
| 61591 - BRACKET, STIFFENER, NO.1 | ||||
| 61591-90B02 |
BB2#,RB20..RHD |
5 | ||
| 61591 - BRACKET, STIFFENER, NO.1 | ||||
| 61591-90B02 |
BB2#,RB20..RHD |
5 | ||
| 61659E - REINFORCEMENT, NO.2, PILLAR, OUTER RH | ||||
| 61659-90B00 |
BB2#,HZB30,RB20..RHD |
1 | ||
| 61818D - PLATE, DUCT PROOF, NO.6 RH | ||||
| 61818-90B00 |
BB2#,HZB30,RB20..RHD |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
