RB20L-MR (1982)
Toyota Coaster
ILLUST NO. 3 OF 3(8205-8504)BB20,RB20
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 79081A - COVER SUB-ASSY, NO.8 SEAT CUSHION | ||||
| 79081-90B03 |
BB20,RB20..LHD..STD..SRF..26S..5F S.OMAN SPEC,VL |
1 | ||
| 79081-90B03 |
BB20,RB20..STD VL |
1 | ||
| 79081-90B30 |
BB21,HB30,RB20..STD..(20S,23S,26S,30S) VL |
1 | ||
| 79081-90B02 |
BB20,RB20..STD..GEN VL |
1 | ||
| 79081-90B30 |
BB20,21,HB30,RB20..STD..(20S,22S,23S,25S,26S,30S) VL |
1 | ||
| 79081-90B2806 |
BB21,HB30,HZB30,RB20..STD..(ARL,GEN) VL,SABLE,SABLE |
1 | ||
| 79083A - COVER SUB-ASSY, NO.8 SEAT BACK | ||||
| 79083-90B27 |
BB20,21,HB30,RB20..STD..(20S,22S,23S,25S,26S,30S) VL |
1 | ||
| 79083-90B02 |
BB20,RB20..STD..GEN VL |
1 | ||
| 79083-90B03 |
BB20,RB20..STD VL |
1 | ||
| 79083-90B03 |
BB20,RB20..LHD..STD..SRF..26S..5F S.OMAN SPEC,VL |
1 | ||
| 79083-90B3502 |
BB21,HB30,RB20..STD..(20S,23S,25S,26S,30S) VL,RED,RED |
1 | ||
| 79083-90B3506 |
BB21,HB30,HZB30,RB20..STD VL,SABLE,SABLE |
1 | ||
| 79097 - PARTITION SUB-ASSY, LUGGAGE COMPARTMENT WALL | ||||
| 79097-90B03 |
BB20,21,FB30,HB30,RB20..DLX,STD RH,W/O FOLDING SEAT |
1 | ||
| 79098-90B00 |
BB20,21,FB30,HB30,RB20..DLX,STD LH,W/O FOLDING SEAT |
1 | ||
| 79098-90B0006 |
BB21,32,FB30,HB30,RB20..DLX,STD LH,W/O FOLDING SEAT,SABLE,SABLE |
1 | ||
| 79097-90B0306 |
BB21,32,FB30,HB30,RB20 RH,W/O FOLDING SEAT,SABLE,SABLE |
1 | ||
| 79097 - PARTITION SUB-ASSY, LUGGAGE COMPARTMENT WALL | ||||
| 79097-90B03 |
BB20,21,FB30,HB30,RB20..DLX,STD RH,W/O FOLDING SEAT |
1 | ||
| 79098-90B00 |
BB20,21,FB30,HB30,RB20..DLX,STD LH,W/O FOLDING SEAT |
1 | ||
| 79098-90B0006 |
BB21,32,FB30,HB30,RB20..DLX,STD LH,W/O FOLDING SEAT,SABLE,SABLE |
1 | ||
| 79097-90B0306 |
BB21,32,FB30,HB30,RB20 RH,W/O FOLDING SEAT,SABLE,SABLE |
1 | ||
| 79097 - PARTITION SUB-ASSY, LUGGAGE COMPARTMENT WALL | ||||
| 79097-90B03 |
BB20,21,FB30,HB30,RB20..DLX,STD RH,W/O FOLDING SEAT |
1 | ||
| 79098-90B00 |
BB20,21,FB30,HB30,RB20..DLX,STD LH,W/O FOLDING SEAT |
1 | ||
| 79098-90B0006 |
BB21,32,FB30,HB30,RB20..DLX,STD LH,W/O FOLDING SEAT,SABLE,SABLE |
1 | ||
| 79097-90B0306 |
BB21,32,FB30,HB30,RB20 RH,W/O FOLDING SEAT,SABLE,SABLE |
1 | ||
| 79820A - CUSHION ASSY, NO.8 SEAT | ||||
| 79820-90B07 |
BB20,RB20..LHD..STD..SRF..26S..5F S.OMAN SPEC,VL |
1 | ||
| 79820-90B04 |
BB20,RB20..STD..GEN VL |
1 | ||
| 79820-90B40 |
BB20,21,HB30,RB20..STD..(22S,26S,30S) VL |
1 | ||
| 79820-90B4006 |
BB21,HB30,HZB30,RB20..STD..GEN VL,SABLE,SABLE |
1 | ||
| 79820-90B6706 |
BB21,HZB30,RB20..STD..GEN VL,SABLE,SABLE |
1 | ||
| 79840A - BACK ASSY, NO.8 SEAT | ||||
| 79840-90B03 |
BB20,RB20..STD..GEN VL |
1 | ||
| 79840-90B05 |
BB20,RB20..LHD..STD..SRF..26S..5F S.OMAN SPEC,VL |
1 | ||
| 79840-90B28 |
BB20,21,HB30,RB20..STD..(22S,26S,30S) VL |
1 | ||
| 79840-90B2806 |
BB21,HB30,HZB30,RB20..STD..GEN VL,SABLE,SABLE |
1 | ||
| 79840-90B4206 |
BB21,HZB30,RB20..STD..GEN VL,SABLE,SABLE |
1 | ||
| 79981 - SILENCER, LUGGAGE COMPARTMENT WALL | ||||
| 79981-90B00 |
BB20,21,32,FB30,HB30,HZB30,RB20..DLX,STD W/O FOLDING SEAT |
2 | ||
| 79981 - SILENCER, LUGGAGE COMPARTMENT WALL | ||||
| 79981-90B00 |
BB20,21,32,FB30,HB30,HZB30,RB20..DLX,STD W/O FOLDING SEAT |
2 | ||

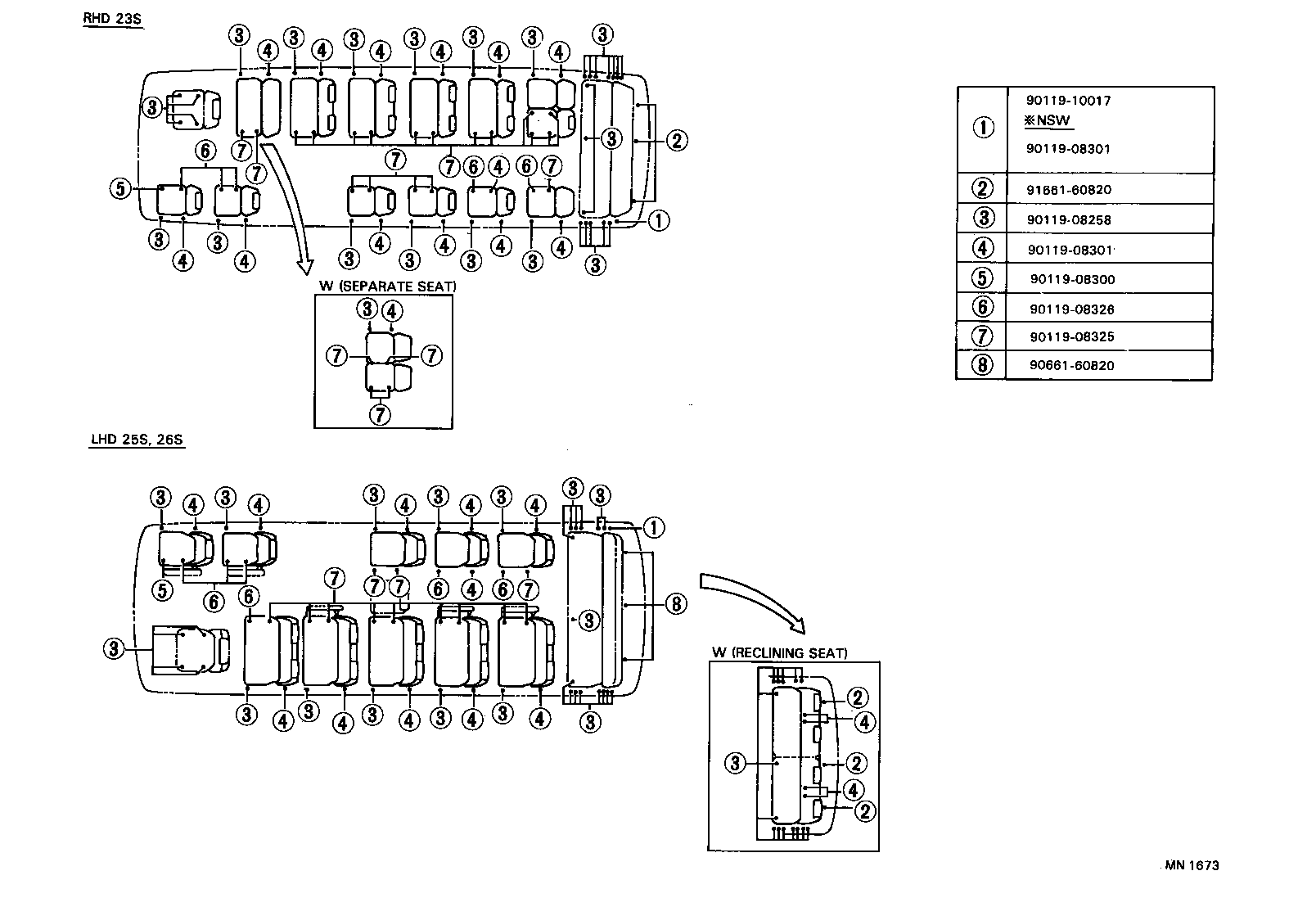

| Common parts | ||||
| 90119-08258 | ||||
| 90119-08259 | ||||
| 90119-08300 | ||||
| 90119-10017 | ||||
| 90119-10101 | ||||
| 90179-08026 | ||||
| 90386-11006 | ||||
| 90468-18071 | ||||
| 91611-60816 | ||||
| 91661-60820 | ||||
| 93386-15010 | ||||
| 93630-14014 | ||||
| Linked diagrams | ||||
| 7554 | ||||

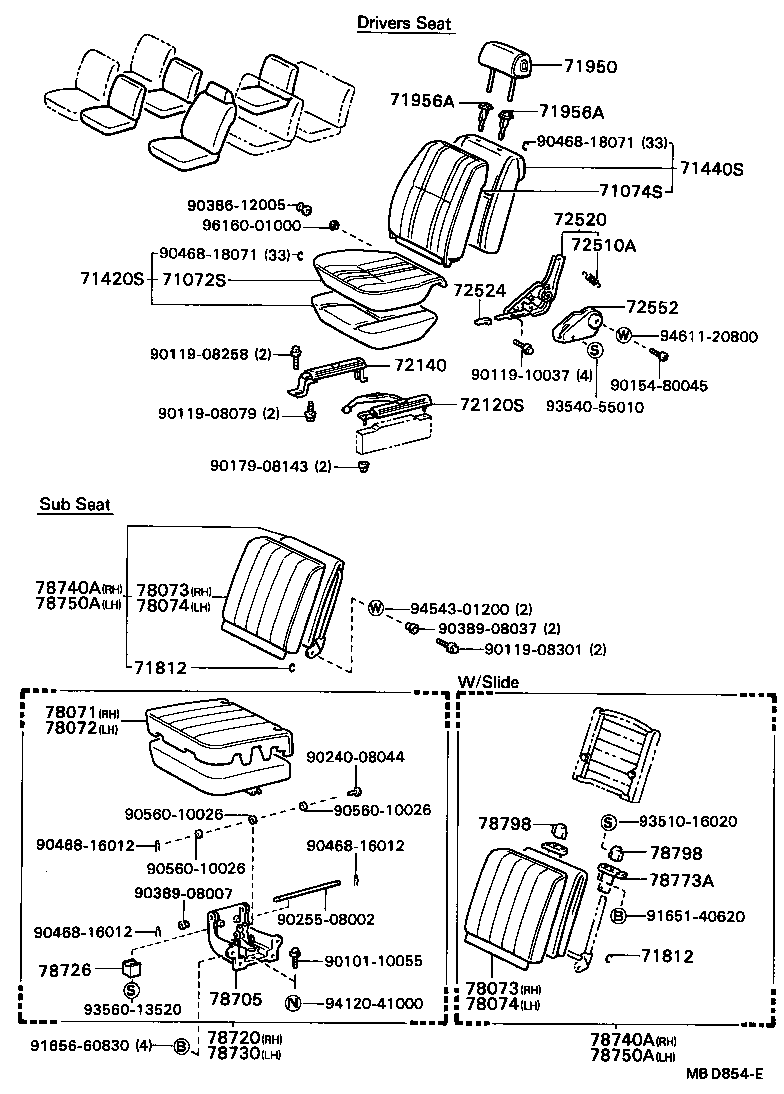

ILLUST NO. 1 OF 3(8205-8504)BB20,RB20..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-90B01 |
BB20,RB20..LHD..STD VL |
1 | ||
| 71072-90B07 |
BB20,RB20..LHD..STD VL |
1 | ||
| 71072-90B18 |
BB20,21,HB30,RB20..LHD..STD VL |
1 | ||
| 71072-90B2206 |
BB21,HB30,RB20..LHD..STD VL,SABLE,SABLE |
1 | ||
| 71072-90B2202 |
BB21,HB30,RB20..LHD..STD VL,RED,RED |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71073-90B02 |
BB20,RB20..LHD..STD VL |
1 | ||
| 71073-90B24 |
BB20,21,HB30,RB20..LHD..STD VL |
1 | ||
| 71073-90B03 |
BB20,RB20..LHD..STD VL |
1 | ||
| 71073-90B3506 |
BB21,HB30,RB20..LHD..STD VL,SABLE,SABLE |
1 | ||
| 71073-90B3502 |
BB21,HB30,RB20..LHD..STD VL,RED,RED |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-90B01 |
BB20,RB20..LHD..STD VL |
1 | ||
| 71420-90B06 |
BB20,RB20..LHD..STD VL |
1 | ||
| 71420-90B16 |
BB20,21,HB30,RB20..LHD..STD VL |
1 | ||
| 71420-90B1902 |
BB21,HB30,RB20..LHD..STD VL,RED,RED |
1 | ||
| 71420-90B1906 |
BB21,HB30,RB20..LHD..STD VL,SABLE,SABLE |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-90B06 |
BB20,RB20..LHD..STD VL |
1 | ||
| 71440-90B01 |
BB20,RB20..LHD..STD VL |
1 | ||
| 71440-90B1702 |
BB21,HB30,RB20..LHD..STD VL,RED,RED |
1 | ||
| 71440-90B1706 |
BB21,HB30,RB20..LHD..STD PF,SABLE,SABLE |
1 | ||
| 71440-90B15 |
BB20,21,HB30,RB20..LHD..STD VL |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 71812-30010 |
BB2#,32,FB30,HB30,HZB30,RB20 |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 71812-30010 |
BB2#,32,FB30,HB30,HZB30,RB20 |
1 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71910-90B00 |
BB20,21,HB30,RB20..LHD..STD |
1 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71956-3002002 |
BB21,HB30,RB20..LHD..STD W/O(LOCK),DARK WINE,DARK WINE |
1 | ||
| 71930-90B00 |
BB20,RB20..LHD..STD |
1 | ||
| 71990-3002002 |
BB21,HB30,RB20..LHD..STD W(LOCK),DARK WINE,DARK WINE |
1 | ||
| 71931-90B00 |
BB20,RB20..LHD..STD W/O LOCK |
1 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71956-3002002 |
BB21,HB30,RB20..LHD..STD W/O(LOCK),DARK WINE,DARK WINE |
1 | ||
| 71930-90B00 |
BB20,RB20..LHD..STD |
1 | ||
| 71990-3002002 |
BB21,HB30,RB20..LHD..STD W(LOCK),DARK WINE,DARK WINE |
1 | ||
| 71931-90B00 |
BB20,RB20..LHD..STD W/O LOCK |
1 | ||
| 72120S - TRACK ASSY, LH SEAT, OUTER (FOR SEPARATE SEAT) | ||||
| 72120-90B00 |
BB20,21,32,FB30,HB30,HZB30,RB20..LHD |
1 | ||
| 72140 - TRACK ASSY, LH SEAT, INNER | ||||
| 72140-90B01 |
BB20,21,32,FB30,HB30,HZB30,RB20..LHD |
1 | ||
| 72140-90B00 |
BB20,RB20..LHD |
1 | ||
| 72510A - SPRING, TENSION, NO.1(FOR RECLINING SEAT ADJUSTER) | ||||
| 90506-18015 |
BB2#,FB30,HB30,RB20 |
1 | ||
| 72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH | ||||
| 72520-90B00 |
BB20,21,32,FB30,HB30,HZB30,RB20..LHD |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72526-1401020 |
BB21,32,FB30,HB30,HZB30,RB20..LHD SABLE,SABLE |
1 | ||
| 72526-90B00 |
BB20,RB20..LHD |
1 | ||
| 72526-1401002 |
BB21,FB30,HB30,RB20..LHD DARK WINE,DARK WINE |
1 | ||
| 72552 - COVER, RECLINING HINGE, NO.2 | ||||
| 72552-90B00 |
BB20,RB20..LHD |
1 | ||
| 72552-90A0036 |
BB21,32,FB30,HB30,HZB30,RB20..LHD SABLE,SABLE |
1 | ||
| 72552-90A0002 |
BB21,FB30,HB30,RB20..LHD DARK WINE,DARK WINE |
1 | ||
| 78071 - COVER SUB-ASSY, SUB SEAT CUSHION, RH | ||||
| 78071-90B03 |
BB20,RB20..LHD..STD VL |
2 | ||
| 78071-90B08 |
BB20,RB20..LHD..STD VL |
2 | ||
| 78071-90B08 |
RB20..LHD..STD..SRF..26S..5F S.OMAN SPEC,VL |
1 | ||
| 78071-90B17 |
BB20,21,HB30,RB20..LHD..STD VL |
2 | ||
| 78071-90B1902 |
BB21,HB30,RB20..LHD..STD VL,RED,RED |
2 | ||
| 78071-90B1906 |
BB21,HB30,RB20..LHD..STD VL,SABLE,SABLE |
4 | ||
| 78072 - COVER SUB-ASSY, SUB SEAT CUSHION, LH | ||||
| 78072-90B03 |
BB20,RB20..LHD..STD..26S VL |
4 | ||
| 78072-90B08 |
BB20,RB20..LHD..STD..26S VL |
4 | ||
| 78072-90B19 |
BB20,21,RB20..LHD..STD..(25S,26S) VL |
4 | ||
| 78072-90B2202 |
BB21,RB20..LHD..STD VL,RED,RED |
4 | ||
| 78072-90B2206 |
BB21,RB20..LHD..STD VL,SABLE,SABLE |
2 | ||
| 78073 - COVER SUB-ASSY, SUB SEAT BACK, RH | ||||
| 78073-90B03 |
BB20,RB20..LHD..STD VL |
2 | ||
| 78073-90B10 |
RB20..LHD..STD..SRF..26S..5F S.OMAN SPEC,VL |
1 | ||
| 78073-90B10 |
BB20,RB20..LHD..STD VL |
2 | ||
| 78073-90B19 |
BB20,21,HB30,RB20..LHD..STD VL |
2 | ||
| 78073-90B2202 |
BB21,HB30,RB20..LHD..STD VL,RED,RED |
2 | ||
| 78073-90B2206 |
BB21,HB30,RB20..LHD..STD VL,SABLE,SABLE |
2 | ||
| 78073 - COVER SUB-ASSY, SUB SEAT BACK, RH | ||||
| 78073-90B03 |
BB20,RB20..LHD..STD VL |
2 | ||
| 78073-90B10 |
RB20..LHD..STD..SRF..26S..5F S.OMAN SPEC,VL |
1 | ||
| 78073-90B10 |
BB20,RB20..LHD..STD VL |
2 | ||
| 78073-90B19 |
BB20,21,HB30,RB20..LHD..STD VL |
2 | ||
| 78073-90B2202 |
BB21,HB30,RB20..LHD..STD VL,RED,RED |
2 | ||
| 78073-90B2206 |
BB21,HB30,RB20..LHD..STD VL,SABLE,SABLE |
2 | ||
| 78074 - COVER SUB-ASSY, SUB SEAT BACK, LH | ||||
| 78073-90B10 |
BB20,RB20..LHD..STD..26S VL |
4 | ||
| 78073-90B03 |
BB20,RB20..LHD..STD..26S VL |
4 | ||
| 78073-90B19 |
BB20,RB20..LHD..STD..26S VL |
4 | ||
| 78073-90B2202 |
RB20..LHD..STD VL,RED,RED |
4 | ||
| 78073-90B2206 |
BB21,RB20..LHD..STD VL,SABLE,SABLE |
2 | ||
| 78074 - COVER SUB-ASSY, SUB SEAT BACK, LH | ||||
| 78073-90B10 |
BB20,RB20..LHD..STD..26S VL |
4 | ||
| 78073-90B03 |
BB20,RB20..LHD..STD..26S VL |
4 | ||
| 78073-90B19 |
BB20,RB20..LHD..STD..26S VL |
4 | ||
| 78073-90B2202 |
RB20..LHD..STD VL,RED,RED |
4 | ||
| 78073-90B2206 |
BB21,RB20..LHD..STD VL,SABLE,SABLE |
2 | ||
| 78705 - BRACKET SUB-ASSY, SUB SEAT CUSHION | ||||
| 78705-90B00 |
BB20,21,RB20..25S,26S |
6 | ||
| 78705-90B0006 |
BB21,RB20..25S,26S SABLE,SABLE |
5 | ||
| 78720 - CUSHION ASSY, SUB SEAT, RH | ||||
| 78720-90B08 |
RB20..LHD..STD..SRF..26S..5F S.OMAN SPEC,VL |
1 | ||
| 78720-90B08 |
BB20,RB20..LHD..STD VL |
2 | ||
| 78720-90B03 |
BB20,RB20..LHD..STD VL |
2 | ||
| 78720-90B17 |
BB20,21,HB30,RB20..LHD..STD VL |
2 | ||
| 78720-90B1902 |
BB21,HB30,RB20..LHD..STD VL,RED,RED |
2 | ||
| 78720-90B1906 |
BB21,HB30,RB20..LHD..STD VL,SABLE,SABLE |
4 | ||
| 78726 - CUSHION, SUB SEAT CUSHION FRAME | ||||
| 78726-90B00 |
BB20,21,RB20..26S |
12 | ||
| 78730 - CUSHION ASSY, SUB SEAT, LH | ||||
| 78730-90B03 |
BB20,RB20..LHD..STD..26S VL |
4 | ||
| 78730-90B08 |
BB20,RB20..LHD..STD..26S VL |
4 | ||
| 78730-90B24 |
BB20,21,RB20..LHD..STD..(25S,26S) VL |
4 | ||
| 78730-90B2602 |
BB21,RB20..LHD..STD VL,RED,RED |
4 | ||
| 78730-90B2606 |
BB21,RB20..LHD..STD VL,SABLE,SABLE |
2 | ||
| 78740A - BACK ASSY, SUB SEAT, RH | ||||
| 78740-90B10 |
RB20..LHD..STD..SRF..26S..5F S.OMAN SPEC,VL |
1 | ||
| 78740-90B03 |
BB20,RB20..LHD..STD VL |
2 | ||
| 78740-90B10 |
BB20,RB20..LHD..STD VL |
2 | ||
| 78740-90B23 |
BB20,21,HB30,RB20..LHD..STD VL |
2 | ||
| 78740-90B2802 |
BB21,HB30,RB20..LHD..STD VL,RED,RED |
2 | ||
| 78740-90B2806 |
BB21,HB30,RB20..LHD..STD VL,SABLE,SABLE |
4 | ||
| 78740A - BACK ASSY, SUB SEAT, RH | ||||
| 78740-90B10 |
RB20..LHD..STD..SRF..26S..5F S.OMAN SPEC,VL |
1 | ||
| 78740-90B03 |
BB20,RB20..LHD..STD VL |
2 | ||
| 78740-90B10 |
BB20,RB20..LHD..STD VL |
2 | ||
| 78740-90B23 |
BB20,21,HB30,RB20..LHD..STD VL |
2 | ||
| 78740-90B2802 |
BB21,HB30,RB20..LHD..STD VL,RED,RED |
2 | ||
| 78740-90B2806 |
BB21,HB30,RB20..LHD..STD VL,SABLE,SABLE |
4 | ||
| 78750A - BACK ASSY, SUB SEAT, LH | ||||
| 78740-90B03 |
BB20,RB20..LHD..STD..26S VL |
4 | ||
| 78740-90B10 |
BB20,RB20..LHD..STD..26S VL |
4 | ||
| 78740-90B23 |
BB20,21,RB20..LHD..STD..(25S,26S) VL |
4 | ||
| 78740-90B2802 |
BB21,RB20..LHD..STD VL,RED,RED |
4 | ||
| 78740-90B2806 |
BB21,RB20..LHD..STD VL,SABLE,SABLE |
2 | ||
| 78750A - BACK ASSY, SUB SEAT, LH | ||||
| 78740-90B03 |
BB20,RB20..LHD..STD..26S VL |
4 | ||
| 78740-90B10 |
BB20,RB20..LHD..STD..26S VL |
4 | ||
| 78740-90B23 |
BB20,21,RB20..LHD..STD..(25S,26S) VL |
4 | ||
| 78740-90B2802 |
BB21,RB20..LHD..STD VL,RED,RED |
4 | ||
| 78740-90B2806 |
BB21,RB20..LHD..STD VL,SABLE,SABLE |
2 | ||

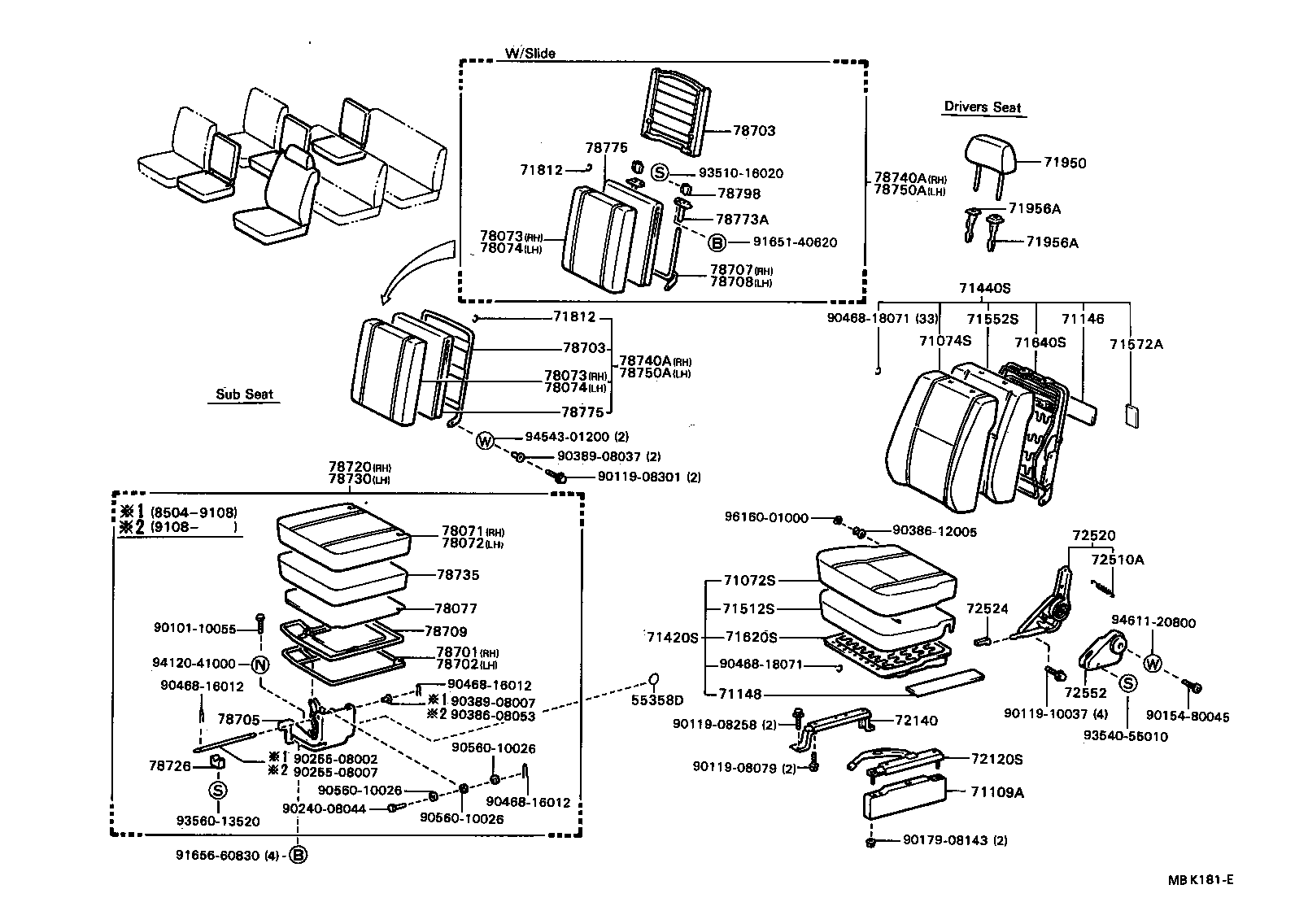

| Common parts | ||||
| 90101-10055 | ||||
| 90119-08079 | ||||
| 90119-08258 | ||||
| 90119-08301 | ||||
| 90119-10037 | ||||
| 90154-80045 | ||||
| 90179-08143 | ||||
| 90240-08044 | ||||
| 90255-08002 | ||||
| 90386-12005 | ||||
| 90389-08007 | ||||
| 90389-08037 | ||||
| 90468-16012 | ||||
| 90468-18071 | ||||
| 90560-10026 | ||||
| 91651-40620 | ||||
| 91656-60830 | ||||
| 93510-16020 | ||||
| 93540-55010 | ||||
| 93560-13520 | ||||
| 94120-41000 | ||||
| 94543-01200 | ||||
| 94611-20800 | ||||
| 96160-01000 | ||||

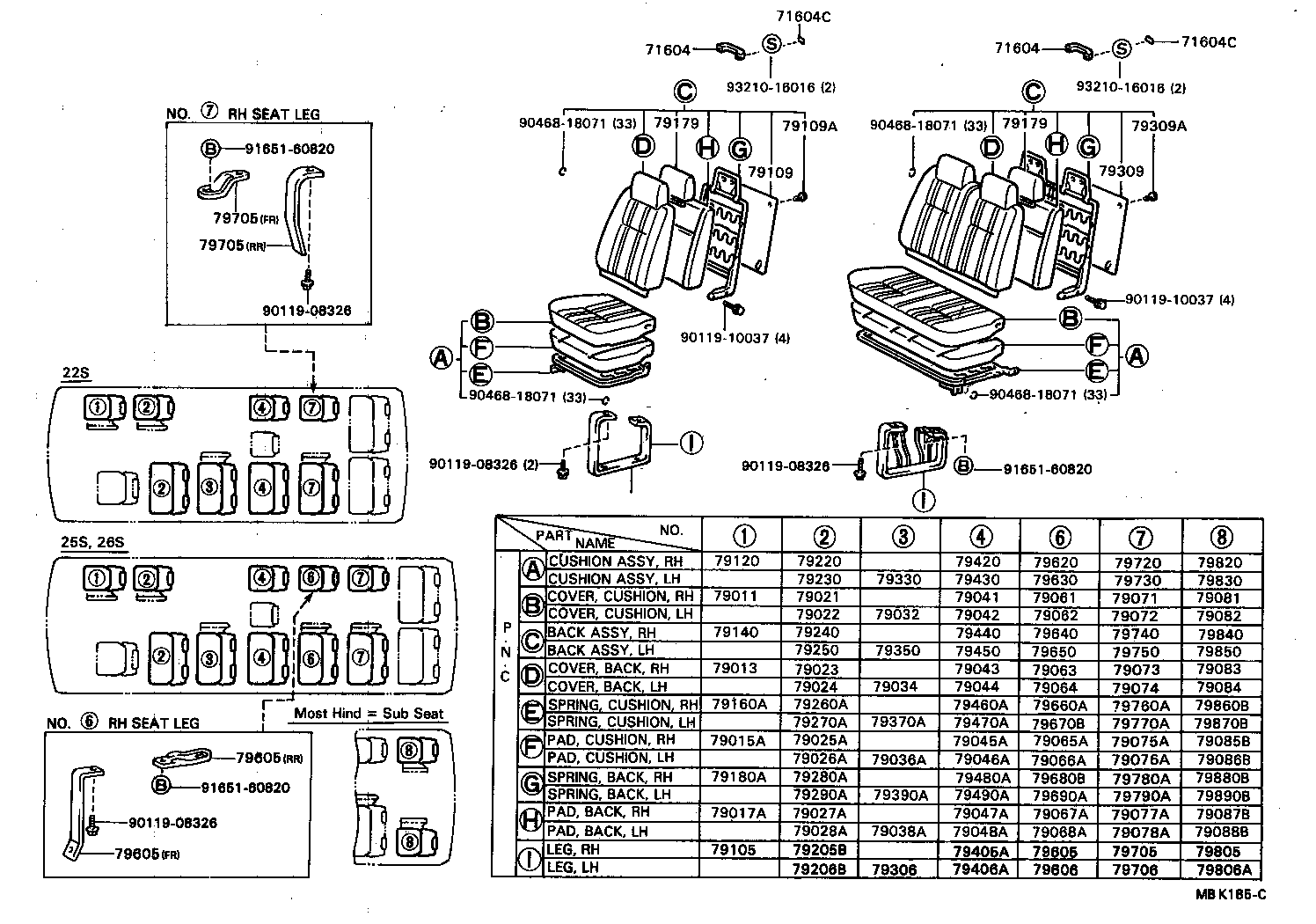

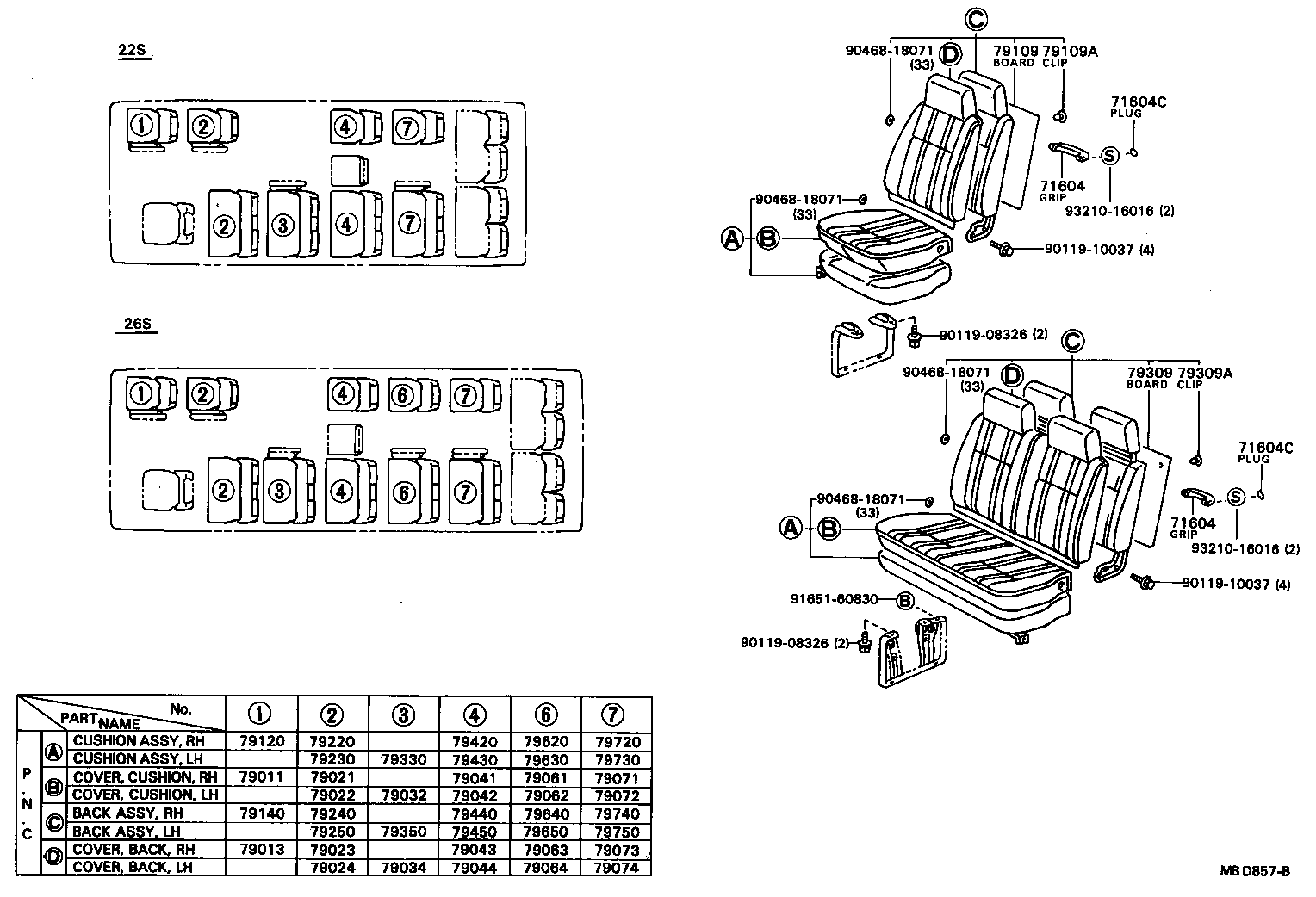

ILLUST NO. 2 OF 3(8205-8504)LHD..22S,26S
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71604 - GRIP SUB-ASSY, ASSIST(FOR SEAT BACK) | ||||
| 74610-90B01 |
BB2#,RB20..DLX,STD |
12 | ||
| 74610-1002026 |
BB2#,RB20..DLX,STD SABLE,SABLE |
12 | ||
| 71604 - GRIP SUB-ASSY, ASSIST(FOR SEAT BACK) | ||||
| 74610-90B01 |
BB2#,RB20..DLX,STD |
12 | ||
| 74610-1002026 |
BB2#,RB20..DLX,STD SABLE,SABLE |
12 | ||
| 71604C - PLUG, HOLE(FOR ASSIST GRIP) | ||||
| 74617-90B00 |
BB2#,RB20..DLX,STD |
24 | ||
| 74617-1401040 |
BB2#,RB20..DLX,STD SABLE,SABLE |
24 | ||
| 71604C - PLUG, HOLE(FOR ASSIST GRIP) | ||||
| 74617-90B00 |
BB2#,RB20..DLX,STD |
24 | ||
| 74617-1401040 |
BB2#,RB20..DLX,STD SABLE,SABLE |
24 | ||
| 79011 - COVER SUB-ASSY, NO.1 SEAT CUSHION, RH | ||||
| 79011-90B02 |
BB20,RB20..LHD..STD VL |
1 | ||
| 79011-90B13 |
BB20,21,HB30,RB20..LHD..STD VL |
1 | ||
| 79021-90B01 |
BB20,RB20..LHD..STD VL |
1 | ||
| 79011-90B1802 |
BB21,HB30,RB20..LHD..STD VL,DARK WINE,DARK WINE |
1 | ||
| 79011-90B2106 |
BB21,HB30,RB20..LHD..STD VL,SABLE,SABLE |
1 | ||
| 79011-90B2502 |
BB21,HB30,RB20..LHD..STD VL,W/SUB SEAT,RED,RED |
1 | ||
| 79011-90B2102 |
BB21,HB30,RB20..LHD..STD VL,RED,RED |
1 | ||
| 79013 - COVER SUB-ASSY, NO.1 SEAT BACK, RH | ||||
| 79013-90B02 |
BB20,RB20..LHD..STD VL |
1 | ||
| 79013-90B03 |
BB20,RB20..LHD..STD..SRF..26S..5F S.OMAN SPEC,VL |
1 | ||
| 79013-90B03 |
BB20,RB20..LHD..STD VL |
1 | ||
| 79013-90B33 |
BB20,21,HB30,RB20..LHD..STD VL |
1 | ||
| 79013-90B4402 |
BB21,HB30,RB20..LHD..STD..GEN VL,RED,RED |
1 | ||
| 79013-90B4406 |
BB21,HB30,RB20..LHD..STD VL,SABLE,BROWN |
1 | ||
| 79021 - COVER SUB-ASSY, NO.2 SEAT CUSHION, RH | ||||
| 79011-90B02 |
BB20,RB20..LHD..STD VL |
1 | ||
| 79021-90B01 |
BB20,RB20..LHD..STD VL |
1 | ||
| 79011-90B1802 |
BB21,HB30,RB20..LHD..STD VL,DARK WINE,DARK WINE |
1 | ||
| 79011-90B13 |
BB20,21,HB30,RB20..LHD..STD VL |
1 | ||
| 79011-90B2506 |
BB21,HB30,HZB30,RB20..LHD..STD VL,SABLE,SABLE |
1 | ||
| 79011-90B2502 |
BB21,HB30,RB20..LHD..STD VL,RED,RED |
1 | ||
| 79011-90B2106 |
BB21,HZB30,RB20..LHD..STD VL,SABLE,SABLE |
1 | ||
| 79022 - COVER SUB-ASSY, NO.2 SEAT CUSHION, LH | ||||
| 79022-90B09 |
BB20,RB20..LHD..STD VL |
1 | ||
| 79022-90B16 |
BB20,RB20..LHD..STD VL |
1 | ||
| 79022-90B26 |
BB20,RB20..LHD..STD VL |
1 | ||
| 79022-90B4406 |
BB21,HZB30,RB20..LHD..STD VL,SABLE,SABLE |
1 | ||
| 79022-90B4402 |
RB20..LHD..STD VL,RED,RED |
1 | ||
| 79023 - COVER SUB-ASSY, NO.2 SEAT BACK, RH | ||||
| 79013-90B02 |
BB20,RB20..LHD..STD VL |
1 | ||
| 79013-90B03 |
BB20,RB20..LHD..STD..SRF..26S..5F S.OMAN SPEC,VL |
1 | ||
| 79013-90B03 |
BB20,RB20..LHD..STD VL |
1 | ||
| 79013-90B33 |
BB20,RB20..LHD..STD VL |
1 | ||
| 79013-90B4402 |
RB20..LHD..STD VL,RED,RED |
1 | ||
| 79013-90B4406 |
BB21,HB30,HZB30,RB20..LHD..STD VL,*NSW,SABLE,BROWN |
2 | ||
| 79024 - COVER SUB-ASSY, NO.2 SEAT BACK, LH | ||||
| 79033-90B02 |
BB20,RB20..LHD..STD VL |
1 | ||
| 79033-90B03 |
BB20,RB20..LHD..STD..SRF..26S..5F S.OMAN SPEC,VL |
1 | ||
| 79033-90B03 |
BB20,RB20..LHD..STD VL |
1 | ||
| 79033-90B27 |
BB20,21,HB30,RB20..LHD..STD VL |
1 | ||
| 79033-90B2502 |
BB21,HB30,RB20..LHD..STD VL,RED,RED |
1 | ||
| 79033-90B2506 |
BB21,HB30,HZB30,RB20..LHD..STD VL,SABLE,SABLE |
1 | ||
| 79032 - COVER SUB-ASSY, NO.3 SEAT CUSHION, LH | ||||
| 79032-90B01 |
BB20,RB20..LHD..STD VL |
1 | ||
| 79032-90B13 |
BB20,21,HB30,RB20..LHD..STD VL |
1 | ||
| 79032-90B07 |
BB20,RB20..LHD..STD VL |
1 | ||
| 79032-90B2202 |
BB21,HB30,RB20..LHD..STD VL,RED,RED |
1 | ||
| 79032-90B2206 |
BB21,HB30,HZB30,RB20..LHD..STD VL,SABLE,SABLE |
1 | ||
| 79034 - COVER SUB-ASSY, NO.3 SEAT BACK, LH | ||||
| 79033-90B02 |
BB20,RB20..LHD..STD VL |
1 | ||
| 79033-90B2502 |
BB21,HB30,RB20..LHD..STD..GEN VL,RED,RED |
1 | ||
| 79033-90B27 |
BB20,21,HB30,RB20..LHD..STD VL |
1 | ||
| 79033-90B03 |
BB20,RB20..LHD..STD VL |
1 | ||
| 79033-90B03 |
BB20,RB20..LHD..STD..SRF..26S..5F S.OMAN SPEC,VL |
1 | ||
| 79033-90B2506 |
BB21,HB30,HZB30,RB20..LHD..STD VL,SABLE,SABLE |
1 | ||
| 79041 - COVER SUB-ASSY, NO.4 SEAT CUSHION, RH | ||||
| 79021-90B01 |
BB20,RB20..LHD..STD VL |
1 | ||
| 79011-90B02 |
BB20,RB20..LHD..STD VL |
1 | ||
| 79011-90B13 |
BB20,21,HB30,RB20..LHD..STD VL |
1 | ||
| 79011-90B1802 |
BB21,HB30,RB20..LHD..STD VL,DARK WINE,DARK WINE |
1 | ||
| 79011-90B2502 |
BB21,HB30,RB20..LHD..STD VL,RED,RED |
1 | ||
| 79011-90B2506 |
BB21,32,HB30,HZB30,RB20..LHD..STD VL,SABLE,SABLE |
1 | ||
| 79011-90B2106 |
BB21,32,HZB30,RB20..LHD..STD VL,SABLE,SABLE |
1 | ||
| 79042 - COVER SUB-ASSY, NO.4 SEAT CUSHION, LH | ||||
| 79032-90B01 |
BB20,RB20..LHD..STD VL |
1 | ||
| 79032-90B13 |
BB20,21,HB30,RB20..LHD..STD VL |
1 | ||
| 79032-90B07 |
BB20,RB20..LHD..STD VL |
1 | ||
| 79032-90B2202 |
BB21,HB30,RB20..LHD..STD VL,RED,RED |
1 | ||
| 79032-90B2206 |
BB21,32,HB30,HZB30,RB20..LHD..STD VL,SABLE,SABLE |
1 | ||
| 79043 - COVER SUB-ASSY, NO.4 SEAT BACK, RH | ||||
| 79013-90B02 |
BB20,RB20..LHD..STD VL |
1 | ||
| 79013-90B33 |
BB20,21,HB30,RB20..LHD..STD VL |
1 | ||
| 79013-90B03 |
BB20,RB20..LHD..STD..SRF..26S..5F S.OMAN SPEC,VL |
1 | ||
| 79013-90B03 |
BB20,RB20..LHD..STD VL |
1 | ||
| 79013-90B4402 |
BB21,HB30,RB20..LHD..STD VL,RED,RED |
1 | ||
| 79013-90B4406 |
BB21,32,HB30,HZB30,RB20..LHD..STD VL,SABLE,BROWN |
1 | ||
| 79044 - COVER SUB-ASSY, NO.4 SEAT BACK, LH | ||||
| 79033-90B03 |
BB20,RB20..LHD..STD..SRF..26S..5F S.OMAN SPEC,VL |
1 | ||
| 79033-90B02 |
BB20,RB20..LHD..STD VL |
1 | ||
| 79033-90B03 |
BB20,RB20..LHD..STD VL |
1 | ||
| 79031-90B17 |
BB20,21,HB30,RB20..LHD..STD VL |
1 | ||
| 79033-90B2506 |
BB21,32,HB30,HZB30,RB20..LHD..STD VL,SABLE,SABLE |
1 | ||
| 79061 - COVER SUB-ASSY, NO.6 SEAT CUSHION, RH | ||||
| 79021-90B01 |
BB20,RB20..LHD..STD..26S VL |
1 | ||
| 79011-90B02 |
BB20,RB20..LHD..STD..26S VL |
1 | ||
| 79032-90B16 |
BB20,21,HB30,RB20..LHD..STD..(25S,26S,30S) VL |
1 | ||
| 79032-90B1606 |
BB21,32,HB30,HZB30,RB20..LHD..STD VL,SABLE,SABLE |
1 | ||
| 79011-90B3206 |
BB21,FB30,HZB30,RB20..LHD..(26S,30S)..GEN MOQUETTE,SABLE,SABLE |
1 | ||
| 79062 - COVER SUB-ASSY, NO.6 SEAT CUSHION, LH | ||||
| 79032-90B01 |
BB20,RB20..LHD..STD..26S VL |
1 | ||
| 79032-90B07 |
BB20,RB20..LHD..STD..26S VL |
1 | ||
| 79032-90B13 |
BB20,21,HB30,RB20..LHD..STD..(25S,26S,30S) VL |
1 | ||
| 79032-90B2202 |
BB21,HB30,RB20..LHD..STD VL,RED,RED |
1 | ||
| 79032-90B2206 |
BB21,32,HB30,HZB30,RB20..LHD..STD VL,SABLE,SABLE |
1 | ||
| 79063 - COVER SUB-ASSY, NO.6 SEAT BACK, RH | ||||
| 79013-90B03 |
BB20,RB20..LHD..STD..SRF..26S..5F S.OMAN SPEC,VL |
1 | ||
| 79013-90B02 |
BB20,RB20..LHD..STD..26S VL |
1 | ||
| 79013-90B33 |
BB20,21,HB30,RB20..LHD..STD..(25S,26S,30S) VL |
1 | ||
| 79013-90B03 |
BB20,RB20..LHD..STD..26S VL |
1 | ||
| 79013-90B4402 |
BB21,HB30,RB20..LHD..STD VL,RED,RED |
1 | ||
| 79013-90B4406 |
BB21,32,HB30,HZB30,RB20..LHD..STD VL,SABLE,BROWN |
1 | ||
| 79064 - COVER SUB-ASSY, NO.6 SEAT BACK, LH | ||||
| 79033-90B02 |
BB20,RB20..LHD..STD..26S VL |
1 | ||
| 79033-90B03 |
BB20,RB20..LHD..STD..26S VL |
1 | ||
| 79033-90B27 |
BB20,21,HB30,RB20..LHD..STD..(25S,26S,30S) VL |
1 | ||
| 79033-90B2502 |
BB21,HB30,RB20..LHD..STD VL,RED,RED |
1 | ||
| 79033-90B03 |
BB20,RB20..LHD..STD..SRF..26S..5F S.OMAN SPEC,VL |
1 | ||
| 79033-90B2506 |
BB21,32,HB30,HZB30,RB20..LHD..STD VL,SABLE,SABLE |
1 | ||
| 79071 - COVER SUB-ASSY, NO.7 SEAT CUSHION, RH | ||||
| 79021-90B01 |
BB20,RB20..LHD..STD VL |
1 | ||
| 79011-90B02 |
BB20,RB20..LHD..STD VL |
1 | ||
| 79011-90B1802 |
BB21,HB30,RB20..LHD..STD VL,DARK WINE,DARK WINE |
1 | ||
| 79011-90B13 |
BB20,21,HB30,RB20..LHD..STD VL |
1 | ||
| 79011-90B2502 |
BB21,HB30,RB20..LHD..STD VL,RED,RED |
1 | ||
| 79011-90B2506 |
BB21,HB30,RB20..LHD..STD VL,SABLE,SABLE |
1 | ||
| 79011-90B3306 |
BB21,FB30,HZB30,RB20..LHD..GEN PF,SABLE,SABLE |
1 | ||
| 79072 - COVER SUB-ASSY, NO.7 SEAT CUSHION, LH | ||||
| 79032-90B01 |
BB20,RB20..LHD..STD VL |
1 | ||
| 79032-90B07 |
BB20,RB20..LHD..STD VL |
1 | ||
| 79032-90B13 |
BB20,21,HB30,RB20..LHD..STD VL |
1 | ||
| 79032-90B2202 |
BB21,HB30,RB20..LHD..STD VL,RED,RED |
1 | ||
| 79032-90B2206 |
BB21,HB30,HZB30,RB20..LHD..STD VL,SABLE,SABLE |
1 | ||
| 79073 - COVER SUB-ASSY, NO.7 SEAT BACK, RH | ||||
| 79013-90B02 |
BB20,RB20..LHD..STD VL |
1 | ||
| 79013-90B03 |
BB20,RB20..LHD..STD..SRF..26S..5F S.OMAN SPEC,VL |
1 | ||
| 79013-90B03 |
BB20,RB20..LHD..STD VL |
1 | ||
| 79013-90B33 |
BB20,21,HB30,RB20..LHD..STD VL |
1 | ||
| 79013-90B4402 |
BB21,HB30,RB20..LHD..STD VL,RED,RED |
1 | ||
| 79074 - COVER SUB-ASSY, NO.7 SEAT BACK, LH | ||||
| 79033-90B03 |
BB20,RB20..LHD..STD VL |
1 | ||
| 79033-90B02 |
BB20,RB20..LHD..STD VL |
1 | ||
| 79033-90B03 |
BB20,RB20..LHD..STD..SRF..26S..5F S.OMAN SPEC,VL |
1 | ||
| 79033-90B27 |
BB20,RB20..LHD..STD VL |
1 | ||
| 79033-90B2502 |
RB20..LHD..STD VL,RED,RED |
1 | ||
| 79033-90B2506 |
BB21,HB30,HZB30,RB20..LHD..STD VL,SABLE,SABLE |
1 | ||
| 79120 - CUSHION ASSY, NO.1 SEAT, RH | ||||
| 79120-90B07 |
BB20,RB20..LHD..STD VL |
1 | ||
| 79220-90B01 |
BB20,RB20..LHD..STD VL |
1 | ||
| 79120-90B12 |
BB20,21,HB30,RB20..LHD..STD VL |
1 | ||
| 79120-90B1402 |
BB21,HB30,RB20..LHD..STD VL,DARK WINE,DARK WINE |
1 | ||
| 79120-90B1902 |
BB21,HB30,RB20..LHD..STD FB,RED,RED |
1 | ||
| 79120-90B2002 |
BB21,HB30,RB20..LHD..STD VL,W/SUB SEAT,RED,RED |
1 | ||
| 79120-90B1806 |
BB21,HB30,RB20..LHD..STD VL,SABLE,SABLE |
1 | ||
| 79120-90B1802 |
BB21,HB30,RB20..LHD..STD VL,RED,RED |
1 | ||
| 79140 - BACK ASSY, NO.1 SEAT, RH | ||||
| 79740-90B00 |
BB20,RB20..LHD..STD..SRF..26S..5F S.OMAN SPEC,VL |
1 | ||
| 79140-90B01 |
BB20,RB20..LHD..STD VL |
1 | ||
| 79740-90B00 |
BB20,RB20..LHD..STD VL |
1 | ||
| 79140-90B19 |
BB20,21,HB30,RB20..LHD..STD..GEN VL |
1 | ||
| 79140-90B1906 |
BB21,HB30,HZB30,RB20..LHD..STD..GEN VL,SABLE,SABLE |
1 | ||
| 79140-90B3006 |
BB21,HZB30,RB20..LHD..STD..GEN VL,SABLE,SABLE |
1 | ||
| 79220 - CUSHION ASSY, NO.2 SEAT, RH | ||||
| 79220-90B01 |
BB20,RB20..LHD..STD VL |
1 | ||
| 79120-90B07 |
BB20,RB20..LHD..STD VL |
1 | ||
| 79120-90B12 |
BB20,21,RB20..LHD..STD VL |
1 | ||
| 79120-90B1402 |
BB21,RB20..LHD..STD VL,DARK WINE,DARK WINE |
1 | ||
| 79120-90B1802 |
BB21,RB20..LHD..STD VL,RED,RED |
1 | ||
| 79120-90B1806 |
BB21,RB20..LHD..STD VL,SABLE,SABLE |
1 | ||
| 79120-90B2002 |
BB21,RB20..LHD..STD VL,W/SUB SEAT,RED,RED |
1 | ||
| 79120-90B2006 |
BB21,RB20..LHD..STD VL,SABLE,SABLE |
1 | ||
| 79230 - CUSHION ASSY, NO.2 SEAT, LH | ||||
| 79230-90B11 |
BB20,RB20..LHD..STD VL |
1 | ||
| 79230-90B43 |
BB20,RB20..LHD..STD..SRF..26S..GEN PF,W/SEAT BELT |
1 | ||
| 79230-90B5002 |
BB20,RB20..LHD..STD VL,RED |
1 | ||
| 79230-90B17 |
BB20,RB20..LHD..STD VL |
1 | ||
| 79230-90B5002 |
RB20..LHD..STD VL,RED,RED |
1 | ||
| 79230-90B5006 |
BB21,HZB30,RB20..LHD..STD VL,SABLE,SABLE |
1 | ||
| 79240 - BACK ASSY, NO.2 SEAT, RH | ||||
| 79250-90B02 |
BB20,RB20..LHD..STD VL |
1 | ||
| 79140-90B01 |
BB20,RB20..LHD..STD VL,W/GLIDE DOOR |
1 | ||
| 79740-90B00 |
BB20,RB20..LHD..STD..SRF..26S..5F S.OMAN SPEC,VL |
1 | ||
| 79240-90B09 |
BB20,RB20..LHD..STD VL |
1 | ||
| 79140-90B13 |
BB20,RB20..LHD..(22S,26S)..GEN *SAA,S.OMAN SPEC,FB,GLIDE DOOR |
1 | ||
| 79740-90B00 |
BB20,RB20..LHD..STD VL,W/GLIDE DOOR |
1 | ||
| 79140-90B15 |
BB20,RB20..LHD..(22S,26S)..GEN *SAA,S.OMAN SPEC,PF,GLIDE DOOR |
1 | ||
| 79240-90B24 |
BB20,21,HB30,RB20..LHD..STD VL |
1 | ||
| 79140-90B19 |
BB20,21,HB30,RB20..LHD..STD..GEN VL,W/GLIDE DOOR |
1 | ||
| 79240-90B3502 |
BB21,HB30,RB20..LHD..STD VL,RED,RED |
1 | ||
| 79140-90B1906 |
BB21,HB30,HZB30,RB20..LHD..STD..GEN VL,W/GLIDE DOOR,SABLE,SABLE |
1 | ||
| 79240-90B3506 |
BB21,HB30,HZB30,RB20..LHD..STD VL,SABLE,SABLE |
1 | ||
| 79140-90B3006 |
BB21,HZB30,RB20..LHD..STD..GEN VL,W/GLIDE DOOR,SABLE,SABLE |
1 | ||
| 79250 - BACK ASSY, NO.2 SEAT, LH | ||||
| 79340-90B03 |
BB20,RB20..LHD..STD VL |
1 | ||
| 79340-90B02 |
BB20,RB20..LHD..STD VL |
1 | ||
| 79340-90B03 |
BB20,RB20..LHD..STD..SRF..26S..5F S.OMAN SPEC,VL |
1 | ||
| 79340-90B23 |
BB20,21,HB30,RB20..LHD..STD..GEN VL |
1 | ||
| 79340-90B2306 |
BB21,HB30,HZB30,RB20..LHD..STD..GEN VL,SABLE,SABLE |
1 | ||
| 79250-90B3406 |
BB21,HZB30,RB20..LHD..STD..GEN VL,SABLE,SABLE |
1 | ||
| 79330 - CUSHION ASSY, NO.3 SEAT, LH | ||||
| 79330-90B01 |
BB20,RB20..LHD..STD VL |
1 | ||
| 79330-90B15 |
BB20,21,HB30,RB20..LHD..STD VL |
1 | ||
| 79330-90B07 |
BB20,RB20..LHD..STD VL |
1 | ||
| 79330-90B2202 |
BB21,HB30,RB20..LHD..STD VL,RED,RED |
1 | ||
| 79330-90B2206 |
BB21,HB30,HZB30,RB20..LHD..STD VL,SABLE,SABLE |
1 | ||
| 79350 - BACK ASSY, NO.3 SEAT, LH | ||||
| 79340-90B02 |
BB20,RB20..LHD..STD VL |
1 | ||
| 79340-90B03 |
BB20,RB20..LHD..STD..SRF..26S..5F S.OMAN SPEC,VL |
1 | ||
| 79340-90B03 |
BB20,RB20..LHD..STD VL |
1 | ||
| 79340-90B23 |
BB20,21,HB30,RB20..LHD..STD..GEN VL |
1 | ||
| 79340-90B2306 |
BB21,HB30,HZB30,RB20..LHD..STD..GEN VL,SABLE,SABLE |
1 | ||
| 79250-90B3406 |
BB21,HZB30,RB20..LHD..STD..GEN VL,SABLE,SABLE |
1 | ||
| 79420 - CUSHION ASSY, NO.4 SEAT, RH | ||||
| 79420-90B01 |
BB20,RB20..LHD..STD VL |
1 | ||
| 79420-90B07 |
BB20,RB20..LHD..STD VL |
1 | ||
| 79420-90B17 |
BB20,21,HB30,RB20..LHD..STD VL |
1 | ||
| 79420-90B2302 |
BB21,HB30,RB20..LHD..STD VL,RED,RED |
1 | ||
| 79420-90B2306 |
BB21,32,HB30,HZB30,RB20..LHD..STD VL,SABLE,SABLE |
1 | ||
| 79430 - CUSHION ASSY, NO.4 SEAT, LH | ||||
| 79330-90B01 |
BB20,RB20..LHD..STD VL |
1 | ||
| 79330-90B07 |
BB20,RB20..LHD..STD VL |
1 | ||
| 79330-90B15 |
BB20,RB20..LHD..STD VL |
1 | ||
| 79330-90B2202 |
RB20..LHD..STD VL,RED,RED |
1 | ||
| 79330-90B2206 |
BB21,HB30,HZB30,RB20..LHD..STD VL,SABLE,SABLE |
1 | ||
| 79440 - BACK ASSY, NO.4 SEAT, RH | ||||
| 79140-90B01 |
BB20,RB20..LHD..STD VL |
1 | ||
| 79740-90B00 |
BB20,RB20..LHD..STD..SRF..26S..5F S.OMAN SPEC,VL |
1 | ||
| 79740-90B00 |
BB20,RB20..LHD..STD VL |
1 | ||
| 79140-90B19 |
BB20,21,HB30,RB20..LHD..STD..GEN VL |
1 | ||
| 79140-90B1906 |
BB21,HB30,HZB30,RB20..LHD..STD..GEN VL,SABLE,SABLE |
1 | ||
| 79140-90B3006 |
BB21,HZB30,RB20..LHD..STD..GEN VL,SABLE,SABLE |
1 | ||
| 79450 - BACK ASSY, NO.4 SEAT, LH | ||||
| 79340-90B03 |
BB20,RB20..LHD..STD..SRF..26S..5F S.OMAN SPEC,VL |
1 | ||
| 79340-90B02 |
BB20,RB20..LHD..STD VL |
1 | ||
| 79340-90B03 |
BB20,RB20..LHD..STD VL |
1 | ||
| 79340-90B23 |
BB20,21,HB30,RB20..LHD..STD..GEN VL |
1 | ||
| 79340-90B2306 |
BB21,HB30,HZB30,RB20..LHD..STD..GEN VL,SABLE,SABLE |
1 | ||
| 79250-90B3406 |
BB21,HZB30,RB20..LHD..STD..GEN VL,SABLE,SABLE |
1 | ||
| 79620 - CUSHION ASSY, NO.6 SEAT, RH | ||||
| 79620-90B04 |
BB20,RB20..LHD..STD..26S VL |
1 | ||
| 79620-90B17 |
BB20,RB20..LHD..STD..26S VL |
1 | ||
| 79620-90B30 |
BB20,21,HB30,RB20..LHD..STD..(25S,26S,30S) VL |
1 | ||
| 79620-90B4102 |
BB21,HB30,RB20..LHD..STD VL,RED,RED |
1 | ||
| 79620-90B4106 |
BB21,32,HB30,HZB30,RB20..LHD..STD VL,SABLE,SABLE |
1 | ||
| 79630 - CUSHION ASSY, NO.6 SEAT, LH | ||||
| 79630-90B04 |
BB20,RB20..LHD..STD..26S VL |
1 | ||
| 79630-90B36 |
BB20,RB20..LHD..STD..SRF..26S..GEN PF,W/SEAT BELT |
1 | ||
| 79630-90B33 |
BB20,21,HB30,RB20..LHD..STD..(25S,26S,30S) VL |
1 | ||
| 79630-90B15 |
BB20,RB20..LHD..STD..26S VL |
1 | ||
| 79630-90B4202 |
BB21,HB30,RB20..LHD..STD VL,RED,RED |
1 | ||
| 79630-90B4206 |
BB21,32,HB30,HZB30,RB20..LHD..STD VL,SABLE,SABLE |
1 | ||
| 79640 - BACK ASSY, NO.6 SEAT, RH | ||||
| 79740-90B00 |
BB20,RB20..LHD..STD..SRF..26S..5F S.OMAN SPEC,VL |
1 | ||
| 79140-90B01 |
BB20,RB20..LHD..STD..26S VL |
1 | ||
| 79140-90B19 |
BB20,21,HB30,RB20..LHD..STD..(26S,30S) VL |
1 | ||
| 79140-90B1906 |
BB21,32,HB30,HZB30,RB20..LHD..STD..GEN VL,SABLE,SABLE |
1 | ||
| 79140-90B3006 |
BB21,32,HZB30,RB20..LHD..STD..GEN VL,SABLE,SABLE |
1 | ||
| 79650 - BACK ASSY, NO.6 SEAT, LH | ||||
| 79340-90B02 |
BB20,RB20..LHD..STD..26S VL |
1 | ||
| 79340-90B03 |
BB20,RB20..LHD..STD..26S VL |
1 | ||
| 79340-90B03 |
BB20,RB20..LHD..STD..SRF..26S..5F S.OMAN SPEC,VL |
1 | ||
| 79340-90B23 |
BB20,21,HB30,RB20..LHD..STD..(26S,30S) VL |
1 | ||
| 79340-90B2306 |
BB21,32,HB30,HZB30,RB20..LHD..STD..GEN VL,SABLE,SABLE |
1 | ||
| 79250-90B3406 |
BB21,32,HZB30,RB20..LHD..STD..GEN VL,SABLE,SABLE |
1 | ||
| 79720 - CUSHION ASSY, NO.7 SEAT, RH | ||||
| 79620-90B04 |
BB20,RB20..LHD..STD..26S VL |
1 | ||
| 79620-90B17 |
BB20,RB20..LHD..STD..26S VL |
1 | ||
| 79620-90B30 |
BB20,21,HB30,RB20..LHD..STD..(25S,26S,30S) VL |
1 | ||
| 79620-90B4102 |
BB21,HB30,RB20..LHD..STD VL,RED,RED |
1 | ||
| 79620-90B4106 |
BB21,HB30,HZB30,RB20..LHD..STD VL,SABLE,SABLE |
1 | ||
| 79730 - CUSHION ASSY, NO.7 SEAT, LH | ||||
| 79630-90B04 |
BB20,RB20..LHD..STD..26S VL |
1 | ||
| 79630-90B15 |
BB20,RB20..LHD..STD..26S VL |
1 | ||
| 79630-90B33 |
BB20,21,HB30,RB20..LHD..STD..(25S,26S,30S) VL |
1 | ||
| 79630-90B4206 |
BB21,HB30,HZB30,RB20..LHD..STD VL,SABLE,SABLE |
1 | ||
| 79630-90B4202 |
BB21,HB30,RB20..LHD..STD VL,RED,RED |
1 | ||
| 79740 - BACK ASSY, NO.7 SEAT, RH | ||||
| 79740-90B00 |
BB20,RB20..LHD..STD..SRF..26S..5F S.OMAN SPEC,VL |
1 | ||
| 79140-90B01 |
BB20,RB20..LHD..STD VL |
1 | ||
| 79740-90B00 |
BB20,RB20..LHD..STD VL |
1 | ||
| 79140-90B19 |
BB20,RB20..LHD..STD..GEN VL |
1 | ||
| 79140-90B1906 |
BB21,HB30,HZB30,RB20..LHD..STD..GEN VL,SABLE,SABLE |
1 | ||
| 79140-90B3006 |
BB21,HZB30,RB20..LHD..STD..GEN VL,SABLE,SABLE |
1 | ||
| 79750 - BACK ASSY, NO.7 SEAT, LH | ||||
| 79340-90B02 |
BB20,RB20..LHD..STD VL |
1 | ||
| 79340-90B03 |
BB20,RB20..LHD..STD..SRF..26S..5F S.OMAN SPEC,VL |
1 | ||
| 79340-90B03 |
BB20,RB20..LHD..STD VL |
1 | ||
| 79340-90B2306 |
BB21,HB30,HZB30,RB20..LHD..STD..GEN VL,SABLE,SABLE |
1 | ||
| 79340-90B23 |
BB20,21,HB30,RB20..LHD..STD..GEN VL |
1 | ||
| 79250-90B3406 |
BB21,HZB30,RB20..LHD..STD..GEN VL,SABLE,SABLE |
1 | ||
| Common parts | ||||
| 90119-08326 | ||||
| 90119-10037 | ||||
| 90468-18071 | ||||
| 91651-60830 | ||||
| 93210-16016 | ||||
ILLUST NO. 3 OF 4(8504- )BB2#,32,FB30,HB30,HZB30,RB20
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 72853 - PAD, JUNIOR SEAT ARMREST | ||||
| 72853-90B00 |
BB20,21,23,32,HB30,HZB30,RB20 |
1 | ||
| 79081A - COVER SUB-ASSY, NO.8 SEAT CUSHION | ||||
| 79081-90B03 |
BB20,RB20..LHD..STD..SRF..26S..5F S.OMAN SPEC,VL |
1 | ||
| 79081-90B03 |
BB20,RB20..STD VL |
1 | ||
| 79081-90B30 |
BB21,HB30,RB20..STD..(20S,23S,26S,30S) VL |
1 | ||
| 79081-90B02 |
BB20,RB20..STD..GEN VL |
1 | ||
| 79081-90B30 |
BB20,21,HB30,RB20..STD..(20S,22S,23S,25S,26S,30S) VL |
1 | ||
| 79081-90B2806 |
BB21,HB30,HZB30,RB20..STD..(ARL,GEN) VL,SABLE,SABLE |
1 | ||
| 79083A - COVER SUB-ASSY, NO.8 SEAT BACK | ||||
| 79083-90B27 |
BB20,21,HB30,RB20..STD..(20S,22S,23S,25S,26S,30S) VL |
1 | ||
| 79083-90B02 |
BB20,RB20..STD..GEN VL |
1 | ||
| 79083-90B03 |
BB20,RB20..STD VL |
1 | ||
| 79083-90B03 |
BB20,RB20..LHD..STD..SRF..26S..5F S.OMAN SPEC,VL |
1 | ||
| 79083-90B3502 |
BB21,HB30,RB20..STD..(20S,23S,25S,26S,30S) VL,RED,RED |
1 | ||
| 79083-90B3506 |
BB21,HB30,HZB30,RB20..STD VL,SABLE,SABLE |
1 | ||
| 79085 - PAD SUB-ASSY, NO.8 SEAT CUSHION | ||||
| 79085-90B00 |
BB20,21,32,FB30,HB30,HZB30,RB20..DLX,STD |
1 | ||
| 79097 - PARTITION SUB-ASSY, LUGGAGE COMPARTMENT WALL | ||||
| 79097-90B03 |
BB20,21,FB30,HB30,RB20..DLX,STD RH,W/O FOLDING SEAT |
1 | ||
| 79098-90B00 |
BB20,21,FB30,HB30,RB20..DLX,STD LH,W/O FOLDING SEAT |
1 | ||
| 79098-90B0006 |
BB21,32,FB30,HB30,RB20..DLX,STD LH,W/O FOLDING SEAT,SABLE,SABLE |
1 | ||
| 79097-90B0306 |
BB21,32,FB30,HB30,RB20 RH,W/O FOLDING SEAT,SABLE,SABLE |
1 | ||
| 79097 - PARTITION SUB-ASSY, LUGGAGE COMPARTMENT WALL | ||||
| 79097-90B03 |
BB20,21,FB30,HB30,RB20..DLX,STD RH,W/O FOLDING SEAT |
1 | ||
| 79098-90B00 |
BB20,21,FB30,HB30,RB20..DLX,STD LH,W/O FOLDING SEAT |
1 | ||
| 79098-90B0006 |
BB21,32,FB30,HB30,RB20..DLX,STD LH,W/O FOLDING SEAT,SABLE,SABLE |
1 | ||
| 79097-90B0306 |
BB21,32,FB30,HB30,RB20 RH,W/O FOLDING SEAT,SABLE,SABLE |
1 | ||
| 79820A - CUSHION ASSY, NO.8 SEAT | ||||
| 79820-90B07 |
BB20,RB20..LHD..STD..SRF..26S..5F S.OMAN SPEC,VL |
1 | ||
| 79820-90B04 |
BB20,RB20..STD..GEN VL |
1 | ||
| 79820-90B40 |
BB20,21,HB30,RB20..STD..(22S,26S,30S) VL |
1 | ||
| 79820-90B4006 |
BB21,HB30,HZB30,RB20..STD..GEN VL,SABLE,SABLE |
1 | ||
| 79820-90B6706 |
BB21,HZB30,RB20..STD..GEN VL,SABLE,SABLE |
1 | ||
| 79831 - LEG, NO.8 SEAT, FR | ||||
| 79831-90B0006 |
BB21,FB30,HZB30,RB20..DLX,STD SABLE,SABLE |
2 | ||
| 79832 - LEG, NO.8 SEAT, RR | ||||
| 79832-90B0006 |
BB21,FB30,HZB30,RB20..DLX,STD SABLE,SABLE |
2 | ||
| 79840A - BACK ASSY, NO.8 SEAT | ||||
| 79840-90B03 |
BB20,RB20..STD..GEN VL |
1 | ||
| 79840-90B05 |
BB20,RB20..LHD..STD..SRF..26S..5F S.OMAN SPEC,VL |
1 | ||
| 79840-90B28 |
BB20,21,HB30,RB20..STD..(22S,26S,30S) VL |
1 | ||
| 79840-90B2806 |
BB21,HB30,HZB30,RB20..STD..GEN VL,SABLE,SABLE |
1 | ||
| 79840-90B4206 |
BB21,HZB30,RB20..STD..GEN VL,SABLE,SABLE |
1 | ||
| 79860 - SPRING ASSY, NO.8 SEAT CUSHION | ||||
| 79860-90B06 |
BB21,RB20..DLX,STD |
1 | ||
| 79860-90B0606 |
BB21,32,FB30,HB30,HZB30,RB20..DLX,STD SABLE,SABLE |
1 | ||
| 79860-90B01 |
BB20,21,RB20..DLX,STD |
1 | ||
| 79874 - BRACKET, NO.8 SEAT BACK SET | ||||
| 79874-90B0006 |
BB21,FB30,HZB30,RB20..DLX,STD SABLE,SABLE |
1 | ||
| 79875 - PAD, NO.8 SEAT BACK | ||||
| 79875-90B00 |
BB20,21,32,HB30,HZB30,RB20..STD..GEN |
1 | ||
| 79876 - PAD, NO.8 SEAT BACK, A | ||||
| 79876-90B00 |
BB20,21,32,HB30,HZB30,RB20..STD..GEN |
1 | ||
| 79877 - PAD, NO.8 SEAT BACK, B | ||||
| 79877-90B00 |
BB20,21,32,HB30,HZB30,RB20..STD..GEN |
1 | ||
| 79878 - PAD, NO.8 SEAT BACK, C | ||||
| 79878-90B00 |
BB20,21,32,HB30,HZB30,RB20..STD |
2 | ||
| 79878 - PAD, NO.8 SEAT BACK, C | ||||
| 79878-90B00 |
BB20,21,32,HB30,HZB30,RB20..STD |
2 | ||
| 79880 - SPRING ASSY, NO.8 SEAT BACK | ||||
| 79803-90B07 |
BB20,21,HB30,RB20..STD..GEN |
1 | ||
| 79803-90B0706 |
BB21,32,HB30,HZB30,RB20..STD..(GEN,ME) SABLE,SABLE |
1 | ||
| 79981 - SILENCER, LUGGAGE COMPARTMENT WALL | ||||
| 79981-90B00 |
BB20,21,32,FB30,HB30,HZB30,RB20..DLX,STD W/O FOLDING SEAT |
2 | ||
| 79981 - SILENCER, LUGGAGE COMPARTMENT WALL | ||||
| 79981-90B00 |
BB20,21,32,FB30,HB30,HZB30,RB20..DLX,STD W/O FOLDING SEAT |
2 | ||
| Common parts | ||||
| 90119-08258 | ||||
| 90119-08259 | ||||
| 90119-08300 | ||||
| 90119-10017 | ||||
| 90119-10101 | ||||
| 90179-08026 | ||||
| 90183-06043 | ||||
| 90202-07100 | ||||
| 90249-08067 | ||||
| 90386-11006 | ||||
| 90468-18071 | ||||
| 91611-60816 | ||||
| 91661-60820 | ||||
| 93386-15010 | ||||
| 93630-14014 | ||||
| 96160-00600 | ||||
| Linked diagrams | ||||
| 7554 | ||||
ILLUST NO. 1 OF 4(8504- )BB20,21,32,FB30,HB30,HZB30,RB20..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-90B01 |
BB20,RB20..LHD..STD VL |
1 | ||
| 71072-90B07 |
BB20,RB20..LHD..STD VL |
1 | ||
| 71072-90B18 |
BB20,21,HB30,RB20..LHD..STD VL |
1 | ||
| 71072-90B2206 |
BB21,HB30,RB20..LHD..STD VL,SABLE,SABLE |
1 | ||
| 71072-90B2202 |
BB21,HB30,RB20..LHD..STD VL,RED,RED |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71073-90B02 |
BB20,RB20..LHD..STD VL |
1 | ||
| 71073-90B24 |
BB20,21,HB30,RB20..LHD..STD VL |
1 | ||
| 71073-90B03 |
BB20,RB20..LHD..STD VL |
1 | ||
| 71073-90B3506 |
BB21,HB30,RB20..LHD..STD VL,SABLE,SABLE |
1 | ||
| 71073-90B3502 |
BB21,HB30,RB20..LHD..STD VL,RED,RED |
1 | ||
| 71109A - LEG SUB-ASSY, FRONT SEAT | ||||
| 71109-90B0006 |
BB2#,32,FB30,HDB30,HZB30,RB20 SABLE,SABLE |
1 | ||
| 71146 - SILENCER, FRONT SEAT BACK | ||||
| 71146-90304 |
BB2#,32,FB30,HB30,HDB30,HZB30,RB20 |
1 | ||
| 71148 - SILENCER, FRONT SEAT CUSHION | ||||
| 71148-90304 |
BB2#,32,FB30,HB30,HDB30,HZB30,RB20 |
2 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-90B01 |
BB20,RB20..LHD..STD VL |
1 | ||
| 71420-90B06 |
BB20,RB20..LHD..STD VL |
1 | ||
| 71420-90B16 |
BB20,21,HB30,RB20..LHD..STD VL |
1 | ||
| 71420-90B1902 |
BB21,HB30,RB20..LHD..STD VL,RED,RED |
1 | ||
| 71420-90B1906 |
BB21,HB30,RB20..LHD..STD VL,SABLE,SABLE |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-90B06 |
BB20,RB20..LHD..STD VL |
1 | ||
| 71440-90B01 |
BB20,RB20..LHD..STD VL |
1 | ||
| 71440-90B1702 |
BB21,HB30,RB20..LHD..STD VL,RED,RED |
1 | ||
| 71440-90B1706 |
BB21,HB30,RB20..LHD..STD PF,SABLE,SABLE |
1 | ||
| 71440-90B15 |
BB20,21,HB30,RB20..LHD..STD VL |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71501-90B00 |
BB20,21,32,FB30,HB30,HZB30,RB20..LHD |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71505-90B00 |
BB20,21,32,FB30,HB30,HZB30,RB20..LHD |
1 | ||
| 71572A - PAD, FRONT SEAT BACK SILENCER, B | ||||
| 71524-50010 |
RB20..(22S,26S)..GEN 40X60 |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-90A02 |
BB20,21,32,FB30,HB30,HZB30,RB20..LHD |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-90B00 |
BB20,21,32,FB30,HB30,HZB30,RB20..LHD |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 71812-30010 |
BB2#,32,FB30,HB30,HZB30,RB20 |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 71812-30010 |
BB2#,32,FB30,HB30,HZB30,RB20 |
1 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71910-90B00 |
BB20,21,HB30,RB20..LHD..STD |
1 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71956-3002002 |
BB21,HB30,RB20..LHD..STD W/O(LOCK),DARK WINE,DARK WINE |
1 | ||
| 71930-90B00 |
BB20,RB20..LHD..STD |
1 | ||
| 71990-3002002 |
BB21,HB30,RB20..LHD..STD W(LOCK),DARK WINE,DARK WINE |
1 | ||
| 71931-90B00 |
BB20,RB20..LHD..STD W/O LOCK |
1 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71956-3002002 |
BB21,HB30,RB20..LHD..STD W/O(LOCK),DARK WINE,DARK WINE |
1 | ||
| 71930-90B00 |
BB20,RB20..LHD..STD |
1 | ||
| 71990-3002002 |
BB21,HB30,RB20..LHD..STD W(LOCK),DARK WINE,DARK WINE |
1 | ||
| 71931-90B00 |
BB20,RB20..LHD..STD W/O LOCK |
1 | ||
| 72120S - TRACK ASSY, LH SEAT, OUTER (FOR SEPARATE SEAT) | ||||
| 72120-90B00 |
BB20,21,32,FB30,HB30,HZB30,RB20..LHD |
1 | ||
| 72140 - TRACK ASSY, LH SEAT, INNER | ||||
| 72140-90B01 |
BB20,21,32,FB30,HB30,HZB30,RB20..LHD |
1 | ||
| 72140-90B00 |
BB20,RB20..LHD |
1 | ||
| 72510A - SPRING, TENSION, NO.1(FOR RECLINING SEAT ADJUSTER) | ||||
| 90506-18015 |
BB2#,FB30,HB30,RB20 |
1 | ||
| 72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH | ||||
| 72520-90B00 |
BB20,21,32,FB30,HB30,HZB30,RB20..LHD |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72526-1401020 |
BB21,32,FB30,HB30,HZB30,RB20..LHD SABLE,SABLE |
1 | ||
| 72526-90B00 |
BB20,RB20..LHD |
1 | ||
| 72526-1401002 |
BB21,FB30,HB30,RB20..LHD DARK WINE,DARK WINE |
1 | ||
| 72552 - COVER, RECLINING HINGE, NO.2 | ||||
| 72552-90B00 |
BB20,RB20..LHD |
1 | ||
| 72552-90A0036 |
BB21,32,FB30,HB30,HZB30,RB20..LHD SABLE,SABLE |
1 | ||
| 72552-90A0002 |
BB21,FB30,HB30,RB20..LHD DARK WINE,DARK WINE |
1 | ||
| 78071 - COVER SUB-ASSY, SUB SEAT CUSHION, RH | ||||
| 78071-90B03 |
BB20,RB20..LHD..STD VL |
2 | ||
| 78071-90B08 |
BB20,RB20..LHD..STD VL |
2 | ||
| 78071-90B08 |
RB20..LHD..STD..SRF..26S..5F S.OMAN SPEC,VL |
1 | ||
| 78071-90B17 |
BB20,21,HB30,RB20..LHD..STD VL |
2 | ||
| 78071-90B1902 |
BB21,HB30,RB20..LHD..STD VL,RED,RED |
2 | ||
| 78071-90B1906 |
BB21,HB30,RB20..LHD..STD VL,SABLE,SABLE |
4 | ||
| 78072 - COVER SUB-ASSY, SUB SEAT CUSHION, LH | ||||
| 78072-90B03 |
BB20,RB20..LHD..STD..26S VL |
4 | ||
| 78072-90B08 |
BB20,RB20..LHD..STD..26S VL |
4 | ||
| 78072-90B19 |
BB20,21,RB20..LHD..STD..(25S,26S) VL |
4 | ||
| 78072-90B2202 |
BB21,RB20..LHD..STD VL,RED,RED |
4 | ||
| 78072-90B2206 |
BB21,RB20..LHD..STD VL,SABLE,SABLE |
2 | ||
| 78073 - COVER SUB-ASSY, SUB SEAT BACK, RH | ||||
| 78073-90B03 |
BB20,RB20..LHD..STD VL |
2 | ||
| 78073-90B10 |
RB20..LHD..STD..SRF..26S..5F S.OMAN SPEC,VL |
1 | ||
| 78073-90B10 |
BB20,RB20..LHD..STD VL |
2 | ||
| 78073-90B19 |
BB20,21,HB30,RB20..LHD..STD VL |
2 | ||
| 78073-90B2202 |
BB21,HB30,RB20..LHD..STD VL,RED,RED |
2 | ||
| 78073-90B2206 |
BB21,HB30,RB20..LHD..STD VL,SABLE,SABLE |
2 | ||
| 78073 - COVER SUB-ASSY, SUB SEAT BACK, RH | ||||
| 78073-90B03 |
BB20,RB20..LHD..STD VL |
2 | ||
| 78073-90B10 |
RB20..LHD..STD..SRF..26S..5F S.OMAN SPEC,VL |
1 | ||
| 78073-90B10 |
BB20,RB20..LHD..STD VL |
2 | ||
| 78073-90B19 |
BB20,21,HB30,RB20..LHD..STD VL |
2 | ||
| 78073-90B2202 |
BB21,HB30,RB20..LHD..STD VL,RED,RED |
2 | ||
| 78073-90B2206 |
BB21,HB30,RB20..LHD..STD VL,SABLE,SABLE |
2 | ||
| 78074 - COVER SUB-ASSY, SUB SEAT BACK, LH | ||||
| 78073-90B10 |
BB20,RB20..LHD..STD..26S VL |
4 | ||
| 78073-90B03 |
BB20,RB20..LHD..STD..26S VL |
4 | ||
| 78073-90B19 |
BB20,RB20..LHD..STD..26S VL |
4 | ||
| 78073-90B2202 |
RB20..LHD..STD VL,RED,RED |
4 | ||
| 78073-90B2206 |
BB21,RB20..LHD..STD VL,SABLE,SABLE |
2 | ||
| 78074 - COVER SUB-ASSY, SUB SEAT BACK, LH | ||||
| 78073-90B10 |
BB20,RB20..LHD..STD..26S VL |
4 | ||
| 78073-90B03 |
BB20,RB20..LHD..STD..26S VL |
4 | ||
| 78073-90B19 |
BB20,RB20..LHD..STD..26S VL |
4 | ||
| 78073-90B2202 |
RB20..LHD..STD VL,RED,RED |
4 | ||
| 78073-90B2206 |
BB21,RB20..LHD..STD VL,SABLE,SABLE |
2 | ||
| 78077 - BOARD SUB-ASSY, SUB SEAT CUSHION | ||||
| 78078-90B00 |
BB20,21,RB20..LHD..(25S,26S) LH |
2 | ||
| 78077-90B00 |
BB20,21,32,FB30,HB30,HZB30,RB20..LHD..(DLX,STD) RH |
4 | ||
| 78701 - FRAME SUB-ASSY, SUB SEAT CUSHION, RH | ||||
| 78701-90B00 |
BB20,21,FB30,HB30,RB20..LHD..(DLX,STD) |
2 | ||
| 78701-90B0006 |
BB21,32,FB30,HB30,HZB30,RB20..LHD..(DLX,STD) SABLE,SABLE |
4 | ||
| 78701-36010E0 |
RB20..LHD..STD SABLE,SABLE |
4 | ||
| 78702 - FRAME SUB-ASSY, SUB SEAT CUSHION, LH | ||||
| 78702-90B00 |
BB20,21,RB20..LHD..(25S,26S) |
4 | ||
| 78702-90B0006 |
BB21,RB20..LHD..(25S,26S) SABLE,SABLE |
2 | ||
| 78702-36010E0 |
BB21,RB20..GEN,ME MOQUETTE,SABLE,SABLE |
4 | ||
| 78703 - FRAME SUB-ASSY, SUB SEAT BACK | ||||
| 78703-90B00 |
BB20,21,RB20..26S |
6 | ||
| 78703-90B0006 |
BB21,RB20..25S,26S SABLE,SABLE |
5 | ||
| 78703 - FRAME SUB-ASSY, SUB SEAT BACK | ||||
| 78703-90B00 |
BB20,21,RB20..26S |
6 | ||
| 78703-90B0006 |
BB21,RB20..25S,26S SABLE,SABLE |
5 | ||
| 78705 - BRACKET SUB-ASSY, SUB SEAT CUSHION | ||||
| 78705-90B00 |
BB20,21,RB20..25S,26S |
6 | ||
| 78705-90B0006 |
BB21,RB20..25S,26S SABLE,SABLE |
5 | ||
| 78709 - PANEL SUB-ASSY, SUB SEAT CUSHION | ||||
| 78709-90B00 |
BB20,21,RB20..25S,26S |
6 | ||
| 78720 - CUSHION ASSY, SUB SEAT, RH | ||||
| 78720-90B08 |
RB20..LHD..STD..SRF..26S..5F S.OMAN SPEC,VL |
1 | ||
| 78720-90B08 |
BB20,RB20..LHD..STD VL |
2 | ||
| 78720-90B03 |
BB20,RB20..LHD..STD VL |
2 | ||
| 78720-90B17 |
BB20,21,HB30,RB20..LHD..STD VL |
2 | ||
| 78720-90B1902 |
BB21,HB30,RB20..LHD..STD VL,RED,RED |
2 | ||
| 78720-90B1906 |
BB21,HB30,RB20..LHD..STD VL,SABLE,SABLE |
4 | ||
| 78726 - CUSHION, SUB SEAT CUSHION FRAME | ||||
| 78726-90B00 |
BB20,21,RB20..26S |
12 | ||
| 78730 - CUSHION ASSY, SUB SEAT, LH | ||||
| 78730-90B03 |
BB20,RB20..LHD..STD..26S VL |
4 | ||
| 78730-90B08 |
BB20,RB20..LHD..STD..26S VL |
4 | ||
| 78730-90B24 |
BB20,21,RB20..LHD..STD..(25S,26S) VL |
4 | ||
| 78730-90B2602 |
BB21,RB20..LHD..STD VL,RED,RED |
4 | ||
| 78730-90B2606 |
BB21,RB20..LHD..STD VL,SABLE,SABLE |
2 | ||
| 78735 - PAD, SUB SEAT CUSHION | ||||
| 78735-90B00 |
BB20,21,RB20..26S |
6 | ||
| 78740A - BACK ASSY, SUB SEAT, RH | ||||
| 78740-90B10 |
RB20..LHD..STD..SRF..26S..5F S.OMAN SPEC,VL |
1 | ||
| 78740-90B03 |
BB20,RB20..LHD..STD VL |
2 | ||
| 78740-90B10 |
BB20,RB20..LHD..STD VL |
2 | ||
| 78740-90B23 |
BB20,21,HB30,RB20..LHD..STD VL |
2 | ||
| 78740-90B2802 |
BB21,HB30,RB20..LHD..STD VL,RED,RED |
2 | ||
| 78740-90B2806 |
BB21,HB30,RB20..LHD..STD VL,SABLE,SABLE |
4 | ||
| 78740A - BACK ASSY, SUB SEAT, RH | ||||
| 78740-90B10 |
RB20..LHD..STD..SRF..26S..5F S.OMAN SPEC,VL |
1 | ||
| 78740-90B03 |
BB20,RB20..LHD..STD VL |
2 | ||
| 78740-90B10 |
BB20,RB20..LHD..STD VL |
2 | ||
| 78740-90B23 |
BB20,21,HB30,RB20..LHD..STD VL |
2 | ||
| 78740-90B2802 |
BB21,HB30,RB20..LHD..STD VL,RED,RED |
2 | ||
| 78740-90B2806 |
BB21,HB30,RB20..LHD..STD VL,SABLE,SABLE |
4 | ||
| 78750A - BACK ASSY, SUB SEAT, LH | ||||
| 78740-90B03 |
BB20,RB20..LHD..STD..26S VL |
4 | ||
| 78740-90B10 |
BB20,RB20..LHD..STD..26S VL |
4 | ||
| 78740-90B23 |
BB20,21,RB20..LHD..STD..(25S,26S) VL |
4 | ||
| 78740-90B2802 |
BB21,RB20..LHD..STD VL,RED,RED |
4 | ||
| 78740-90B2806 |
BB21,RB20..LHD..STD VL,SABLE,SABLE |
2 | ||
| 78750A - BACK ASSY, SUB SEAT, LH | ||||
| 78740-90B03 |
BB20,RB20..LHD..STD..26S VL |
4 | ||
| 78740-90B10 |
BB20,RB20..LHD..STD..26S VL |
4 | ||
| 78740-90B23 |
BB20,21,RB20..LHD..STD..(25S,26S) VL |
4 | ||
| 78740-90B2802 |
BB21,RB20..LHD..STD VL,RED,RED |
4 | ||
| 78740-90B2806 |
BB21,RB20..LHD..STD VL,SABLE,SABLE |
2 | ||
| 78775 - PAD, SUB SEAT BACK | ||||
| 78775-90B00 |
BB20,21,RB20..25S,26S |
6 | ||
| 78775 - PAD, SUB SEAT BACK | ||||
| 78775-90B00 |
BB20,21,RB20..25S,26S |
6 | ||
| Common parts | ||||
| 90101-10055 | ||||
| 90119-08079 | ||||
| 90119-08258 | ||||
| 90119-08301 | ||||
| 90119-10037 | ||||
| 90154-80045 | ||||
| 90179-08143 | ||||
| 90240-08044 | ||||
| 90255-08002 | ||||
| 90255-08007 | ||||
| 90386-08053 | ||||
| 90386-12005 | ||||
| 90389-08007 | ||||
| 90389-08037 | ||||
| 90468-16012 | ||||
| 90468-18071 | ||||
| 90560-10026 | ||||
| 91651-40620 | ||||
| 91656-60830 | ||||
| 93510-16020 | ||||
| 93540-55010 | ||||
| 93560-13520 | ||||
| 94120-41000 | ||||
| 94543-01200 | ||||
| 94611-20800 | ||||
| 96160-01000 | ||||
ILLUST NO. 2 OF 4(8504- )BB20,21,RB20..LHD..DLX,STD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71604 - GRIP SUB-ASSY, ASSIST(FOR SEAT BACK) | ||||
| 74610-90B01 |
BB2#,RB20..DLX,STD |
12 | ||
| 74610-1002026 |
BB2#,RB20..DLX,STD SABLE,SABLE |
12 | ||
| 71604 - GRIP SUB-ASSY, ASSIST(FOR SEAT BACK) | ||||
| 74610-90B01 |
BB2#,RB20..DLX,STD |
12 | ||
| 74610-1002026 |
BB2#,RB20..DLX,STD SABLE,SABLE |
12 | ||
| 71604C - PLUG, HOLE(FOR ASSIST GRIP) | ||||
| 74617-90B00 |
BB2#,RB20..DLX,STD |
24 | ||
| 74617-1401040 |
BB2#,RB20..DLX,STD SABLE,SABLE |
24 | ||
| 71604C - PLUG, HOLE(FOR ASSIST GRIP) | ||||
| 74617-90B00 |
BB2#,RB20..DLX,STD |
24 | ||
| 74617-1401040 |
BB2#,RB20..DLX,STD SABLE,SABLE |
24 | ||
| 79011 - COVER SUB-ASSY, NO.1 SEAT CUSHION, RH | ||||
| 79011-90B02 |
BB20,RB20..LHD..STD VL |
1 | ||
| 79011-90B13 |
BB20,21,HB30,RB20..LHD..STD VL |
1 | ||
| 79021-90B01 |
BB20,RB20..LHD..STD VL |
1 | ||
| 79011-90B1802 |
BB21,HB30,RB20..LHD..STD VL,DARK WINE,DARK WINE |
1 | ||
| 79011-90B2106 |
BB21,HB30,RB20..LHD..STD VL,SABLE,SABLE |
1 | ||
| 79011-90B2502 |
BB21,HB30,RB20..LHD..STD VL,W/SUB SEAT,RED,RED |
1 | ||
| 79011-90B2102 |
BB21,HB30,RB20..LHD..STD VL,RED,RED |
1 | ||
| 79013 - COVER SUB-ASSY, NO.1 SEAT BACK, RH | ||||
| 79013-90B02 |
BB20,RB20..LHD..STD VL |
1 | ||
| 79013-90B03 |
BB20,RB20..LHD..STD..SRF..26S..5F S.OMAN SPEC,VL |
1 | ||
| 79013-90B03 |
BB20,RB20..LHD..STD VL |
1 | ||
| 79013-90B33 |
BB20,21,HB30,RB20..LHD..STD VL |
1 | ||
| 79013-90B4402 |
BB21,HB30,RB20..LHD..STD..GEN VL,RED,RED |
1 | ||
| 79013-90B4406 |
BB21,HB30,RB20..LHD..STD VL,SABLE,BROWN |
1 | ||
| 79015A - PAD SUB-ASSY, NO.1 SEAT CUSHION, RH | ||||
| 79015-90B00 |
BB20,21,FB30,HB30,HZB30,RB20..LHD..(DLX,STD) |
1 | ||
| 79017A - PAD SUB-ASSY, NO.1 SEAT BACK, RH | ||||
| 79175-90B03 |
BB20,21,HB30,HZB30,RB20..LHD..STD |
1 | ||
| 79021 - COVER SUB-ASSY, NO.2 SEAT CUSHION, RH | ||||
| 79011-90B02 |
BB20,RB20..LHD..STD VL |
1 | ||
| 79021-90B01 |
BB20,RB20..LHD..STD VL |
1 | ||
| 79011-90B1802 |
BB21,HB30,RB20..LHD..STD VL,DARK WINE,DARK WINE |
1 | ||
| 79011-90B13 |
BB20,21,HB30,RB20..LHD..STD VL |
1 | ||
| 79011-90B2506 |
BB21,HB30,HZB30,RB20..LHD..STD VL,SABLE,SABLE |
1 | ||
| 79011-90B2502 |
BB21,HB30,RB20..LHD..STD VL,RED,RED |
1 | ||
| 79011-90B2106 |
BB21,HZB30,RB20..LHD..STD VL,SABLE,SABLE |
1 | ||
| 79022 - COVER SUB-ASSY, NO.2 SEAT CUSHION, LH | ||||
| 79022-90B09 |
BB20,RB20..LHD..STD VL |
1 | ||
| 79022-90B16 |
BB20,RB20..LHD..STD VL |
1 | ||
| 79022-90B26 |
BB20,RB20..LHD..STD VL |
1 | ||
| 79022-90B4406 |
BB21,HZB30,RB20..LHD..STD VL,SABLE,SABLE |
1 | ||
| 79022-90B4402 |
RB20..LHD..STD VL,RED,RED |
1 | ||
| 79023 - COVER SUB-ASSY, NO.2 SEAT BACK, RH | ||||
| 79013-90B02 |
BB20,RB20..LHD..STD VL |
1 | ||
| 79013-90B03 |
BB20,RB20..LHD..STD..SRF..26S..5F S.OMAN SPEC,VL |
1 | ||
| 79013-90B03 |
BB20,RB20..LHD..STD VL |
1 | ||
| 79013-90B33 |
BB20,RB20..LHD..STD VL |
1 | ||
| 79013-90B4402 |
RB20..LHD..STD VL,RED,RED |
1 | ||
| 79013-90B4406 |
BB21,HB30,HZB30,RB20..LHD..STD VL,*NSW,SABLE,BROWN |
2 | ||
| 79024 - COVER SUB-ASSY, NO.2 SEAT BACK, LH | ||||
| 79033-90B02 |
BB20,RB20..LHD..STD VL |
1 | ||
| 79033-90B03 |
BB20,RB20..LHD..STD..SRF..26S..5F S.OMAN SPEC,VL |
1 | ||
| 79033-90B03 |
BB20,RB20..LHD..STD VL |
1 | ||
| 79033-90B27 |
BB20,21,HB30,RB20..LHD..STD VL |
1 | ||
| 79033-90B2502 |
BB21,HB30,RB20..LHD..STD VL,RED,RED |
1 | ||
| 79033-90B2506 |
BB21,HB30,HZB30,RB20..LHD..STD VL,SABLE,SABLE |
1 | ||
| 79025A - PAD SUB-ASSY, NO.2 SEAT CUSHION, RH | ||||
| 79015-90B00 |
BB20,21,FB30,HB30,HZB30,RB20..LHD..(DLX,STD) |
1 | ||
| 79026A - PAD SUB-ASSY, NO.2 SEAT CUSHION, LH | ||||
| 79035-90B00 |
BB20,21,FB30,HB30,HZB30,RB20..LHD..(DLX,STD) |
1 | ||
| 79027A - PAD SUB-ASSY, NO.2 SEAT BACK, RH | ||||
| 79017-90B00 |
BB20,RB20..LHD..(22S,26S)..GEN *SAA,S.OMAN SPEC,W/GLIDE DOOR |
1 | ||
| 79175-90B03 |
BB20,21,HB30,HZB30,RB20..LHD..STD |
1 | ||
| 79028A - PAD SUB-ASSY, NO.2 SEAT BACK, LH | ||||
| 79175-90B03 |
BB2#,HB30,HZB30,RB20..STD..GEN |
1 | ||
| 79375-90B01 |
BB20,21,HB30,HZB30,RB20..LHD..STD |
1 | ||
| 79032 - COVER SUB-ASSY, NO.3 SEAT CUSHION, LH | ||||
| 79032-90B01 |
BB20,RB20..LHD..STD VL |
1 | ||
| 79032-90B13 |
BB20,21,HB30,RB20..LHD..STD VL |
1 | ||
| 79032-90B07 |
BB20,RB20..LHD..STD VL |
1 | ||
| 79032-90B2202 |
BB21,HB30,RB20..LHD..STD VL,RED,RED |
1 | ||
| 79032-90B2206 |
BB21,HB30,HZB30,RB20..LHD..STD VL,SABLE,SABLE |
1 | ||
| 79034 - COVER SUB-ASSY, NO.3 SEAT BACK, LH | ||||
| 79033-90B02 |
BB20,RB20..LHD..STD VL |
1 | ||
| 79033-90B2502 |
BB21,HB30,RB20..LHD..STD..GEN VL,RED,RED |
1 | ||
| 79033-90B27 |
BB20,21,HB30,RB20..LHD..STD VL |
1 | ||
| 79033-90B03 |
BB20,RB20..LHD..STD VL |
1 | ||
| 79033-90B03 |
BB20,RB20..LHD..STD..SRF..26S..5F S.OMAN SPEC,VL |
1 | ||
| 79033-90B2506 |
BB21,HB30,HZB30,RB20..LHD..STD VL,SABLE,SABLE |
1 | ||
| 79036A - PAD, SUB-ASSY, NO.3 SEAT CUSHION, LH | ||||
| 79035-90B00 |
BB20,21,FB30,HB30,HZB30,RB20..LHD..(DLX,STD) |
1 | ||
| 79038A - PAD SUB-ASSY, NO.3 SEAT BACK, LH | ||||
| 79375-90B01 |
BB20,21,HB30,HZB30,RB20..LHD..STD |
1 | ||
| 79041 - COVER SUB-ASSY, NO.4 SEAT CUSHION, RH | ||||
| 79021-90B01 |
BB20,RB20..LHD..STD VL |
1 | ||
| 79011-90B02 |
BB20,RB20..LHD..STD VL |
1 | ||
| 79011-90B13 |
BB20,21,HB30,RB20..LHD..STD VL |
1 | ||
| 79011-90B1802 |
BB21,HB30,RB20..LHD..STD VL,DARK WINE,DARK WINE |
1 | ||
| 79011-90B2502 |
BB21,HB30,RB20..LHD..STD VL,RED,RED |
1 | ||
| 79011-90B2506 |
BB21,32,HB30,HZB30,RB20..LHD..STD VL,SABLE,SABLE |
1 | ||
| 79011-90B2106 |
BB21,32,HZB30,RB20..LHD..STD VL,SABLE,SABLE |
1 | ||
| 79042 - COVER SUB-ASSY, NO.4 SEAT CUSHION, LH | ||||
| 79032-90B01 |
BB20,RB20..LHD..STD VL |
1 | ||
| 79032-90B13 |
BB20,21,HB30,RB20..LHD..STD VL |
1 | ||
| 79032-90B07 |
BB20,RB20..LHD..STD VL |
1 | ||
| 79032-90B2202 |
BB21,HB30,RB20..LHD..STD VL,RED,RED |
1 | ||
| 79032-90B2206 |
BB21,32,HB30,HZB30,RB20..LHD..STD VL,SABLE,SABLE |
1 | ||
| 79043 - COVER SUB-ASSY, NO.4 SEAT BACK, RH | ||||
| 79013-90B02 |
BB20,RB20..LHD..STD VL |
1 | ||
| 79013-90B33 |
BB20,21,HB30,RB20..LHD..STD VL |
1 | ||
| 79013-90B03 |
BB20,RB20..LHD..STD..SRF..26S..5F S.OMAN SPEC,VL |
1 | ||
| 79013-90B03 |
BB20,RB20..LHD..STD VL |
1 | ||
| 79013-90B4402 |
BB21,HB30,RB20..LHD..STD VL,RED,RED |
1 | ||
| 79013-90B4406 |
BB21,32,HB30,HZB30,RB20..LHD..STD VL,SABLE,BROWN |
1 | ||
| 79044 - COVER SUB-ASSY, NO.4 SEAT BACK, LH | ||||
| 79033-90B03 |
BB20,RB20..LHD..STD..SRF..26S..5F S.OMAN SPEC,VL |
1 | ||
| 79033-90B02 |
BB20,RB20..LHD..STD VL |
1 | ||
| 79033-90B03 |
BB20,RB20..LHD..STD VL |
1 | ||
| 79031-90B17 |
BB20,21,HB30,RB20..LHD..STD VL |
1 | ||
| 79033-90B2506 |
BB21,32,HB30,HZB30,RB20..LHD..STD VL,SABLE,SABLE |
1 | ||
| 79045A - PAD SUB-ASSY, NO.4 SEAT CUSHION, RH | ||||
| 79015-90B00 |
BB20,21,FB30,HB30,HZB30,RB20..LHD..(DLX,STD) |
1 | ||
| 79046A - PAD SUB-ASSY, NO.4 SEAT CUSHION, LH | ||||
| 79035-90B00 |
BB20,21,FB30,HB30,HZB30,RB20..LHD..(DLX,STD) |
1 | ||
| 79047A - PAD SUB-ASSY, NO.4 SEAT BACK, RH | ||||
| 79175-90B03 |
BB20,21,HB30,HZB30,RB20..LHD..STD |
1 | ||
| 79048A - PAD SUB-ASSY, NO.4 SEAT BACK, LH | ||||
| 79375-90B01 |
BB20,21,HB30,HZB30,RB20..LHD..STD |
1 | ||
| 79061 - COVER SUB-ASSY, NO.6 SEAT CUSHION, RH | ||||
| 79021-90B01 |
BB20,RB20..LHD..STD..26S VL |
1 | ||
| 79011-90B02 |
BB20,RB20..LHD..STD..26S VL |
1 | ||
| 79032-90B16 |
BB20,21,HB30,RB20..LHD..STD..(25S,26S,30S) VL |
1 | ||
| 79032-90B1606 |
BB21,32,HB30,HZB30,RB20..LHD..STD VL,SABLE,SABLE |
1 | ||
| 79011-90B3206 |
BB21,FB30,HZB30,RB20..LHD..(26S,30S)..GEN MOQUETTE,SABLE,SABLE |
1 | ||
| 79062 - COVER SUB-ASSY, NO.6 SEAT CUSHION, LH | ||||
| 79032-90B01 |
BB20,RB20..LHD..STD..26S VL |
1 | ||
| 79032-90B07 |
BB20,RB20..LHD..STD..26S VL |
1 | ||
| 79032-90B13 |
BB20,21,HB30,RB20..LHD..STD..(25S,26S,30S) VL |
1 | ||
| 79032-90B2202 |
BB21,HB30,RB20..LHD..STD VL,RED,RED |
1 | ||
| 79032-90B2206 |
BB21,32,HB30,HZB30,RB20..LHD..STD VL,SABLE,SABLE |
1 | ||
| 79063 - COVER SUB-ASSY, NO.6 SEAT BACK, RH | ||||
| 79013-90B03 |
BB20,RB20..LHD..STD..SRF..26S..5F S.OMAN SPEC,VL |
1 | ||
| 79013-90B02 |
BB20,RB20..LHD..STD..26S VL |
1 | ||
| 79013-90B33 |
BB20,21,HB30,RB20..LHD..STD..(25S,26S,30S) VL |
1 | ||
| 79013-90B03 |
BB20,RB20..LHD..STD..26S VL |
1 | ||
| 79013-90B4402 |
BB21,HB30,RB20..LHD..STD VL,RED,RED |
1 | ||
| 79013-90B4406 |
BB21,32,HB30,HZB30,RB20..LHD..STD VL,SABLE,BROWN |
1 | ||
| 79064 - COVER SUB-ASSY, NO.6 SEAT BACK, LH | ||||
| 79033-90B02 |
BB20,RB20..LHD..STD..26S VL |
1 | ||
| 79033-90B03 |
BB20,RB20..LHD..STD..26S VL |
1 | ||
| 79033-90B27 |
BB20,21,HB30,RB20..LHD..STD..(25S,26S,30S) VL |
1 | ||
| 79033-90B2502 |
BB21,HB30,RB20..LHD..STD VL,RED,RED |
1 | ||
| 79033-90B03 |
BB20,RB20..LHD..STD..SRF..26S..5F S.OMAN SPEC,VL |
1 | ||
| 79033-90B2506 |
BB21,32,HB30,HZB30,RB20..LHD..STD VL,SABLE,SABLE |
1 | ||
| 79065A - PAD SUB-ASSY, NO.6 SEAT CUSHION, RH | ||||
| 79015-90B00 |
BB20,21,32,FB30,HB30,HZB30,RB20..LHD..(25S,26S,29S,30S) |
1 | ||
| 79066A - PAD SUB-ASSY, NO.6 SEAT CUSHION, LH | ||||
| 79035-90B00 |
BB20,21,32,FB30,HB30,HZB30,RB20..LHD..(25S,26S,29S,30S) |
1 | ||
| 79067A - PAD SUB-ASSY, NO.6 SEAT BACK, RH | ||||
| 79175-90B03 |
BB20,21,32,HB30,HZB30,RB20..LHD..STD..(25S,26S,30S) |
1 | ||
| 79068A - PAD SUB-ASSY, NO.6 SEAT BACK, LH | ||||
| 79375-90B01 |
BB20,21,32,HB30,HZB30,RB20..LHD..STD..(25S,26S,30S) |
1 | ||
| 79071 - COVER SUB-ASSY, NO.7 SEAT CUSHION, RH | ||||
| 79021-90B01 |
BB20,RB20..LHD..STD VL |
1 | ||
| 79011-90B02 |
BB20,RB20..LHD..STD VL |
1 | ||
| 79011-90B1802 |
BB21,HB30,RB20..LHD..STD VL,DARK WINE,DARK WINE |
1 | ||
| 79011-90B13 |
BB20,21,HB30,RB20..LHD..STD VL |
1 | ||
| 79011-90B2502 |
BB21,HB30,RB20..LHD..STD VL,RED,RED |
1 | ||
| 79011-90B2506 |
BB21,HB30,RB20..LHD..STD VL,SABLE,SABLE |
1 | ||
| 79011-90B3306 |
BB21,FB30,HZB30,RB20..LHD..GEN PF,SABLE,SABLE |
1 | ||
| 79072 - COVER SUB-ASSY, NO.7 SEAT CUSHION, LH | ||||
| 79032-90B01 |
BB20,RB20..LHD..STD VL |
1 | ||
| 79032-90B07 |
BB20,RB20..LHD..STD VL |
1 | ||
| 79032-90B13 |
BB20,21,HB30,RB20..LHD..STD VL |
1 | ||
| 79032-90B2202 |
BB21,HB30,RB20..LHD..STD VL,RED,RED |
1 | ||
| 79032-90B2206 |
BB21,HB30,HZB30,RB20..LHD..STD VL,SABLE,SABLE |
1 | ||
| 79073 - COVER SUB-ASSY, NO.7 SEAT BACK, RH | ||||
| 79013-90B02 |
BB20,RB20..LHD..STD VL |
1 | ||
| 79013-90B03 |
BB20,RB20..LHD..STD..SRF..26S..5F S.OMAN SPEC,VL |
1 | ||
| 79013-90B03 |
BB20,RB20..LHD..STD VL |
1 | ||
| 79013-90B33 |
BB20,21,HB30,RB20..LHD..STD VL |
1 | ||
| 79013-90B4402 |
BB21,HB30,RB20..LHD..STD VL,RED,RED |
1 | ||
| 79074 - COVER SUB-ASSY, NO.7 SEAT BACK, LH | ||||
| 79033-90B03 |
BB20,RB20..LHD..STD VL |
1 | ||
| 79033-90B02 |
BB20,RB20..LHD..STD VL |
1 | ||
| 79033-90B03 |
BB20,RB20..LHD..STD..SRF..26S..5F S.OMAN SPEC,VL |
1 | ||
| 79033-90B27 |
BB20,RB20..LHD..STD VL |
1 | ||
| 79033-90B2502 |
RB20..LHD..STD VL,RED,RED |
1 | ||
| 79033-90B2506 |
BB21,HB30,HZB30,RB20..LHD..STD VL,SABLE,SABLE |
1 | ||
| 79075A - PAD SUB-ASSY, NO.7 SEAT CUSHION, RH | ||||
| 79015-90B00 |
BB20,21,32,FB30,HB30,HZB30,RB20..LHD..(DLX,STD) |
2 | ||
| 79076A - PAD SUB-ASSY, NO.7 SEAT CUSHION | ||||
| 79035-90B00 |
BB20,21,32,FB30,HB30,HZB30,RB20..LHD..(DLX,STD) |
1 | ||
| 79077A - PAD SUB-ASSY, NO.7 SEAT BACK, RH | ||||
| 79175-90B03 |
BB20,21,32,HB30,HZB30,RB20..LHD..STD |
1 | ||
| 79078A - PAD SUB-ASSY, NO.7 SEAT BACK, LH | ||||
| 79375-90B01 |
BB20,21,32,HB30,HZB30,RB20..LHD..STD |
1 | ||
| 79105 - LEG SUB-ASSY, NO.1 SEAT, RH | ||||
| 79106-90B0006 |
BB21,FB30,HZB30,RB20..LHD..(DLX,STD)..GEN SABLE,SABLE |
1 | ||
| 79120 - CUSHION ASSY, NO.1 SEAT, RH | ||||
| 79120-90B07 |
BB20,RB20..LHD..STD VL |
1 | ||
| 79220-90B01 |
BB20,RB20..LHD..STD VL |
1 | ||
| 79120-90B12 |
BB20,21,HB30,RB20..LHD..STD VL |
1 | ||
| 79120-90B1402 |
BB21,HB30,RB20..LHD..STD VL,DARK WINE,DARK WINE |
1 | ||
| 79120-90B1902 |
BB21,HB30,RB20..LHD..STD FB,RED,RED |
1 | ||
| 79120-90B2002 |
BB21,HB30,RB20..LHD..STD VL,W/SUB SEAT,RED,RED |
1 | ||
| 79120-90B1806 |
BB21,HB30,RB20..LHD..STD VL,SABLE,SABLE |
1 | ||
| 79120-90B1802 |
BB21,HB30,RB20..LHD..STD VL,RED,RED |
1 | ||
| 79140 - BACK ASSY, NO.1 SEAT, RH | ||||
| 79740-90B00 |
BB20,RB20..LHD..STD..SRF..26S..5F S.OMAN SPEC,VL |
1 | ||
| 79140-90B01 |
BB20,RB20..LHD..STD VL |
1 | ||
| 79740-90B00 |
BB20,RB20..LHD..STD VL |
1 | ||
| 79140-90B19 |
BB20,21,HB30,RB20..LHD..STD..GEN VL |
1 | ||
| 79140-90B1906 |
BB21,HB30,HZB30,RB20..LHD..STD..GEN VL,SABLE,SABLE |
1 | ||
| 79140-90B3006 |
BB21,HZB30,RB20..LHD..STD..GEN VL,SABLE,SABLE |
1 | ||
| 79160A - SPRING ASSY, NO.1 SEAT CUSHION, RH | ||||
| 79260-90B0006 |
BB21,FB30,HB30,HZB30,RB20..LHD..(DLX,STD) SABLE,SABLE |
1 | ||
| 79260-90B00 |
BB20,21,FB30,HB30,RB20..LHD..(DLX,STD) |
1 | ||
| 79180A - SPRING ASSY, NO.1 SEAT BACK, RH | ||||
| 79103-90B01 |
BB20,21,HB30,RB20..LHD..STD |
1 | ||
| 79103-90B0106 |
BB21,HB30,HZB30,RB20..LHD..STD SABLE,SABLE |
1 | ||
| 79205B - LEG SUB-ASSY, NO.2 SEAT, RH | ||||
| 79134-90B0406 |
BB21,32,FB30,HZB30,RB20..LHD..(DLX,STD) SABLE,SABLE |
1 | ||
| 79206B - LEG SUB-ASSY, NO.2 SEAT, LH | ||||
| 79234-90B0106 |
BB21,RB20..LHD..(DLX,STD) SABLE,SABLE |
1 | ||
| 79220 - CUSHION ASSY, NO.2 SEAT, RH | ||||
| 79220-90B01 |
BB20,RB20..LHD..STD VL |
1 | ||
| 79120-90B07 |
BB20,RB20..LHD..STD VL |
1 | ||
| 79120-90B12 |
BB20,21,RB20..LHD..STD VL |
1 | ||
| 79120-90B1402 |
BB21,RB20..LHD..STD VL,DARK WINE,DARK WINE |
1 | ||
| 79120-90B1802 |
BB21,RB20..LHD..STD VL,RED,RED |
1 | ||
| 79120-90B1806 |
BB21,RB20..LHD..STD VL,SABLE,SABLE |
1 | ||
| 79120-90B2002 |
BB21,RB20..LHD..STD VL,W/SUB SEAT,RED,RED |
1 | ||
| 79120-90B2006 |
BB21,RB20..LHD..STD VL,SABLE,SABLE |
1 | ||
| 79230 - CUSHION ASSY, NO.2 SEAT, LH | ||||
| 79230-90B11 |
BB20,RB20..LHD..STD VL |
1 | ||
| 79230-90B43 |
BB20,RB20..LHD..STD..SRF..26S..GEN PF,W/SEAT BELT |
1 | ||
| 79230-90B5002 |
BB20,RB20..LHD..STD VL,RED |
1 | ||
| 79230-90B17 |
BB20,RB20..LHD..STD VL |
1 | ||
| 79230-90B5002 |
RB20..LHD..STD VL,RED,RED |
1 | ||
| 79230-90B5006 |
BB21,HZB30,RB20..LHD..STD VL,SABLE,SABLE |
1 | ||
| 79240 - BACK ASSY, NO.2 SEAT, RH | ||||
| 79250-90B02 |
BB20,RB20..LHD..STD VL |
1 | ||
| 79140-90B01 |
BB20,RB20..LHD..STD VL,W/GLIDE DOOR |
1 | ||
| 79740-90B00 |
BB20,RB20..LHD..STD..SRF..26S..5F S.OMAN SPEC,VL |
1 | ||
| 79240-90B09 |
BB20,RB20..LHD..STD VL |
1 | ||
| 79140-90B13 |
BB20,RB20..LHD..(22S,26S)..GEN *SAA,S.OMAN SPEC,FB,GLIDE DOOR |
1 | ||
| 79740-90B00 |
BB20,RB20..LHD..STD VL,W/GLIDE DOOR |
1 | ||
| 79140-90B15 |
BB20,RB20..LHD..(22S,26S)..GEN *SAA,S.OMAN SPEC,PF,GLIDE DOOR |
1 | ||
| 79240-90B24 |
BB20,21,HB30,RB20..LHD..STD VL |
1 | ||
| 79140-90B19 |
BB20,21,HB30,RB20..LHD..STD..GEN VL,W/GLIDE DOOR |
1 | ||
| 79240-90B3502 |
BB21,HB30,RB20..LHD..STD VL,RED,RED |
1 | ||
| 79140-90B1906 |
BB21,HB30,HZB30,RB20..LHD..STD..GEN VL,W/GLIDE DOOR,SABLE,SABLE |
1 | ||
| 79240-90B3506 |
BB21,HB30,HZB30,RB20..LHD..STD VL,SABLE,SABLE |
1 | ||
| 79140-90B3006 |
BB21,HZB30,RB20..LHD..STD..GEN VL,W/GLIDE DOOR,SABLE,SABLE |
1 | ||
| 79250 - BACK ASSY, NO.2 SEAT, LH | ||||
| 79340-90B03 |
BB20,RB20..LHD..STD VL |
1 | ||
| 79340-90B02 |
BB20,RB20..LHD..STD VL |
1 | ||
| 79340-90B03 |
BB20,RB20..LHD..STD..SRF..26S..5F S.OMAN SPEC,VL |
1 | ||
| 79340-90B23 |
BB20,21,HB30,RB20..LHD..STD..GEN VL |
1 | ||
| 79340-90B2306 |
BB21,HB30,HZB30,RB20..LHD..STD..GEN VL,SABLE,SABLE |
1 | ||
| 79250-90B3406 |
BB21,HZB30,RB20..LHD..STD..GEN VL,SABLE,SABLE |
1 | ||
| 79260A - SPRING ASSY, NO.2 SEAT CUSHION, RH | ||||
| 79260-90B00 |
BB20,21,FB30,HB30,RB20..LHD..(DLX,STD) |
1 | ||
| 79260-90B0006 |
BB21,FB30,HB30,HZB30,RB20..LHD..(DLX,STD) SABLE,SABLE |
1 | ||
| 79270A - SPRING ASSY, NO.2 SEAT CUSHION, LH | ||||
| 79370-90B03 |
BB20,RB20..LHD..STD..SRF..26S..GEN W/SEAT BELT |
1 | ||
| 79370-90B00 |
BB20,21,FB30,HB30,RB20..LHD..(DLX,STD) |
1 | ||
| 79370-90B0006 |
BB21,FB30,HB30,HZB30,RB20..LHD..(DLX,STD) SABLE,SABLE |
1 | ||
| 79280A - SPRING ASSY, NO.2 SEAT BACK, RH | ||||
| 79180-90B00 |
BB20,21,FB30,HB30,RB20..LHD..(DLX,STD) W/GLIDE DOOR,PF,FB |
1 | ||
| 79103-90B01 |
BB20,21,HB30,RB20..LHD..STD W/GLIDE DOOR,VL |
1 | ||
| 79103-90B0106 |
BB21,HB30,HZB30,RB20..LHD..STD *NSW,BROWN,SABLE |
2 | ||
| 79204-90B01 |
BB20,21,HB30,RB20..LHD..STD |
1 | ||
| 79204-90B0106 |
BB21,HB30,HZB30,RB20..LHD..STD SABLE,SABLE |
1 | ||
| 79290A - SPRING ASSY, NO.2 SEAT BACK, LH | ||||
| 79303-90B01 |
BB20,21,HB30,RB20..LHD..STD |
1 | ||
| 79306 - LEG SUB ASSY, NO.3 SEAT, LH | ||||
| 79405-90B0006 |
BB21,32,FB30,HZB30,RB20..LHD..(DLX,STD) SABLE,SABLE |
1 | ||
| 79330 - CUSHION ASSY, NO.3 SEAT, LH | ||||
| 79330-90B01 |
BB20,RB20..LHD..STD VL |
1 | ||
| 79330-90B15 |
BB20,21,HB30,RB20..LHD..STD VL |
1 | ||
| 79330-90B07 |
BB20,RB20..LHD..STD VL |
1 | ||
| 79330-90B2202 |
BB21,HB30,RB20..LHD..STD VL,RED,RED |
1 | ||
| 79330-90B2206 |
BB21,HB30,HZB30,RB20..LHD..STD VL,SABLE,SABLE |
1 | ||
| 79350 - BACK ASSY, NO.3 SEAT, LH | ||||
| 79340-90B02 |
BB20,RB20..LHD..STD VL |
1 | ||
| 79340-90B03 |
BB20,RB20..LHD..STD..SRF..26S..5F S.OMAN SPEC,VL |
1 | ||
| 79340-90B03 |
BB20,RB20..LHD..STD VL |
1 | ||
| 79340-90B23 |
BB20,21,HB30,RB20..LHD..STD..GEN VL |
1 | ||
| 79340-90B2306 |
BB21,HB30,HZB30,RB20..LHD..STD..GEN VL,SABLE,SABLE |
1 | ||
| 79250-90B3406 |
BB21,HZB30,RB20..LHD..STD..GEN VL,SABLE,SABLE |
1 | ||
| 79370A - SPRING ASSY, NO.3 SEAT CUSHION, LH | ||||
| 79370-90B03 |
BB20,RB20..LHD..STD..SRF..26S..GEN W/SEAT BELT |
1 | ||
| 79370-90B0006 |
BB21,FB30,HB30,HZB30,RB20..LHD..(DLX,STD) SABLE,SABLE |
1 | ||
| 79370-90B00 |
BB20,21,FB30,HB30,RB20..LHD..(DLX,STD) |
1 | ||
| 79390A - SPRING ASSY, NO.3 SEAT BACK, LH | ||||
| 79303-90B01 |
BB20,21,HB30,RB20..LHD..STD |
1 | ||
| 79303-90B0106 |
BB21,HB30,HZB30,RB20..LHD..STD SABLE,SABLE |
1 | ||
| 79405A - LEG SUB-ASSY, NO.4 SEAT, RH | ||||
| 79433-90B0206 |
BB21,32,FB30,HZB30,RB20..LHD..(DLX,STD) SABLE,SABLE |
1 | ||
| 79406A - LEG SUB-ASSY, NO.4 SEAT, LH | ||||
| 79405-90B0006 |
BB21,32,FB30,HZB30,RB20..LHD..(DLX,STD) SABLE,SABLE |
1 | ||
| 79420 - CUSHION ASSY, NO.4 SEAT, RH | ||||
| 79420-90B01 |
BB20,RB20..LHD..STD VL |
1 | ||
| 79420-90B07 |
BB20,RB20..LHD..STD VL |
1 | ||
| 79420-90B17 |
BB20,21,HB30,RB20..LHD..STD VL |
1 | ||
| 79420-90B2302 |
BB21,HB30,RB20..LHD..STD VL,RED,RED |
1 | ||
| 79420-90B2306 |
BB21,32,HB30,HZB30,RB20..LHD..STD VL,SABLE,SABLE |
1 | ||
| 79430 - CUSHION ASSY, NO.4 SEAT, LH | ||||
| 79330-90B01 |
BB20,RB20..LHD..STD VL |
1 | ||
| 79330-90B07 |
BB20,RB20..LHD..STD VL |
1 | ||
| 79330-90B15 |
BB20,RB20..LHD..STD VL |
1 | ||
| 79330-90B2202 |
RB20..LHD..STD VL,RED,RED |
1 | ||
| 79330-90B2206 |
BB21,HB30,HZB30,RB20..LHD..STD VL,SABLE,SABLE |
1 | ||
| 79440 - BACK ASSY, NO.4 SEAT, RH | ||||
| 79140-90B01 |
BB20,RB20..LHD..STD VL |
1 | ||
| 79740-90B00 |
BB20,RB20..LHD..STD..SRF..26S..5F S.OMAN SPEC,VL |
1 | ||
| 79740-90B00 |
BB20,RB20..LHD..STD VL |
1 | ||
| 79140-90B19 |
BB20,21,HB30,RB20..LHD..STD..GEN VL |
1 | ||
| 79140-90B1906 |
BB21,HB30,HZB30,RB20..LHD..STD..GEN VL,SABLE,SABLE |
1 | ||
| 79140-90B3006 |
BB21,HZB30,RB20..LHD..STD..GEN VL,SABLE,SABLE |
1 | ||
| 79450 - BACK ASSY, NO.4 SEAT, LH | ||||
| 79340-90B03 |
BB20,RB20..LHD..STD..SRF..26S..5F S.OMAN SPEC,VL |
1 | ||
| 79340-90B02 |
BB20,RB20..LHD..STD VL |
1 | ||
| 79340-90B03 |
BB20,RB20..LHD..STD VL |
1 | ||
| 79340-90B23 |
BB20,21,HB30,RB20..LHD..STD..GEN VL |
1 | ||
| 79340-90B2306 |
BB21,HB30,HZB30,RB20..LHD..STD..GEN VL,SABLE,SABLE |
1 | ||
| 79250-90B3406 |
BB21,HZB30,RB20..LHD..STD..GEN VL,SABLE,SABLE |
1 | ||
| 79460A - SPRING ASSY, NO.4 SEAT CUSHION, RH | ||||
| 79460-90B01 |
BB20,21,FB30,HB30,RB20..LHD..(DLX,STD) |
1 | ||
| 79460-90B0106 |
BB21,FB30,HB30,HZB30,RB20..LHD..(DLX,STD) SABLE,SABLE |
1 | ||
| 79470A - SPRING ASSY, NO.4 SEAT CUSHION, LH | ||||
| 79370-90B03 |
BB20,RB20..LHD..STD..SRF..26S..GEN W/SEAT BELT |
1 | ||
| 79370-90B00 |
BB20,21,FB30,HB30,RB20..LHD..(DLX,STD) |
1 | ||
| 79370-90B0006 |
BB21,FB30,HB30,HZB30,RB20..LHD..(DLX,STD) SABLE,SABLE |
1 | ||
| 79480A - SPRING ASSY, NO.4 SEAT BACK, RH | ||||
| 79103-90B01 |
BB20,21,HB30,RB20..LHD..STD |
1 | ||
| 79103-90B0106 |
BB21,HB30,RB20..LHD..STD SABLE,SABLE |
1 | ||
| 79490A - SPRING ASSY, NO.4 SEAT BACK, LH | ||||
| 79303-90B01 |
BB20,21,HB30,RB20..LHD..STD |
1 | ||
| 79605 - LEG SUB-ASSY, NO.6 SEAT, RH | ||||
| 79643-90B0006 |
BB21,RB20..LHD..26S..GEN FR,SABLE,SABLE |
1 | ||
| 79644-90B0006 |
BB21,RB20..LHD..26S..GEN RR,SABLE,SABLE |
1 | ||
| 79605 - LEG SUB-ASSY, NO.6 SEAT, RH | ||||
| 79643-90B0006 |
BB21,RB20..LHD..26S..GEN FR,SABLE,SABLE |
1 | ||
| 79644-90B0006 |
BB21,RB20..LHD..26S..GEN RR,SABLE,SABLE |
1 | ||
| 79605 - LEG SUB-ASSY, NO.6 SEAT, RH | ||||
| 79643-90B0006 |
BB21,RB20..LHD..26S..GEN FR,SABLE,SABLE |
1 | ||
| 79644-90B0006 |
BB21,RB20..LHD..26S..GEN RR,SABLE,SABLE |
1 | ||
| 79606 - LEG SUB-ASSY, NO.6 SEAT, LH | ||||
| 79605-90B0006 |
BB21,RB20..LHD..26S..GEN SABLE,SABLE |
1 | ||
| 79620 - CUSHION ASSY, NO.6 SEAT, RH | ||||
| 79620-90B04 |
BB20,RB20..LHD..STD..26S VL |
1 | ||
| 79620-90B17 |
BB20,RB20..LHD..STD..26S VL |
1 | ||
| 79620-90B30 |
BB20,21,HB30,RB20..LHD..STD..(25S,26S,30S) VL |
1 | ||
| 79620-90B4102 |
BB21,HB30,RB20..LHD..STD VL,RED,RED |
1 | ||
| 79620-90B4106 |
BB21,32,HB30,HZB30,RB20..LHD..STD VL,SABLE,SABLE |
1 | ||
| 79630 - CUSHION ASSY, NO.6 SEAT, LH | ||||
| 79630-90B04 |
BB20,RB20..LHD..STD..26S VL |
1 | ||
| 79630-90B36 |
BB20,RB20..LHD..STD..SRF..26S..GEN PF,W/SEAT BELT |
1 | ||
| 79630-90B33 |
BB20,21,HB30,RB20..LHD..STD..(25S,26S,30S) VL |
1 | ||
| 79630-90B15 |
BB20,RB20..LHD..STD..26S VL |
1 | ||
| 79630-90B4202 |
BB21,HB30,RB20..LHD..STD VL,RED,RED |
1 | ||
| 79630-90B4206 |
BB21,32,HB30,HZB30,RB20..LHD..STD VL,SABLE,SABLE |
1 | ||
| 79640 - BACK ASSY, NO.6 SEAT, RH | ||||
| 79740-90B00 |
BB20,RB20..LHD..STD..SRF..26S..5F S.OMAN SPEC,VL |
1 | ||
| 79140-90B01 |
BB20,RB20..LHD..STD..26S VL |
1 | ||
| 79140-90B19 |
BB20,21,HB30,RB20..LHD..STD..(26S,30S) VL |
1 | ||
| 79140-90B1906 |
BB21,32,HB30,HZB30,RB20..LHD..STD..GEN VL,SABLE,SABLE |
1 | ||
| 79140-90B3006 |
BB21,32,HZB30,RB20..LHD..STD..GEN VL,SABLE,SABLE |
1 | ||
| 79650 - BACK ASSY, NO.6 SEAT, LH | ||||
| 79340-90B02 |
BB20,RB20..LHD..STD..26S VL |
1 | ||
| 79340-90B03 |
BB20,RB20..LHD..STD..26S VL |
1 | ||
| 79340-90B03 |
BB20,RB20..LHD..STD..SRF..26S..5F S.OMAN SPEC,VL |
1 | ||
| 79340-90B23 |
BB20,21,HB30,RB20..LHD..STD..(26S,30S) VL |
1 | ||
| 79340-90B2306 |
BB21,32,HB30,HZB30,RB20..LHD..STD..GEN VL,SABLE,SABLE |
1 | ||
| 79250-90B3406 |
BB21,32,HZB30,RB20..LHD..STD..GEN VL,SABLE,SABLE |
1 | ||
| 79660A - SPRING ASSY, NO.6 SEAT CUSHION, RH | ||||
| 79660-90B03 |
BB20,21,FB30,HB30,RB20..LHD..(25S,26S,29S,30S) |
1 | ||
| 79660-90B0306 |
BB32,FB30,HB30,HZB30,RB20..LHD..(26S,29S,30S) SABLE,SABLE |
1 | ||
| 79670B - SPRING ASSY, NO.6 SEAT CUSHION, LH | ||||
| 79670-90B05 |
BB20,RB20..LHD..STD..SRF..26S..GEN W/SEAT BELT |
1 | ||
| 79670-90B01 |
BB20,21,FB30,HB30,RB20..LHD..(25S,26S,29S,30S) |
1 | ||
| 79680B - SPRING ASSY, NO.6 SEAT BACK, RH | ||||
| 79103-90B0106 |
BB21,32,HB30,HZB30,RB20..LHD..STD SABLE,SABLE |
1 | ||
| 79103-90B01 |
BB20,21,HB30,RB20..LHD..STD..(25S,26S,30S) |
1 | ||
| 79690A - SPRING ASSY, NO.6 SEAT BACK, LH | ||||
| 79303-90B01 |
BB20,21,HB30,RB20..LHD..STD..(25S,26S,30S) |
1 | ||
| 79303-90B0106 |
BB21,32,HB30,HZB30,RB20..LHD..STD SABLE,SABLE |
1 | ||
| 79705 - LEG SUB-ASSY, NO.7 SEAT, RH | ||||
| 79733-90B0006 |
BB21,RB20..LHD..26S..GEN SABLE,SABLE |
1 | ||
| 79705 - LEG SUB-ASSY, NO.7 SEAT, RH | ||||
| 79733-90B0006 |
BB21,RB20..LHD..26S..GEN SABLE,SABLE |
1 | ||
| 79705 - LEG SUB-ASSY, NO.7 SEAT, RH | ||||
| 79733-90B0006 |
BB21,RB20..LHD..26S..GEN SABLE,SABLE |
1 | ||
| 79706 - LEG SUB-ASSY, NO.7 SEAT, LH | ||||
| 79605-90B0006 |
BB21,RB20..LHD..26S..GEN SABLE,SABLE |
1 | ||
| 79720 - CUSHION ASSY, NO.7 SEAT, RH | ||||
| 79620-90B04 |
BB20,RB20..LHD..STD..26S VL |
1 | ||
| 79620-90B17 |
BB20,RB20..LHD..STD..26S VL |
1 | ||
| 79620-90B30 |
BB20,21,HB30,RB20..LHD..STD..(25S,26S,30S) VL |
1 | ||
| 79620-90B4102 |
BB21,HB30,RB20..LHD..STD VL,RED,RED |
1 | ||
| 79620-90B4106 |
BB21,HB30,HZB30,RB20..LHD..STD VL,SABLE,SABLE |
1 | ||
| 79730 - CUSHION ASSY, NO.7 SEAT, LH | ||||
| 79630-90B04 |
BB20,RB20..LHD..STD..26S VL |
1 | ||
| 79630-90B15 |
BB20,RB20..LHD..STD..26S VL |
1 | ||
| 79630-90B33 |
BB20,21,HB30,RB20..LHD..STD..(25S,26S,30S) VL |
1 | ||
| 79630-90B4206 |
BB21,HB30,HZB30,RB20..LHD..STD VL,SABLE,SABLE |
1 | ||
| 79630-90B4202 |
BB21,HB30,RB20..LHD..STD VL,RED,RED |
1 | ||
| 79740 - BACK ASSY, NO.7 SEAT, RH | ||||
| 79740-90B00 |
BB20,RB20..LHD..STD..SRF..26S..5F S.OMAN SPEC,VL |
1 | ||
| 79140-90B01 |
BB20,RB20..LHD..STD VL |
1 | ||
| 79740-90B00 |
BB20,RB20..LHD..STD VL |
1 | ||
| 79140-90B19 |
BB20,RB20..LHD..STD..GEN VL |
1 | ||
| 79140-90B1906 |
BB21,HB30,HZB30,RB20..LHD..STD..GEN VL,SABLE,SABLE |
1 | ||
| 79140-90B3006 |
BB21,HZB30,RB20..LHD..STD..GEN VL,SABLE,SABLE |
1 | ||
| 79750 - BACK ASSY, NO.7 SEAT, LH | ||||
| 79340-90B02 |
BB20,RB20..LHD..STD VL |
1 | ||
| 79340-90B03 |
BB20,RB20..LHD..STD..SRF..26S..5F S.OMAN SPEC,VL |
1 | ||
| 79340-90B03 |
BB20,RB20..LHD..STD VL |
1 | ||
| 79340-90B2306 |
BB21,HB30,HZB30,RB20..LHD..STD..GEN VL,SABLE,SABLE |
1 | ||
| 79340-90B23 |
BB20,21,HB30,RB20..LHD..STD..GEN VL |
1 | ||
| 79250-90B3406 |
BB21,HZB30,RB20..LHD..STD..GEN VL,SABLE,SABLE |
1 | ||
| 79760A - SPRING ASSY, NO.7 SEAT CUSHION, RH | ||||
| 79660-90B03 |
BB20,21,FB30,HB30,RB20..LHD..(25S,26S,29S,30S) |
1 | ||
| 79660-90B0306 |
BB21,32,FB30,HB30,HZB30,RB20..LHD..(25S,26S,29S,30S) SABLE,SABLE |
1 | ||
| 79770A - SPRING ASSY, NO.7 SEAT CUSHION, LH | ||||
| 79670-90B05 |
BB20,RB20..LHD..STD..SRF..26S..GEN W/SEAT BELT |
1 | ||
| 79670-90B01 |
BB20,21,FB30,HB30,RB20..LHD..(25S,26S,29S,30S) |
1 | ||
| 79780A - SPRING ASSY, NO.7 SEAT BACK, RH | ||||
| 79103-90B01 |
BB20,21,HB30,RB20..LHD..STD |
1 | ||
| 79103-90B0106 |
BB21,32,HB30,HZB30,RB20..LHD..STD SABLE,SABLE |
1 | ||
| 79790A - SPRING ASSY, NO.7 SEAT BACK, LH | ||||
| 79303-90B01 |
BB20,21,HB30,RB20..LHD..STD |
1 | ||
| 79303-90B0106 |
BB21,32,HB30,HZB30,RB20..LHD..STD SABLE,SABLE |
1 | ||
| Common parts | ||||
| 90119-08326 | ||||
| 90119-10037 | ||||
| 90468-18071 | ||||
| 91651-60820 | ||||
| 93210-16016 | ||||
ILLUST NO. 4 OF 4(9001- )HZB30..ARL ; (9001- )LHD..25S,26S
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-08258 | ||||
| 90119-08300 | ||||
| 90119-08301 | ||||
| 90119-08325 | ||||
| 90119-08326 | ||||
| 90119-10017 | ||||
| 90661-60820 | ||||
| 91661-60820 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
