RB20L-MDZRV (1985)

Toyota Coaster

Production Oct 1985 - Jan 1993
Engine 22R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

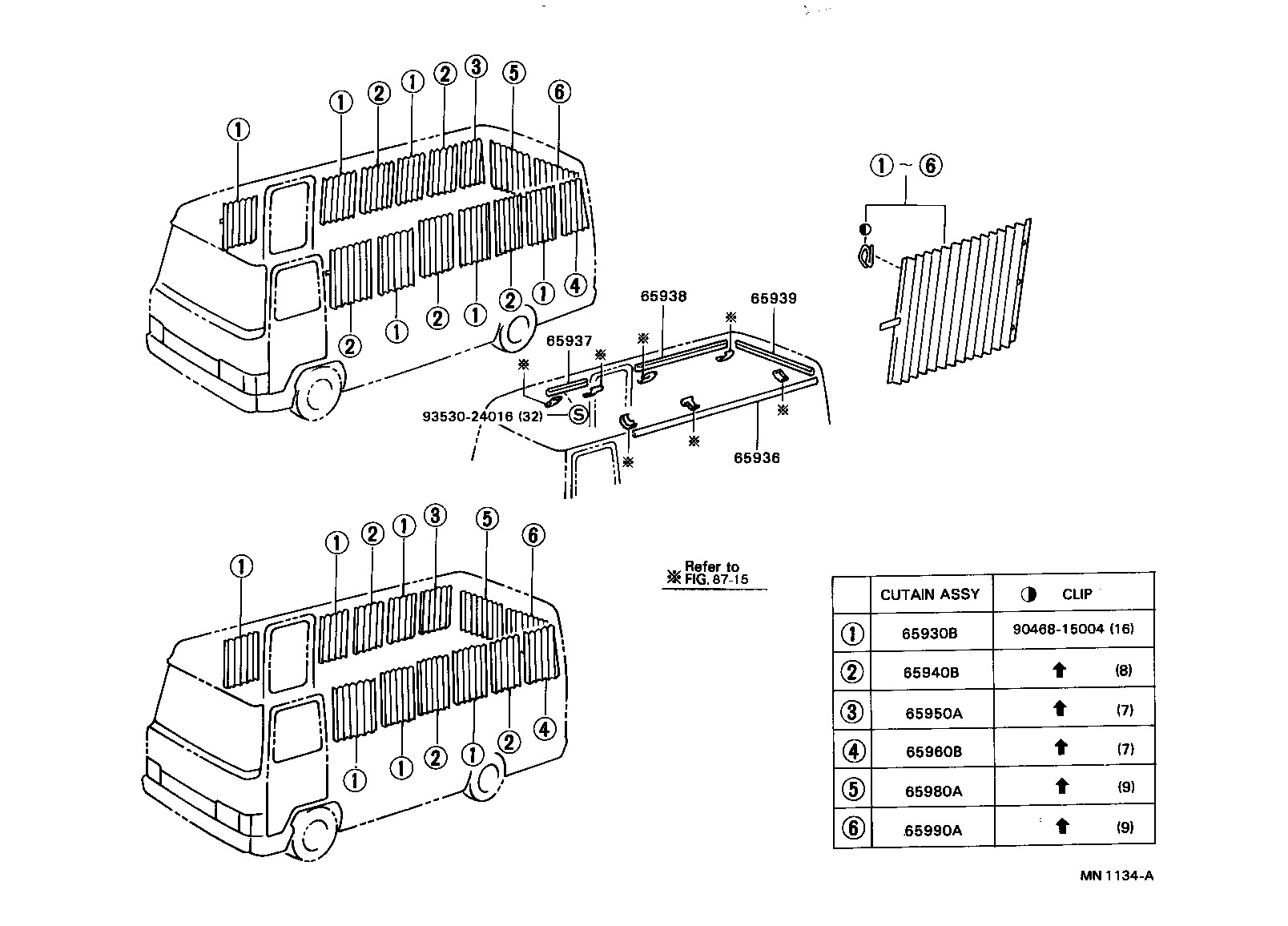

ILLUST NO. 2 OF 2(9102- )WC..ME

Click highlighted areas on diagram

diagram 65930B 65936 65937 65938 65939 65940B 65950A 65960B 65980A 65990A 8715 9046815004 9353024016
Part # Description Qty Price
65930B - CURTAIN ASSY, SIDE WINDOW, FRONT RH
65930-90B00

BB21,RB20..WC..ME

 4
65930-36010

BB21,FB30,HZB30,RB20..WC..ME

 1
65936 - RAIL, CURTAIN, NO.1
65096-3601008

BB21,RB20..WC..ME

IVORY,IVORY

 1
65937 - RAIL, CURTAIN, NO.2
65097-3601008

BB21,FB30,HZB30,RB20..WC..ME

IVORY,IVORY

 1
65938 - RAIL, CURTAIN, NO.3
65098-3601008

BB21,RB20..WC..ME

IVORY,IVORY

 1
65939 - RAIL, CURTAIN, NO.4
65099-90B0008

BB21,FB30,HZB30,RB20..WC..ME

IVORY,IVORY

 1
65940B - CURTAIN ASSY, SIDE WINDOW, FRONT LH
65940-90B00

BB21,RB20..WC..ME

 4
65950A - CURTAIN ASSY, SIDE WINDOW, REAR RH
65950-90B02

BB21,RB20..WC..ME

 1
65960B - CURTAIN ASSY, SIDE WINDOW, REAR LH
65960-90B02

BB21,RB20..WC..ME

 1
65980A - CURTAIN ASSY, BACK WINDOW, RH
65980-90B00

FB30,HZB30,RB20..HRF..ME

 1
65990A - CURTAIN ASSY, BACK WINDOW, LH
65990-90B00

FB30,HZB30,RB20..HRF..ME

 1
Common parts
90468-15004
93530-24016
Linked diagrams
8715
