RB20L-MDZER (1982)

Toyota Coaster

Production May 1982 - Jan 1993
Engine 22R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

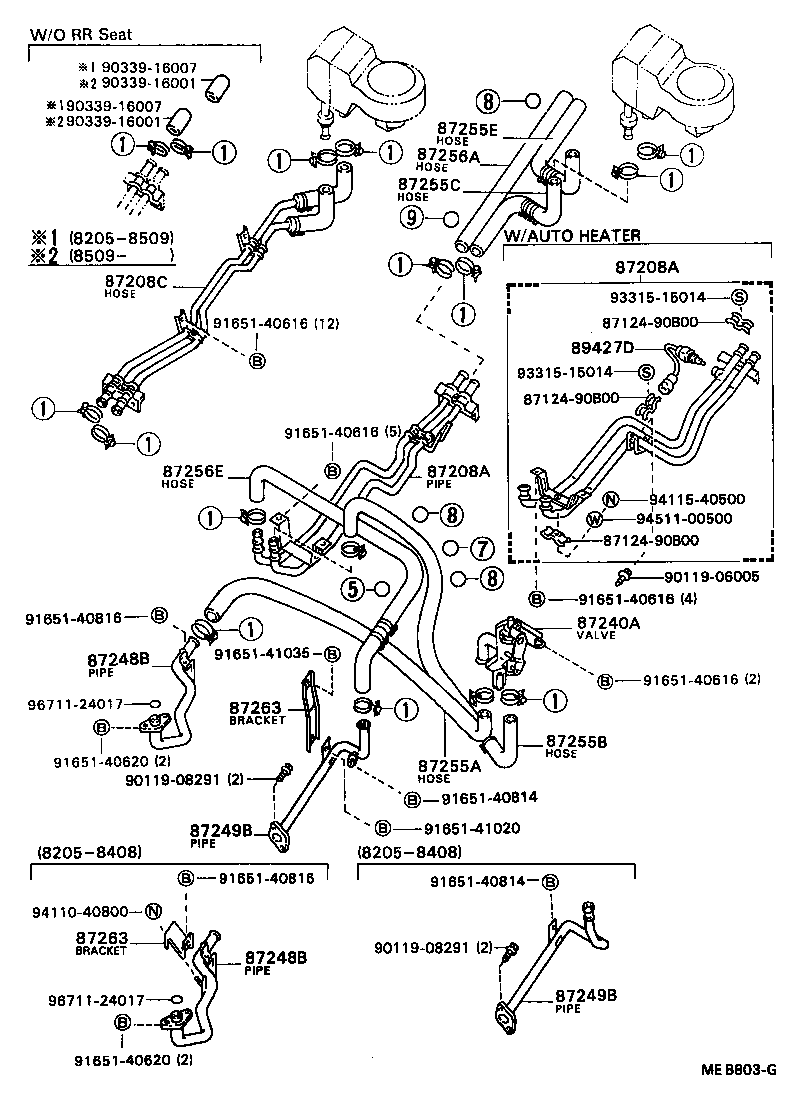

ILLUST NO. 2 OF 3(8205- )RB20..LHD

Click highlighted areas on diagram

diagram 8712490B00 8712490B00 8712490B00 87208A 87208A 87208C 87240A 87248B 87248B 87249B 87249B 87255A 87255B 87255C 87255E 87256A 87256E 87263 87263 89427D 9011906005 9011908291 9011908291 9033916001 9033916001 9033916007 9033916007 9165140616 9165140616 9165140616 9165140616 9165140620 9165140620 9165140814 9165140814 9165140816 9165140816 9165141020 9165141035 9331515014 9331515014 9411040800 9411540500 9451100500 9671124017 9671124017
Part # Description Qty Price
87208A - PIPE SUB-ASSY, HEATER WATER, A
87208-90B06

BB20,21,FB30,HB30,HDB30,HZB30,RB20..LHD

HB30,FB30,HDB30,HZB30:NO.1

 1
87208A - PIPE SUB-ASSY, HEATER WATER, A
87208-90B06

BB20,21,FB30,HB30,HDB30,HZB30,RB20..LHD

HB30,FB30,HDB30,HZB30:NO.1

 1
87208C - PIPE SUB-ASSY, HEATER WATER, C
87209-90B16

BB20,21,RB20..LHD..(17S,22S)

 1
87240A - VALVE ASSY, REAR HEATER WATER
87240-90B03

BB20,21,FB30,HB30,HDB30,HZB30,RB20..LHD

 1
87248B - PIPE, HEATER WATER INLET, B
87208-36030

RB20..GEN

 1
87208-90B15

RB20

W/HEATER

 1
87208-90B11

RB20

W/HEATER

 1
87248B - PIPE, HEATER WATER INLET, B
87208-36030

RB20..GEN

 1
87208-90B15

RB20

W/HEATER

 1
87208-90B11

RB20

W/HEATER

 1
87249B - PIPE, HEATER WATER OUTLET, B
87208-22030

RB20

 1
87208-20062

RB20

 1
87249B - PIPE, HEATER WATER OUTLET, B
87208-22030

RB20

 1
87208-20062

RB20

 1
87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE)
87209-90B10

RB20..LHD

 1
87255B - HOSE, REAR HEATER WATER INLET, B
87209-90B22

BB20,21,RB20..LHD

 1
87255C - HOSE, REAR HEATER WATER INLET, C
87209-90B17

BB20,21,RB20..16S,17S,22S

 1
87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT)
87245-90B17

BB20,21,RB20..LHD..(17S,22S)

 1
87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT)
99552-31000

BB20,RB20

*H,L=730

 1
99556-30980

BB21,RB20;BB20..16S,20S,22S,26S

*H,L=730

 1
87256E - HOSE, REAR HEATER WATER OUTLET, E (TO ENGINE)
87209-90B05

RB20..LHD

 1
87209-90B22

RB20..LHD

 1
87263 - BRACKET, HEATER WATER PIPE, NO.1
87263-90B01

RB20

 1
87263-14140

RB20

 1
87263 - BRACKET, HEATER WATER PIPE, NO.1
87263-90B01

RB20

 1
87263-14140

RB20

 1
Common parts
87124-90B00
90119-06005
90119-08291
90339-16001
90339-16007
91651-40616
91651-40620
91651-40814
91651-40816
91651-41020
91651-41035
93315-15014
94110-40800
94115-40500
94511-00500
96711-24017

ILLUST NO. 3 OF 3(8205- )

Click highlighted areas on diagram

diagram 8271122270 8712490B00 8712490B01 8712490B02 8712490B03 8712490B05 8712490B09 9046024039 9046108157 9046108347 9046108630 9046110117 9046110262 9046110263 9046400413 9165140616 9165140616 9165140616 9165140616 9165140616 9165140616 9165140616 9165140616 9165140616 9165140616 9165140616 9165140616 9611210250 9611210360
Part # Description Qty Price
Common parts
82711-22270
87124-90B00
87124-90B01
87124-90B02
87124-90B03
87124-90B05
87124-90B09
90460-24039
90461-08157
90461-08347
90461-08630
90461-10117
90461-10262
90461-10263
90464-00413
91651-40616
96112-10250
96112-10360

ILLUST NO. 1 OF 3(8205- )RB20

Click highlighted areas on diagram

diagram 87240 87245A 87245B 87245E 87246A 87246E 87248A 87249A 87251 9033916001 9033916007 9034553006 9034553007 9165140616 9165140616
Part # Description Qty Price
87240 - VALVE ASSY, HEATER WATER
87240-90B02

BB20,21,3#,FB30,HB30,HDB30,HZB30,RB20..LHD

 1
87245A - HOSE, HEATER WATER, INLET A
99552-30700

RB20

*H,L=600

 1
99556-30700

RB20

*H,L=600

 1
87245B - HOSE, HEATER WATER, INLET B
87245-90B01

RB20

 1
87245-90B02

RB20

 1
87245E - HOSE, HEATER WATER, INLET E
87245-90B00

BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-90B04

BB20,21,23,3#,RB20

 1
87246E - HOSE, HEATER WATER, OUTLET E
99556-30500

RB20

*H,L=460

 1
99552-30500

RB20

*H,L=460

 1
87248A - PIPE, HEATER WATER INLET, A
87208-90B07

RB20

 1
87249A - PIPE, HEATER WATER OUTLET, A
87208-90B08

RB20

 1
87251 - JOINT OR UNION, WATER HOSE THROUGH
87251-14010

RB20

 1
Common parts
90339-16001
90339-16007
90345-53006
90345-53007
91651-40616

ILLUST NO. 3 OF 3(8205- )

Click highlighted areas on diagram

diagram 8712490B00 8712490B00 8712490B00 8712490B06 8712490B07 8871895412 9046027001 9046400427 9165140812 9165140812 9331590B00 9331590B00 9411540500 9451100500
Part # Description Qty Price
Common parts
87124-90B00
87124-90B06
87124-90B07
88718-95412
90460-27001
90464-00427
91651-40812
93315-90B00
94115-40500
94511-00500
