RB13R-MDZER (1980)
Toyota Coaster
Production
Aug 1980
-
Apr 1982
Engine
22R
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8111- )22R

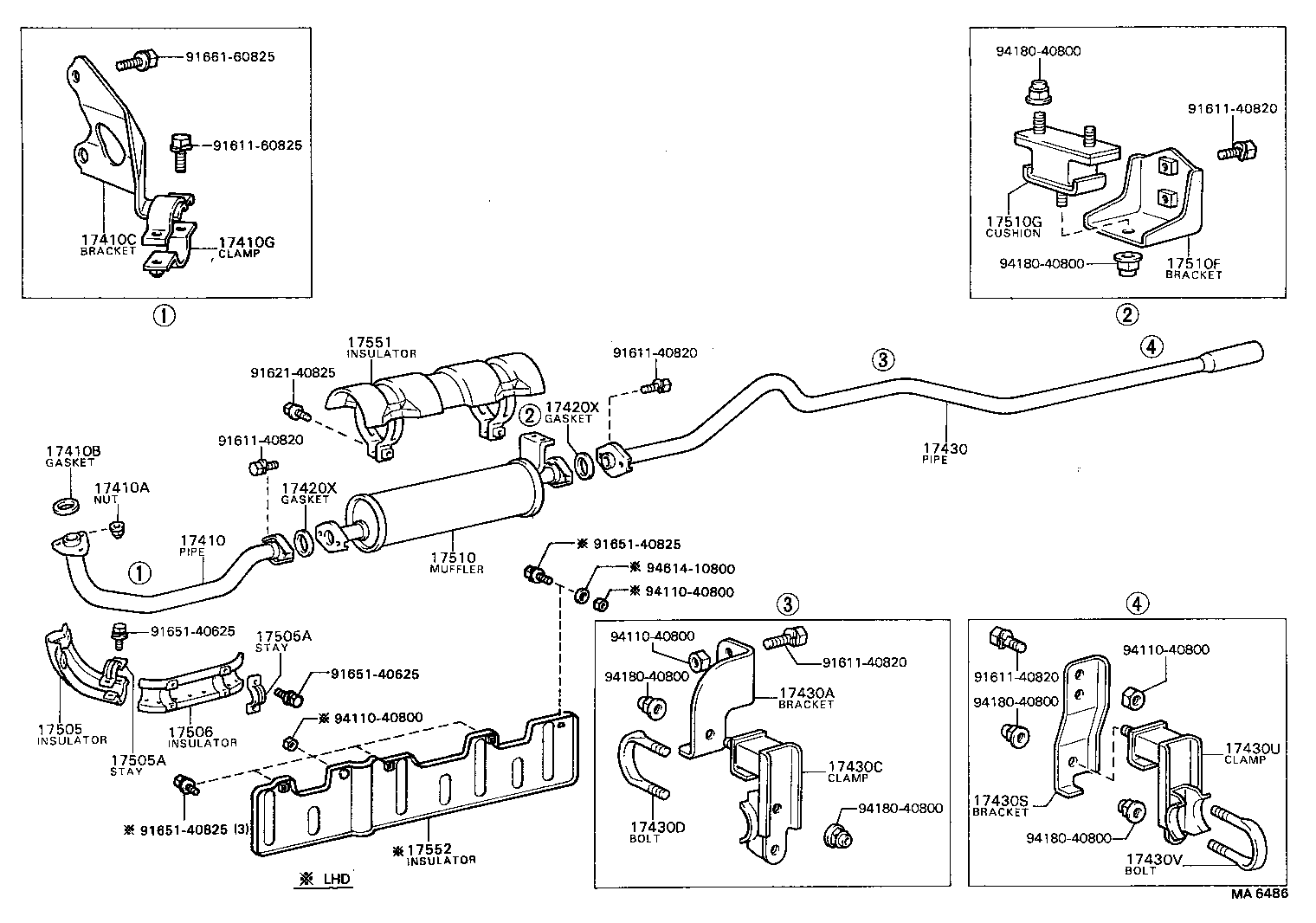

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06012 |
20R,22R..RB11,13 |
1 | ||
| 17420X - GASKET, EXHAUST PIPE, CENTER | ||||
| 90917-06008 |
22R..RB13 FR |
1 | ||
| 90917-06004 |
22R..RB13 RR |
1 | ||
| 17420X - GASKET, EXHAUST PIPE, CENTER | ||||
| 90917-06008 |
22R..RB13 FR |
1 | ||
| 90917-06004 |
22R..RB13 RR |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17405-38021 |
22R..RB13 |
1 | ||
| 17505 - INSULATOR SUB-ASSY, EXHAUST PIPE HEAT NO.1 | ||||
| 17505-38030 |
20R,22R..RB11,13..BC |
1 | ||
| 17505A - CLAMP, EXHAUST PIPE(FOR HEAT INSULATOR) | ||||
| 17541-34020 |
20R,22R..RB11,13..BC |
4 | ||
| 17505A - CLAMP, EXHAUST PIPE(FOR HEAT INSULATOR) | ||||
| 17541-34020 |
20R,22R..RB11,13..BC |
4 | ||
| 17506 - INSULATOR SUB-ASSY, EXHAUST PIPE HEAT NO.2 | ||||
| 17506-38040 |
20R,22R..RB11,13..BC |
1 | ||
| 17551 - INSULATOR, EXHAUST PIPE HEAT, NO.1 | ||||
| 17551-57010 |
20R,22R..RB11,13..RHD |
1 | ||
| Common parts | ||||
| 91611-40820 | ||||
| 91611-60825 | ||||
| 91621-40825 | ||||
| 91651-40625 | ||||
| 91651-40825 | ||||
| 91661-60825 | ||||
| 94110-40800 | ||||
| 94180-40800 | ||||
| 94614-10800 | ||||
(8205-8408)22R
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90179-06007 | ||||
| 91511-60830 | ||||
| 91511-61035 | ||||
| 91611-60816 | ||||
| 91611-60820 | ||||
| 91651-40820 | ||||
| 91661-60825 | ||||
| 94180-40800 | ||||
| 94180-41000 | ||||
