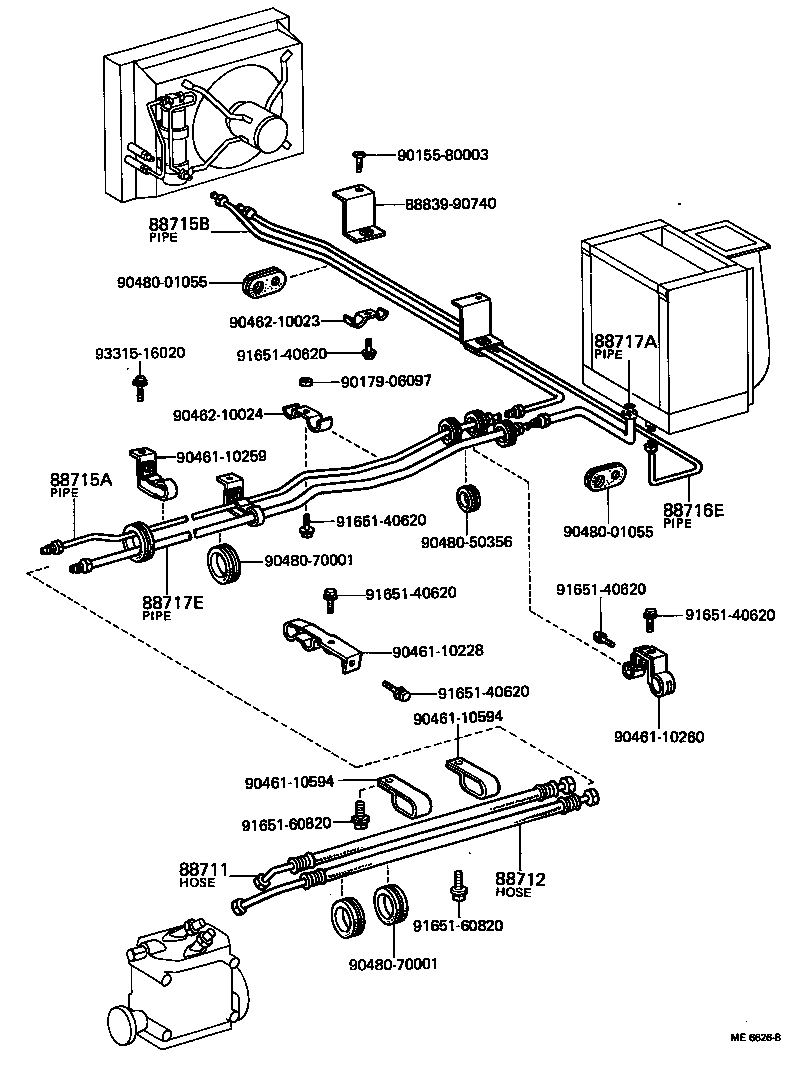

Toyota Coaster RB11 HEATING & AIR CONDITIONING - COOLER PIPING

Part #	Description	Period	Qty
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-36070	BB10,RB11..BC	08/1977 - 07/1978	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-36080	BB10,RB11,13..BC	08/1977 - 10/1980	1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-36040	BB10,RB11..BC	08/1977 - 11/1979	1
88715B - PIPE, COOLER REFRIGERANT DISCHARGE, B
88715-36050	BB10,RB11,13..BC	08/1977 - 04/1982	1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-36100	BB10,RB11,13..BC	08/1977 - 04/1982	1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-36090	BB10,RB11,13..BC	08/1977 - 04/1982	1
88717E - PIPE, COOLER REFRIGERANT SUCTION, E
88717-36080	BB10,RB11..BC	08/1977 - 11/1979	1
Common parts
88839-90740
90155-80003
90179-06097
90461-10228
90461-10259
90461-10260
90461-10594
90462-10023
90462-10024
90480-01055
90480-50356
90480-70001
91651-40620
91651-60820
93315-16020

Part #	Description	Period	Qty

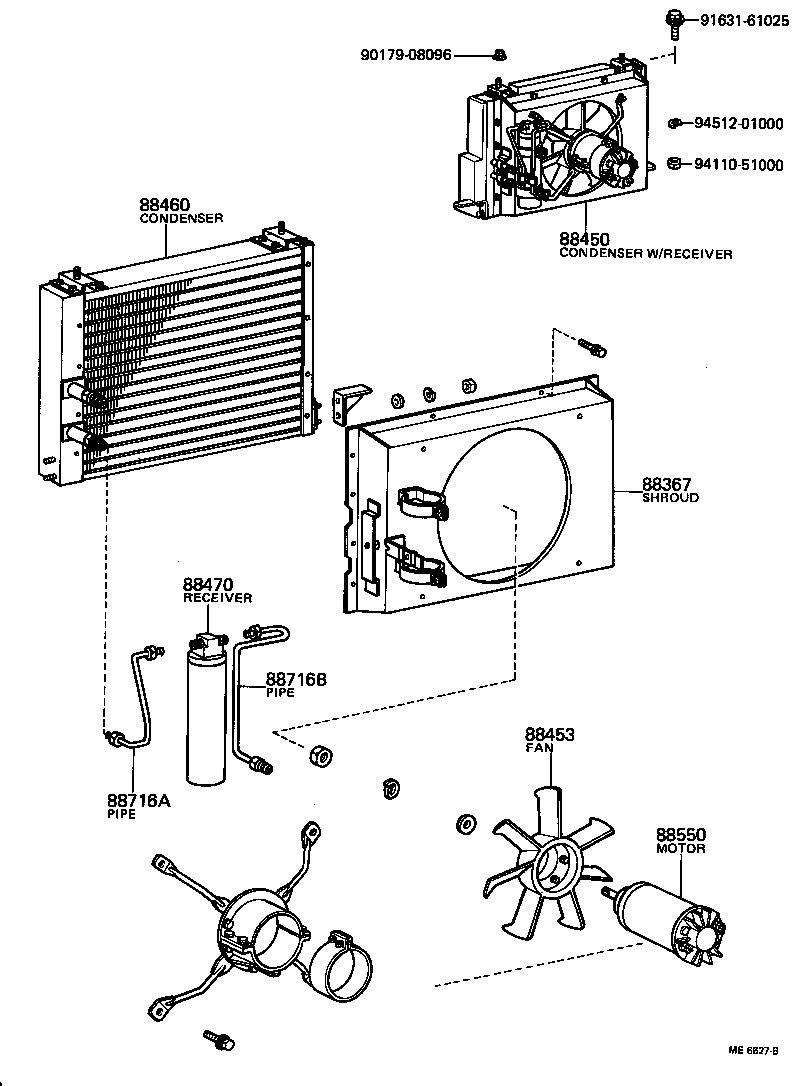

88367 - SHROUD, COOLER BLOWER FAN
88454-36060	BB10,RB11..BC	08/1977 - 02/1978	1
88450 - CONDENSER ASSY, W/RECEIVER
88450-36040	RB11,13..BC	08/1977 - 04/1982	1
88453 - FAN, COOLING (FOR CONDENSER)
88453-36030	BB10,RB11,13..BC	08/1977 - 04/1982	1
88460 - CONDENSER ASSY, COOLER
88340-36050	BB10,RB11,13..BC	08/1977 - 04/1982	1
88470 - RECEIVER & DRYER ASSY, COOLER
88471-30260	BB10,RB11,13..BC	08/1977 - 04/1982	1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-36090	RB11,13..BC	08/1977 - 04/1982	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-36080	BB10,RB11..BC	08/1977 - 02/1978	1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-36090	BB10,RB11..BC	08/1977 - 02/1978	1
Common parts
90179-08096
91631-61025
94110-51000
94512-01000

RB11R-JDZER (1977)
