RB11R-JDZER (1977)
Toyota Coaster
Production
Aug 1977
-
Nov 1979
Engine
20R
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(7708- )

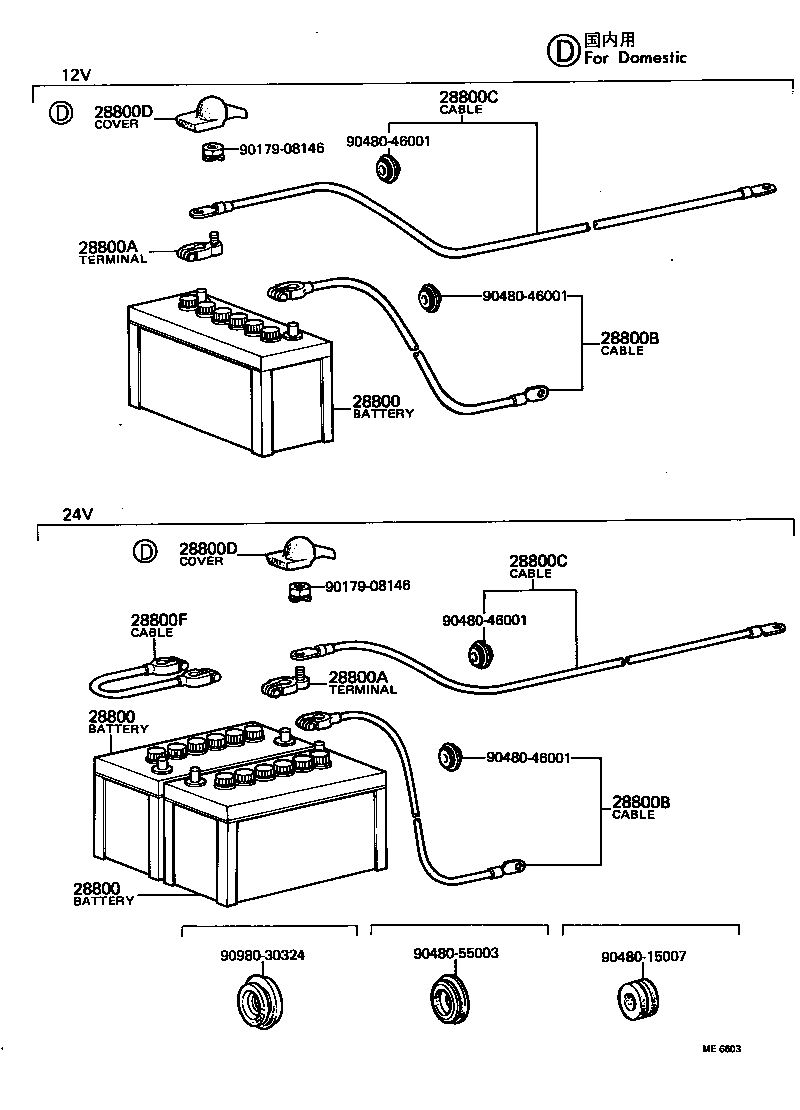

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28800 - BATTERY | ||||
| 28800-30082 |
20R..RB11;2B,5R..BB10,RB10..21S,22S,25S,26S 48D26R,N50 |
2 | ||
| 28800-33111 |
20R,22R,5R..RB1# 55D26R,N50Z |
1 | ||
| 28800 - BATTERY | ||||
| 28800-30082 |
20R..RB11;2B,5R..BB10,RB10..21S,22S,25S,26S 48D26R,N50 |
2 | ||
| 28800-33111 |
20R,22R,5R..RB1# 55D26R,N50Z |
1 | ||
| 28800 - BATTERY | ||||
| 28800-30082 |
20R..RB11;2B,5R..BB10,RB10..21S,22S,25S,26S 48D26R,N50 |
2 | ||
| 28800-33111 |
20R,22R,5R..RB1# 55D26R,N50Z |
1 | ||
| 28800A - TERMINAL, BATTERY POSITIVE | ||||
| 90982-05005 |
20R,22R,2B,5R..BB10,RB1# |
1 | ||
| 28800A - TERMINAL, BATTERY POSITIVE | ||||
| 90982-05005 |
20R,22R,2B,5R..BB10,RB1# |
1 | ||
| 28800B - CABLE, BATTERY TO GROUND | ||||
| 90982-02143 |
20R,22R,5R..RB1# |
1 | ||
| 28800B - CABLE, BATTERY TO GROUND | ||||
| 90982-02143 |
20R,22R,5R..RB1# |
1 | ||
| 28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH) | ||||
| 90982-01242 |
20R,5R..RB1#..RHD |
1 | ||
| 28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH) | ||||
| 90982-01242 |
20R,5R..RB1#..RHD |
1 | ||
| Common parts | ||||
| 90179-08146 | ||||
| 90480-15007 | ||||
| 90480-46001 | ||||
| 90480-55003 | ||||
| 90980-30324 | ||||
